Free delivery mini wheel loader China diesel wheel loader made in China

Product Overview

Description

The features of ZL15

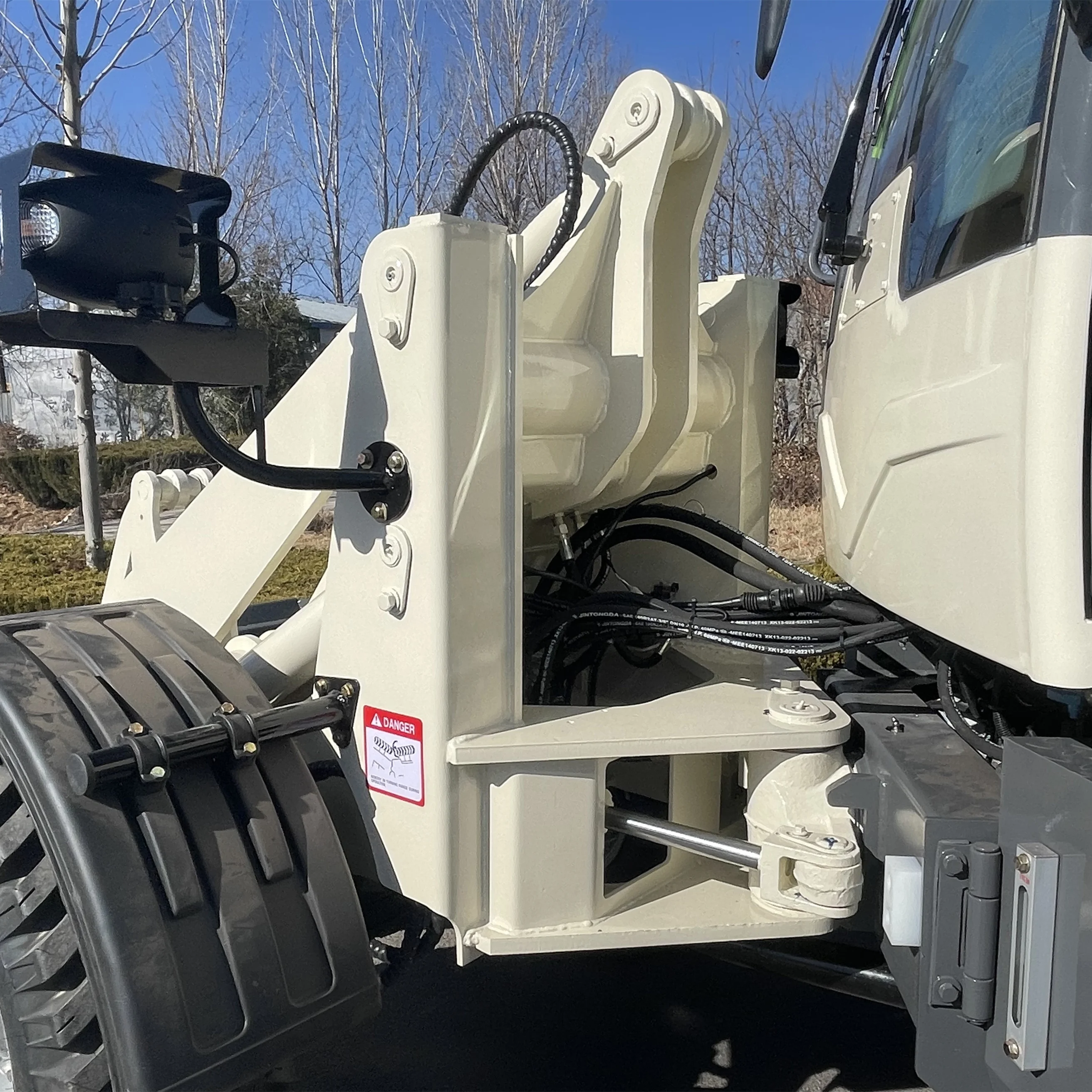

a)The special part is the middle hinge joint to get a special way of swinging, So it has special functions, good passability and adapt to poor terrain to no any influence for the whole frame.

b)The distance is longer compare with other companies from middle hinge point to the middle of front wheel center, so more stable and lifting heavier.

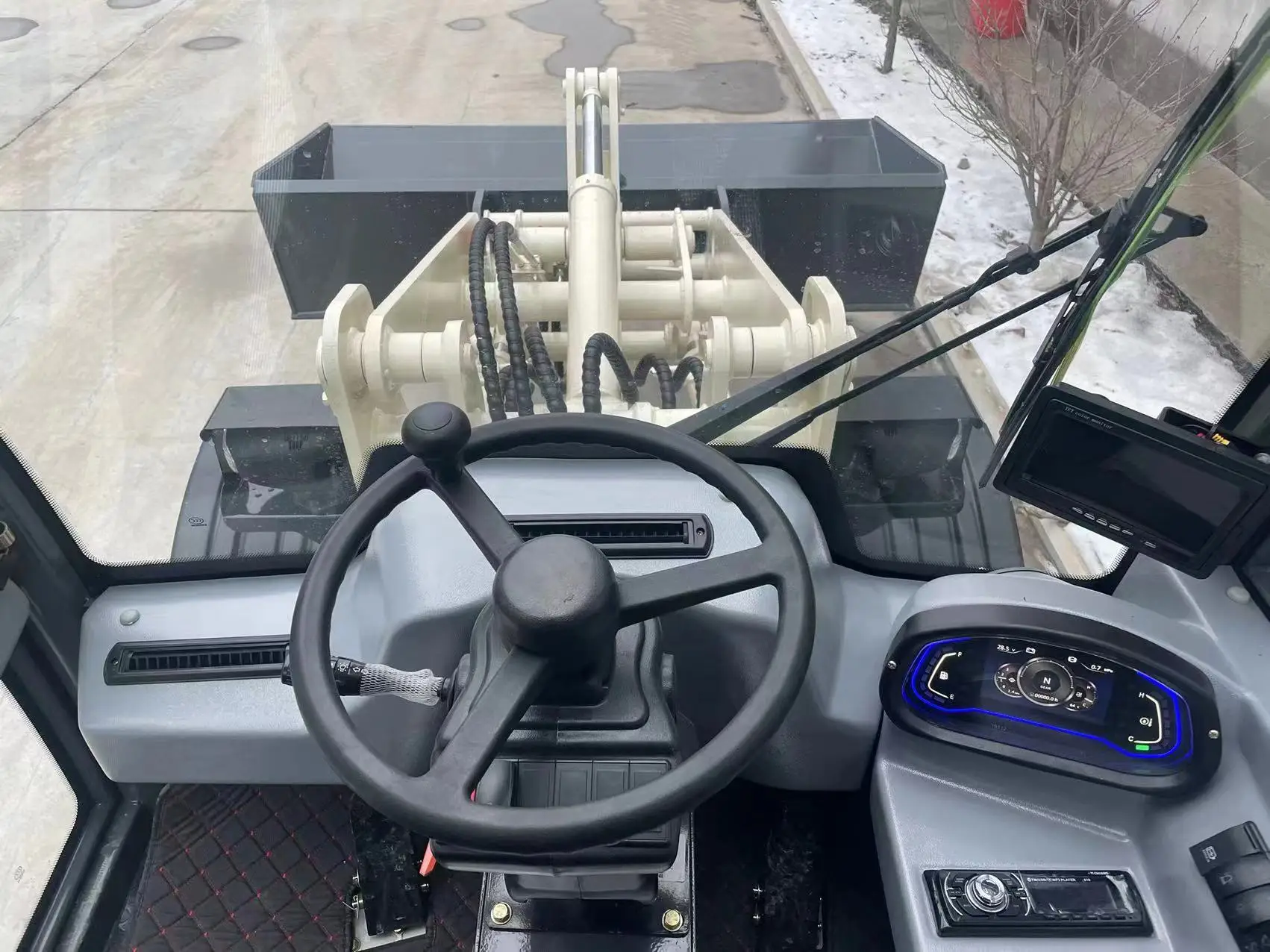

c)Special cabin only belong to our company, we designed it according to our experience that exported more 15 years to Europe market, more bigger and more width to get more better view when sit inside cabin.

d)The turning radius is the smallest compared with peers, and the turning is the most flexible.

Main Specification for ZL15
Model	ZL15
Rated load(kg)	1500
Bucket capacity(m3)	0.8
Wheel distance(mm)	2000
Axle-base(mm)	2050
Loader clearance radius(mm)	4600
Mini base to the ground(mm)	310
Dump clearance(mm)	2700
Distance acc.to the height(mm)	900
Time of raise(s)	4
Hydraulic cycle time(s)	8.5
Turns to pick the strength mose greatly(kn)	45
Drive ways	four are drive
Torque Converter Model	YJ280
Gear Shift	2 forward & 2 reverse shift 4 forward & 4 reverse shift
Tyre size	15.5/60-18
Operating weight(kg)	4,000
Overall dimensions(mm)	5000*1700*2550
Engine model	Xinchai euro-3,Yunnei Euro-5
Engine Type	Four strokes, Water cooling, Inline, injecting combustion chamber
Cylinder No.-Bore*Stroke(mm)	4-102*115
Engine rated power(kw)	45KW
Engine rated output(rpm)	2500
