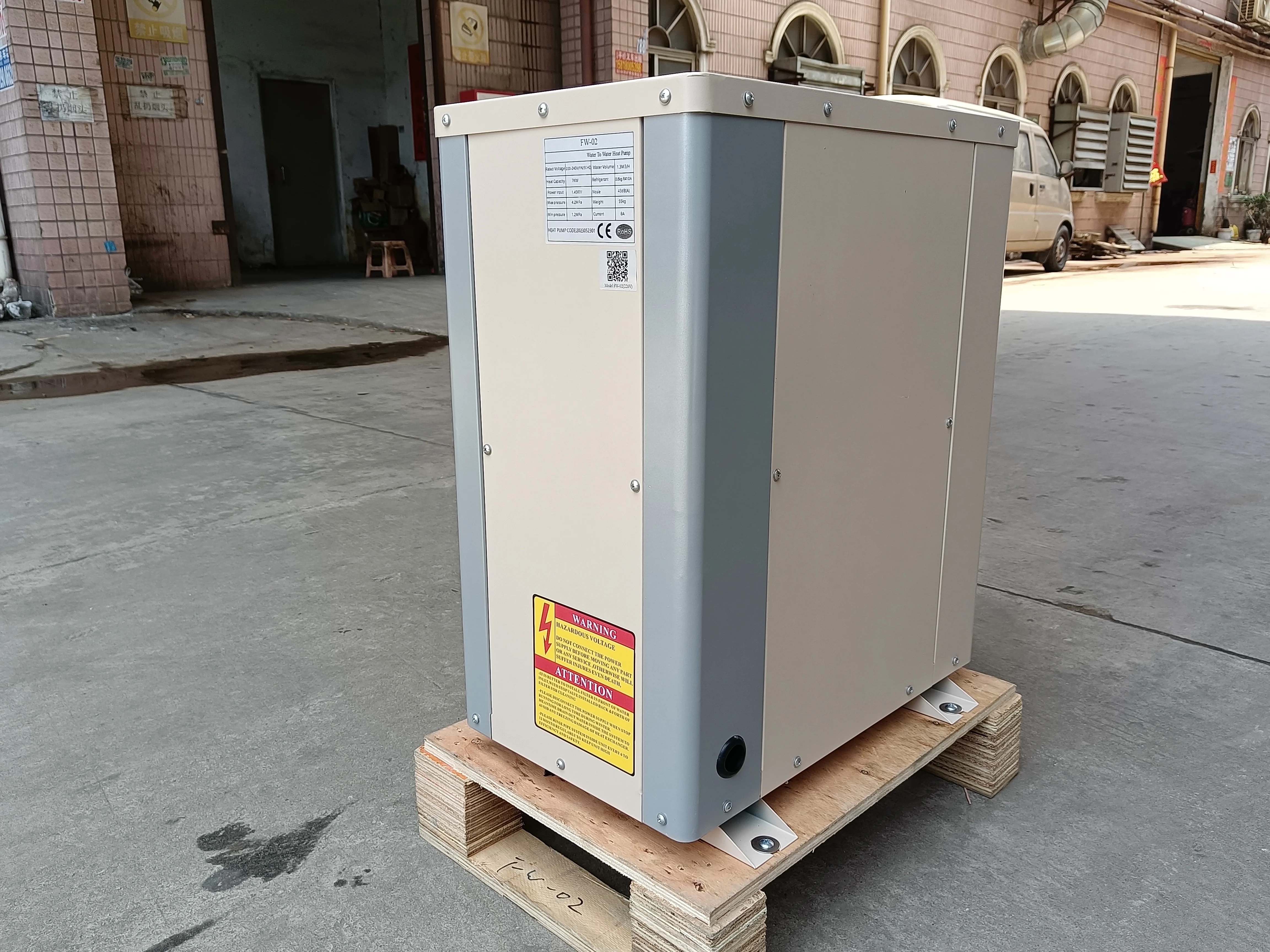

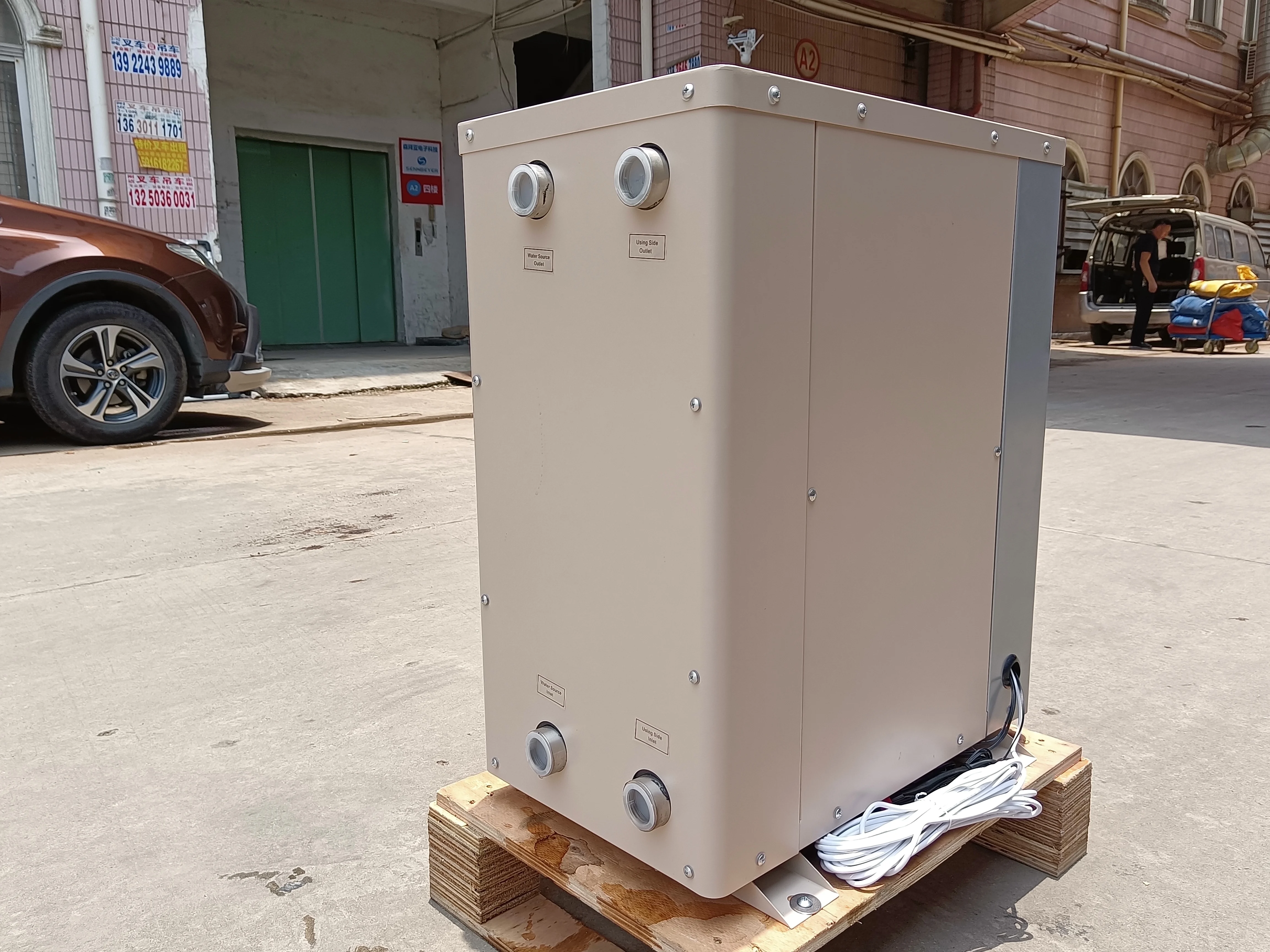

Folansi FW 02 7kw Water source heat pump model

Product Overview

Description

Name: Geothermal heat pump/Water to water heat pump(Heating and hot water) price list
Model			Unit	FW-02
Unit function	Rated heating capacity		kw	7
			BTU	23891
	Hot water supply		T/h	0.15
	Rated input power		kw	1.45
	Rated heaing input current		A	8
	COP			4.83
	Max running current		A	10
	Power		V/Ph/Hz	220-240V  50HZ 60HZ
	Noise		dB(A)	38
	Dimension	Width	mm	530
		Deepth	mm	390
		Height	mm	670
	Weight		kg	65
	Throttle typ			Electronic expansion valves/thermal expansion valves
	Refrigerate			R410A,R32
	Max outlet water temp			60℃
Circulation structure	Compressor	Type		panasonic
		Qty		1
		Locked-rotor current	A	60
		Security protect functions		Built-in protection device overheating protection, sequence protection, undervoltage protection, delay protect
	Water source side heat exchange	Type		Efficient tube in shell heat exchanger plate heat exchange
		Water flow	m3/h	1.3
		Water pressure down	kPa	9
		Pipe size	Inch	0.75
	Hot water side heat exchange	Type		Efficient tube in shell heat exchanger  plate heat exchange
		Water flow	m3/h	1.2
		Water pressure down	kPa	9
		Pipe size	DN	0.75
	Circulate water pump			NO
	Water flow switch			NO
