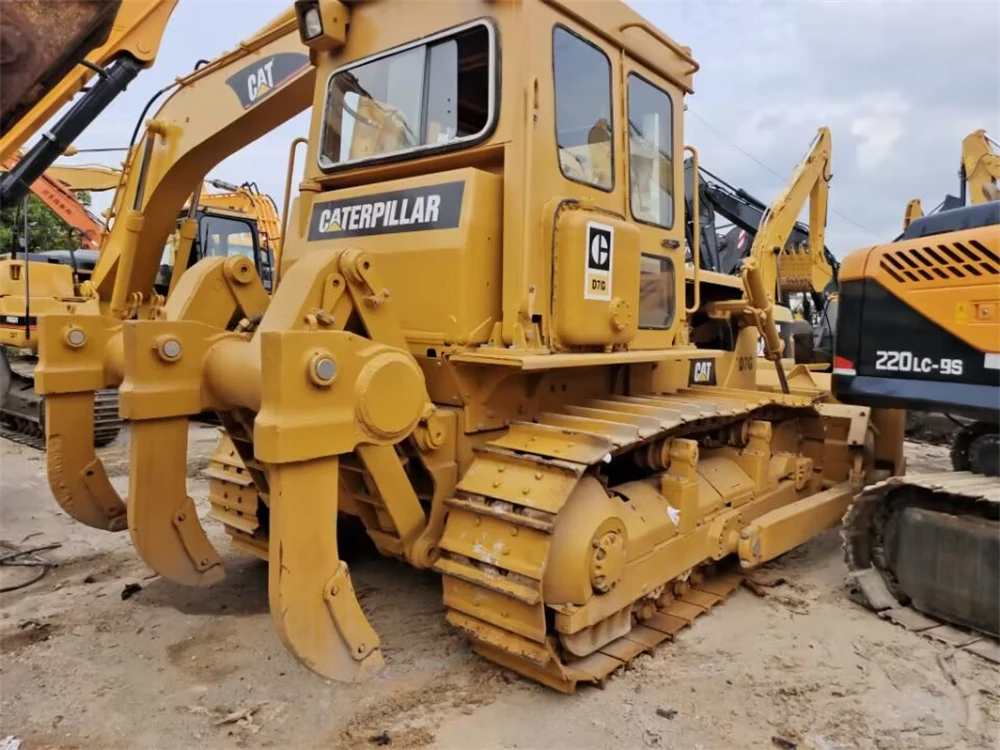

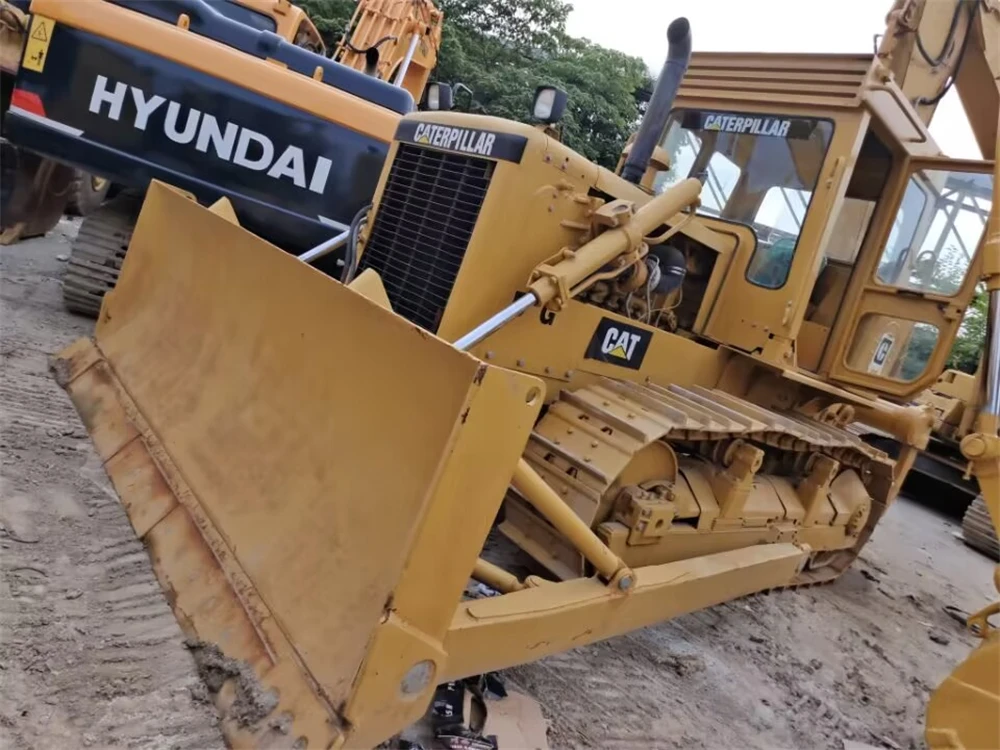

Cheap Used CAT Bulldozer D7h D8k Cat D7h D7g D8r D9n D9r dozer For Sale

Product Overview

Description



Technical parameters of Caterpillar D7G series Type 2 tracked bulldozer

engine

Flywheel power

202 hp

Maximum flywheel power

220 hp

Net power - Caterpillar

202 hp

Net power - ISO 9249

202 hp

Net power - SAE J1349

202 hp

Net power - EU 80/1269

202 hp

Cylinder diameter

4.75 in

stroke

6 inches

displacement

638 in3

weight

Working weight

45381 lb

Shipping weight

34510 lb

Bulldozer shovel

Capacity of Half U-shaped Blade

7.53 yd3

Capacity of S-shaped shovel

5.5 yd3

The capacity of the A blade

3.8 yd3

Engine - XL/XW/LGP

Transmission

Forward 1.0 gear

2.3 mph

Forward 2.0 gear

4 mph

Forward 3.0 gear

6.2 mph

Reverse 1.0 gear

2.8 mph

Reverse 2.0 gear

4.9 mph

Reverse 3.0 gear

7.9 mph

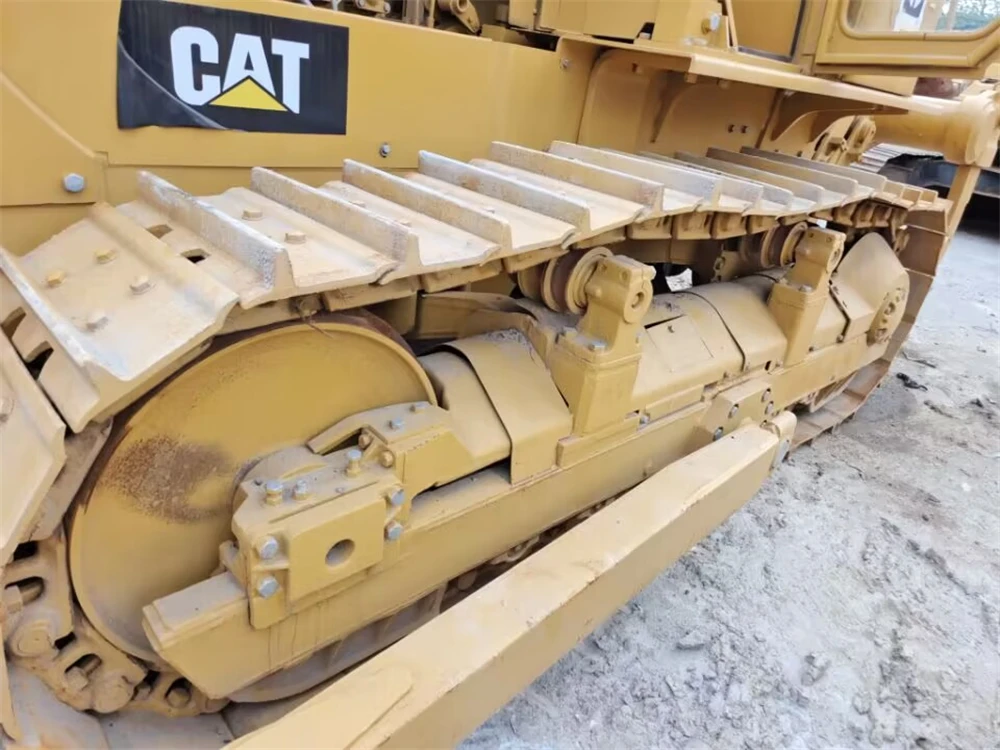

Walking device

Track shoe type

Medium speed driving (single grip)

Track shoe width

22 in

Track shoe width - optional

20 in

Track shoes/each side

thirty-eight

Grip tooth height

2.7 in

Grounding track

107 in

Grounding area

4708 in 2

Ground pressure

10.59 psi

Maintenance refill capacity

tank

110 gal

Cooling system

11.2 gal

Engine crankcase

7.3 gal

Final drive (on each side)

9 gal

Hydraulic oil tank

27 gal

Transmission, bevel gear and steering clutch chamber, torque converter

18.5 gal

Maximum working pressure hydraulic control mechanism

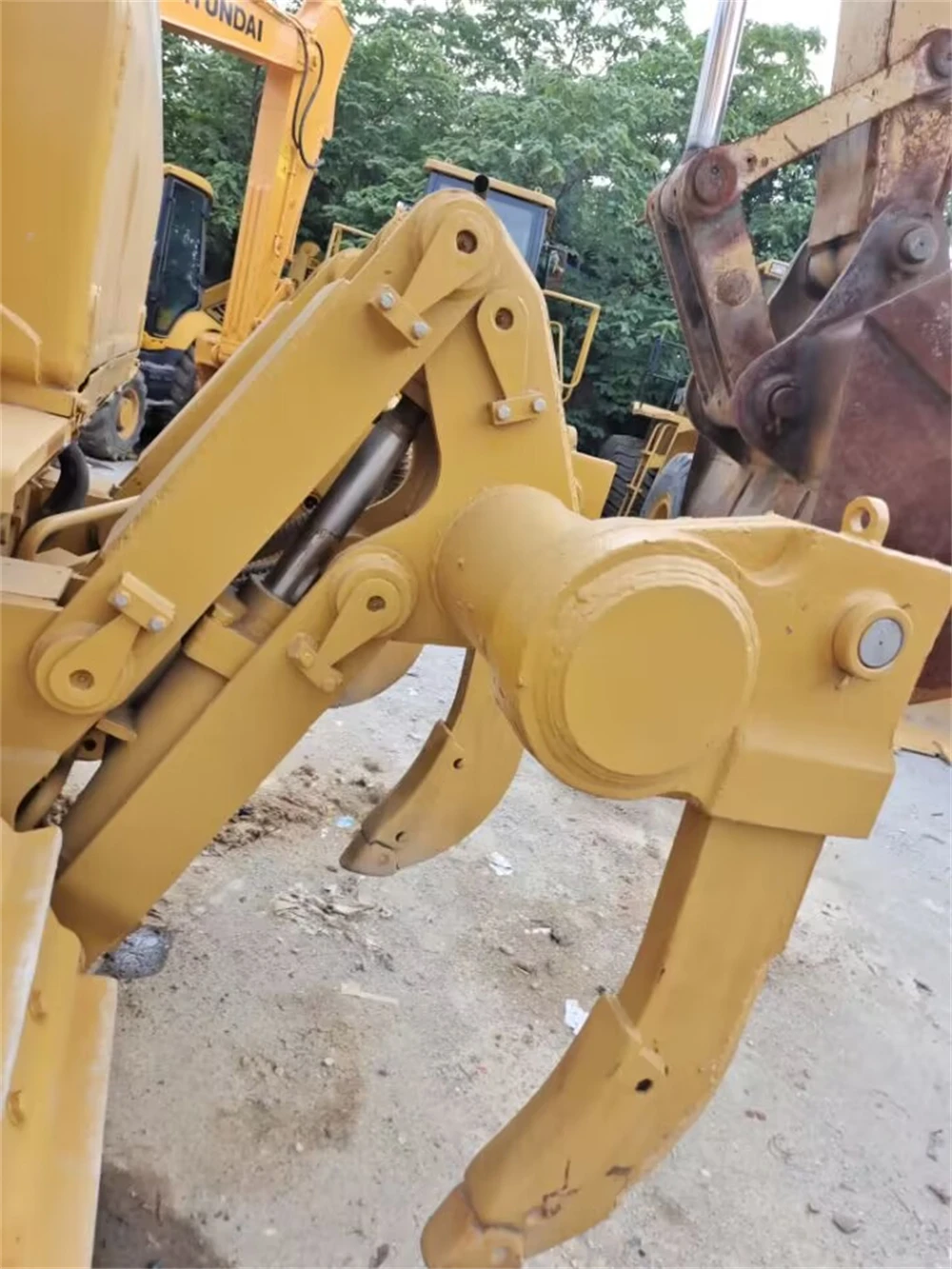

Ripper

type

Fixed parallel connecting rod

Number of gear sleeves

three

Total width of crossbeam

87 in

Maximum lifting clearance (below the tooth tip, fixed with a fixed pin on the bottom pin hole)

19 in

Maximum penetration force

20 in

Transmission system

Technical specifications of winch

Pump hydraulic control mechanism

Main safety valve setting hydraulic control mechanism

size

Ground clearance

13.74 in

track gauge

77.99 in

Width without blade installed

100.79 in

height

10.81 ft

The height of the rollover protection structure/roof

10.81 ft

Total length of basic configuration bulldozer (with drawbar)

13.78 ft
