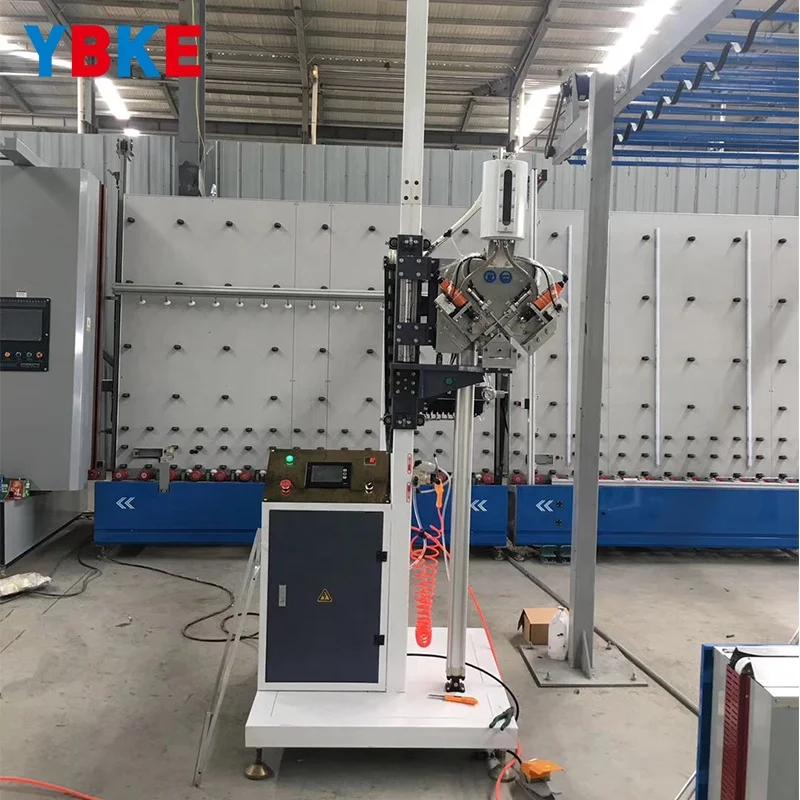

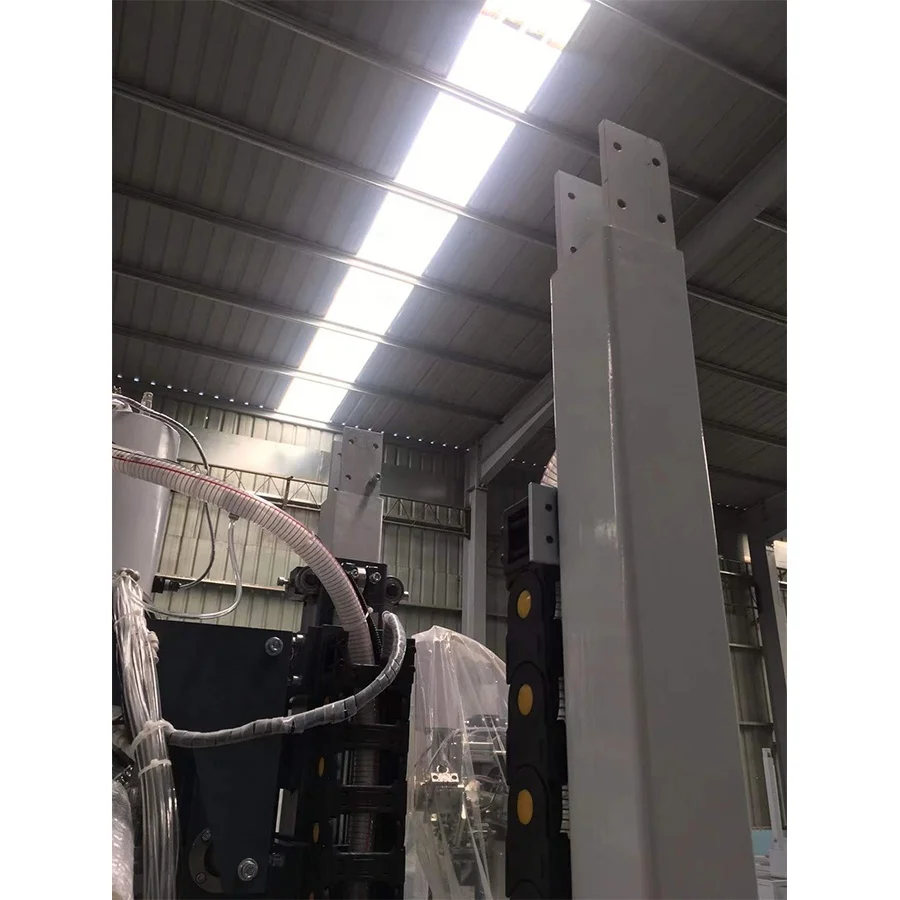

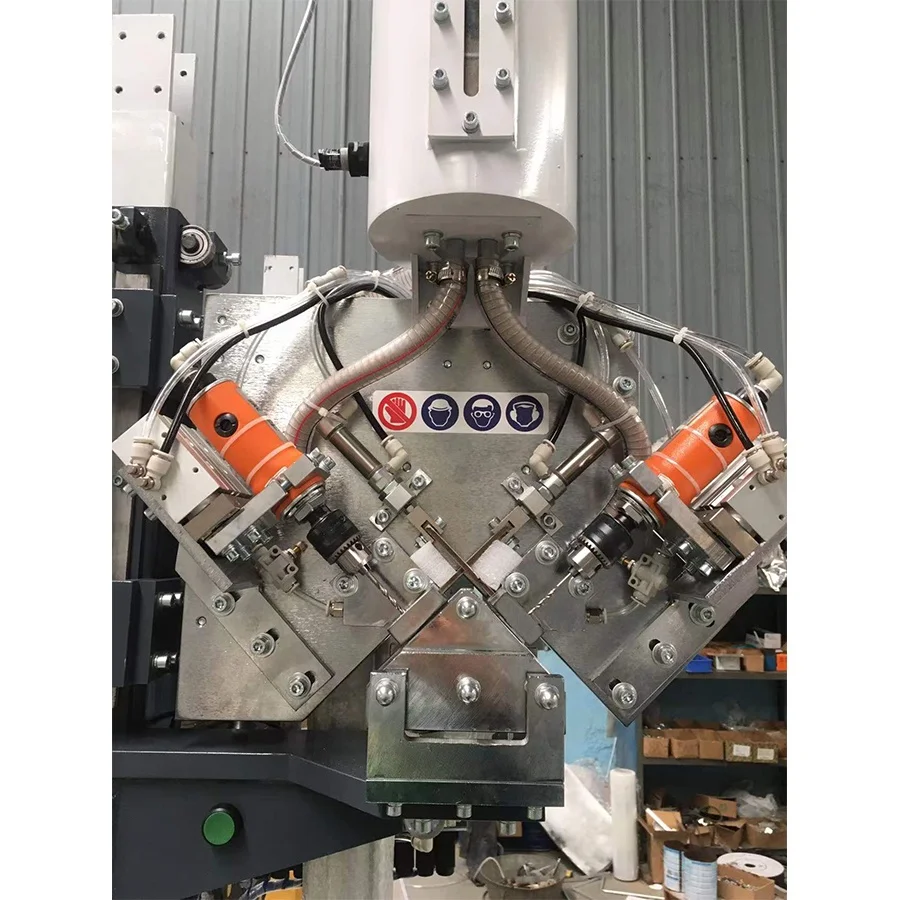

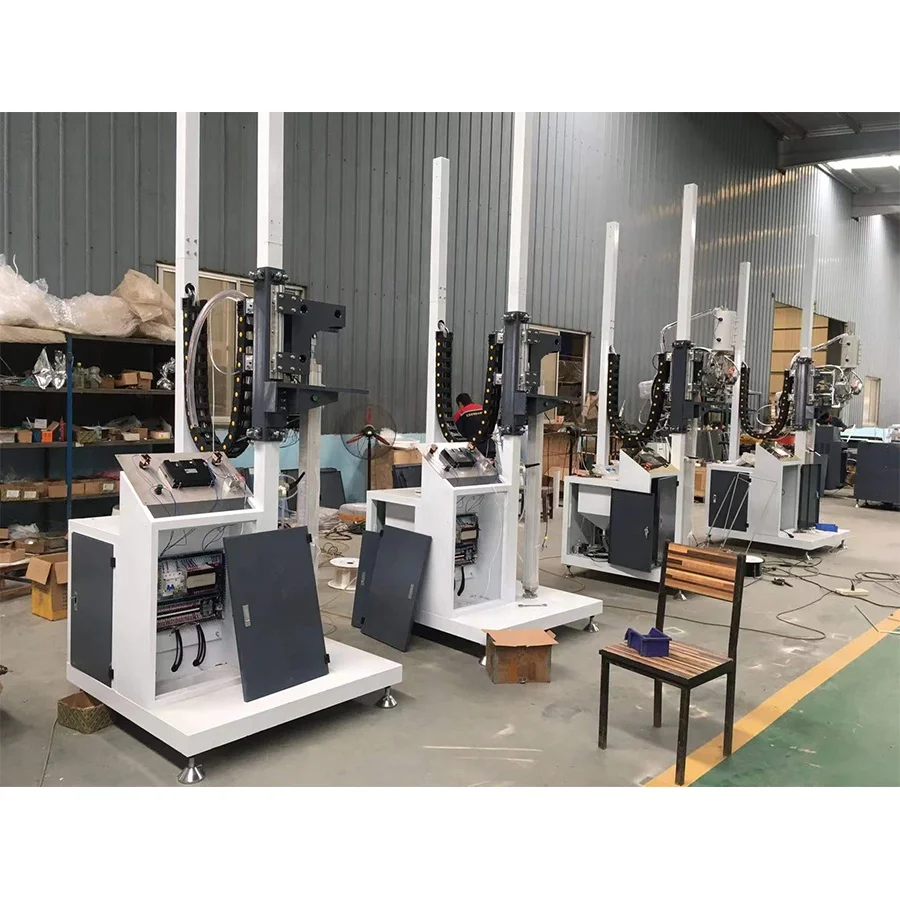

insulating glass machinery automatic double glazed glass desiccant filling machine
- Category: >>>
- Supplier: Jinan Ybke Machinery Co. Ltd.
Share on (1601080656263):
Product Overview
Description
Technical Data | ||
Work pressure | 0.5-0.8 MPa | |
Work power | 220 V; 50 HZ | |
Flow control | 24 g/s | |
Filling speed | 8-12 s/piece（1 m*1 m） | |
Desiccant diameter scope | 0.5-0.8 mm | |
Min. aluminum spacer | 6.5 mm*5.5 mm | |
Max. aluminum spacer | 6.5 mm*23.5 mm | |
Weight | 400 kg | |
Dimension | 1500*850*3650 mm | |
Main features
1.The PLC touch screen man-machine interface control system, make the operation simple and convenient.

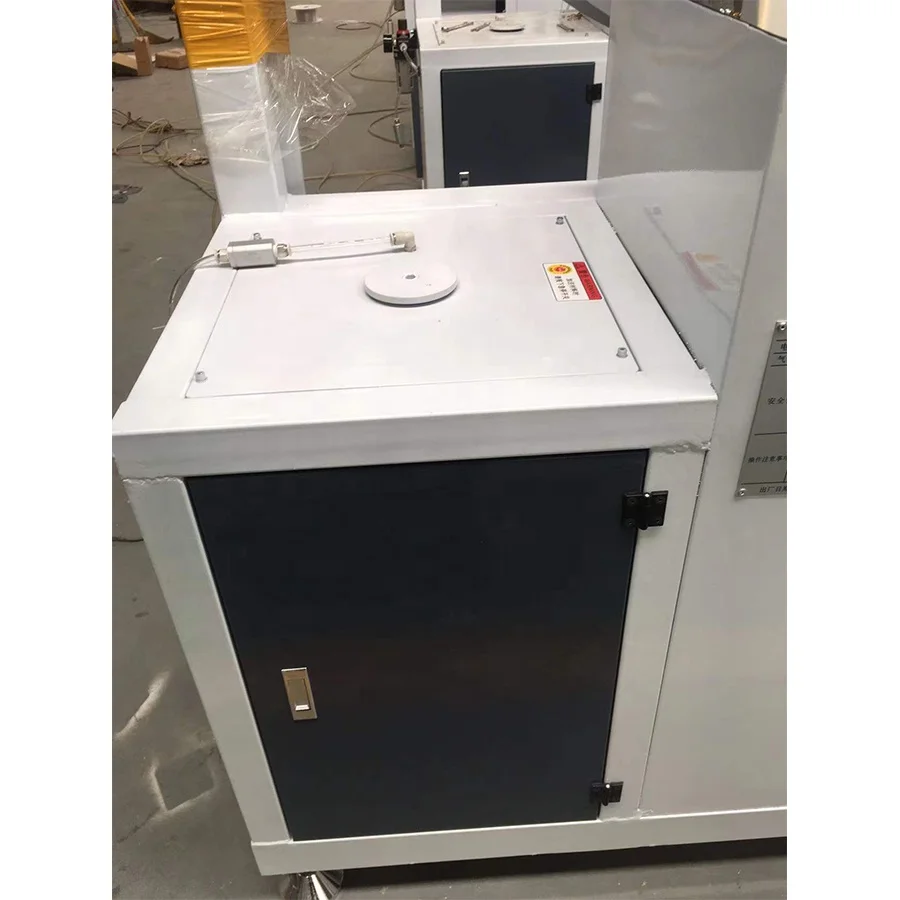

2.The unique advanced feeding device, automatic filling material.

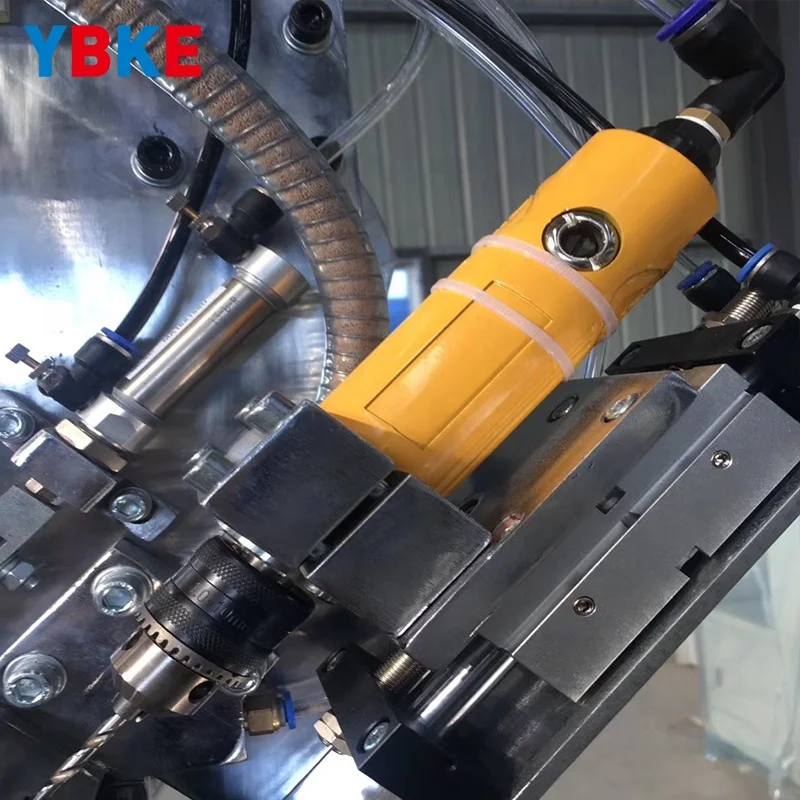

3.The aluminium middle punch, automatic filling and sealing glue.
4.The core control adopts imported brand.
5.The filling height can be adjusted according to the aluminum frame size.

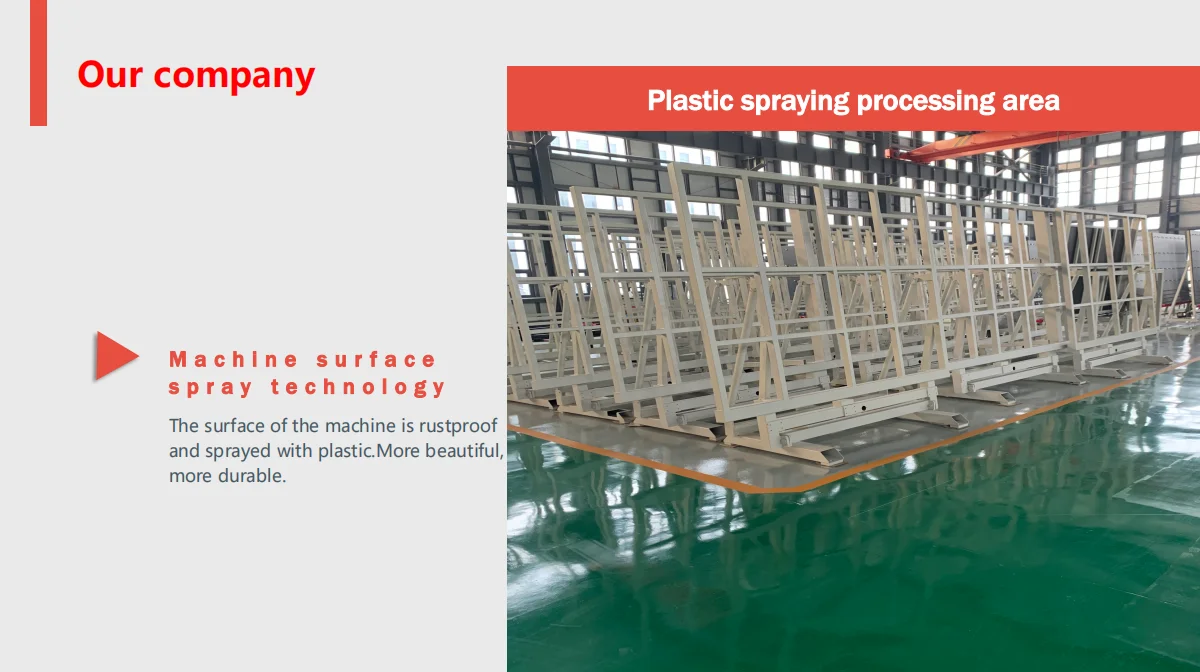

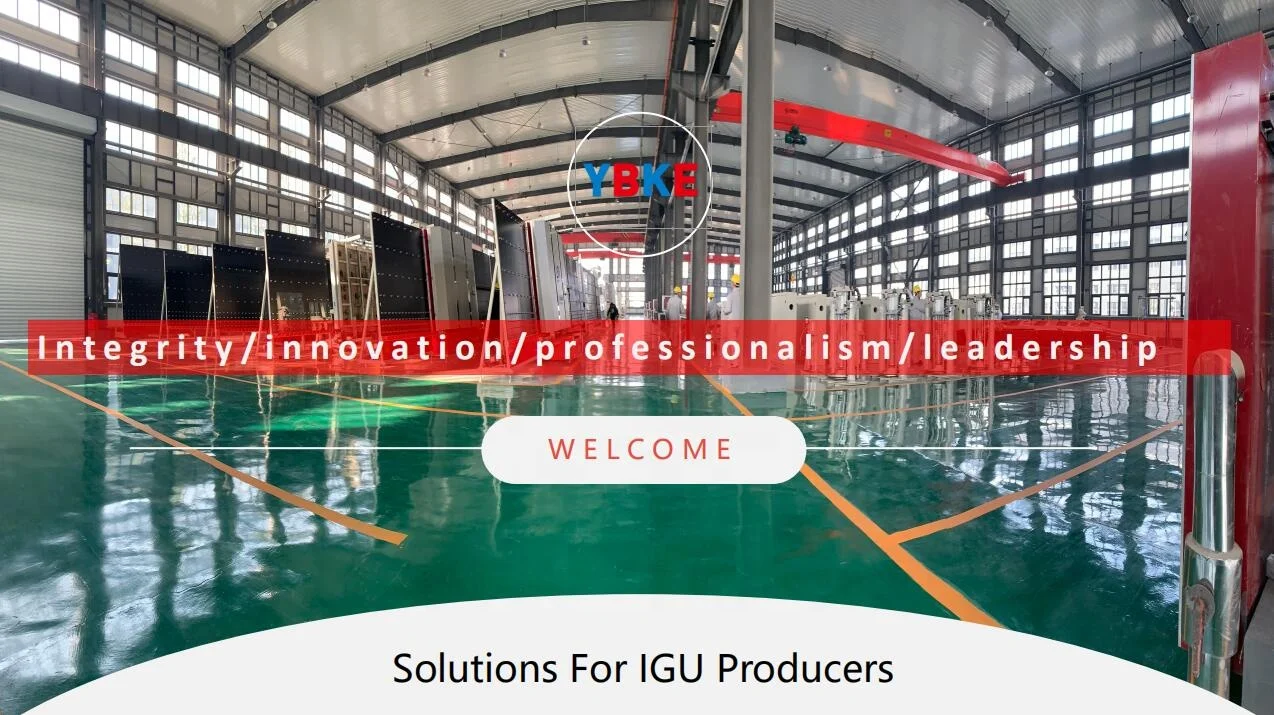

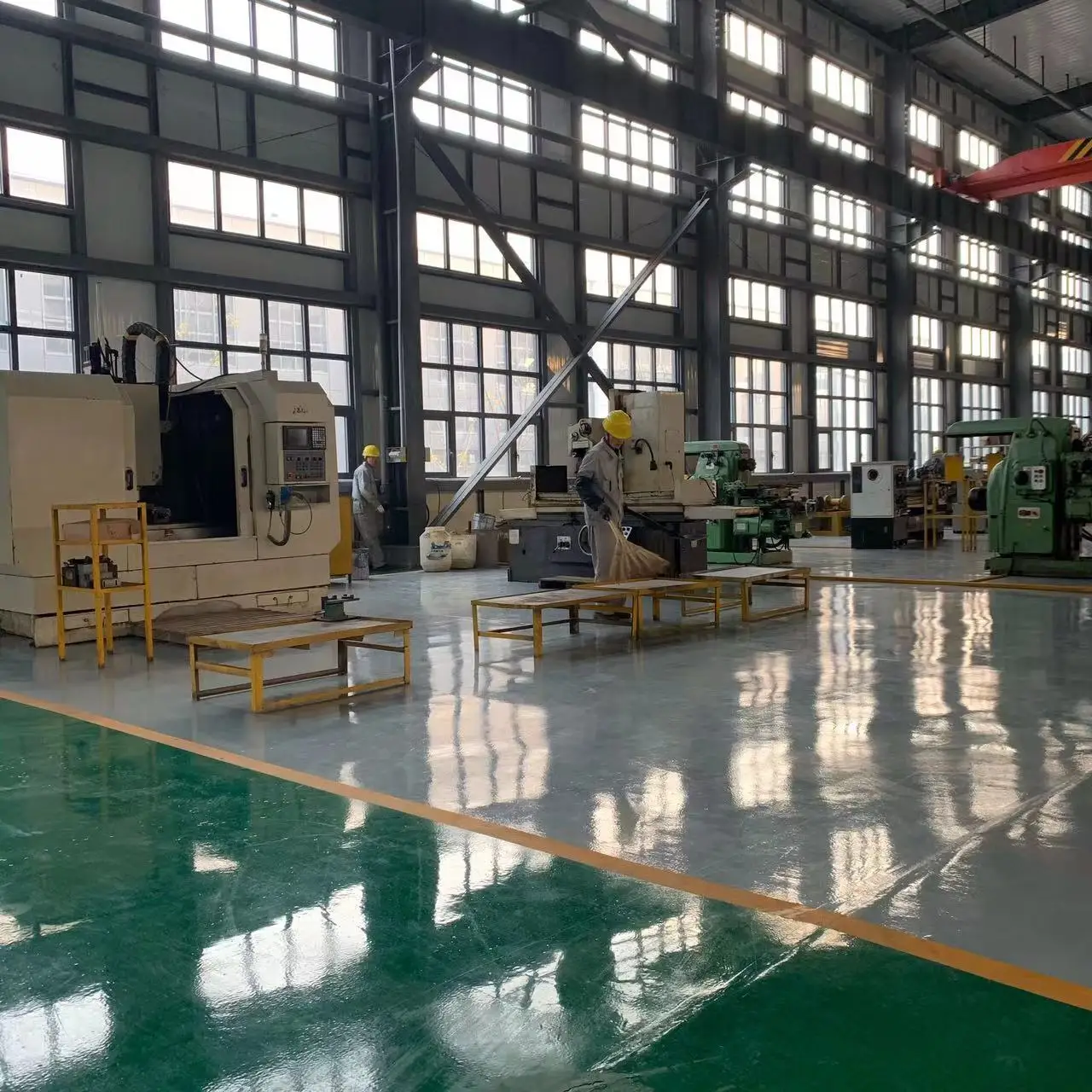

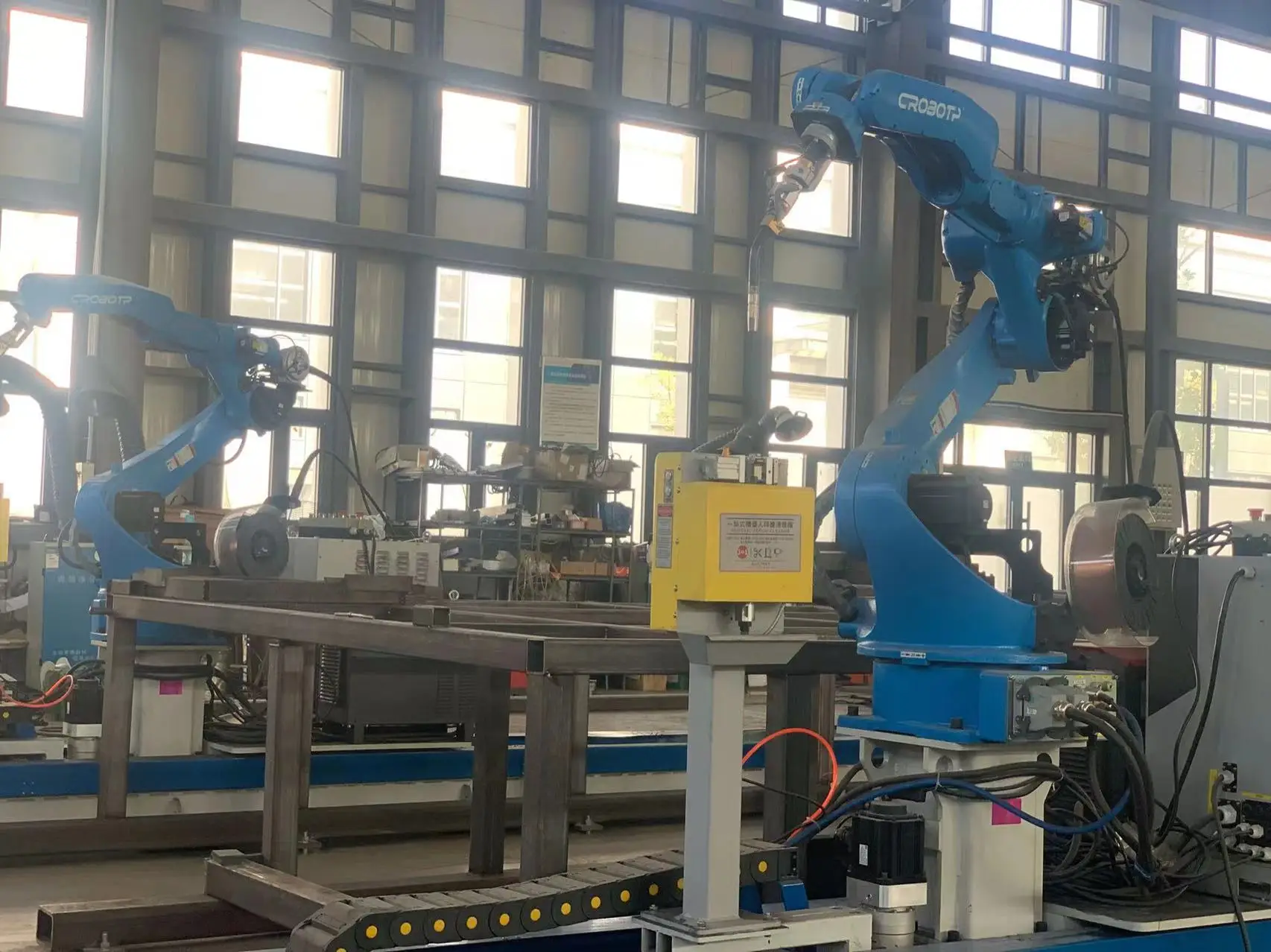

Company Information
Jinan YBKE Machinery Co.,Ltd is a professional manufacturer in the field of insulating glass and window-door processing equipment since 2008 in China. We focus on research and development, production and sales, broke through one after another technical problem on the way to success. We manufacture to control each machine quality from raw material to final machine. As a result, it has been well received by more than 50 countries from Europe, North America, Latin America, Middle East and Asian and has always maintained a good cooperative relationship. Every machine could be customized to meet your special requirement. We are committed to becoming the best supplier in China, whether it is service or product.
Exhibition
Our Services
PRE-SALES:
Free consultation; Patiently answer customer questions; Give reasonable suggestions according to customer conditions.
AFTER-SALES:
* Track production progress, deliver on time, strictly inspect before leaving the factory to ensure product quality;
* Charter and book space, arrange delivery smoothly, prepare customs clearance documents, and assist customers in import customs clearance;
* Prepare equipment installation manuals and videos, after the equipment arrives, build the wechat group to help customers install and operate online.
* If customers need on-site service, we have professional engineers who can go to the customer's site to guide installation
operations and staff training.
Free consultation; Patiently answer customer questions; Give reasonable suggestions according to customer conditions.
AFTER-SALES:
* Track production progress, deliver on time, strictly inspect before leaving the factory to ensure product quality;
* Charter and book space, arrange delivery smoothly, prepare customs clearance documents, and assist customers in import customs clearance;
* Prepare equipment installation manuals and videos, after the equipment arrives, build the wechat group to help customers install and operate online.
* If customers need on-site service, we have professional engineers who can go to the customer's site to guide installation
operations and staff training.

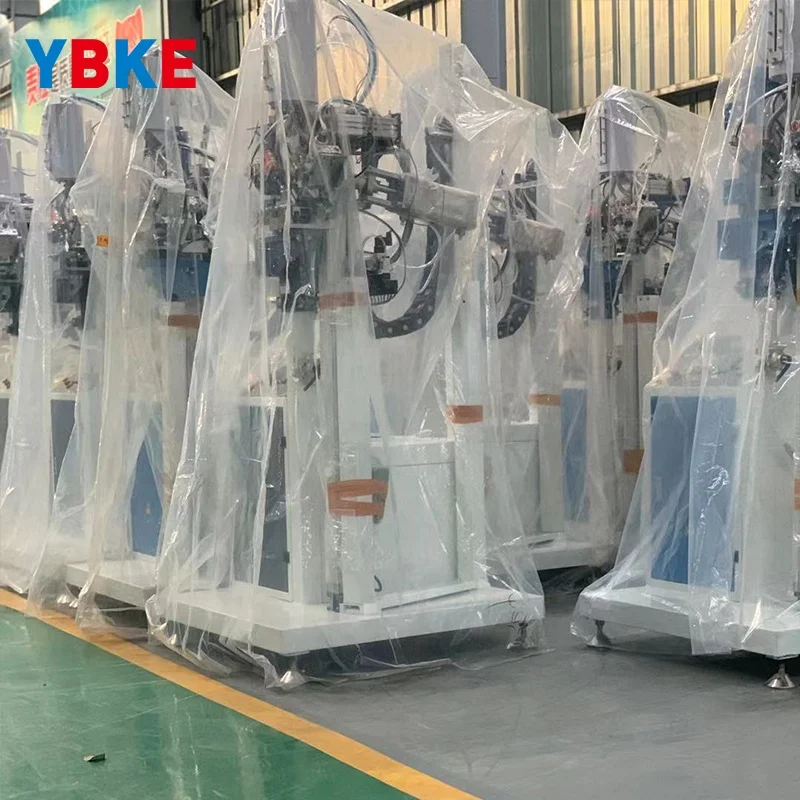

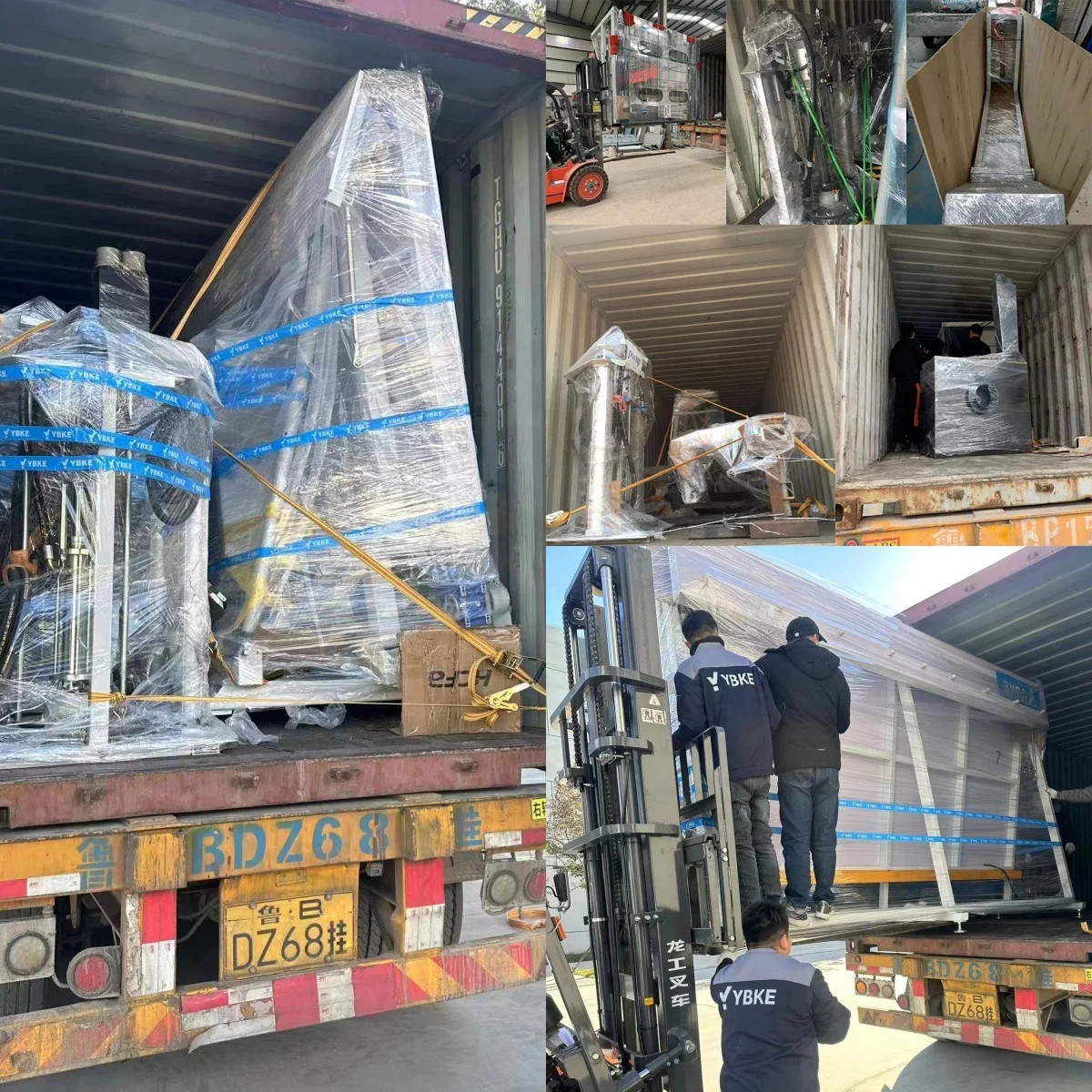

Product packaging
PACKING:
1.For full container load, usually wrapped in stretch films.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed or standard export plywood case.
DELIVERY:
* Small and few machines: in 5-10 days after receiving pre-payment.
* Big or many machines: more than 25 days after receiving pre-payment.
1.For full container load, usually wrapped in stretch films.
2.For open top container load, put on top grade plastic overcoat and tarpaulin to protect the equipment from moisture and water.
3.For less than container load, iron frame fixed or standard export plywood case.
DELIVERY:
* Small and few machines: in 5-10 days after receiving pre-payment.
* Big or many machines: more than 25 days after receiving pre-payment.
Customer Photos
FAQ
Q1: HOW TO ENSURE PRODUCT QUALITY??
A1: 1).We have machining center, parts and components are produced by ourselves to ensure the precision.
2).Before the machine leaves our factory, we will only ship the machines after debugging and strictly test.
3).Imported electric components, extend the service life.
4).Main electric component is with 2 years warranty.
5).The after-sale service shall be lifelong responsibility system.
Q2: IF OUR PRICE IS HIGHER THAN ANOTHER COMPANY OR FACTORY??
A2: Please check the difference of the machine of parts ,service and guarantee, especially the machine inner electric parts,
sometimes, if the machine have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
Q3: HOW TO INSTALL OUR MACHINES??
A3: We record the installation and debugging videos and will send you all the circuit diagrams. And we can send the professional engineers to the site to conduct installation and training.We also establish an after-sale service group of only your company after the machines arrives.
Q4: WHAT CAN YOU DO IF MY MACHINES HAVE PROBLEMS??
A4: 1) We can send you free components if your machines are in guarantee time.
2) We can send our engineers to repair your machines.
Q5: WHAT FREE ACCESSORIES OR DISCOUNT CAN I GET IF ORDER NOW??
A5: Message Linda for more details!
A1: 1).We have machining center, parts and components are produced by ourselves to ensure the precision.
2).Before the machine leaves our factory, we will only ship the machines after debugging and strictly test.
3).Imported electric components, extend the service life.
4).Main electric component is with 2 years warranty.
5).The after-sale service shall be lifelong responsibility system.
Q2: IF OUR PRICE IS HIGHER THAN ANOTHER COMPANY OR FACTORY??
A2: Please check the difference of the machine of parts ,service and guarantee, especially the machine inner electric parts,
sometimes, if the machine have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
Q3: HOW TO INSTALL OUR MACHINES??
A3: We record the installation and debugging videos and will send you all the circuit diagrams. And we can send the professional engineers to the site to conduct installation and training.We also establish an after-sale service group of only your company after the machines arrives.
Q4: WHAT CAN YOU DO IF MY MACHINES HAVE PROBLEMS??
A4: 1) We can send you free components if your machines are in guarantee time.
2) We can send our engineers to repair your machines.
Q5: WHAT FREE ACCESSORIES OR DISCOUNT CAN I GET IF ORDER NOW??
A5: Message Linda for more details!
