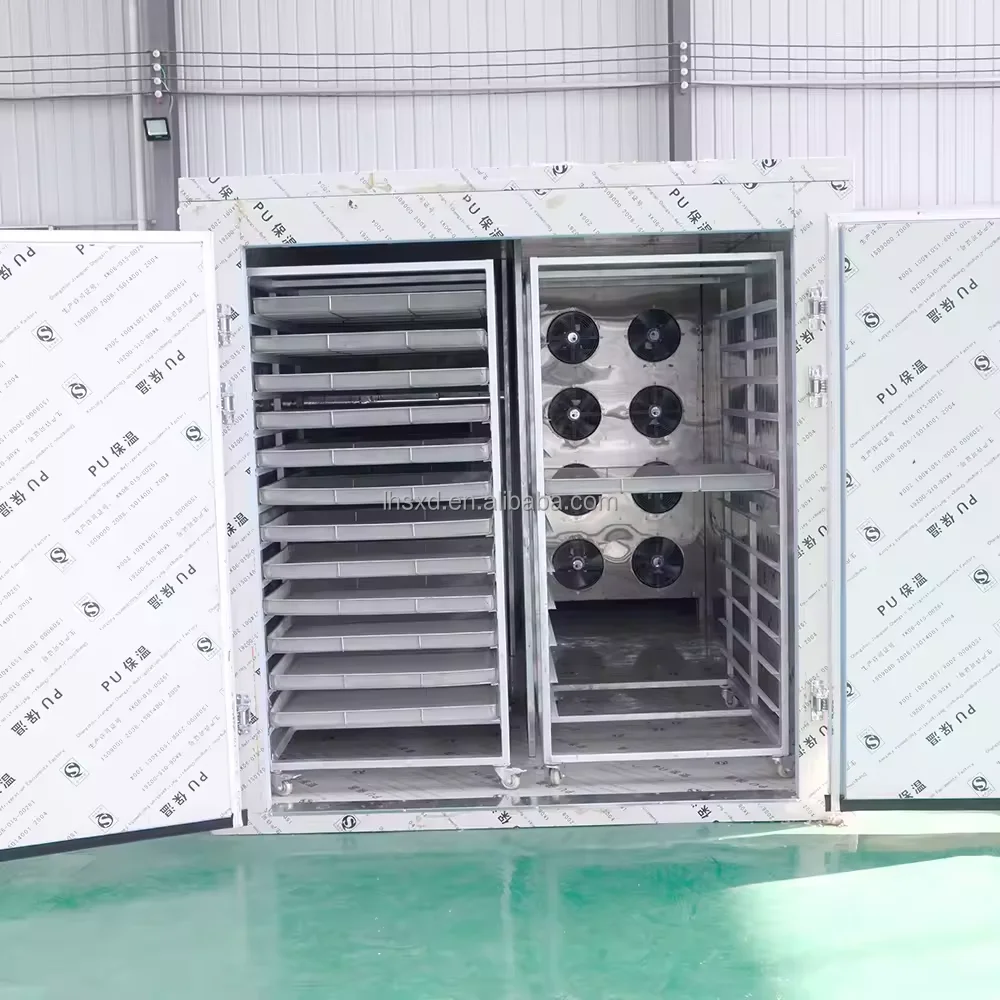

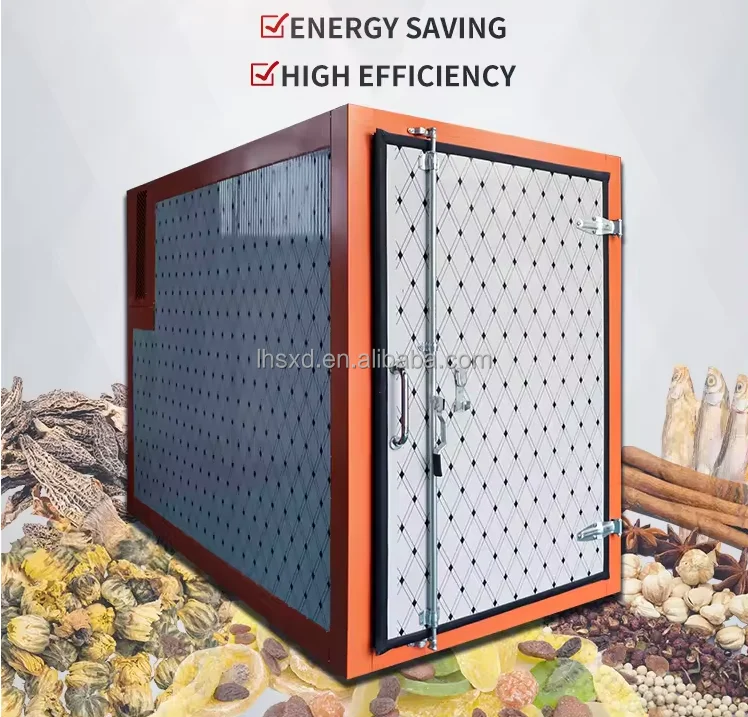

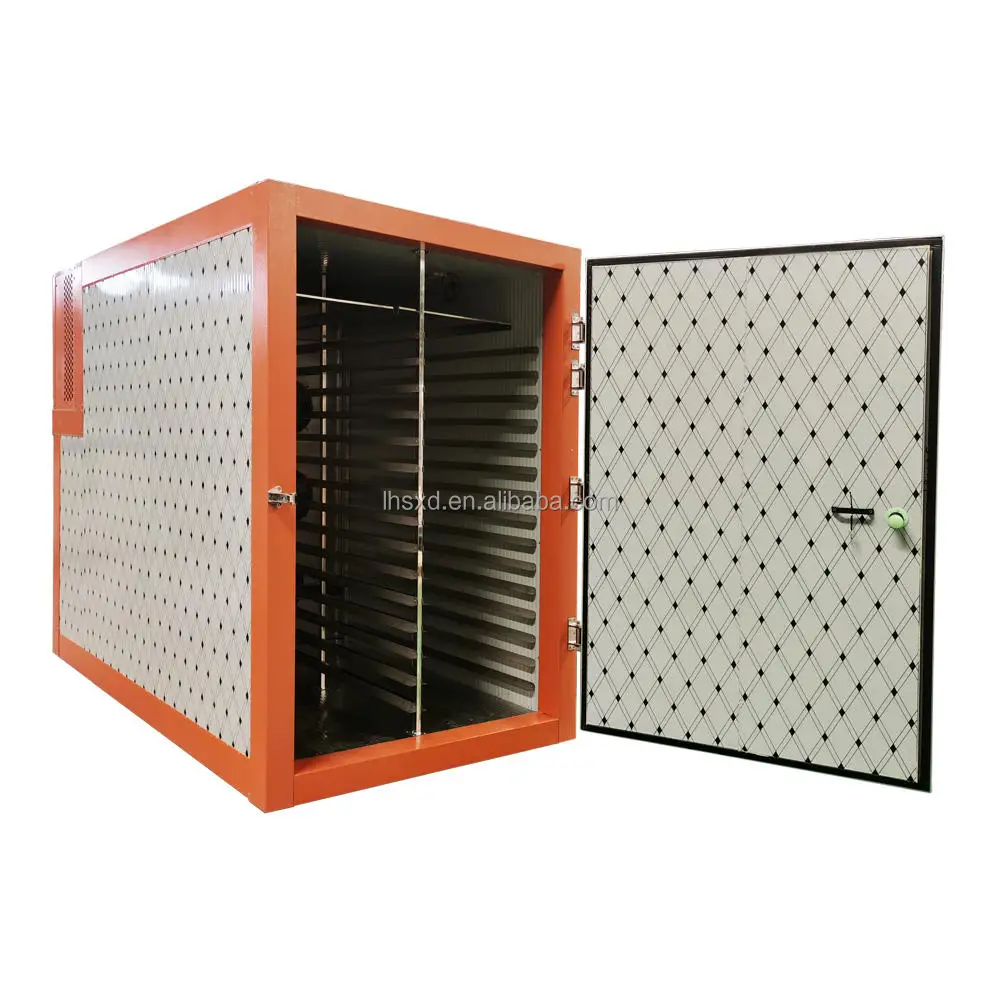

Efficient and energy saving fruit and vegetable dryer
- Category: >>>
- Supplier: Luohe Xingdian Electromechanical Equipment Co. Ltd.
Share on (1601080722329):
Product Overview
Description
Product Overview
Fruit and Vegetable best new model high quality

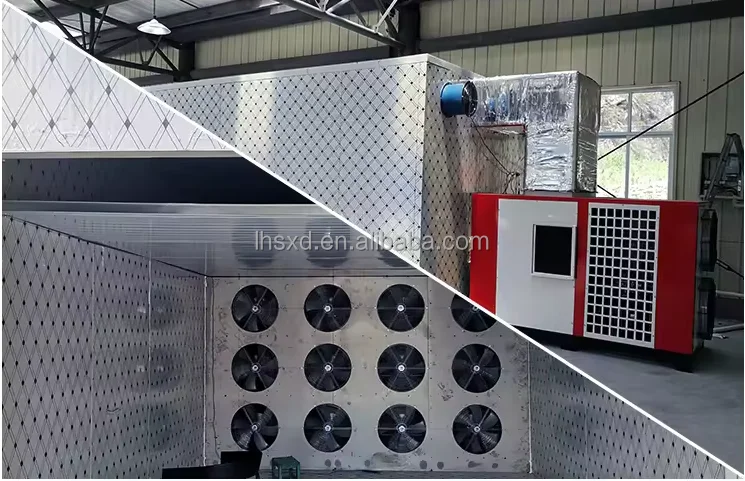

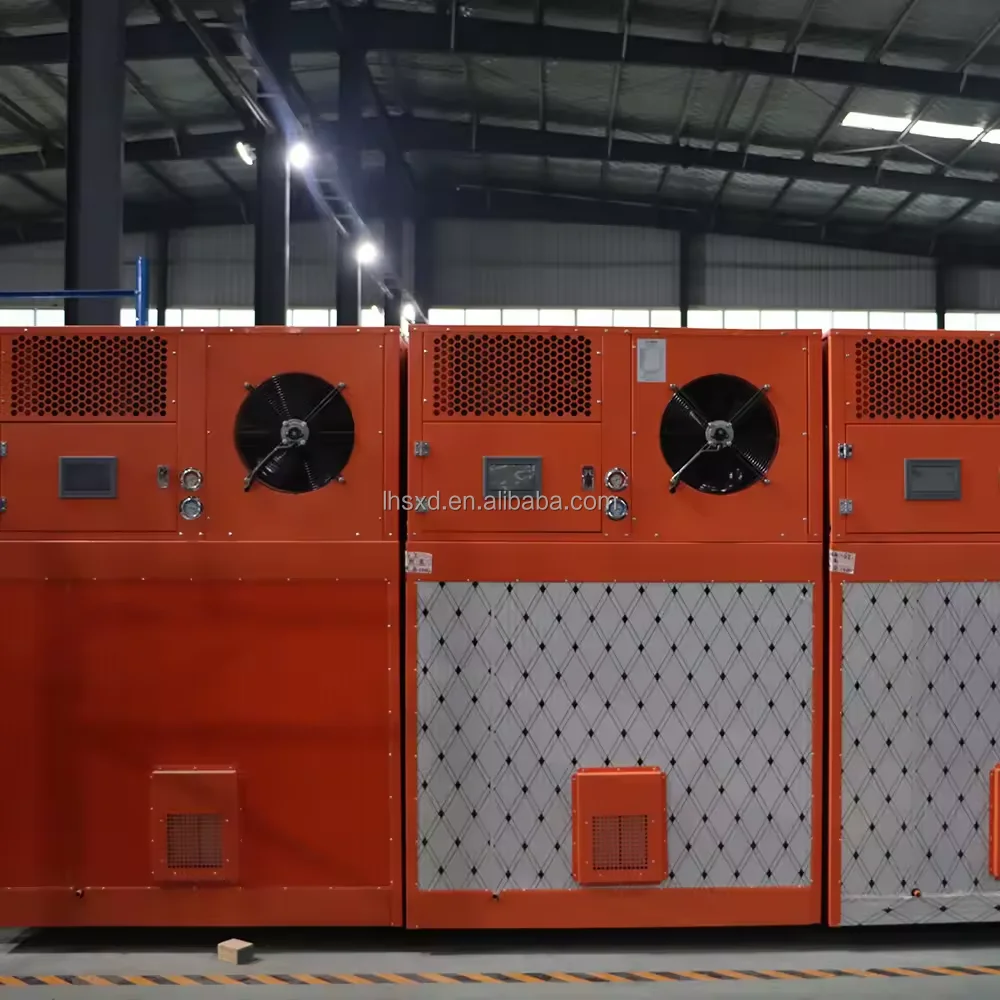

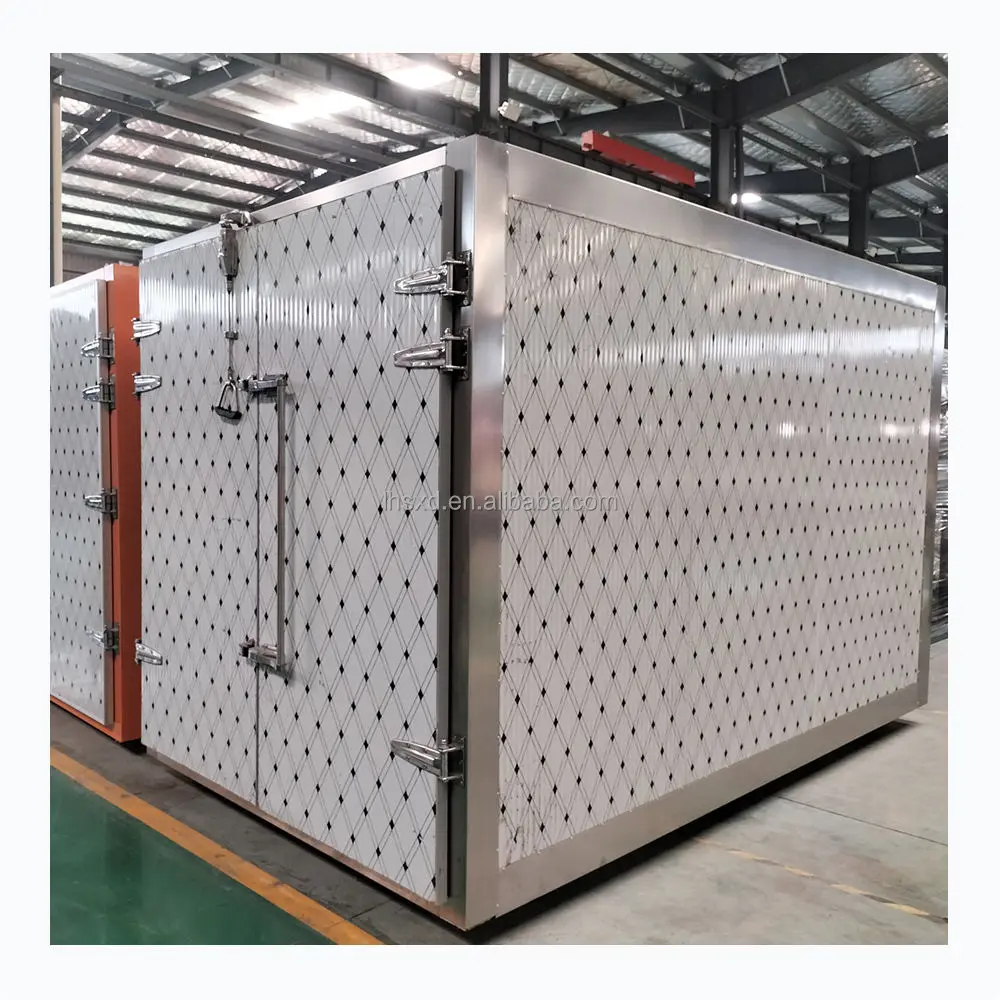

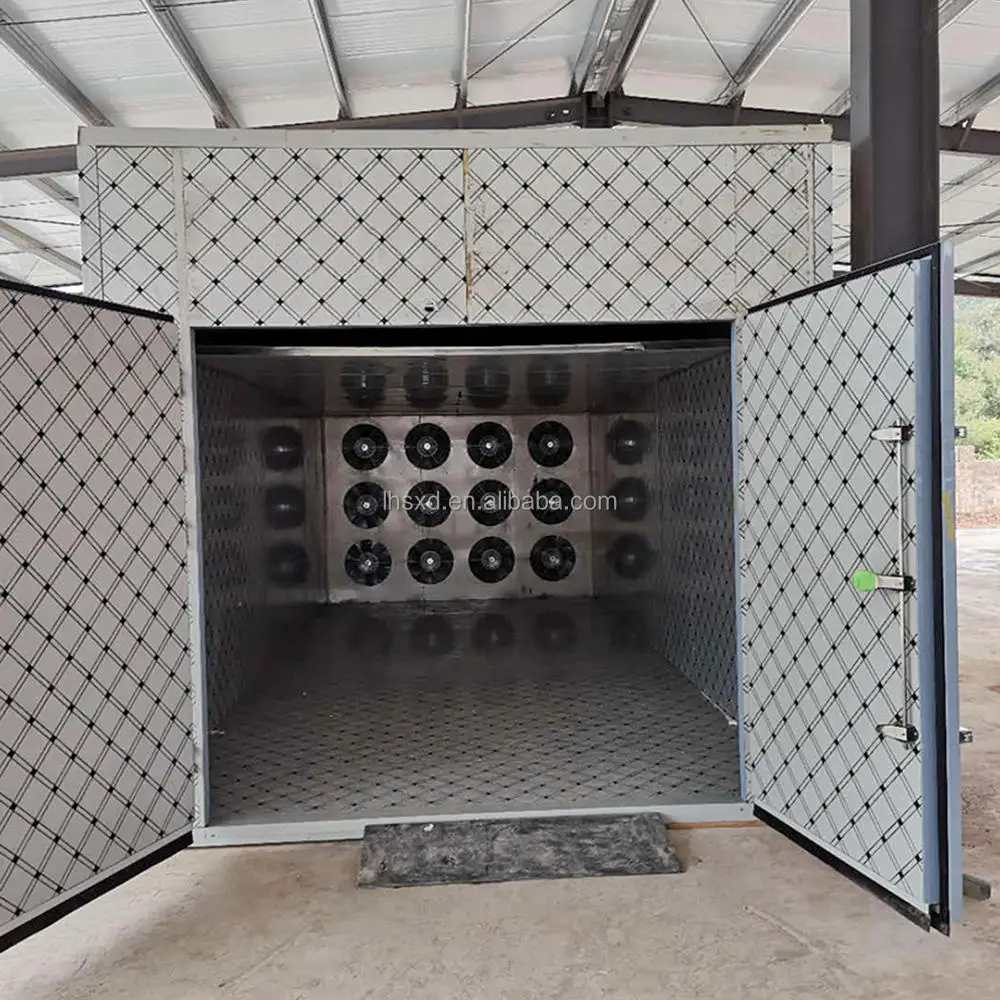

This kind of dryer is mainly composed of heat pump dryer and drying chamber.
This dryer will be controlled by touch screen controller, and the temperature can be adjusted.
Three-dimensional circulation wind design Smaller temperature fluctuations and more uniform drying.
This dryer will be controlled by touch screen controller, and the temperature can be adjusted.
Three-dimensional circulation wind design Smaller temperature fluctuations and more uniform drying.
FEATURES AT A GLANCE

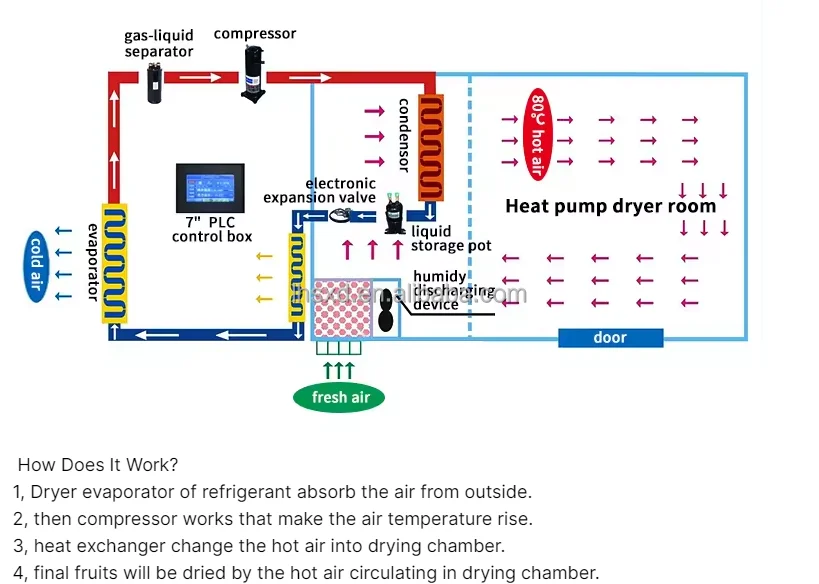

How Does lt Work?
1, Dryer evaporator of refrigerant absorb the air from outside.
2,then compressor works that make the air temperature rise.
3, heat exchanger change the hot air into drying chamber.

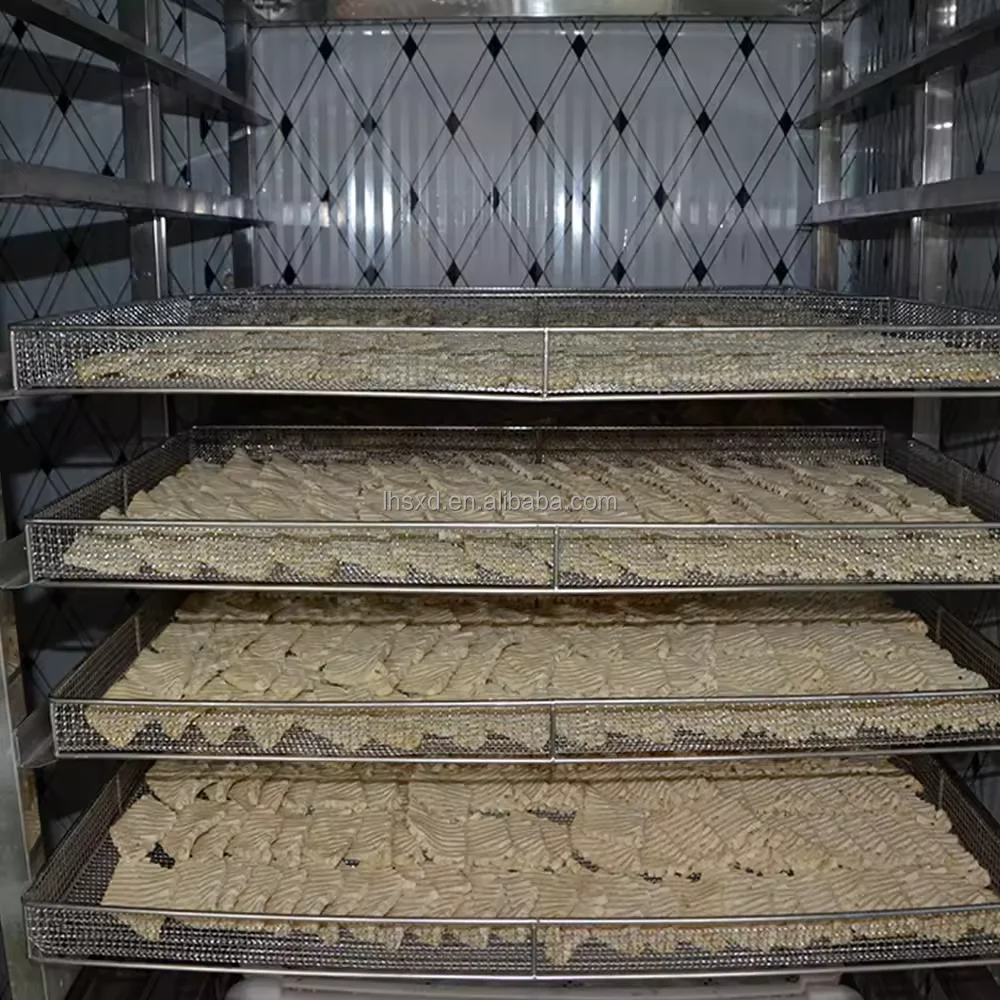

4, final fruits will be dried by the hot air circulating in drying chamber.
1, Dryer evaporator of refrigerant absorb the air from outside.
2,then compressor works that make the air temperature rise.
3, heat exchanger change the hot air into drying chamber.
4, final fruits will be dried by the hot air circulating in drying chamber.
em Name | Drying room all-in-one machine | ||||||
PUR Panel | mm | 10 | 10 | 10 | |||
Unit Type | 3P | 3P | 5P | ||||
Drying temperature range | ℃ | 30-75 | |||||
Ambient temperature range | ℃ | -5-43 | |||||
Power type | 220V 50HZ | 380V 3N 50HZ | |||||
Compressor type | High temperature fully enclosed scroll compressor | ||||||
Number of compressors | N | 1 | 1 | 1 | |||
Refrigerant | R134A | ||||||
Rated heating capacity | kW | 10.2 | 10.2 | 17.1 | |||
Rated input power | kW | 4.3 | 4.3 | 6.4 | |||
Rated current | A | 21.6 | 10.9 | 14.4 | |||
Electric heating power | kW | 6 | 6 | 12 | |||
Maximum input power | kW | 10.8 | 10.8 | 19.1 | |||
Input current | A | 54.1 | 21.4 | 36.6 | |||
Circulation fan power | kW | 1.5 | 1.5 | 1.5 | |||
Rated air volume | m³/h | 12000 | 12000 | 12000 | |||
Dehumidification fan power | kW | 0.25 | 0.25 | 0.25 | |||
Fresh air volume | m³/h | 2000 | 2000 | 2000 | |||
Moisture displacement | kg/h | 15 | 15 | 20 | |||
Size | mm | 2700×1450×2210 | 2700×1450×2210 | 3400×1850×2210 | |||
Weight | KG | 720 | 720 | 890 | |||
Packing and shipping:
Company information:
Our services:
1) Highly inspecting equipments in every working procedure, quality comes first; Fast & Safe Delivery;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
2) Assisting our clients for foundation construction of equipment;
3) Dispatching engineers to install and debug equipment;
4) Training the first-line operators on site;
5) Regularly visit clients to solve production problems;
6) Providing life-long maintenance service;
7)Providing technical exchanging;
