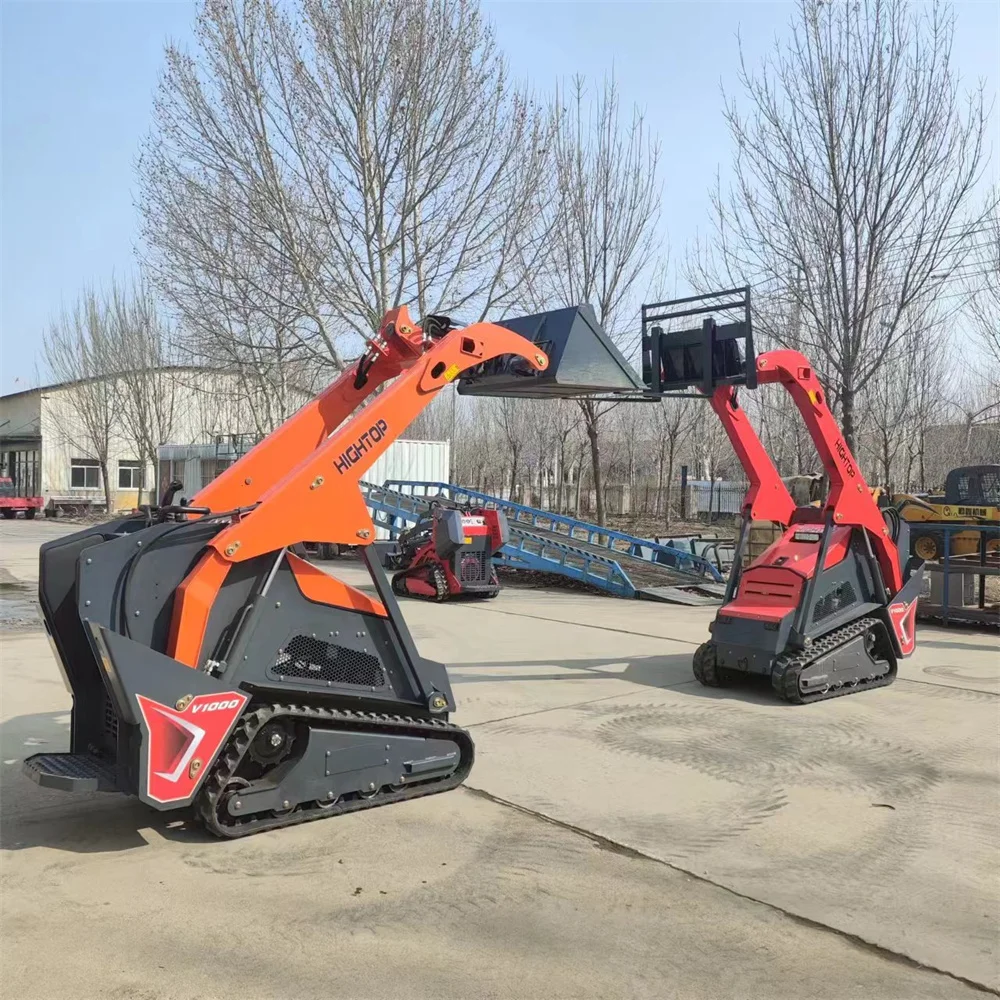

HT V1000 Hydraulic Small Skid Steer Loader With Auger Trencher EPA/Euro 5 With Big Hydraulic Oil Tank Capacity
- Category: >>>
- Supplier: SHANDONG REACT MACHINERY CO. LTD.
Share on (1601080778208):
Product Overview
Description

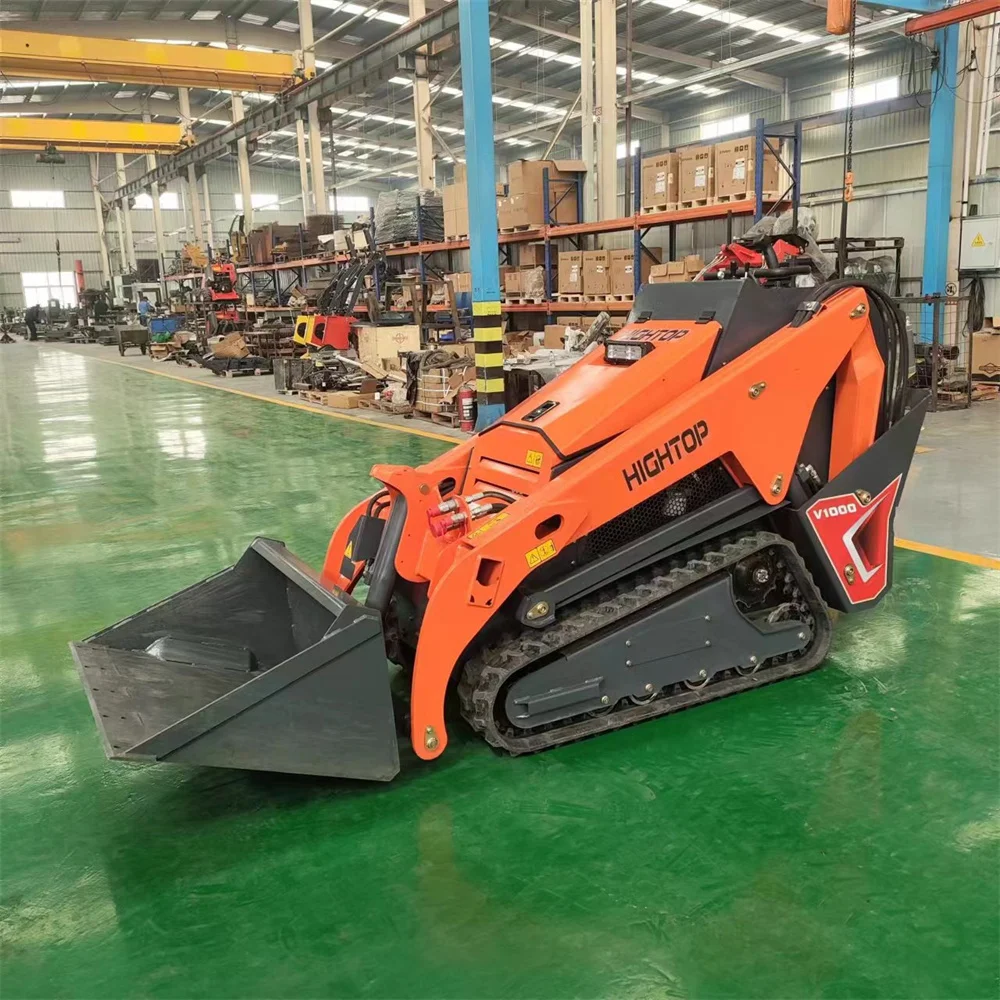

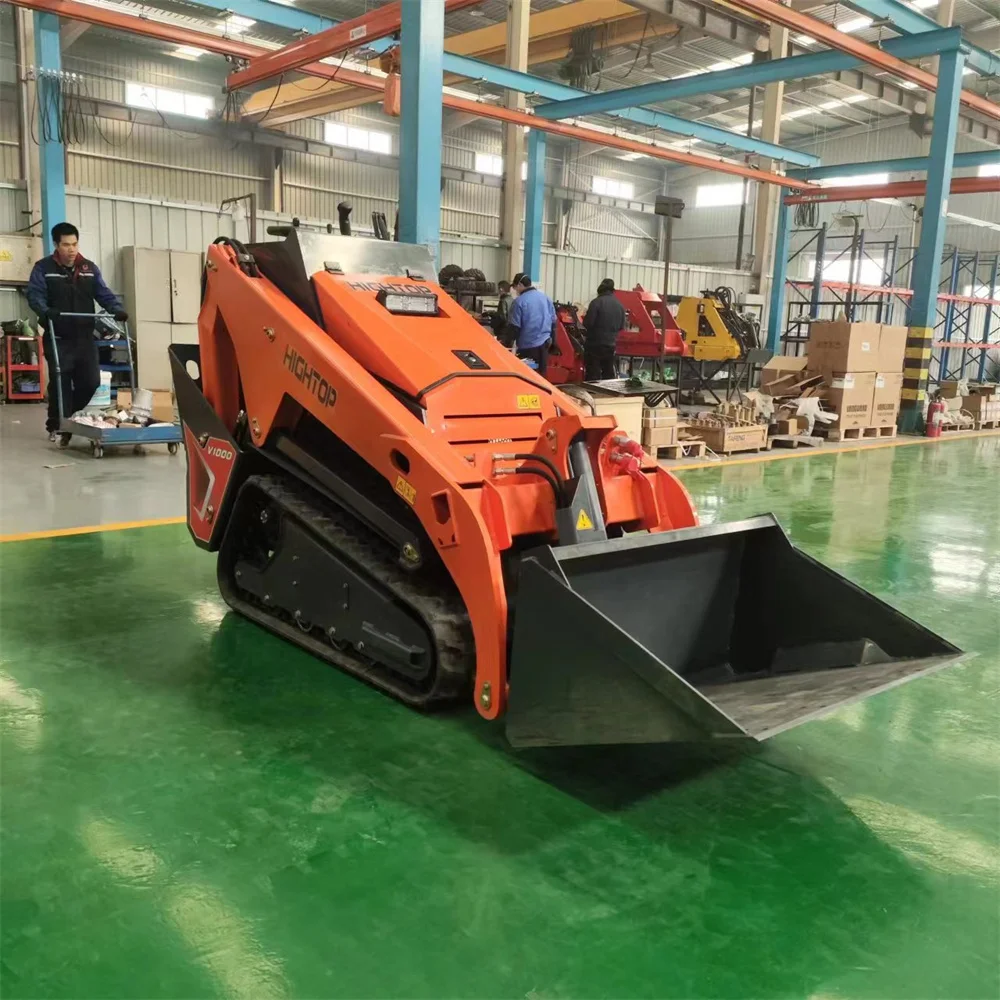

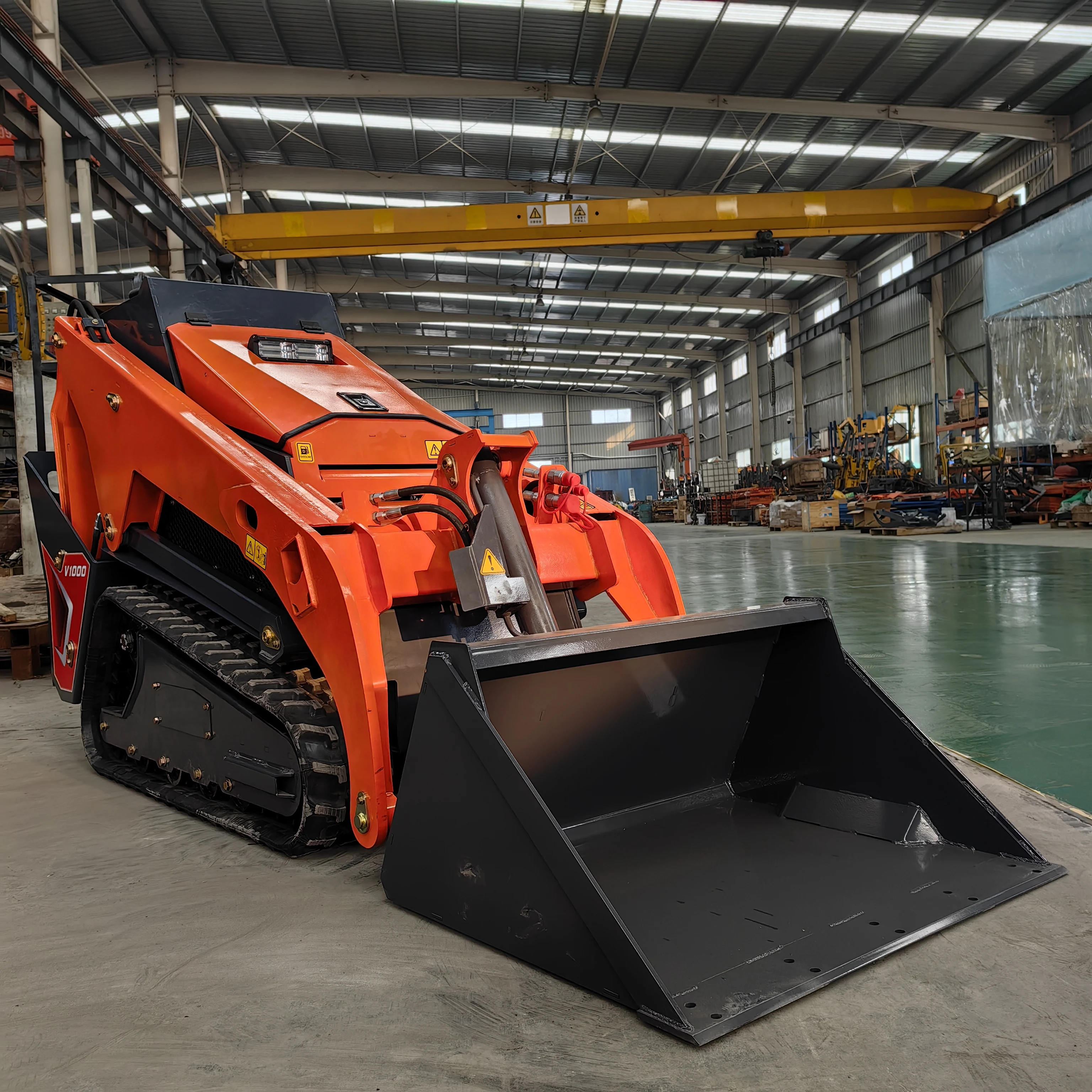

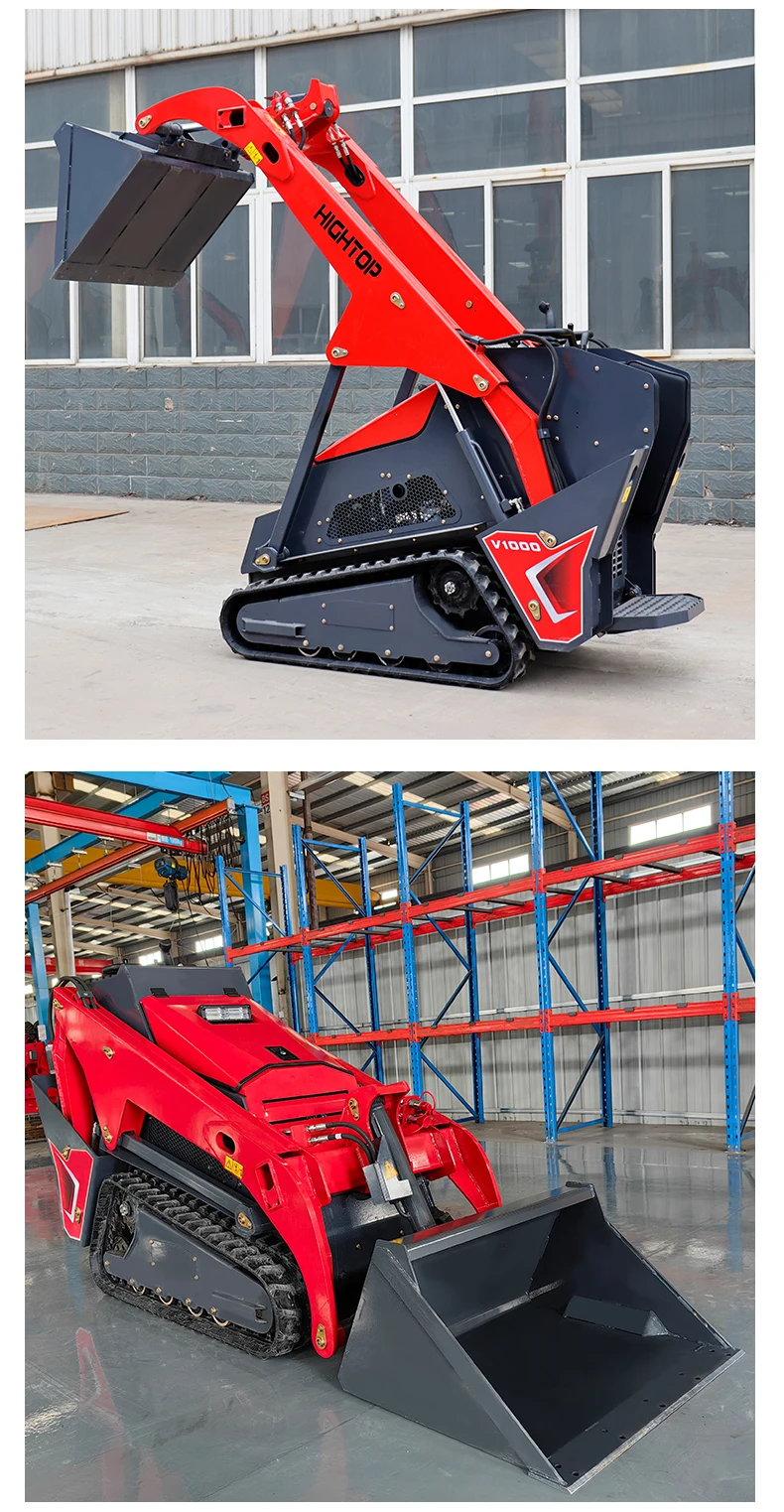

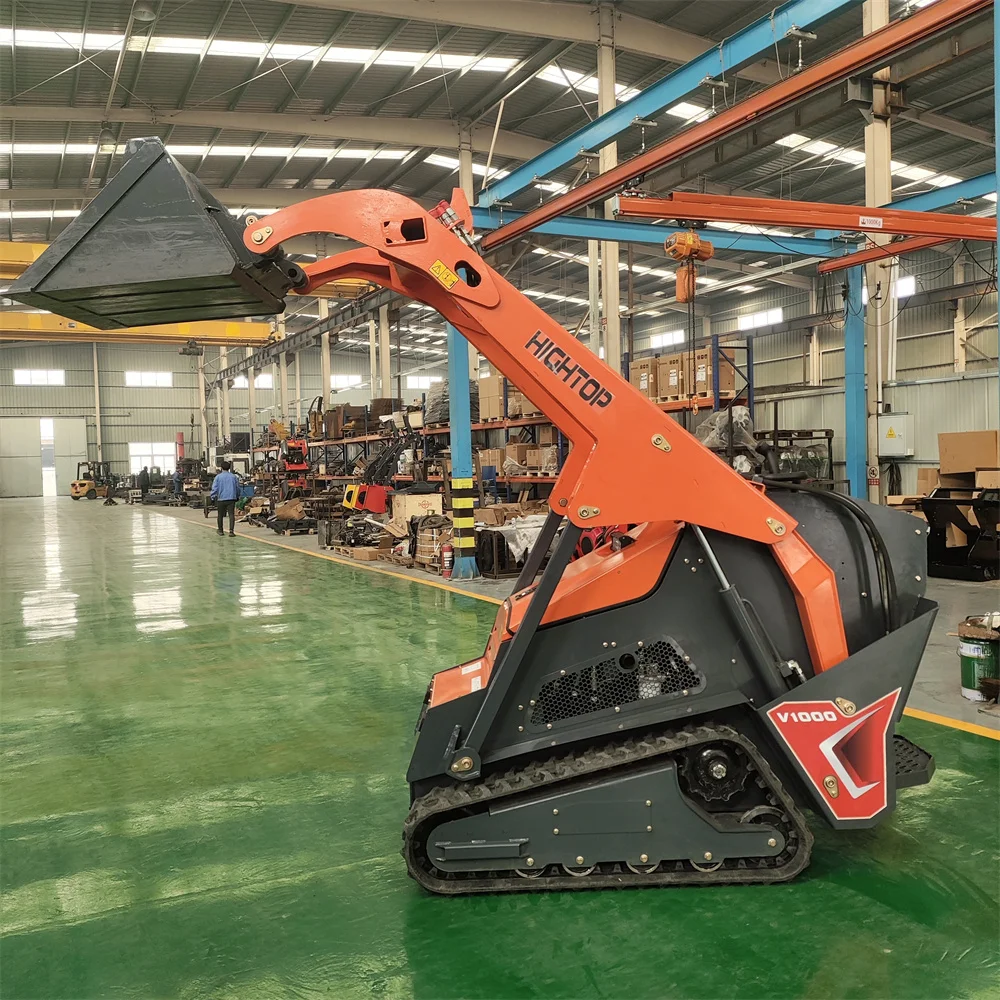

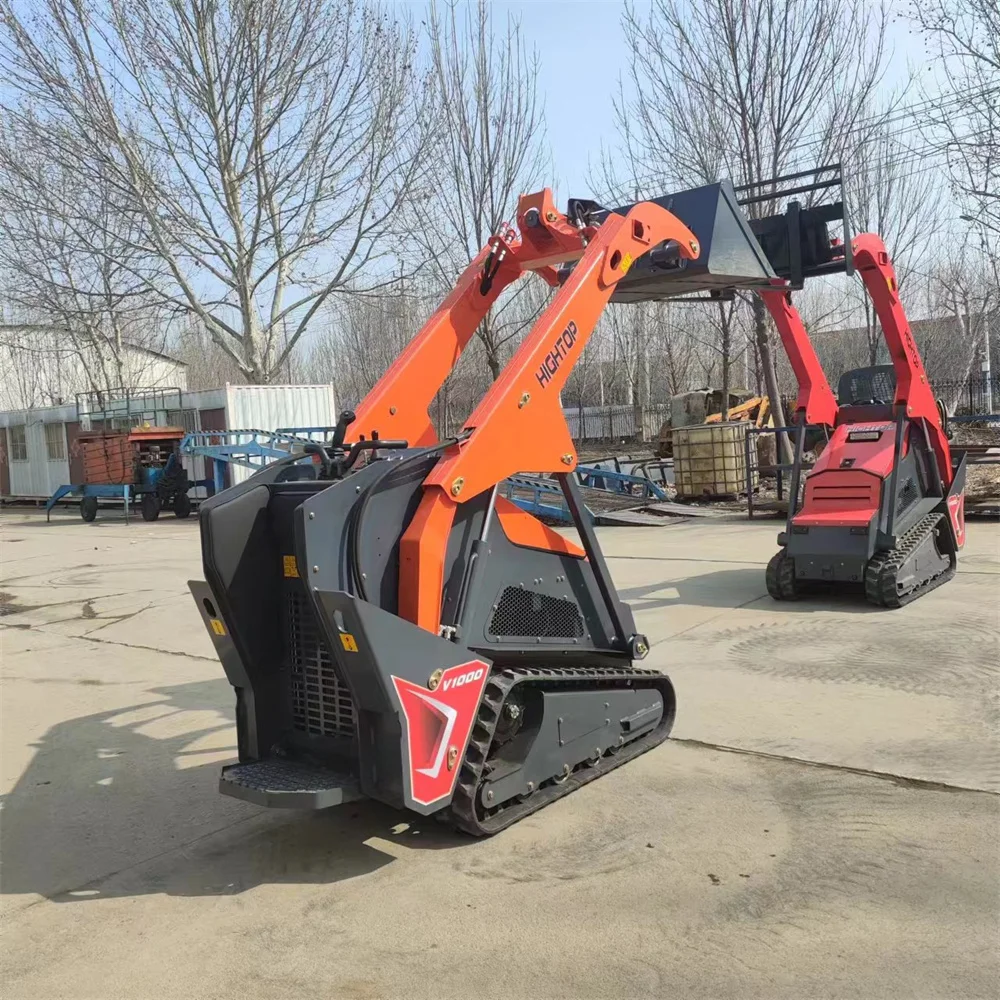

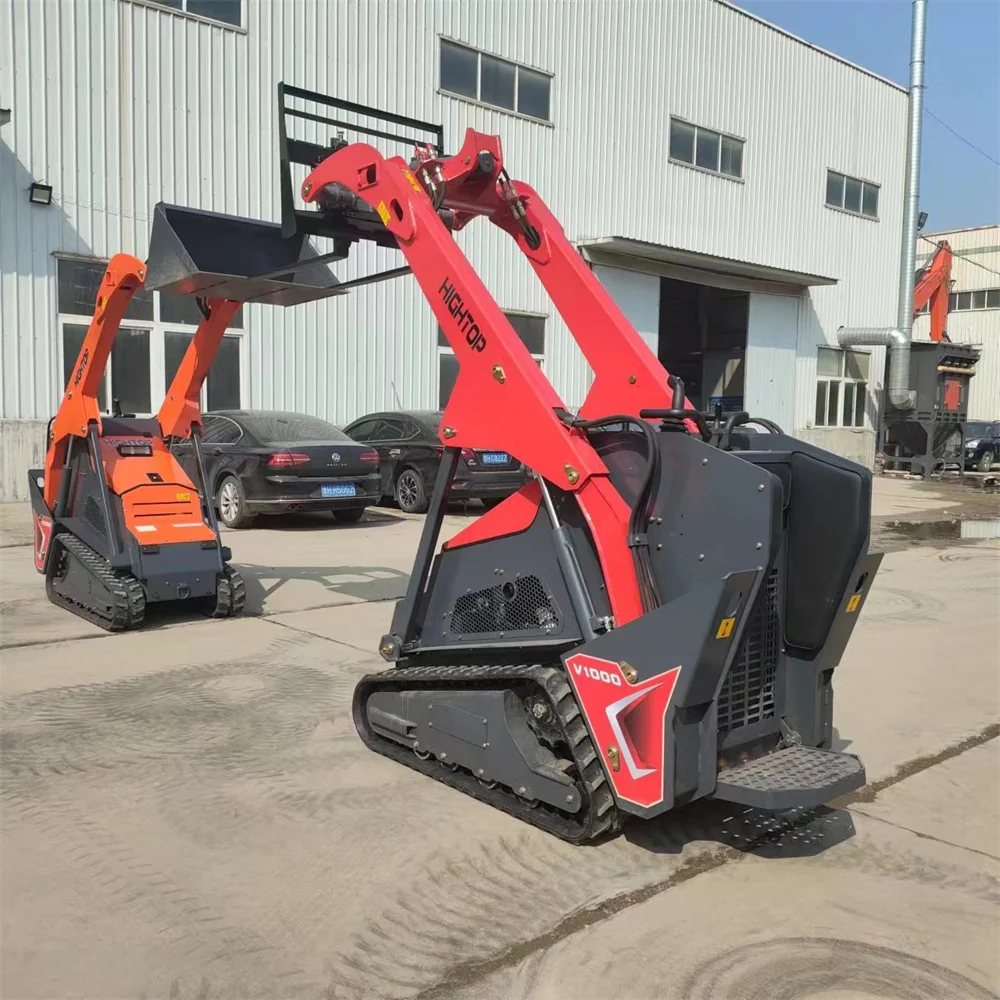

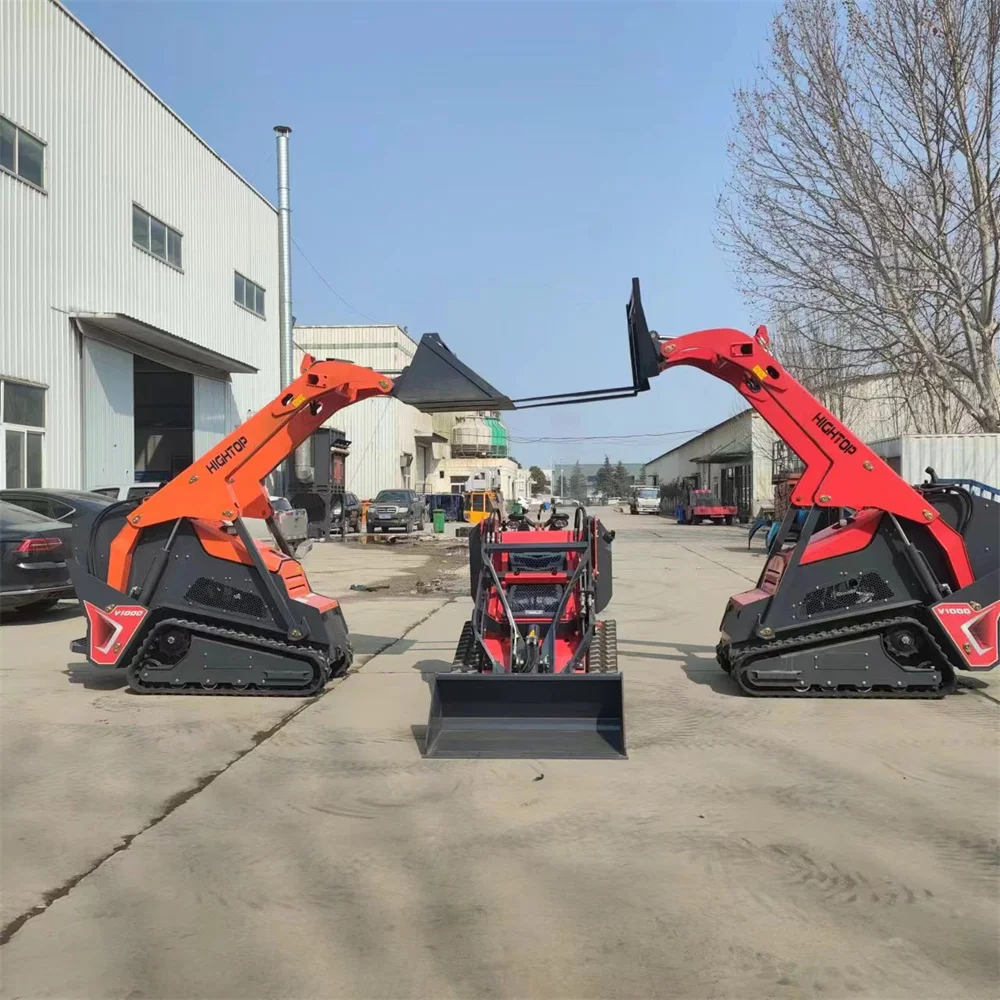

HT-V1000 Hydraulic Small Skid Steer Loader With Auger Trencher EPA/Euro 5 With Big Hydraulic Oil Tank Capacity
Features and Highlights:
1. Theloader width is only 900mm, which allows you to freely enter and exit some small spaces for work (yard back door).

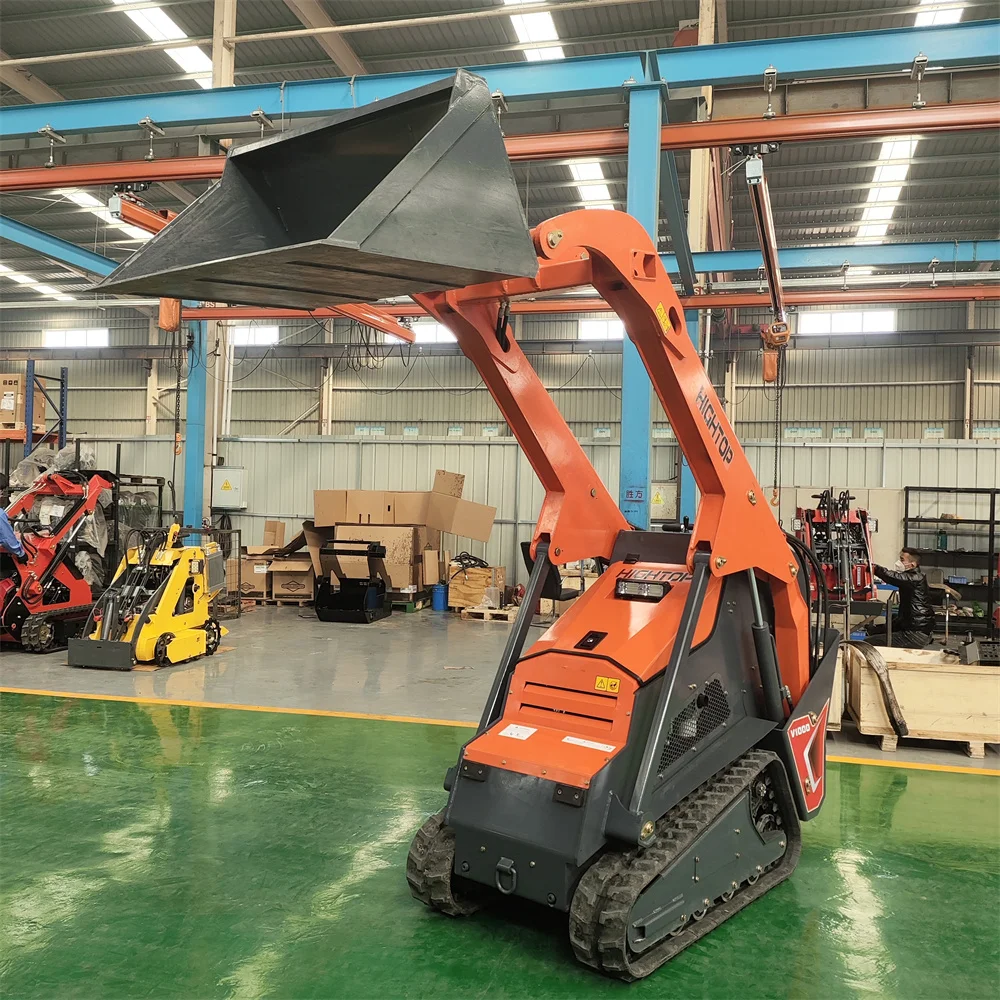

2. The vertical lifting design of the big arm, the maximum height of the bucket pin is 2350mm(comparable products are only2100MM), and it can be loaded with high-rail trucks.

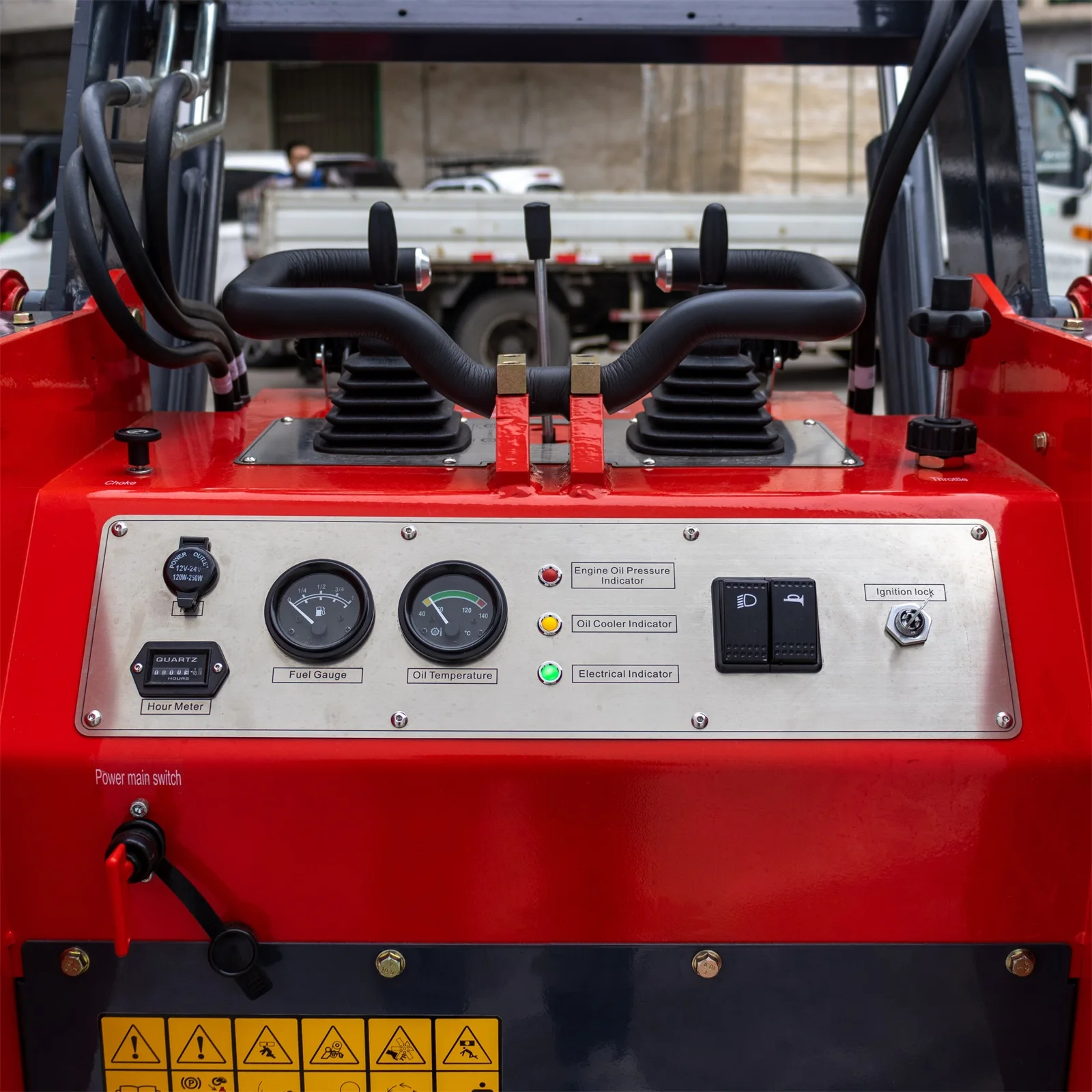

3. The engine uses EPA and Euro V double certified diesel power (Perkins 403J-18.5KW from the UK or Kubota D902-18.5KW from Japan), and the hydraulic system uses the Italian Lufthansa closed system (the mainstream configuration of foreign brand skid steer loaders). Mode pilot handle (one-hand control of walking), the boom and bucket can be operated during walking.
4. The big arm comes standard with a suspension function (the sweeper can follow the ups and downs of the ground)
5. Install a sponge pad at the operating position
6. Chassis height from the ground 185mm
7. At the beginning of the design, the convenience of maintenance was taken into consideration
Specification
Mini Skid Steer Loader HT-V1000 | ||||
Model | HT-V1000 | |||
Engine | Perkins 403J-11 | |||
Specifications | Metric | U.S. | ||
Rated Power (KW) | 18.4(25Hp | |||
Operating Weight | 1538 Kg | 3390 Lb | ||
Rated Operating Capacity | 454 kg | 1000 Lb | ||
Ground Pressure (Rubber) | 2800 Kg/㎡ | 3.98 Psi | ||
Auxiliary Std Flow | 45 L/Min | 12 Gal/Min | ||
Rotating speed (Rpm) | 2800 | |||
Noise (Db) | ≤95 | |||
Performance | ||||
Tipping Load | 1315 KG | 2898 Lb | ||
Travel Speed | 5.8 Km/h | 3.52 Mph | ||
Travel Speed - Reverse | 3.9 Km/h | 2.4 Mph | ||
Capacities | ||||
Fuel Tank | 25 L | 6.6 Gal | ||
hydraulic system | ||||
Hydraulic oil tank capacity | 22 L | 5.8 Gal | ||
Pump Capacity | 45 L/ Min | 12 Gal/Min | ||
System Relief @ Quick Couplers | 200 Bar | 2900 Psi | ||
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
