12K T700200G plain 8mm spread plaid carbon cloth
- Category: >>>
- Supplier: Anqing Kraft New Materials Technology Co. Ltd.
Share on (1601080805352):
Product Overview
Description
Anqing Kraft New material uses high quality imported carbon fiber precursor (precursor brand can be based on customer requirements, production, use of ways to recommend high cost-effective materials) , through high-speed and efficient rapier loom production of high strength, large width of carbon fiber fabric, the fabric can be produced in plain, twill, large twill, satin and small jacquard, etc. .
The product has the advantages of high production efficiency (the single machine efficiency is three to four times as high as the domestic loom) , the fiber cloth has the advantages of clear grain, no wool silk, no color difference, stable mechanical properties, etc . , it is used in aerospace, rail transit, automobile lightening, military protection, sports equipment, medical equipment, ships and ships, electronic communication, building reinforcement and other fields. The conventional width is 1000MM, the maximum width is 1700MM, the weight error is ± 5G, which can effectively improve the production efficiency of large-scale products and reduce the extravagance and waste caused by lapping.
Parameter specifications
Models | The Way of knitting | Surface density (g/Square metres ) | Fiber type | Thickness (mm) | Width (mm) | Application |
KFC100P | Plain | 100 | 1K T300 | 0.12 mm | 100-1700 | Rackets, drones, bicycles, etc. |
| KFC160P/T | Plain/Twi11 | 160 | 3K T300 | 0.18 mm | 100-1700 | 3K ultra-light high strength fabric for UAV and other products with special weight requirements |
KFC200P/T | Plain/Twi11 | 200 | 3K T300 | 0.22 mm | 100-1700 | 3K200g plain woven carbon cloth automobile refitted carbon plate carbon tube carbon fiber helmet movement carbon cloth |
| KFC220P/T | P1ain/Twi11 | 220 | 3K T300 | 0.3 mm | 100-1700 | With more perfect appearance than 200g carbon cloth, used for automobile and sporting goods appearance manufacturing |
KFC240P/T | Plain/Twi11 | 240 g | 3K T300 | 0.33 mm | 100-1700 | Industria1 applications, vehicle modification with excellent mechanical properties and appearance of three- |
KFC280P/T/S | Plain/Twil1/Sa | 280 | 3K T300 | 0.38 mm | 100-1700 | Ship, car refitting, sporting goods, three- dimensional sense of tin strong performance is superior |
KFC320P/T | Plain/Twi11 | 320 | 6K T300 | 0.4 mm | 100-1700 | Carbon and carbon composites, car modification, etc. |
KFC400P/T | Plain/Twi11 | 400 | 12K T300/T700 | 0.45 mm | 100-1700 | Battery Tray, liner reinforcement and other structural parts |
| KFC450P/T | Plain/Twi11 | 450 | 12K T300/T700 | 0.6 mm | 100-1700 | Carbon Composites, car modifications, sports equipment |
| KFC640P/T | Plain/Twi11 | 640 | 12K T300/T700 | 0.8 mm | 100-1700 | High-density structure fabric, used for carbon fiber mold, large structural parts, etc. |
| KFCZ80P | Plain | 80 | 12K T700 | 0.08mm | 100-1700 | High strength stretch cloth, used for UAV, hockey stick, car modification, helmet, etc. |
KFCZ200P | Plain | 200 | 12K T700 | 0.25mm | 100-1700 | High strength stretch cloth, used for UAV, luggage, car modification, helmet, etc. |

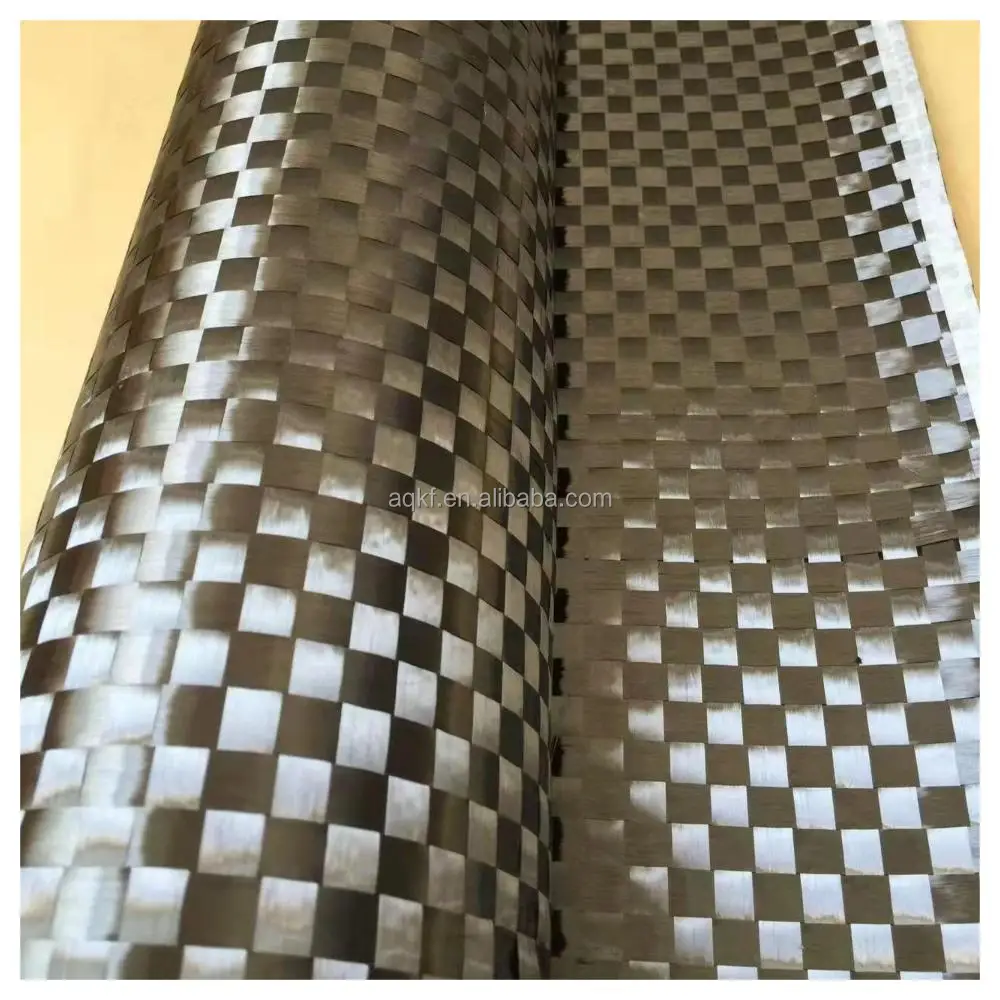

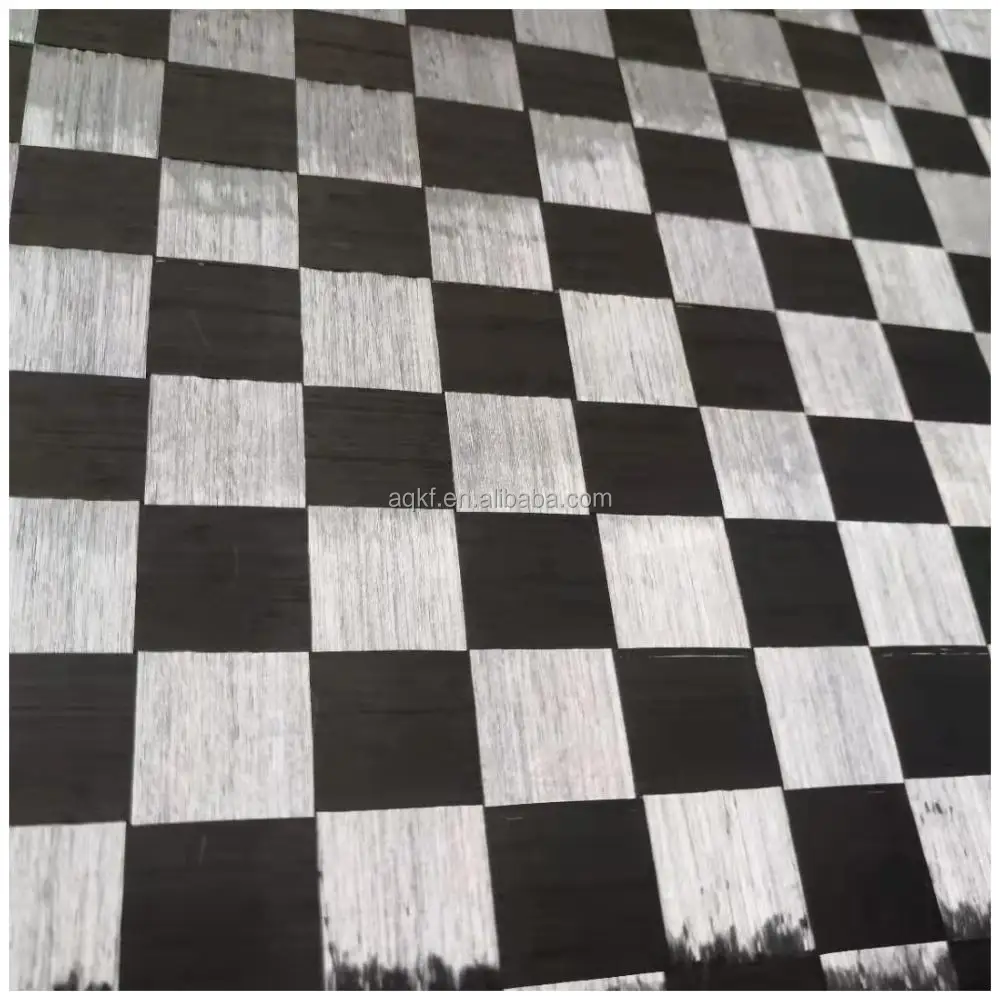

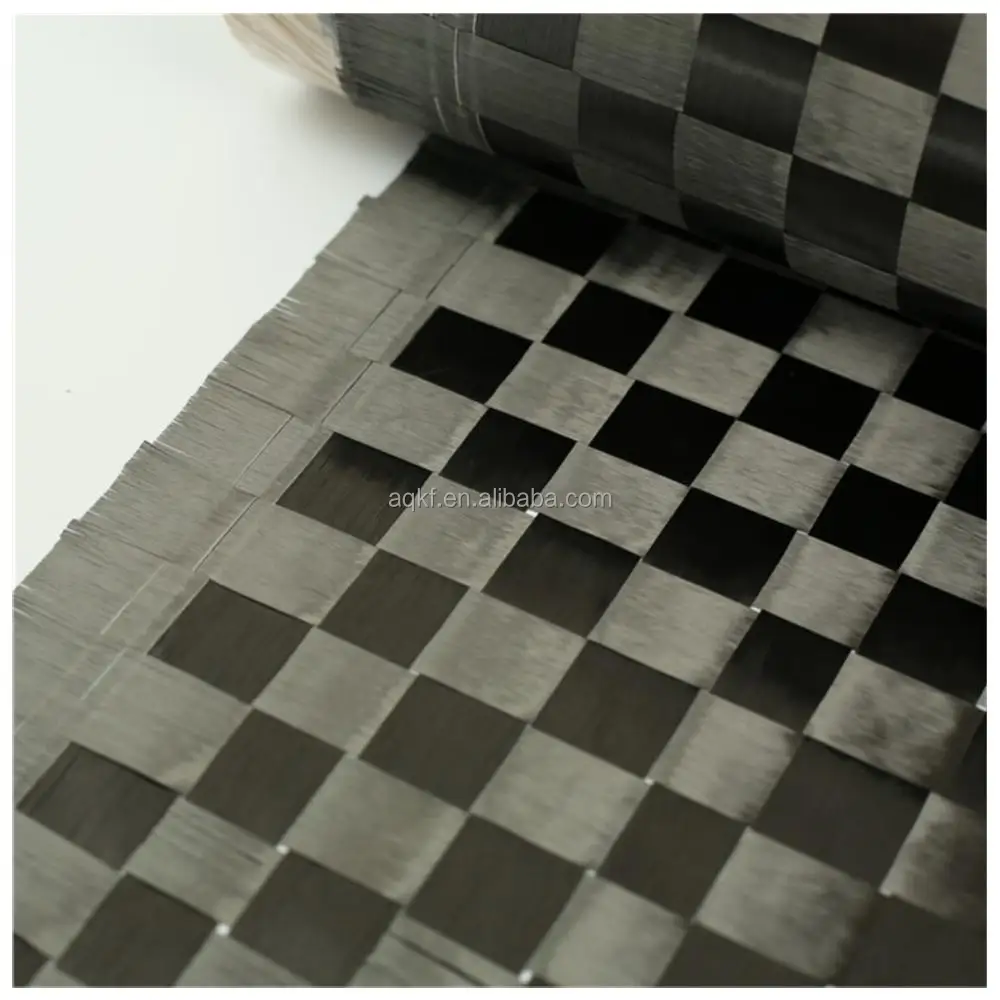

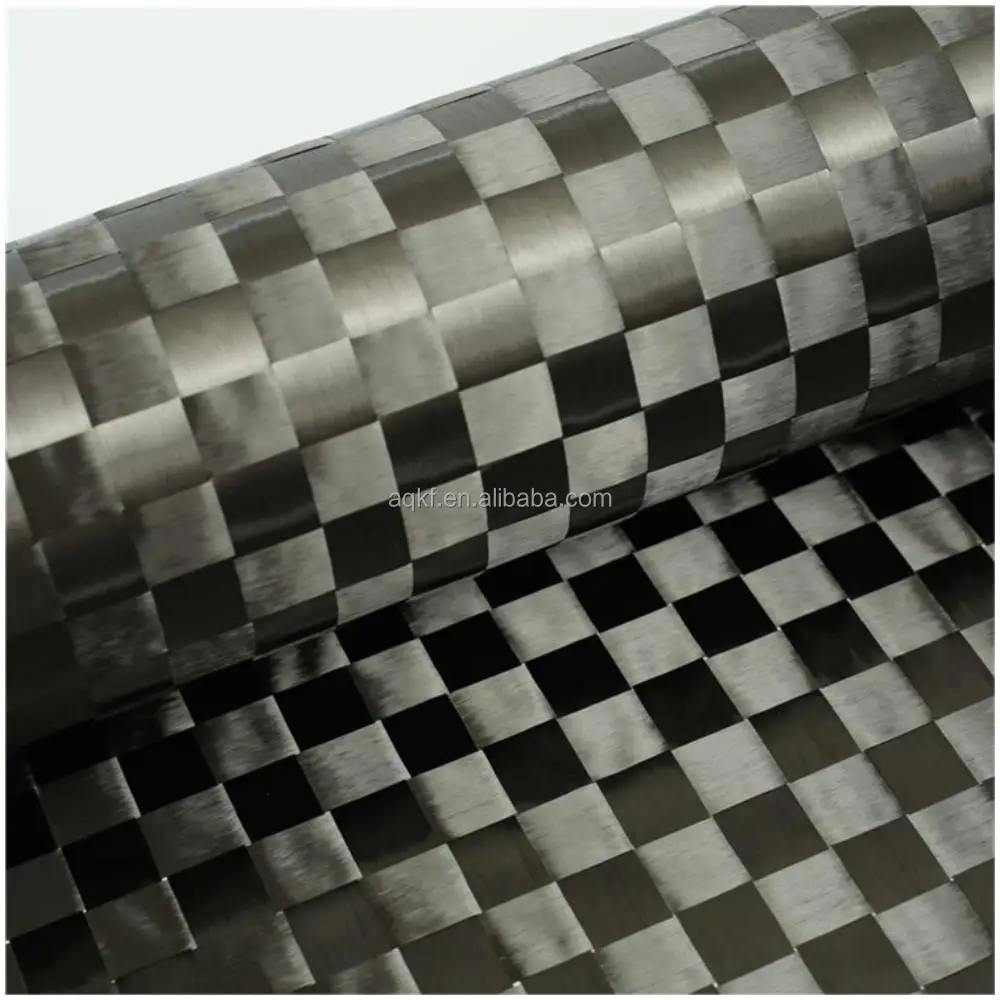

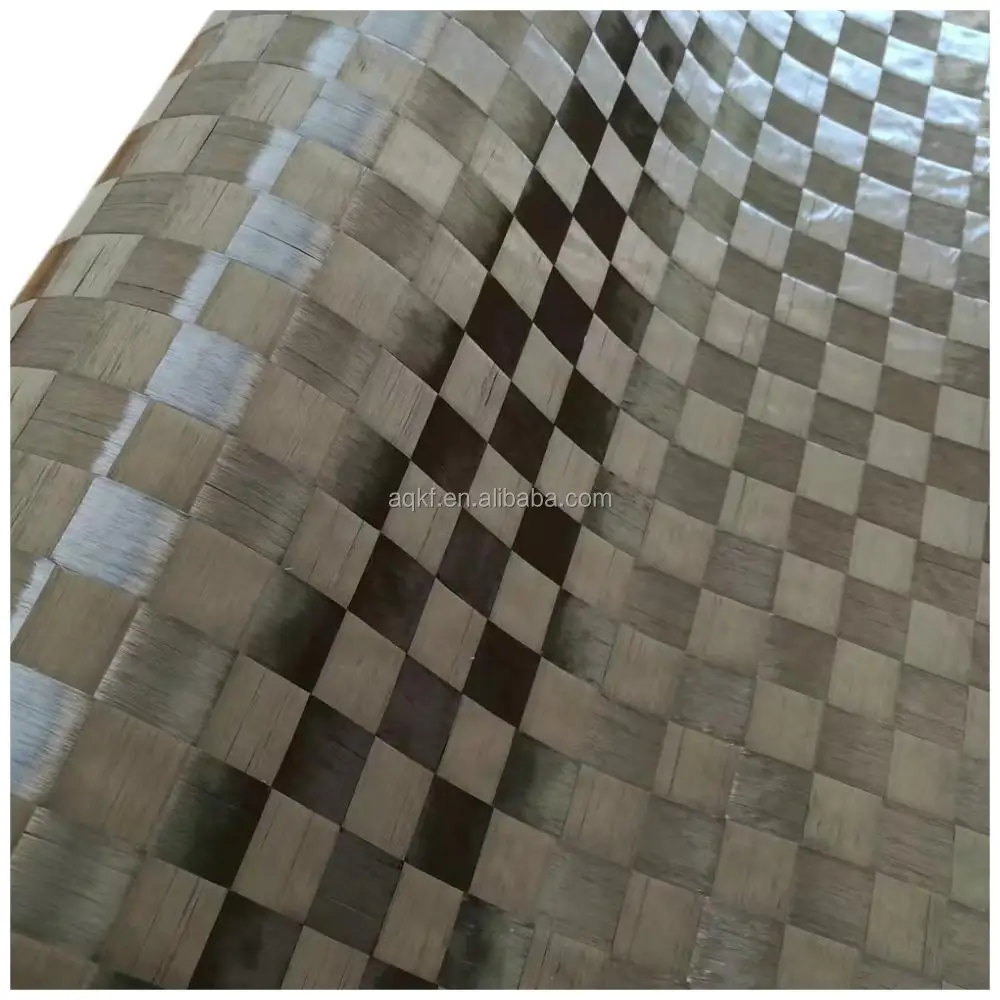

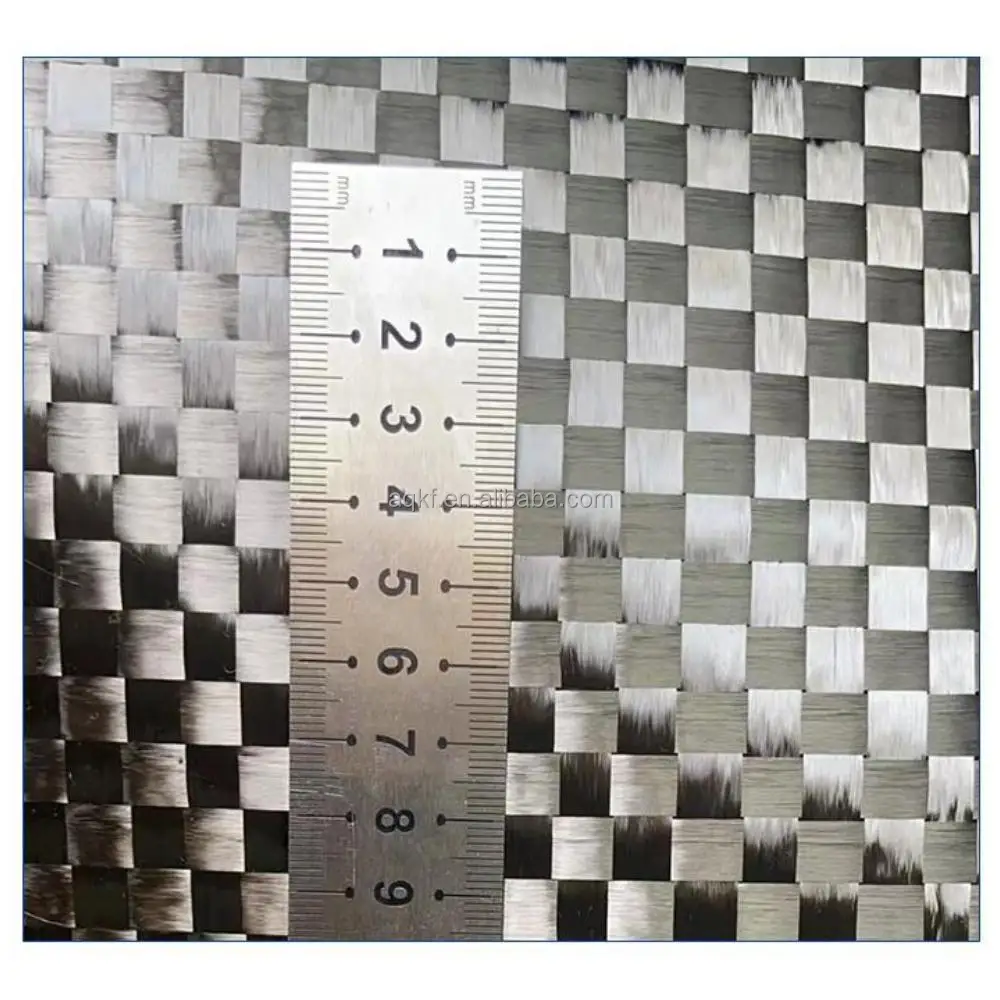

Product details picture

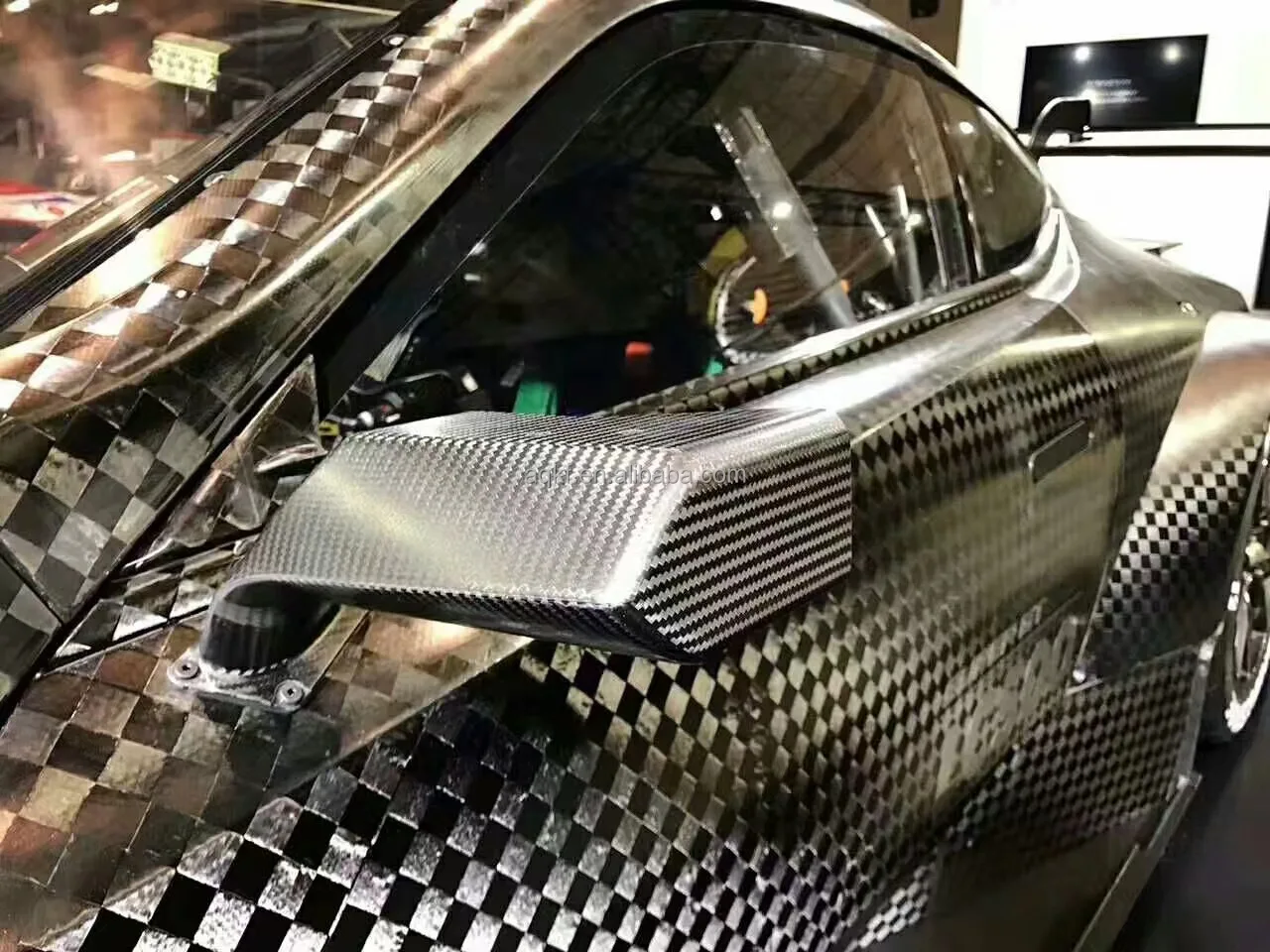

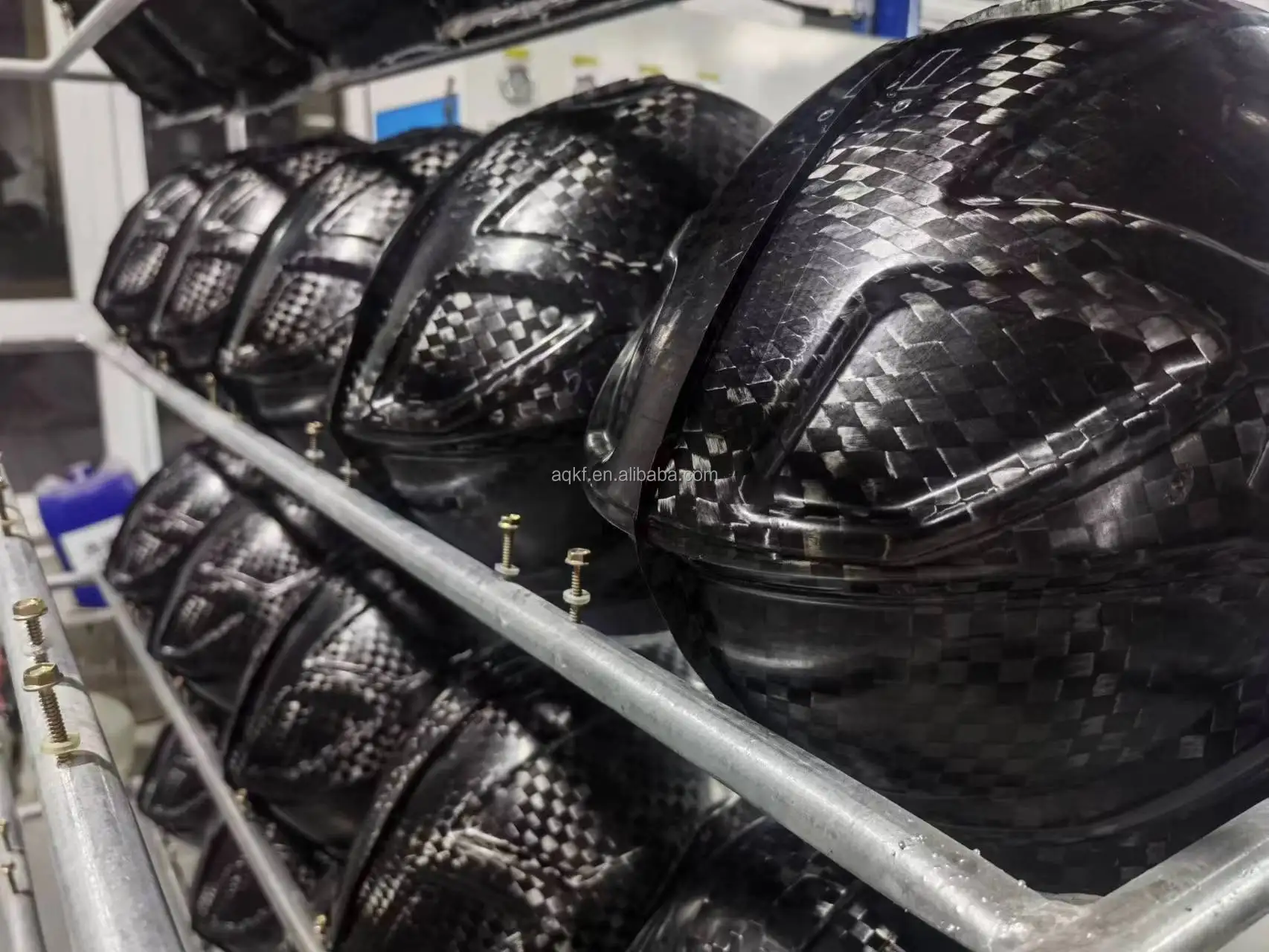

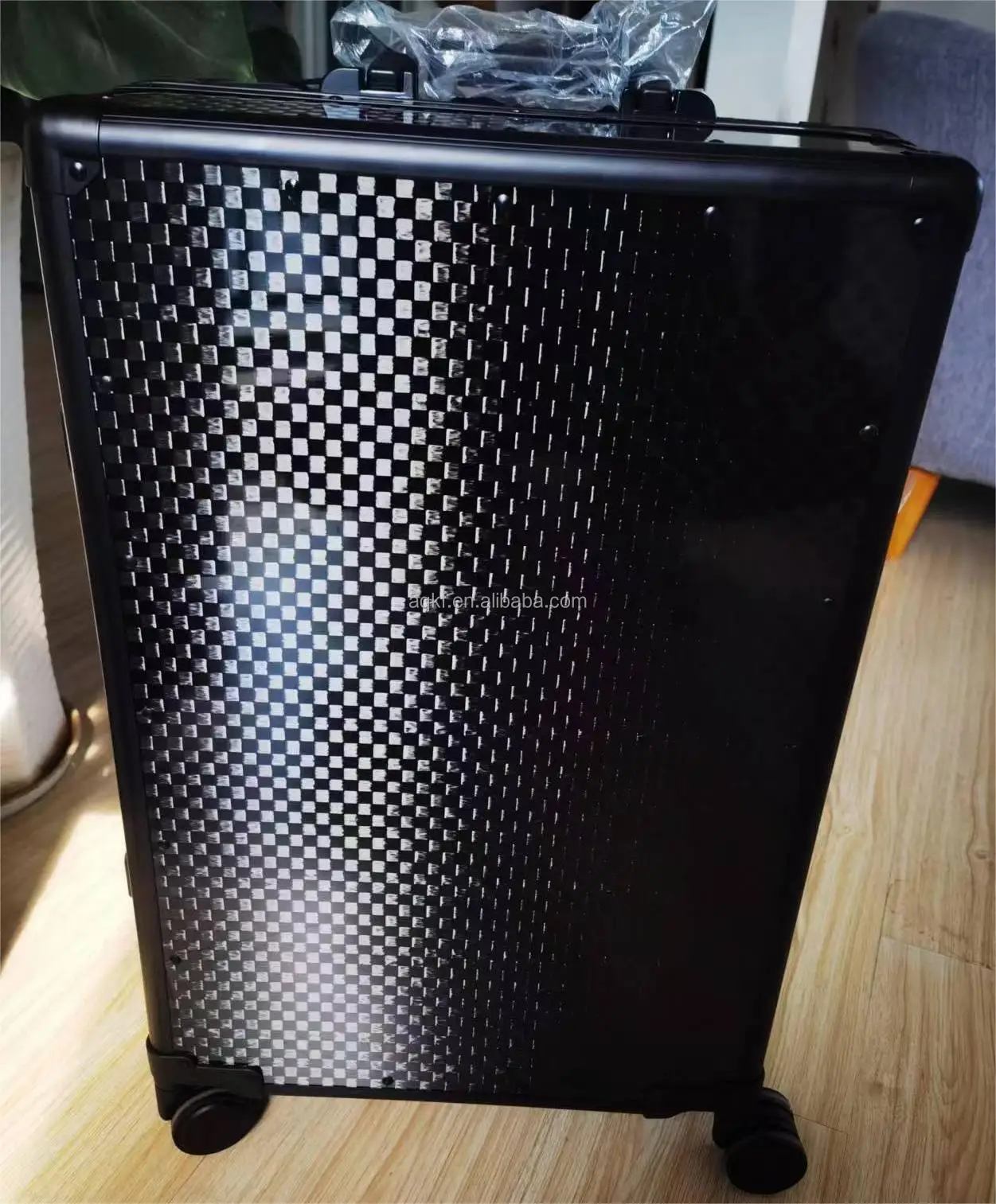

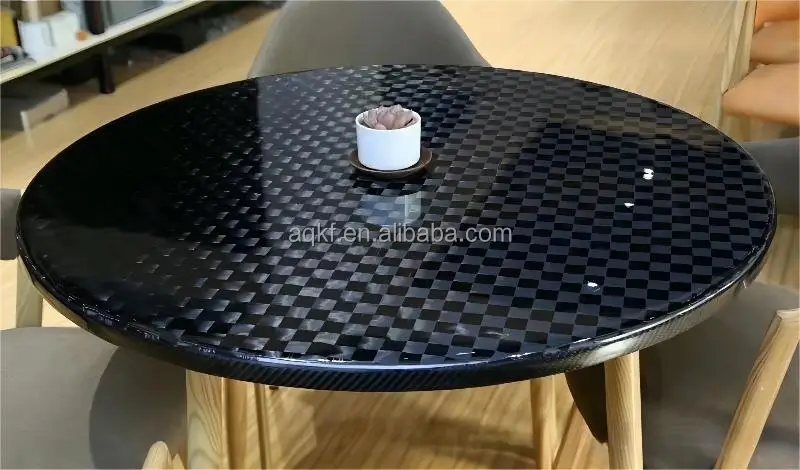

Product applications
Packing method
Company profile
Anqing Kraft New Materials Technology Co. , Ltd. is a research and development, production and sales of new materials technology company. The company is located in Anqing, Anhui Province. Anhui province, the gateway to the Yangtze River Delta City, one of China's modern industrial birthplace. The company has always been at the forefront of the development of advanced composite materials. Products are widely used in aerospace, rail transit, automotive lightweight, military protection, sports equipment, medical equipment, ships, ships, electronic communications, building reinforcement and other fields.
Anqing Kraft New material has a complete industrial cloth weaving production line, using Germany's most advanced sub-winding warping machine and high-speed Rapier loom, production of high-performance carbon fiber, aramid fiber (kevlar fiber) , ultra-high molecular weight polyethylene fiber, glass fiber, thermoplastic fiber, basalt fiber and other fabrics. Long-term cooperation with Donghua University, Hunan University, Wuhan University of Technology, Hefei University of Technology, Guangxi University of Technology and other well-known universities
FAQ :
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
