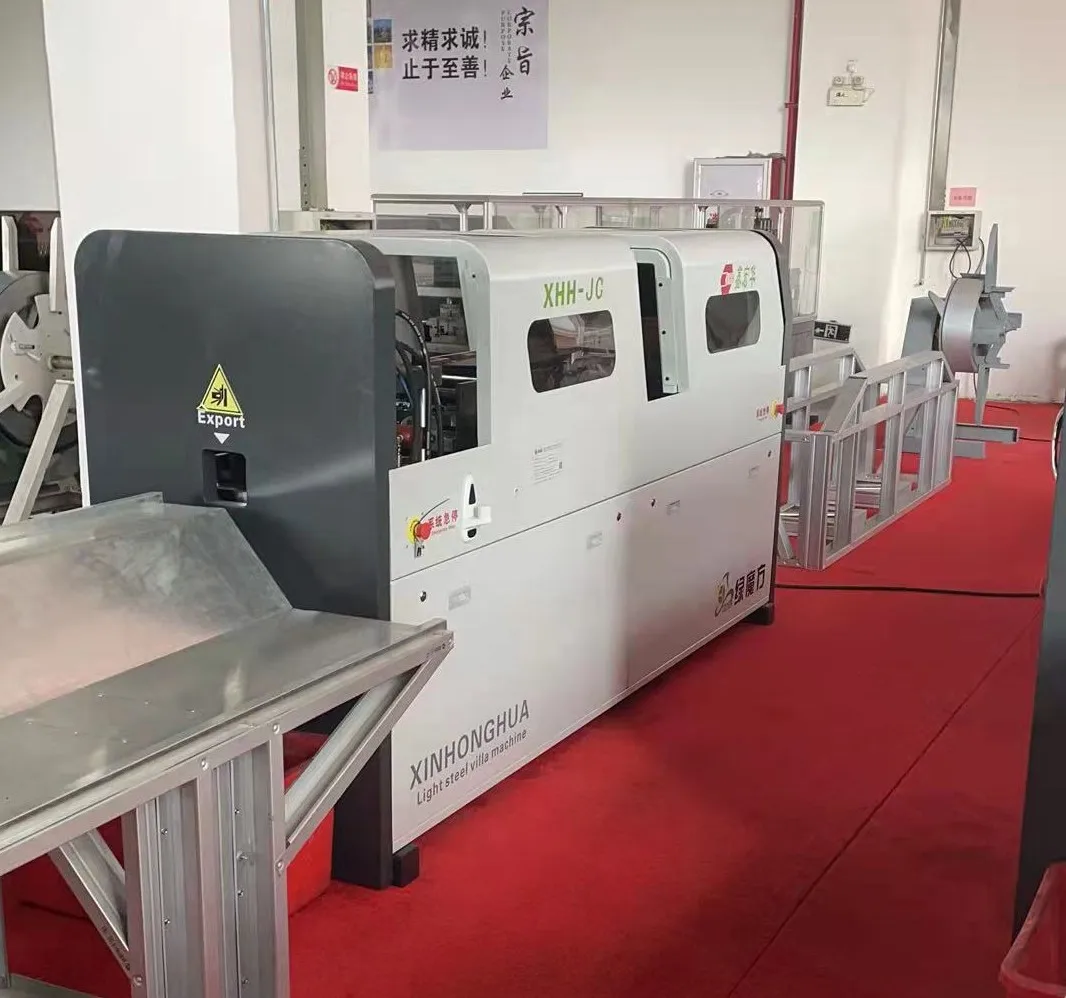

Cold Formed Light Weight Steel Frame CAD LGSF Forming Machine Price
- Category: >>>
- Supplier: Xiamen Xinhonghua Machinery Co. Ltd.
Share on (1601080849042):
Product Overview
Description
1. Factory Lifetime Service:offer technical support for the entire life of our machines.
2. Customized Profile:can design the profile according to customer request.
3. One-Year Guarantee Period:we could supply you the replacement parts free of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional:we can send our technicians to install and train the workers in the clients' factories with extra cost.
Products Description
Fasting Working Speed:2-3T/8Hours,1300M/H
Post-Punching Mould & Post-Cutting
1.Cost-effective: Light steel villa machines can greatly reduce labor costs and enhance production efficiency, making the construction process less time-consuming and more cost-effective.
2.High precision: Advanced light steel villa machines can achieve high precision and high-quality production, ensuring the accuracy and durability of the steel frames and components.
3.Sustainable and eco-friendly: Light steel villa machines are eco-friendly and sustainable, as they produce less waste and generate less pollution compared to traditional construction methods.
4.Easy to assemble: Light steel villa machines make the construction process simpler and faster, as the components are prefabricated off-site and then assembled on-site, reducing dependence on skilled labor and saving time.
2.High precision: Advanced light steel villa machines can achieve high precision and high-quality production, ensuring the accuracy and durability of the steel frames and components.
3.Sustainable and eco-friendly: Light steel villa machines are eco-friendly and sustainable, as they produce less waste and generate less pollution compared to traditional construction methods.
4.Easy to assemble: Light steel villa machines make the construction process simpler and faster, as the components are prefabricated off-site and then assembled on-site, reducing dependence on skilled labor and saving time.
1) Size | C89-JC |
2) Dimension | 2850*820*1480mm |
3) Main Servo Motor Power | 5.5KW |
4) Hydraulic Motor | 5.5kw |
5) Forming Steps | 7Steps |
6) Forming Speed | 2-3tons/8hours |
7)Voltage | 380V/50HZ/3PH |
8) Effective Width | 89mm |
9) Material Width | 174mm |
10) Flange Height | 38mm |
11) Lip | 9mm |
12) Material Thickness | 0.6-1.2mm |
13) Tolerance for cutting and punching | ±0.5mm |
14) Tolerance for forming | ±0.75mm |
15) Control System | IPC Computer Controlling System |
16) Design Software | Vertex Software |
17) Material for All Roller | SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers |
18) Material for Shaft | SKD-11 |
19) Material for Puncher | SKD-11 |
20) Material for Cutter | SKD-11 |
Save Cost:
1. The length of each start-up waste of the XHH post-punching & cutting machine is about 1M; most machines on the market are pre-punching & post-cutting (other supplier), their waste material is about 8M on each start-up;
Start-Up/Change Steel Coil | 8.11-12.13 Kg |
5 Steel Coils/Day | 40.55-60.65 Kg |
Material Saved/Year | 12.17-18.2 T |
2. XHH Machine steel strip width is: 170-174mm width, 10mm less than the most other machines in the market. For a 200sqm house, the total frame is around 7000m,can save 439.6-659.4kg material;
Material Thickness | 0.8mm | 1.0mm | 1.2mm |
Material Saved Per House | 439.6kg | 549.5kg | 659.4kg |

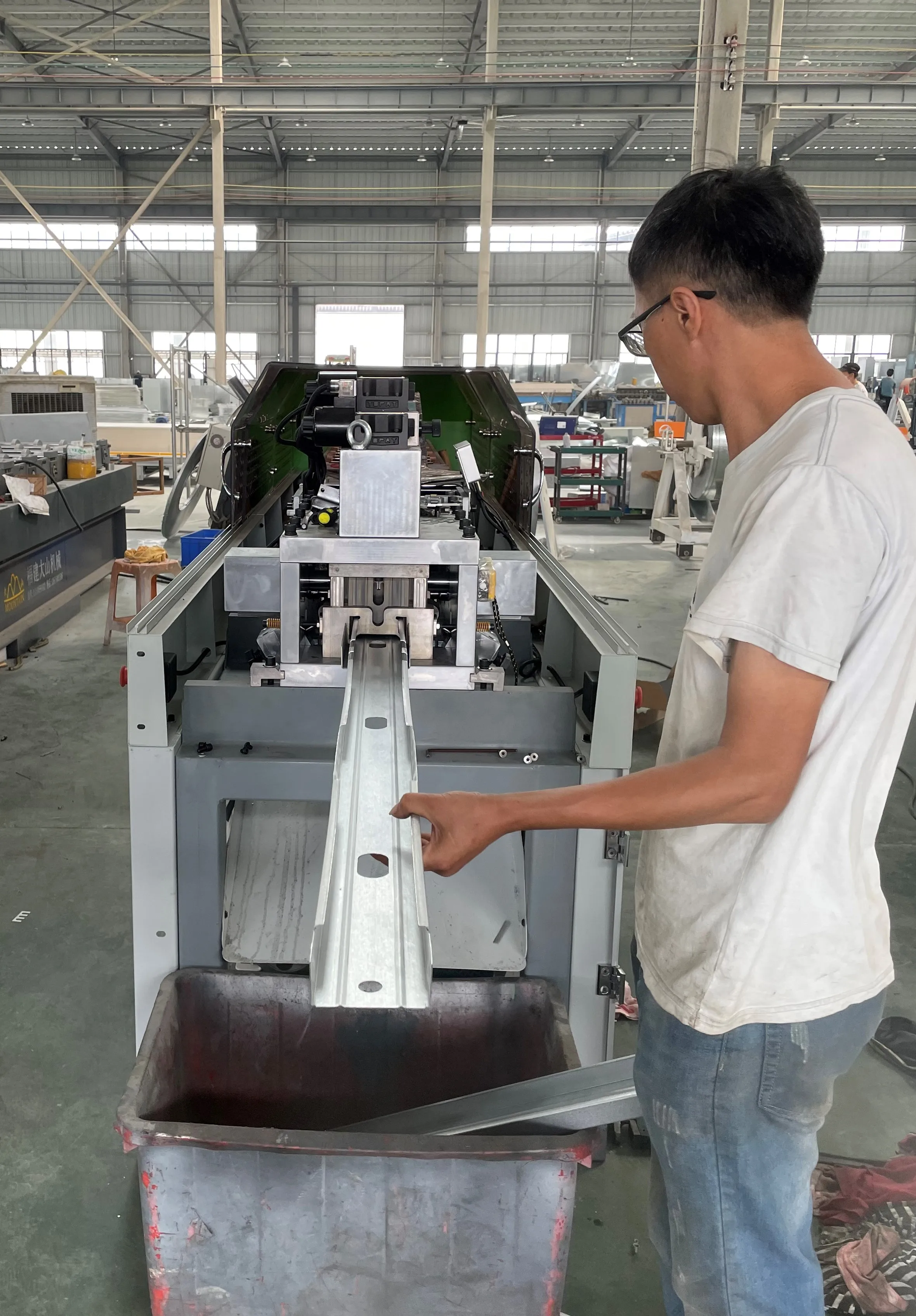

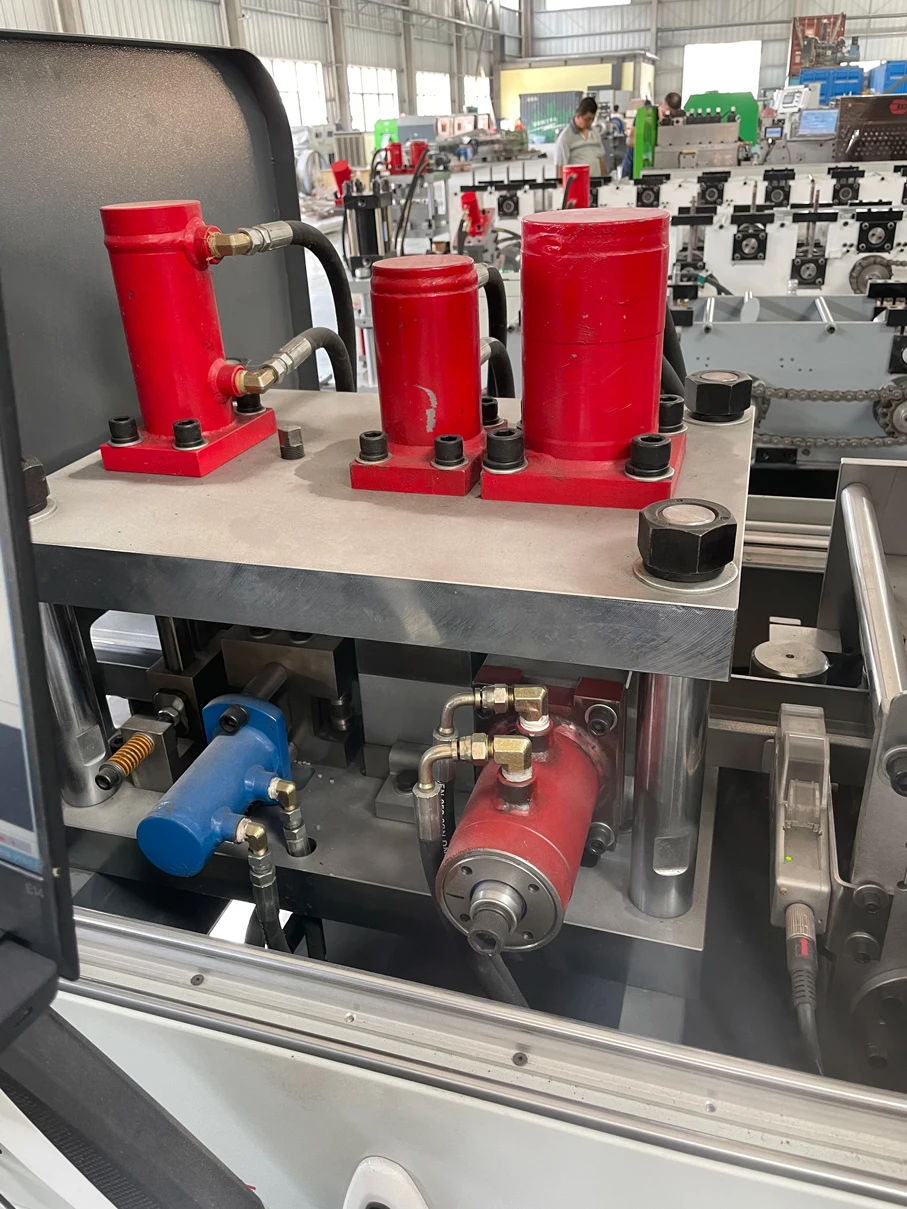

Post Punching Mould
XHH LGS Machine all with post punching and post cutting, which make more high precision performance on position & dimension

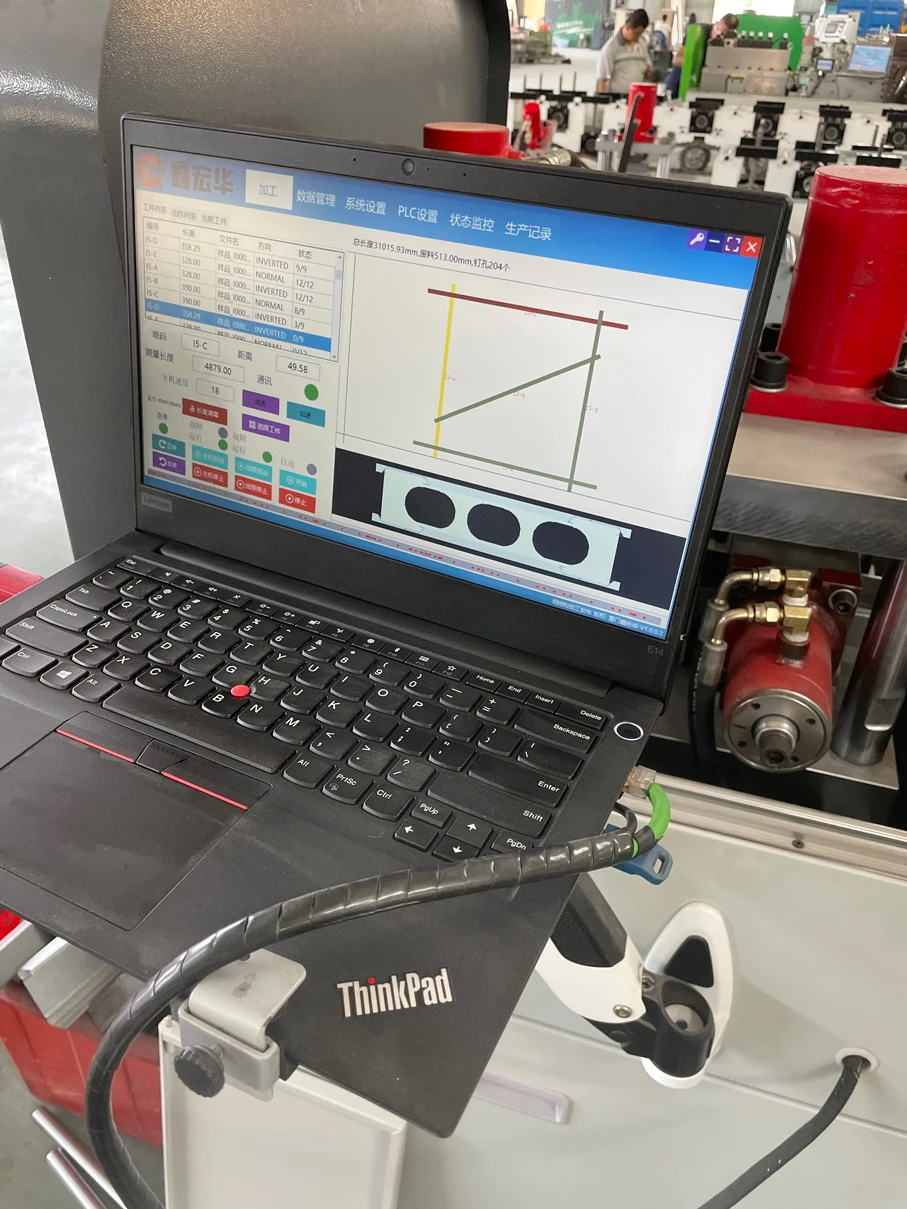

IPC Computer Controlling System
Lenovo Laptop IPC Computer Controlling System：shows the production online. Recognized the production file automatically
Main Forming System
SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers

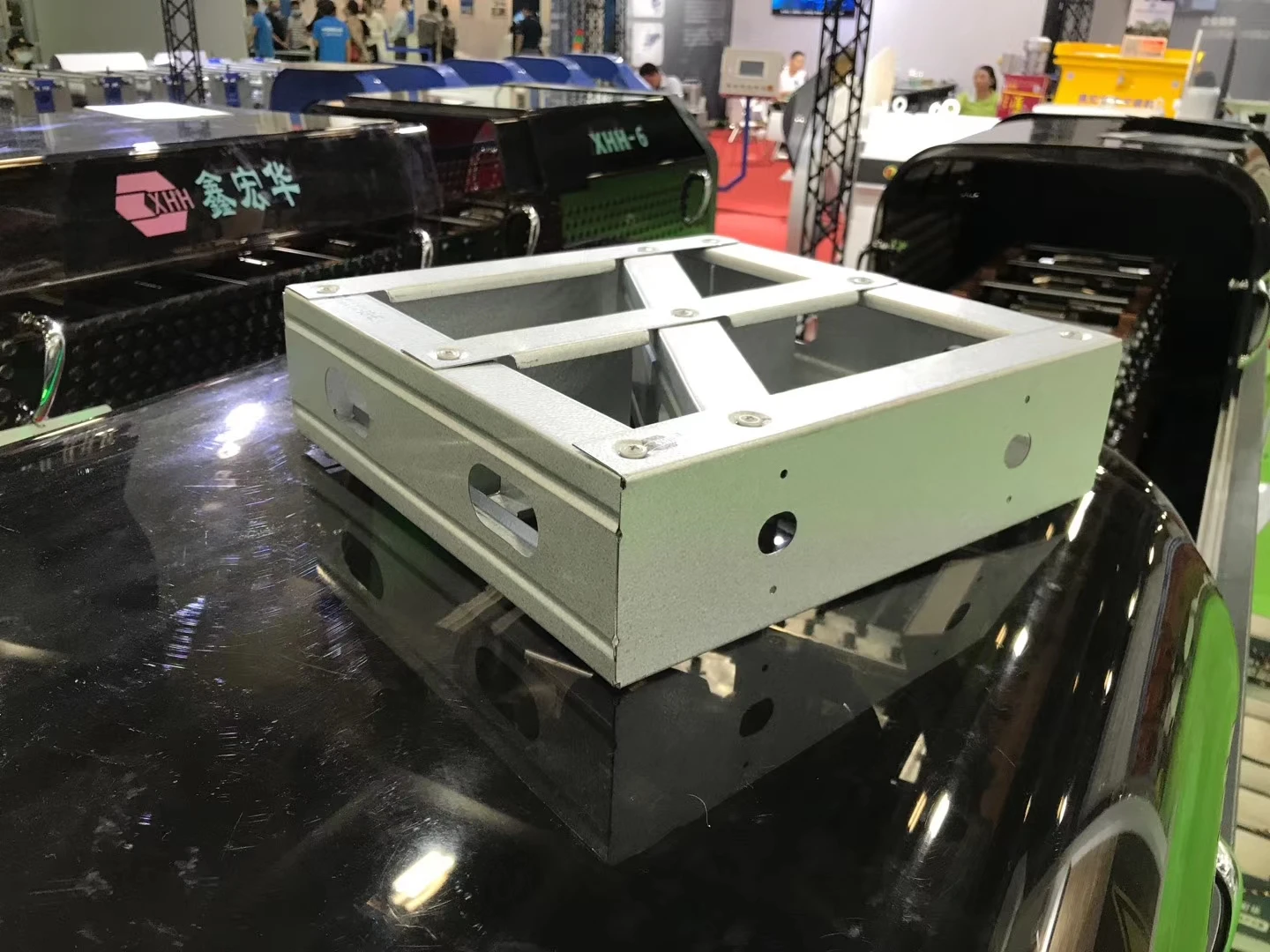

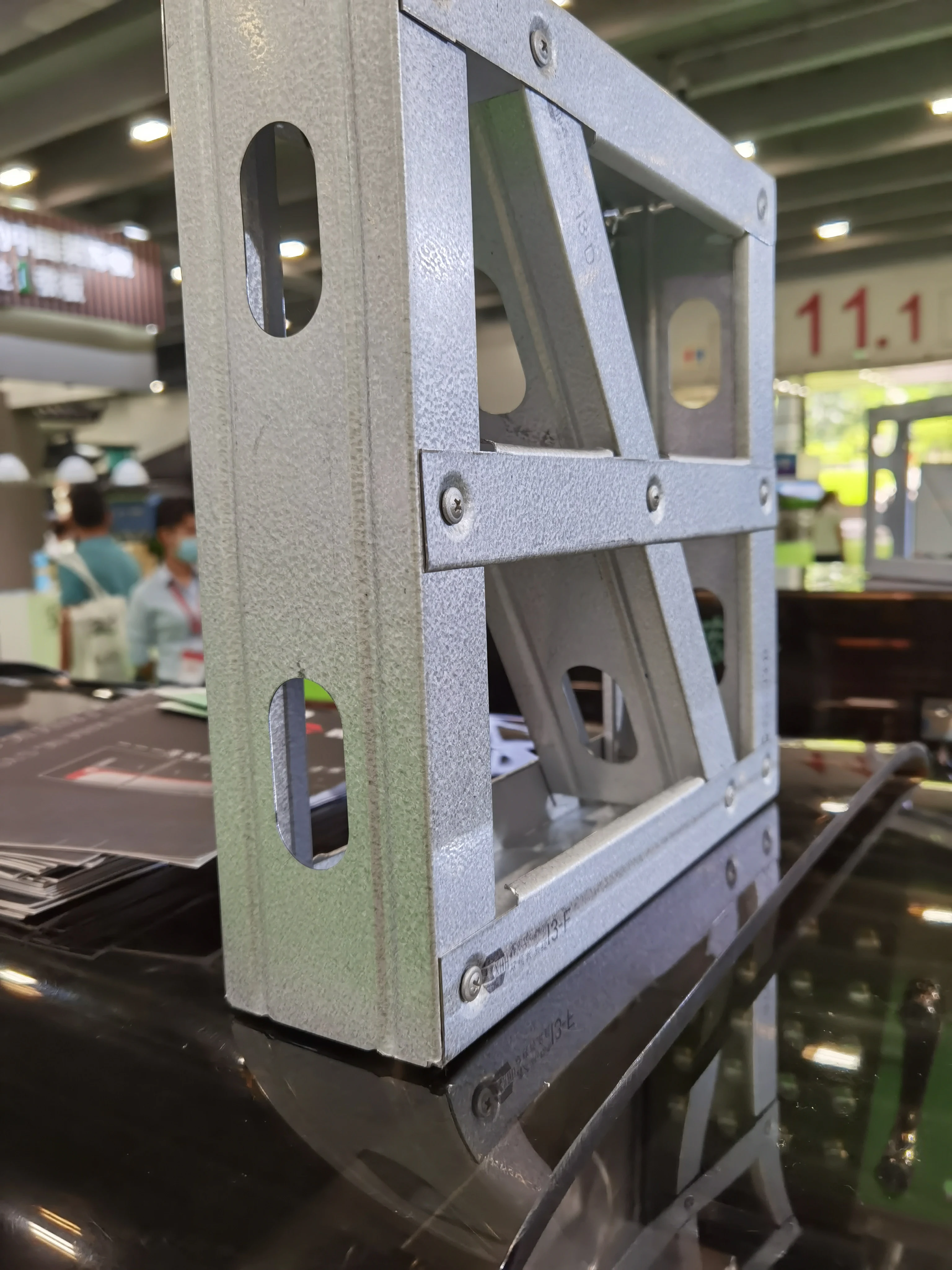

Seamless End Cut Connection
The two ends of the vertical frame can seamlessly connect to the web of the bottom and top horizontal frames，which makes the house safer.
Main Accessories: |
1) Main Forming Machine |
2) 3 Tons Manual Uncoiler |
3) Servo Motor System |
4) IPC Computer Controlling System (Lenovo Laptop) |
5) Production Software (1set) |
6) Design Software:Vertex BD permanent license,next annual version free update |
7) Hydraulic Automatic Punching Device |
8) Hydraulic Post-cutting Device (Material:SKD-11) |
9) Automatic Printing Device |
10) Run Out Table (4m) |
11) Operation Manual |

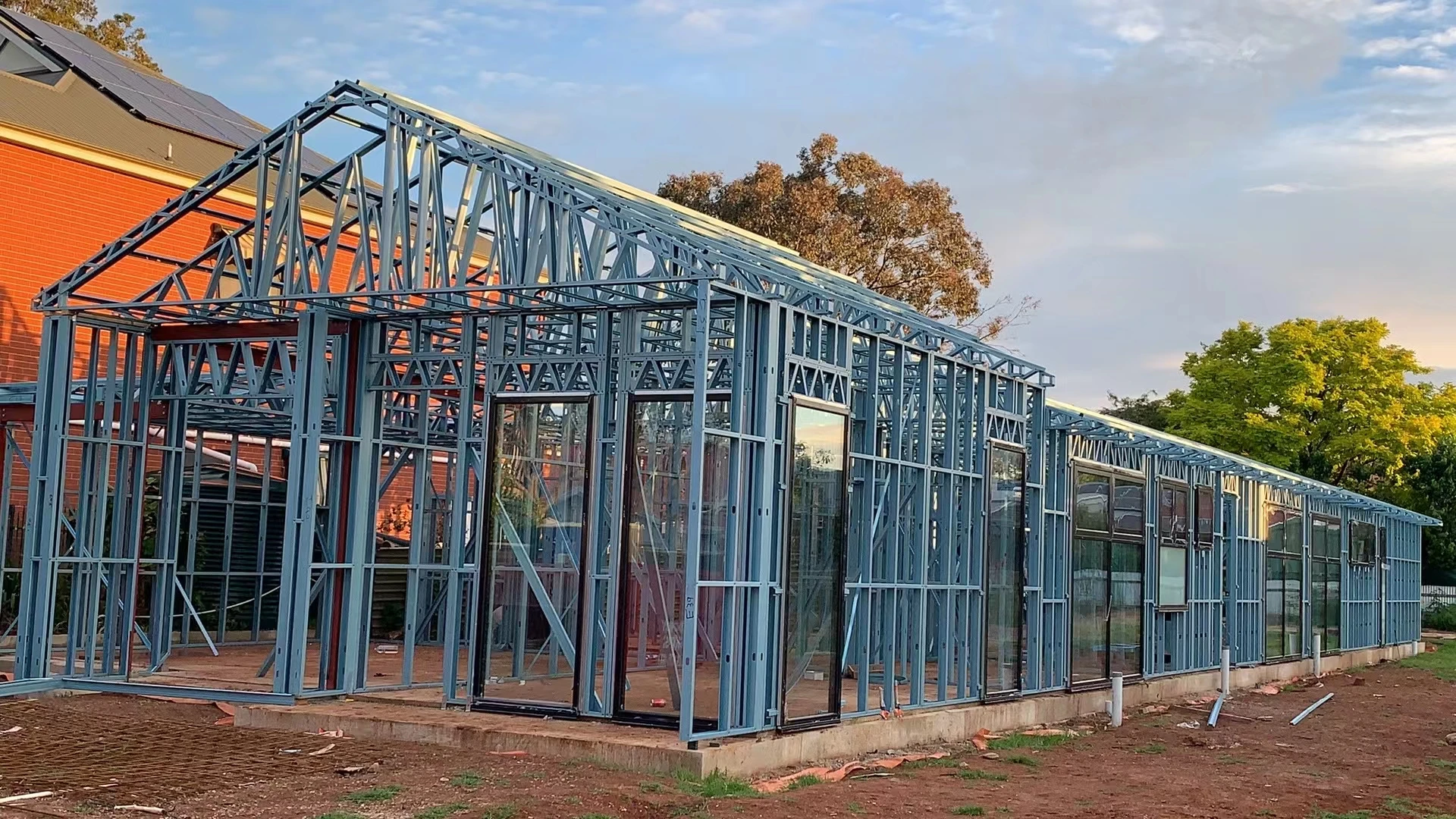

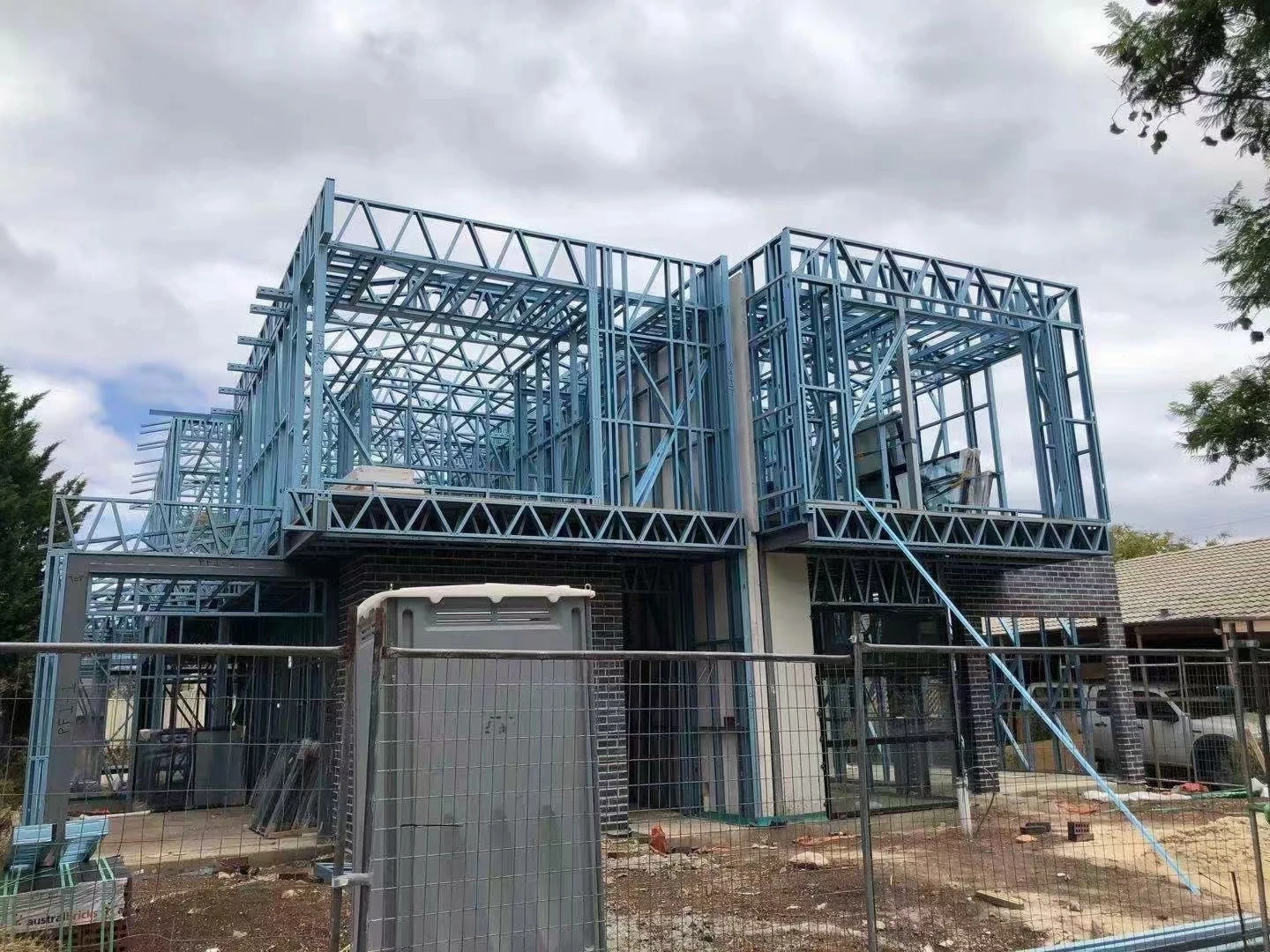

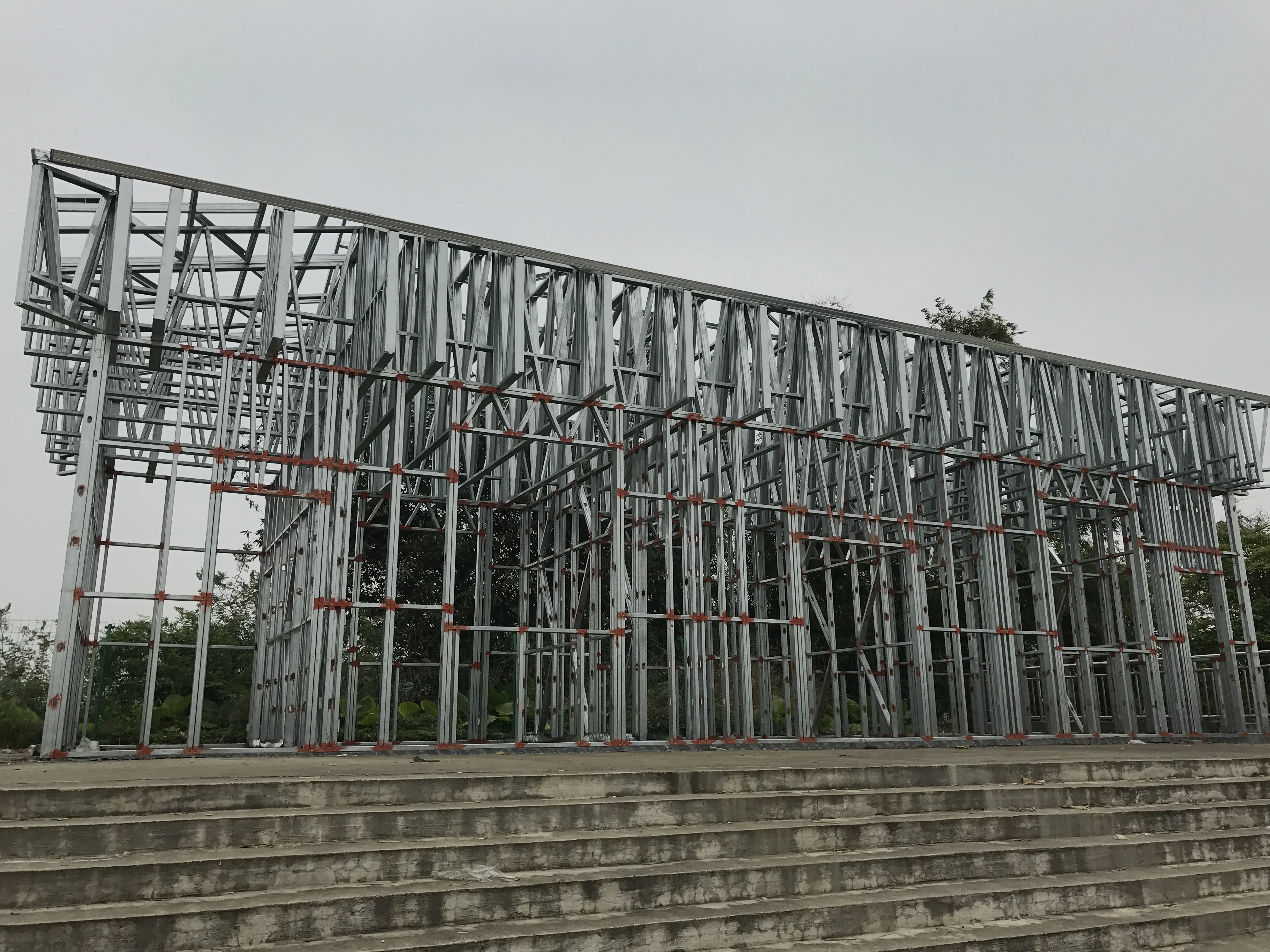

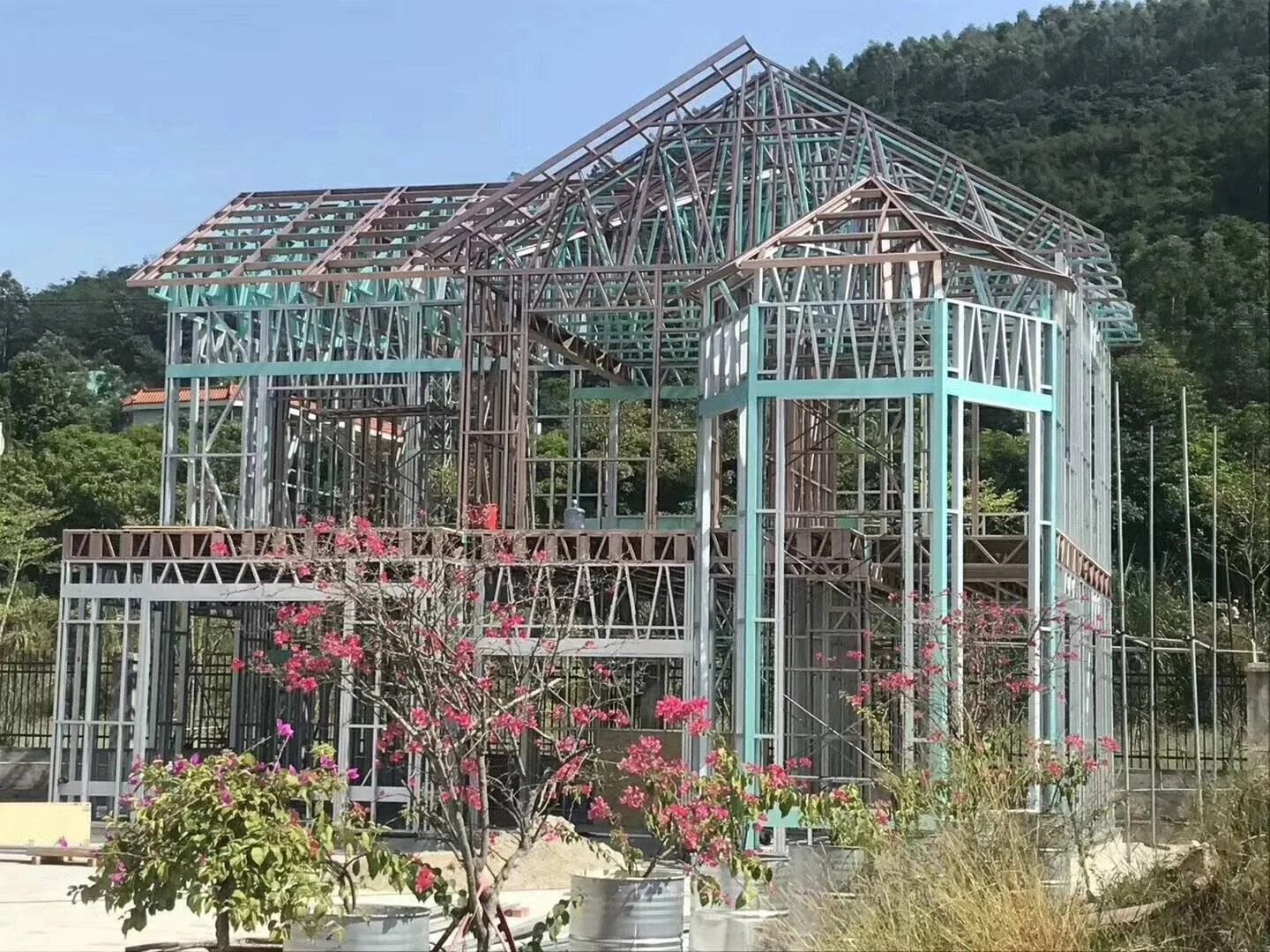

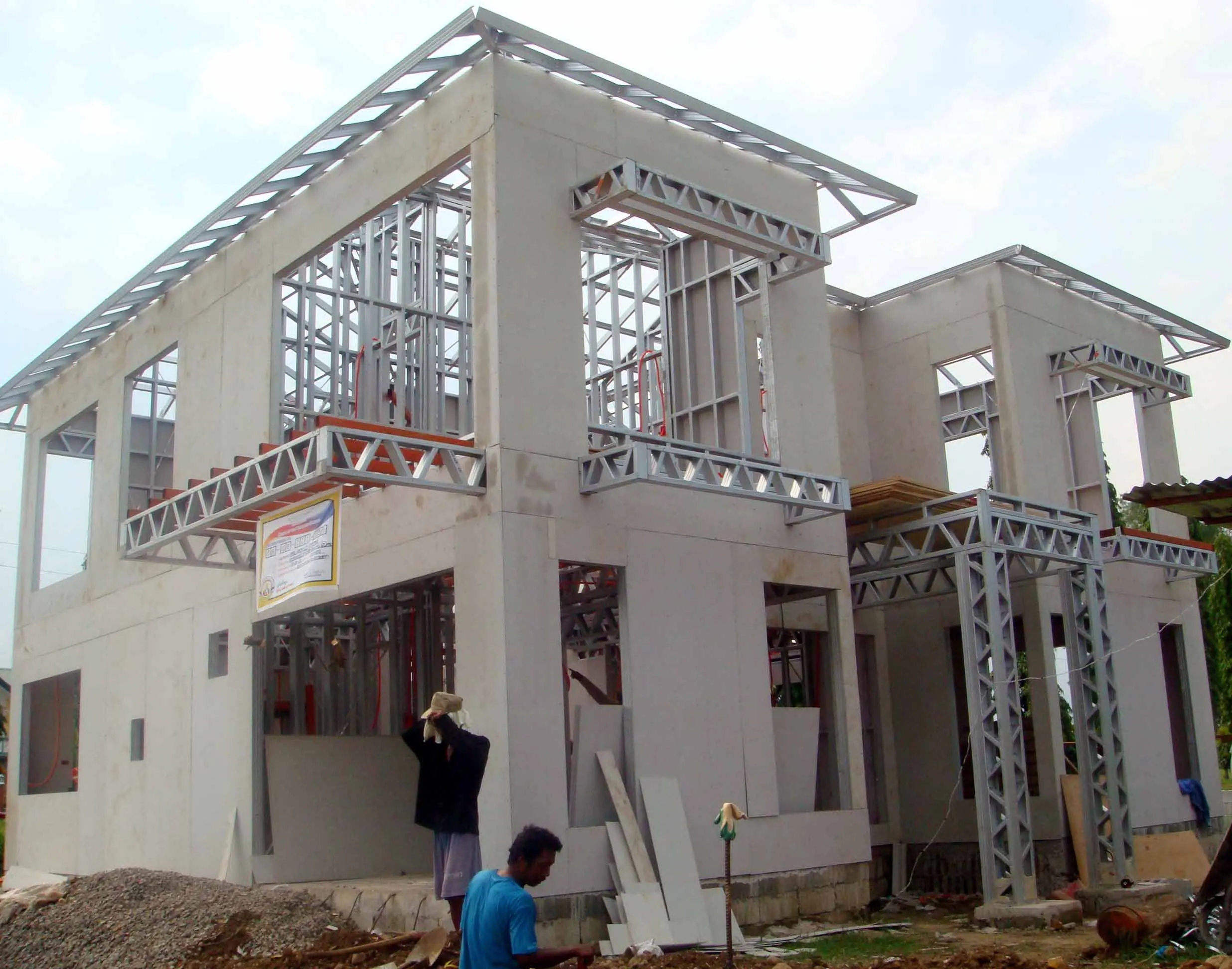

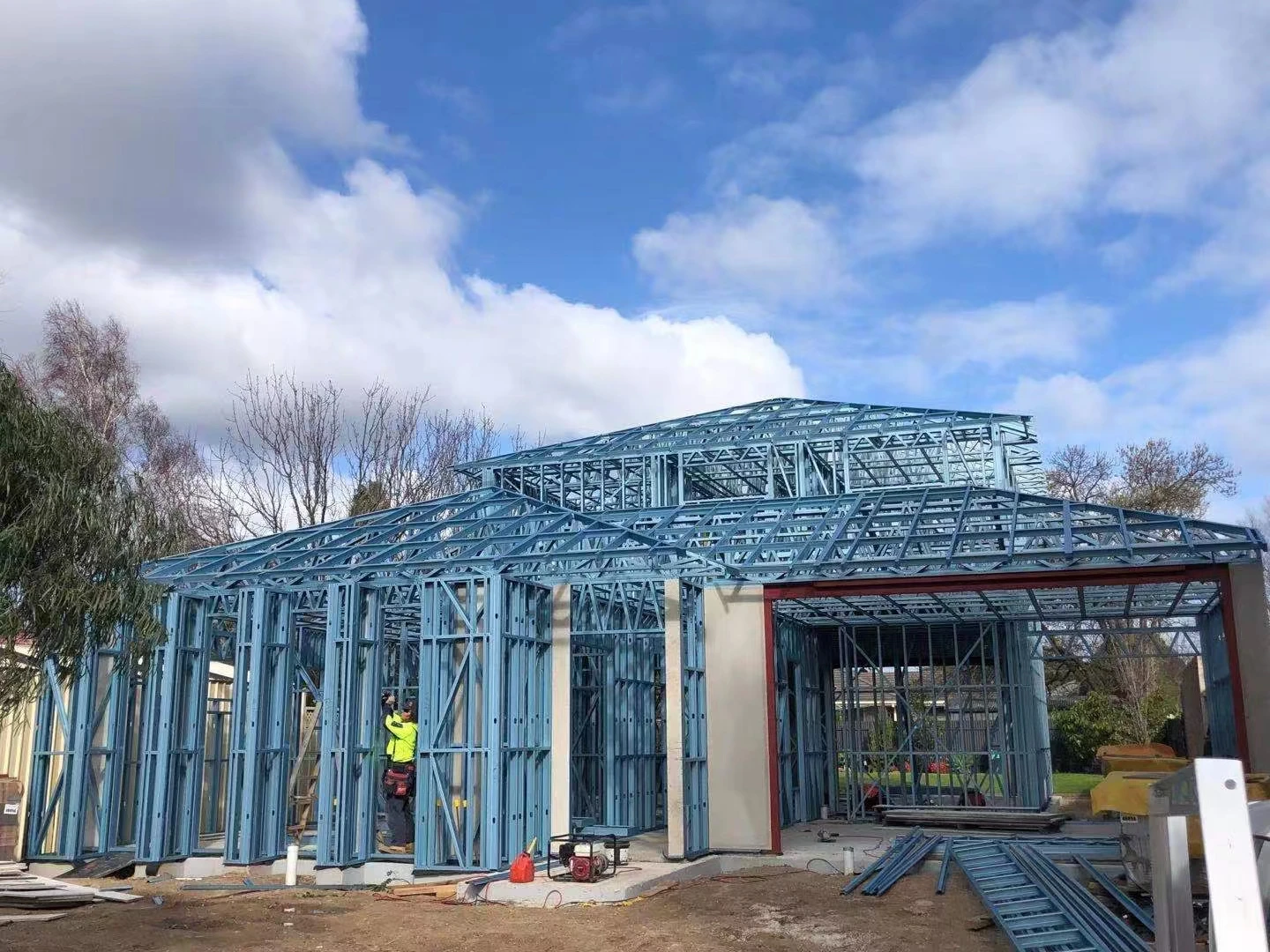

Successful Project
Our products are mainly covered the railway station,city curtain wall,stadium,etc.field and have widely used in national key construction project. High quality products, good service to our products not only sell well all over China,and exported to Southeast Asia,Europe, Africa and Australia more than 40 countries and regions.
We are the roll forming machine manufacturer,we can give you the most favorable price.
Welcome to consult price！
Company Profile
XIAMEN XINHONGHUA MACHINERY CO. LTD.(FUJIAN XINHONGHUA MACHINERY CO. LTD) was founded in 2004.as the earlier company which engaged in the manufacture of cold roll forming machines,after the reform and innovation of more than 19 years,and on basis of manufacture of modern management concepts,strong technology,advanced production technology,perfect service system,we have been currently in the domestic leading position,and as good competitor among the same industry of world.
Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.
Our company is located in the beautiful scenery,nice island of Xiamen.And have variety of products with stable performance,Always pay attention to improve the existing products and research and develop the new products.We have nearly 100 kinds of professional and technical personnel,with its strong ability of product design and development,to ensure a high level design of our product.For our products with light structure, reasonable design and updating styles,so we become well-know in the steel structure industry.
Main Products
FAQ
Q:Are you a trading company or manufacture.
A:We are a factory.
Q:Do you provide samples ? ls it free or extra ?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.We couldoffer the sample for free charge
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference.2) You are welcome to visit us and test machine in our factory.
Q:Do you provide samples ? ls it free or extra ?
A:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.We couldoffer the sample for free charge
Q:Where is your factory located?
A:Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
A:Our factory is located in Xiamen City, Fujian Province, China. You are warmly welcome to visit us !
Q:Can you make the machine according to my design or prototype?
A:Yes. We have an professional designer for working out the most suitable design and productionplan for the machine that you are going to book with us.
A:Yes. We have an professional designer for working out the most suitable design and productionplan for the machine that you are going to book with us.
Q:How can I trust you that machines pasted testing running before shipping?
A:1) We record the testing video for your reference.2) You are welcome to visit us and test machine in our factory.
Q:Do you provide instaling and training overseas?
A:Overseas machine install and worker training services are optional.
A:Overseas machine install and worker training services are optional.
Q:How is your after sales support?
A:We provide technical support on line as well as overseas services by skillful technicians
A:We provide technical support on line as well as overseas services by skillful technicians
Q:Guarantee period?
A:Within one year since the date of finishing commissioning
A:Within one year since the date of finishing commissioning
