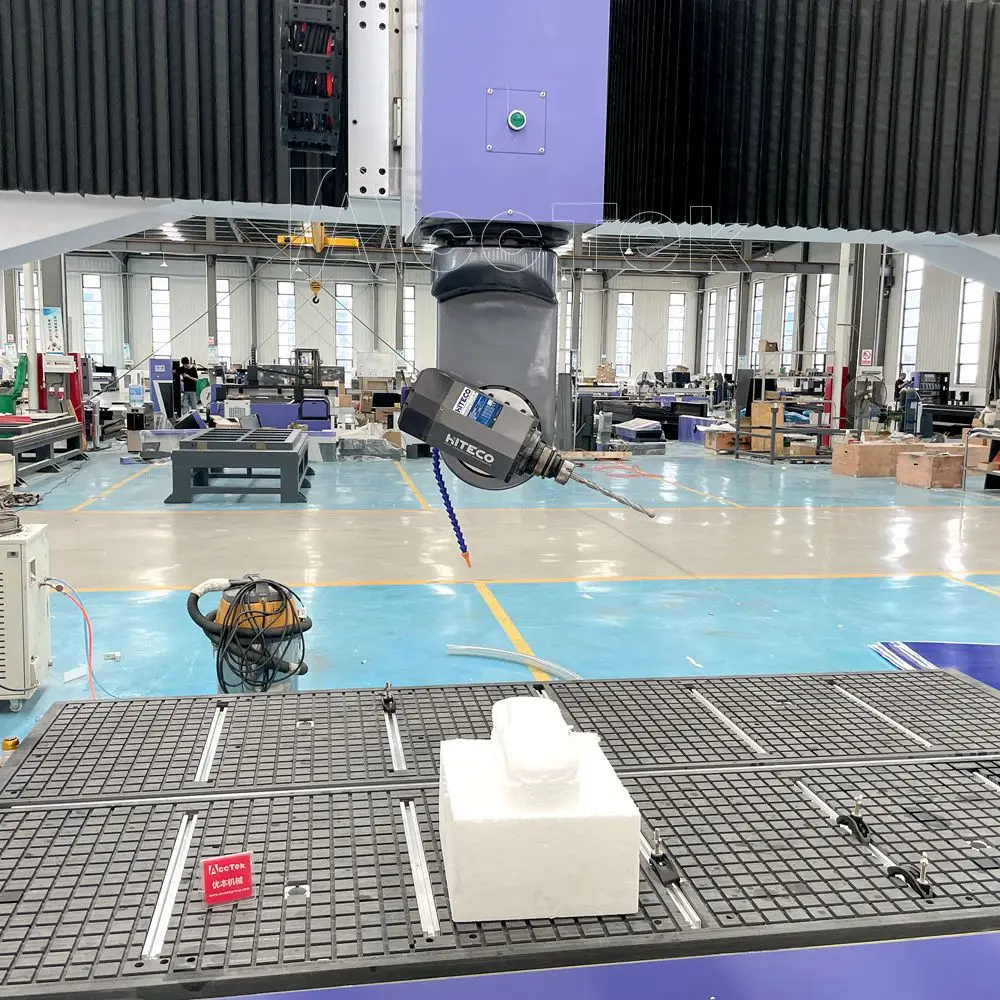

5 Axis Cnc Router Machine With 10kw Spindle C axis 360 degree For Wood Metal And Foam Carving
- Category: >>>
- Supplier: Jinan AccTek Machinery Co. Ltd.
Share on (1601081008710):
Product Overview
Description
5 Axis CNC Router Machine Styrofoam Wood Foam Carving Machine ATC
*For more details, please contact Valerie
Product Description
* 0° to 360° head rotation and 0° to ± 110° head tilting, ensure more function.

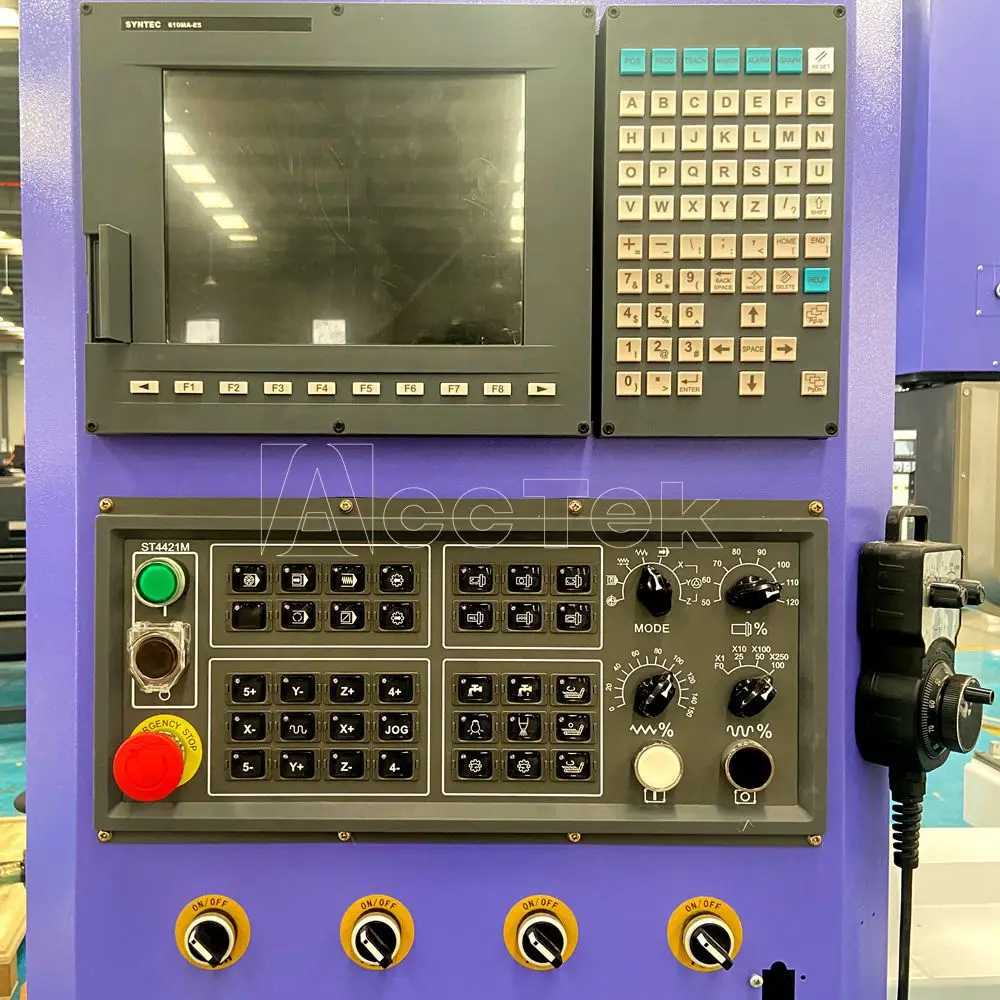

* Syntec control system from taiwan, with high performance and competitive price. Professional famous brand in 5 axis machine
line.

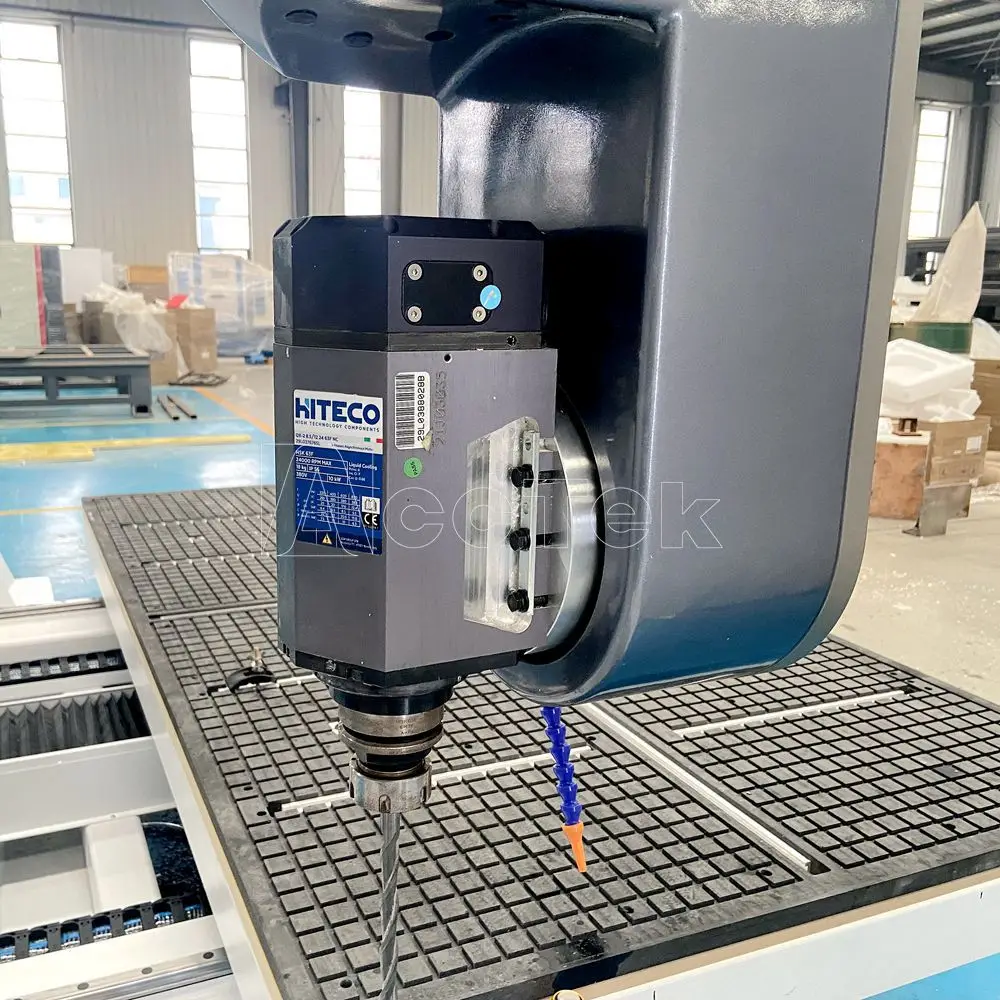

* Italian Hiteco 10 kw 5 axis spindle with HERO-TECH industry water chiller, with strong cutting ability, low noise, it can
ensure the machine working for long time.
* Original YASKAWA Servo motors & drivers from Japan, ensure the machine’s stronger strength and high accuracy.
* Five-axis linkage with RTCP function (true five-axis interpolation) is suitable for large-scale three-dimensional curved
surface machining modeling.
* Diversified control can control the processing speed, empty speed, etc. separately.
* Japanese THK 30mm linear guide and Germany WMH HERION rack, all famous brand and high quality choice, ensure machine with high
performance and long working life.
* 2D and 3D cutting and carving wood, foam statue making, door furniture relief carving.
* Syntec control system from taiwan, with high performance and competitive price. Professional famous brand in 5 axis machine
line.
* Italian Hiteco 10 kw 5 axis spindle with HERO-TECH industry water chiller, with strong cutting ability, low noise, it can
ensure the machine working for long time.
* Original YASKAWA Servo motors & drivers from Japan, ensure the machine’s stronger strength and high accuracy.
* Five-axis linkage with RTCP function (true five-axis interpolation) is suitable for large-scale three-dimensional curved
surface machining modeling.
* Diversified control can control the processing speed, empty speed, etc. separately.
* Japanese THK 30mm linear guide and Germany WMH HERION rack, all famous brand and high quality choice, ensure machine with high
performance and long working life.
* 2D and 3D cutting and carving wood, foam statue making, door furniture relief carving.

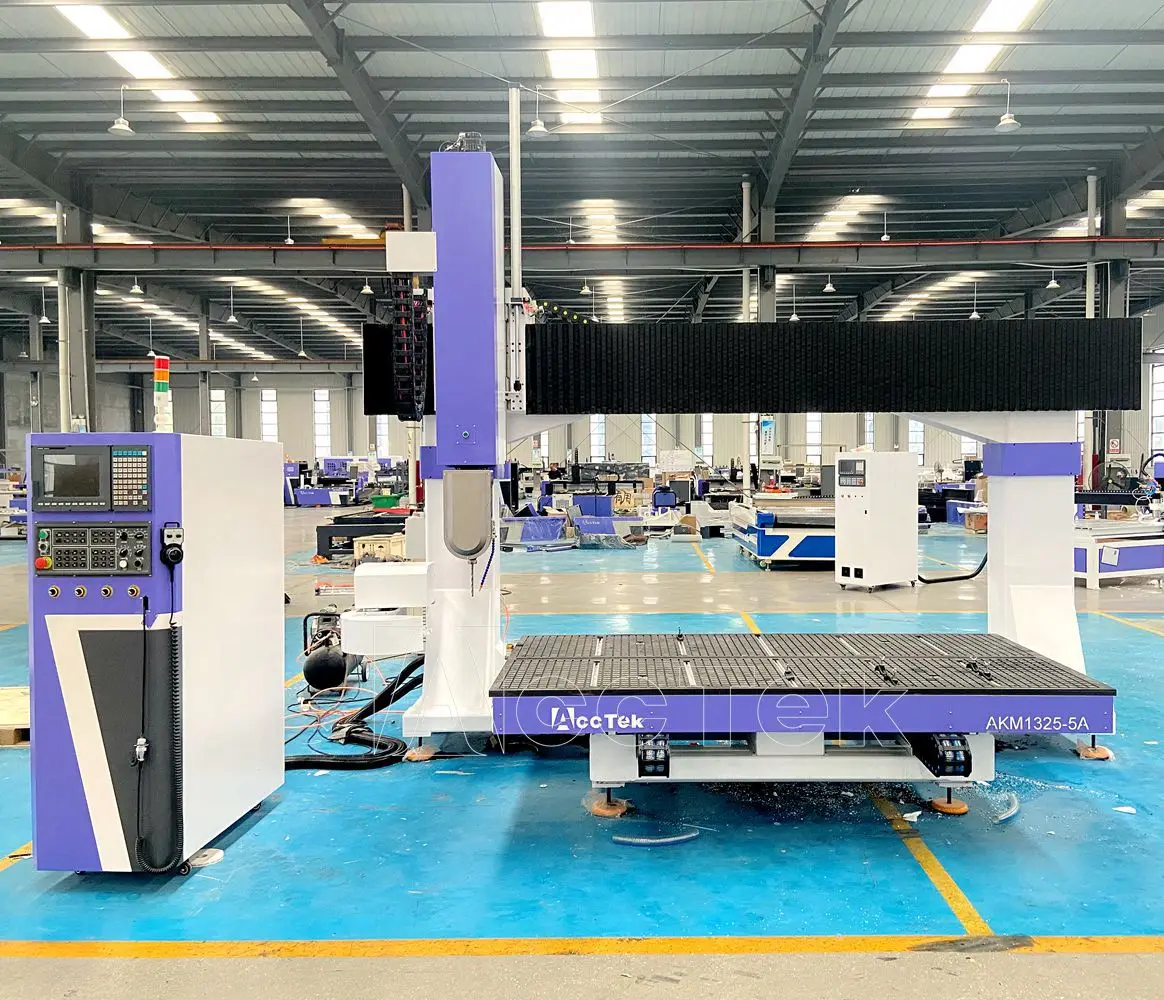

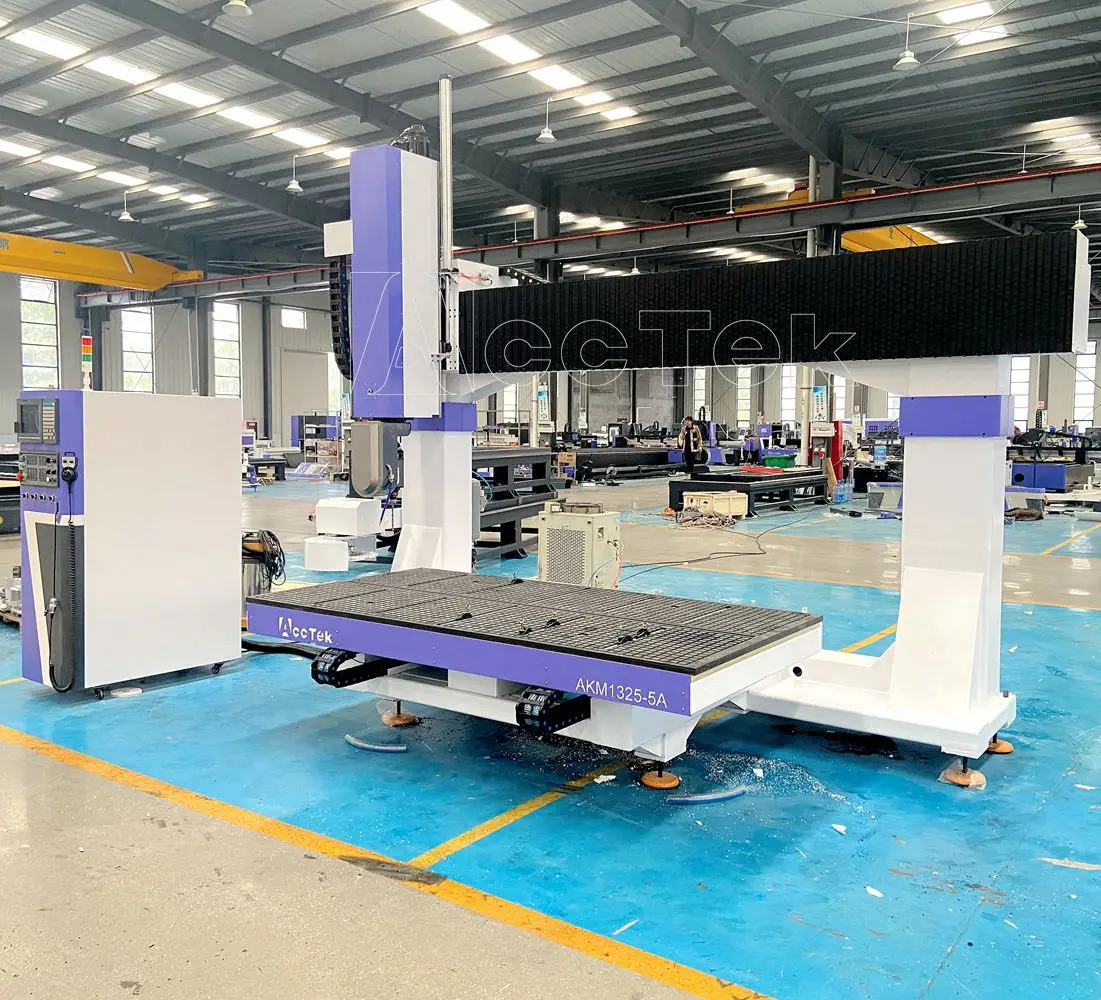

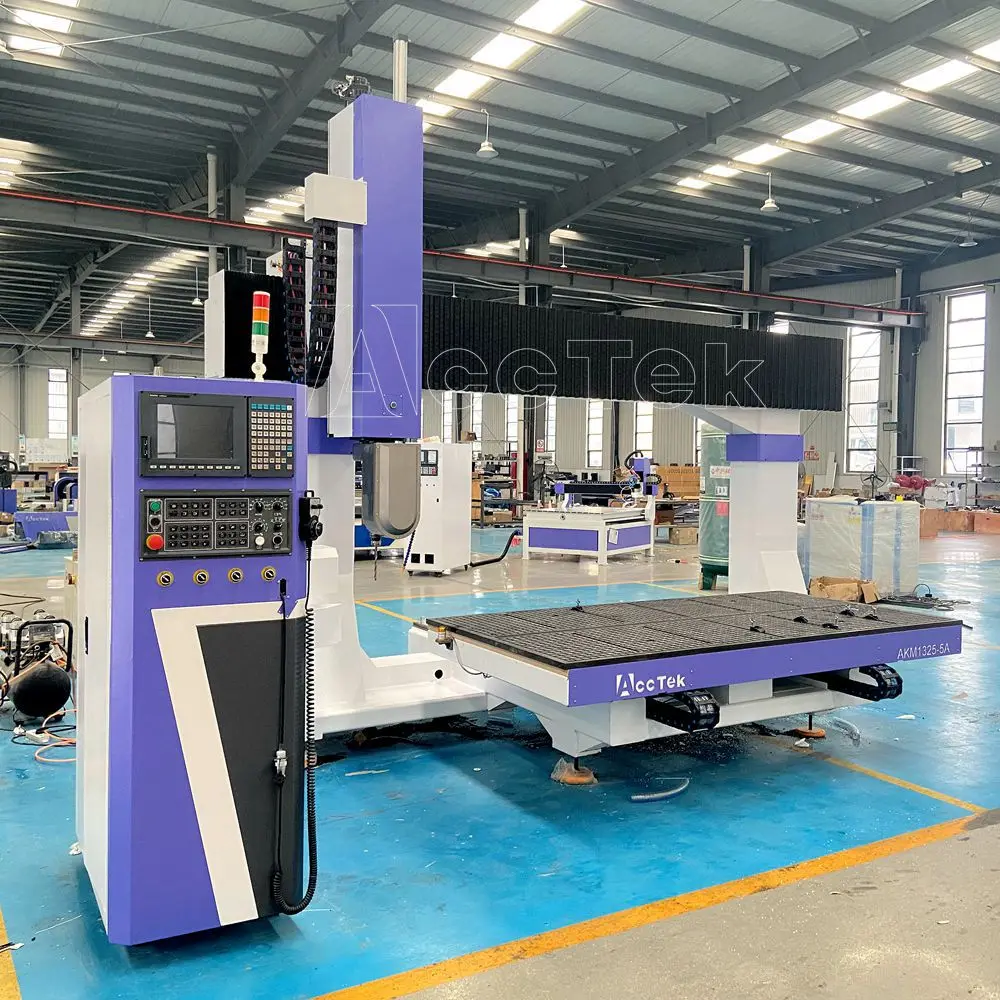

AccTek 5 axis cnc router description

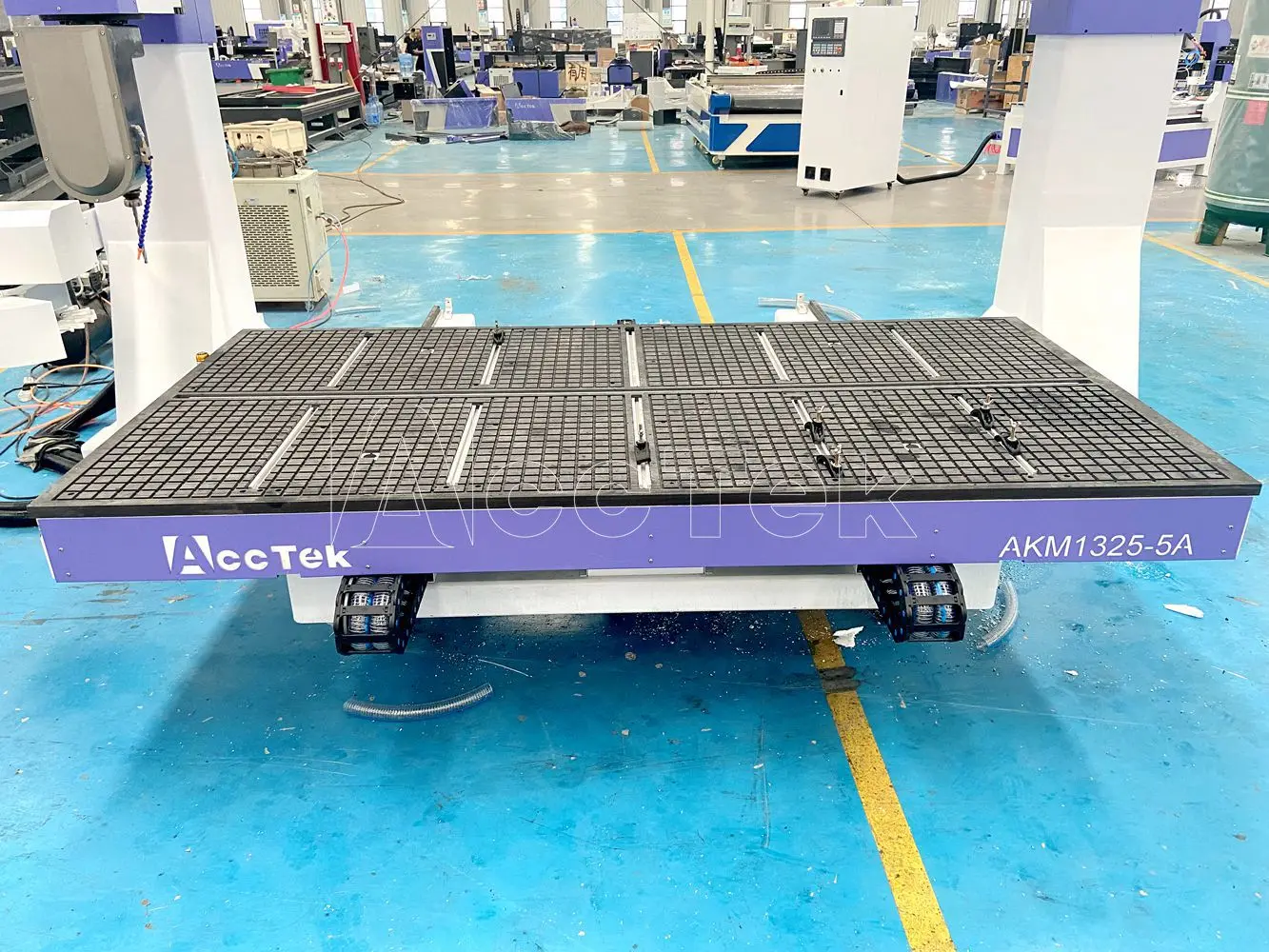

The acctek AKM1325-5axis cnc router working size is 1300x2500x600mm (the X axis is 2500mm and the Y axis is 1300mm and the Z axis is 600mm).
It use Italian Hiteco(HSD) 10kw 5 axis spindle and Yaskawa servo motor ( X axis is 1.8kw servo motor, Y axis is 1.3kw
servo motor, A axis is 400w servo motor and C axis is 750w servo motor), Syntec controller.
servo motor, A axis is 400w servo motor and C axis is 750w servo motor), Syntec controller.
It can 360 degree carving and cuttingand drilling. It can It is mainly used in the sculpture, statue, art, mold industry.
We also have other working size, like 1200x1200x600mm 1200x2400x600mm, 1500x3000x600mm.
*For more details, please contact Valerie
*For more details, please contact Valerie
Certifications
Detailed Images
Description | Parameter |
Maximum working size | X Axis:2500mm |
Y Axis : 1300mm | |
Z Axis: 600mm | |
A Axis: ±110° | |
C Axis: ±360° | |
Structure | Welded Steel Structure |
X,Z axis transmission | Germany H30 REXROTH Guide rails and import ball screw |
Y axis transmission | Germany H30 REXROTH Guide rails and Herion Gear and rack |
Spindle | Spindle 6000-24000rpm, HSK F63, 12kW |
Tool Magazine | Disc-type ATC (with 8 tools) |
Spindle Speed | 24000r/min, variable speed |
Working Voltage | AC380V 60HZ 3-phase |
Motor and driver | Japan YASKAWA |
Inverter | Taiwan Delta inverter |
Command | G code |
Controller | Taiwan Syntec controller |
Software | UG and post processor |
Sample
1. Relief sculpture and 3D engraving; Cylindrical object carving.
2. Mold industry: wooden ship model, car model, wooden model aviation and many other wooden model.
3. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, interior doors, sofa
legs etc.
4. Foam industry: can carve and cut on any kind of foam with 2D and 3D dimension processing. Processing effect: Engraving,
cutting, milling, drilling, relief, shadow etc.
5. Sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mould, wooden ship
model,wooden model aviation and other wooden mould 3D processing.
2. Mold industry: wooden ship model, car model, wooden model aviation and many other wooden model.
3. Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, interior doors, sofa
legs etc.
4. Foam industry: can carve and cut on any kind of foam with 2D and 3D dimension processing. Processing effect: Engraving,
cutting, milling, drilling, relief, shadow etc.
5. Sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mould, wooden ship
model,wooden model aviation and other wooden mould 3D processing.
*For more details, please contact Valerie
