Prima Power Genius Laser Cutting Machine 4020
$13,550.00-15,800.00
High Cutting Efficiency Fiber Laser Cutting Machine 2000W 3000W for Metal Stainless Steel Sheet
- Category: >>>
- Supplier: Shandong Leapion Machinery Co. Ltd.
Share on (1601081345475):

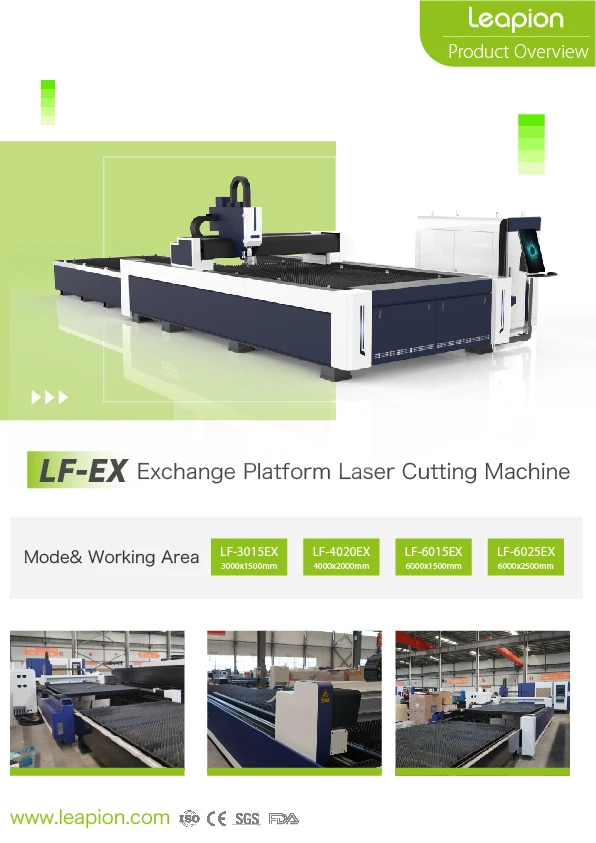

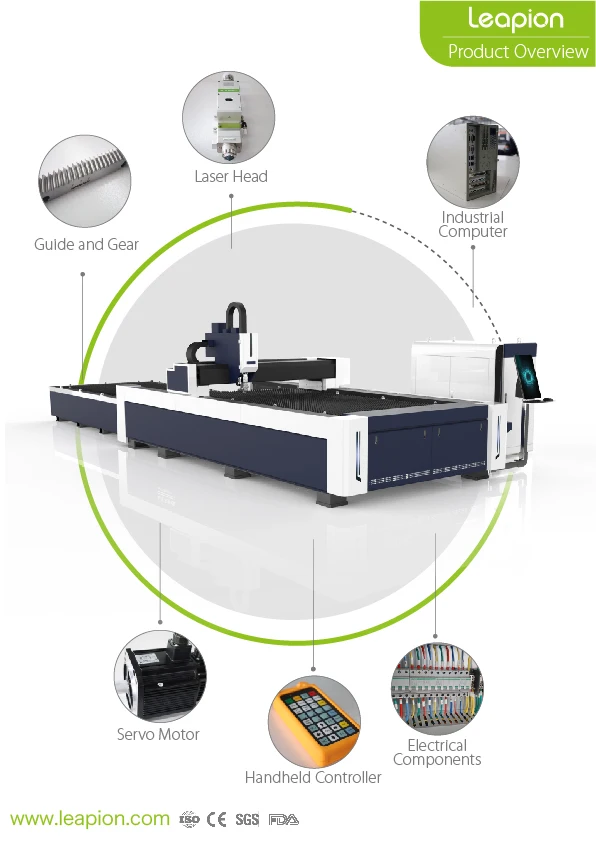

Product Overview
Description
Product Description

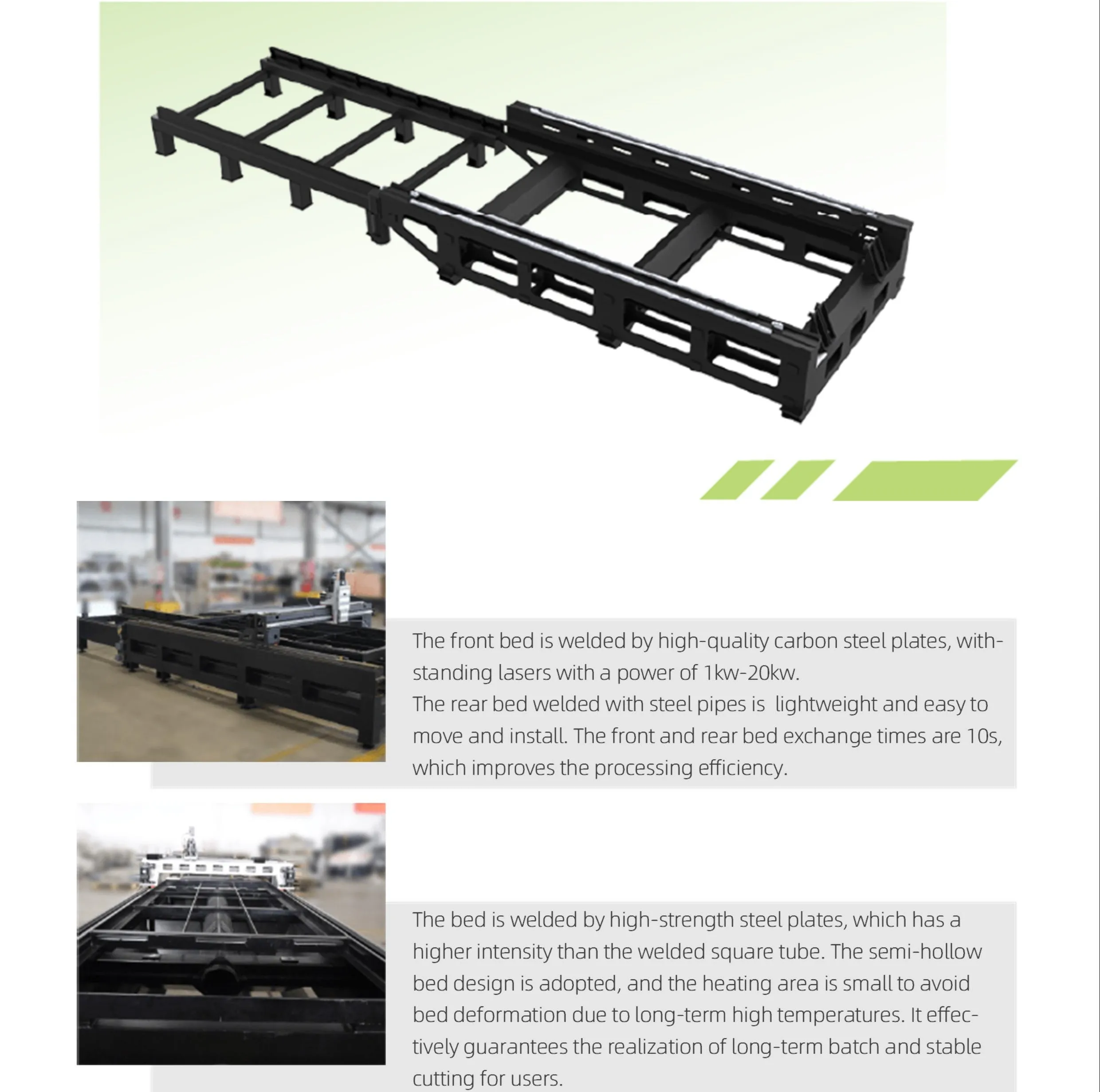

Industrial Machine Bed

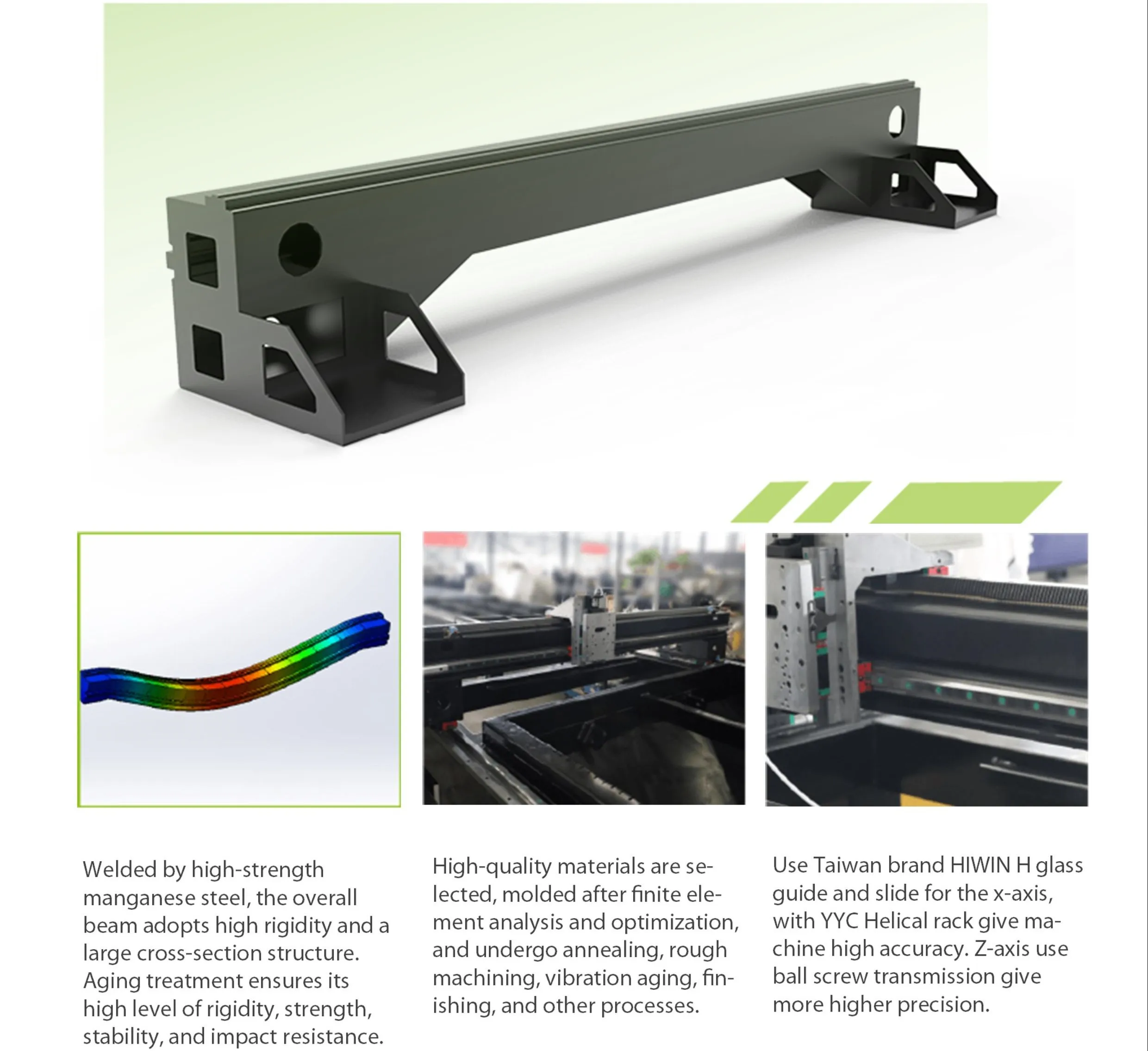

Gantry

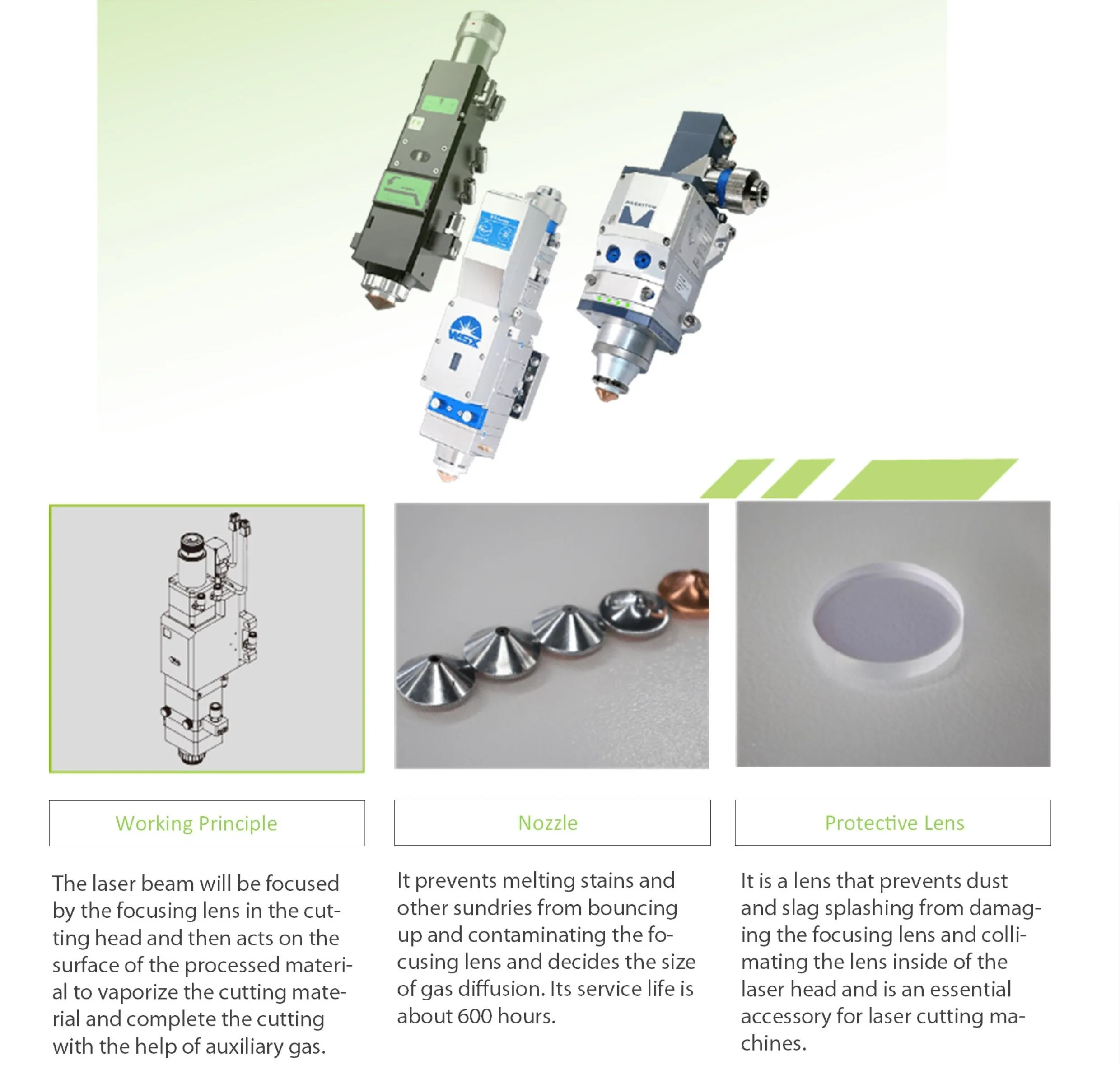

Laser Cutting Head

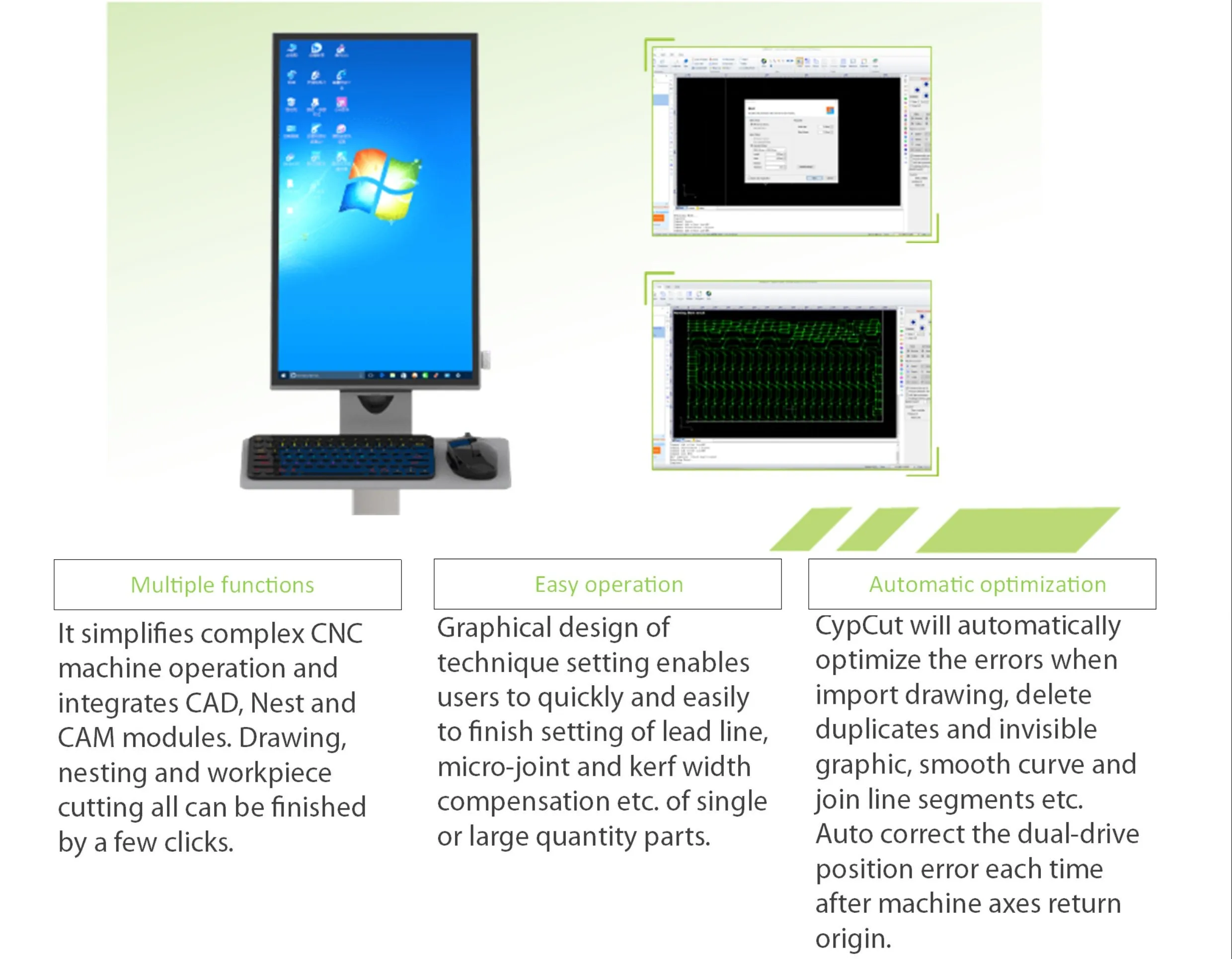

Control System
Model | LF-EX Fiber Laser Cutting Machine |

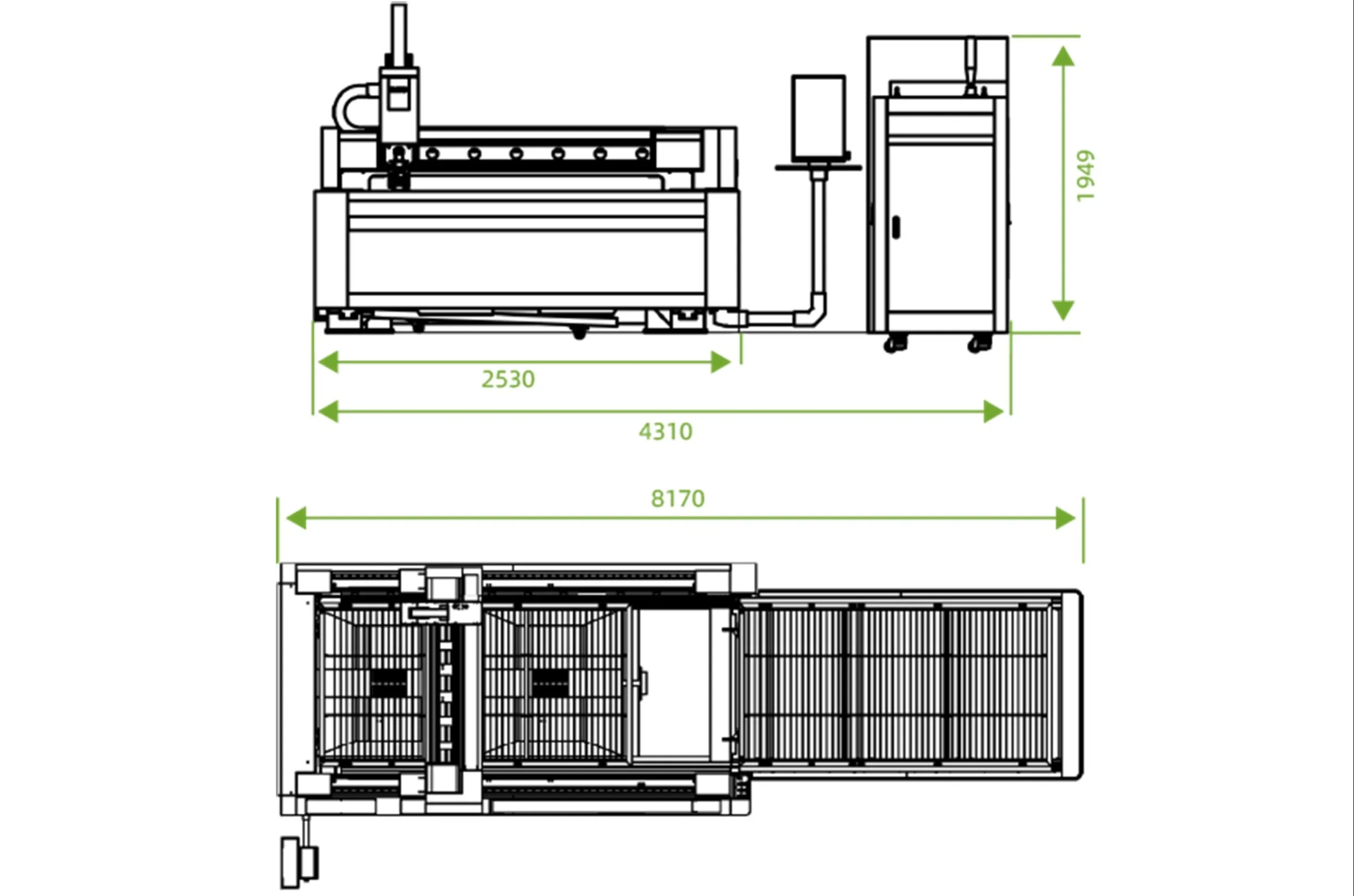

Work Area | 1500*3000mm, 1500*6000mm, 2000*4000mm, 2500*6000mm |
Laser Power | 1kw-30kw, more higher |
Control System | FSCUT, Raytools, Leapion, etc. |
Servo Motor | Fuji, Schneider, Yaskawa, Delta, Panasonic, etc. |
Laser Head | Raytools, WSX, Ospri, Precitec, Leapion, etc. |
Height Adjuster | Automatic |
Electrical Components | Schneider, Delixi, etc. |
Pneumatic Components | SMC |
Guide Rails | HIWIN, PMI, THK, NSK, etc. |
Rack and Gear | YYC, Atlanta, APEX, etc. |
Lubrication | Automatic |
Reducer | SHIMPO, MOTOVARIO, etc. |
Optional | Air compressor, Voltage Regulator, Smoke Purifier, etc. |
Technical Parameters
Laser Wavelength | 1080nm |
Laser Source Service Life | More than 100000 hours |
Cutting Thickness | Depend on the Laser Power |
Graphic Format | DXF, PLT, AI, etc. |
Voltage | 380V 3Ph 50Hz (60Hz) , customize |
Positioning Accuracy | ±0.02mm |
Repeat Positioning Accuracy | ±0.03mm |
Max. Linkage Speed | 145m/min |

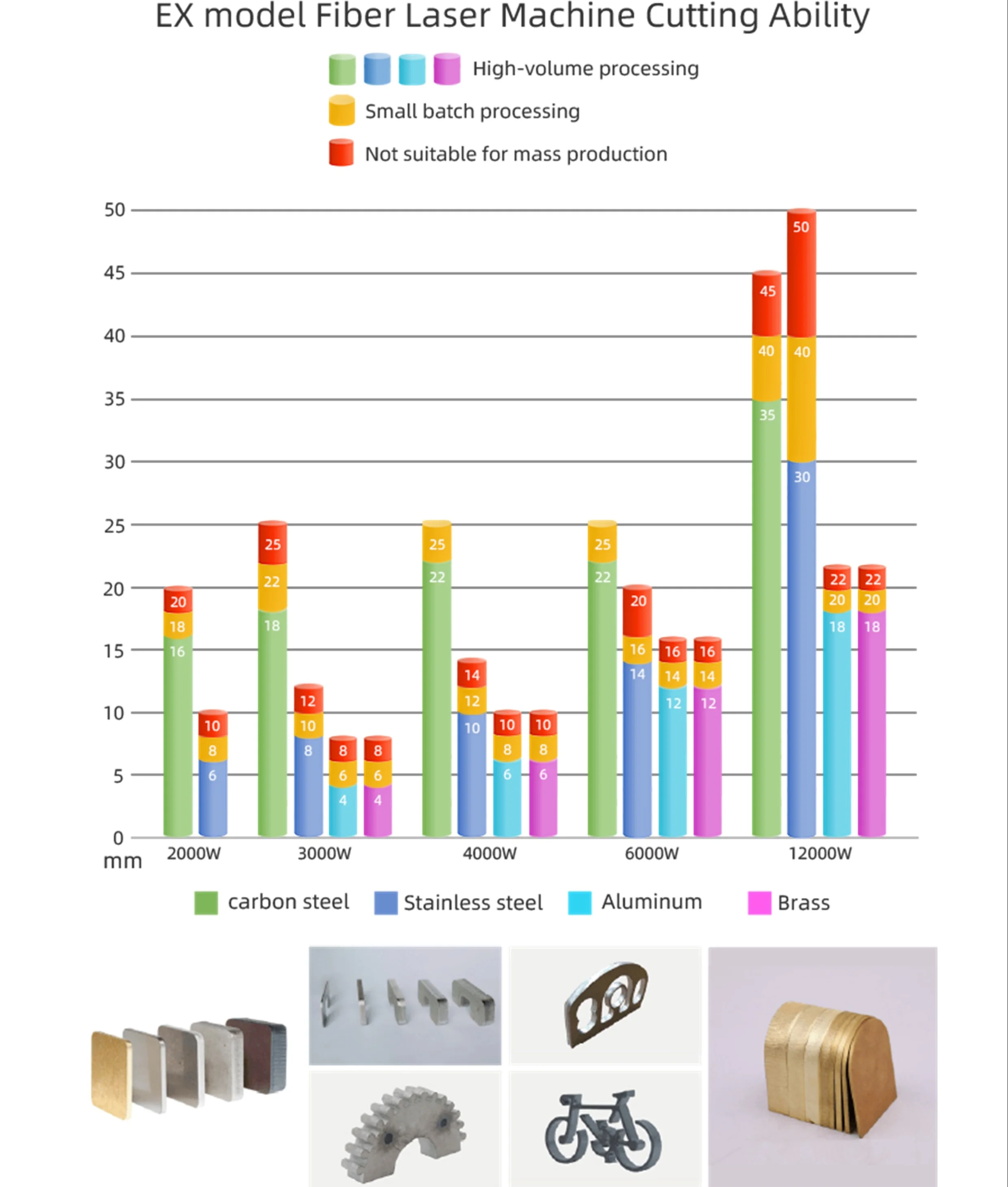

Cutting Ability
Certifications
Service Introduction
Company Introduction

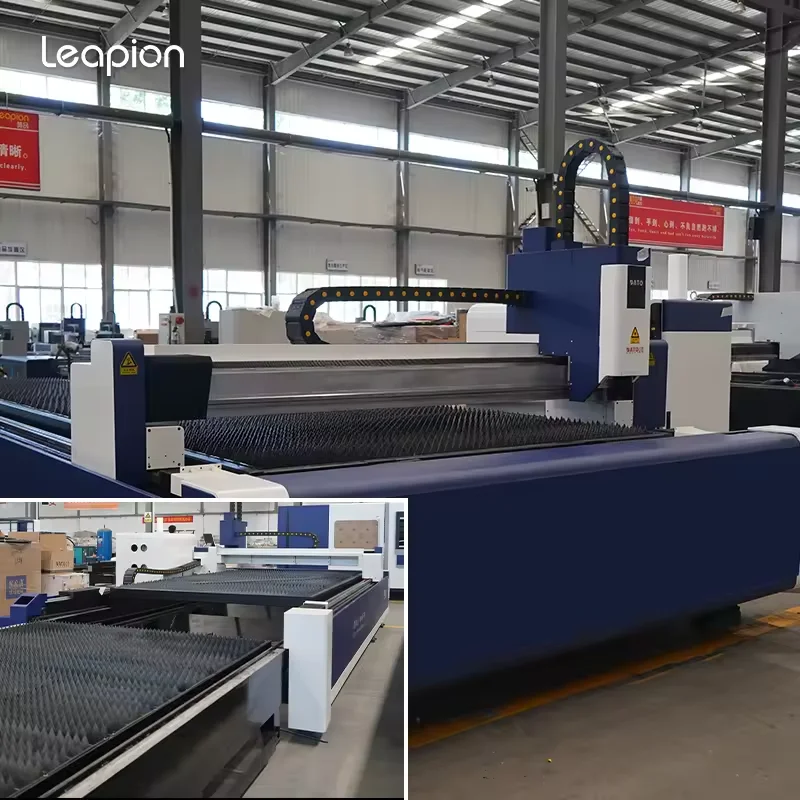

Production Line
FAQ
Q: What customized services you provided?
A: Leapion is the true manufacturer, we have own factory, therefore we could supply full OEM and ODM service.
Q: What payment method you accept?
A: On Alibaba, we supply Trade Assurance Order, and via this method, you could pay by T/T, L/C, Credit Card, etc.
Q: What shipping methods you provide?
A: We give customer EXW, FOB, CFR, DDP, DDU, and any ways you want.
Q: How long is the delivery time?
A: It depend on the machine mode you require, and which country you from. About the production time, LF-3015B mode machine only need 20 works day. About the shipping time, it depend on the flight time.
