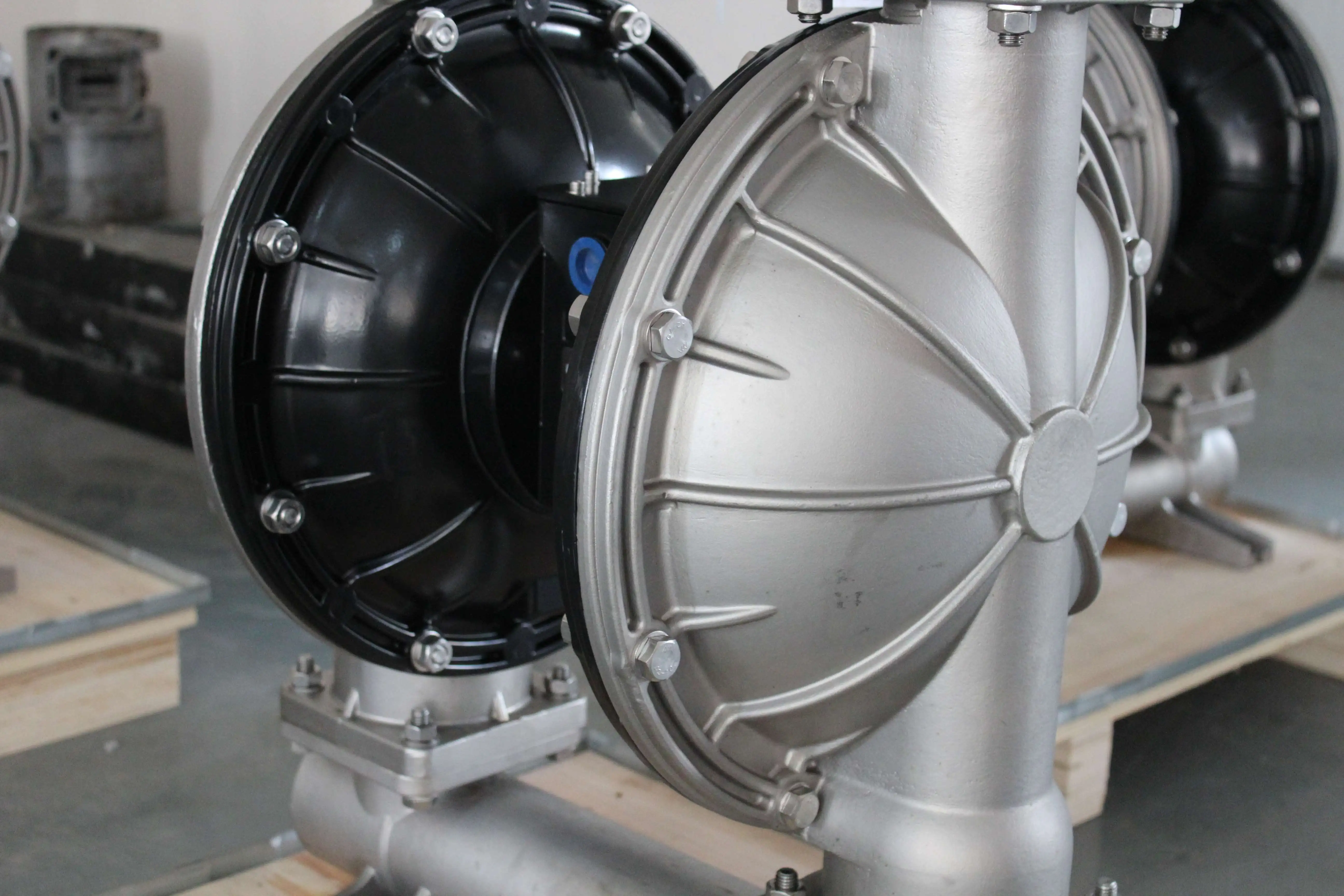

Wear proof industrial waste water transfer air operated pneumatic double diaphragm pump
- Category: >>>
- Supplier: Shanghai Flolink Pump Co. Ltd.
Share on (1601081374209):
Product Overview
Description
Company Profile
Shanghai Flolink Pump Co., LTD
Shanghai Flolink Pump Co., LTD. Is a professional Industrial pump supplier, with advanced design technology and many years of research and development experience. From product design to production, from precision casting to precision processing, from assembly to testing, from sales to after-sales, we focus on every detail of the whole process. We have an experienced team, members engaged in pump work for many years, we will be based on your application, to provide you with the best choice of pump products. Warmly welcome your inquiries.
Air Operated Diaphragm pump features
1. Without electricity, explosion-proof, can convey flammable fluid.2. No dynamic seals, even dry running without damage.
3. No impeller, low shear, will not damage the material structure of fluid.
4. Submersible, mobile, flexible installation, easy maintenance.
5. Can convey high-thick, high viscocity fluid.
6. Can convey acid, alkali, strong organic solvents and other fluid.
7.Changing the inlet air and pressure to adjust the flow rate and head.
3. No impeller, low shear, will not damage the material structure of fluid.
4. Submersible, mobile, flexible installation, easy maintenance.
5. Can convey high-thick, high viscocity fluid.
6. Can convey acid, alkali, strong organic solvents and other fluid.
7.Changing the inlet air and pressure to adjust the flow rate and head.
Product Category

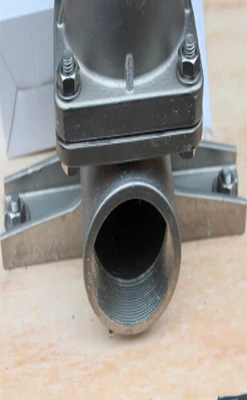

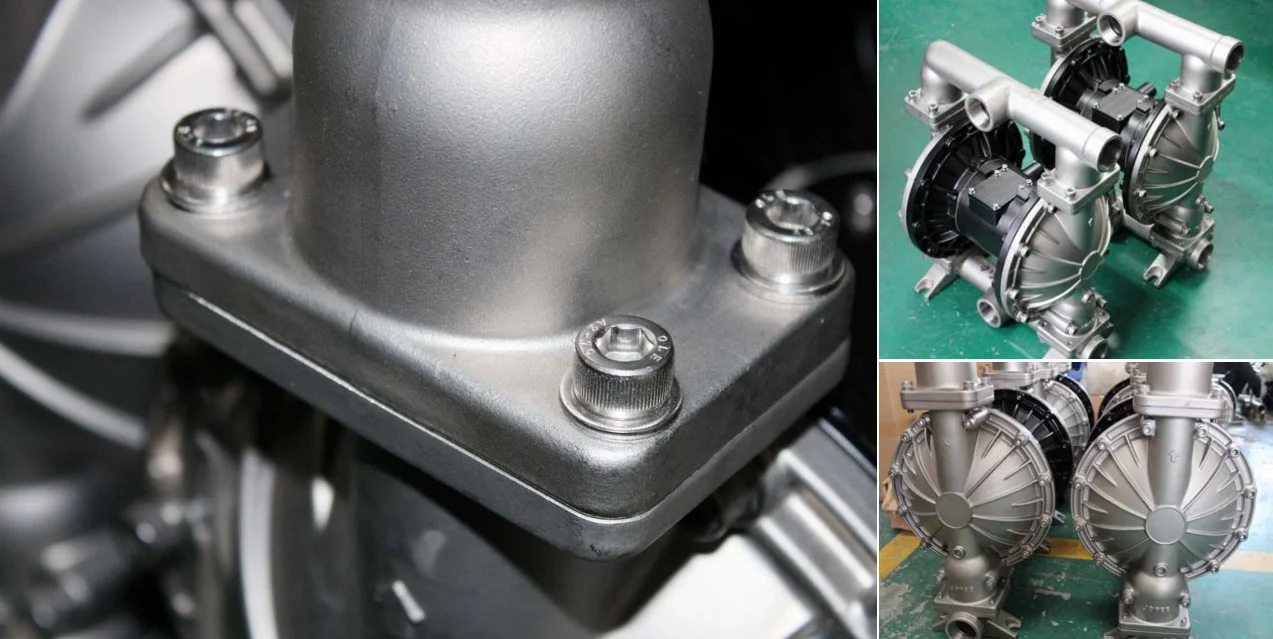

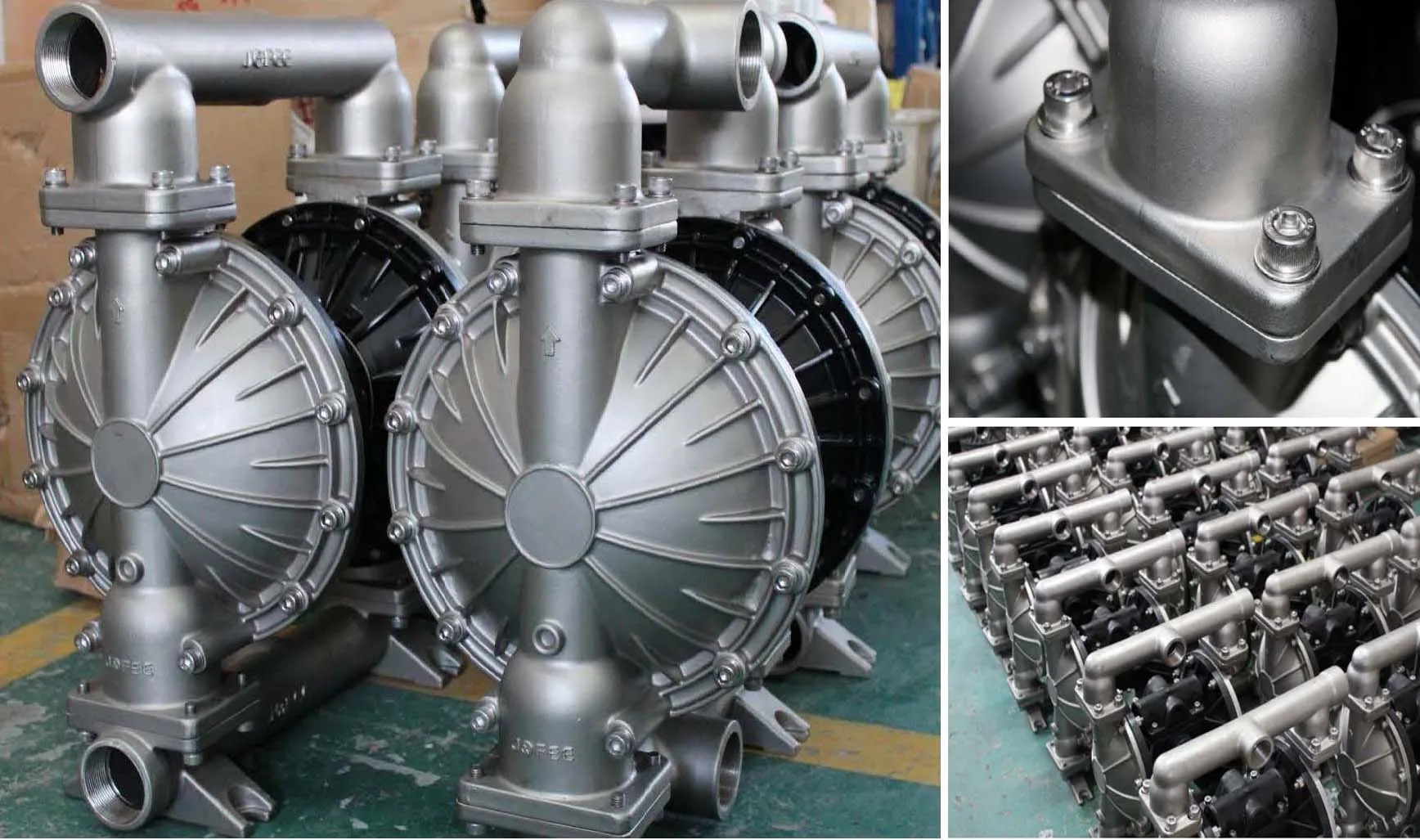

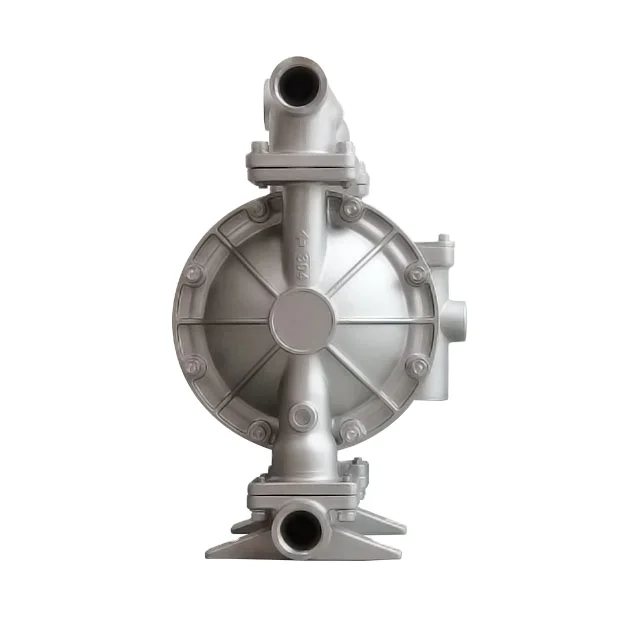

Stainless Steel Pump features
1. High temperature wax casting. Smooth surface and good appearance.
2. Four bolts connection design, good seal and good dry suction.
3. Origin stainless steel color. Adopt pickling and electrolytic processing.
4. Stainless steel 304 /316 pump size from 1/2" to 3".
5. Pump can supply with aluminum center block or PP center block.
6. The bolts material is SS304.

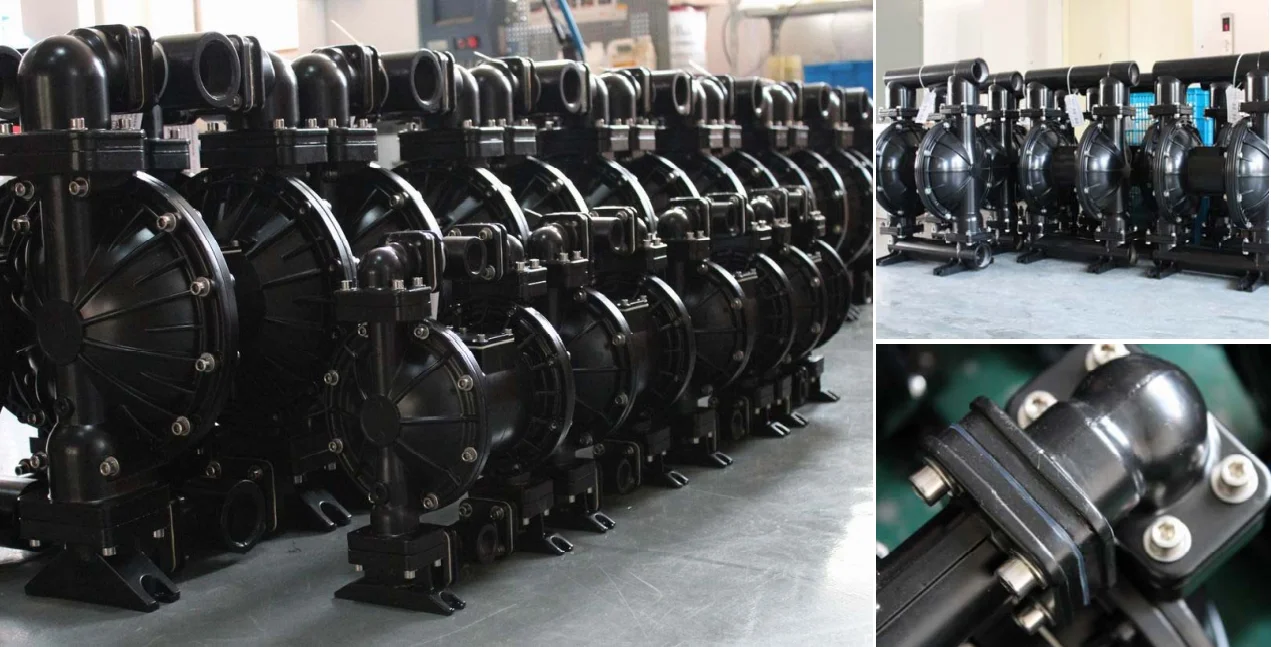

Aluminum Pump features
1. Pump adopt precision casting, smooth surface and good appearance.
2. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
3. Four bolts connection design, good seal and good dry suction.
4. Aluminum pump size from 1/2" to 3".
5. Pump with black EPOXY coating.

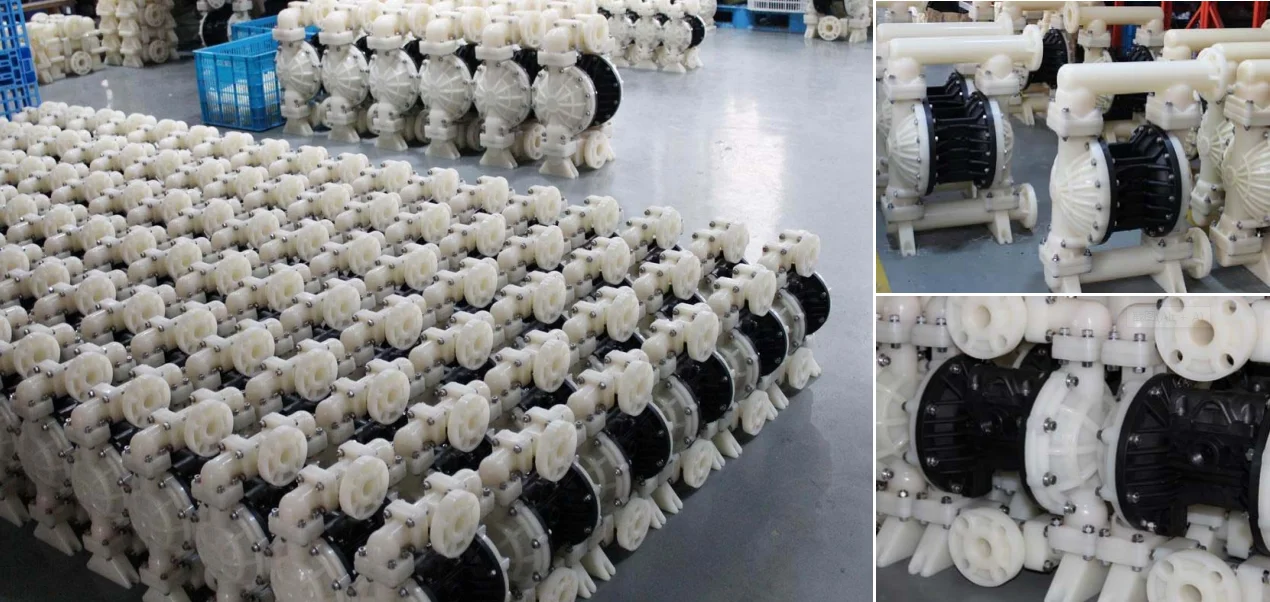

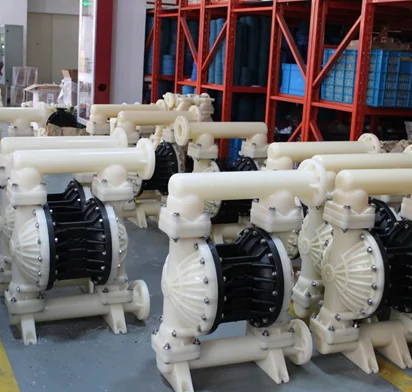

Plastic Pump features
1. PP pump in PP-H material, wearing resistance, chemical resistance much better than PP.
2. The pump with PP center block, be full plastic pump, excellent chemical resistance.
2. The pump with PP center block, be full plastic pump, excellent chemical resistance.
3. Four bolts connection design, good seal and good dry suction.
4. PP and PVDF pump size from 1/4" to 3".
5. The bolts of plastic pump are of Stainless steel 304.
6. Three section manifold, Flexible installation. Also can change to be 4 ports pump.
Performance Data
Model | In/outlet (inch) | Max particle diameter (mm) | Air inlet size (inch) | Max flow rate (l/min) | Max head (m) | Max air pressure(bar) |
MK06/10 | 1/4", 3/8" | 1.6 | 1/4" | 27 | 70 | 7 |
MK15/20 | 1/2", 3/4" | 2.5 | 3/8" | 57 | 84 | 8.4 |
MK25 | 1" | 4 | 1/2" | 157 | 84 | 8.4 |
MK40 | 1 1/2" | 5 | 1/2" | 358 | 84 | 8.4 |
MK50 | 2" | 6 | 1/2" | 587 | 84 | 8.4 |
MK80 | 3" | 9.4 | 3/4" | 1060 | 84 | 8.4 |
Product Parts

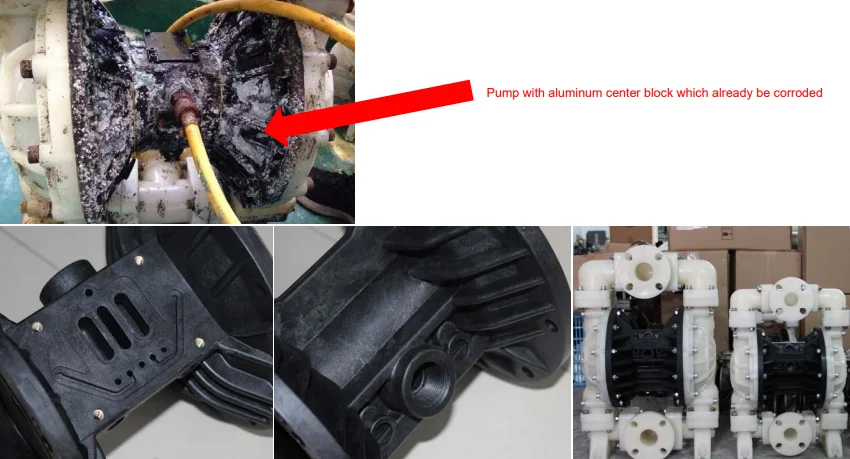

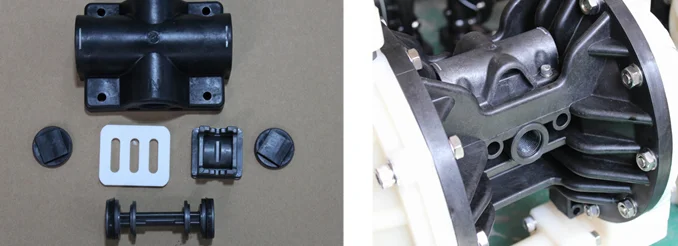

PP center block
1. Aluminum center block poor chemical resistance will be corroded.
2. PP center block chemical resistance much better than Aluminum center block.
2. PP center block chemical resistance much better than Aluminum center block.
3. Our PP center block to be one-piece design with long glass fiber, strong and durable. This design PP center block much stronger than three-section design PP center block. Because three-section design PP center block remain need bolts to connect them.
4. Can supply PP center block for the pump from 1/4" to 3".

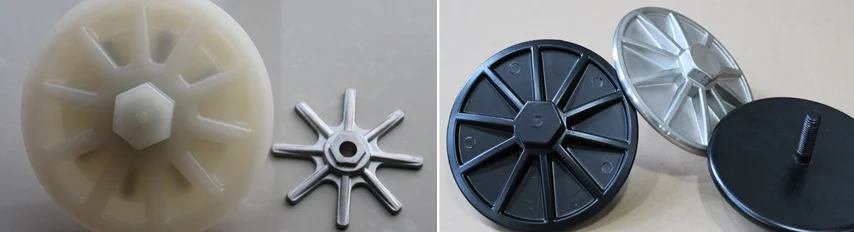

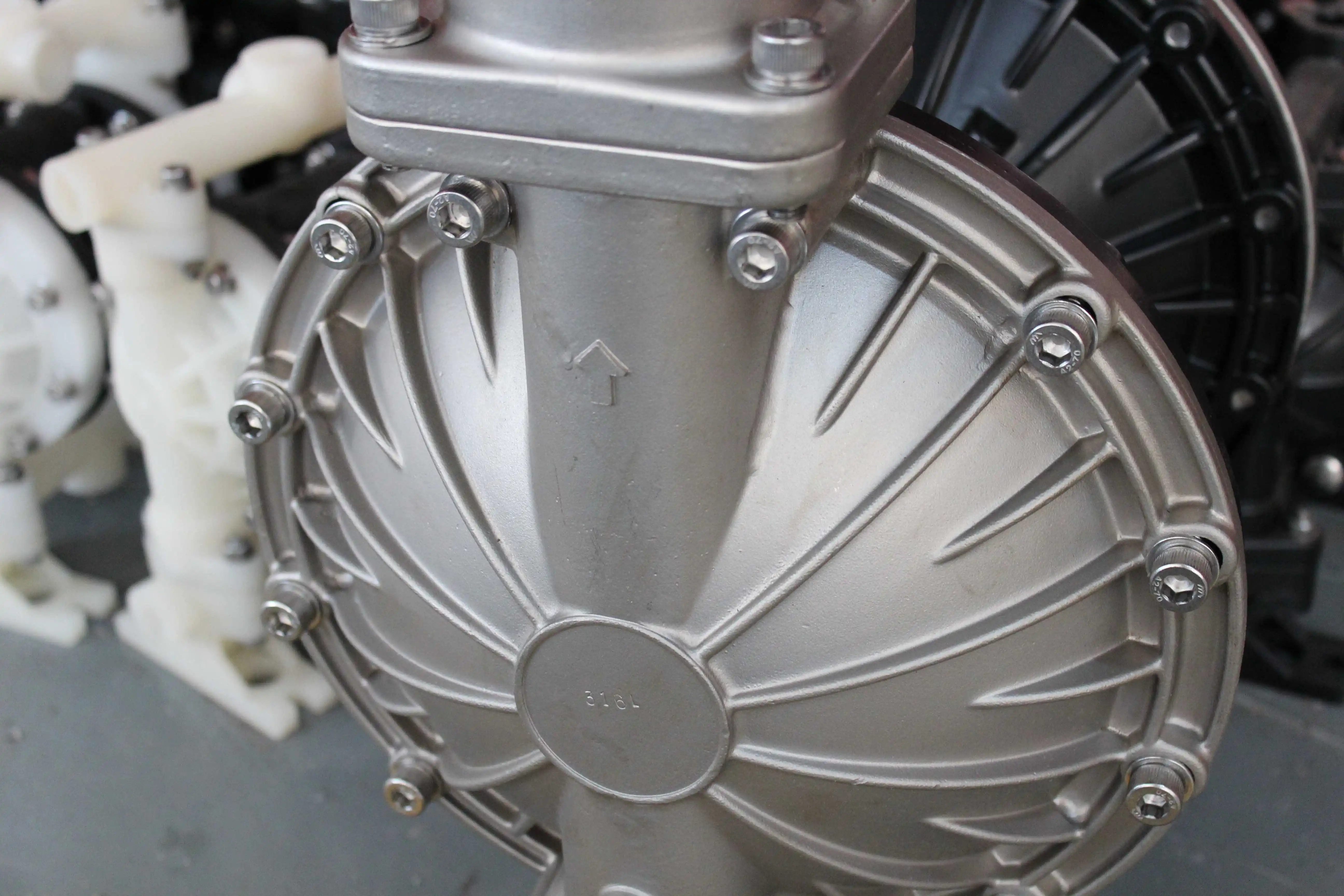

Diaphragm pump plate
1. Aluminum plate and stainless steel plate adopt one-piece precision casting, can avoid the leakage.
2. Plastic plate increase thickness, insert with stainless steel casting parts. The whole plastic plate strong and durable. Even under high working pressure and high temperature, also can working well.
2. Plastic plate increase thickness, insert with stainless steel casting parts. The whole plastic plate strong and durable. Even under high working pressure and high temperature, also can working well.
Air valve of PP center block
1. Modular design, simple structure. Few moving parts, easily maintain.
2. Plastic parts material to be improved acetyl material, excellent wearing resistance and good self-lubricating.
2. Plastic parts material to be improved acetyl material, excellent wearing resistance and good self-lubricating.
3. The whole air valve can directly disassemble from the pump. Repair the air valve, no need to open the pump.

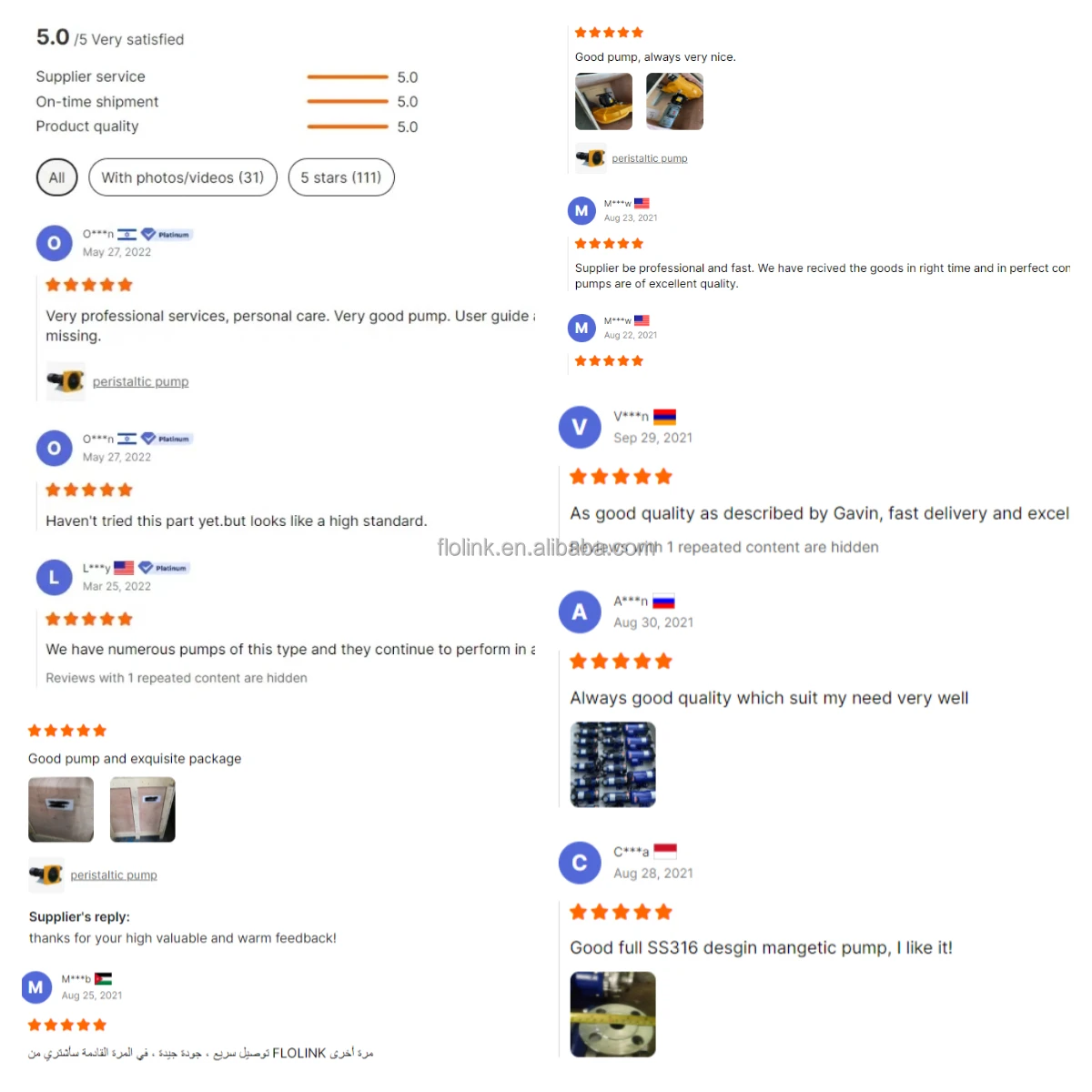

Customers' Feedback
