H30 9 Removable nut actuator Normally open for Underfloor Heating Electric Manifold M30x1.5mm

Product Overview

Description

230V Normally Closed Electric Thermal Actuator



H30-9 Electric Actuator Control Valve, Used for opening and closing of floor heating water separator, central air conditioner (water system), and small valve.
Controls water flow through an underfloor heating system, suitable for temperature control at home, in hotels, malls, etc.
Easy installation, 2-wire connection with one valve per loop, M30 * 1.5 installation size.
Normally closed actuator, automatically turns on when powered up, noiseless and maintenance-free.
Mine is size, lightweight, and space-saving. 2W low power consumption, energy-saving.



Type	Normally closed
Model	H30-9
Working Voltage	230VAC;24VAC
Power Consumption	2W
Protection Grade	IP54
Working Journey	4.5mm
Working Temperature	-20~50℃
Storage Temperature	-20~70℃
Security Class	II(Double Insulation)
Cable Length	100cm
Running Time	180seconds (open-closed)
Initial Current	About 50MA



Color: Light gray
Material: PA66
Voltage: AC 230V, 50/60Hz
Power: 2W
Input current: max. 550mA
Type: NC (Normally closed)/NO(Normally opened)

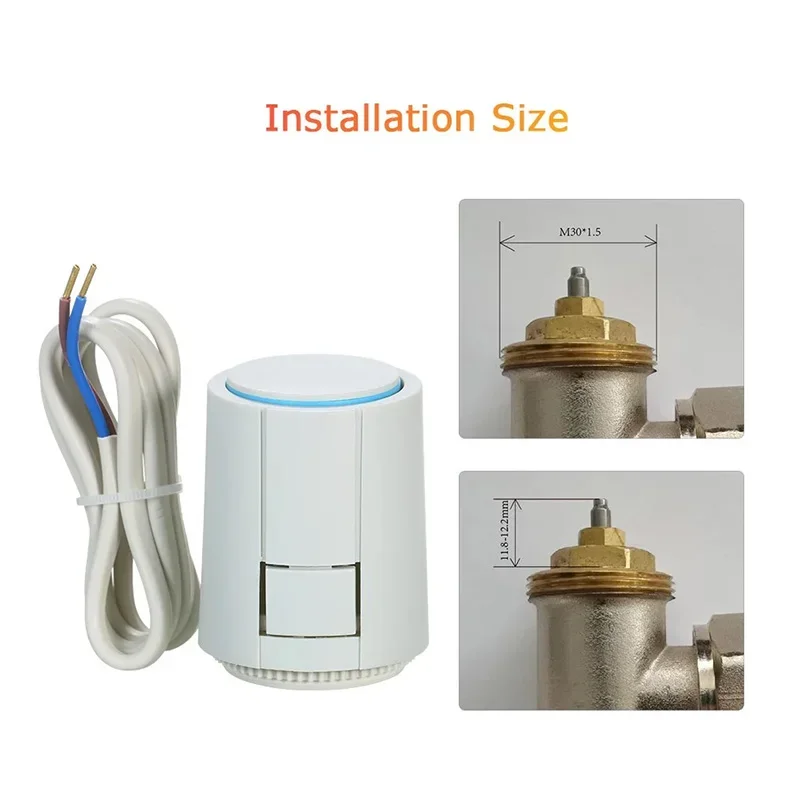

Installation size: M30*1.5
Protection class: IP54
Storage temperature: -25 ℃ ~ 60 ℃
Item size: approx. 44*57mm/1.7*2.2inch (diameter*height)
