Delivery Vehicle Passenger Tuk Tuk Scooter E Bike Loader Adult Trike Big Electric Tricycle
- Category: >>>
- Supplier: Hebei Guohuan Trading Co. Ltd.
Share on (1601081394281):
Product Overview
Description
Product Specification

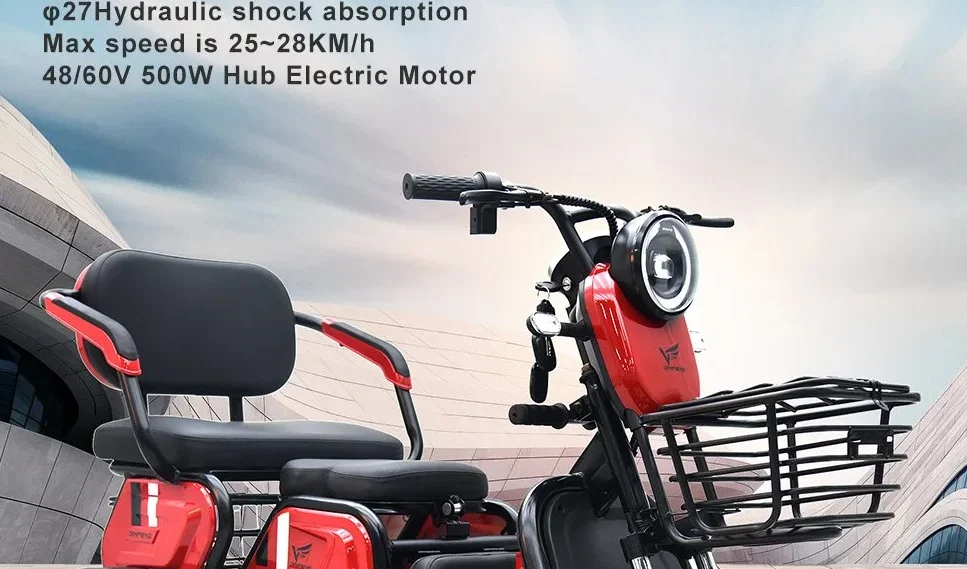

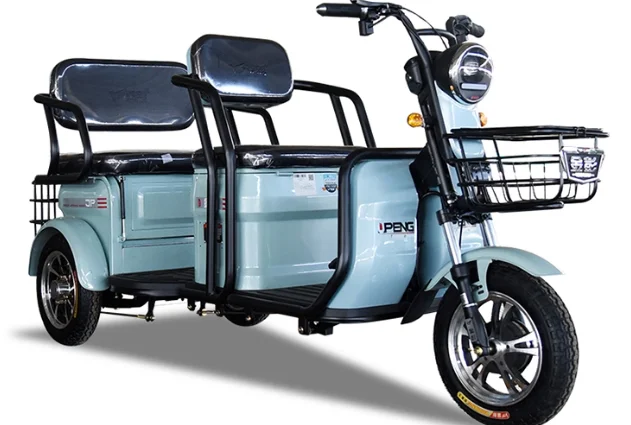

This is an upgraded version of the leisure electric tricycle, the vehicle uses a classic bovine shape, matching angel eye headlights, high brightness, the factory comes with a metal basket, shopping, walking can be put on the car items. The car uses a gold wheelbase, triangular body, double-row three-seat layout, has a large storage space, shopping, shopping, delivery of goods in one car.
The whole vehicle is matched with a comfortable saddle backrest, using a three-dimensional cutting process, high elastic foaming, integrated molding + ring backrest, long-term riding to reduce fatigue. The vehicle is equipped with 500W efficient motor, matching 12-tube vector controller, with anti-skid function, built-in 48V24ah lithium battery, comprehensive range of 50 kilometers!
Details Images
Product Parameters
XD plus(EEC) | XDII3E2(EEC) | |
Optional colors | Red Blue Brown Yellow Grey | Red Blue Brown Yellow Grey |
L×W×H(mm) | 2200×890×1050 | 2200×890×1050 |
Wheel base(mm) | 1770 | 1770 |
Wheel track(mm) | 755 | 755 |
Minimum ground clearance(mm) | ≥100 | ≥100 |
Minimum turning radius(m) | ≤2.5 | ≤2.5 |
Curb weight(kg) | 120 | 120 |
Max speed(km/h) | 25 | 25 |
Max slope of climb(%) | ≤15 | ≤15 |
Battery | Maximum72V32Ah | Maximum60V32Ah |
Motor, Electric power control(w) | 72V1000W | 60V800W |
Driving mileage at efficient speed(km) | 55-60 | 45-50 |
Charging time(h) | 6~8h | 6~8h |
loading capacity | 1driver+1passenger | 1driver+1passenger |
Front shock absorber | φ31Hydraulic shock absorption | φ31Hydraulic shock absorption |
Rear shock absorber | 180 Spring ahock absorber | 180 Spring ahock absorber |
Front/Rear tyre | Front 3.00-10 Rear 3.00-10 | Front 3.00-10 Rear 3.00-10 |
Rim type | Aluminum wheel | Aluminum wheel |
Front/Rear brake type | Front disc/Rear drum brake | Front disc/Rear drum brake |
Packing brake | Handbrake | Handbrake |
Rear axle structure | Split Rear axle | Split Rear axle |

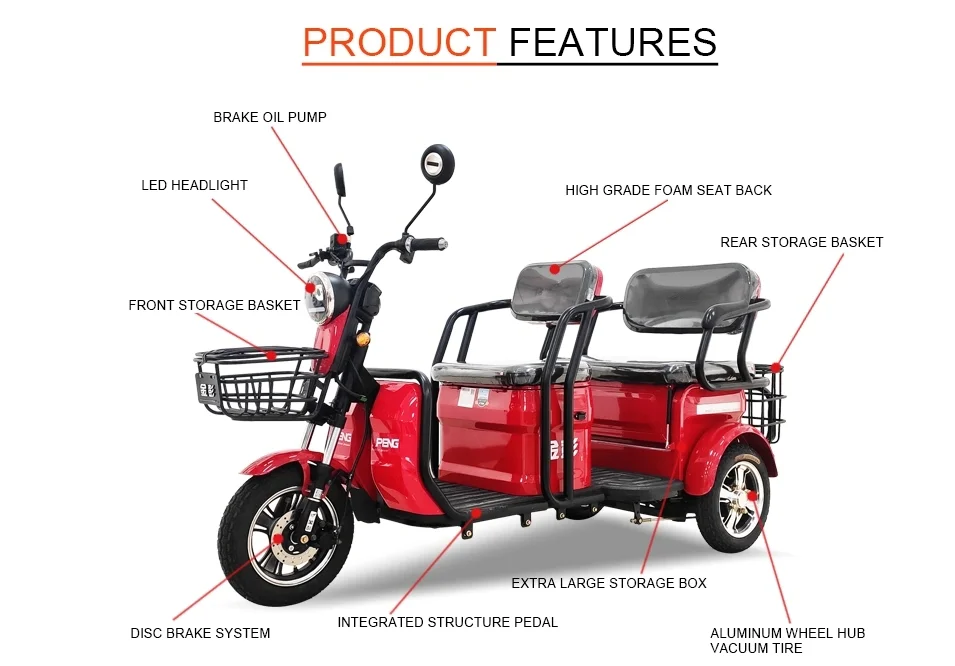

Our Advantages
High and low speed gear lever, adapt to the speed requirements of different scenes.
Fold the seat, you can also sit in the cargo box.
Energy-efficient headlights light the way home.

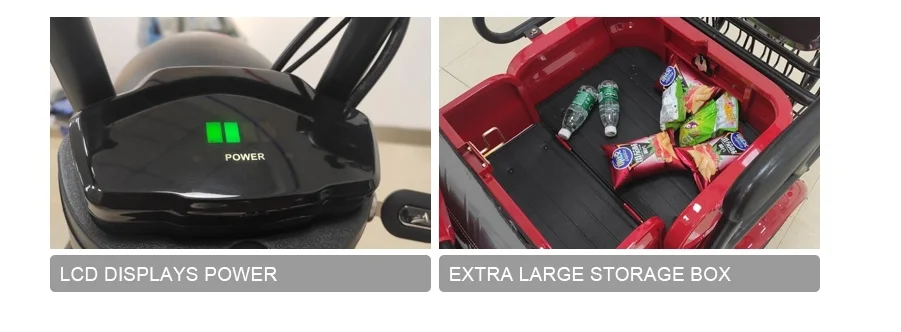

High-definition instruments LCD instruments display speed, battery, mileage, lights.
With EEC certificate, can be used in European countries.

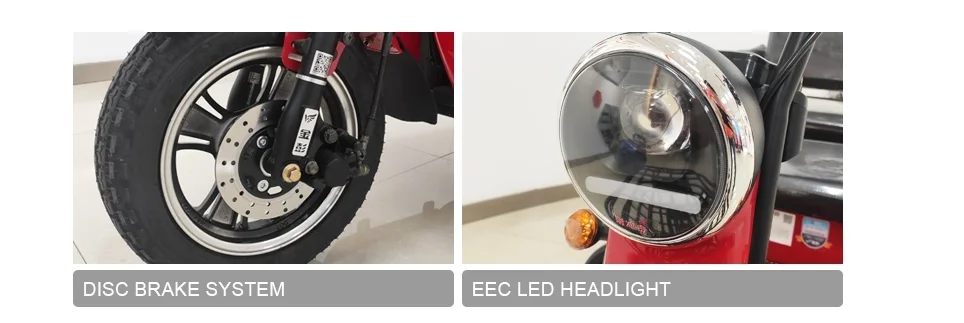

Front disc brake rear drum brake, more comfortable and safe.
Fold the seat, you can also sit in the cargo box.
Energy-efficient headlights light the way home.
High-definition instruments LCD instruments display speed, battery, mileage, lights.
With EEC certificate, can be used in European countries.
Front disc brake rear drum brake, more comfortable and safe.
Product packaging
Package Size ：580.00cm * 230.00cm * 230.00cm
Package Gross Weight ： 3400.000kg
Package Gross Weight ： 3400.000kg
Warranty /After-sales service
We have the warranty for our main four parts :
1.Motor :1 year
2.Battery:8 months
3.Charger: 1 year
4.Controller :1 year
During the guaranteed period: for small quantity damaged parts ,any of the four parts could be replaced for free upon receiving your persuaded and cogent photos or videos as proof(only when we make sure it is really the quality problem of the four parts itself). And the new parts will be delivered in container together with your next order . For large quantity damaged parts , please send those parts back to us first .After we make sure it is really the quality problem of the four parts itself ,the new and free parts will also be delivered in container together with your next order .
1.Motor :1 year
2.Battery:8 months
3.Charger: 1 year
4.Controller :1 year
During the guaranteed period: for small quantity damaged parts ,any of the four parts could be replaced for free upon receiving your persuaded and cogent photos or videos as proof(only when we make sure it is really the quality problem of the four parts itself). And the new parts will be delivered in container together with your next order . For large quantity damaged parts , please send those parts back to us first .After we make sure it is really the quality problem of the four parts itself ,the new and free parts will also be delivered in container together with your next order .
Company Profile
Hebei Guohuan Trading Co., Ltd. is a diversified company that adheres to the business philosophy of integrity as the premise, quality as the foundation, and attentive service to customers. The company is located in Handan, a city at the junction of four provinces in China. After more than 20 years of development, the factory has advanced production technology and process in the country. To serve more customers, Guohuan Trading Co., Ltd. has been established. Over the past 20 years, through three major advantages of quality, price, and service, we have opened up a vast market and continuously improved the reputation of our factory's products.
Our factory has set up four process production workshop including "Stamping, Welding, Painting and Assembly" as well as an experienced R&D team. Adopting the industry's advanced OTC welding robot for welding, and own other high standard equipment like bending machine, grinding machine, milling machine, wire cutting machine etc. Painting workshop with pickling, phosphating, electrophoresis and a stoving varnish line. The assembly workshop has 4 advanced assembly lines, which fully realizes the modern production process. We can achieve an annual output of 100, 000 set electric tricycles.
We do have a professional QC team and perfect quality management system with ISO9001 certification so as to ensure that every tricycle produced is safe and reliable, providing excellent security for consumers' travel.
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. There may be a mold fee.
Q2. What is your sample policy?
A: Since this product is high-value product, we can accept sample by discount. Should the production be large in quantity, we may even consider re-funding for the sample.
Q3. What is your MOQ?
A: We do not have MOQ request. You can order just 1 sample car. However, additional packing and operating cost will be charged if delivered in LCL way.
Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6: How do you control the quality?
A: We take pre-production, in-line and final inspections to ensure all the machines can meet the quality standard for world wide customers.
Q7: How to deal with the problems appear during the operation of the game center?
A: We provide technical solutions to customers in the form of video, text,or online video and phone with our technicians to solve the problems.
Q8. Do you test all your vehicles before delivery?
A: Yes, we have 100% test before delivery.
Q9. How you pack the vehicles?
A: Generally, we pack out goods in containers by iron frame. If you have special requirement we can follow.
A: Yes, we can produce by your samples or technical drawings. There may be a mold fee.
Q2. What is your sample policy?
A: Since this product is high-value product, we can accept sample by discount. Should the production be large in quantity, we may even consider re-funding for the sample.
Q3. What is your MOQ?
A: We do not have MOQ request. You can order just 1 sample car. However, additional packing and operating cost will be charged if delivered in LCL way.
Q4. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6: How do you control the quality?
A: We take pre-production, in-line and final inspections to ensure all the machines can meet the quality standard for world wide customers.
Q7: How to deal with the problems appear during the operation of the game center?
A: We provide technical solutions to customers in the form of video, text,or online video and phone with our technicians to solve the problems.
Q8. Do you test all your vehicles before delivery?
A: Yes, we have 100% test before delivery.
Q9. How you pack the vehicles?
A: Generally, we pack out goods in containers by iron frame. If you have special requirement we can follow.
