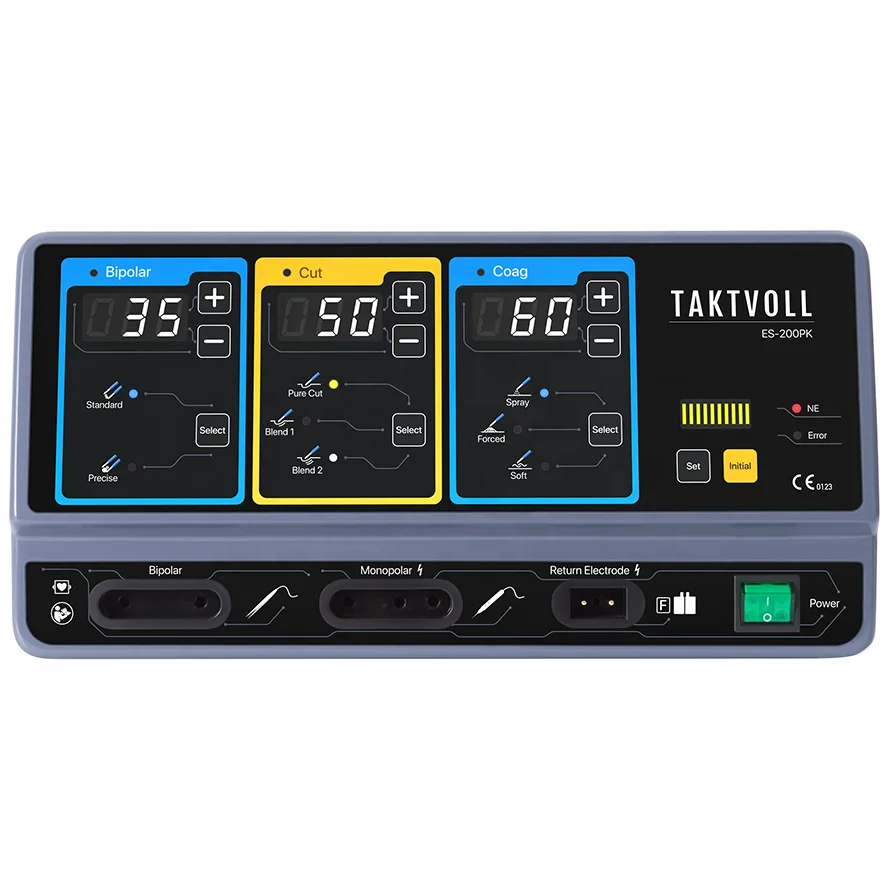

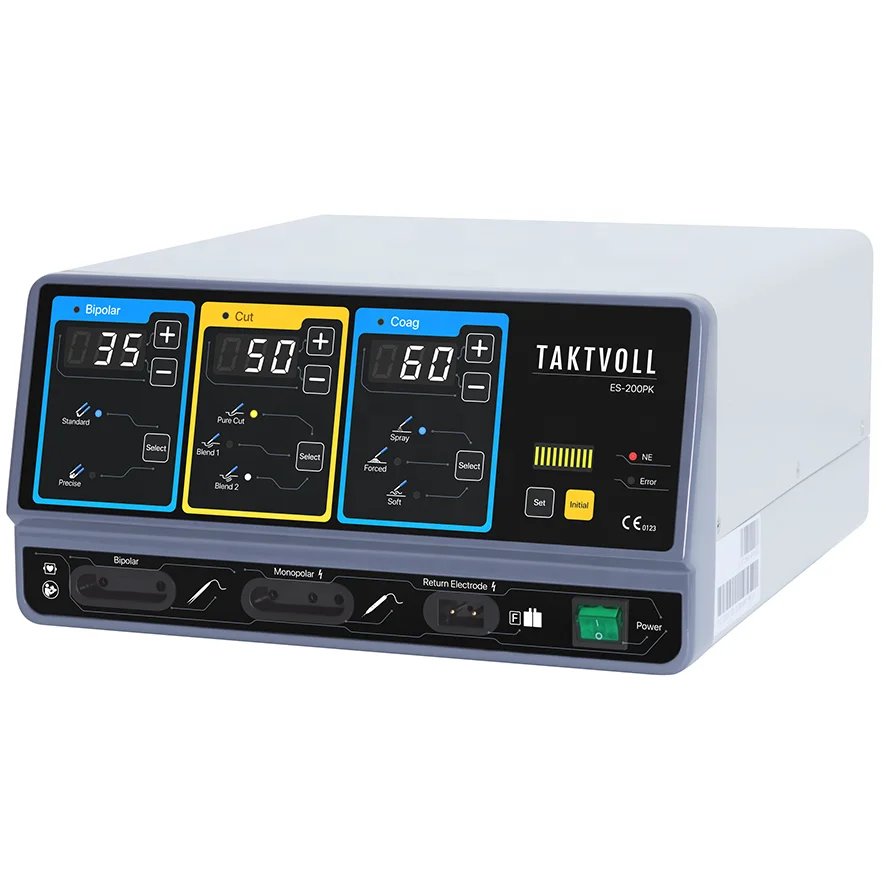

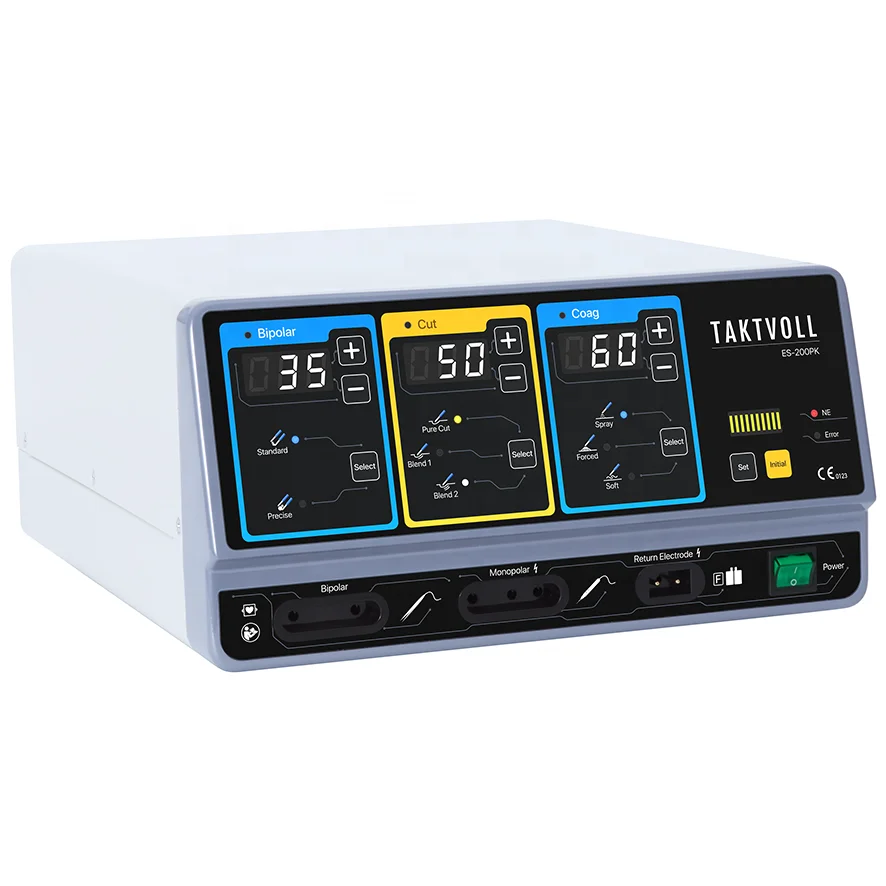

IN I200PK 400watts Surgical Diathermy Machine Electrosurgical Generator New Arrival Custom Made Electric
- Category: >>>
- Supplier: Icen Technology Company Limited
Share on (1601081557002):
Product Overview
Description
Product Description
Main Features
1 Max 350W Electrosurgical Generator, with mono-polar and bipolar function.
2 Six working modes: pure cut, blend1, blend2, forced coag, soft coag, bipolar coag.
3 Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology,
urology(under water TUR), oncology, neurosurgery, etc.
4 Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of
outputting.
5 Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
6 Both hand and foot controlled.
7 Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be
individually configured.
8 The unit always remember the last setting when it turned off.
9 Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
10 The ESU unit can be connected with laparoscope and endoscope, etc.
11 Protection against over-voltage and over-current.
12 Defibrillation protected.
13 Mounted on a 4 wheels cart(optional).
14 Meets the requirements of international safety standards EN60601-1 and EN60601-2.
Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Power rating: 1100VA±10%
Ralated Power output:
1 Max 350W Electrosurgical Generator, with mono-polar and bipolar function.
2 Six working modes: pure cut, blend1, blend2, forced coag, soft coag, bipolar coag.
3 Wide clinical applications, such as the general surgery, thoracic surgery, orthopedic surgery, cardiology, gynecology,
urology(under water TUR), oncology, neurosurgery, etc.
4 Microprocessor controlled, digital display. With audible and visual indicators and errors codes during the process of
outputting.
5 Return Electrode Monitoring system and Power Peak System, minimizing the risk of tissue damage.
6 Both hand and foot controlled.
7 Separate power display and outlet socket for mono-polar cut, mono-polar coag, bipolar cut and bipolar coag, each output can be
individually configured.
8 The unit always remember the last setting when it turned off.
9 Remote control function. The surgeon can adjust the outputs by power control ESU pencil.
10 The ESU unit can be connected with laparoscope and endoscope, etc.
11 Protection against over-voltage and over-current.
12 Defibrillation protected.
13 Mounted on a 4 wheels cart(optional).
14 Meets the requirements of international safety standards EN60601-1 and EN60601-2.
Technical Specifications
Power: 220V±22V, 50Hz±1Hz(110V±11V, 60Hz)
Power rating: 1100VA±10%
Ralated Power output:
Frequency 416KHz
Specification
Function | Working modes | Power output (Max) | load | V-PP | Crest Factor |
Monopolar Cut | Pure cut | 350W | 800Ω | 1.4kV | 1.4 |
Blend1 | 200W | 800Ω | 1.72KV | 1.7 | |
Blend2 | 100W | 800Ω | 2.1KV | 2.5 | |
Monopolar Coagulation | Spray | 80W | 800Ω | 2.8KV | 5.8 |
Forced | 120W | 800Ω | 640KV | 2.1 | |
Bipolar | Standard coag | 70W | 200Ω | 480V | 1.8 |
