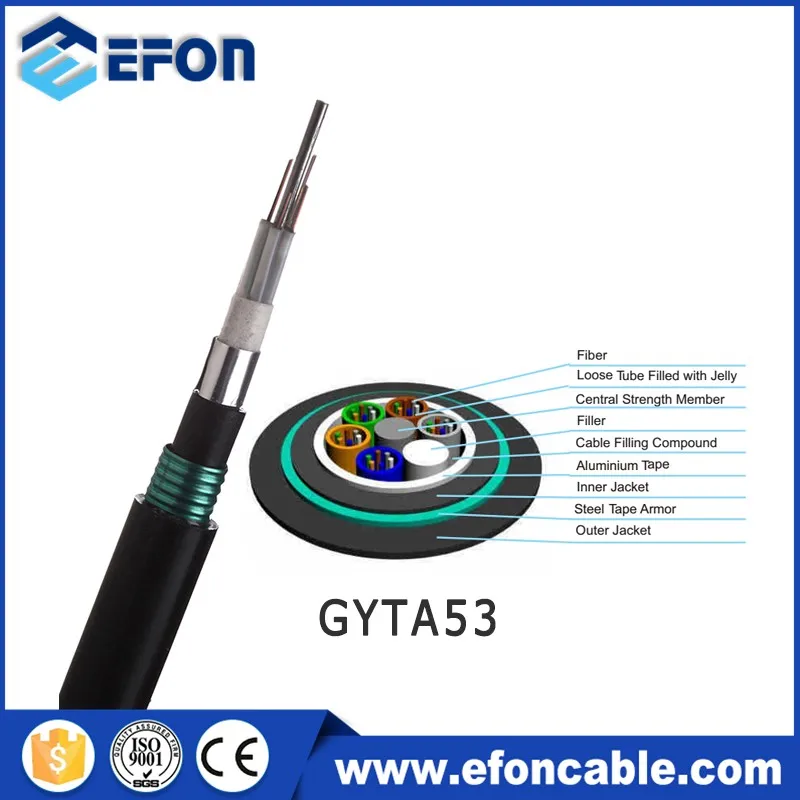

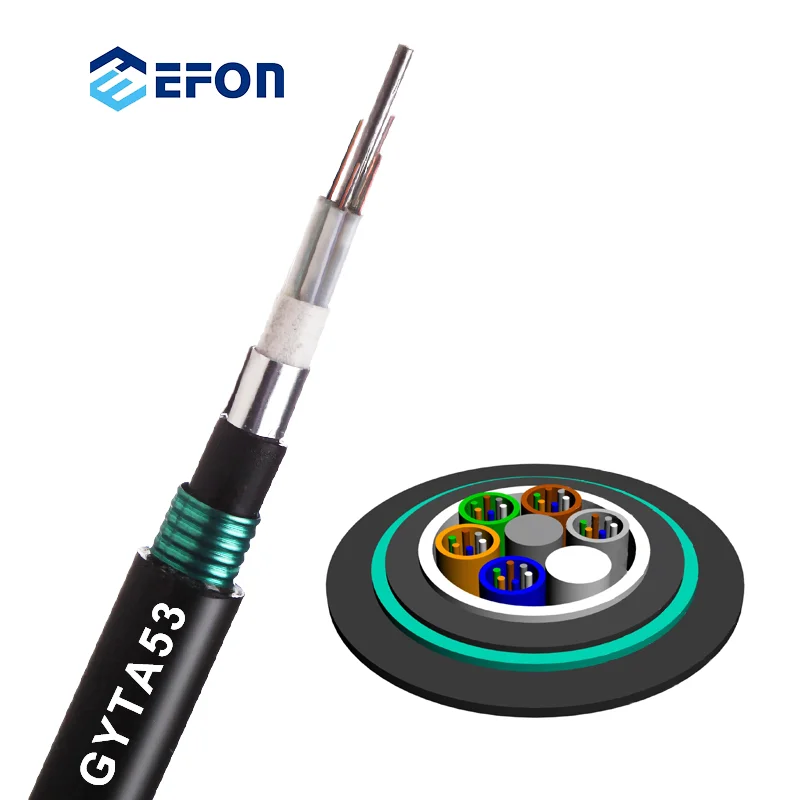

OEM Outdoor Waterproof Double sheath armored anti rodent 12 core GYTA53 fiber optic cable price per meter
Product Description
GYTY53 underground fiber optic cable

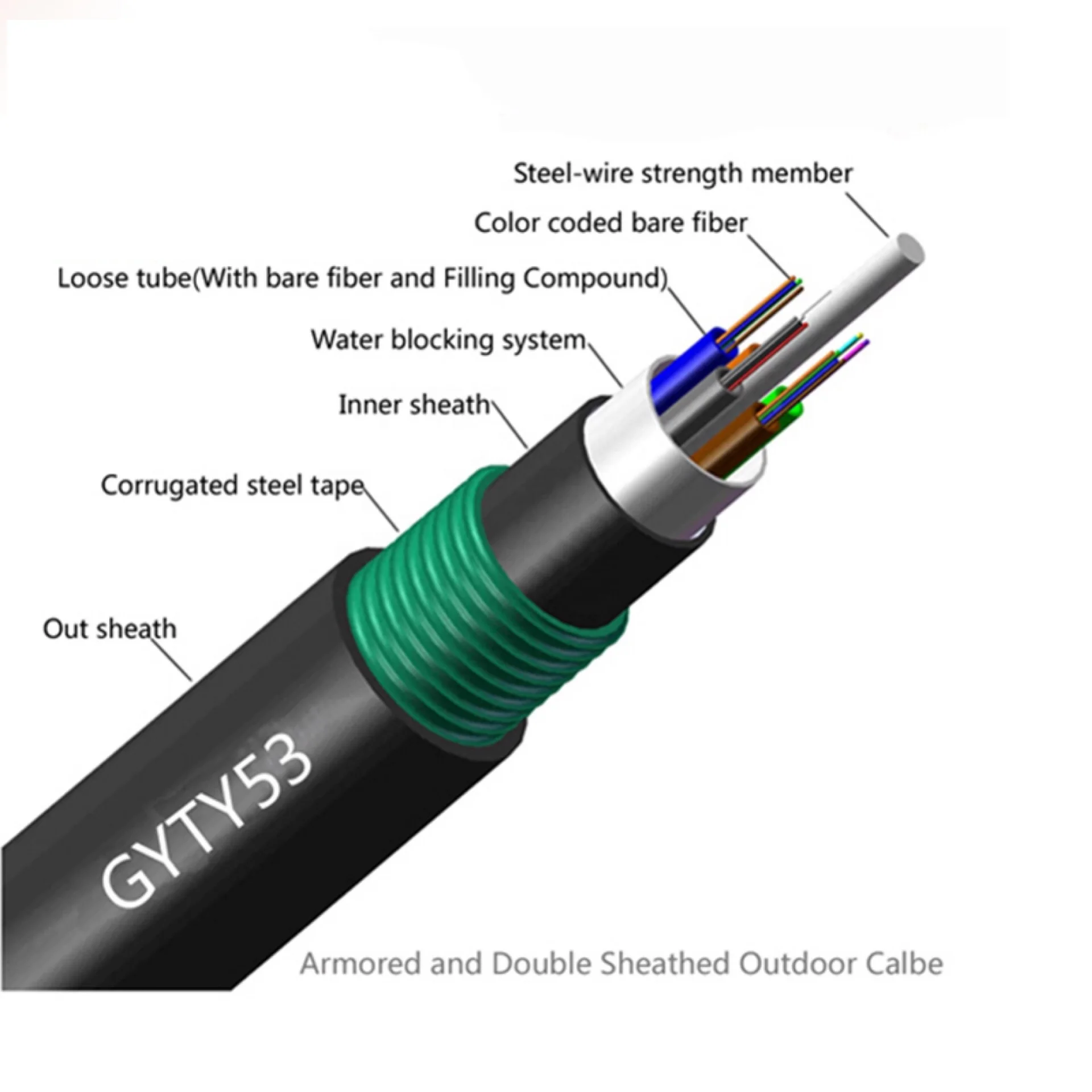

GYTY53 underground fiber optic cable is an outdoor communication optical cable of metal strength member of the loose tube jelly-filled structure, with polyethylene laminated sheath longitudinally covered with corrugated steel-tape armored polyethylene outer sheath.
The loose tubes are made of high modulus plastics (PBT) and filled with water resistant filling gel. Loose tubes are stranded around the metallic central strength member, cable core is filled with cable filling compound. Polyethylene (PE) is extruded as inner sheath, then water swollen yarns and corrugated steel tape are longitudinally applied over the inner sheath, and combined with a durable PE sheath.
Specification
item | value |
Model Number | GYTY53 |
Type | Fiber Optic Cable |
Number of Conductors | ≥ 10 |
Fiber type | single mode G652D |
Fiber Count | 2-288 |
Central strength member | Steel wire/FRP |
tube | Loose tube stranded/SZ stranded |
Armored | Steel Tape armor |
Material of jacket | HDPE/LSZH sheath/flame retardant sheath/anti-rodent sheath |
Bending Radius | Static 12.5*Cable-diameter: Dynamic 25*Cable-diameter |
Application | direct buried |
temperature | -40°C~+70°C |
Certificate | ISO9001 TLC ROHS |
Packing & Delivery

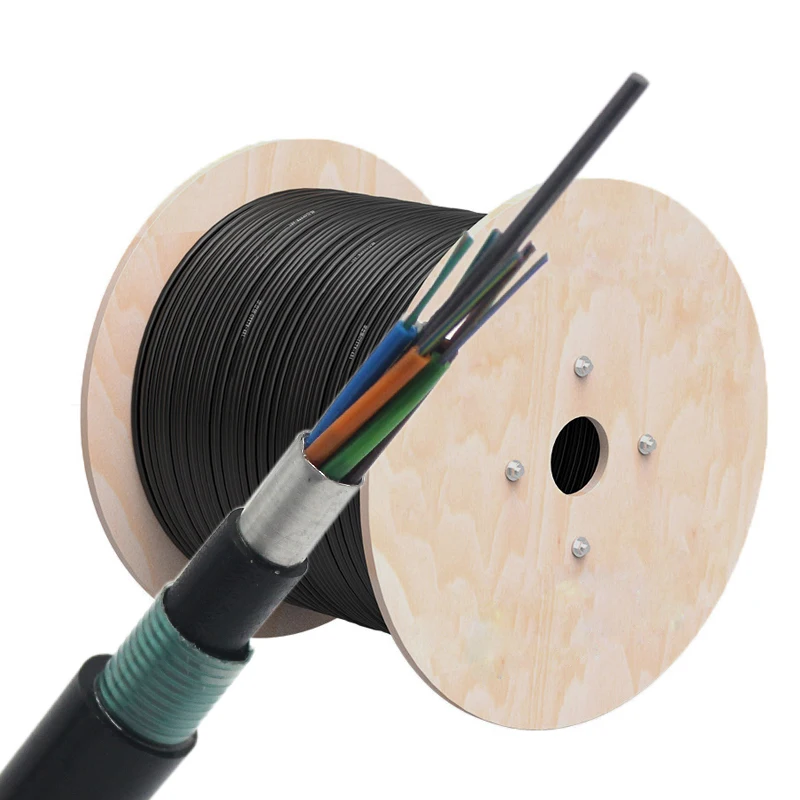

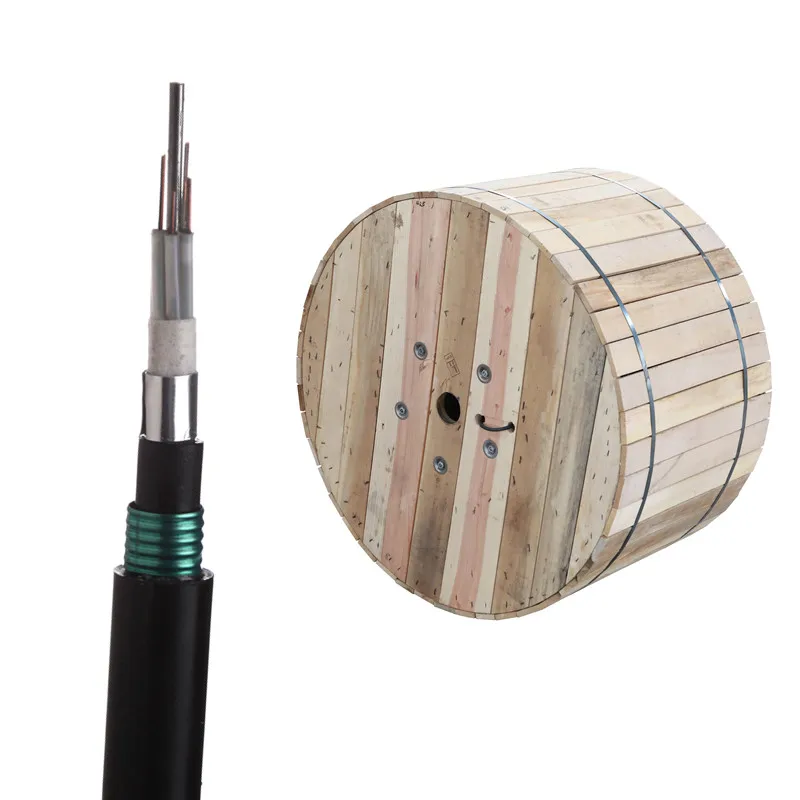

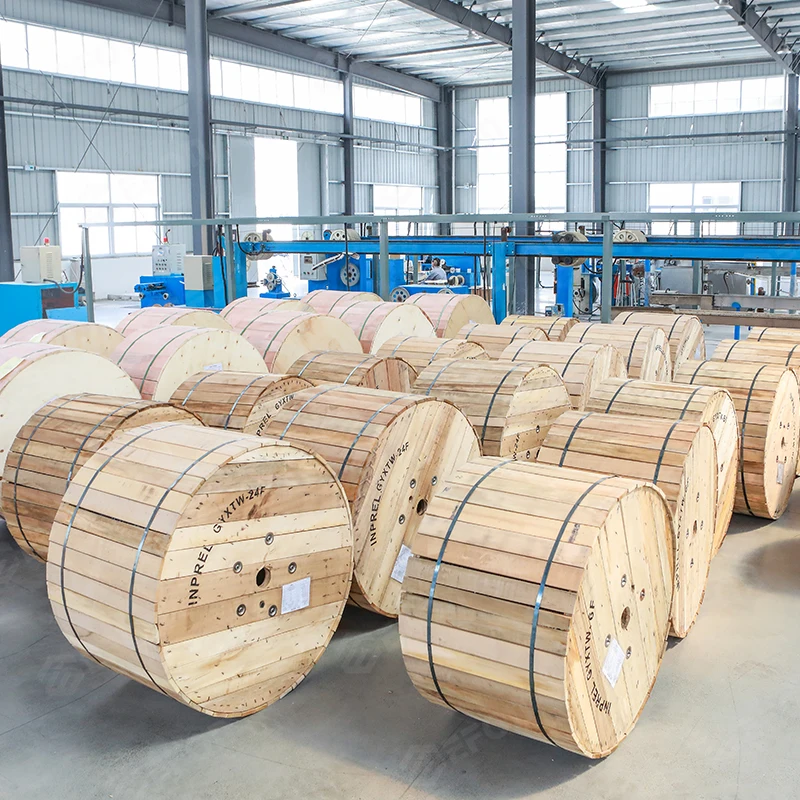

wooden drum ,iron-wooden drum with fumigated or not
