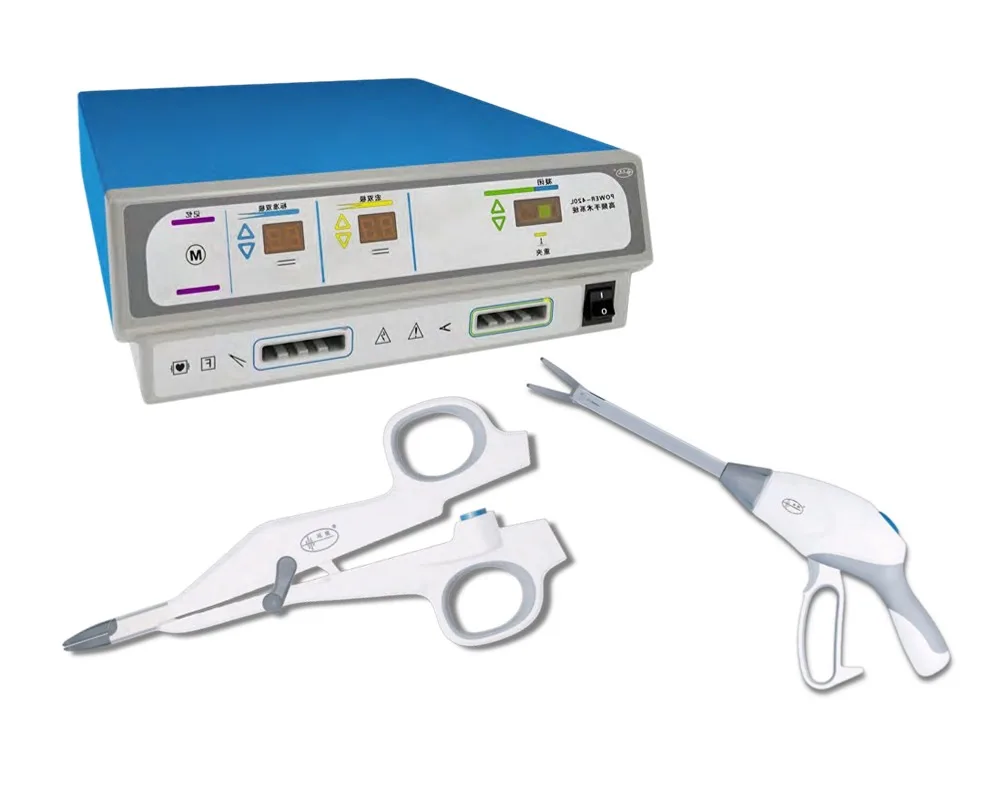

Medical Surgical Ligasure Vessel Sealing Max 350W High frequency Bipolar Electrosurgical Unit/Electrotome
- Category: >>>
- Supplier: Chengdu Ocean Huitong Technology Co. Ltd.
Share on (1601081898293):
Product Overview
Description
Product Description
Equipment type | Class I, Type CF, defibrillation-proof general equipment | Conditions of use |
Working mode | Intermittent loading and continuous operation, loading gap time is 10s/30s | Ambient temperature: 5℃～40℃ |
Power supply | Single-phase AC 220V±22V 50Hz±1Hz | Relative humidity ≤ 80% |
Input power | 480VA | Atmospheric pressure 860 hPa～1060 hPa |
Host model | Working mode | Rated output power | Rated load | Working frequency | Maximum output voltage |
YY-POWER-420L | Standard Bipolar | 95W | 100Ω | 473kHz | 200Vp |
Macro Bipolar | 95W | 100Ω | 473kHz | 380Vp | |
Condensed | 150W | 100Ω | 473kHz | 290Vp |
Specification
item | value |
Place of Origin | China |
Guangdong | |
Brand Name | YYHT |
Model Number | YY-POWER-420L |
Power Source | Machinery |
Warranty | 1 Year |
After-sale Service | Online technical support |
Material | Metal, Plastic |
Shelf Life | 2 years |
Quality Certification | CE |
Instrument classification | Class II |
Safety standard | None |
Product name | High frequency surgical system |
Output modes | General condensation and fine condensation |
Power | 0-50W continuously adjustable, with a step size of 1W |
Fine coagulation mode | Mainly used for deep neurosurgery operations. In this mode, the output can be controlled by foot or automatically |
Overall dimensions | 460×360×270MM |
Weight | Net weight 7Kg, gross weight 11Kg |
Conditions of use | Ambient temperature 5℃~40℃, temperature ≤80%RH |
Instrument type | Class I CF type defibrillation-proof ordinary equipment |
Output power | General condenser: 50W (100Ω) Fine condenser: 50W (100Ω) |
Main carrier frequency | 1024KHZ (radio frequency range) |
Packing & Delivery
Carton packing
480×380×290MM/Net weight 9Kg, gross weight 13Kg
Configuration instructions
Configuration instructions

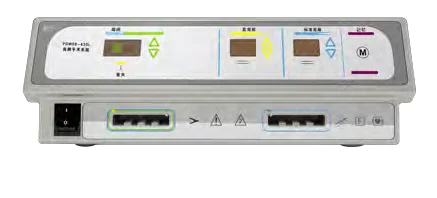

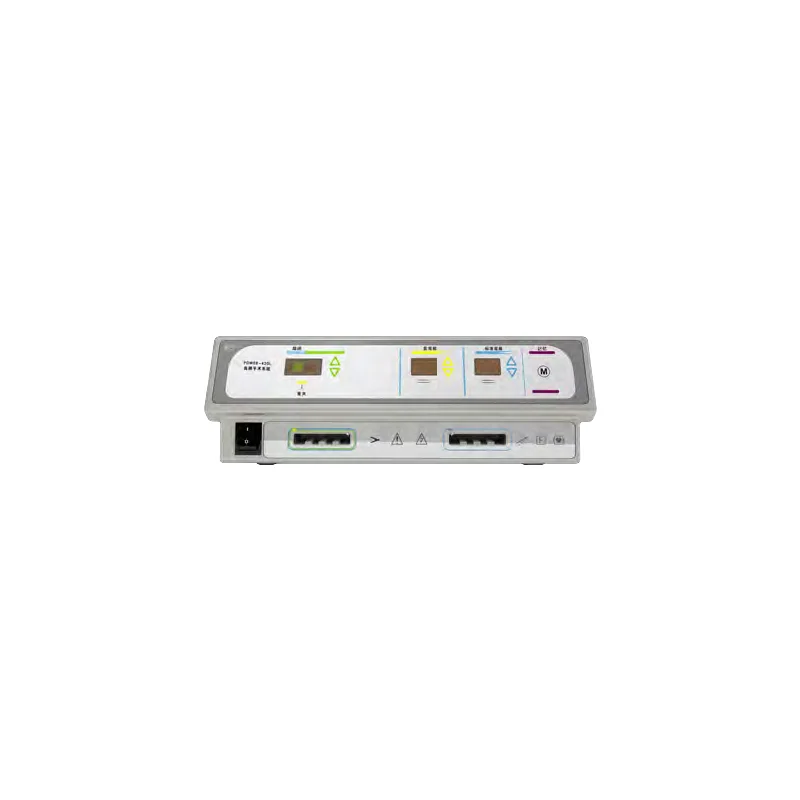

·Host: POWER-420L
·Foot switch: YLFS-01 (double foot switch) YLFS-02 (single foot switch)
·Smart adapter: YLL9900

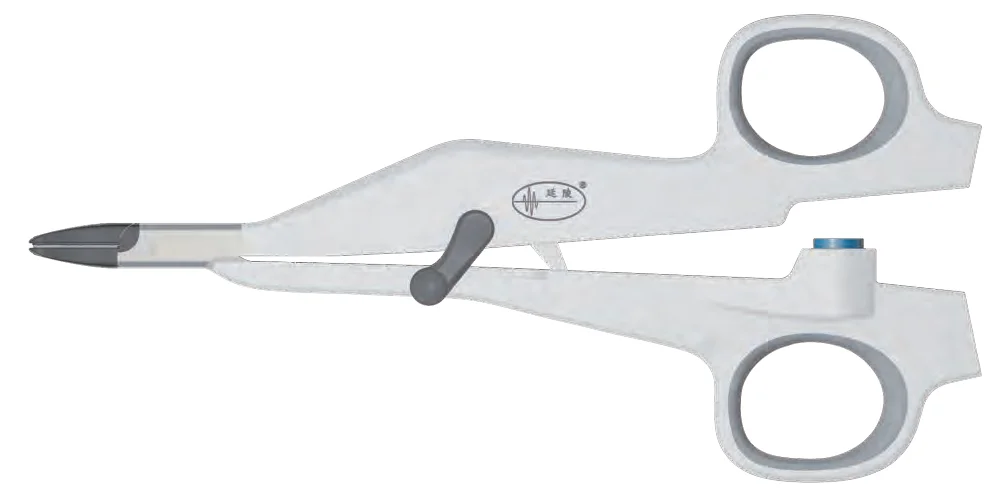

※ Cutting and closing equipment: optional
