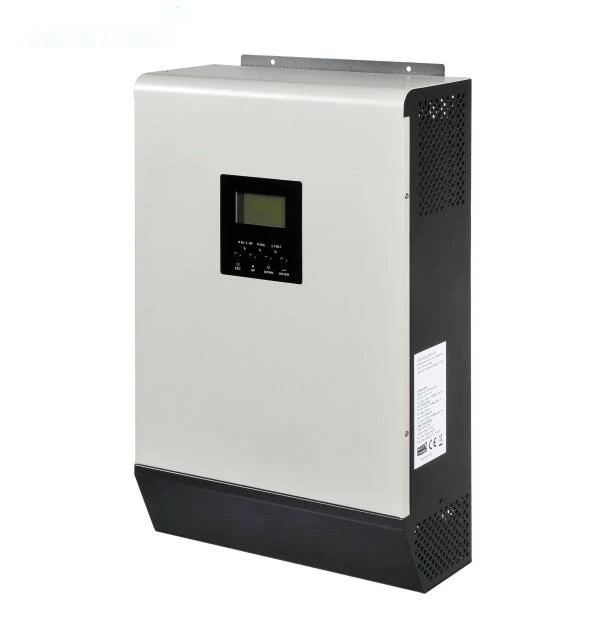

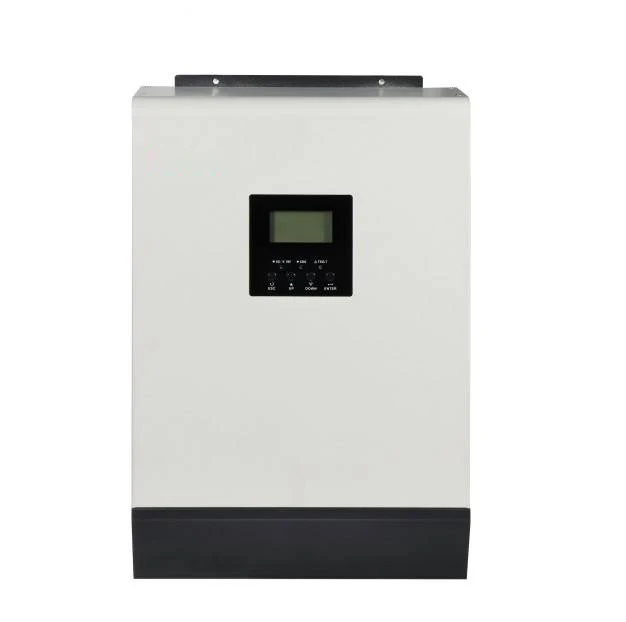

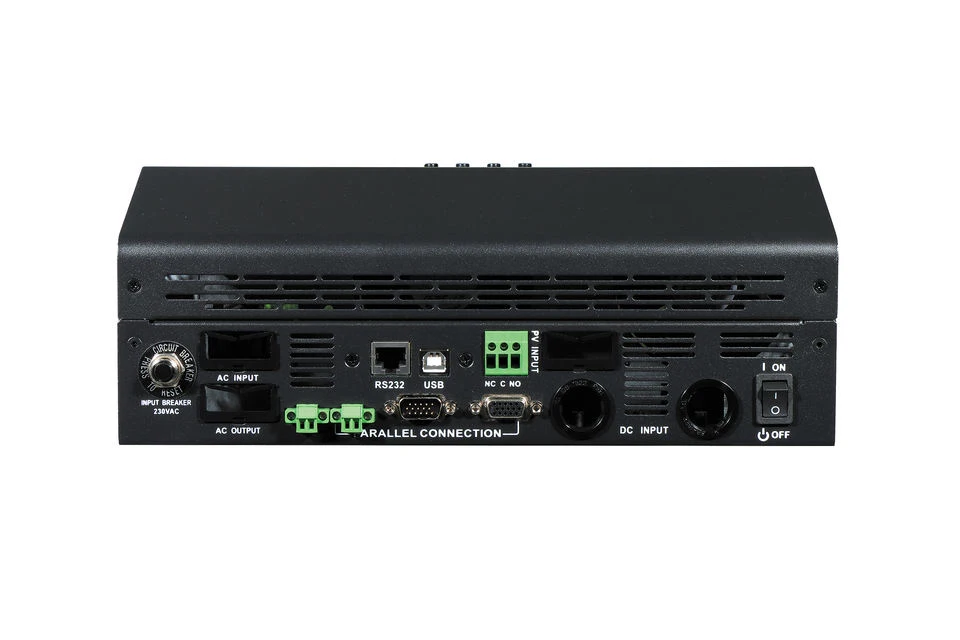

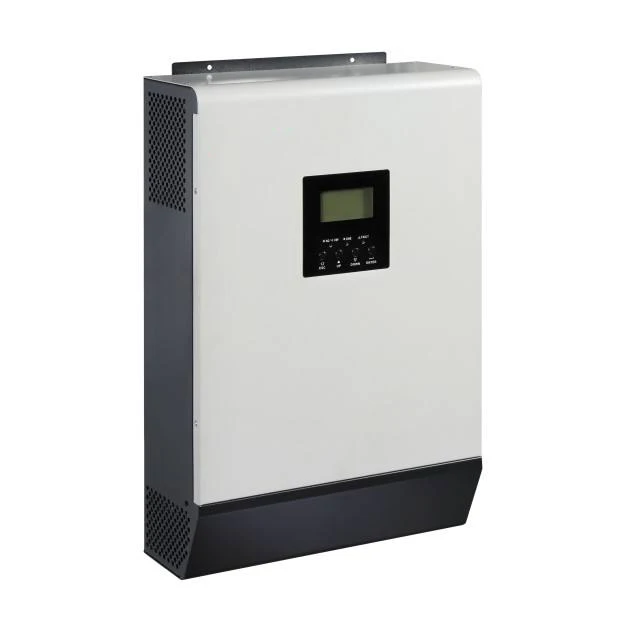

Hot Sale 12V 24V Hybrid Micro Inverter for off Grid Solar Energy System MPPT Battery Char Inverter with Single 220VAC Output
- Category: >>>
- Supplier: YUEQING L&R NEW ENERGY CO. LTD.
Share on (1601081967110):
Product Overview
Description
Specification
Model | HY3 0 2 2 VM HY3 0 2 2 VMN | HY3 0 2 2 VMN PLUS | HY5 0 3 2 VM HY5 0 3 2 VMN | HYB5 0 3 2 M HYB5 0 3 2 MN | ||||
RATED POWER | 3000VA/2400W 3000VA/3000W | 3000VA/3000W | 5000VA/4000W 5000VA/5000W | 5000VA/4000W 5000VA/5000W | ||||
Parallel Capacity | No | No | No | Yes, 9pcs | ||||
Input | voltage | 230VAC | ||||||
selectable voltage range | 170-280VAC (for personal computers) 90-280VAC (for home appliances) | |||||||
Frequency range | 50Hz/60Hz (auto sensing) | |||||||
Output | AC voltage regulation (Batt.mode) | 230VAC±5% | ||||||
Surge power (5 seconds) | 6000VA | 6000VA | 10000VA | 10000VA | ||||
efficiency (peak) | 93% | |||||||
transfer time | 10ms(for personal computers); 20ms (for home appliances) | |||||||
waveform | pure sine wave | |||||||
Battery& AC charger | battery voltage | 24VDC | 24VDC | 48VDC | 48VDC | |||
floating charge voltage | 27VDC | 27VDC | 54VDC | 54VDC | ||||
overcharge protection | 33VDC | 33VDC | 63VDC | 60VDC | ||||
Max. AC charge current | 25A | 60A | 60A | 60A | ||||
MAX PV array power | 1000W | 1500W | 3000W | 4000W | ||||
MPPT range@ operating voltage | 30~80V | 30~115V | 60- 115V | 60- 115V | ||||
maximum PV array open circuit voltage | 102VDC | 145VDC | 145VDC | 145VDC | ||||
Max. Solar charge current | 40A | 60A | 60A | 80A | ||||
Max. Total charge current | 60A | 120A | 120A | 140A | ||||
Physical | maximum efficiency | 98% | ||||||
standby power consumption | 2W | |||||||
operating Environment | Dimension, D*W*H(mm) | 95*240*316 | 100*272*385 | 155*295*455 | 155*295*455 | |||
Net weight (kgs) | 7 KG | |||||||
humidity | 5%-95% relative humidity ( non-condensing) | |||||||
operating temperature | 0℃ -55℃ | |||||||
storage temperature | - 15℃ -60℃ | |||||||

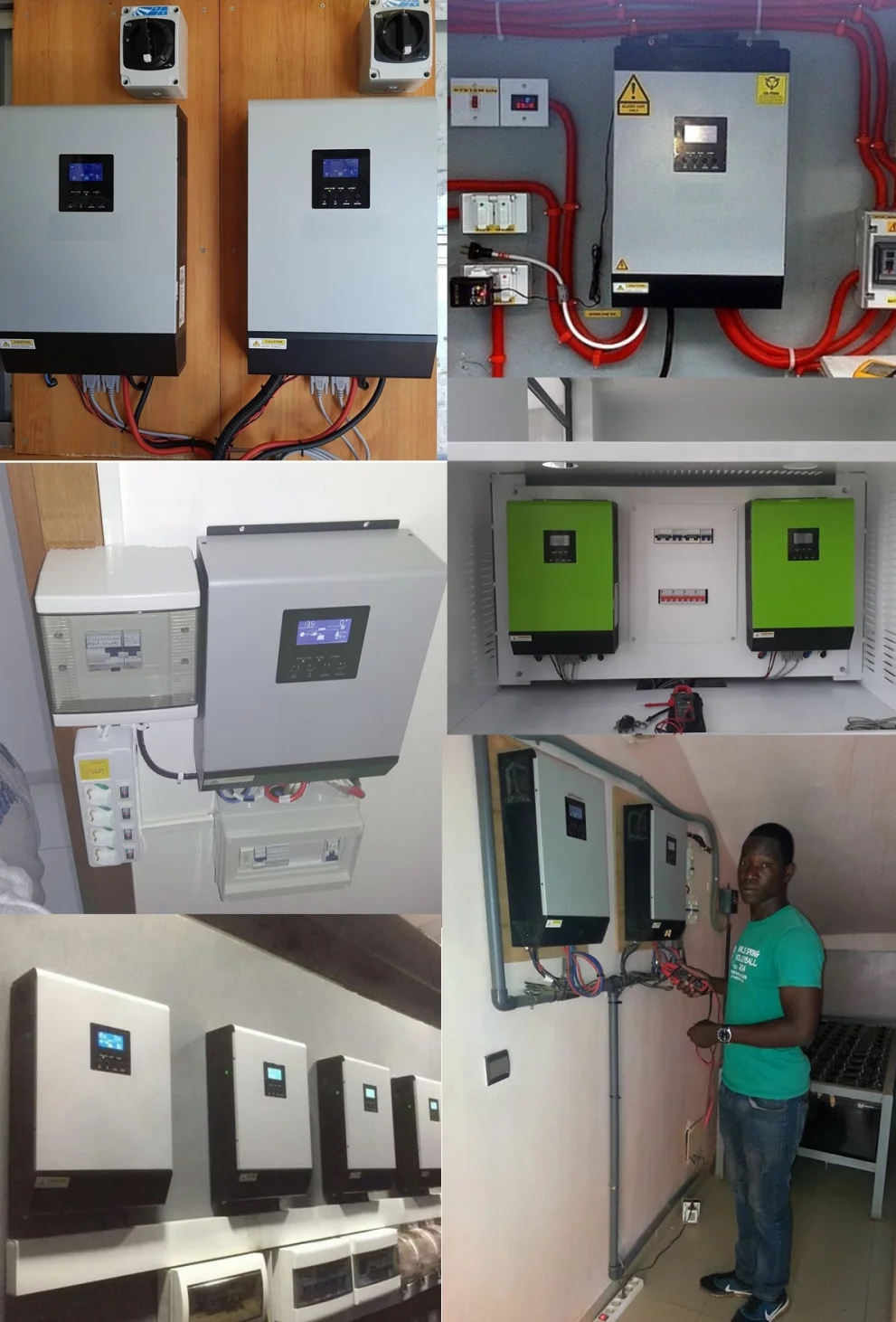

Product Description
Packing & Delivery
Company Profile
♦Yueqing L&R New Energy Co., Ltd. Is a high-tech enterprises collection of inverter, charger controller, solar power systems, solar panels, lithium-ion battery energy storage system, the research of lithium battery design, development, production and sales as one of the high-tech enterprises, is a leading domestic photovoltaic (pv) grid power system solutions provider, to provide one-stop off-grid solar system services.
♦Many of our products have passed CE, ROHS, FCC, ETL, PSE, ISO9001 and other international certifications. At present, we provide high-quality photovoltaic products and comprehensive services to customers in more than 100 countries and regions.
♦Many of our products have passed CE, ROHS, FCC, ETL, PSE, ISO9001 and other international certifications. At present, we provide high-quality photovoltaic products and comprehensive services to customers in more than 100 countries and regions.
