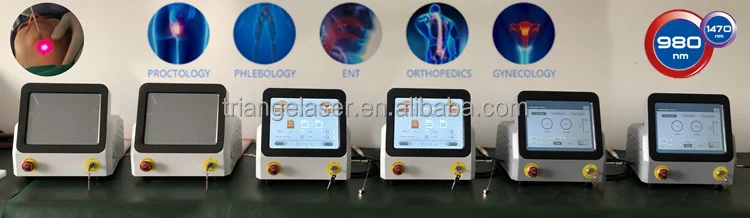

Portable vascular laser diode evlt 980nm 1470nm endovenous laser ablation/EVLT/EVLA laser device
- Category: >>>
- Supplier: Baoding Triangel Rsd Electronics Technology Limited
Share on (1601082033629):
Product Overview
Description

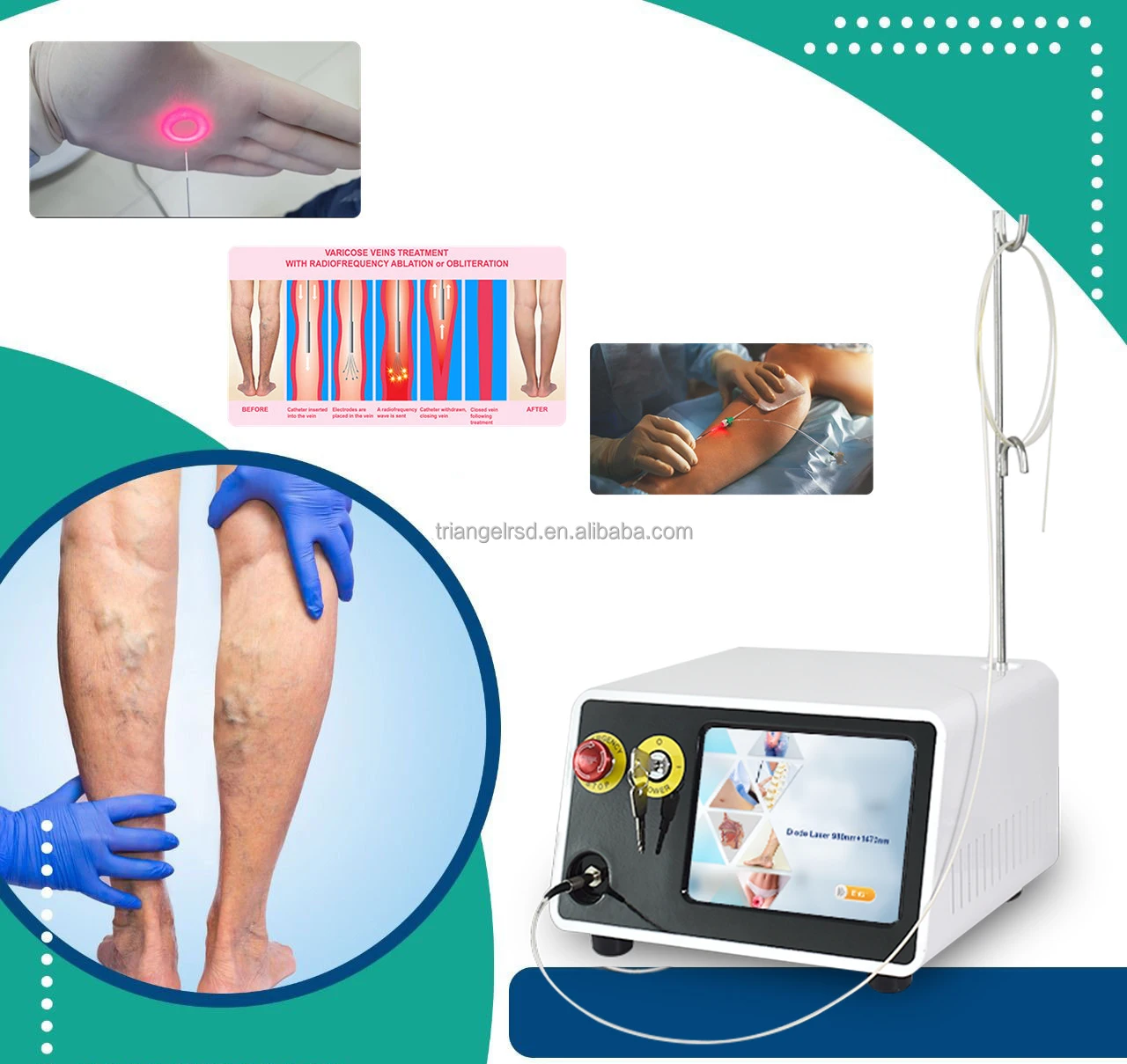

Professional medical equipment 980nm 1470nm EVLT EVLA Endovenous Vein Laser Ablation
Laser type | Diode Laser Gallium-Aluminum-Arsenide GaAlAs |
Wavelength | 650nm+980nm+1470nm |
Power | 1-30W for 980nm, 1-17W for 1470nm |
Working Modes | CW, Pulse and Single |
Aiming Beam | Adjustable Red indicator light 650nm |
Fiber type | Bare fiber |
Fiber diameter | 400/600 um fiber |
Fiber connector | SMA-905 International standard interface, special quartz optical fiber laser transmission |
Pulse | 0.00s-1.00s |
Delay | 0.00s-1.00s |
Voltage | 100-240V, 50/60HZ |
Size | 57*38*35cm |
Weight | 21KG |
Products Description
If you are interested, please click herehttps://amos.alicdn.com/msg.aw?spm=a2700.details.pronpeci14.14.64112e35UfNVr7&v=2&uid=cn1564672779pnnh&site=enaliint&s=24&charset=UTF-8 to contact us
Treatment Theory
Laser interaction with tissue depends on the wavelength of choice. The Laseev laser comes in 2 versions - the 980nm and the 1470nm.
1.The 980nm laser with equal absorption in water and blood, offers a robust all-purpose surgical tool, and at 30/60Watts of output, a high power source for endovascular work.
1.The 980nm laser with equal absorption in water and blood, offers a robust all-purpose surgical tool, and at 30/60Watts of output, a high power source for endovascular work.
2.The 1470nm laser with significantly higher absorption in water, provides a superior precision instrument for reduced collateral thermal damage around venous structures.Accordingly, it is highly recommended for endovascular work.

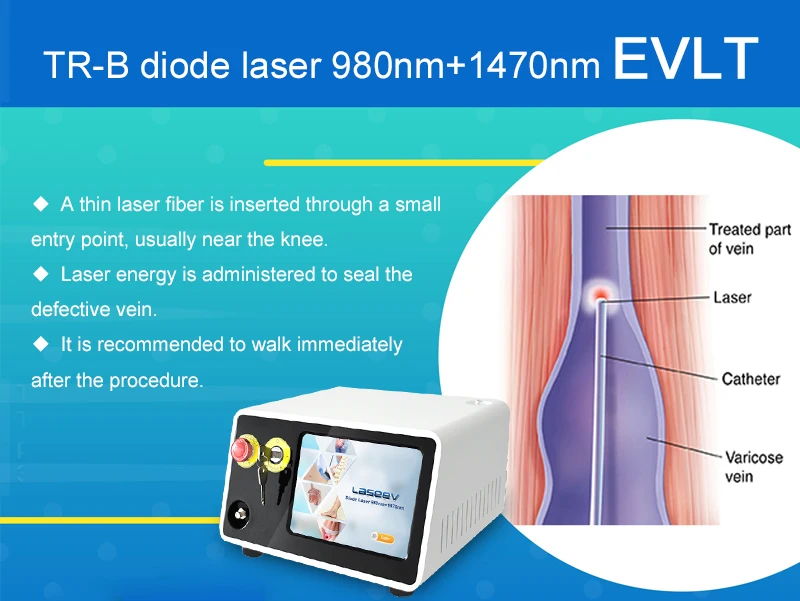

The 980+1470nm diode laser offers a wavelength with superior performance for ablation of diseased veins - 1470 nm.The EVLT is effective, safe, quick and painless. This technique is lighter than the traditional surgery:
Optimal Laser 1470nm

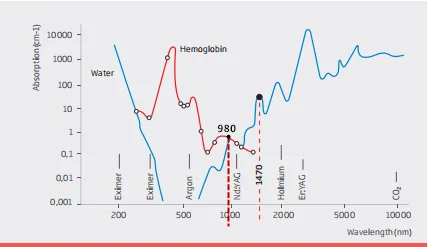

Laser wavelength 1470 is, at least, 5 times better absorbed by water and oxyhemoglobin than 980nm laser, allowing selective destruction of the vein, with less energy and reducing side effects.
As a water-specific laser, the TR1470nm laser targets water as the chromophore to absorb the laser energy. Since the vein structure is mostly water, it is theorized that the 1470 nm laser wavelength efficiently heats endothelial cells with a low risk of collateral damage, resulting in an optimal vein ablation.
As a water-specific laser, the TR1470nm laser targets water as the chromophore to absorb the laser energy. Since the vein structure is mostly water, it is theorized that the 1470 nm laser wavelength efficiently heats endothelial cells with a low risk of collateral damage, resulting in an optimal vein ablation.
Optimal wavelength 980+1470nm is coupled with optimal energy delivery when using our 360 radial fibers - the highest quality circular emission fibers.Dedicated laser marking;Ensures precise positioning of the probe.

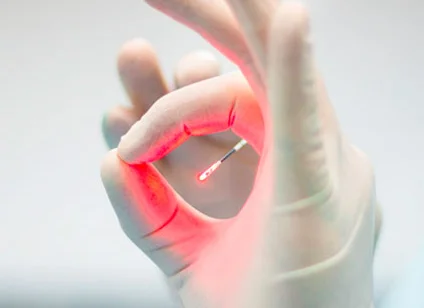

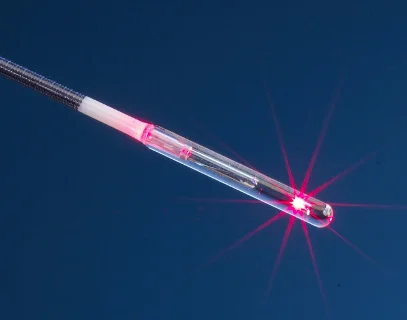

360°Radial Fiber 600um

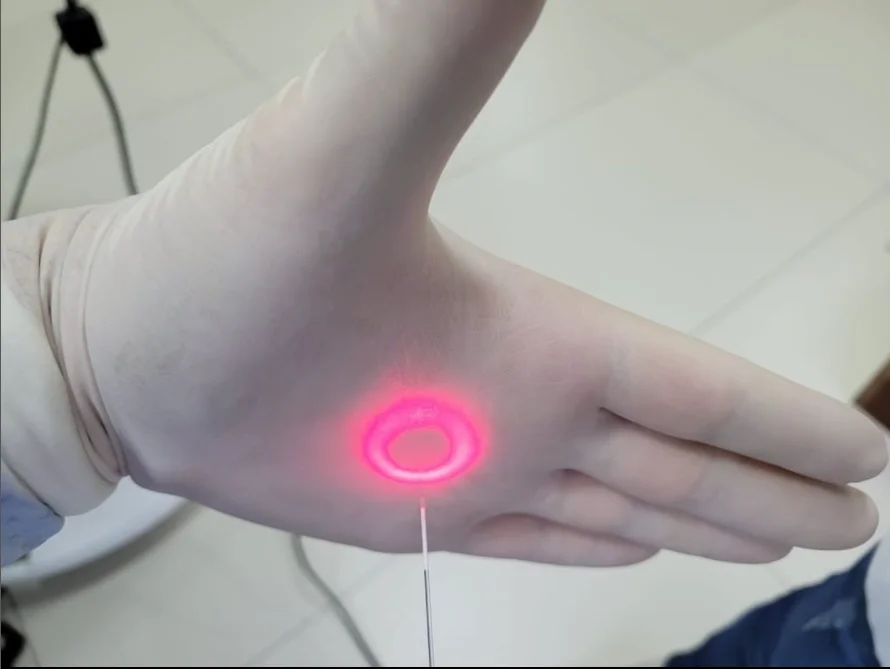

TRIANGELASER 360 fiber technology provides you with the efficiency of circular emission, ensuring deposition of energy directly on
the vessel wall.
The tip of the fiber is comprised of an extra smooth glass capillary, directly connected to a marked smooth jacket, allowing easy
direct insertion into the vein.The fiber uilizes a simple procedure kit with a short introducer, reducing steps and procedure time.
Key Advantages
the vessel wall.
The tip of the fiber is comprised of an extra smooth glass capillary, directly connected to a marked smooth jacket, allowing easy
direct insertion into the vein.The fiber uilizes a simple procedure kit with a short introducer, reducing steps and procedure time.
Key Advantages
●Circular emission technology
●Reduced number of procedural steps
●Very safe and smooth insertion
Advantage

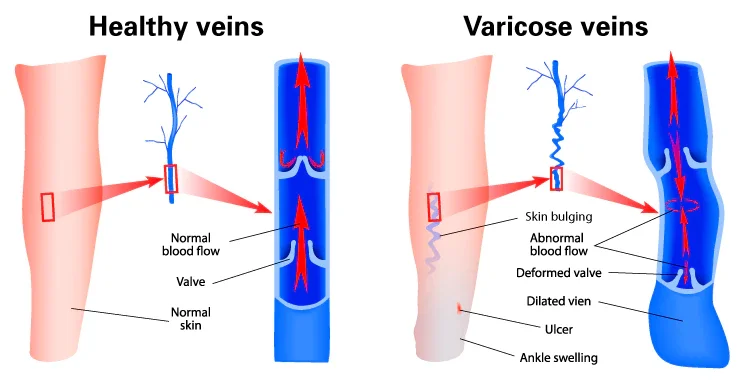

Endovenous occlusion of great saphenous vain and small saphenus vain
The procedure is performed in the clinic with topical anesthetic cream and takes approximately 30-45 minutes. There is minimal or no pain and no downtime, the patient can resume normal activity immediately. This treatment should be performed 6-8 weeks apart and for best results, avoidance of direct sunlight to the treated area is recommended.
The procedure is performed in the clinic with topical anesthetic cream and takes approximately 30-45 minutes. There is minimal or no pain and no downtime, the patient can resume normal activity immediately. This treatment should be performed 6-8 weeks apart and for best results, avoidance of direct sunlight to the treated area is recommended.
Local anesthesia ;No hospitalization, ambulatory;No bruises
No downtime: fast recovery No post-operative effects: shower possible straight away, no pain
Company Profile
TRIANGEL RSD LIMITED,is one of the specialized manufactures focused on the Aesthetics &Medical laser equipment in China, established in March 2010.We have our own repair companies & training centers in several countries,like Portugal,Russia,Australia,South Africa...
could offer the technical support and clinical training in the fast and efficient way.TRIANGEL got different certificates for clients from all over the world.Medical CE,ISO13485,RoHS;We also
take part in exhibitions every year,Cosmoprof Asia(HongKong),DUBAI DERMA,INTERCHARM
(Moscow),Expocosmetica(Oporto),AMSCA(South Africa)...TRIANGEL,hope to be your Responsible,Sincere and Dependable partner in China!
Customer Feedback
FAQ

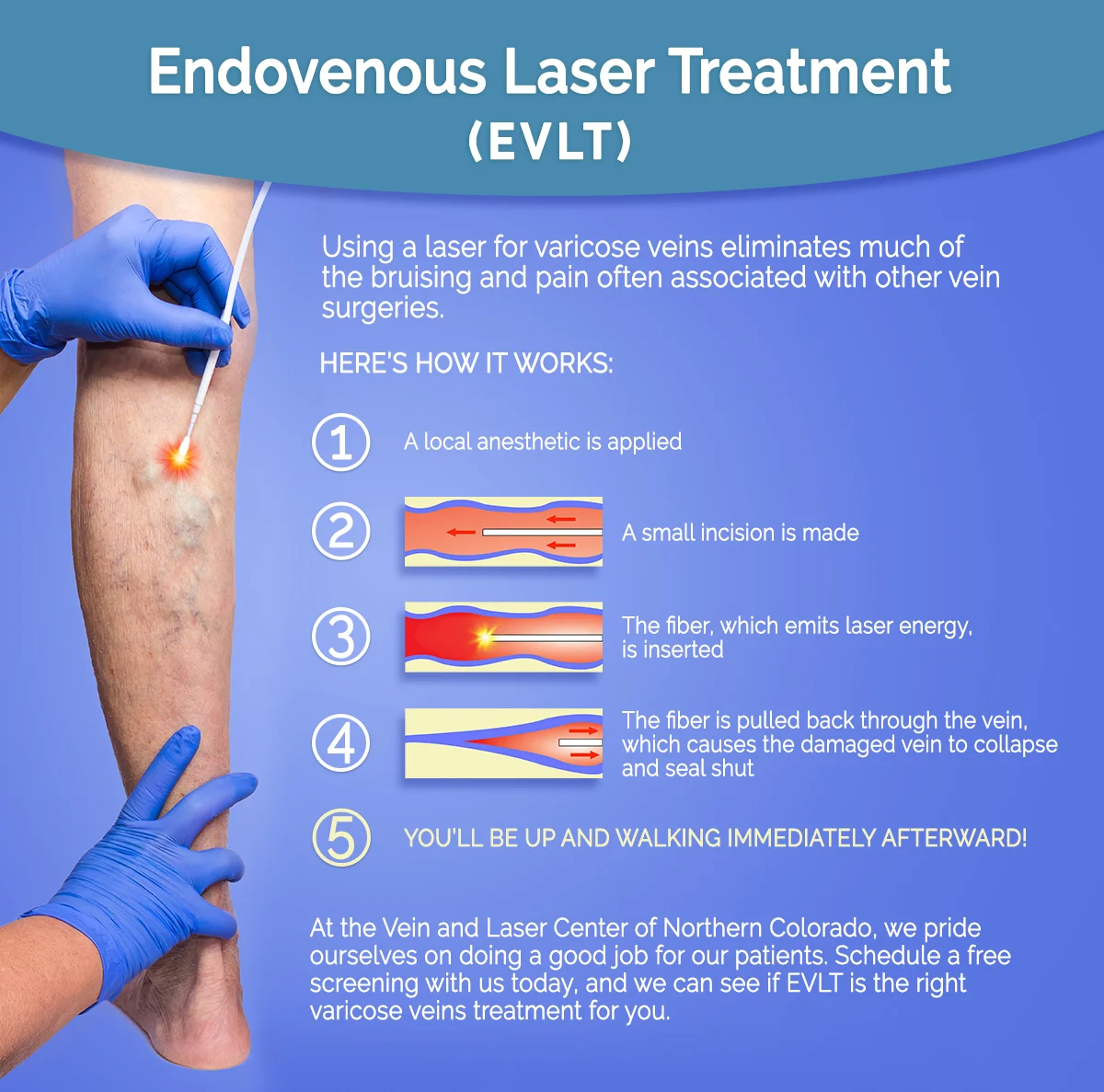

1. What is the procedure of the EVLT operation?
After your scan your leg will be cleaned before a tiny amount of anaesthetic is applied (using super fine needles).
A catherer is inserted into the vein and the Endovenous Laser fibre is inserted.
After this a cool anaesthetic is then applied around your vein to protect surrounding tissues.
You will then be required to wear goggles before the laser machine is switched on.

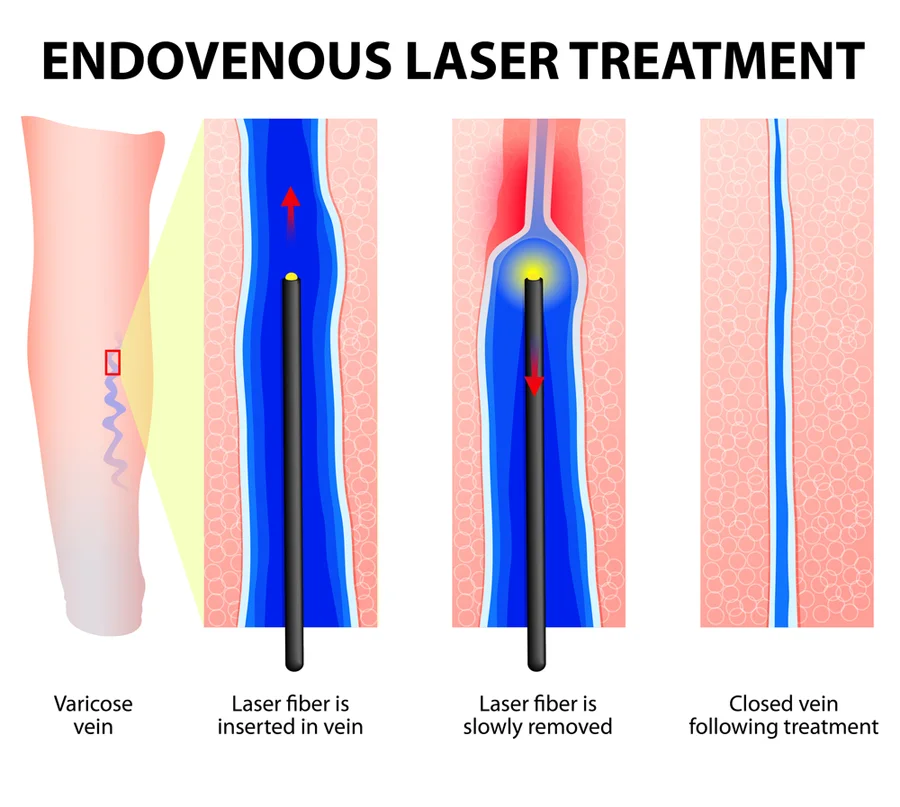

During the procedure the laser will be pulled back to seal the faulty vein. Rarely will patients experience any discomfort when the laser is being used.
After the procedure you will be required to wear stockings for 5-7 days and walk half an hour a day.
Long distance travel is not permitted for 4 weeks.
Your leg may feel numb for six hours after the procedure.
A follow-up appointment is required for all patients. At this appointment further treatment may occur with ultrasound guided sclerotherapy.
After your scan your leg will be cleaned before a tiny amount of anaesthetic is applied (using super fine needles).
A catherer is inserted into the vein and the Endovenous Laser fibre is inserted.
After this a cool anaesthetic is then applied around your vein to protect surrounding tissues.
You will then be required to wear goggles before the laser machine is switched on.
During the procedure the laser will be pulled back to seal the faulty vein. Rarely will patients experience any discomfort when the laser is being used.
After the procedure you will be required to wear stockings for 5-7 days and walk half an hour a day.
Long distance travel is not permitted for 4 weeks.
Your leg may feel numb for six hours after the procedure.
A follow-up appointment is required for all patients. At this appointment further treatment may occur with ultrasound guided sclerotherapy.
