Door Embossing Machine 2500 Ton Metal Steel Door Skin Making Hydraulic Embossing Press Machine
- Category: >>>
- Supplier: Nanjing Chzone Machine Tool Co. Ltd.
Share on (1601082056450):
Product Overview
Description
Y32-2500T Door Plate Hydraulic Press Machine
Product Description
Main features:
This series of hydraulic press adopts PLC electrical control systems, has automatic adjustment, manual and semi-automatic three modes of operation, constant pressure and constant stroke two processes crafts. When constant pressure model, there is pressure-keep and automatic return action, in the middle of the table is equipped with ejector device, in addition to eject the product,can also be used as a hydraulic cushion parts used to stretch craft, pressure and stroke is adjustable according to process requirements.
This series of hydraulic presses with a wide range of versatility, suitable for various kinds of metal materials tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin, thermosetting products forming and press-formed in the insulating material of the plastic products.
This series of hydraulic press adopts PLC electrical control systems, has automatic adjustment, manual and semi-automatic three modes of operation, constant pressure and constant stroke two processes crafts. When constant pressure model, there is pressure-keep and automatic return action, in the middle of the table is equipped with ejector device, in addition to eject the product,can also be used as a hydraulic cushion parts used to stretch craft, pressure and stroke is adjustable according to process requirements.
This series of hydraulic presses with a wide range of versatility, suitable for various kinds of metal materials tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin, thermosetting products forming and press-formed in the insulating material of the plastic products.
Main Parameters
Item | Unit | 2000T | 2500T | 3000T | 3600T | 4500T |
Nominal Force | KN | 20000 | 25000 | 30000 | 36000 | 45000 |
Return Force | KN | 425 | 425 | 435 | 435 | 435 |
Max.Pressure of Cylinder | Mpa | 25 | 25 | 25 | 25 | 25 |
Ram Stroke | mm | 500 | 500 | 500 | 500 | 500 |
Max. Opening Height | mm | 600 | 600 | 600 | 600 | 600 |
Stroke Speed | mm/s | 100-120 | 100-120 | 100-120 | 100-120 | 100-120 |
worktable dimension | mm | 1480*2500 | 1500*2500 | 1500*2500 | 1600*2600 | 2000*3000 |
Motor Power | KW | 44 | 52 | 60 | 90 | 100 |
Detailed Images
Spare Parts

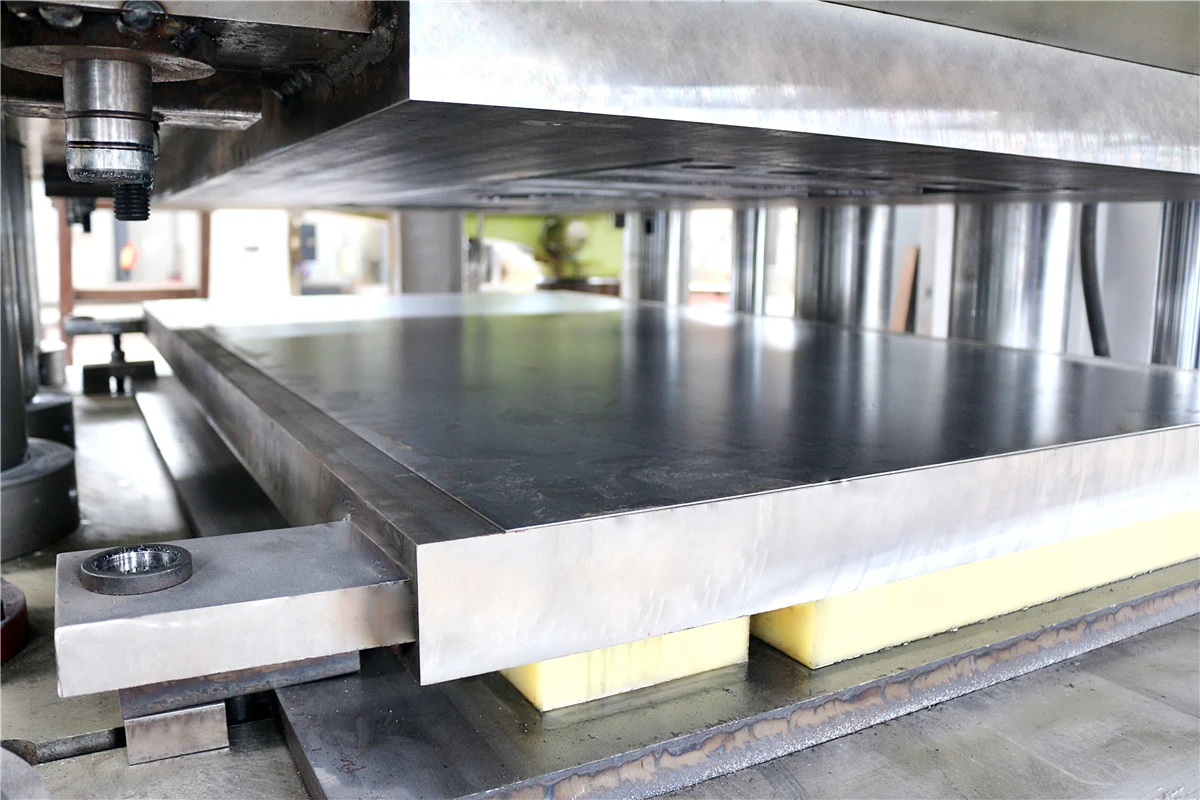

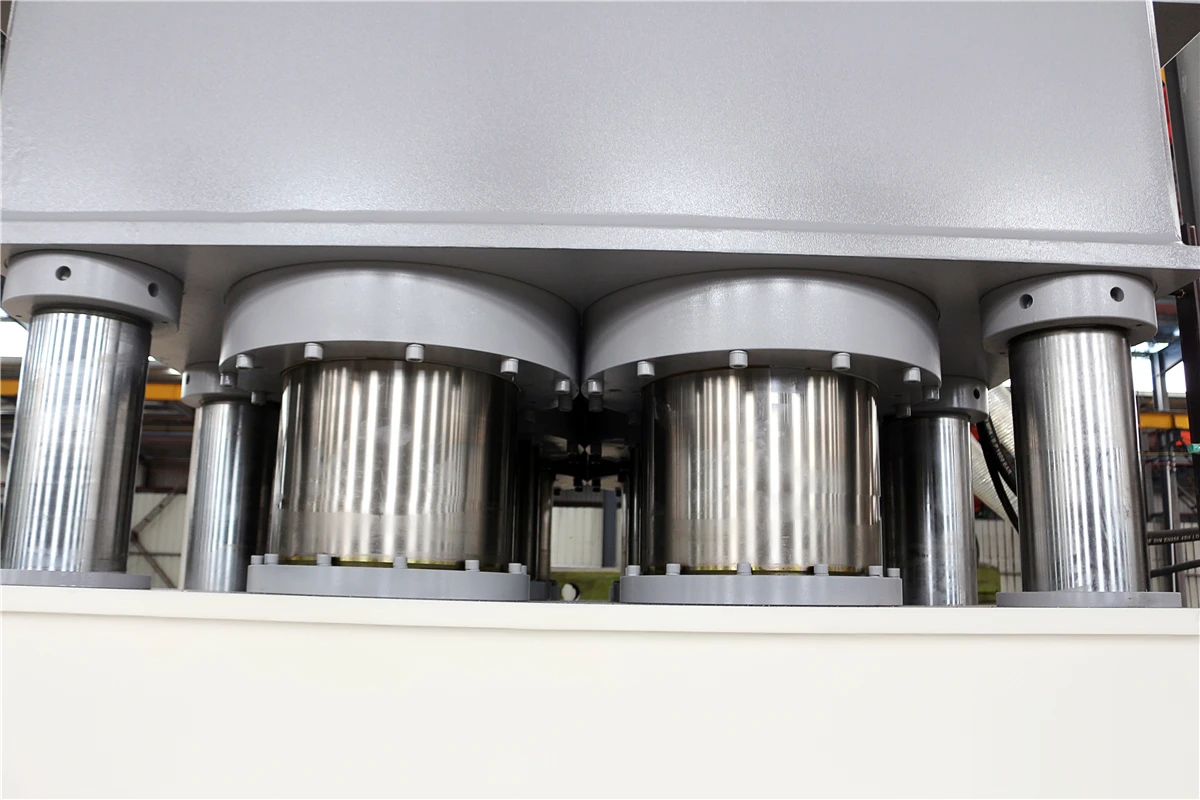

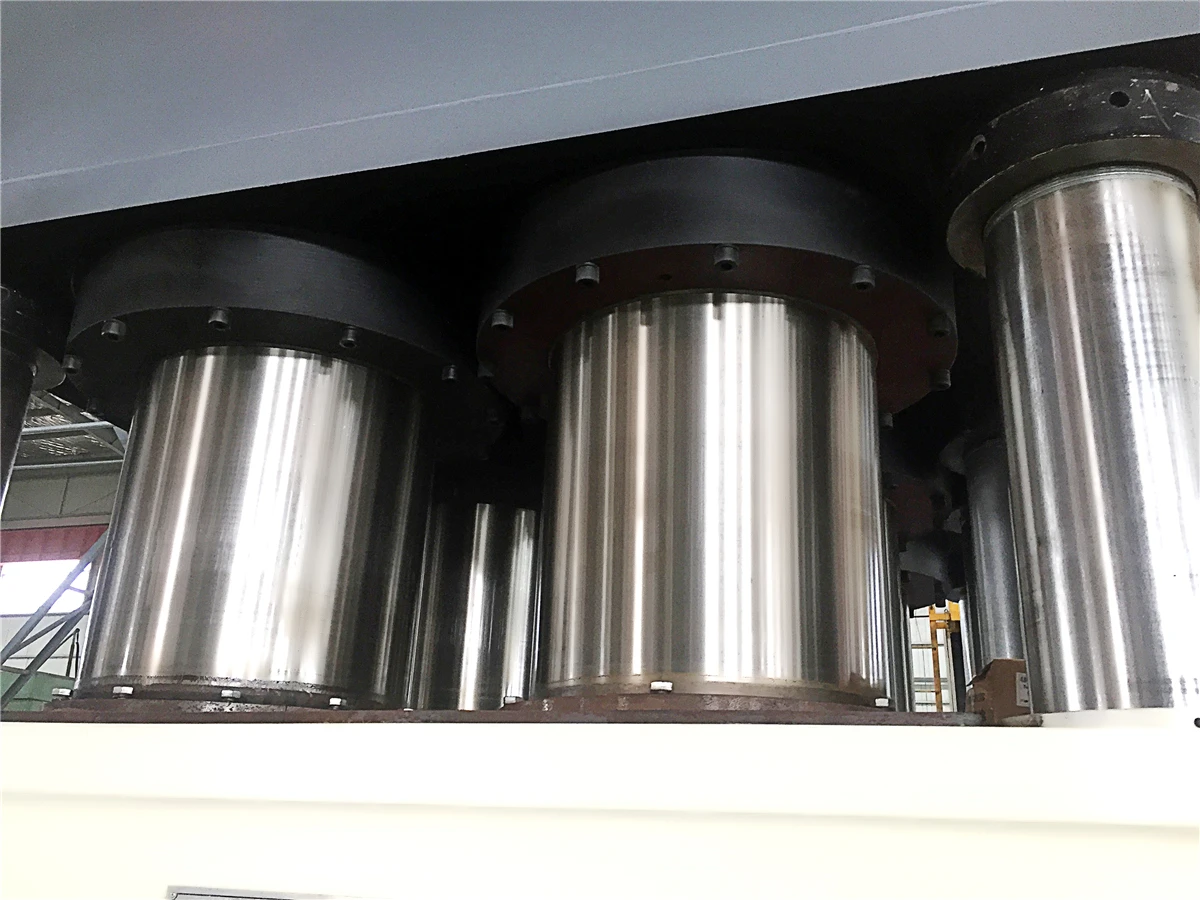

Polished Cylinder

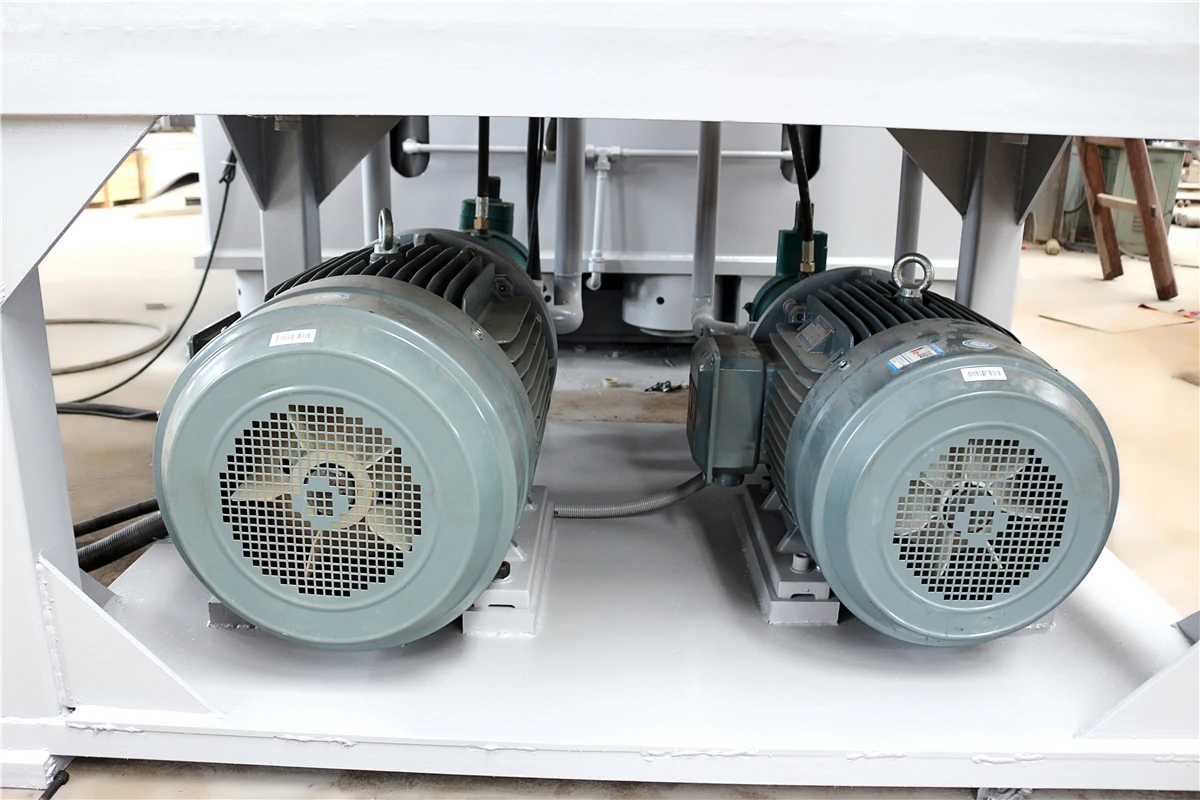

Siemens Main Motor

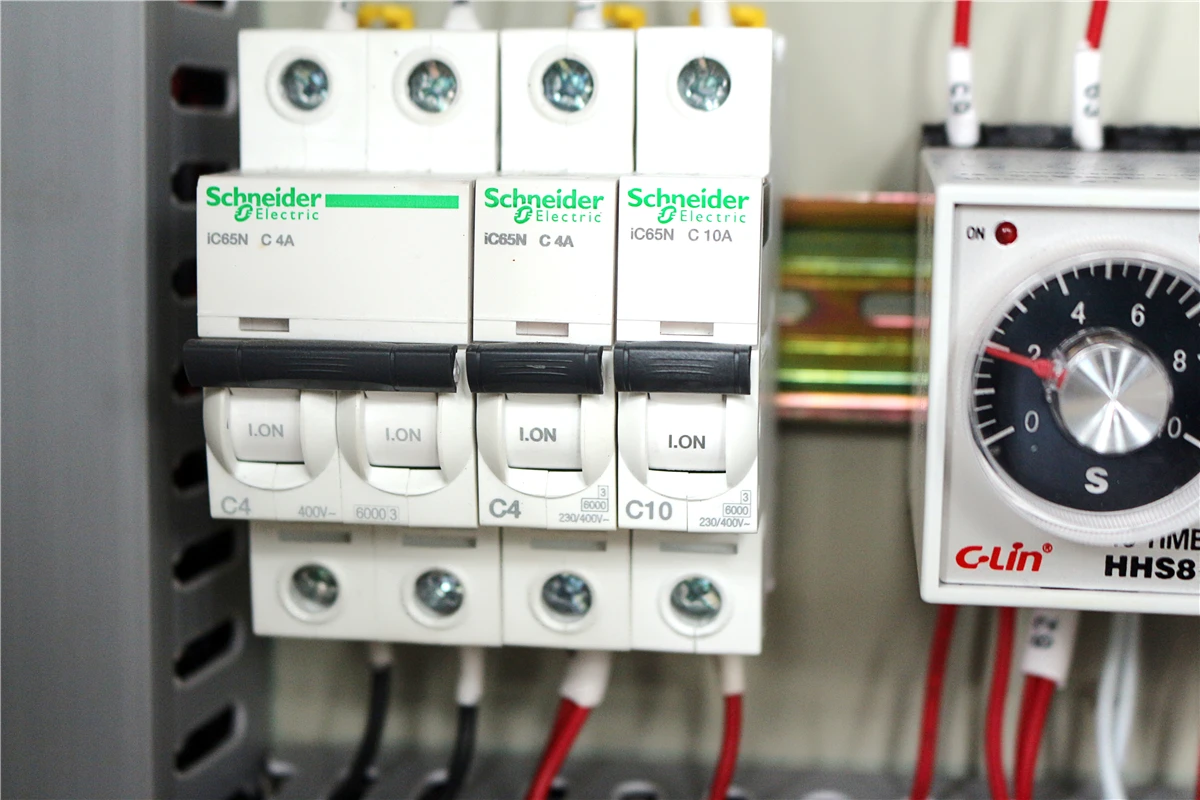

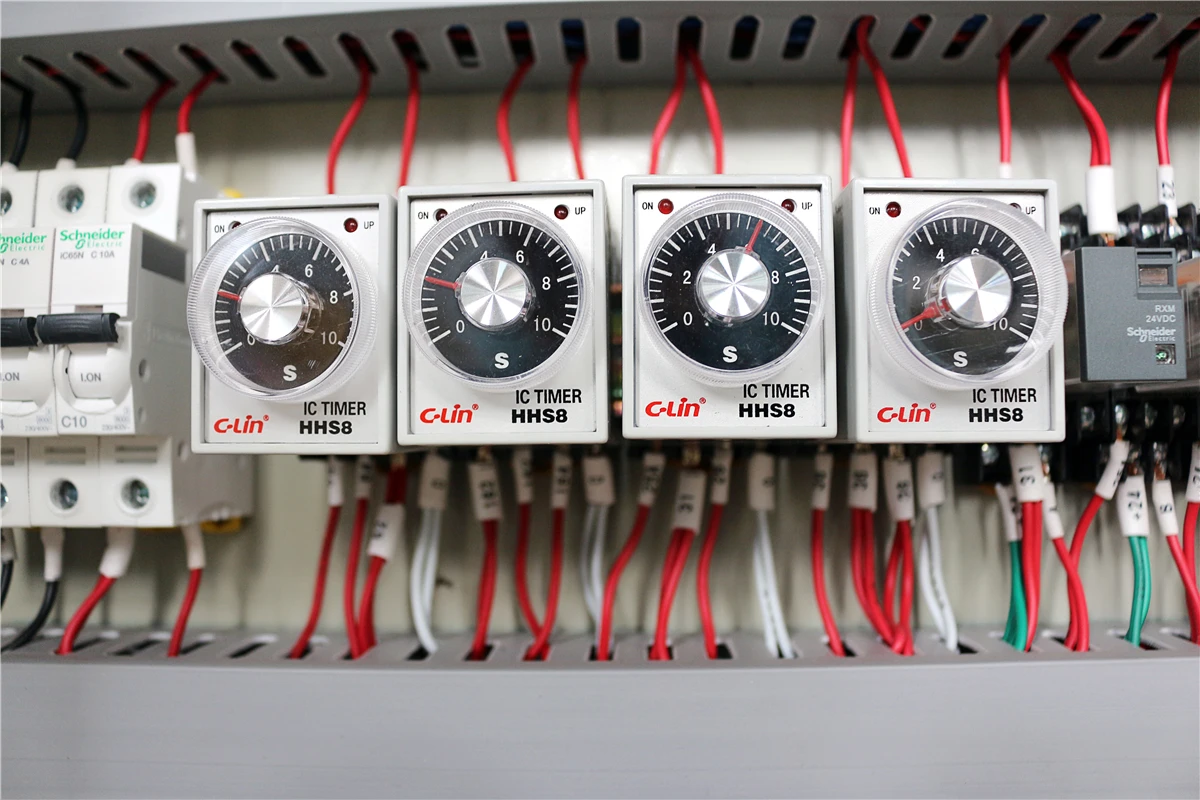

Schneider Electrics
Hydraulic Plunger Pump

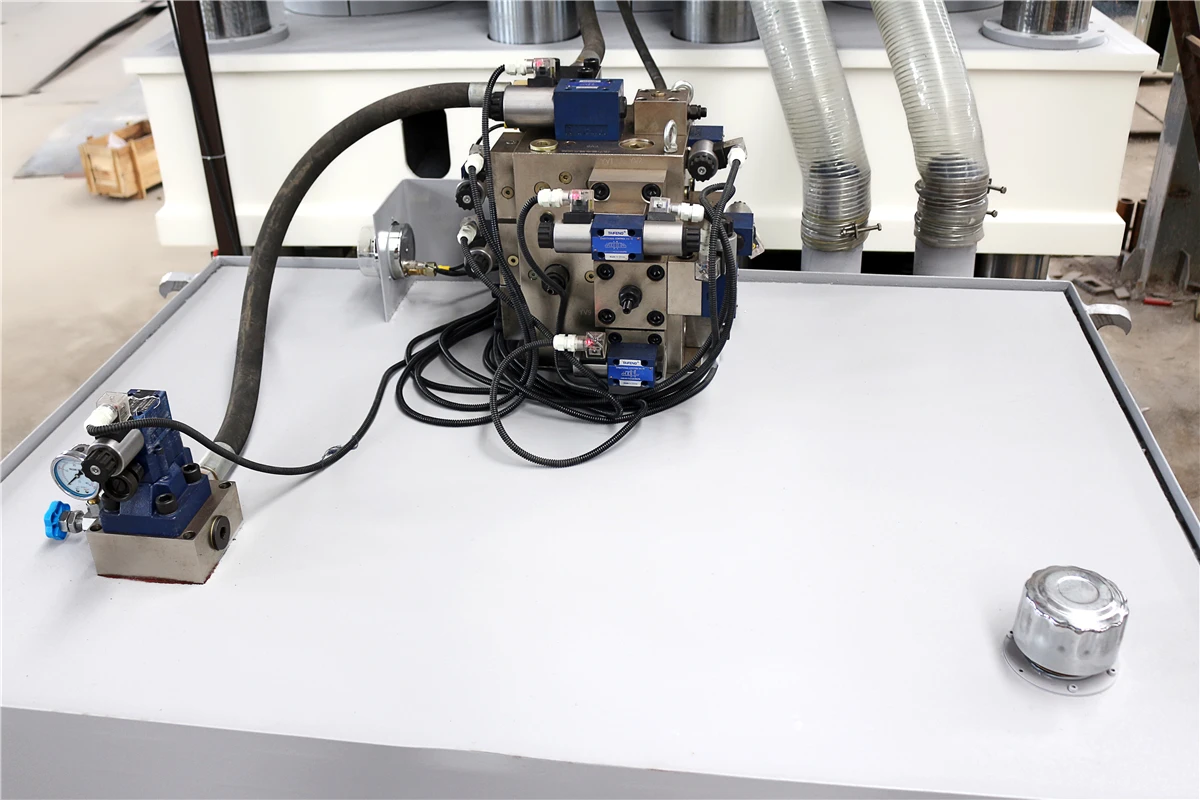

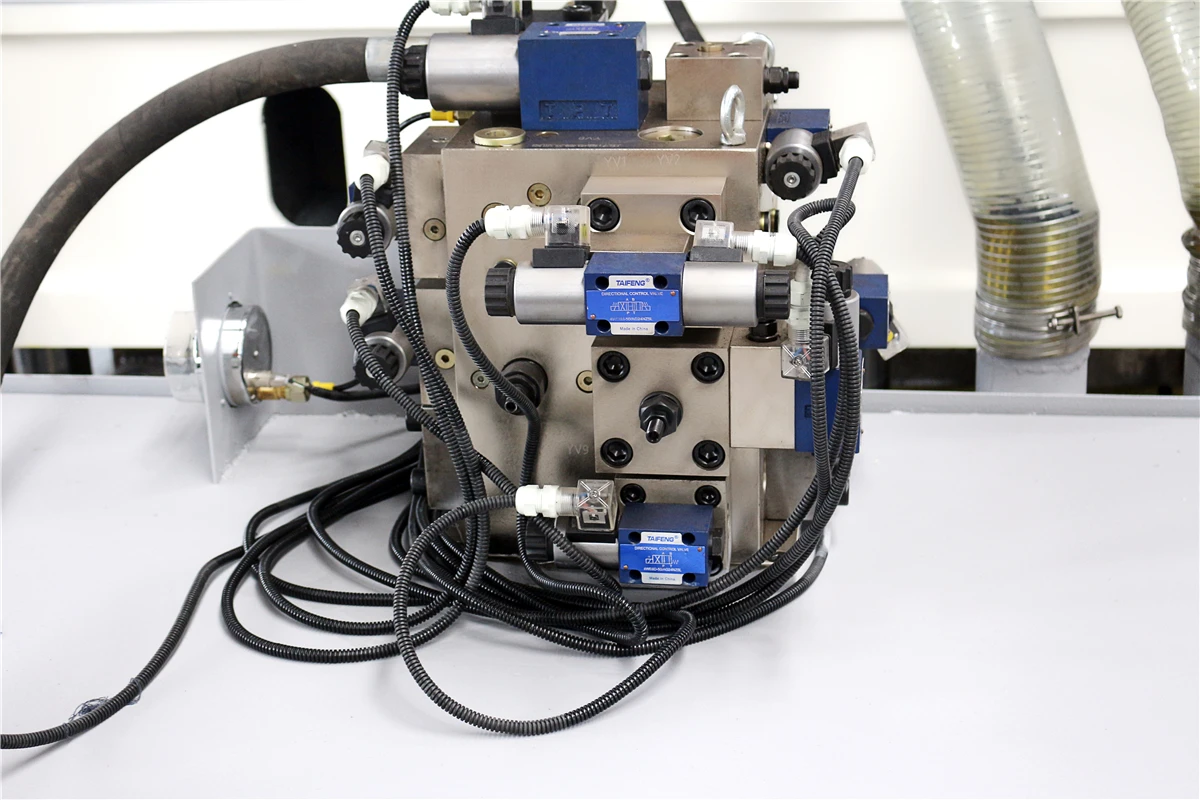

Hydraulic System
Foot Pedal Control
Control Button
Control Center

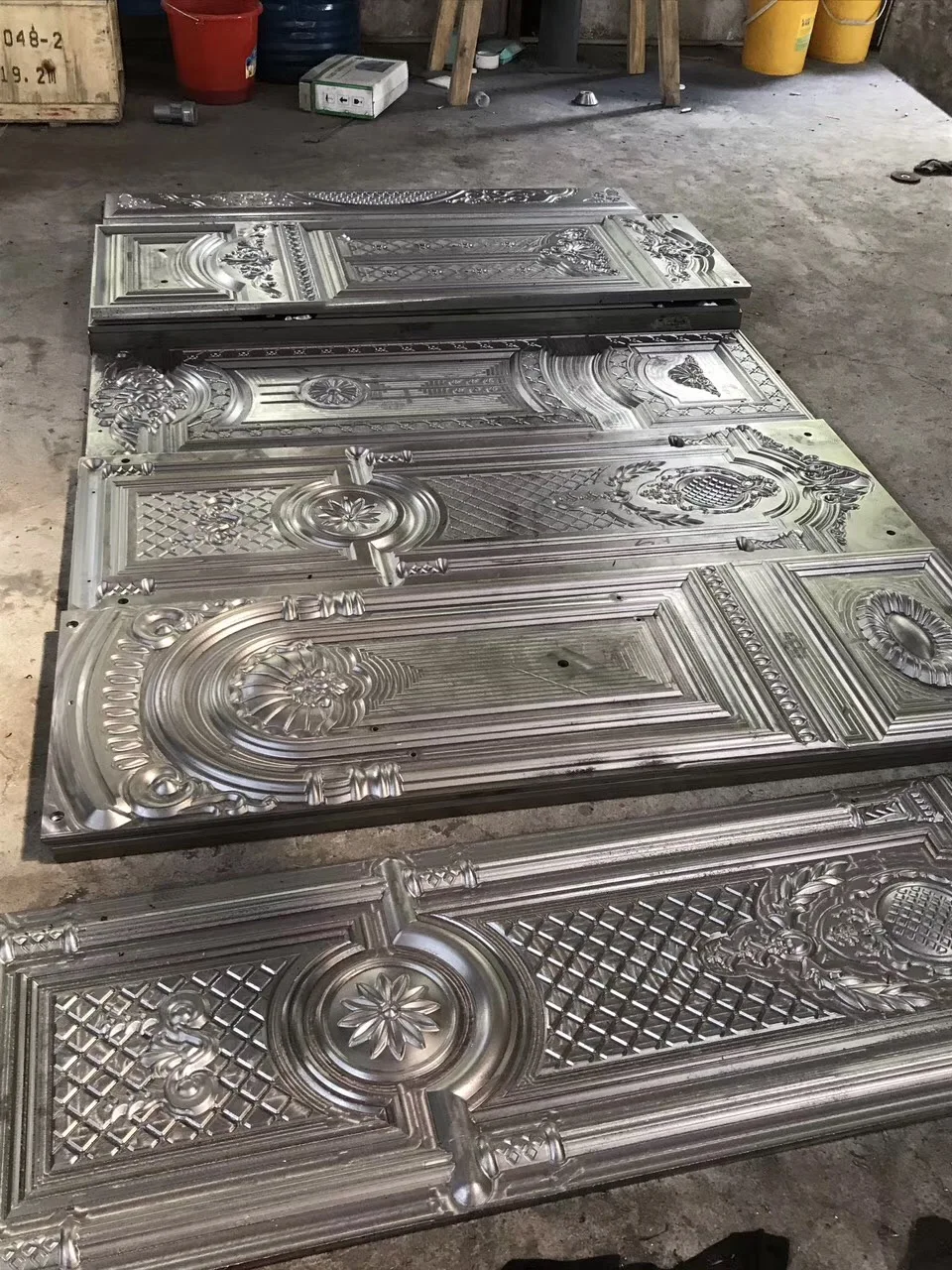

Die set
Related Products
Packing&Shipping
Machine usually send by sea. Is suitable for 20GP/40GP/40HQ/40OT container.
Some small machine can use Plywood case packing.
After loading machine will use carbon steel fix it.
