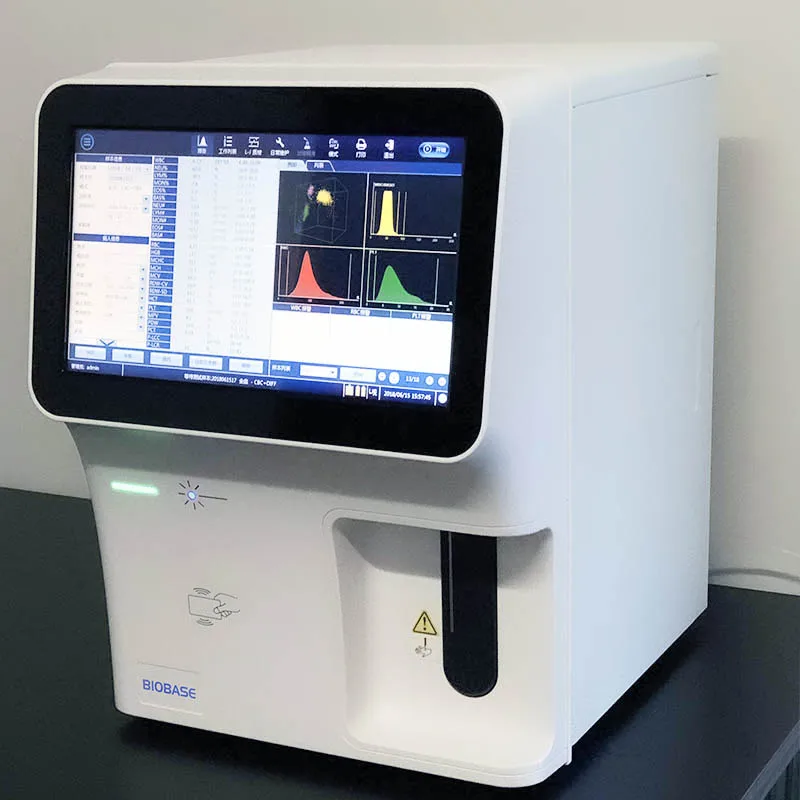

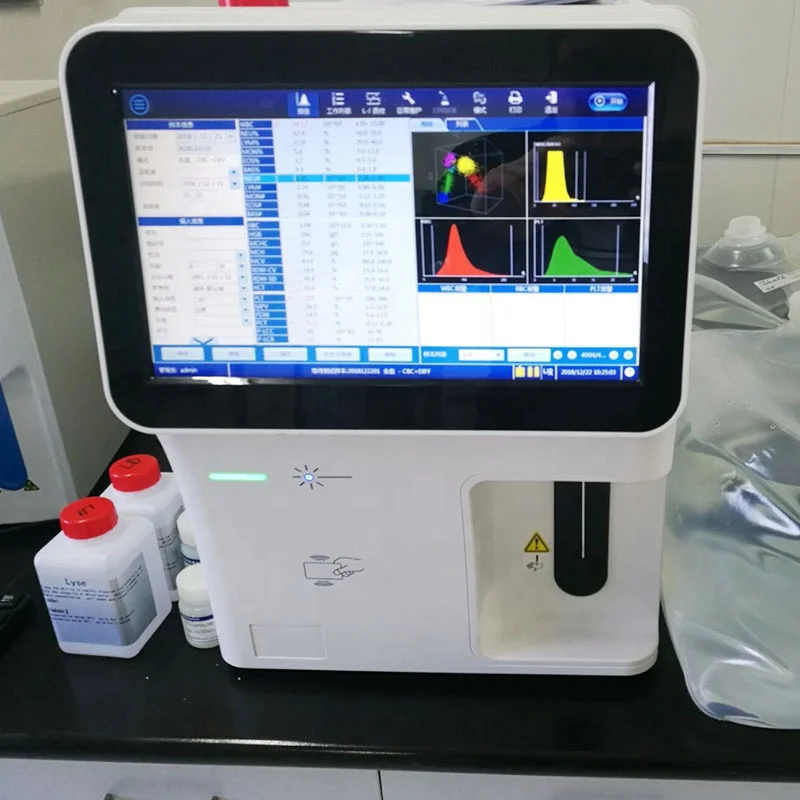

BIOBASE 5-Part Veterinary Hematology Analyzer
BK-6310VET
Our 5-Part Veterinary Hematology Analyzer represents cutting-edge technology in veterinary diagnostics, offering precise and efficient blood analysis for comprehensive veterinary care. With its advanced features and user-friendly interface, it provides veterinarians with accurate results quickly, aiding in timely diagnoses and treatment decisions.
Features:
1. Throughput 60T/H.

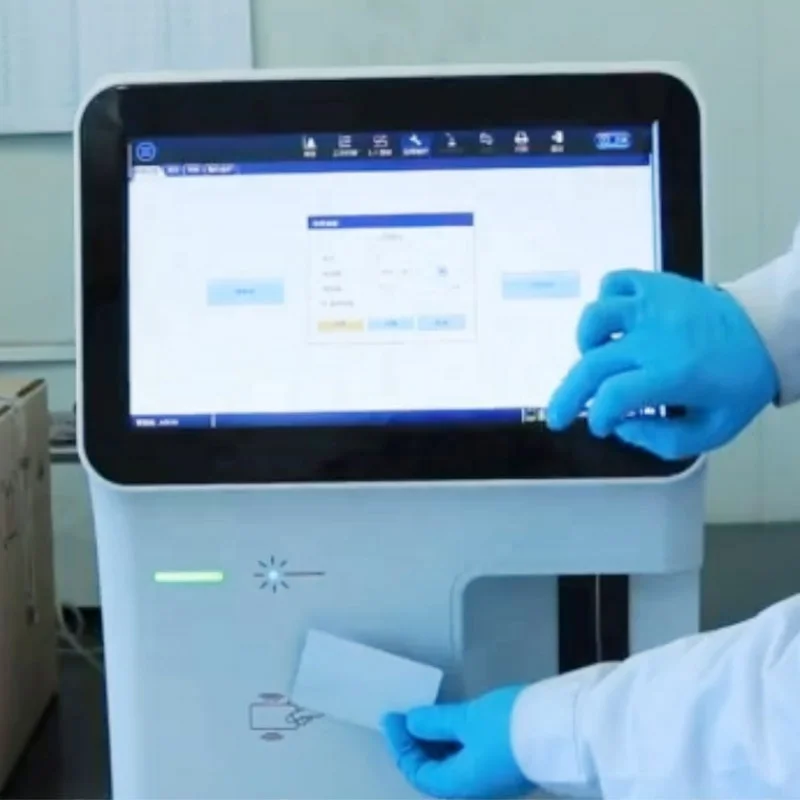

2. 14 inch touch screen.
3. Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.
4. 3D holographic scattergram displays the accurate 5 part differentiation of WBC.
5. Large storage capacity: 100,000 results(including histogram, scattergram, animal information).
1. Throughput 60T/H.
2. 14 inch touch screen.
3. Tri-angle laser scatter + flow cytometry method + impedance method for RBC and PLT counting.
4. 3D holographic scattergram displays the accurate 5 part differentiation of WBC.
5. Large storage capacity: 100,000 results(including histogram, scattergram, animal information).
Product Paramenters
Model | BK-6310VET | ||||||
Throughput | 60 Tests/hour | ||||||
Sample Profile | Dog, cat, horse, sheep, goat, camel, cow, more species coming soon | ||||||
Assay Items | 5 parts, 25 parameters, 3 histograms, 3D scattergram | ||||||
Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | ||||||
Test Mode | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted | ||||||
Sample Volume | CBC+DIFF mode : ≤20ul CBC mode : ≤10ul | ||||||
Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# | ||||||
Performance | Item | Linearity range | Carry Over | CV | |||
WBC | (0~300.0x10^9)/L | ≤0.5% | ≤2.0% | ||||
RBC | (0~8.00x10^12)/L | ≤0.5% | ≤1.5% | ||||
HGB | (0~250)g/L | ≤0.5% | ≤1.5% | ||||
PLT | (0~3000x10^9)/L | ≤1.0% | ≤4.0% | ||||
Sample Volume | CBC+DIFF mode≤20μl CBC mode≤10μl | ||||||
Storage | 100,000 results including histograms, scattergrams and patient information | ||||||
Interface | 4 USB ports, 1LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | ||||||
Power Supply | AC100~240V±10% 50/60Hz; 400VA | ||||||
Package Size | 575*490*690mm(W*D*H) | ||||||
Gross Weight | 46kg | ||||||
Reagent Package Size | 330*330*330mm, 400*290*240mm, 400*290*240mm | ||||||
Reagent Gross Weight | 22kg 2kg, 2kg | ||||||
