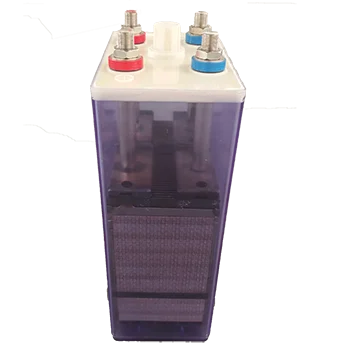

nickel iron battery 1.2v TN600ah for solar battery
- Category: >>>
- Supplier: Henan Hengming Fengyun Power Source Co. Ltd.
Share on (1601082079532):
Product Overview
Description
Product Description
Specification
item | value |
Warranty | 3months-1year |
Application | Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies, Car, Electric Forklifts, Energy storage, UPS |
Battery Size | TN600 |
Brand Name | HENGMING |
Certification | CE |
Model Number | Nickel iron battery TN600 |
Place of Origin | China |
Henan | |
Weight | 34KG |
Electric Energy | 600Wh |
Maintenance Type | Low Rate Rechargeable Nickel Iron battery 1.2v 600Ah(TN500) NF battery |
Container | ABS/PP |
Certificate | CE/ ISO9001/IEC62133 |
Wide operation temperature range | -40'C~60'C |
Long service life | 15~20 years |
product name | NIFE battery factory price |
Color | White / Blue |
Voltage | 1.2V 12V 24V 48V |
Warranty | 24 Months |
Usage | nife storage battery TN600 |

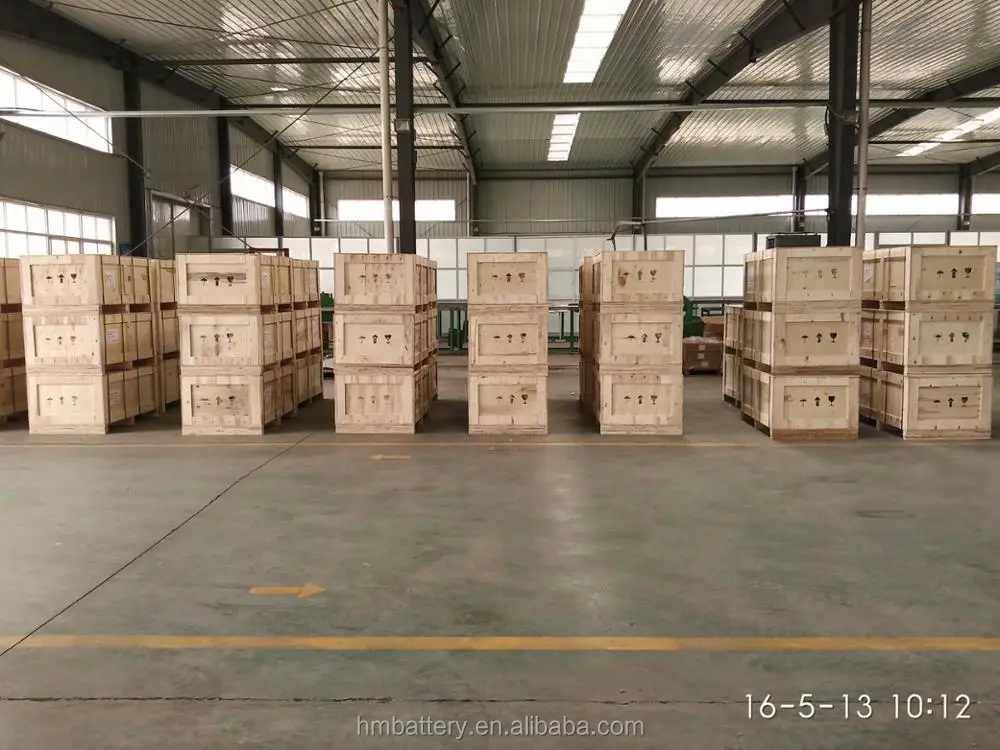

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Positive Plate
High prosity nickel plated metal belt coating NiOOH active material. Forming the positive plate by 40ton pressure. This plate is strong , corrosion resistance,low internal resistance and not easy off power.
Negative plate
High prosity nickel plated metal belt coated FE3O4 active material. Forming the positive plate by 40ton
pressure. This plate is strong ,corrosion resistance,low internal resistance and not easy off power.
pressure. This plate is strong ,corrosion resistance,low internal resistance and not easy off power.
Battery Container
Flame retardant and high strength ABS or PP material container. Sintered plates with good strength and shock resistant vibration. It is easy to watch the level of electrolyte.
Electrolyte
Alkaline KOH or LiOH mixed electrolyte. It is suitable
for high or low temperature.
Alkaline KOH or LiOH mixed electrolyte. It is suitable
for high or low temperature.
Terminal
The terminal is made of metal material. There is
electroplated corrosion resistant nickel coating
on surface. The structure is external screw thread.
Nut is six angle flat type. This kind of structure lower
the Ohmic resistance, and make the battery suitable
for different current discharging..
The terminal is made of metal material. There is
electroplated corrosion resistant nickel coating
on surface. The structure is external screw thread.
Nut is six angle flat type. This kind of structure lower
the Ohmic resistance, and make the battery suitable
for different current discharging..
TN1200Ah 1.2v 395*185*560
TN1300Ah
TN1400Ah
TN1500Ah
TN1600Ah
TN1700Ah
TN1800Ah Pls contact WhatsAPP :+86 13949621530
Why Choose Nickel Iron Battery ?
Charge/discharge efficiency: 80% Max. discharge current to 3CA.
Strong resistance to overcharge/overdischarge
Constant voltage charging or constant current charging.Not damage the batteery if full discharge.
Good flame retardancy
It adopts flame retardant engineering material and has high reliability.
Large range of working temperature
It is ok to discharge by constant current in -18° to +50°.
High safety performance
Wih the design of two safety valve , the container explosion won’t accur. At the same time, the water can be added at any time to
prolong the service life of the battery, and the service life is the longest.
Long service life
The plate is box type so that nickel plated steel belt coated with active material inside. The active
material does not fall off and no corrosion, therefore, the actual service life is more than 30 years in floatcharging usage.
Strong structure
The container is made of PP or ABS material .
Low rate of self discharge
The teminal of batteries are are using nickel plated metal parts, and the connection between batteries are using nickel plated
bridge plates. So the internal resistance is small.
