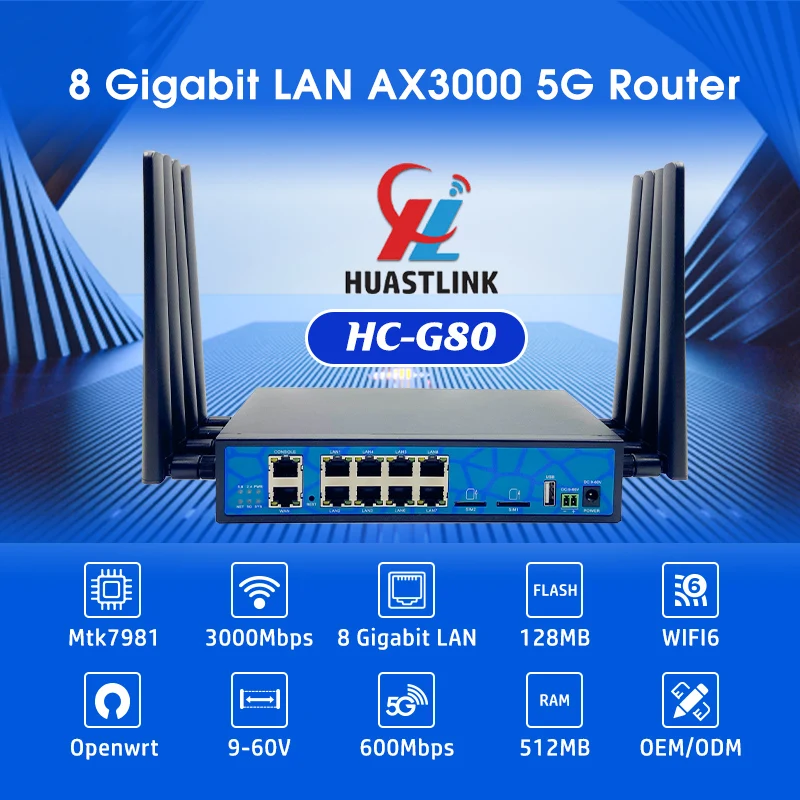

Mediatek MT7981 8 Gigabit LAN Ports AX3000 Wifi6 Dual Band 5G Router Preload Openwrt Support Openvpn Wireguard IMEI Change
- Category: >>>
- Supplier: Shenzhen Huachuangyilian Electronics Co. Ltd.
Share on (1601082137266):
Product Overview
Description
Strong Industrial 3g/4g/5g Routers Gigabit Dual Band AX3000 Wifi6 Wlan Global Cdma 5G Sim Card Router
Product Parameter Datasheet
Chipset | MTK7981 Dual Core ARM chipset, main frequency up to 1.2GHz |
Flash/RAM | 128MB/512MB |

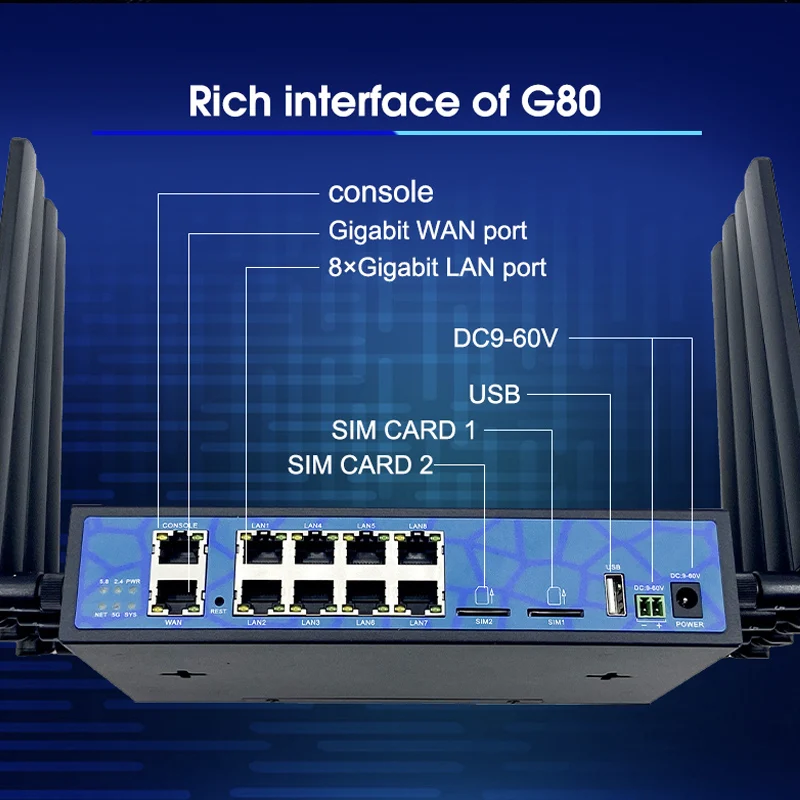

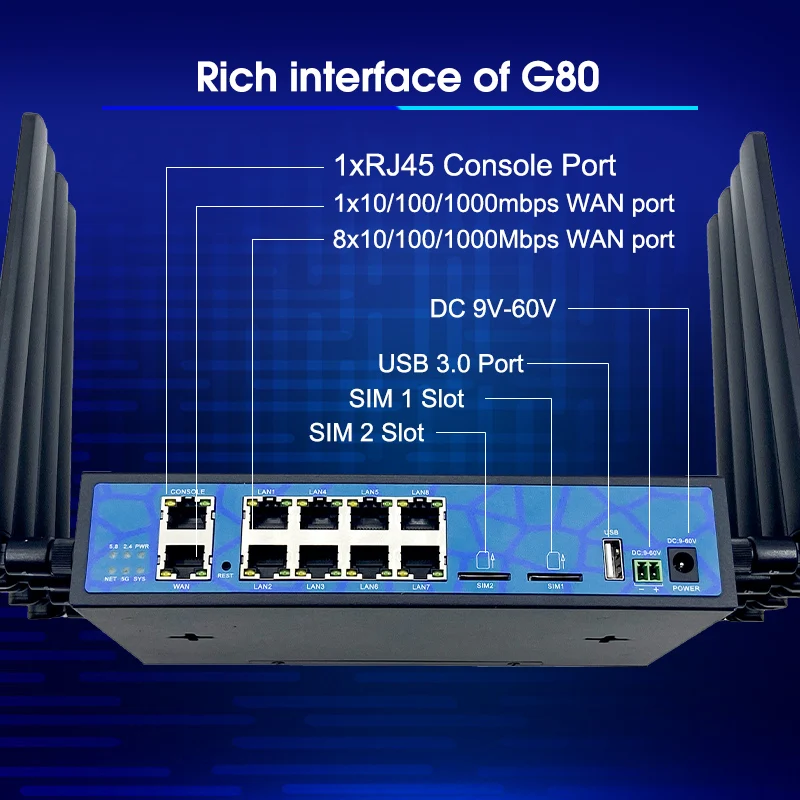

Interface | 1*10/100/1000Mbps RJ45 WAN port 1*RJ45 Consol port 8*10/100/1000Mbps RJ45 LAN ports 1*USB 3.0 port 1*SIM Card slot 1*DC Power port 1*2pins Terminal Power port |
Button | 1*Reset button |
5G/4G Interface | 1 Mini PCIE slot/1 M.2 slot |
Wifi Frequency | 2.4GHz, 5.8GHz, Dual Band Wifi6 3000Mbps |
System | openWRT |
The HC-G80 router is based on a new ARM-architecture embedded platform that meets the growing demands of mobile devices. NSA/SA dual-mode compatibility for all network types worldwide means you can enjoy ultra-high speed broadband.
Embedded OpenWrt system supports secondary development and customization of various functions.
2+8-port Gigabit 5G router brings a new way to make your project easy to access more devices, save switch investment and unknown space more reasonable.
With built-in 802.11ax (Wi-Fi 6) technology, a single 5G WiFi6 router provides greater wireless coverage and bandwidth. At the same time, the 5G WiFi6 router also brings higher security and better network performance.
Product Feature:
* Using MT7981B solution, ARM Cortex-A53 dual-core CPU, main frequency up to 1.3GHZ;
* Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps;
* High-speed 512MB RAM, with 128MB SPI NAND Flash;
* 1WAN+8LAN 1000M adaptive network port, support automatic flip (Auto MDI/MDIX), 1 console port
* 1 USB 3.0 port
* 1 2pin Terminal port, 1 DC power port, support 9V-60V power
* Support "one-key flashing mode", long press the reset button to enter the rescue flashing mode;
* Built-in M.2/Mini-PCIE standard interfaces (choose one of the two), which can be used to connect to 5G/4G mobile communication modules
* External 1 standard SIM card interface

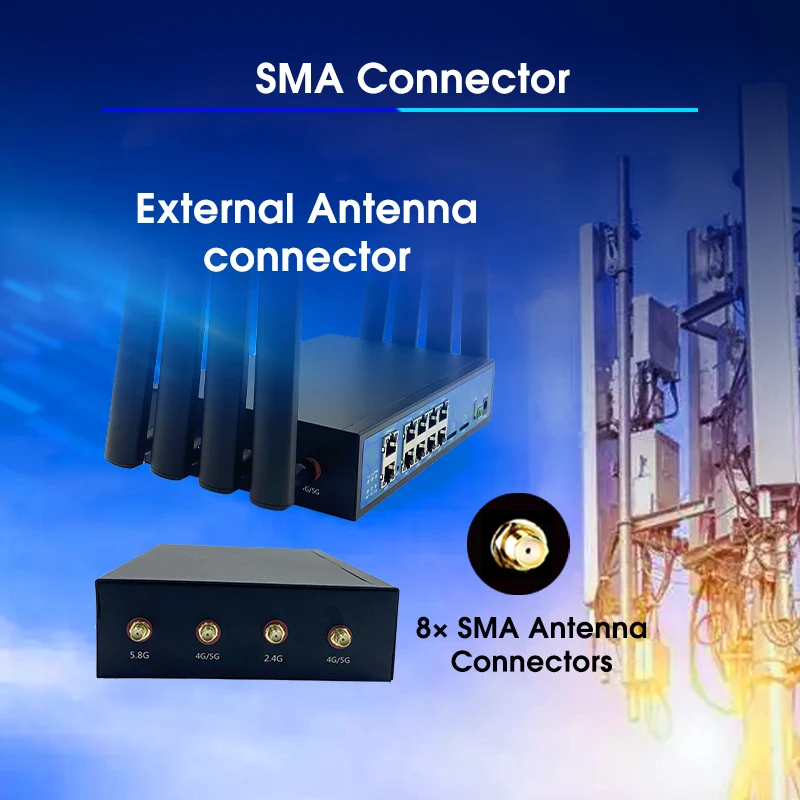

* External high-gain WIFI antenna, 360-degree wireless signal without dead angle
* PreloadopenWRT system, support flash customer’s firmware
* Adopt independent WIFI6 chip, MT7976CN, the speed is up to 3000Mbps;
* High-speed 512MB RAM, with 128MB SPI NAND Flash;
* 1WAN+8LAN 1000M adaptive network port, support automatic flip (Auto MDI/MDIX), 1 console port
* 1 USB 3.0 port
* 1 2pin Terminal port, 1 DC power port, support 9V-60V power
* Support "one-key flashing mode", long press the reset button to enter the rescue flashing mode;
* Built-in M.2/Mini-PCIE standard interfaces (choose one of the two), which can be used to connect to 5G/4G mobile communication modules
* External 1 standard SIM card interface
* External high-gain WIFI antenna, 360-degree wireless signal without dead angle
* PreloadopenWRT system, support flash customer’s firmware
* HC-G80 has two versions: 4G version and 5G version for customer's choice
Details Images
For Current default firmware is for 1 sim card slot version！2 sim card slots need customer build firmware to operate！Please note this！

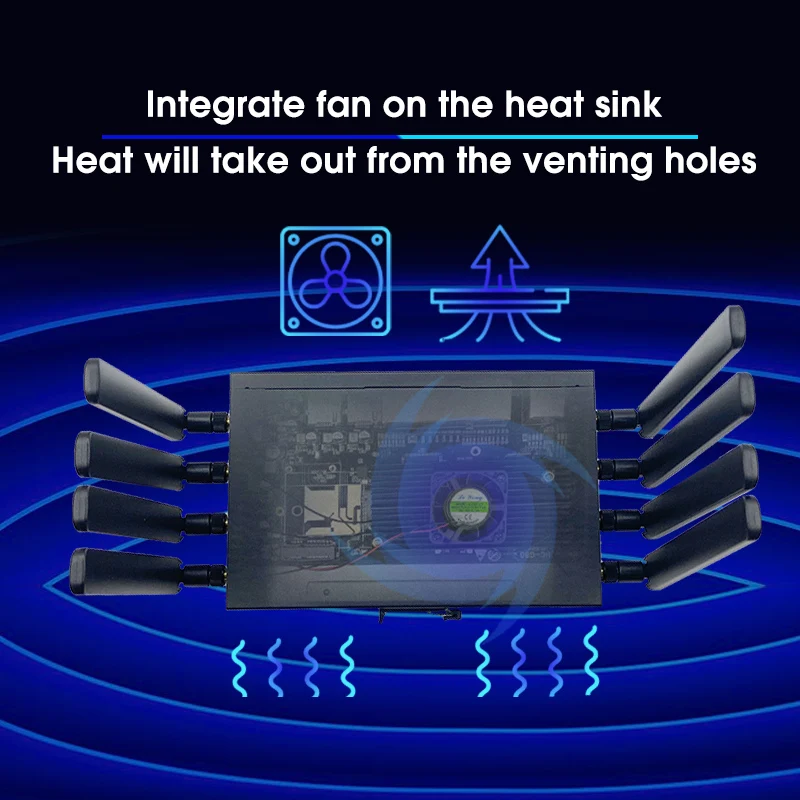

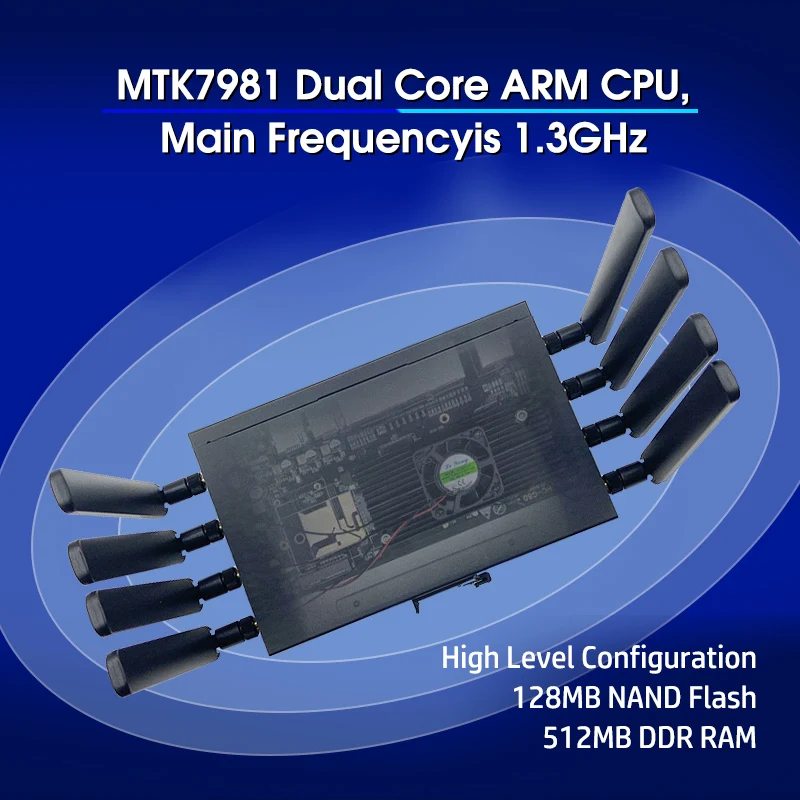

Integrated Fan on the Heatsink to make the device get better cooling effect
Default Antennas are removable paddle antennas, if you prefer other version antennas, please contact us!

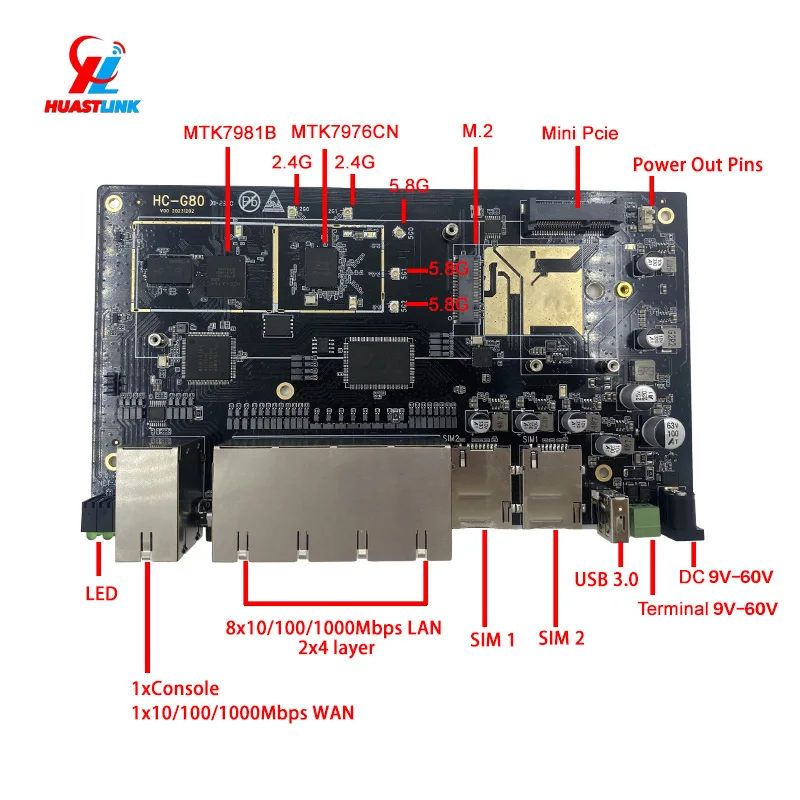

HC-G80 Motherboard Details, default firmware is for SIM1 working, if you need SIM2 working, need to build your own firmware image.

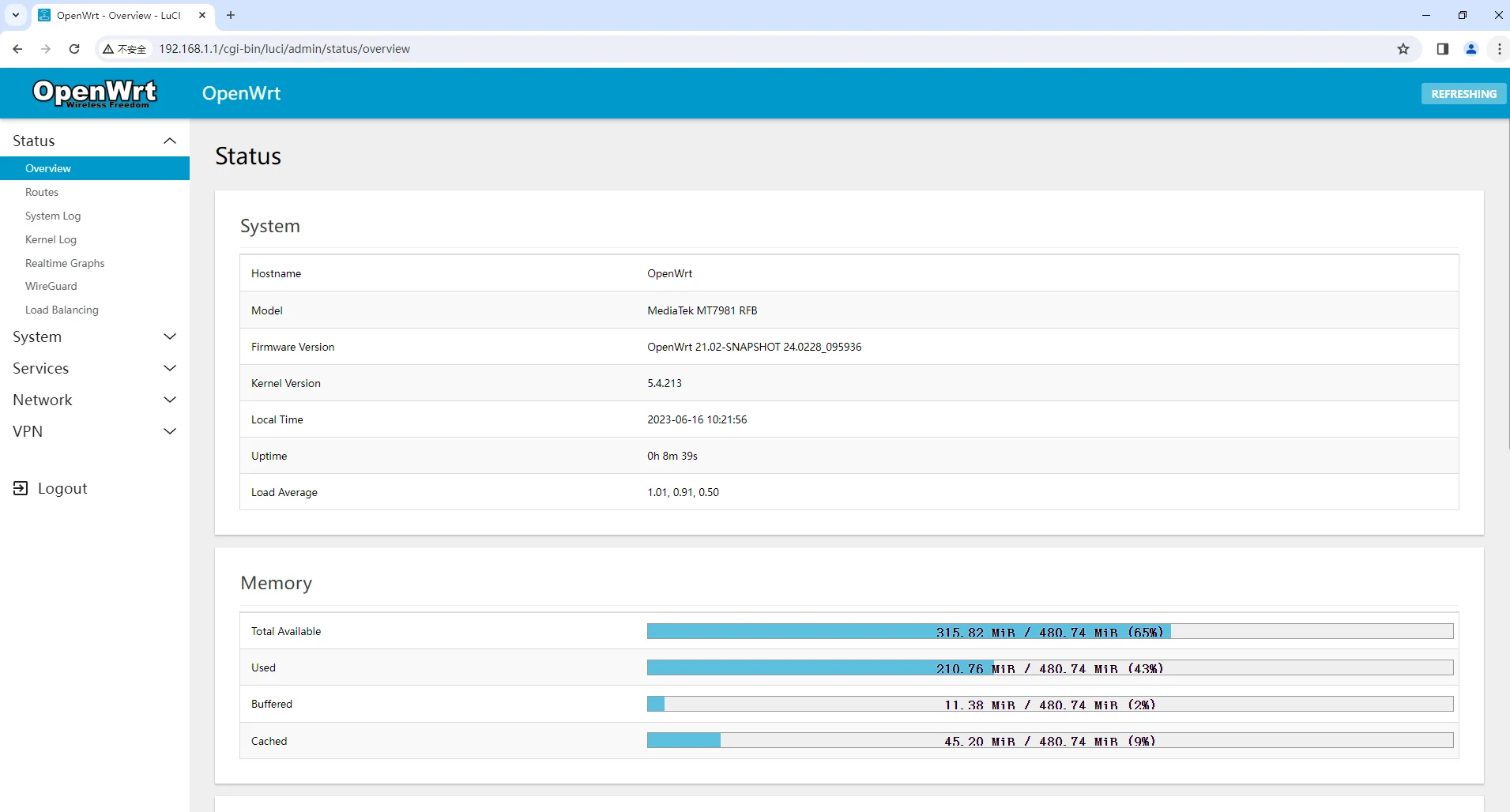

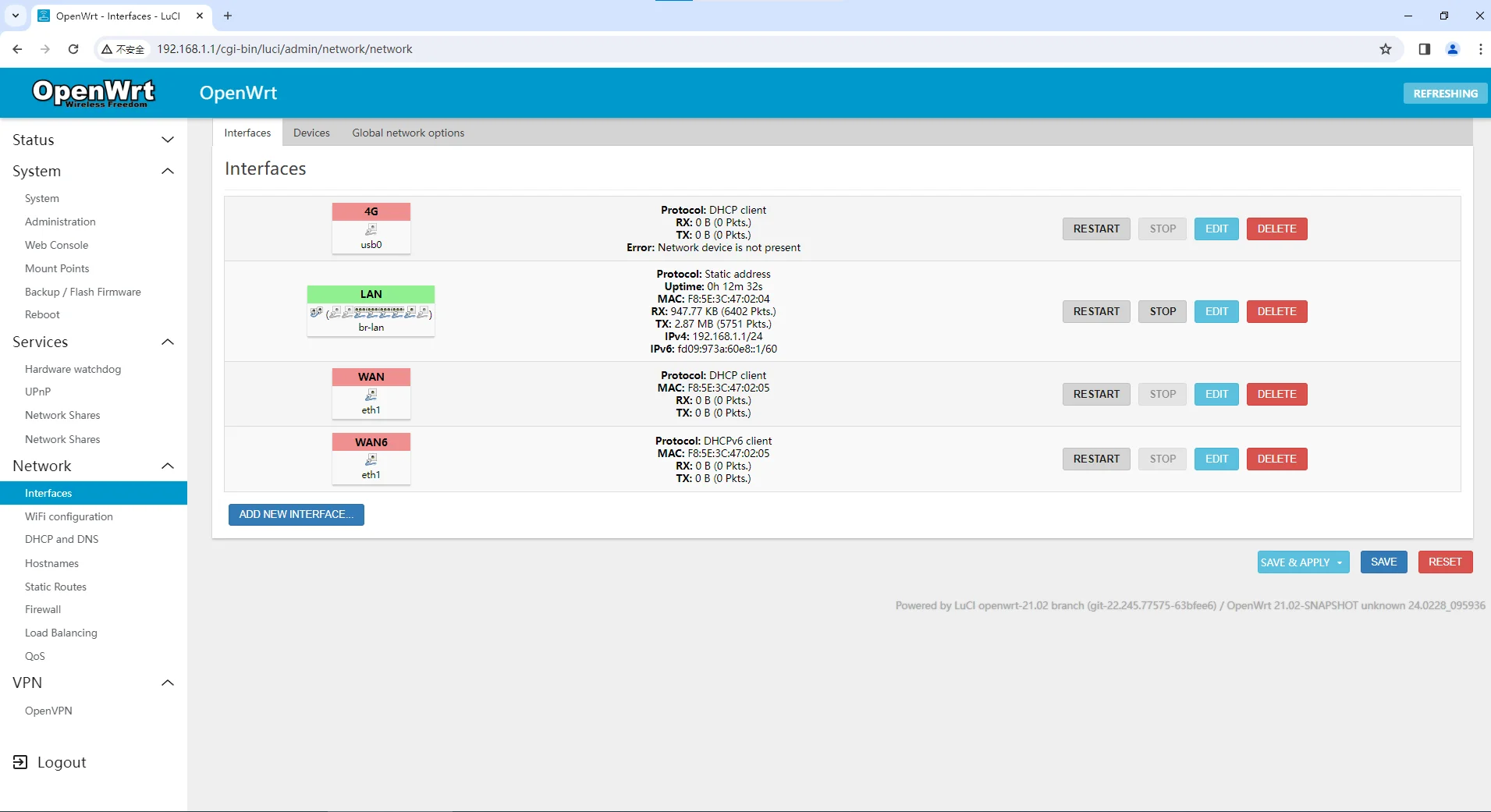

Preload OpenWRT image, support APN setting, wireguard, openvpn, ttl setting, IMEI change, etc.
