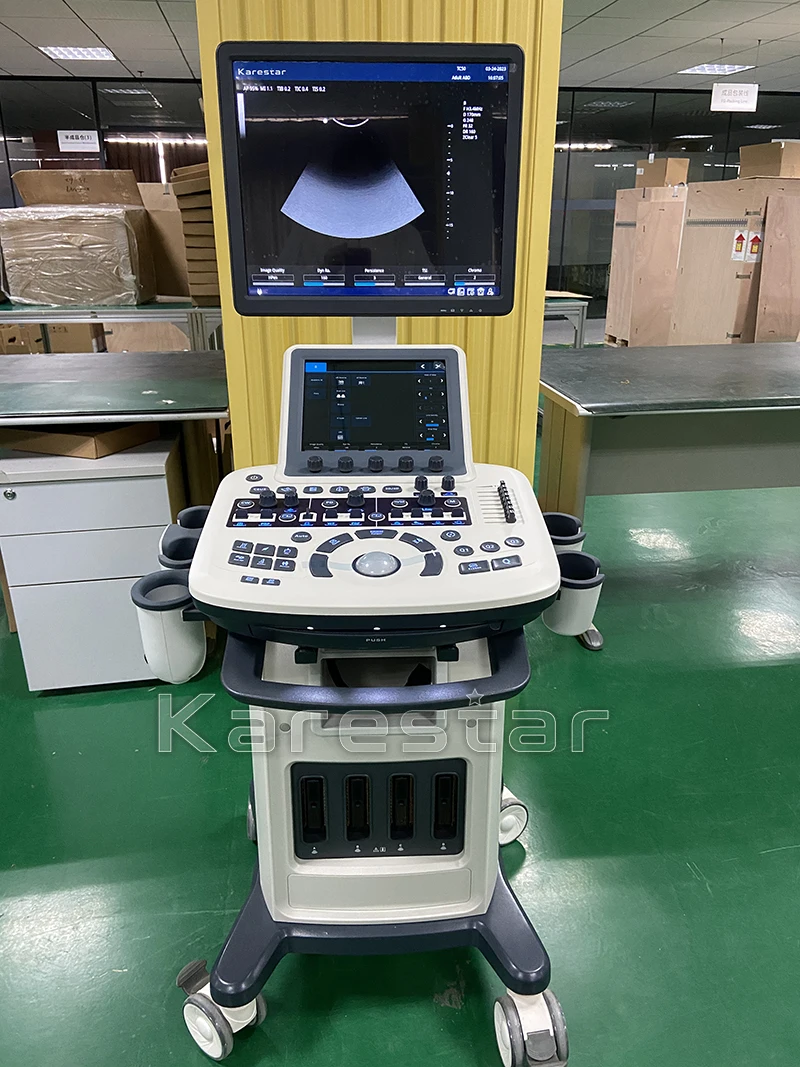

K AU6 VET trolley ultrasound machine 3D 4D color Doppler ultrasound manufacturing
- Category: >>>
- Supplier: Karestar Technology (xuzhou) Co. Ltd.Karestar Ltd.
Share on (1601082171040):
Product Overview
Description
Product Description

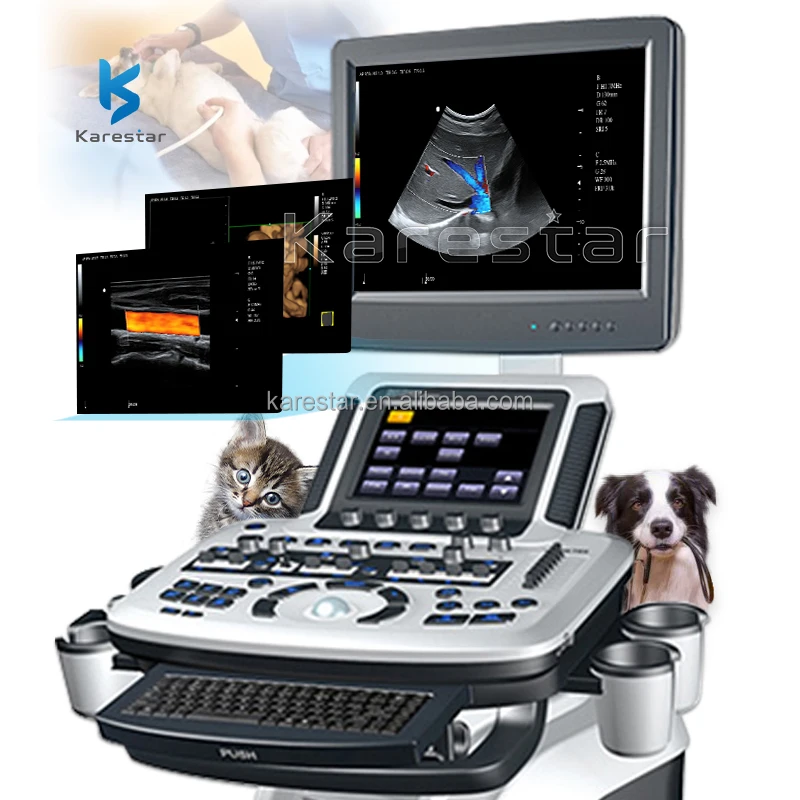

Medical K-AU6 animal veterinary instrument ecography price veterinary ultrasound machine diagnosis

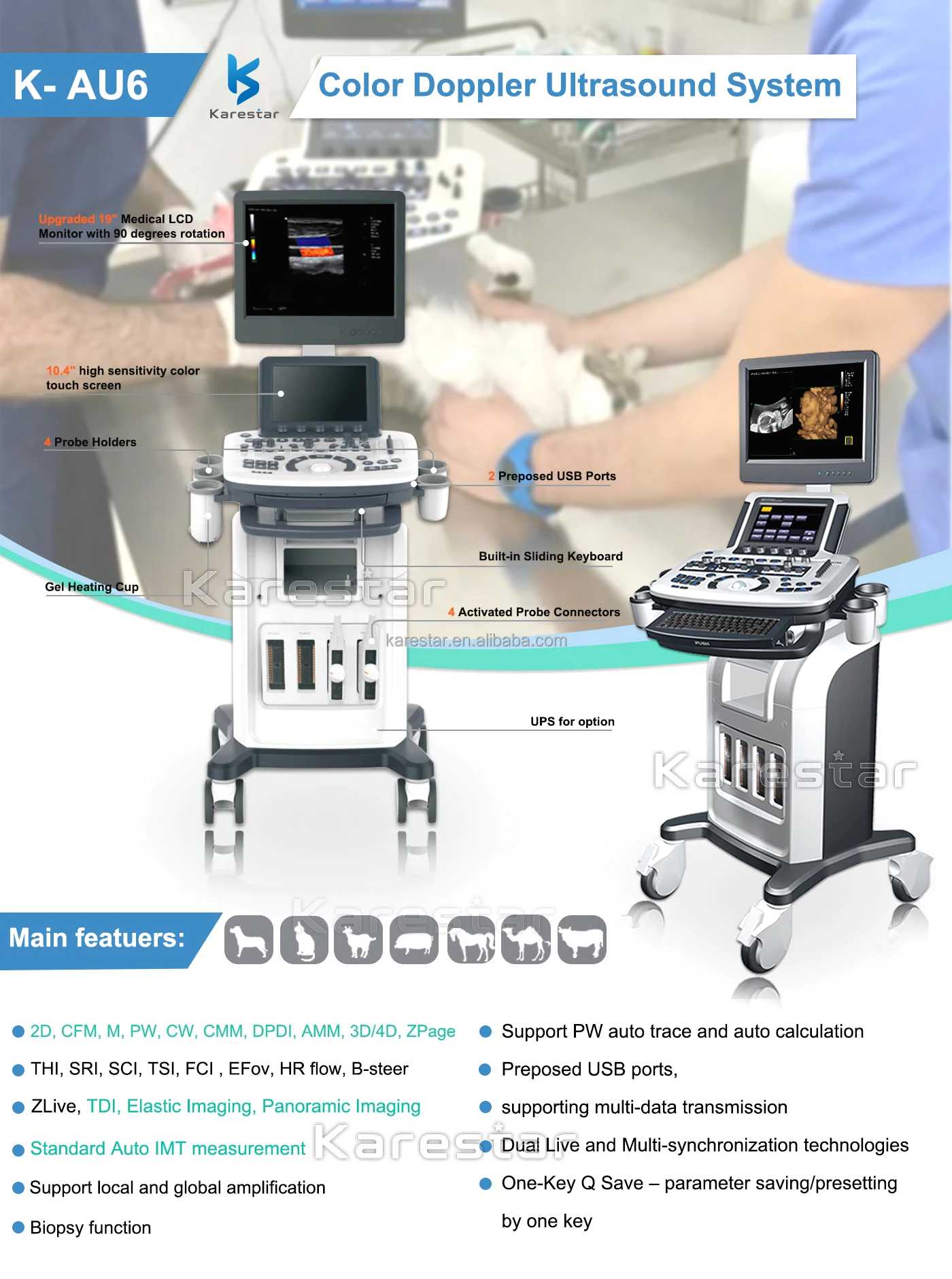

Quick Details:
1.19 inch high resolution LED monitor+10.4 inch touch screen
2. 4 activated transducer connectors
3. Raw data storage, complete offline analysis facility
4. 2D, M, PW, CW, TDI, Elastic, AMM, CMM, 3D/4D
2. 4 activated transducer connectors
3. Raw data storage, complete offline analysis facility
4. 2D, M, PW, CW, TDI, Elastic, AMM, CMM, 3D/4D
5.Applications: Abdomen/OB/GYN/Abdomen/Urology/Small Parts/Cardiology/Vascular/Nerve blocks/MSK/Emergency/MSK/Orthopedics/Paediatrics
6. THI, SRI, SCI, TSI, FCI , EFov, HR flow, B-steer
7.Support local and global amplification
8.Support PW auto trace and auto calculation
9.Preposed USB ports, supporting multi-data transmission
10.Multiple pregnancies measurement, Fetal growth curve, OB table are standard configured
11.Color focus automatic tracking, Dual Live and Multi-synchronization technologies
12.Optional Lithium battery package, duration more than 2h
Specification
Application
Abdomen / Cardiac / Obstetrics / Gynecology / Urology / Andrology / Small Parts / Vascular / Pediatrics / Musculoskeletal/Orthopedic/MSK/Custom/Nerve/3D/4D option

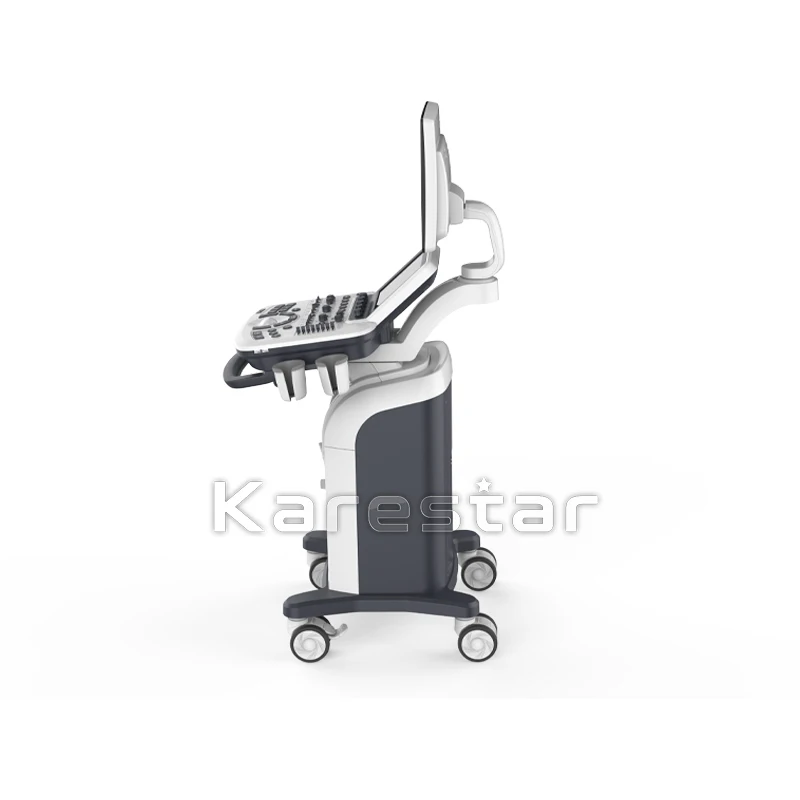

Dimension and weight:
1.Width: approx. 565mm
1.Width: approx. 565mm
2.Height: approx. 1455mm
3.Thickness: approx.845mm
4.Weight: approx. 70kg
3.Thickness: approx.845mm
4.Weight: approx. 70kg

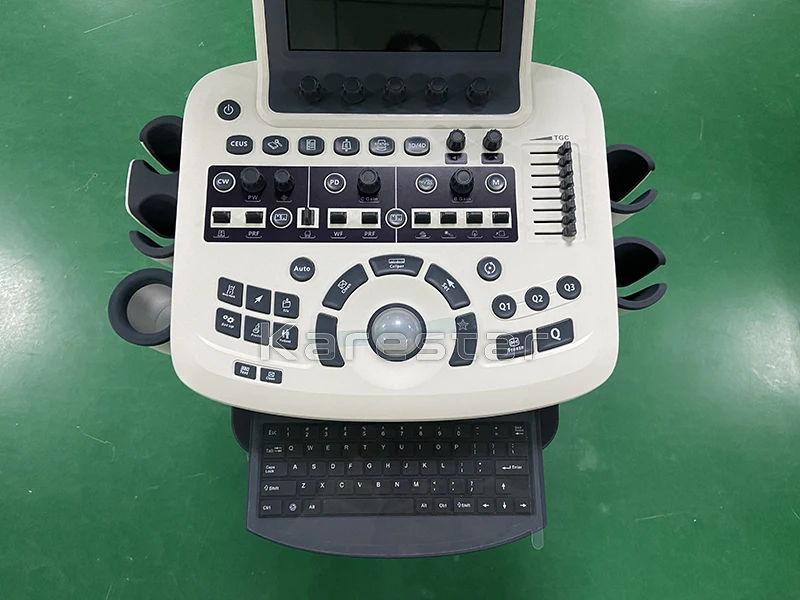

Probe ports | 4 activated Probe ports+4 removable Probe holders+4 probe wire hook |
USB Ports | 2 |
Monitor | 15-inch high resolution color display screen + 10.4-inch touch screen |
Hard Disc | 500G HDD |

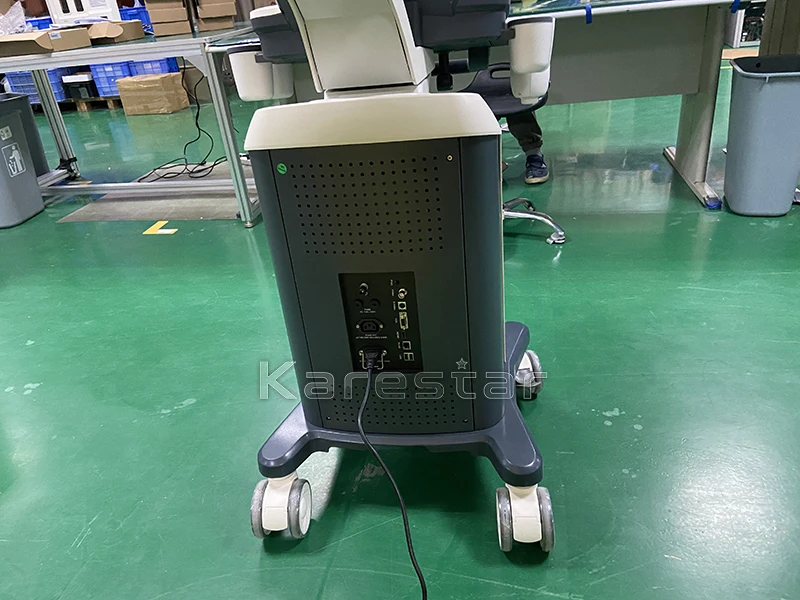

System Inputs & Outputs | HDMI: 1 VGA: 1 PRINT: 1 USB :4 S-Video: 1 Video: 1 Network port: 1 Power OUT: 1 Power IN: 1 |
Printer(Optional) | USB Printer, Digital Laser Printer, Digital B/W Thermal Printer |
Printing Area | Image, report, Image+report |
DICOM Connectivity | DICOM3.0 Compliant |
Image Storage | Storage Format: JPG、BMP Video output：PAL、NTSC Export Image Format: PNG, JPEG, BMP, DICOM USB Flash Drive |
Pan/Zoom | Real-Time Image Zoom, Zoom Range: 100%~400%, Up/Down/Left/Right Inversion,Continuously, real-time dynamic PIP |
Grey Levels | 256 |
Body Marks | More than 200 body-marks Customizable Add Drag to change the position Association of other exam |
Technology
Panoramic Imaging Tech |
All-digital signal processing Tech |
Multi-beam formation Tech |
Speckle Reduction Tech |
Tissue Harmonic Imaging Tech |
Dynamic Tissue Optimization Tech |
Duplex & Triplex Synchronous Display |
Power Doppler (PDI)+Directional Power Doppler (DPDI) |
Imaging Parameters Preset |
PW, CW function |
Tissue Special Image |
PW Auto Trace |
Update in line |
CF+B mode in one screen |
Complex Model Imaging |
IMT auto measurements |
Virtual convex array |
Trapezoidal imaging |
Anatomic M mode Panoramic Color panoramic Trapezoidal (Linear probe) Extended imaging(Efov) Tissue Specific Imaging (TSI) Tissue Harmonic Imaging (THI) Speckle Reduction Imaging (SRI) Spatial Composite Imaging(SCI) Frequency Composite Imaging(FCI) B/D Chromatic imaging Pan Zoom Local Zoom Auto Optimization Image Rotation Auto Calculate Auto IMT Archive management Raw data Multiple pregnancies HR Flow |
Biopsy function Velocity tag LGC HPRF Imaging postprocessing Imaging preprocessing 19 inch monitor 10.4 inch touch screen Hidden draw-out keyboard Gel heating cup |
Probe | Convex Array Probe | Linear Array Probe | Trans-Vaginal Probe | Micro-convex probe |
Basic frequency | 2.5, 3.5, 6.0MHz | 5.0, 7.5,12.0MHz | 5.0, 6.5, 10.0MHz | 5.0, 6.5, 8.0MHz |
Harmonics frequency | 1.7, 2.0, 2.5, 3.2MHz | 4.0, 4.7, 5.3, 6.1MHz | 3.2, 3.6, 4.0, 5.0MHz | 3.6, 4.0, 5.0MHz |
Depth range | 40~420mm | 20~280mm | 20~280mm | 20~280mm |
Elements | 128 | 128 | 128 | 128 |
Probe | Phased array probe | 4D volume probe | ||
Basic frequency | 2.0, 3.0, 5.0MHz | 2.5,4.0,6.0MHz | ||
Harmonics frequency | 1.5, 2.0, 2.5, 3.0MHz | 2.5,3.2,3.6, 4.0MHz | ||
Depth range | 30~320mm | 40~420mm | ||
Elements | 64 | 128 |

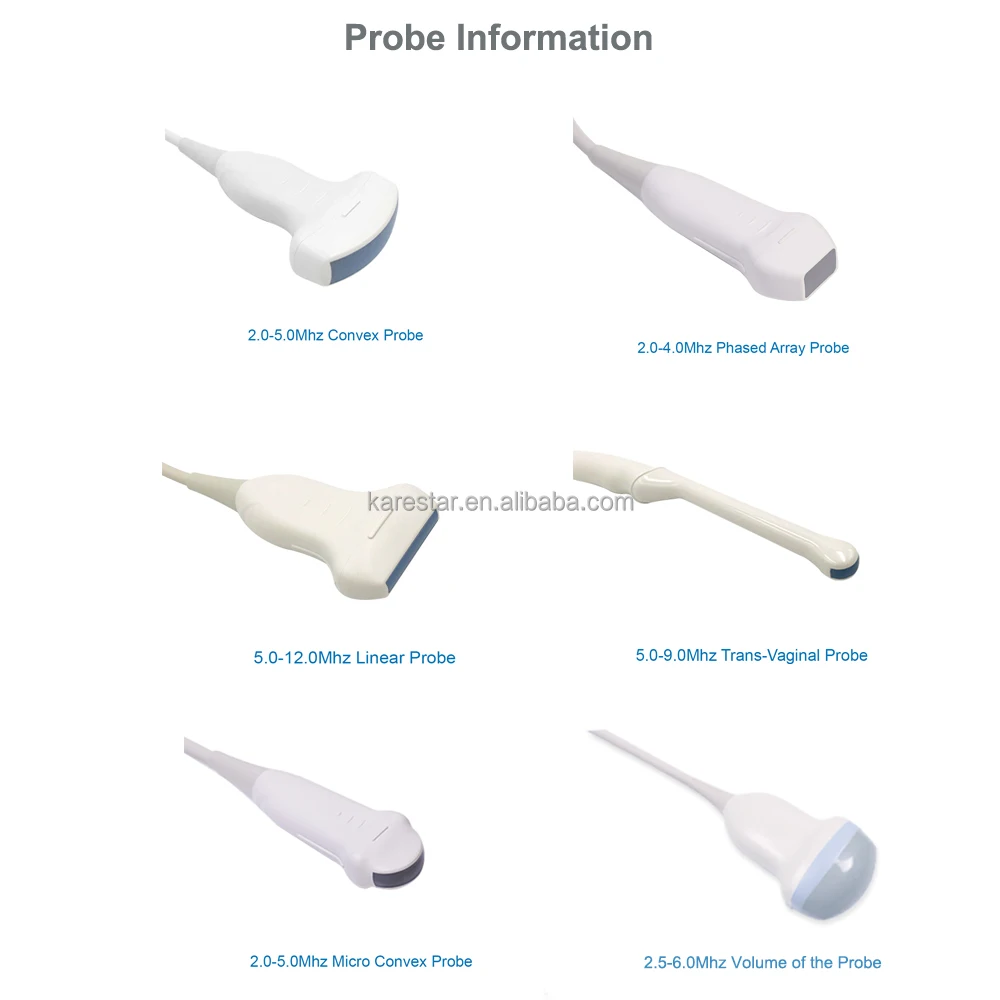

Probes
Pedal SwitchThermal Printer
Laser Printer
DVD Recorder
Biopsy

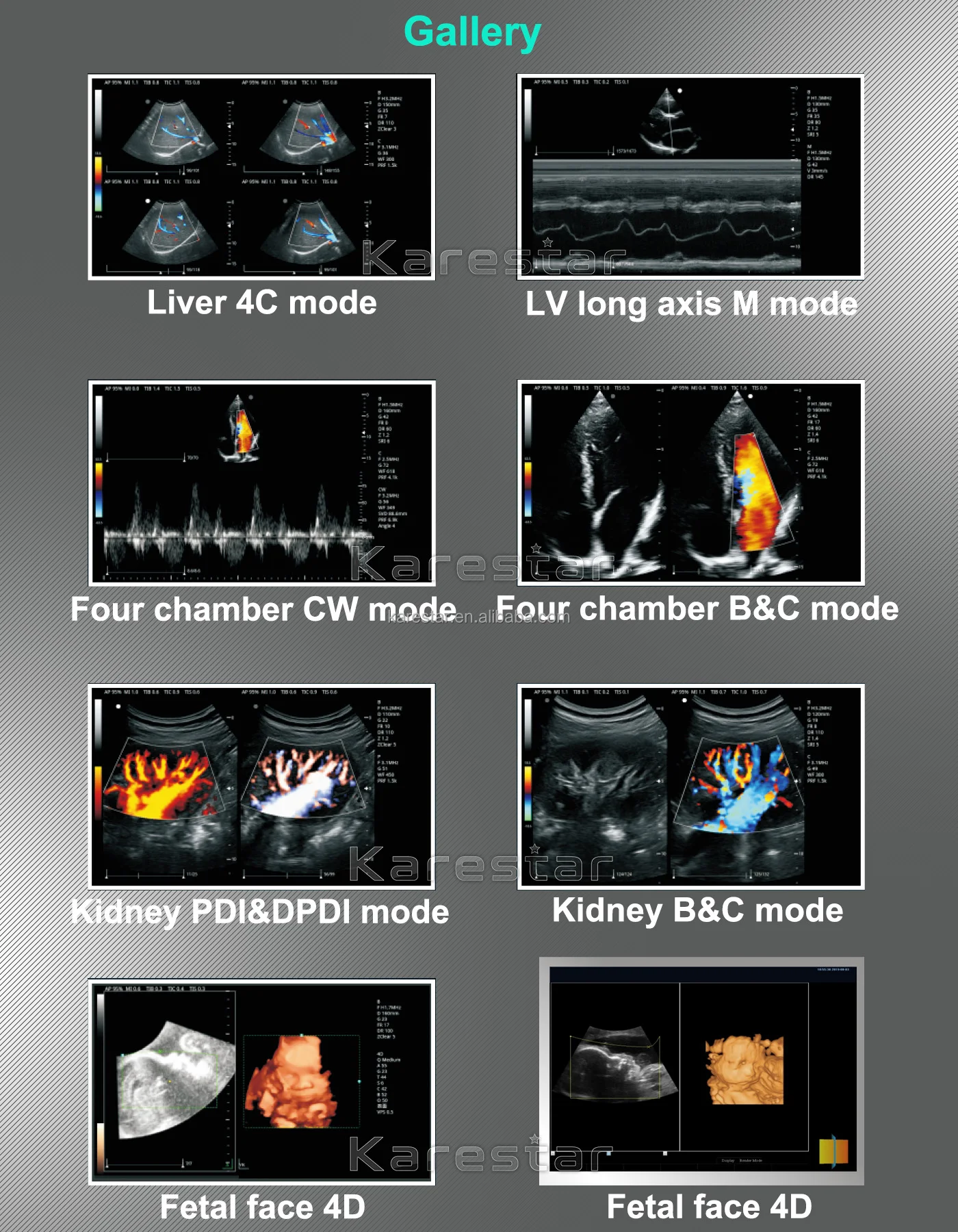

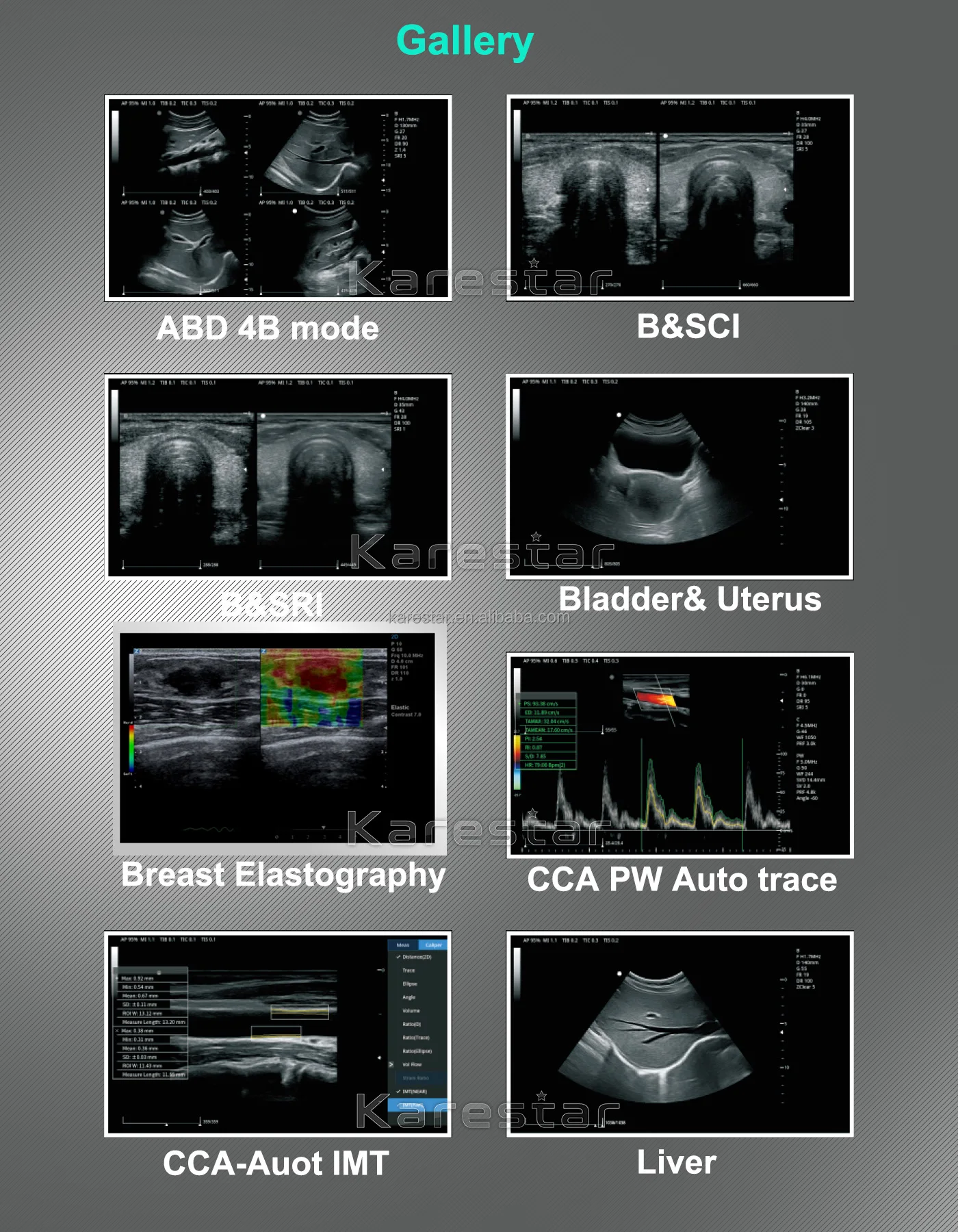

Scanning Image Quality
Scanning Video
Recommend Products
Other Information
FAQ
Q1: Are you trading company or manufacturer?

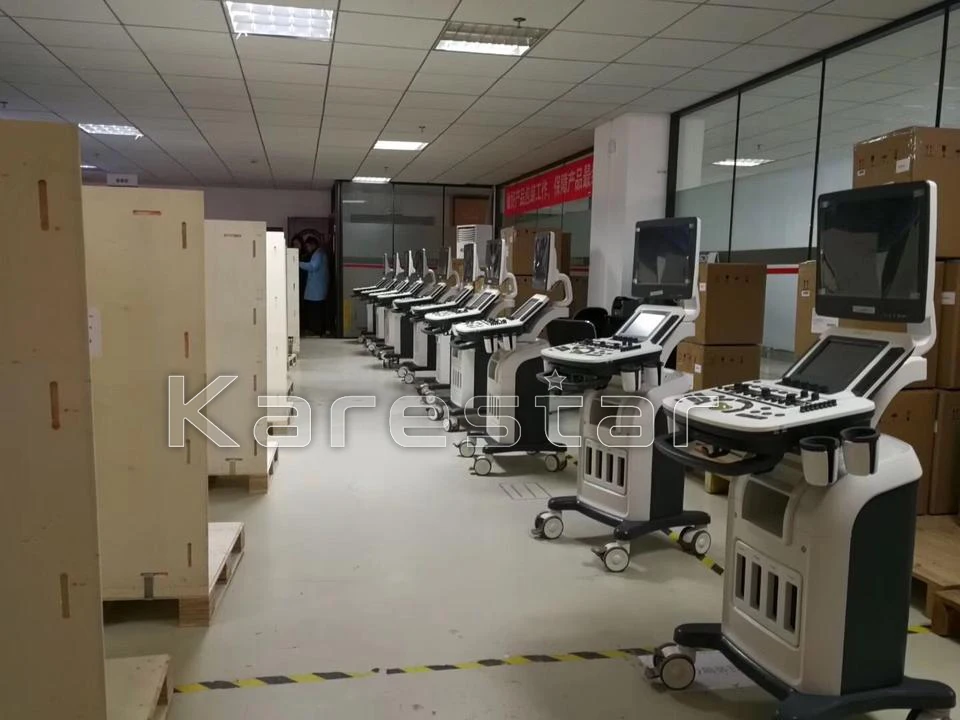

A: We are factory which has over 7 years' manufacturing experience.
Q2: Why we find some prices are very high compared with some other suppliers, and from the picture or it's model number, all looks the same?
A: As China is still a developing country, there are only a few products with patent rights, but the copy products spread very fast on the market. Of course, the prices of those copy products is cheaper due to low material, craft and quality control. Anyway, price, quality and service is tightly related.
Q3: What's the MOQ?
A: The MOQ is 1 Set, and samples can be sent for your evaluation.
Q4: How can get the shipping cost?
Please tell us your destination or delivery address, we will check the best Sea Freight or Air Freight for you based on your requirements.
Q5: How long is your delivery time?
A: Usually 3-30 days after order confirmed. Based on the item and quantity.
Q6: Can you do OEM/Private logo/label?
A: Yes, we can do OEM/private logo/label for you. We also have complete facilities and R&D team ready for your service.
Q7: What is your terms of payment?
A: We accept T/T, Alibaba trade assurance order, L/C, Western union, Paypal and more. Please suggest your preferred payment method.
Q8: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q9: How to deal with the faulty?
A: First, our products are produced under in strict quality control system, but if any faulty, we will send new spare partrs for free within warranty year.
Secondly, our after-sales department will periodically follow up customers.
