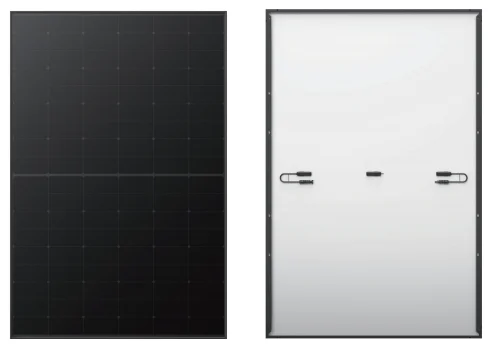

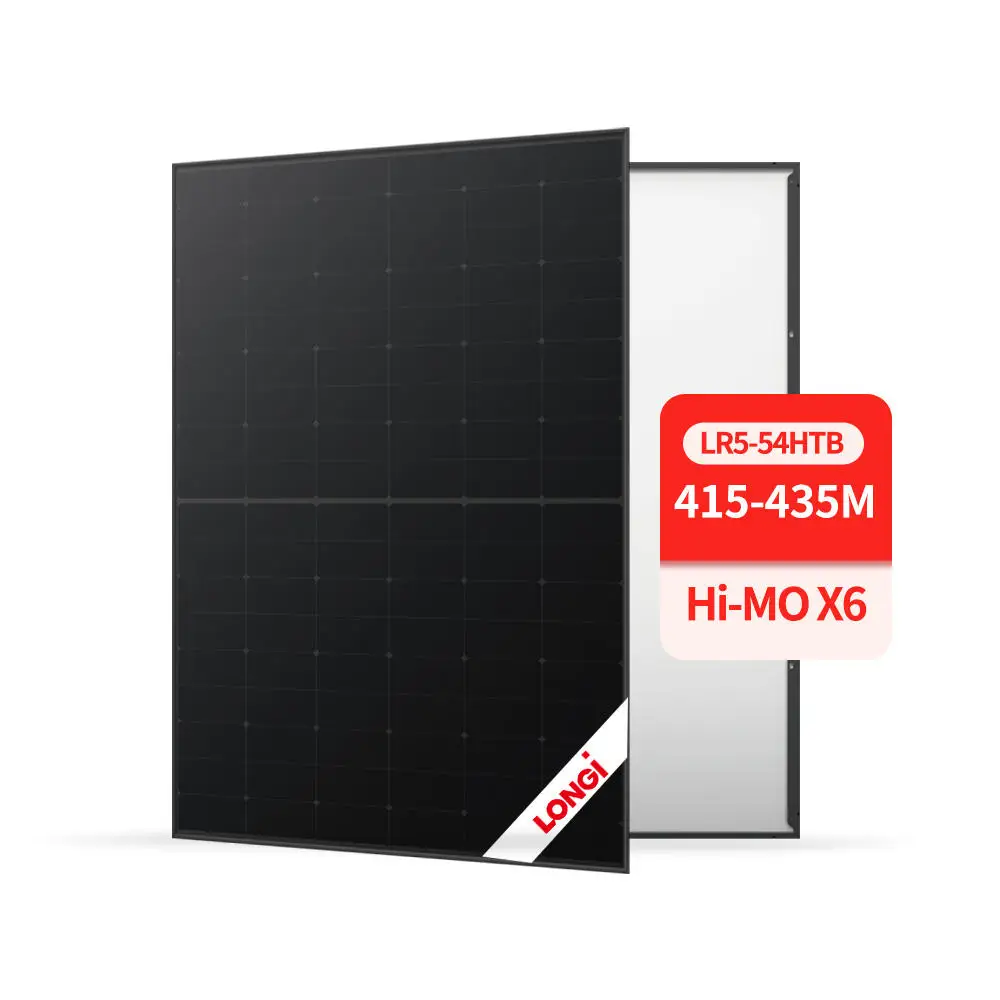

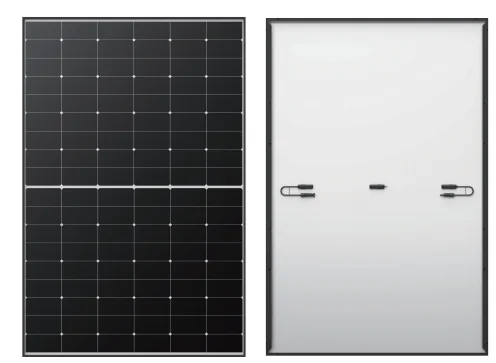

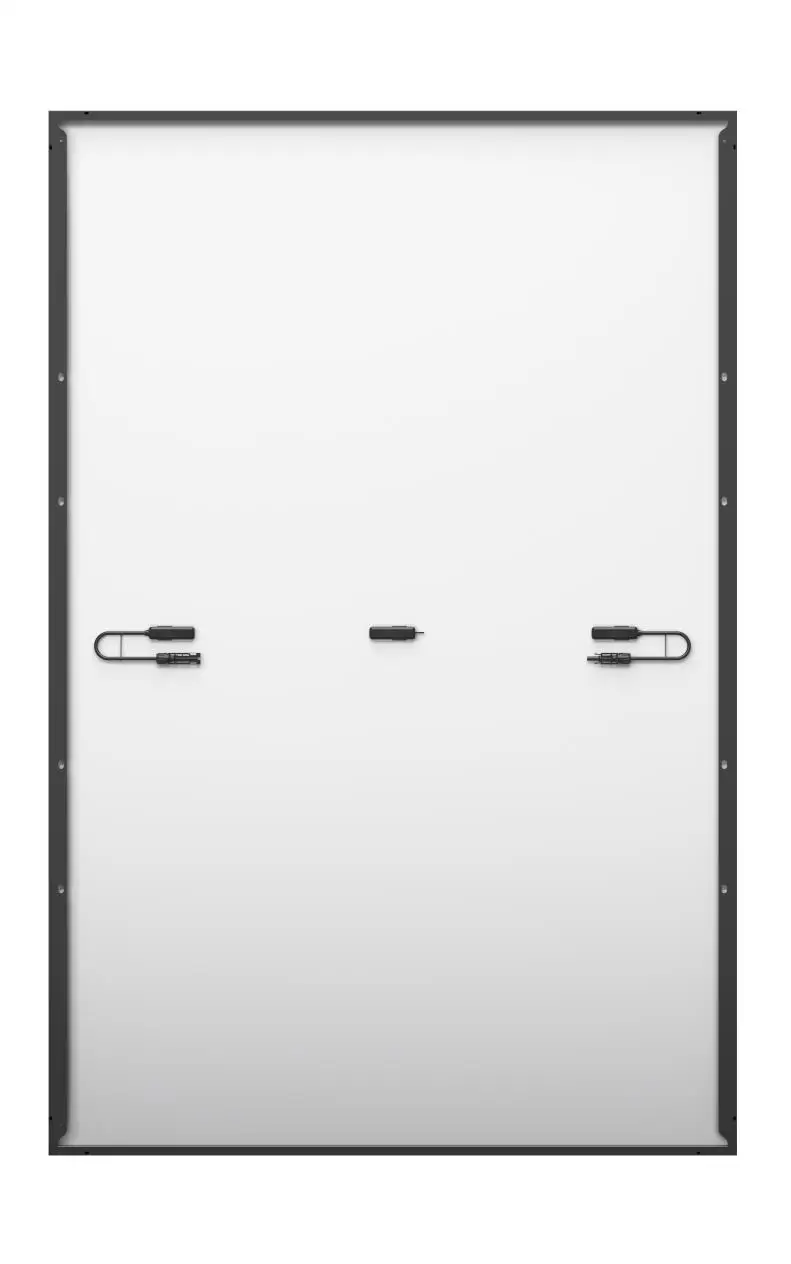

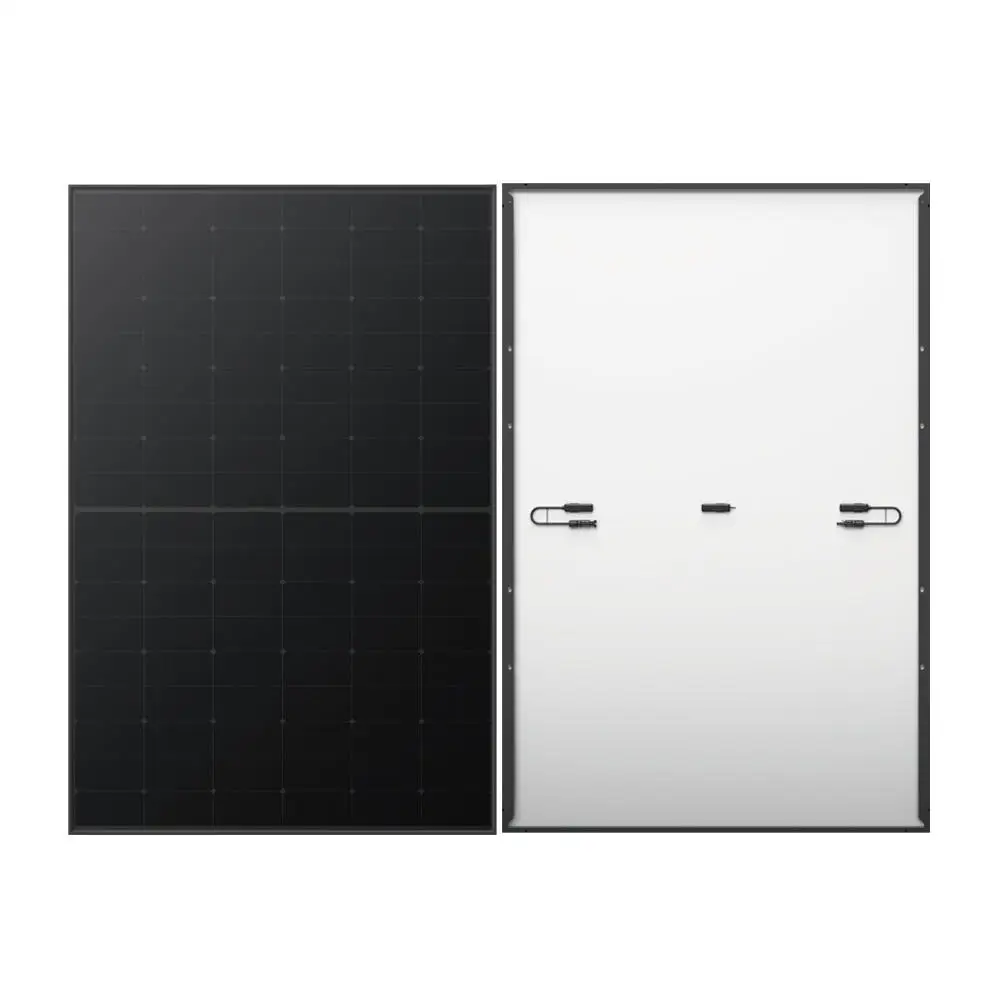

LONGi Solar Panels Hi Mo X6 Explorer Half Cell Technology LR5 54HTB 430M Full Black 420W 425W 430W 435W Solar Module

Share on (1601082239027):


Price:$49.00-60.00

Quantity:


Product Overview

Description







Products Description










Specification


Module model
LR5-54HTB-420M
LR5-54HTB-425M
LR5-54HTB-430M
LR5-54HTB-435M
Open Circuit Voltage (Voc/V)
39.03/36.65
39.23/36.83
39.43/37.02
39.63/37.21
Short Circuit Current (Isc/A)
13.85/11.19
13.93/11.25
14.00/11.31
14.08/11.37
Current at Maximum Power (Imp/A)
12.83/10.5
12.90/10.56
12.97/10.62
13.05/10.68
Voltage at Maximum Power (Vmp/V)
32.76/29.89
32.96/30.08
33.16/30.26
33.36/30.44
Module Efficiency(%)
21.5
21.8
22.0
22.3

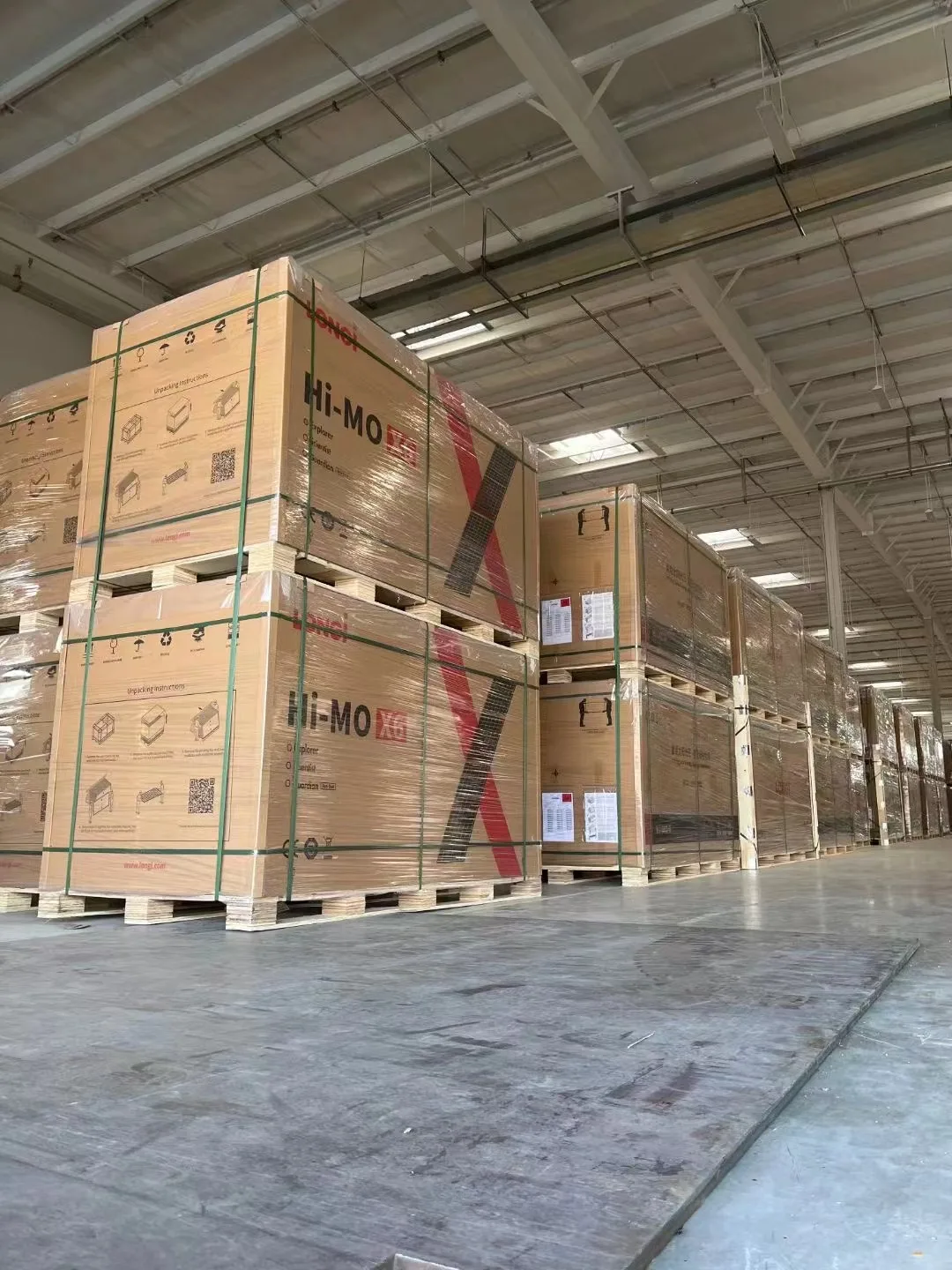

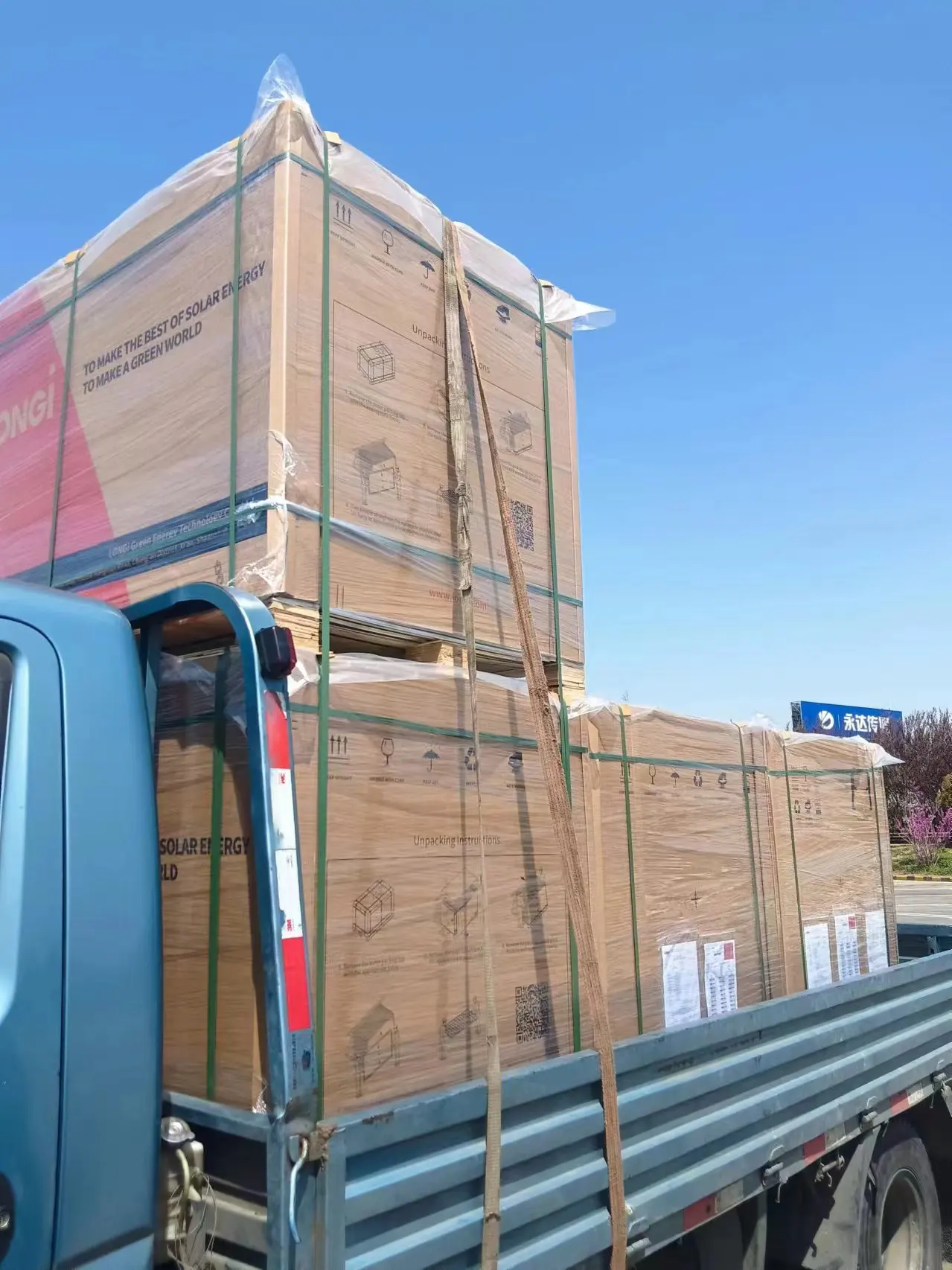

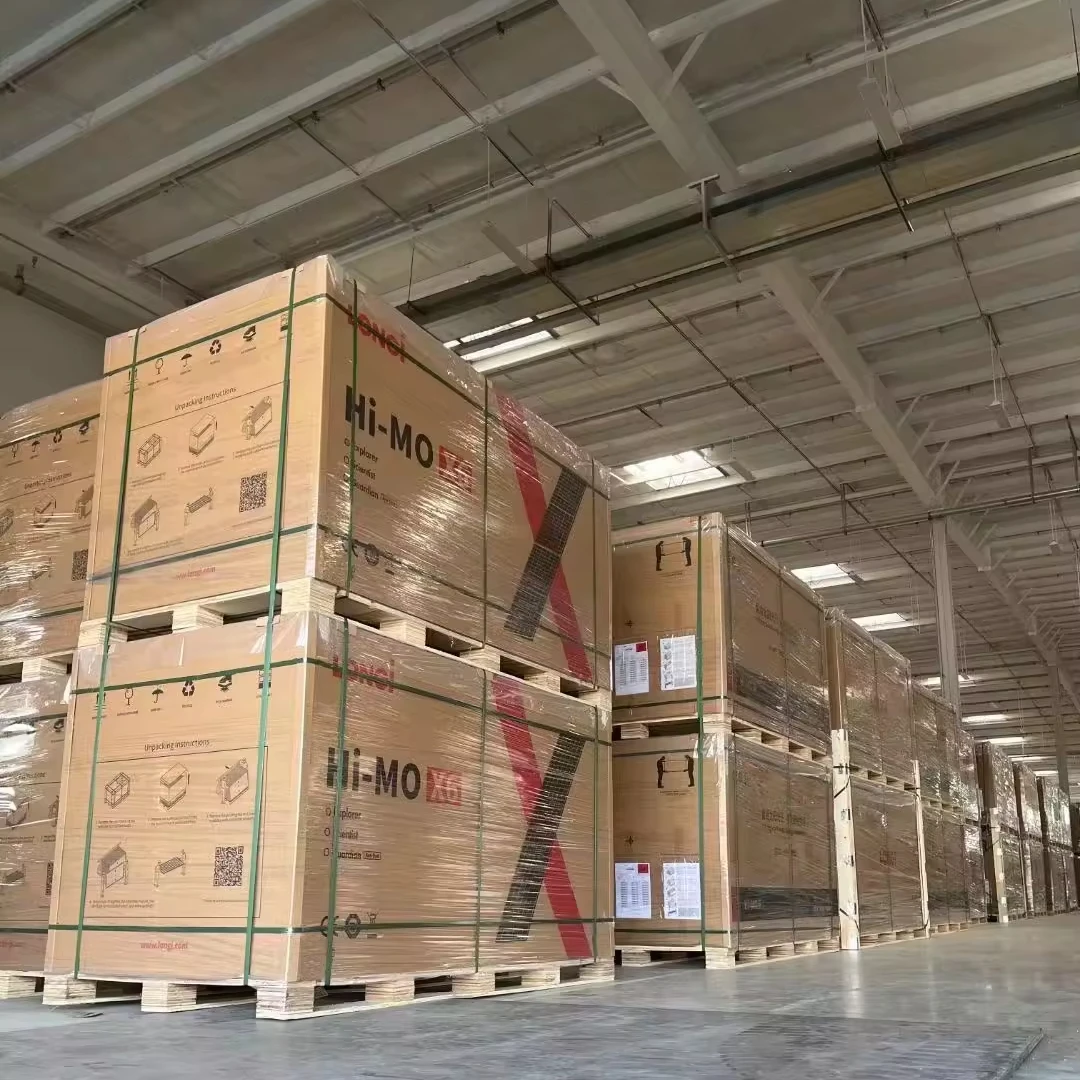

Packaging
36pcs per pallet / 216pcs per 20’GP / 936pcs per 40’HC


Hi-MO Series




Hi-MO X6 Scientist
LR5-54HTH445~455M

Power Range: 445-455W
No. of Cells: 108 cells
Dimension: 1722×1134×30mm
Weight: 20.8 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs




Hi-MO X6 Scientist
LR5-54HTB440~450M

Power Range: 440-450W
No. of Cells: 108 cells
Dimension: 1722×1134×30mm
Weight: 20.8 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

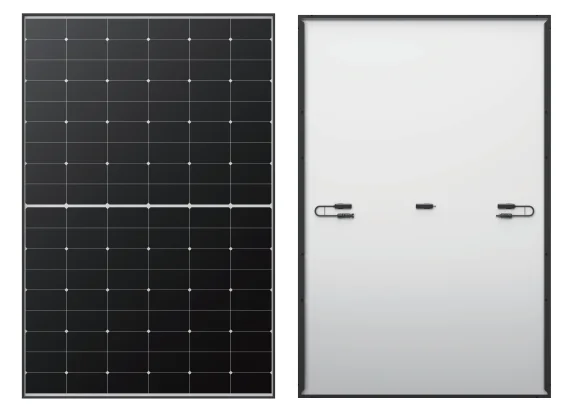

Hi-MO X6 Explorer
LR5-54HTH420~440M

Power Range: 420-440W
No. of Cells: 108 cells
Dimension: 1722×1134×30 mm
Weight: 20.8 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs

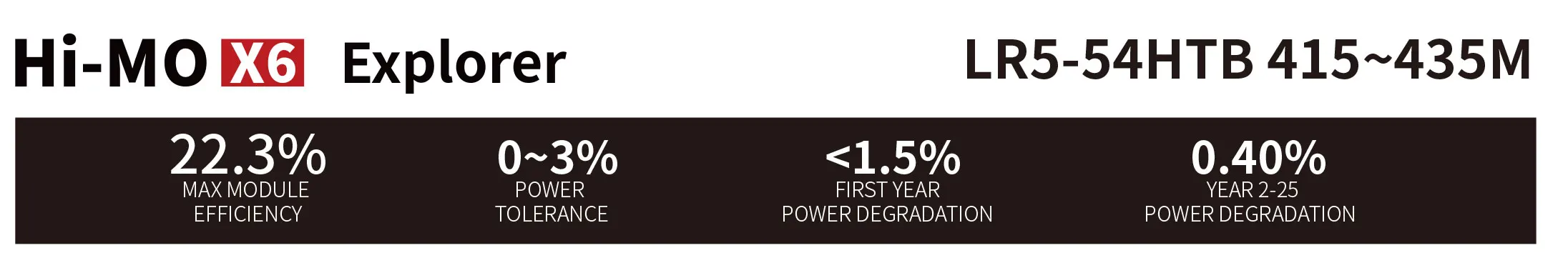

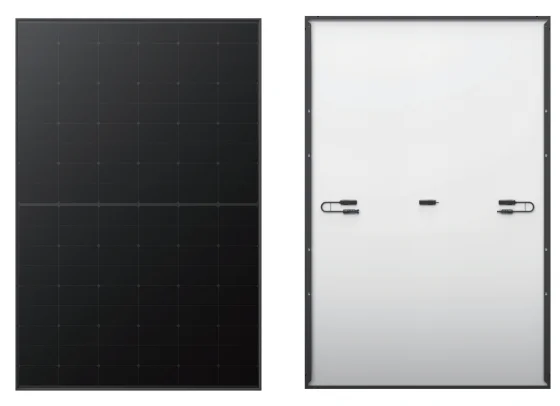

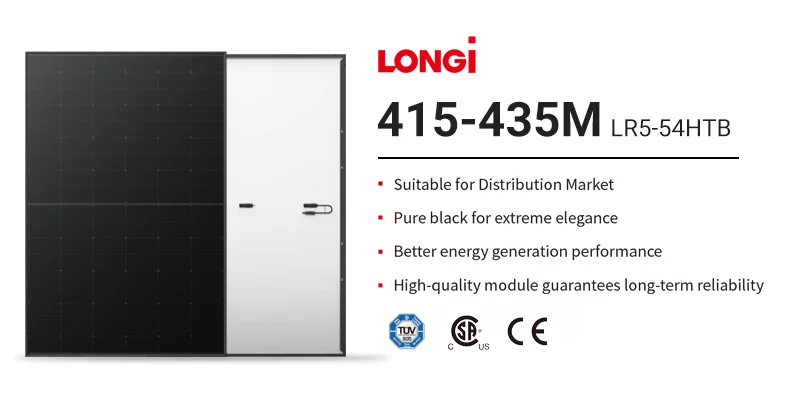

Hi-MO X6 Explorer
LR5-54HTB415~435M

Power Range: 415-435WNo. of Cells: 108 cells

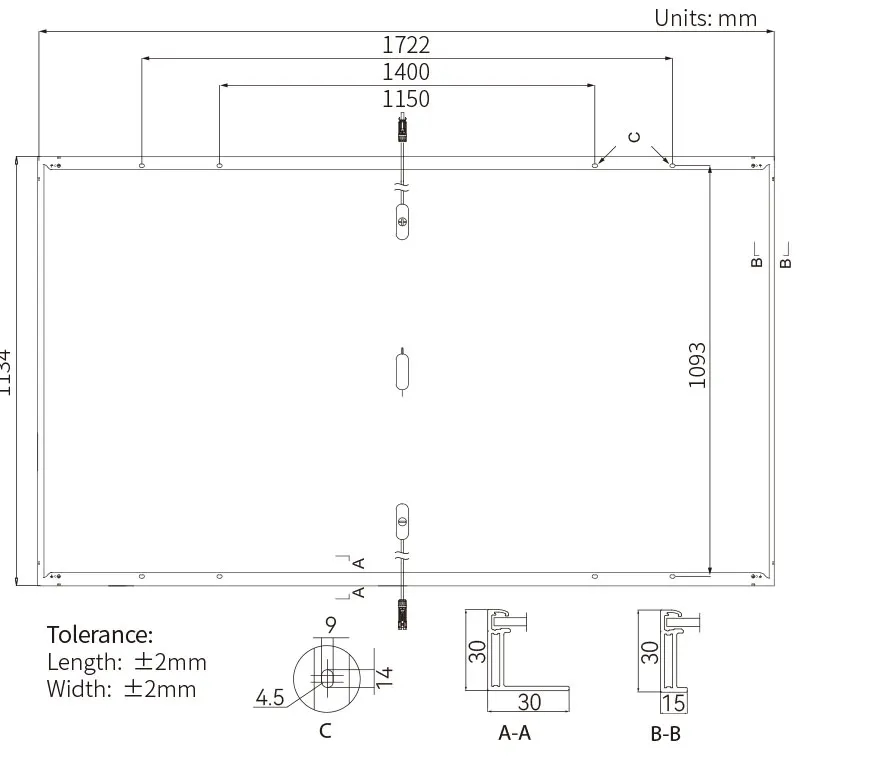

Dimension: 1722×1134×30 mm
Weight: 20.8 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs


Packaging & Payment






                                                                                   Payment Term
                                              T/T
EXW
                                                                                                                                                                                                       30% T/T in advance, paid the balance before shipment

FOB

CIF

DDP

Credit Card
30% T/T in advance, paid the balance before shipment

Paypal
30% T/T in advance, paid the balance before shipment
Delivery Time
7~15 days after receiving payment
