100000 Hours 200w Ral 9007 Cobra 4500k 277v L90B10 ENEC Dali 2.0 For City Solar Street Light Led
- Category: >>>
- Supplier: Hangzhou Zgsm Technology Co. Ltd.
Share on (1601082322141):
Product Overview
Description
Product Presentation

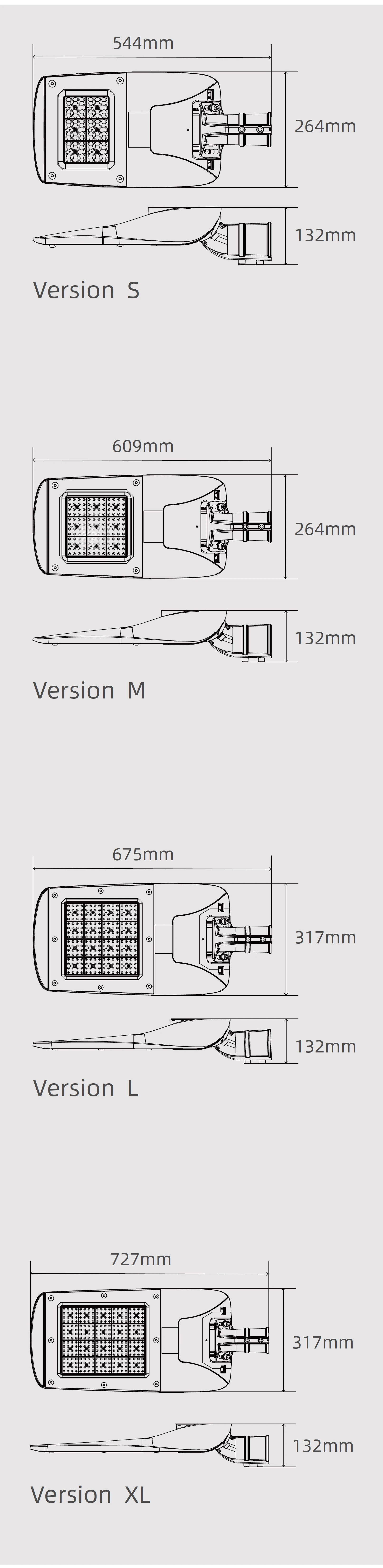

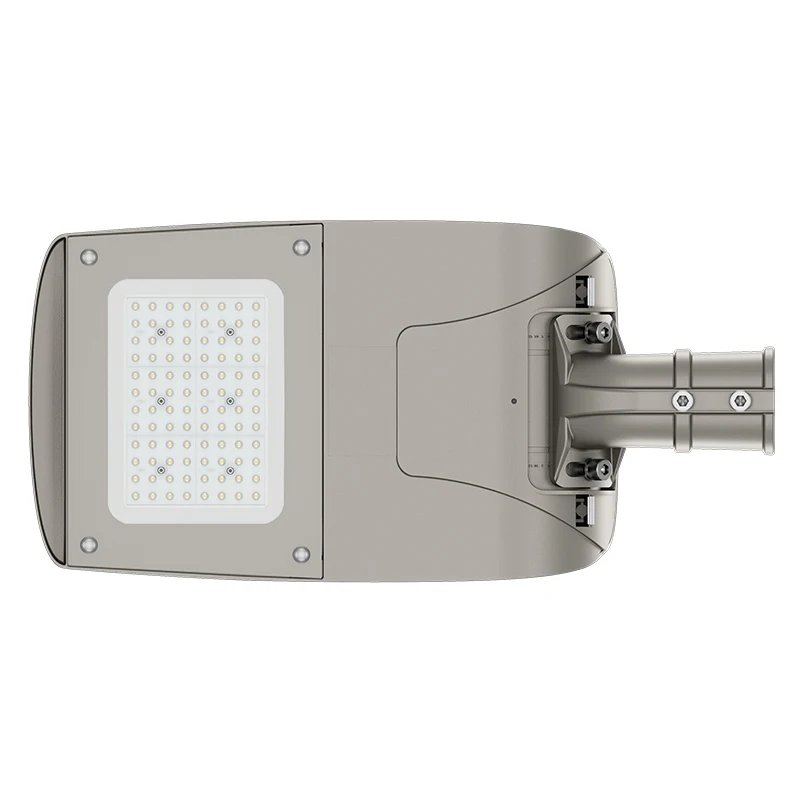

Model: Series FALCON | ||
Power | 30W to 200W | |
Input voltage | 90-305VAC | |
Power Factor | >0.95 | |
CRI | 70/80 | |
Rating | IK10,IP66 | |
Efficiency | up to 160lm/w | |
Power Factor | >0.95 | |
Lifetime | L70> 100,000hours @25℃ | |
Warranty | 5 years | |

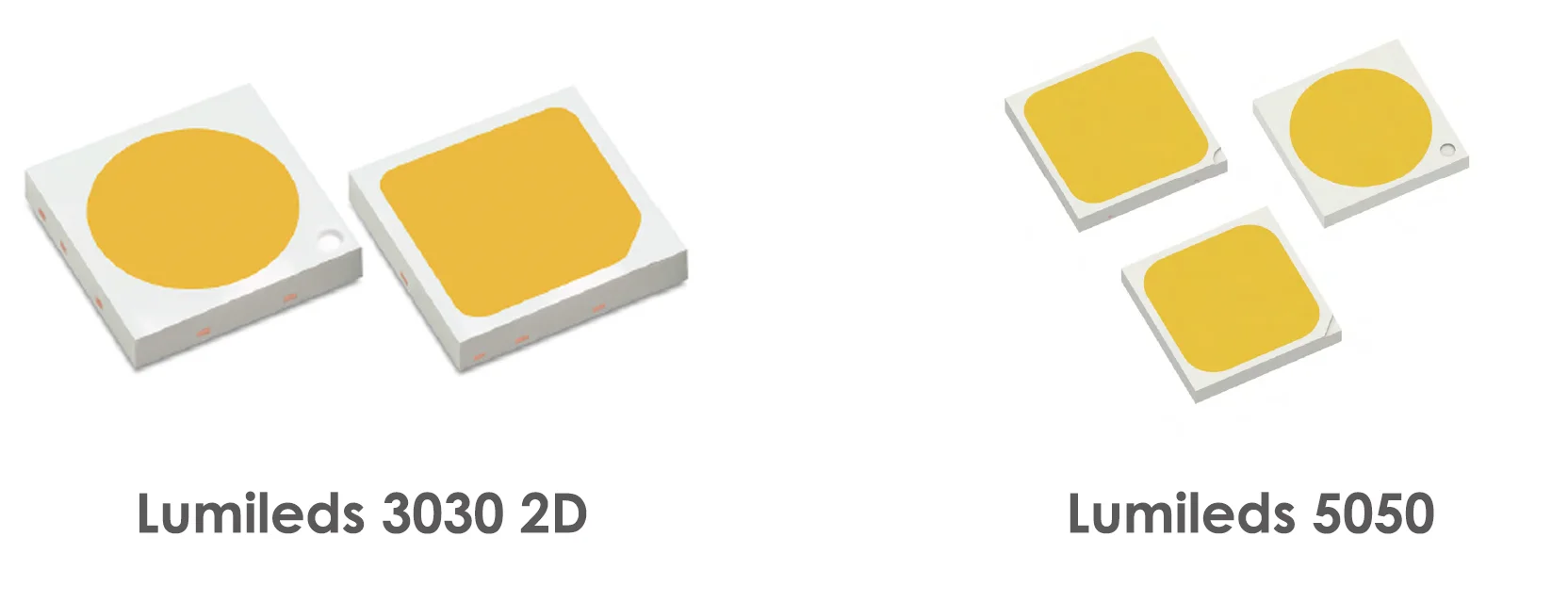

High Efficacy LED Source
ZGSM FALCON series LED Street Light are using Lumileds Luminous LED light source, providing excellent lumen output, long-lasting stability and splendid sight. The efficiency of 5050 chips is more than 185 lm/w.

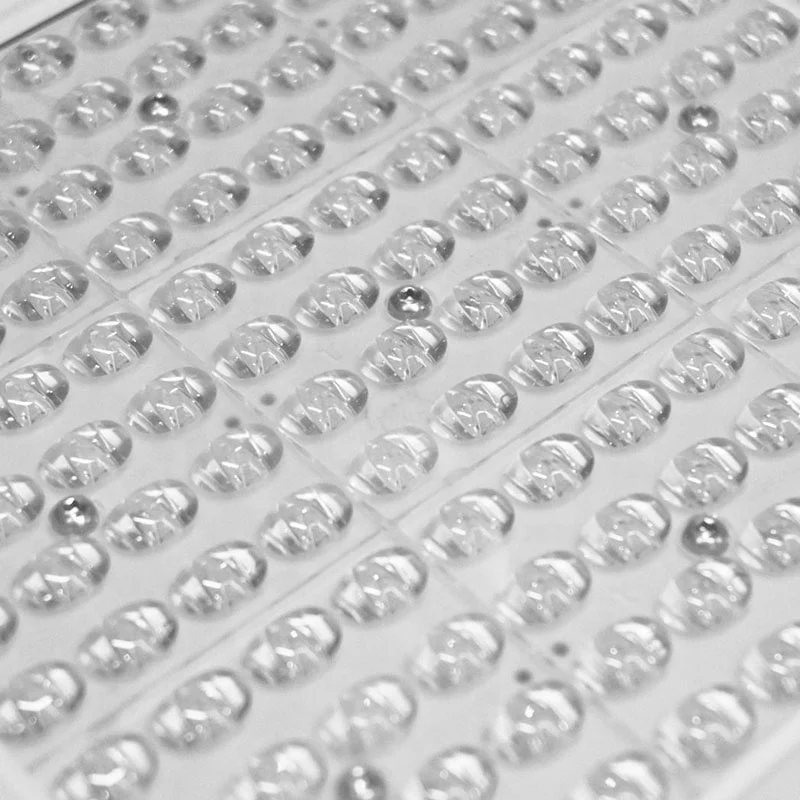

LED arrays
LED chips matrix in lens in fine arrangement that give the best light
distribution.

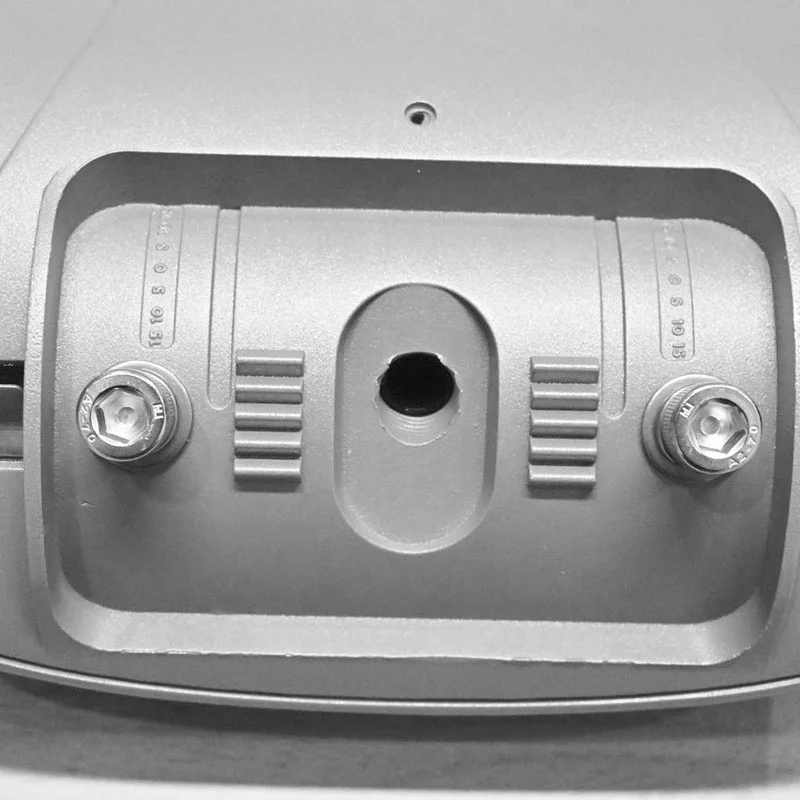

Adjustable filter and SS304 bolts
With adjustable arm angle 15 degrees and Stainless Stell Screws which meet 99% bidding requests.

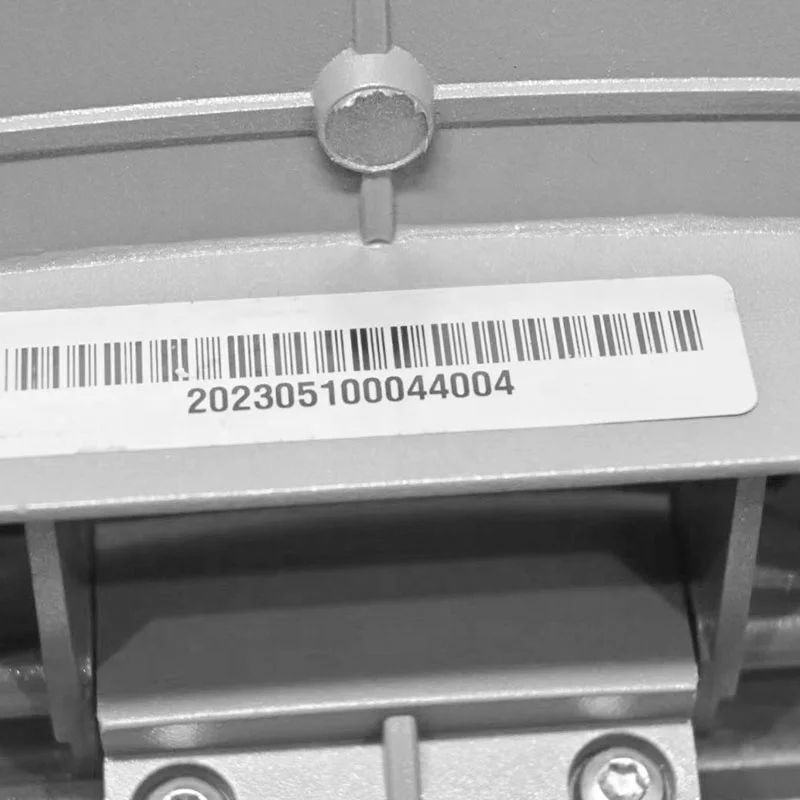

Production Record Number
With this label and number on the lamp when the customer finds the failed lamp it helps us track it.

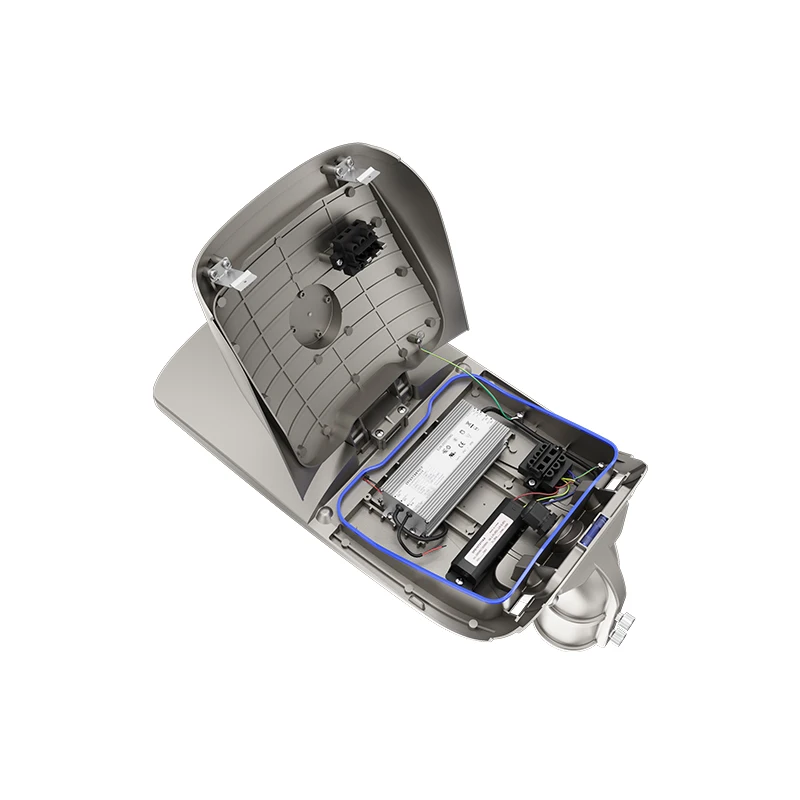

Tooless Button
No need any tools to open the housing when people start to mantain the luminaires. Very good design.

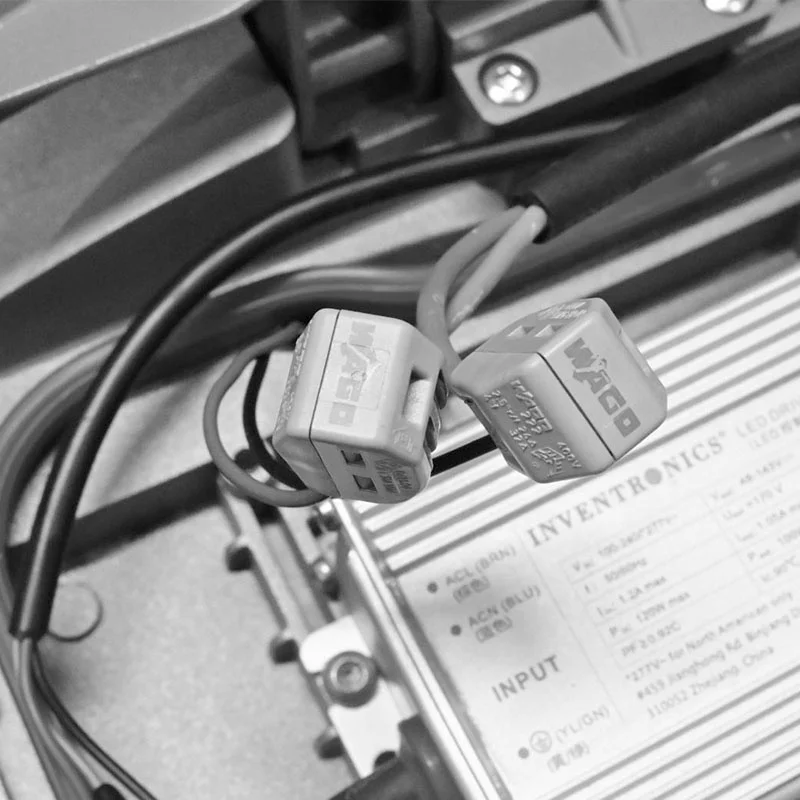

WAGO connector
Wago connector enables us much easier to do the wiring and make everything in the housing look better.
Tidy and professional.

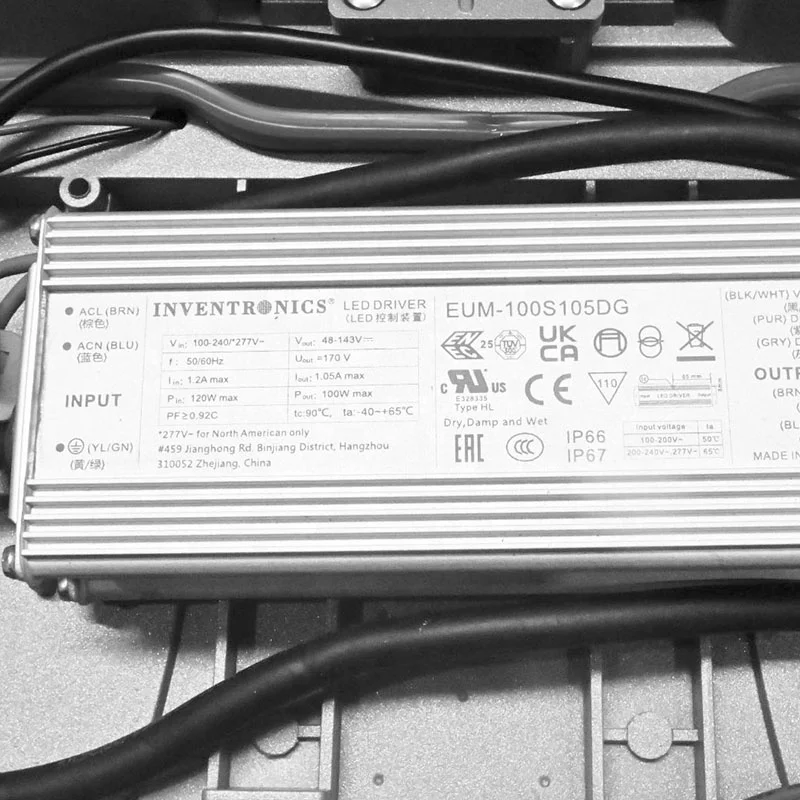

High class LED driver
For standard certificates we are ultimate INVENTRONICS drivers while if someone needs cheaper we can also alter from other brands.
High-end LED Driver brands
High-end INVENTRONICS Flicker free LED driver Optimal stability performance and lifespan. If you need other brands we can also supply them.

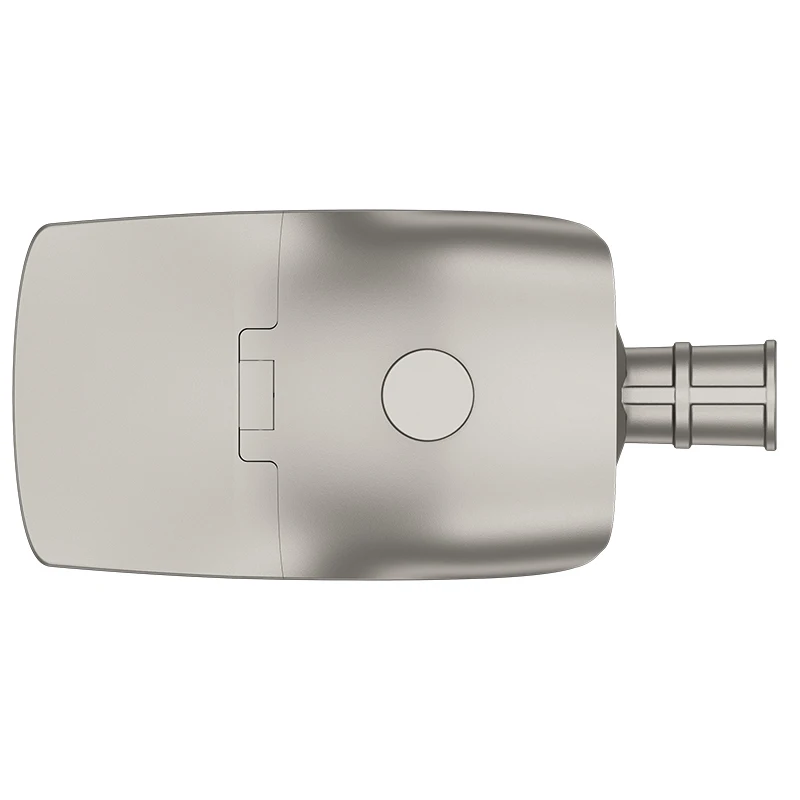

Self-cleanness
Smooth body would greatly diminish dust accumulation and bird droppings heap up.
Easy Maintenance
Buckle for fixing heat sink could be opened without tools.
Multiple Installation
Vertical and horizontal installation both available.
The installation angle can be adjusted 0-15 degrees
Various Light Distribution types
ZGSM provides different light distribution lens for the K Series street light to achieve best lighting effect in different applications.
Follows the North American IESNA standard in providing the optional lens width ,Type I, Type II ,Type III.
Power-off Auto-Protection
Power would automatically be off once the fixture body opened. Namely knife switch.
Remote Smart Control System
ZGSM provides a total solution for intelligence street lighting system. Communication via GPRS/CDMA/WCDMA wireless network or cable network & monitor center and proceeds with communication via ZIGBEE/PLC/ROLA.

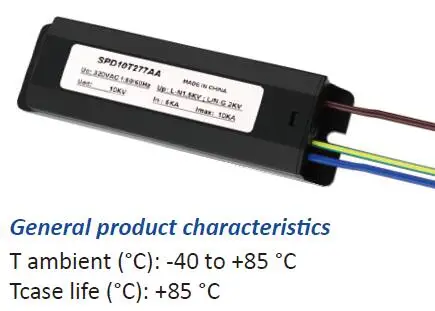

Surge Protection Device
ZGSM brand TUV approved 10KV surge protection device is the standard configuration in all of our LED Street Light.
Working Environment
Rating | IP66, IK10 | Input Voltage | 100-277VAC or 347VAC or 480V or 12-24VDC |
LED Brand | Lumileds/Bridgelux | SPD | 10KV ( 20KV optional ) |
Driver Brand | Meanwell or Inventronics | Optic ( IESNA ) | Type I Medium, Type II Medium, Type II BLS, Type III Medium |
Power Factor | >0.95 | Color Options | Deep Grey or Light Grey |
THD | <20% | Dimming Options | 1-10V or DALI or PWM or Timer |
Power Efficiency | >90% | Control Options | Photocell or Motion sensor or Smart control |
Operating Temperature | -40°C ~ +50°C | Body | Die-cast aluminum Housing |
Working Environment | -40°C ~ +50°C, 10% ~ 90%RH | Cover | Tempered glass |
Efficacy | 155~160 lm/ w | Protection | Class I ( Class II optional ) |
CCT | 3000K/ 4000K/ 5000K/ 5700K | Pole Fitter Diameter | 60mm ( 50mm optional ) |
Min CRI | 70 ( 80 optional ) | Certificates | Yes |

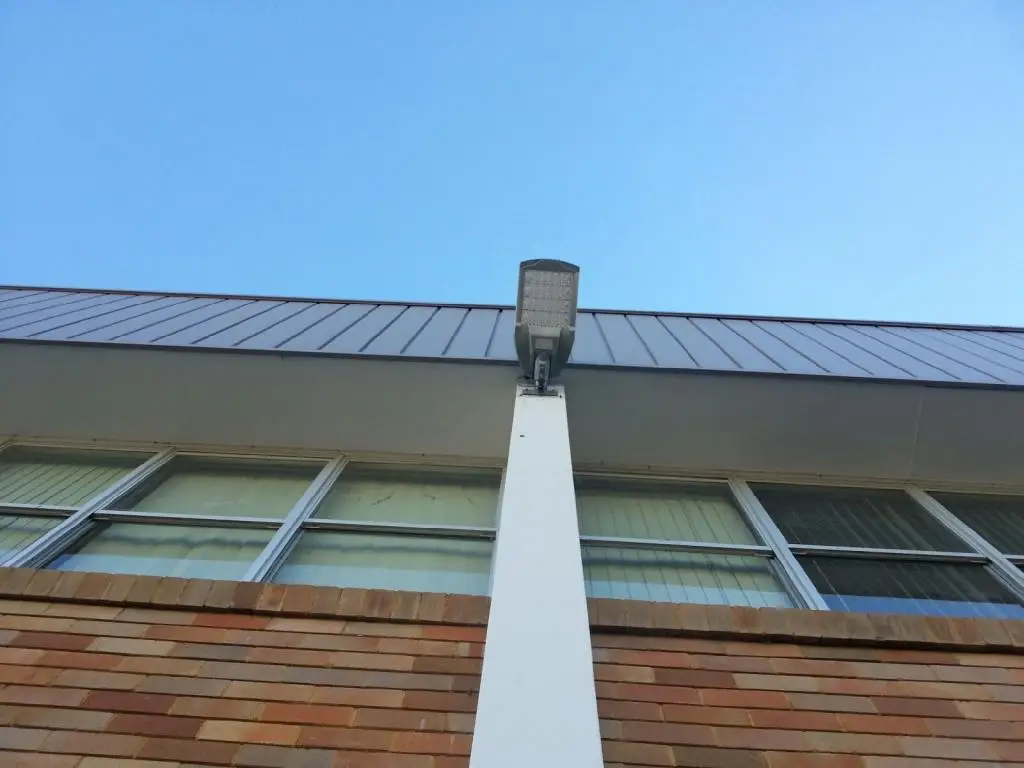

Installation Process

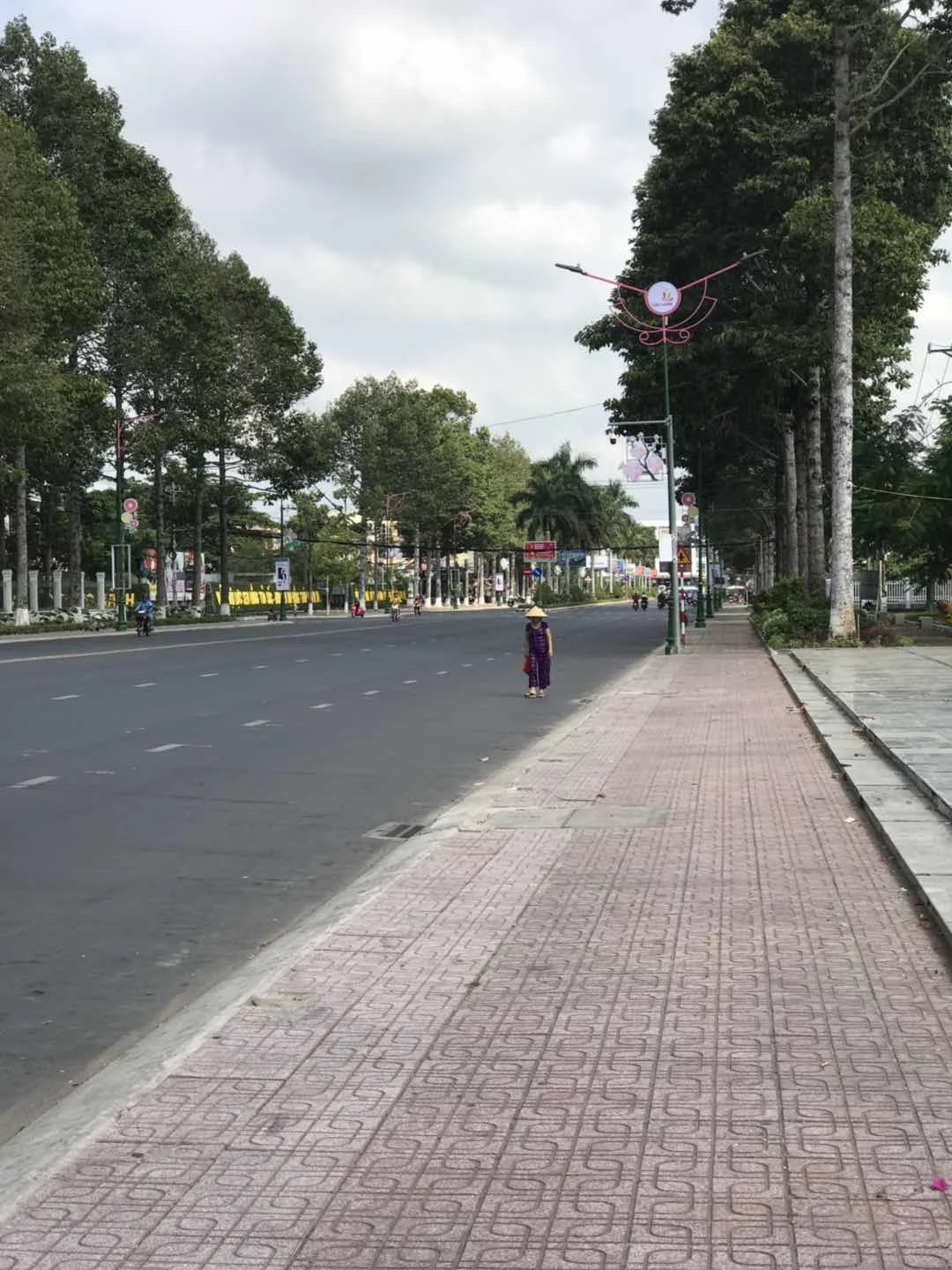

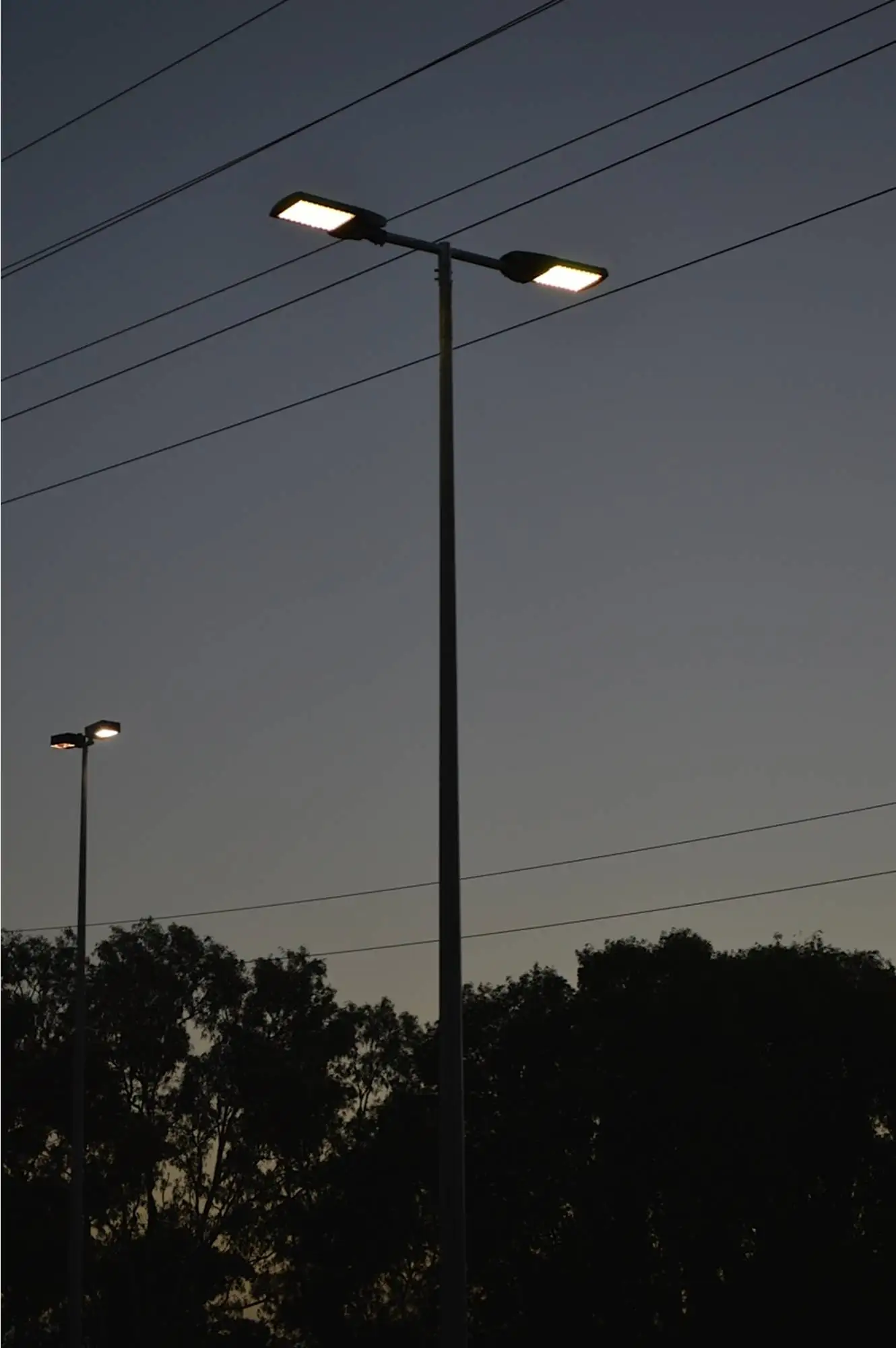

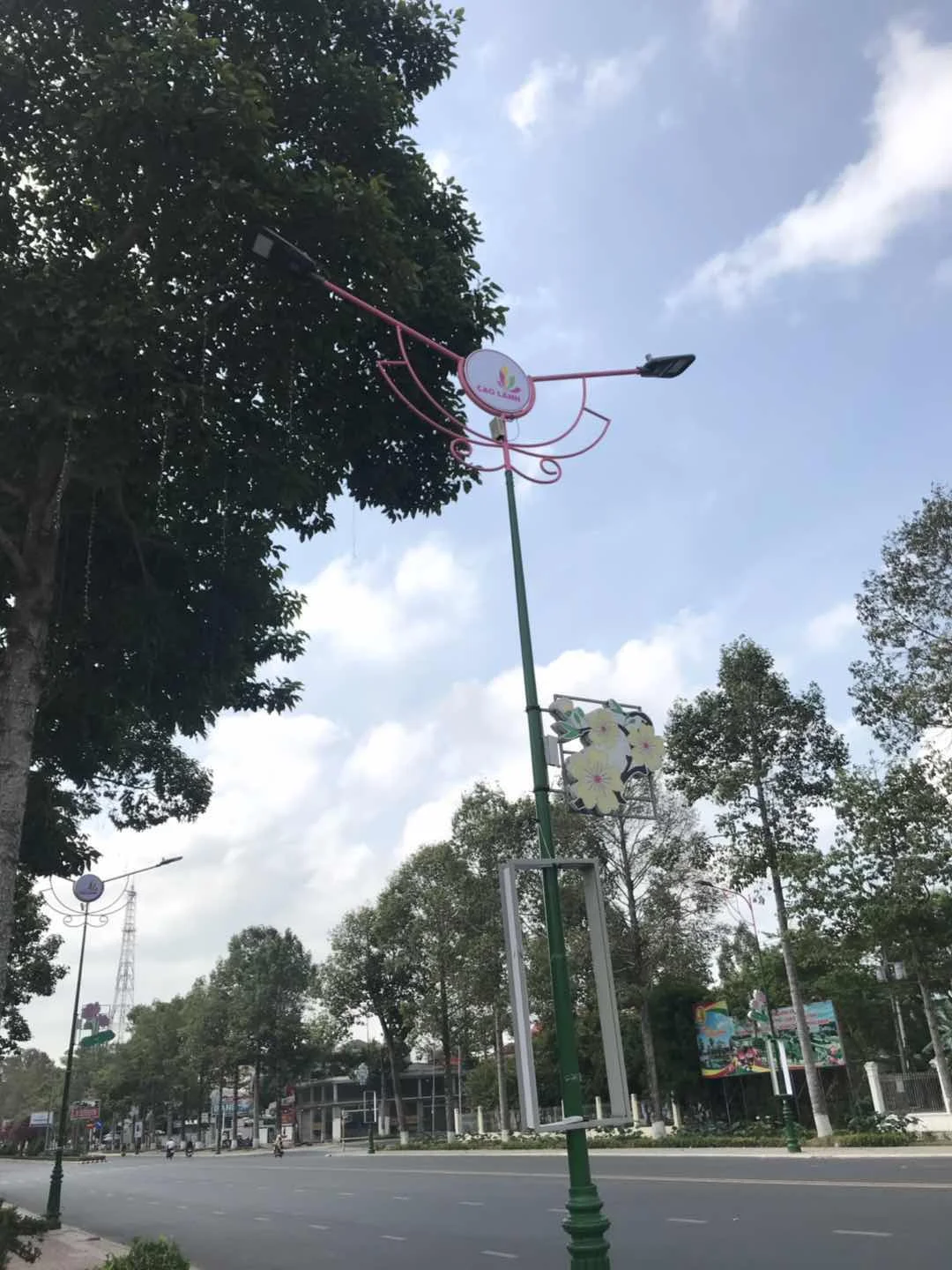

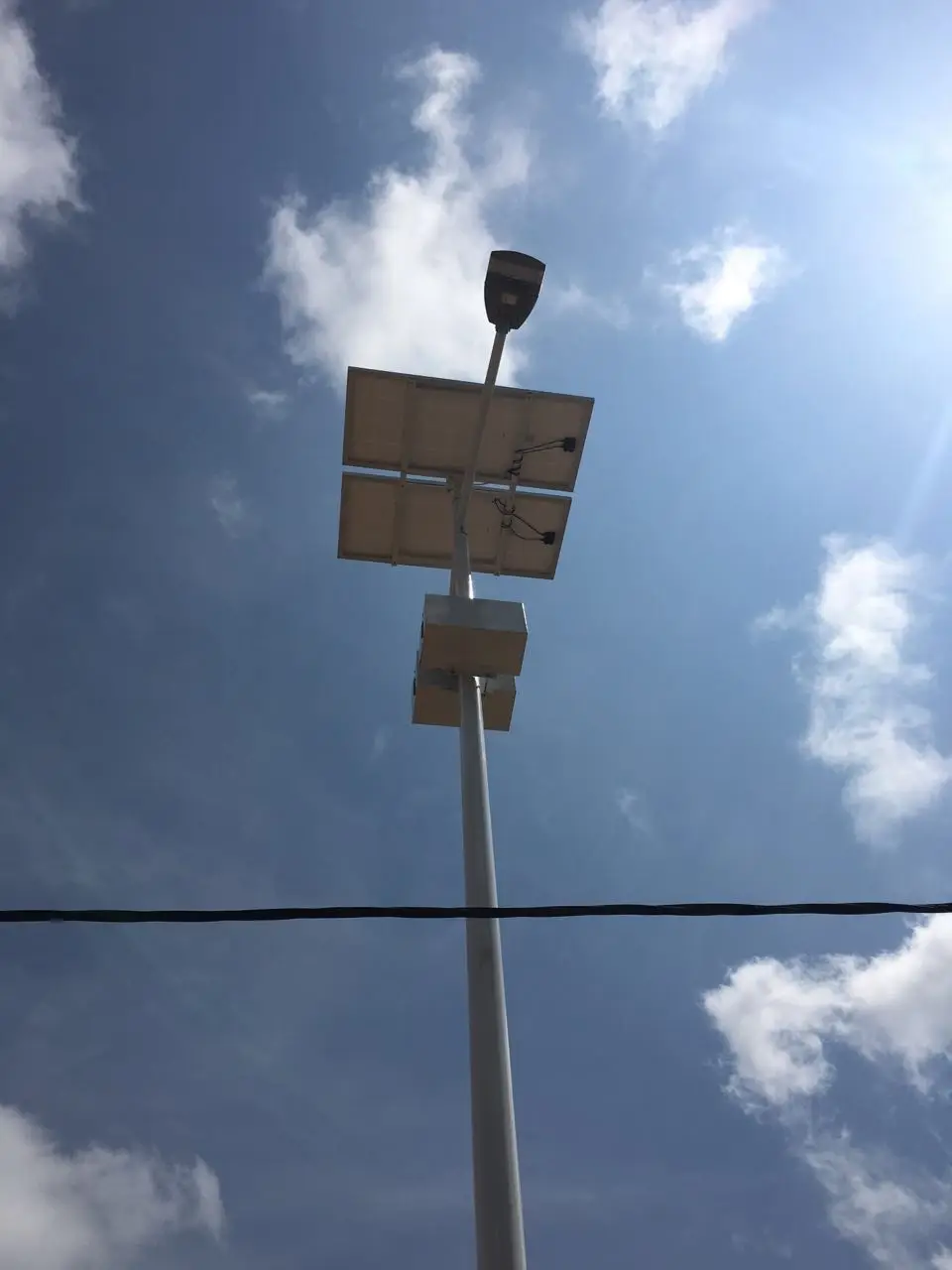

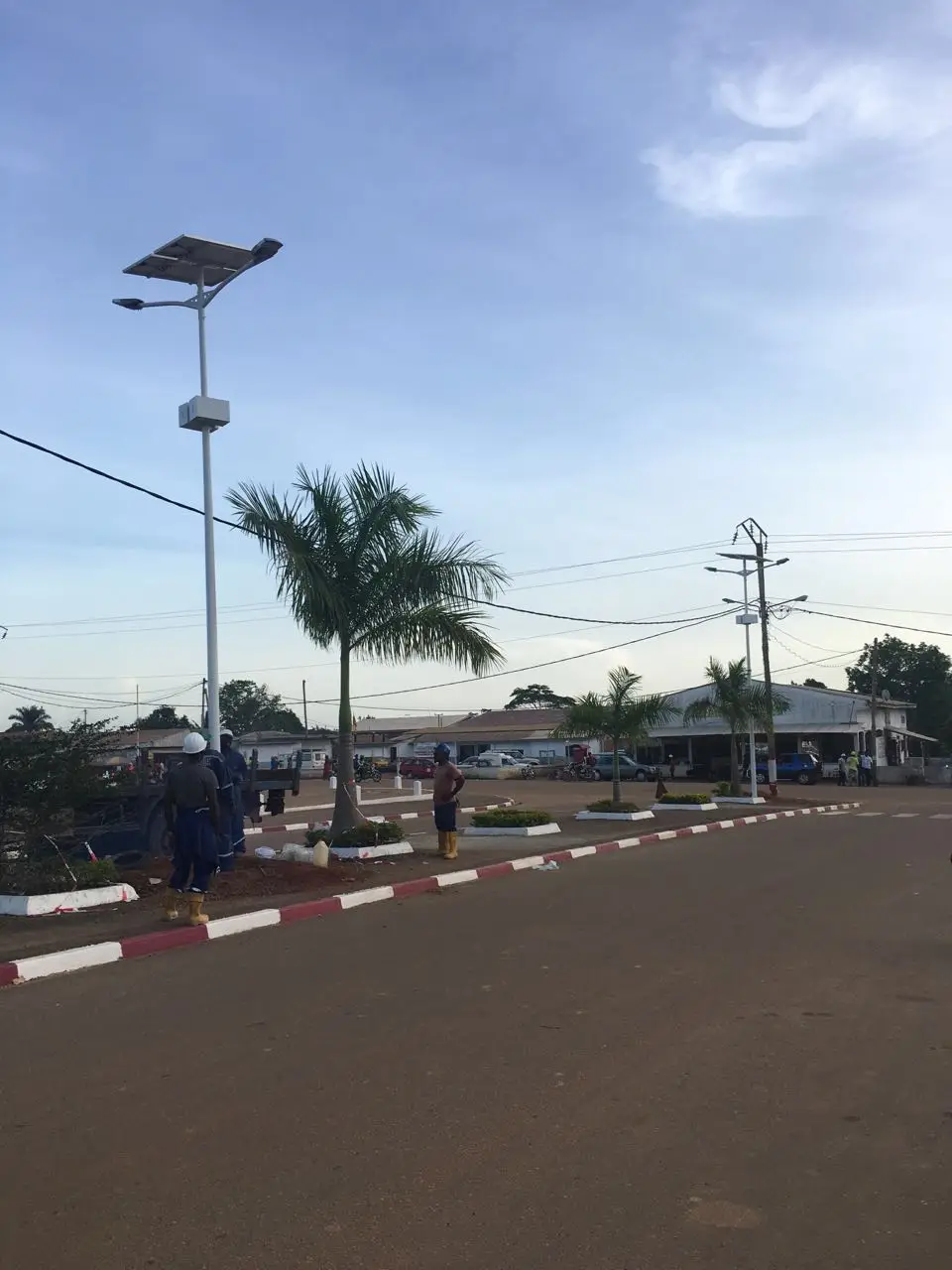

Project
Company Information
Welcome to ZGSM. Founded in 2005, ZGSM has been dedicated to creating a better quality, eco-friendly, efficient lighting environment through diverse businesses of LED lighting, LED traffic signal, solar LED lighting system and more.
1. More than 13 years experience in LED lights.
2. All products are patented.
3. Approved by TUV.
4. Have own R&D team and customized services are available.
5. ISO9001 and 14001 certified factory.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Samples within 3 days, big order within 1-2 weeks.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements . Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3-7 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.1%. Secondly, during the warranty period, we will repair or replace defected products.
