  • Voltronic Solar Inverter Axpert Max II Max 8KW 2 EU 48V 8KW 8000W 8000 Watt 11KW Hybrid Inverter
Voltronic Solar Inverter Axpert Max II Max 8KW 2 EU 48V 8KW 8000W 8000 Watt 11KW Hybrid Inverter
Voltronic Solar Inverter Axpert Max II Max-8KW 2 EU 48V 8KW 8000W 8000 Watt 11KW Hybrid Inverter
Voltronic Solar Inverter Axpert Max II Max-8KW 2 EU 48V 8KW 8000W 8000 Watt 11KW Hybrid Inverter
Voltronic Solar Inverter Axpert Max II Max-8KW 2 EU 48V 8KW 8000W 8000 Watt 11KW Hybrid Inverter
Voltronic Solar Inverter Axpert Max II Max-8KW 2 EU 48V 8KW 8000W 8000 Watt 11KW Hybrid Inverter
Voltronic Solar Inverter Axpert Max II Max-8KW 2 EU 48V 8KW 8000W 8000 Watt 11KW Hybrid Inverter

Voltronic Solar Inverter Axpert Max II Max 8KW 2 EU 48V 8KW 8000W 8000 Watt 11KW Hybrid Inverter

Share on (1601082329916):


Price:$380.00 - $480.00

Quantity:


Product Overview

Description































Product Description



























































































1. LCD display

2. RGB LED bar (refer to LCD Setting section for the details)


3. Touchable function keys

4. Power on/off switch


5. AC input connectors

6. AC output connectors (Load connection)


7. Battery connectors

8. PV connectors


9. Circuit breaker

10. Dry contact


11. USB port as USB communication port and USB function port

12.RS-232 communication port


13.BMS communication port: CAN,RS-485 or RS-232








Monitoring Software on Mobile APP↓





















Parameters













































































































































































MODEL

Axpert VM 4 TWIN 4K

Axpert VM 4 TWIN 6K


Rated Power

4000VA/4000W

6000VA/6000W


INPUT


Voltage

230 VAC


Selectable Voltage Range

170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)


Frequency Range

50 Hz/60 Hz (Auto sensing)


OUTPUT


AC Voltage Regulation (Batt. Mode)

230 VAC ± 10%


Surge Power

8000VA

12000VA


Efficiency (Peak)

90% ~ 93%


Transfer Time

10 ms (For Personal Computers) ; 20 ms (For Home Appliances)


Waveform

Pure sine wave


BATTERY


Battery Voltage

24 VDC

48 VDC


Floating Charge Voltage

27 VDC

54 VDC


Overcharge Protection

33 VDC

63 VDC


SOLAR CHARGER & AC CHARGER


Solar Charger Type

MPPT

MPPT


Maximum PV Array Power

5000 W

6000 W


MPPT Range @ Operating Voltage

60 ~ 450 VDC


Maximum PV Array Open Circuit Voltage

500 VDC


Maximum PV Input Current

27A


Maxmum Solar Charge Current

120 A

120 A


Maximum AC Charge Current

100 A

100 A


Maximum Charge Current

120 A

120 A


PHYSICAL


Dimension, D x W x H (mm)

119 x 313.6 x 457.5


Net Weight (kgs)

10

12


Communication Interface

USB/RS232/RS485/WiFi/Dry-contact


OPERATING ENVIRONMENT


Humidity

5% to 95% Relative Humidity(Non-condensing)


Operating Temperature

-10°C to 50°C


Storage Temperature

-15°C to 60°C

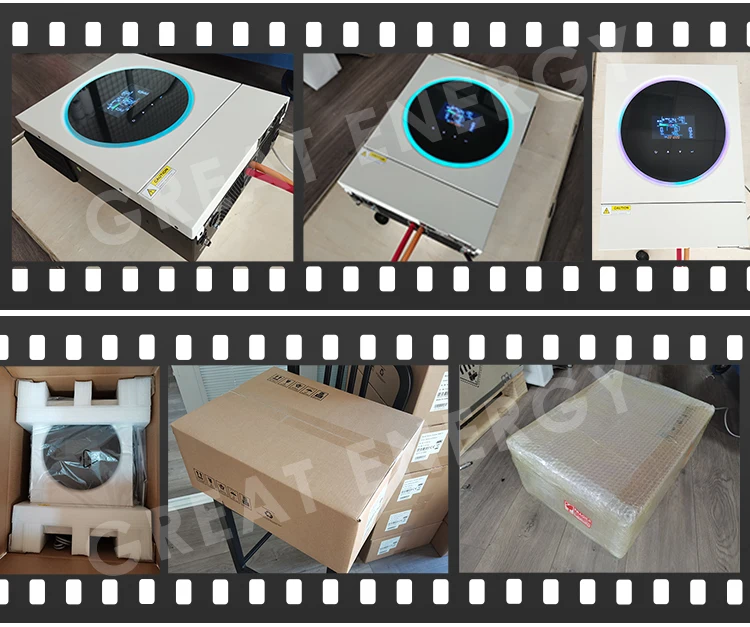

Packing & Delivery

















Our Company

















Related Products









FAQ







Q1. Are you a factory or trading company?
We have two modern factory. We have 120 factory workers and 10 of them are quality control and engineer guys. Welcome to visit our factory.

Q2. Is Your products the lowest price?
GT take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.

Q3. All products have a warranty?
Yes, we supply 1 to 25 years warranty for our products. You will be satisfied with our quality.

Q4. What is the transportation?
By air, by Sea, by Express, by Train, all are ok to us.

Q5. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.

Q6. Can we design packaging?
Yes, but there is with quantity limitation. We will make the packing free for the client, and if less , we can talk, the package is free or little money will be charged.

Q7. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.

Q8. can we customize product?
OEM and ODM are welcomed from GT. We have rich experiences in this area.
