SUN 6062 Portable Pet ECG Machine VET ECG Machine ECG Equipment for Animals
- Category: >>>
- Supplier: Xuzhou Sunbright Electronic Technology Co. Ltd.
Share on (1601082401804):
Product Overview
Description
Hot Picks
Product Description

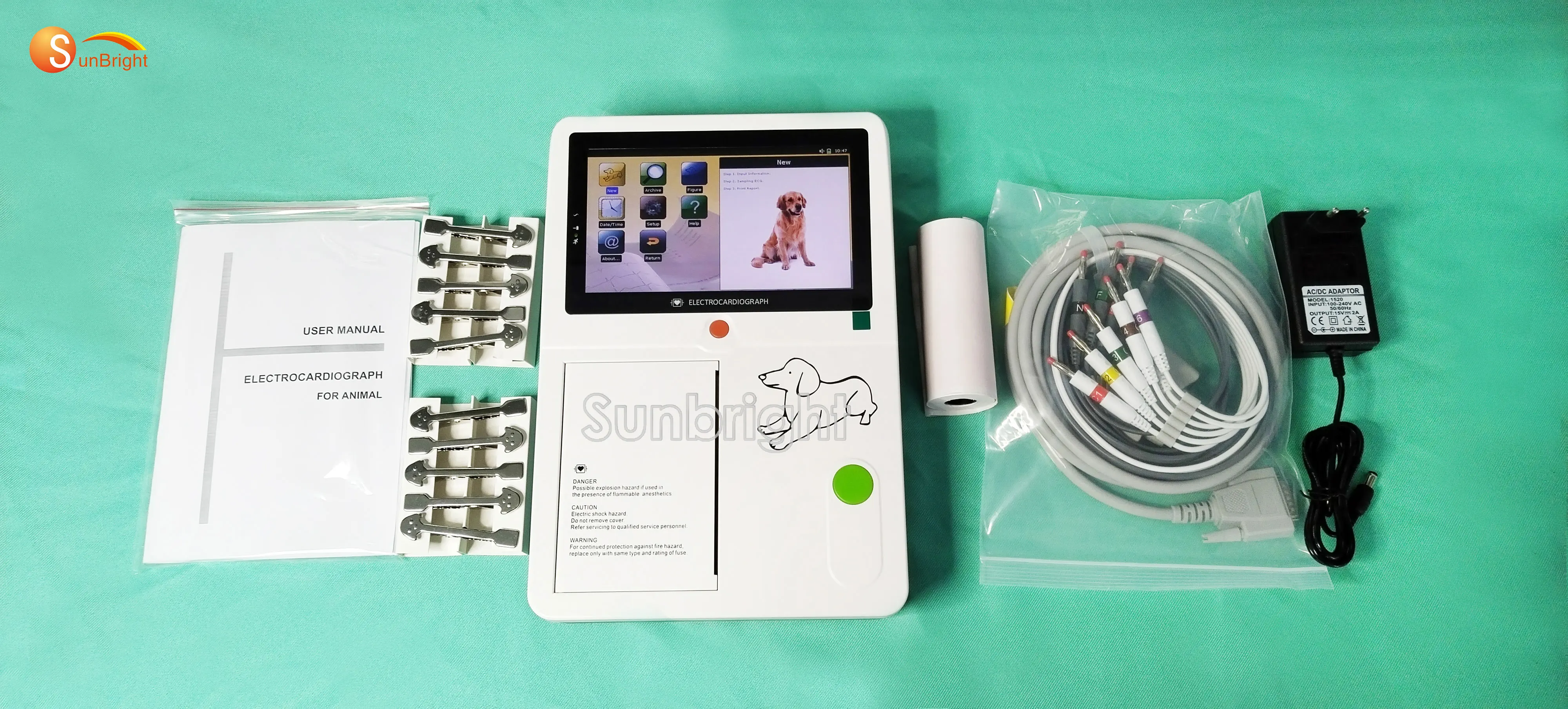

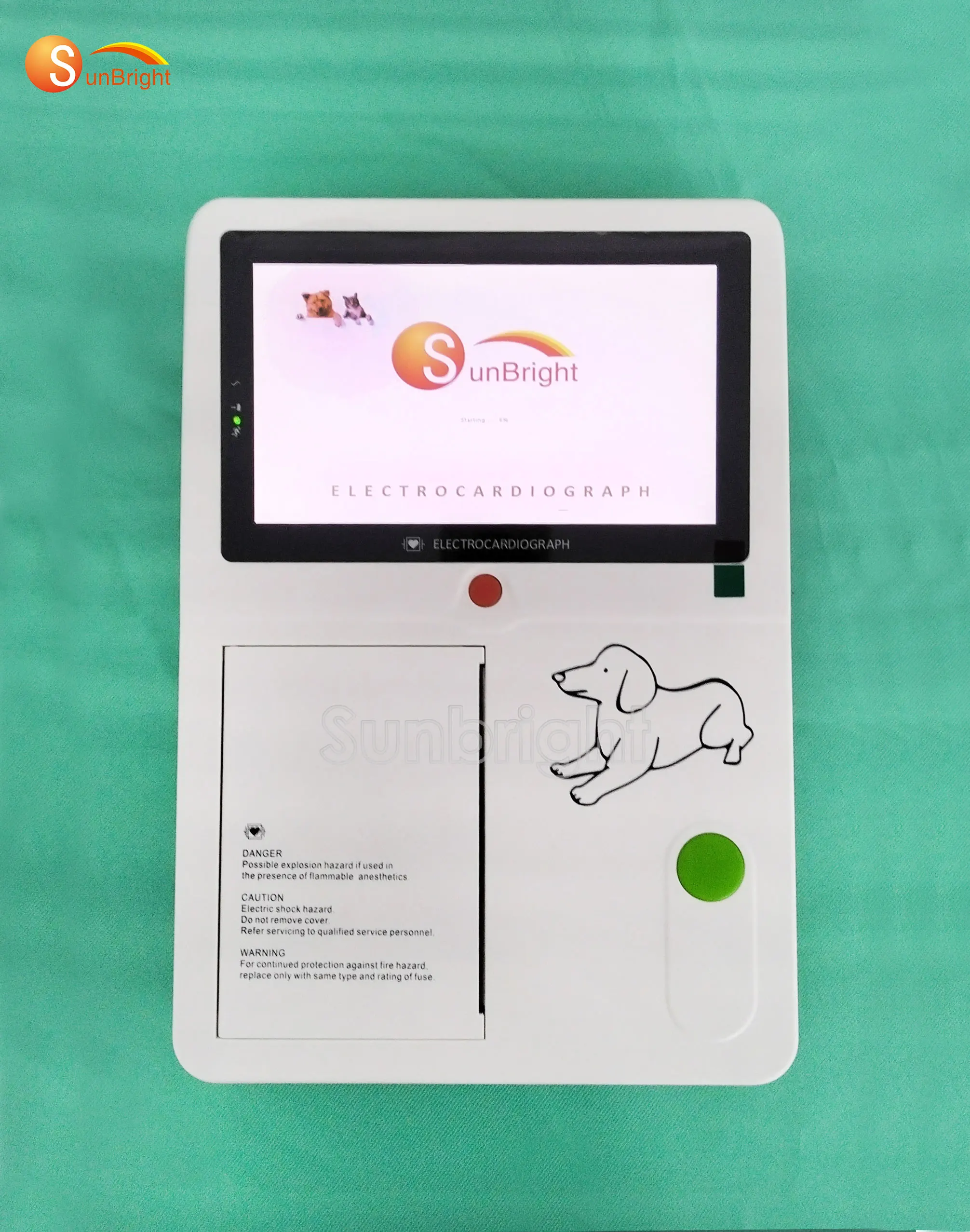

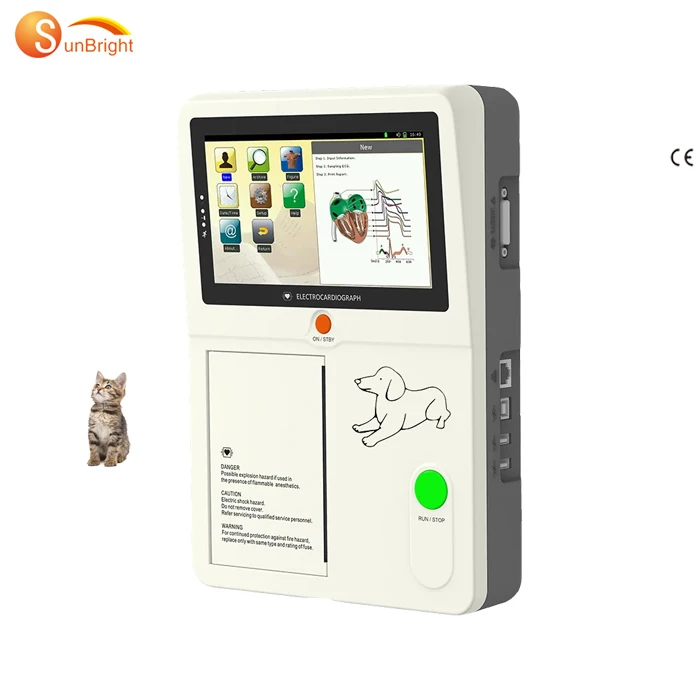

Vet 6 Channel 12 leads SUN-6062 Electrocardiograph Ecg EKG Machine Animal Veterinary Ecg
Features
12lead ECG synchronous sampling system.

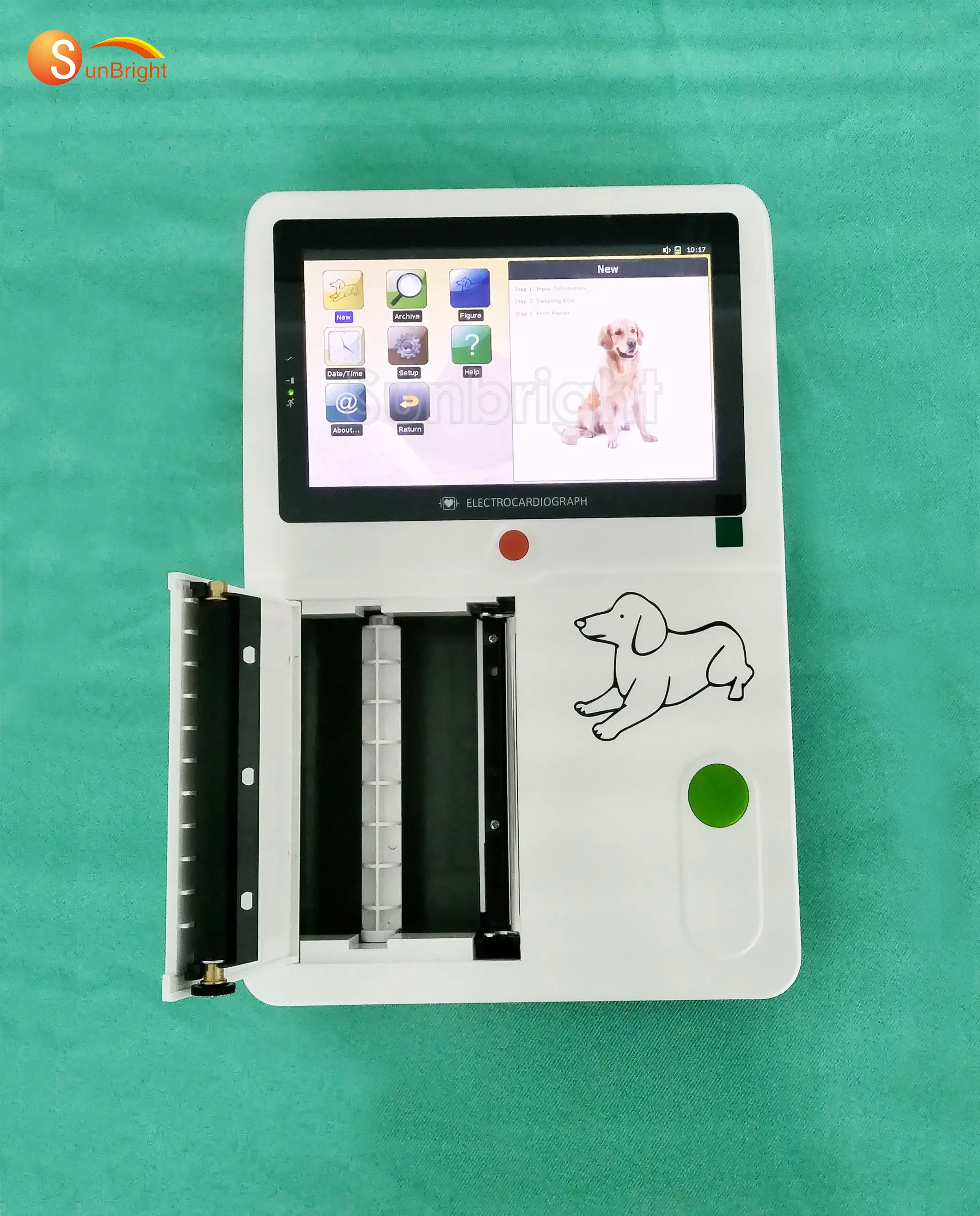

Thermal printer with 112mm print paper, synchronization print.

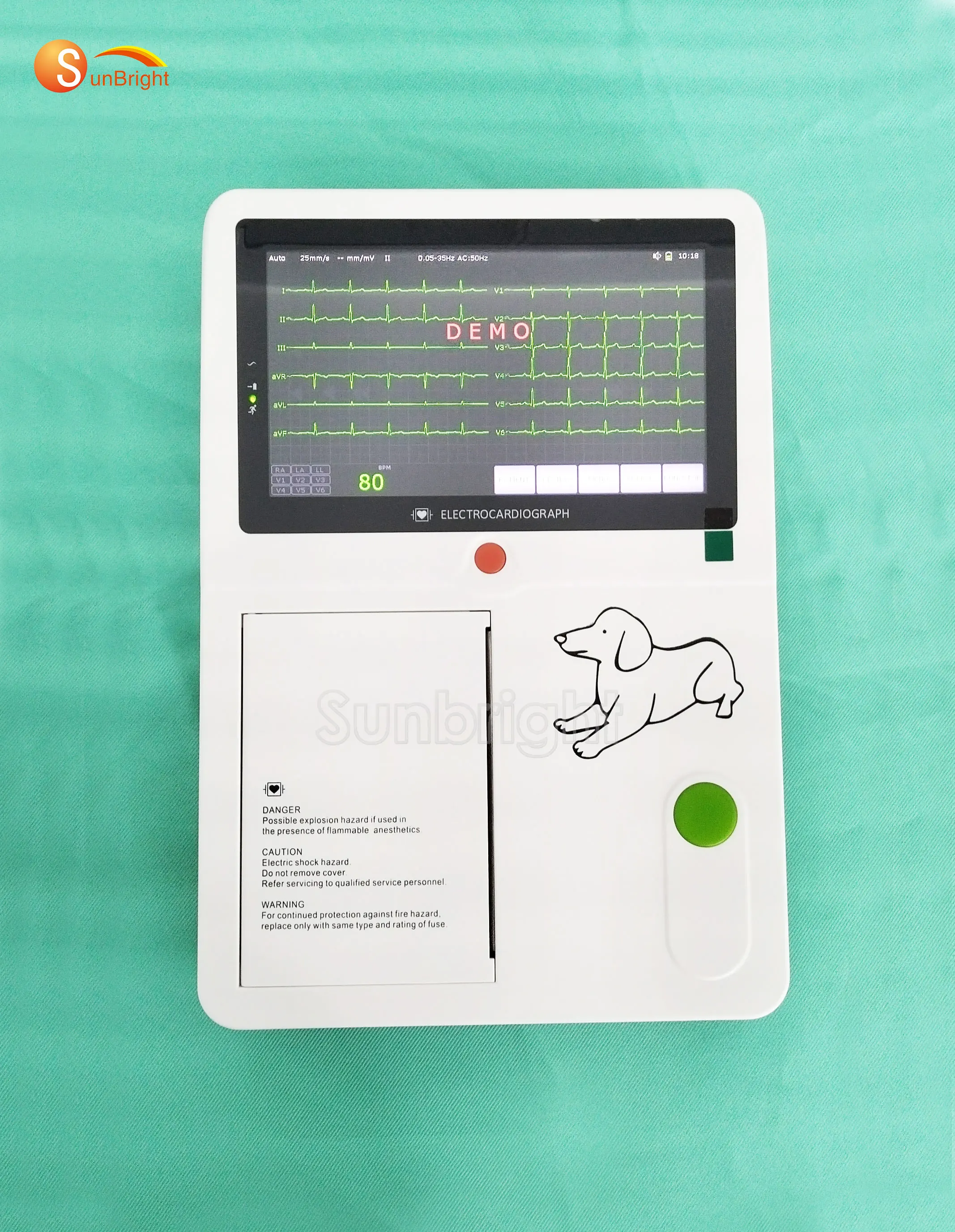

7' color touch-screen, both push-button and touch operation.
Automatic measurement, calculation, analysis, waveform freezing.
Support USB flash disk & SD memory.
Data transmitting to PC via USB.
Patient'sinformation can be input.
Historical data can be reviewed and printed.
Built-in rechargeable li-ion battery, AC/DC power conversion.
Sleep mode to save energy and extend TFT screen life.

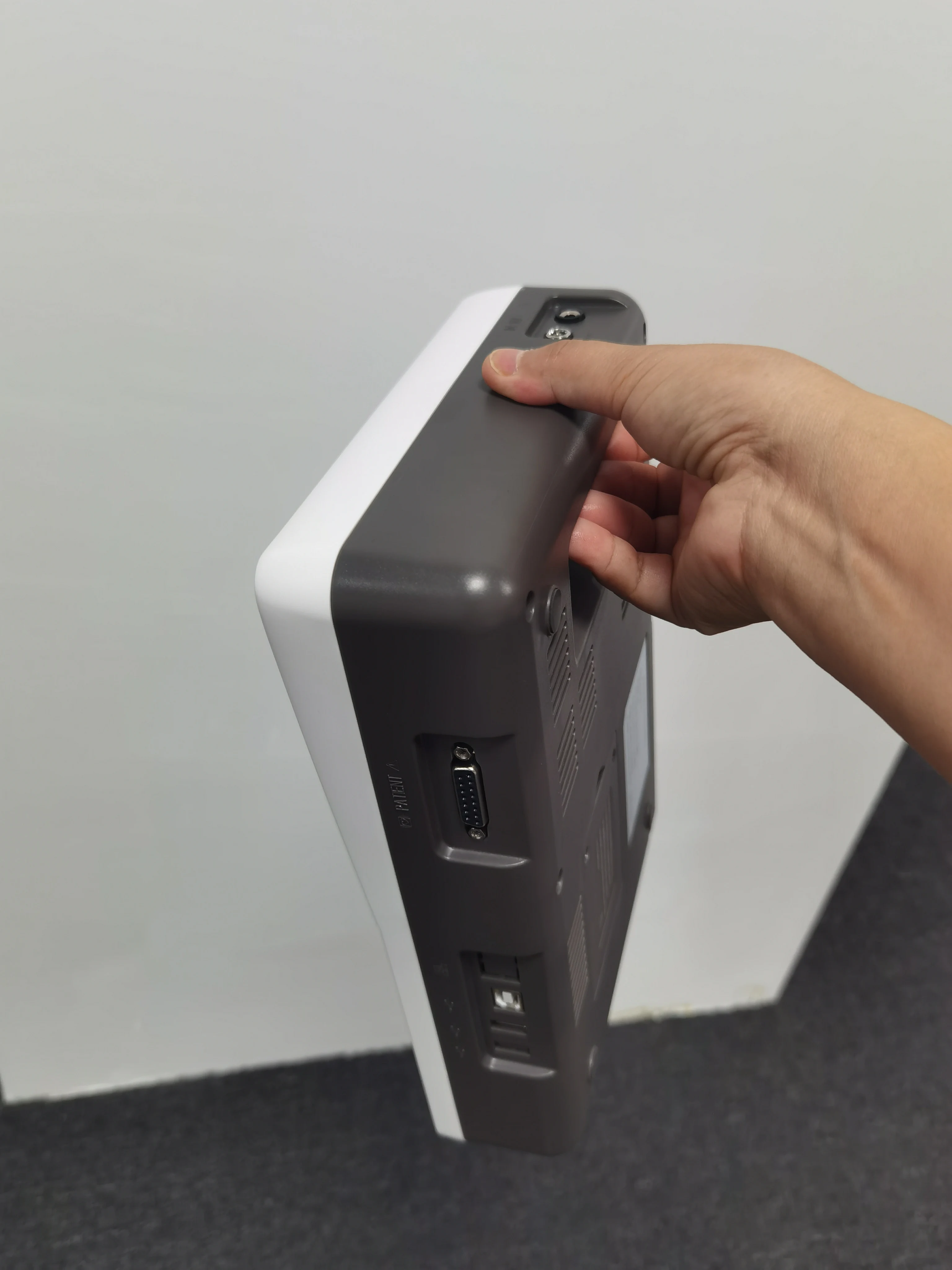

Portable design with hidden handle, convenient to carry.
Lead off & lack off paper detection function.
7levelprinting thick can be chosen.
Adapt to 110-230V,50/60Hz AC power supply.
Thermal printer with 112mm print paper, synchronization print.
7' color touch-screen, both push-button and touch operation.
Automatic measurement, calculation, analysis, waveform freezing.
Support USB flash disk & SD memory.
Data transmitting to PC via USB.
Patient'sinformation can be input.
Historical data can be reviewed and printed.
Built-in rechargeable li-ion battery, AC/DC power conversion.
Sleep mode to save energy and extend TFT screen life.
Portable design with hidden handle, convenient to carry.
Lead off & lack off paper detection function.
7levelprinting thick can be chosen.
Adapt to 110-230V,50/60Hz AC power supply.
Physical Specifications:
CMRR | ≥100dB,with AC Filter |
Input circuit | Floating，Protection against defibrillator effect |
Input circuit current | ≤ 0.1μA |
Resolution | 12bit/1000Hz |
Operation mode | Manual/Auto |
Filter | AC，ECG Filter |
Drift filter | Anti-Drift System |
Input impedance | >50MΩ |
Patient current leakage | ＜10μA |
Rated voltage | 100V-230V 50HZ/60HZ |
Recording paper | Thermal recording paper |
Calibrating voltage | 1mV士3% |
Voltage tolerance | +500mV |
Time Constant | >3.2s |
Frequent response | 0.05HZ~150Hz |
Noise leve | ≤15 μVp-P |
Threshold | ≤20μV |
Paper speed | 12.5mm/s,25，50mm/s (+3%) |
Sensitivity | 5，10，20mm/mV |
Recorder | High resolution thermal printer |
Battery | Li-ion Battery(11.1V2200mAh) |
Dimension | 295mm*205mm*73mm |
Scanning Images
Recommend Products
Packing & Delivery
1. Package: double carton boxes
2. Port: Shenzhen China, Shanghai China
3. Delivery time: 3-5 working days after receipt of payment
4. Payment term: T/T in advance, MoneyGram, Trade Assurance, Western Union, Escrow, Paypal, Credit Card!
