GWAT 80HM Full Automatic digital CNC Hook Winding Machine toroidal coil winder for high power transformer
- Category: >>>
- Supplier: Tianjin Grewin Technology Co. Ltd.
Share on (1601082993773):
Product Overview
Description
Specification

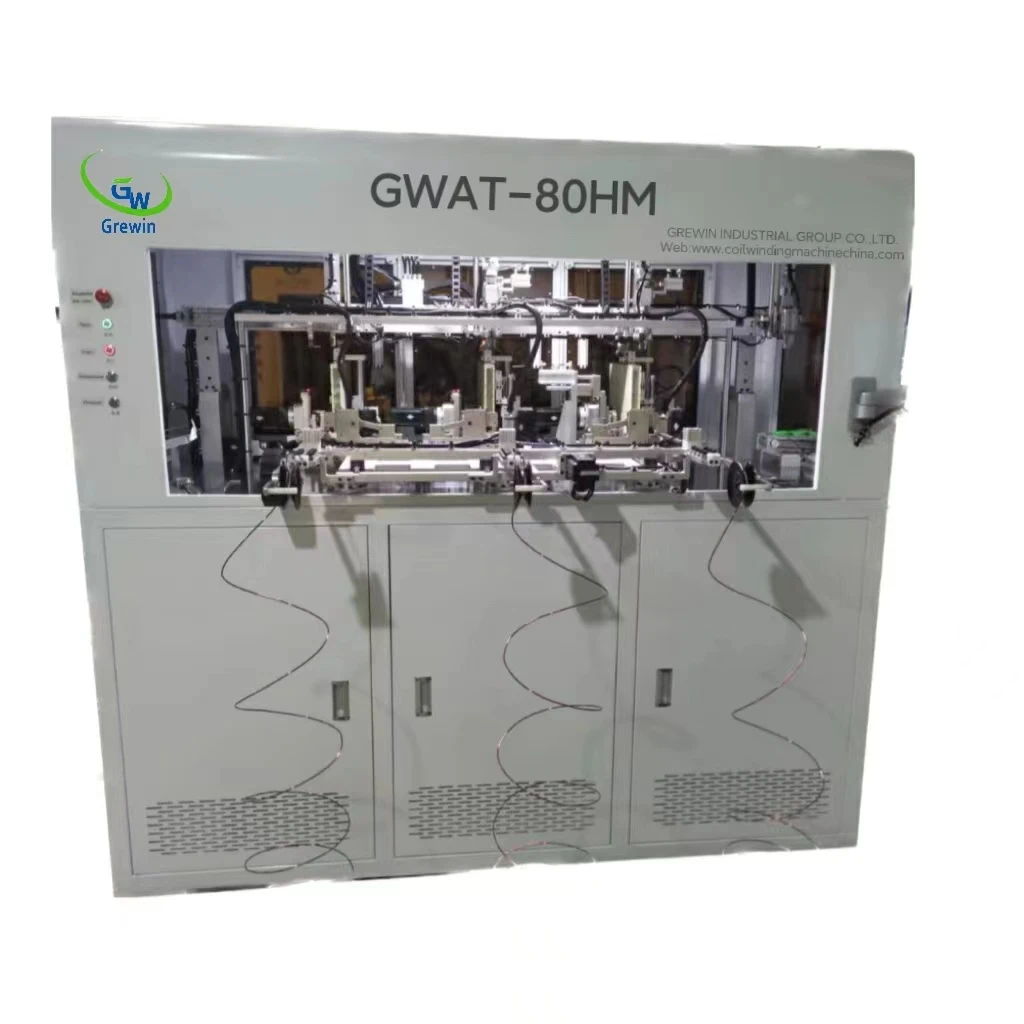

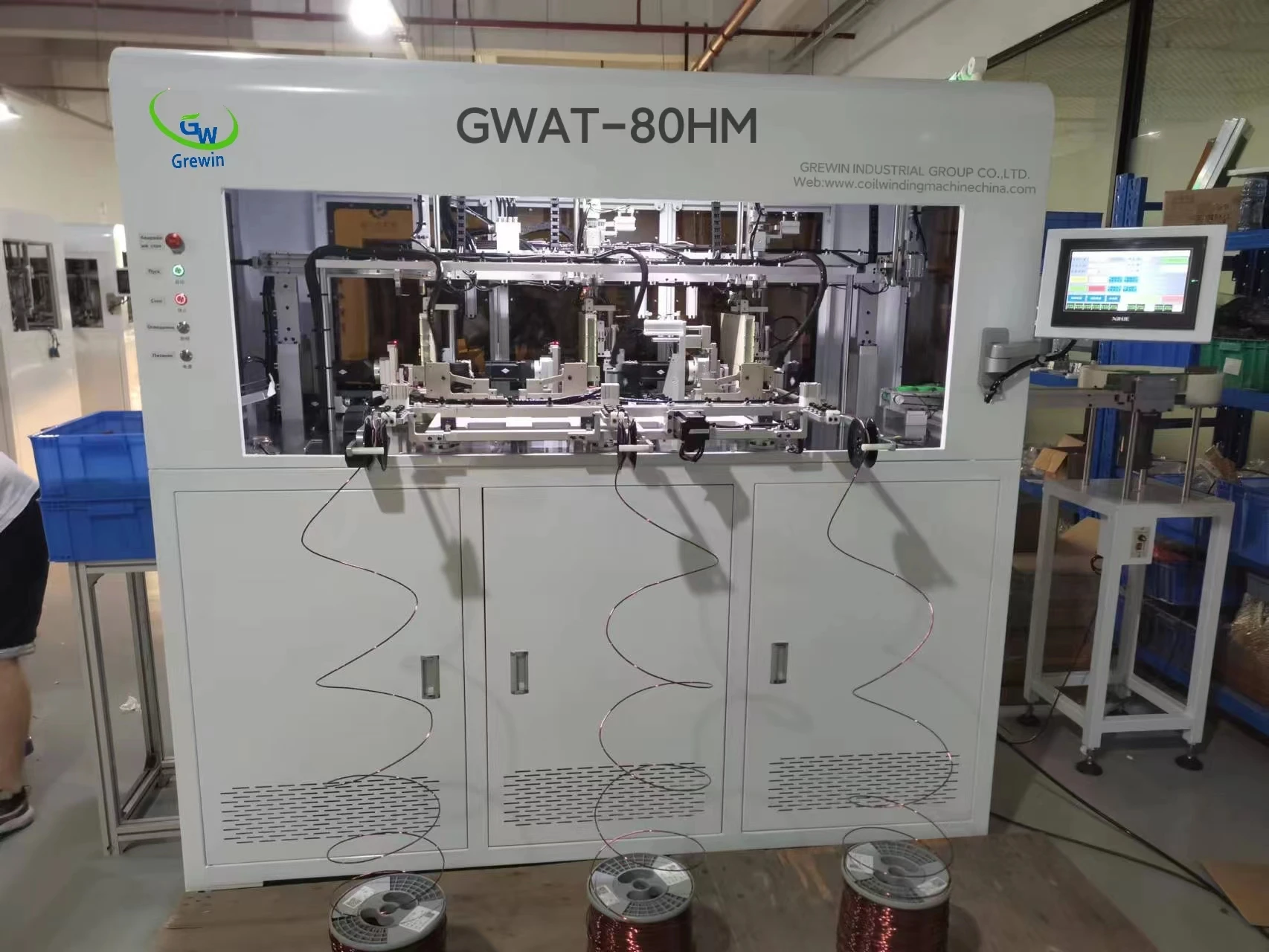

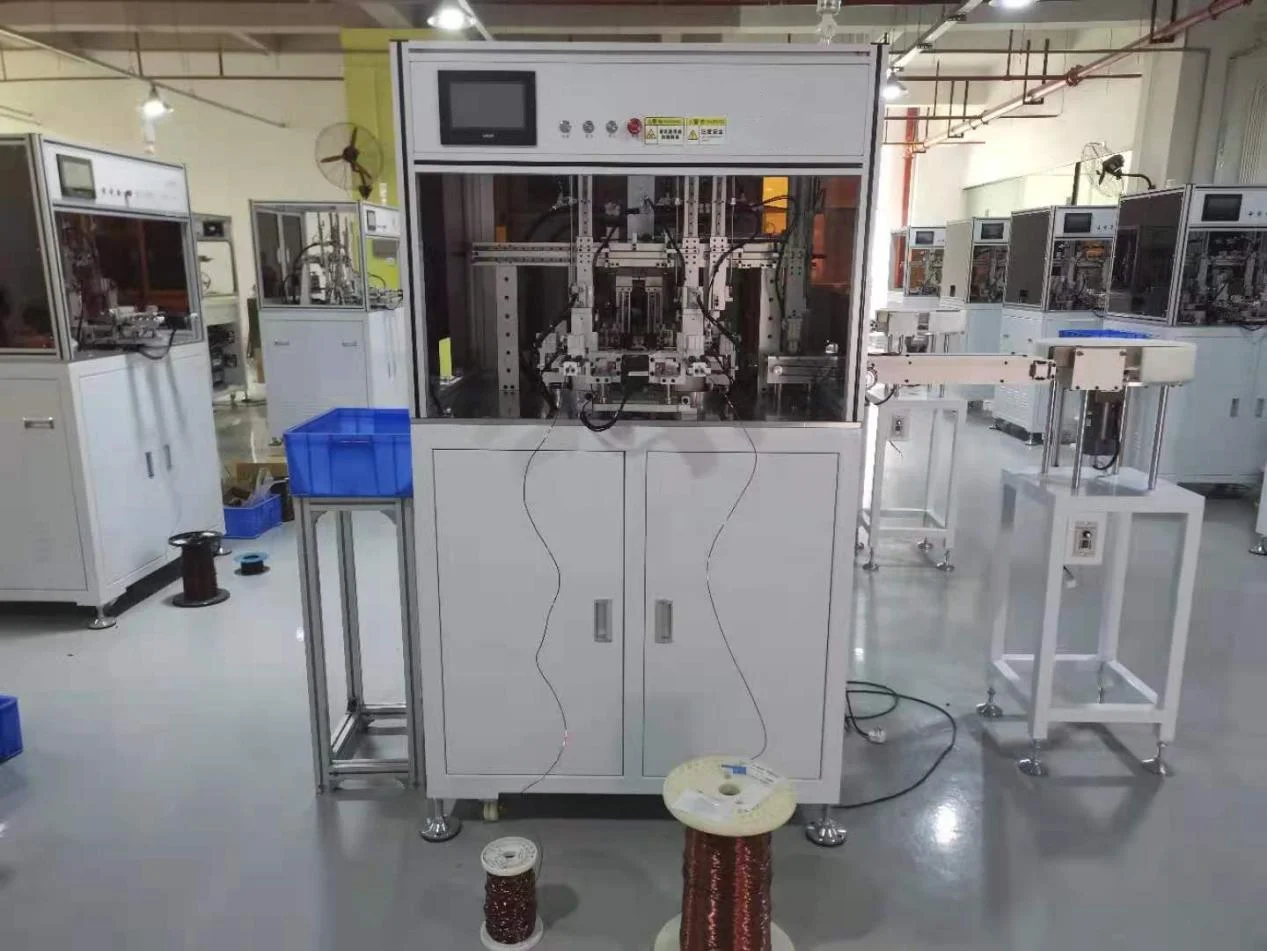

GWAT-80HM Full Automatic Hook Winding Mchine
No. | Item category | Value |
1 | Device model: | GWAT-80HM |
2 | Compatible magnetic ring (outer diameter): | 31mm-55mm |
3 | Adapt to wire diameter: | 1.0mm-2.5mm |
4 | Unilateral line length: | 1200mm |
5 | Winding speed: | Depends on wire diameter and number of turns |
6 | Apply winding method: | 3-phase common mode (conventional winding method) |
7 | power supply: | 220V/50Hz single-phase AC |
8 | Gas source: | 0.55Mpa-0.60Mpa |
9 | noise: | 60 decibels |
10 | equipment power: | 3KW |
11 | Equipment energy consumption: | 0.55°/hour |
12 | Use ambient temperature: | -5°C~40°C |
13 | Relative humidity: | (40～90)%RH |
14 | Comprehensive pass rate: | 99.5% |
15 | Dimensions: | Length 3050mm (including belt line) * width 1150mm * height 2050mm |
16 | Total Weight: | 800KG |
OPERATING PROCEDURES：
The machine operation process:

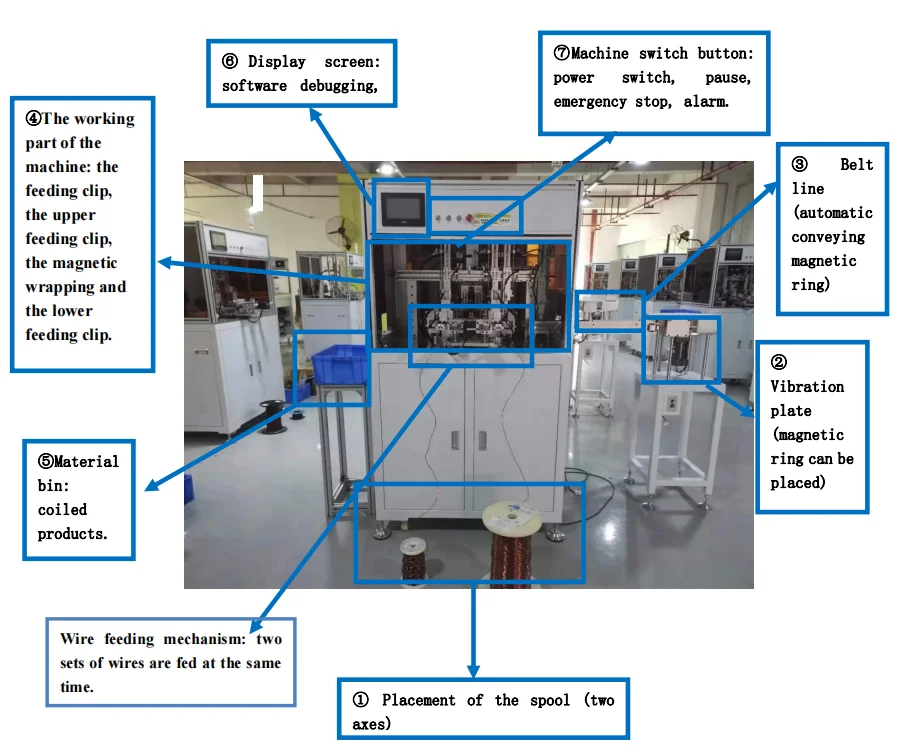

Automatic feeding of the vibrating disc → Automatic winding of the machine → Alarm for material shortage → Completion of winding work → Automatic unloading
ADVANTAGE:
1. The use value of the machine: the machine is fully automatic operation, automatic loading and unloading, alarm for lack of material, one person can monitor multiple machines, work 24 hours, and the production efficiency can reach more than 3 times that of manual winding. (It only takes 25 seconds for a total of 30 laps on both sides to produce a finished product).
2. Specifications: The outer diameter of the magnetic ring is 18mm-45mm, the minimum inner diameter is 10mm-15mm (the inner diameter of the finished product is not smaller than the plastic hook needle), the copper wire specification is 0.5mm2.0mm, and the copper wire length is 100mm-120mm.
ADVANTAGE:
1. The use value of the machine: the machine is fully automatic operation, automatic loading and unloading, alarm for lack of material, one person can monitor multiple machines, work 24 hours, and the production efficiency can reach more than 3 times that of manual winding. (It only takes 25 seconds for a total of 30 laps on both sides to produce a finished product).
2. Specifications: The outer diameter of the magnetic ring is 18mm-45mm, the minimum inner diameter is 10mm-15mm (the inner diameter of the finished product is not smaller than the plastic hook needle), the copper wire specification is 0.5mm2.0mm, and the copper wire length is 100mm-120mm.
