Single Span PE Film Galvanized Steel Frame Greenhouse Agriculture Plastic Greenhouse Tunnel Type
- Category: >>>
- Supplier: Jiangsu Oone International Trading Co. Ltd.
Share on (1601082994711):
Product Overview
Description
Product Description

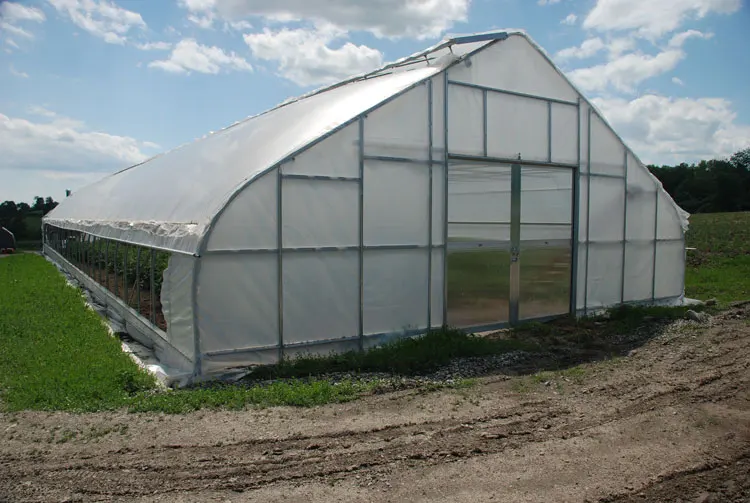

Tunnel Greenhouse Abstract
1. tunnel greenhouse is simple greenhouse, usually which is coverd thin film 0.08-0.15mm
2. the tunnel greenhouse structure frame is usually arc pipe
3. usually the tunnel greenhouse is single span or single tunnel
4. usually it only has steel structure and film cover, but some people also install sunshade system, warming system, cooling
system, irrigation system, lighting system and control system
1. tunnel greenhouse is simple greenhouse, usually which is coverd thin film 0.08-0.15mm
2. the tunnel greenhouse structure frame is usually arc pipe
3. usually the tunnel greenhouse is single span or single tunnel
4. usually it only has steel structure and film cover, but some people also install sunshade system, warming system, cooling
system, irrigation system, lighting system and control system
Product Paramenters
Basic Parameters | Wind Load | 0.5KN/m² | ||
Snow Load | 0.3KN/m² | |||
Greenhouse constant load | 15kg/m² | |||
Maximum drainage capacity | 140mm/h | |||
Specifications | Span Width | 6.0 - 12.0m or customized | ||
Pillar Spacing | 4.0m, 4.5m, 6.0m, 8.0m | |||
Gutter Height | 3.0m - 5.0m or customized | |||
Frame Structure | Hot dip galvanized steel tubes | |||
Covering Materials | PE/PO/PEP film/Polycarbonate sheet/Glass | |||
Optional systems | Ventilation System | Shading System | ||
Cooling System | Heating System | |||
Irrigation & Fertilizing System | Benches System | |||
Hydroponics System | Lighting system | |||
Automatic Control System | Other customized equipment | |||
We will make design proposal as customers specific requirements. | ||||
Greenhouse System
Ventilation system ( roof and side windows)
Side Cooling-Pad Ventilation System
Shading System
Circulating Fan
Control system
Supplymentary Lighting system
.
Seedbed ( movable, fixed )
Mobile sprinkler irrigation system
Irrigation system
No. | Items | Description | Including or not |
1 | Steel structure | Hot-galvanized steel pipe | Yes |
2 | Roof cover | Film 8dmm/10dmm/12dmm | Choose according to the clients requirements |
3 | Wall | You can build or not | Build by yourself. |
4 | Outer sunshade system | Funshade net has different light transmission,75%,50% | Choose according to the clients requirements |
5 | Outer warming curtain | We put thermal insulation curtain to keep inside warm in winter. | Choose according to the clients requirements |
6 | Inner warming system | We install a thin film inside the greenhouse. it can keep warm inside in night and in winter. | Choose according to the clients requirements |
7 | Cooling system | It consists of cooling fans and cooling pad | Choose according to the clients requirements |
8 | Heating system | 1.Boiler warming: boiler and water warming blower.the bolier type has gas boiler, coal boiler, oil boiler and biofule boiler, and gas/oil boiler | Choose according to the clients requirements |
2. Electric warming: only has electric warming blower | |||
9 | Ventilation system | Side windows and cooling fans | Choose according to the clients requirements |
10 | Irrigation and fertilization system | Drop irrigation or spray irrigation | Choose according to the clients requirements |
11 | Control system | Control cabinet | Choose according to the clients requirements |
12 | Light compensating system | Usually choose high - pressure sodium lamp, or you can use LED lamp | Choose according to the clients requirements |
13 | Seadling bed system | Used for seadling | Choose according to the clients requirements |
14 | Soilless culture | We can supply the equipment for soiless culture | Choose according to the clients requirements |

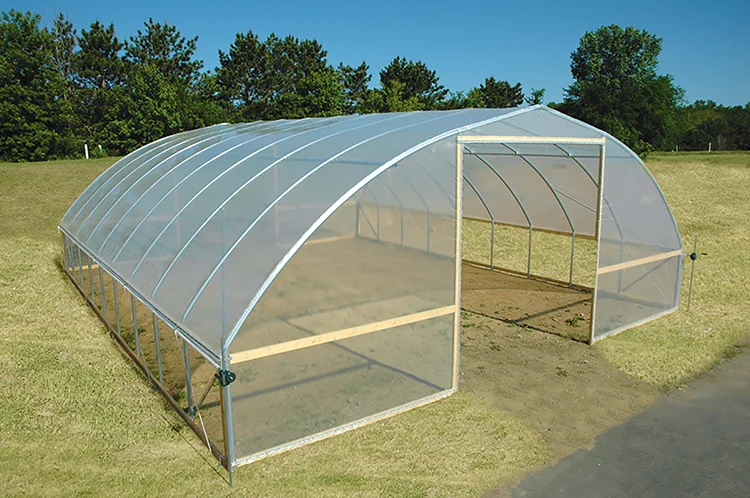

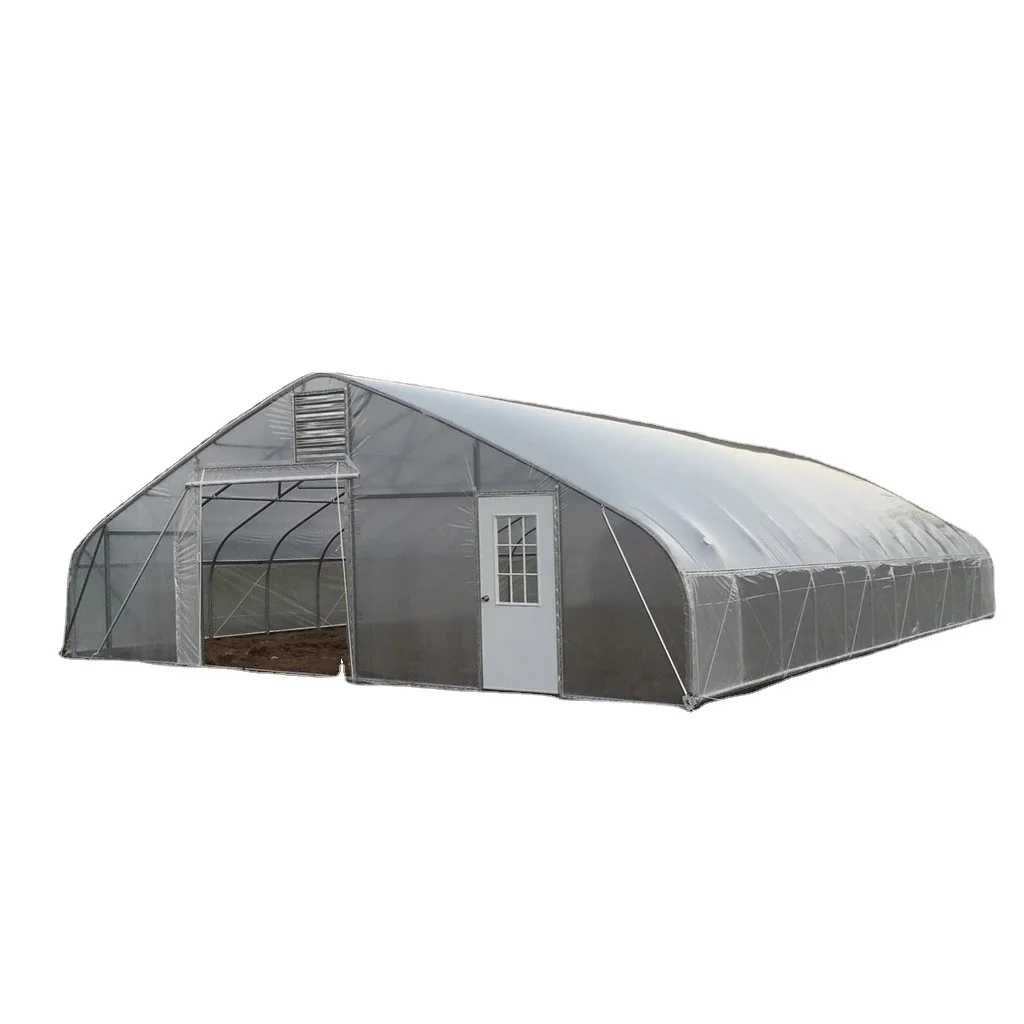

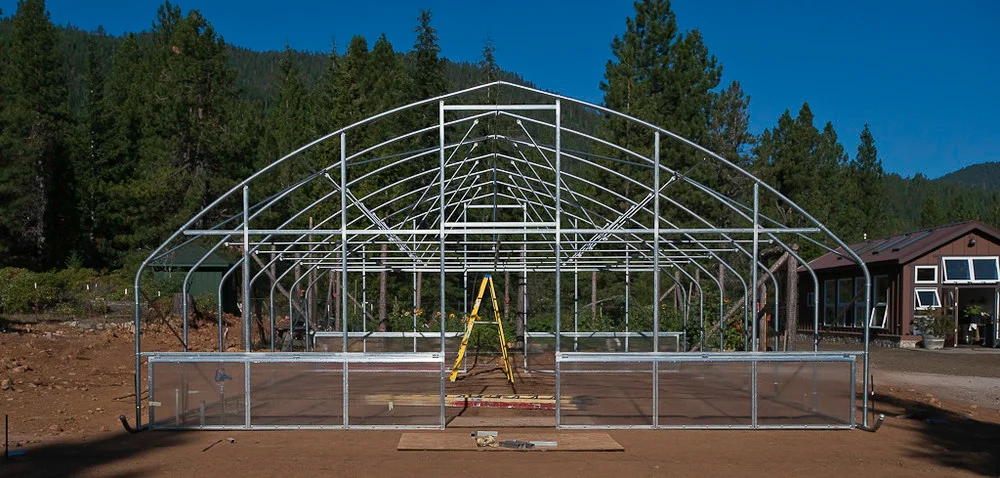

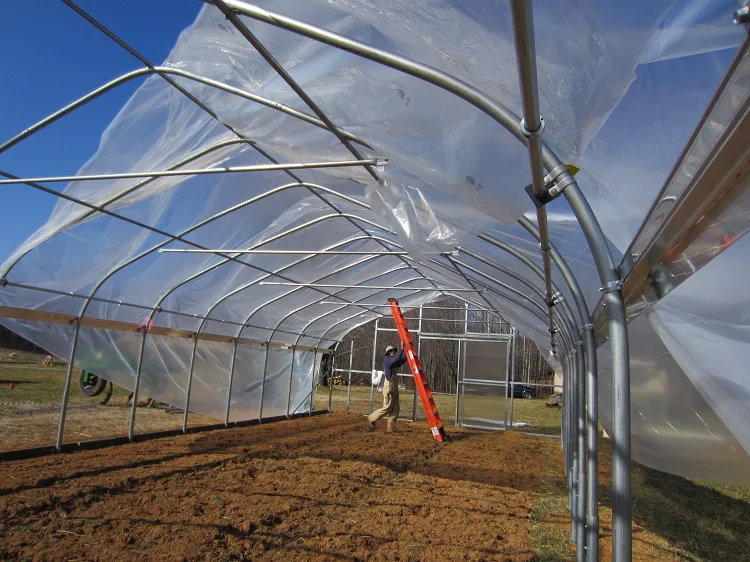

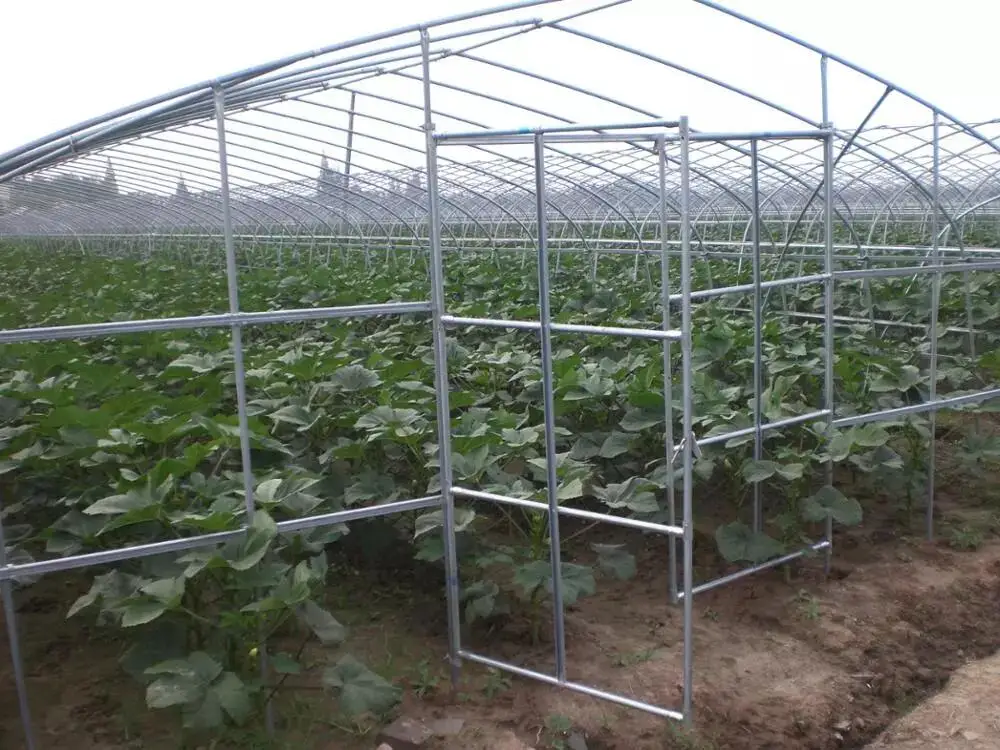

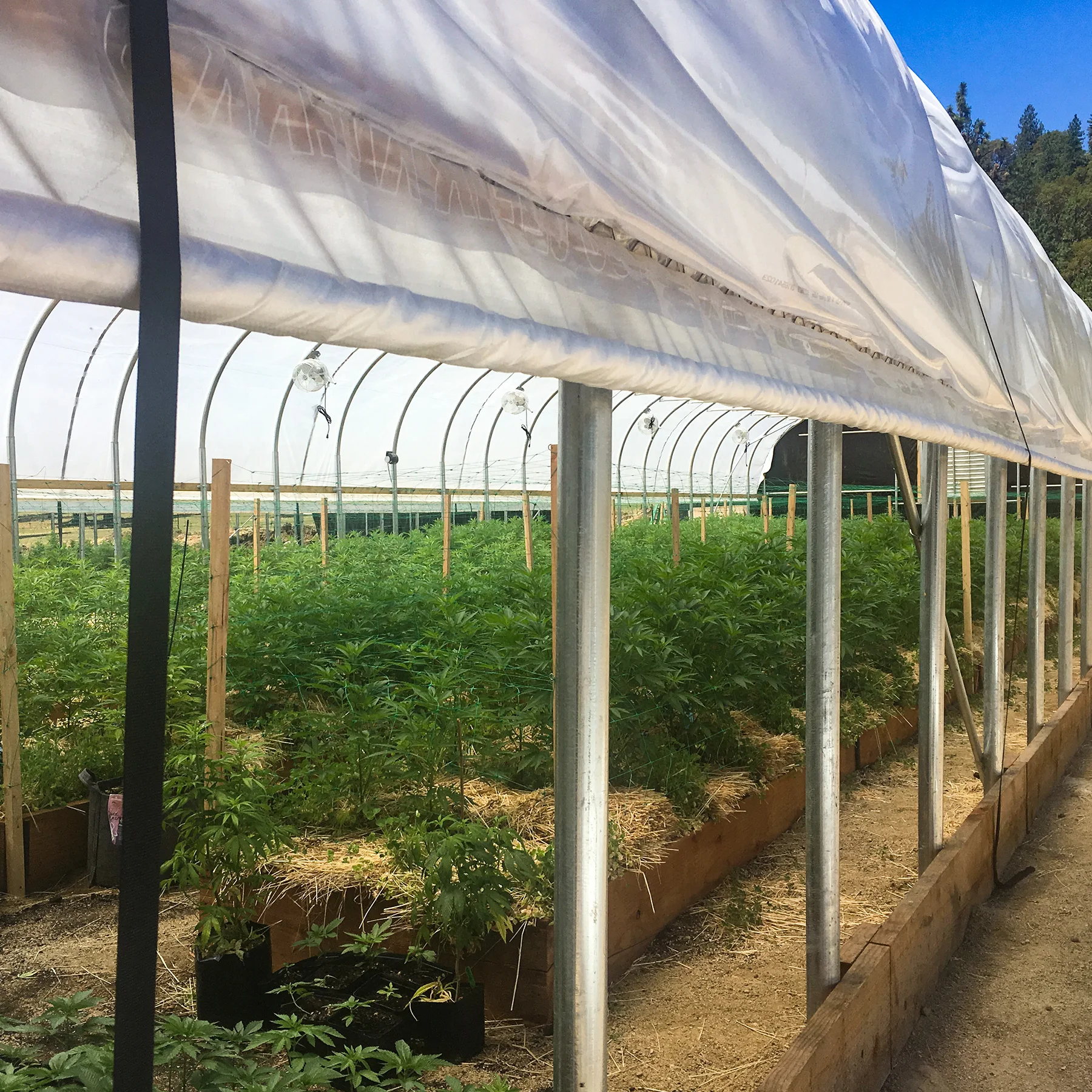

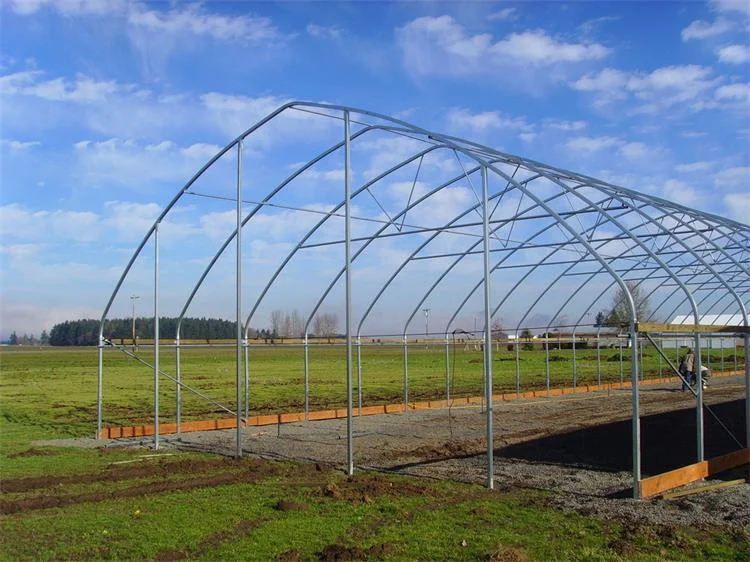

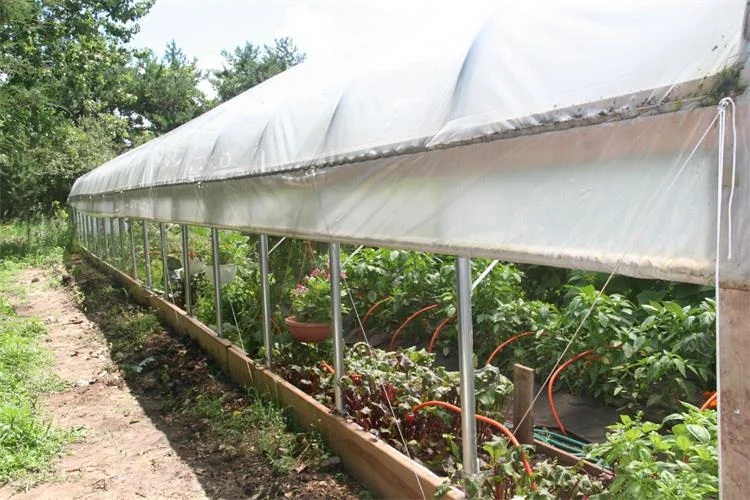

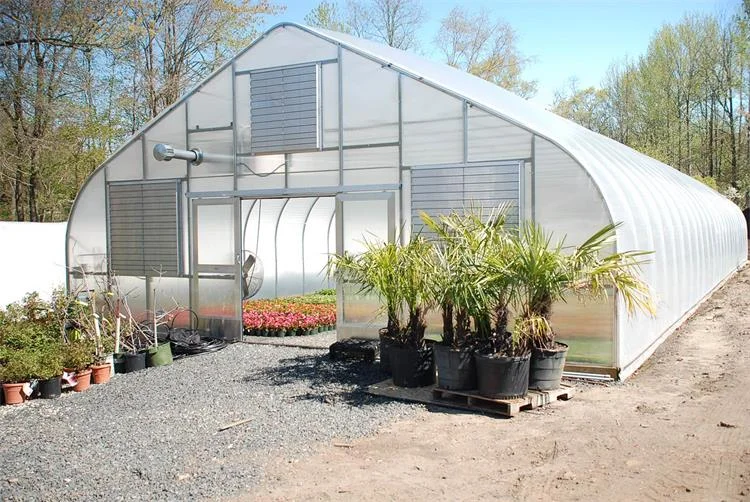

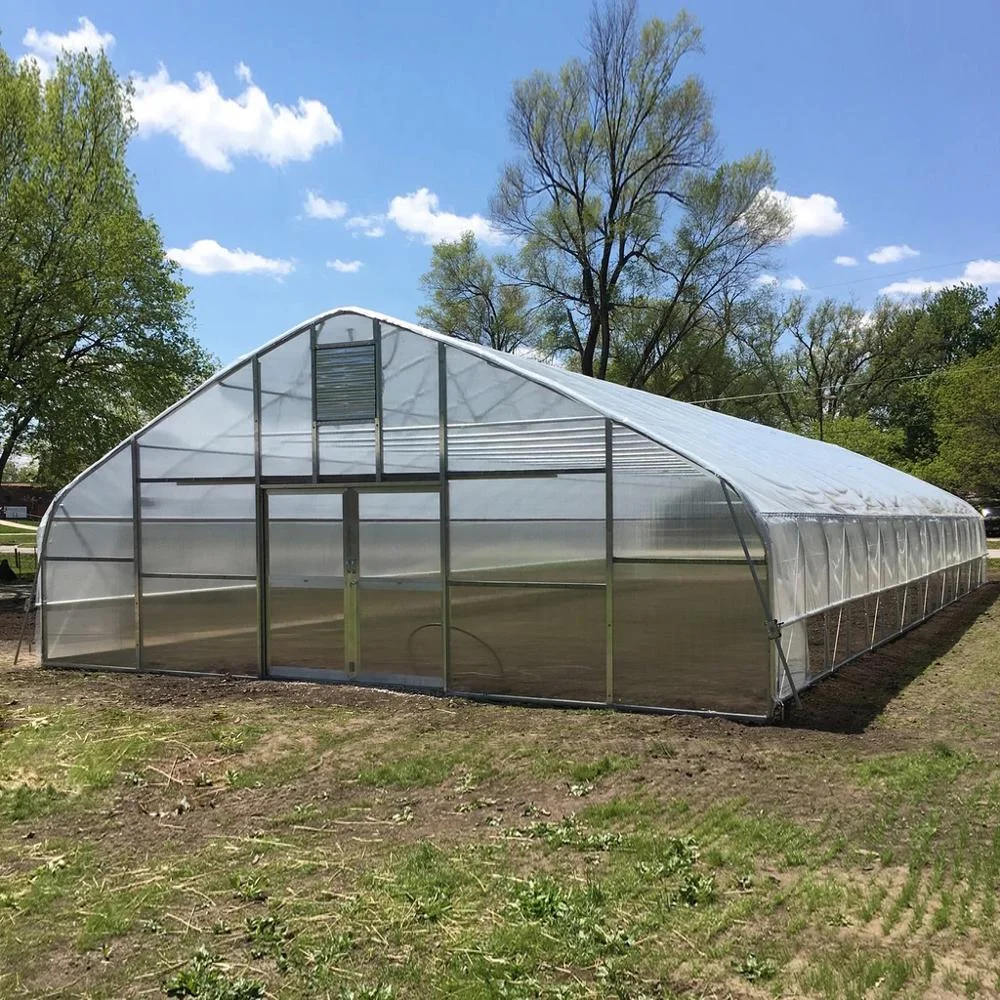

Product Show
Why Choose Us
Certifications
Exhibition
FAQ
1.Are you factory?
Yes, we are manufacturer for types of greenhouse for 20 years. With professional engineer team for suitable
greenhouse design, complete after-sale service and factory direct sale for you now!
greenhouse design, complete after-sale service and factory direct sale for you now!
2.How to ensure the quality of the products ?
A.We are golden supplier of alibaba for 8 years and engaged in exporting for 10 years, goods had been exported to more than 40 countries and got good reputation in worldwide market. Long-term and mutual-benefits cooperation is our management philosophy.
B.To confirm every batch goods is in good condition, our inspection department will examine and test the products thoroughly and carefully before delivery. Necessary test and certification can be obtained as your request.
B.To confirm every batch goods is in good condition, our inspection department will examine and test the products thoroughly and carefully before delivery. Necessary test and certification can be obtained as your request.
3.How about packaging and shipping?
A.The goods is marked according to their name and parts, accessories into carton, pipes by bundle, all goods load into the
container directly(suggest you buy whole container so that we can drag the container to our factory and load well all goods).
B.Shipping port is usually Qingdao/shanghai, we can arrange the shipping for you after getting your compensation.
A.The goods is marked according to their name and parts, accessories into carton, pipes by bundle, all goods load into the
container directly(suggest you buy whole container so that we can drag the container to our factory and load well all goods).
B.Shipping port is usually Qingdao/shanghai, we can arrange the shipping for you after getting your compensation.
4.Is there any instruction or manual guide installation?
A.Yes, English manual with drawing and video shipped together with goods for guiding
your installation easily.
your installation easily.
B.Engineer overseas guiding installation is available.
C.Your worker or engineer is welcomed to ourfactory for learning your greenhouse installation.
