Hot Selling API 6A Fmc Fig Model 100 To Fig 2202 Hammered Union
- Category: >>>
- Supplier: Qingdao Jincheng International Business Co. Ltd.
Share on (1601083071059):

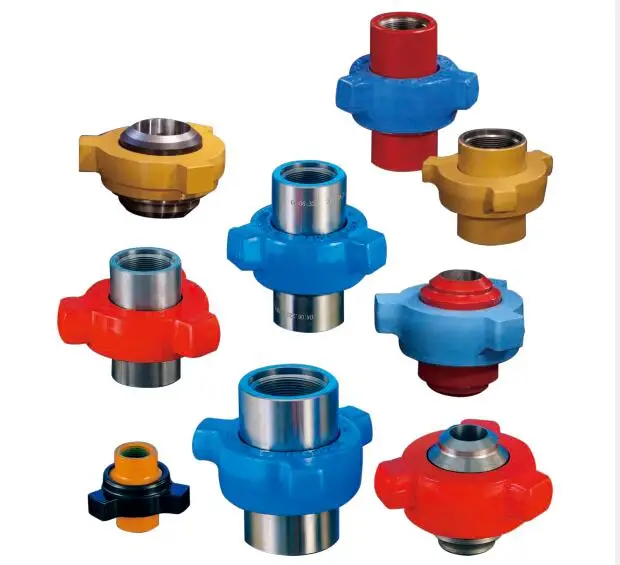

Product Overview
Description
Product Overview

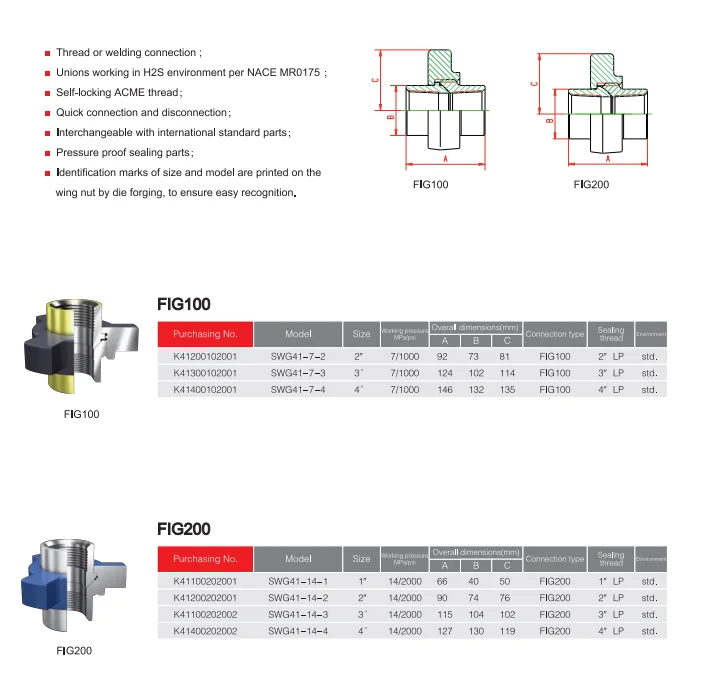

FIG100
1,000 psi cold working pressure
Recommended service
Manifold and line connections
A: precision sealing surface binding guarantees reliable pressure seal.
B: recommended the use of low pressure manifold and the work pressure is not more than 1000Psi.
C: type 100 Hammer Union, 1000PSI NSCWP, the test pressure 1500PSI black nuts, yellow parts
Recommended service
Manifold and line connections
A: precision sealing surface binding guarantees reliable pressure seal.
B: recommended the use of low pressure manifold and the work pressure is not more than 1000Psi.
C: type 100 Hammer Union, 1000PSI NSCWP, the test pressure 1500PSI black nuts, yellow parts
FIG200
2,000 psi cold working pressure
Recommended service
General service manifolds and lines
A: the union of compact structure, widely used in low-pressure well pipeline, can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 200 Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI blue nut, grey parts
Recommended service
General service manifolds and lines
A: the union of compact structure, widely used in low-pressure well pipeline, can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 200 Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI blue nut, grey parts
FIG206
2,000 psi cold working pressure
Recommended service
Manifold line connections, suction service, and corrosion service
A: the union of compact structure, widely used in low-pressure well pipeline,
can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 2006Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI
blue nut, grey parts.
Recommended service
Manifold line connections, suction service, and corrosion service
A: the union of compact structure, widely used in low-pressure well pipeline,
can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 2006Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI
blue nut, grey parts.
FIG207
2,000 psi cold working pressure
Recommended service
Seals manifold connections and protects union threads
Features
* Parts interchangeable with Figures 200 and 206
* O-ring on blanking cap ensures a leak-free seal
* Cap can be tapped for pressure gauge
* Available in butt-weld
Recommended service
Seals manifold connections and protects union threads
Features
* Parts interchangeable with Figures 200 and 206
* O-ring on blanking cap ensures a leak-free seal
* Cap can be tapped for pressure gauge
* Available in butt-weld
FIG400
4,000 psi cold working pressure through 4-inch sizes; 2,500 psi cold working pressure, 5 through 12-inch sizes
Recommended service
Manifold line connections, pump suction, and mud services
See specifications tables (pages WU1A to WU6A) for sizes, dimensions,
weights, materials, and part numbers
Recommended service
Manifold line connections, pump suction, and mud services
See specifications tables (pages WU1A to WU6A) for sizes, dimensions,
weights, materials, and part numbers
FIG602
6,000 psi cold working pressure
Recommended service
Manifold line connections and mud service
Recommended service
Manifold line connections and mud service
Flow turbulence
* Butt-weld available
* Available for sour gas service at 6,000 psi cold working pressure
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
* Butt-weld available
* Available for sour gas service at 6,000 psi cold working pressure
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
FIG1002
10,000 psi cold working pressure through 4-inch sizes; 7,500 psi cold working pressure, 5 and 6-inch sizes
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
FIG1003
Misaligning union
10,000 psi cold working pressure, 2 and 3-inch sizes; 7,500 psi cold working pressure, 4 and 5-inch sizes
Recommended service
For high-pressure connections where lines cannot be aligned
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
10,000 psi cold working pressure, 2 and 3-inch sizes; 7,500 psi cold working pressure, 4 and 5-inch sizes
Recommended service
For high-pressure connections where lines cannot be aligned
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
FIG1502
15,000 psi cold working pressure
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
See specifications tables (pages WU1A to WU6A) for sizes, dimensions,
weights, materials, and part numbers
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
See specifications tables (pages WU1A to WU6A) for sizes, dimensions,
weights, materials, and part numbers

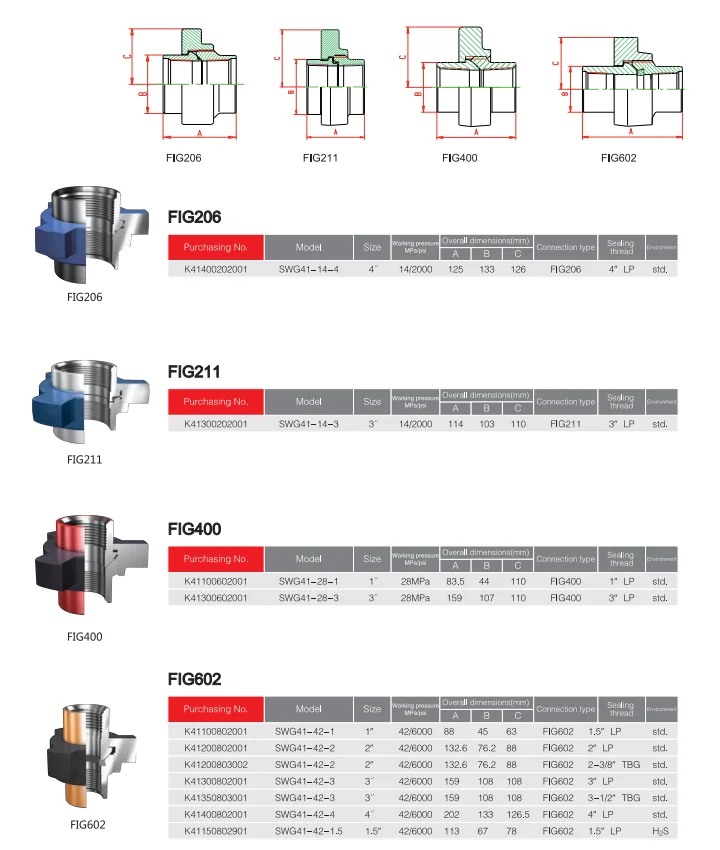

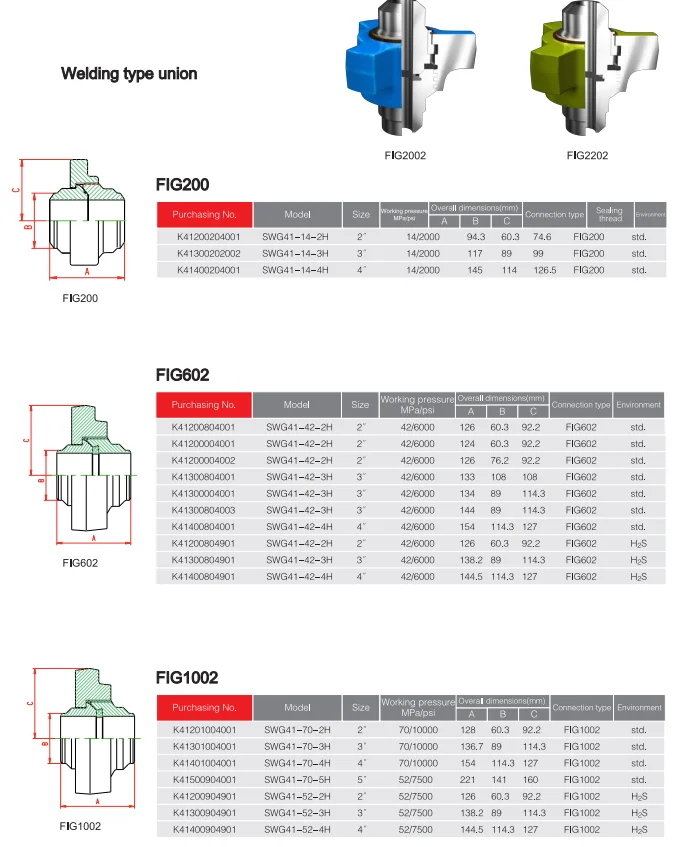

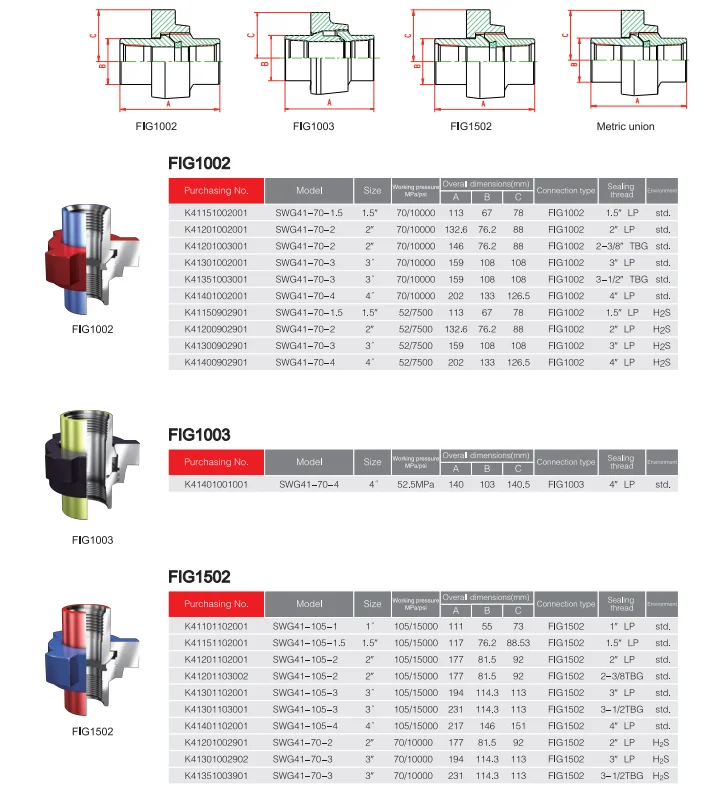

Specifications

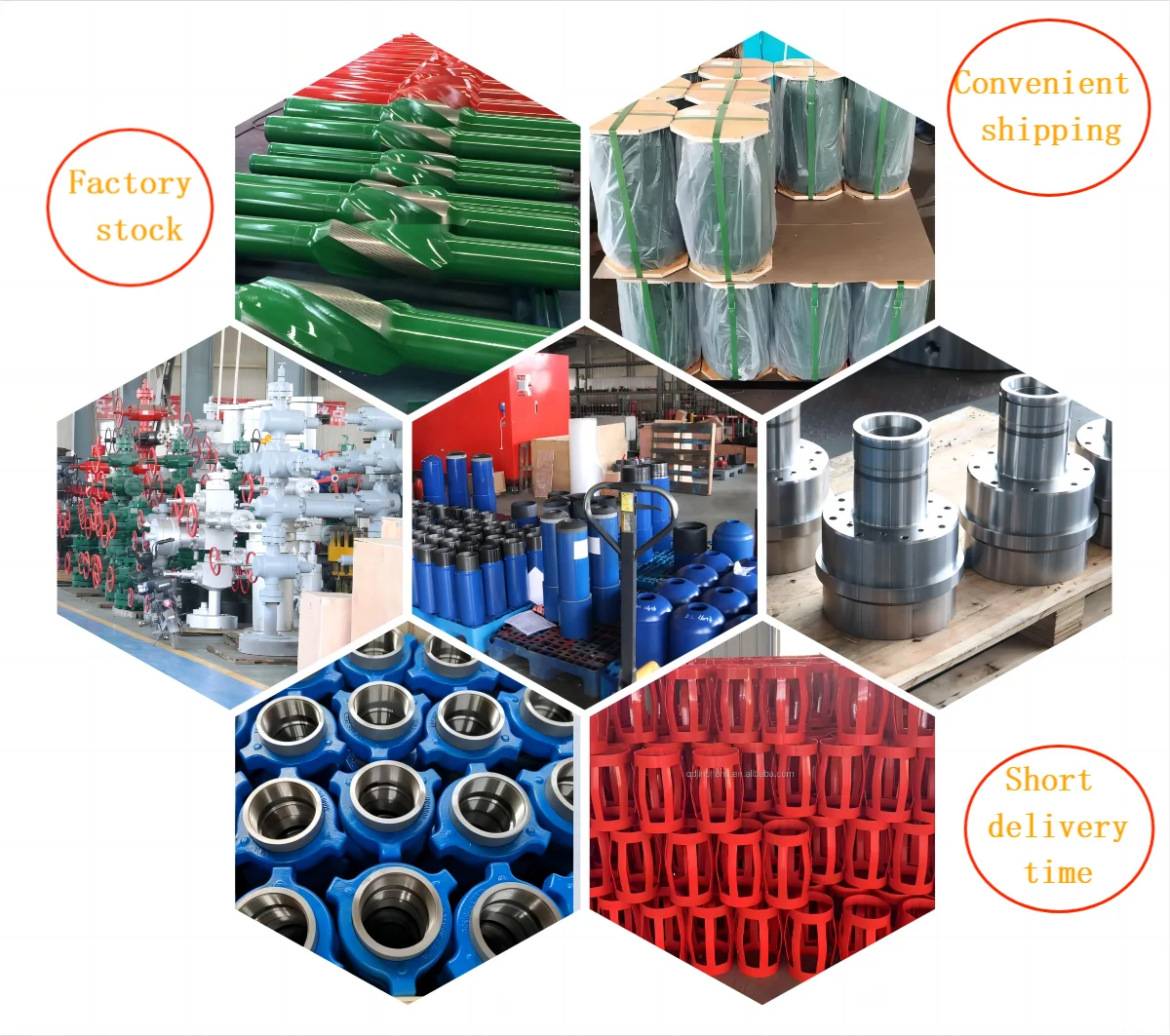

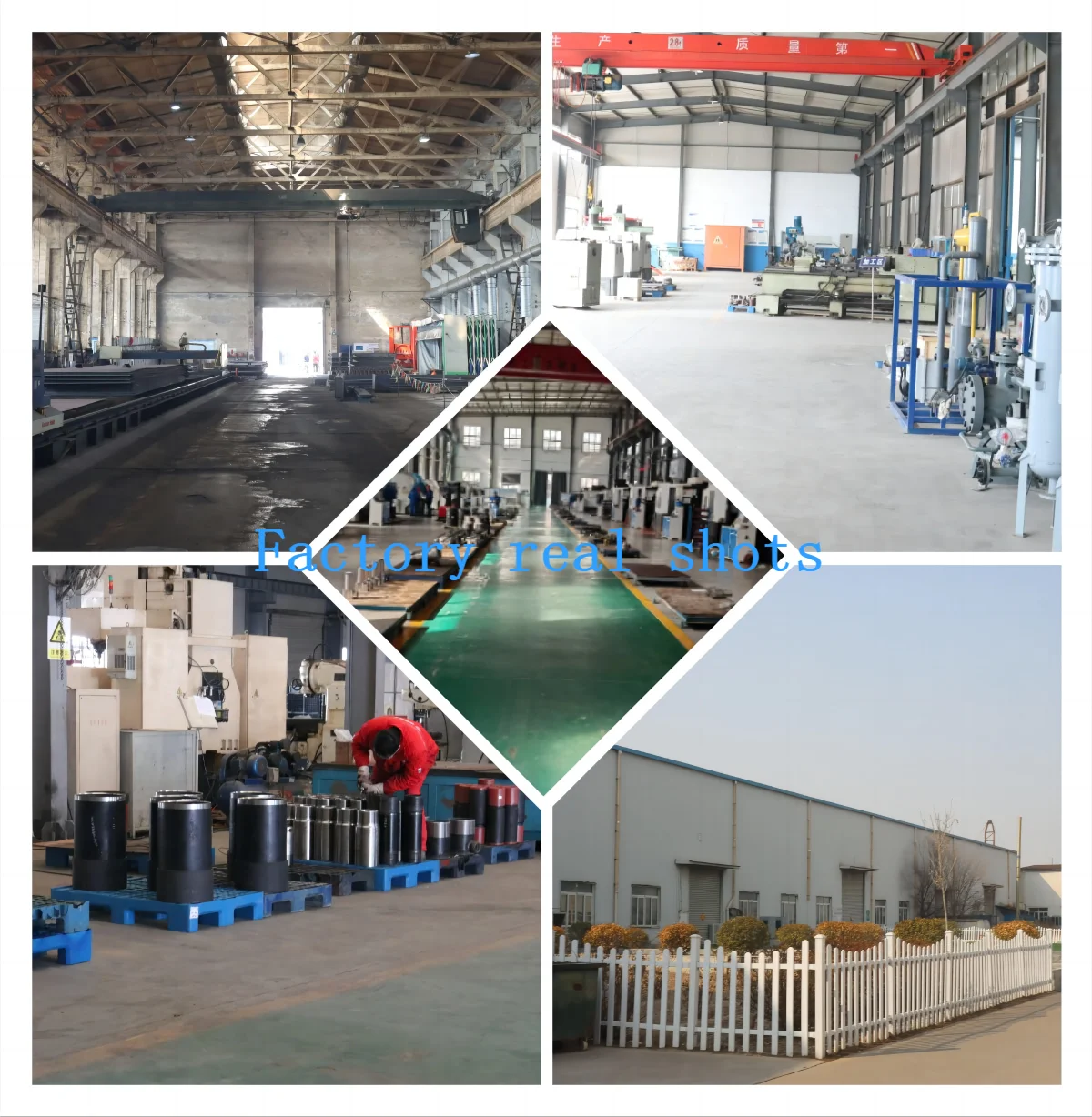

Our Factory
Our Services
1.We are first class supplier in vendor list of CNPC.
2.We have 18 years of experience in research,development and manufacturing of oil drilling equipment and drilling string.
3.All products & equipment manufactured as per international standard ISO 9001 and API standard.
2.We have 18 years of experience in research,development and manufacturing of oil drilling equipment and drilling string.
3.All products & equipment manufactured as per international standard ISO 9001 and API standard.

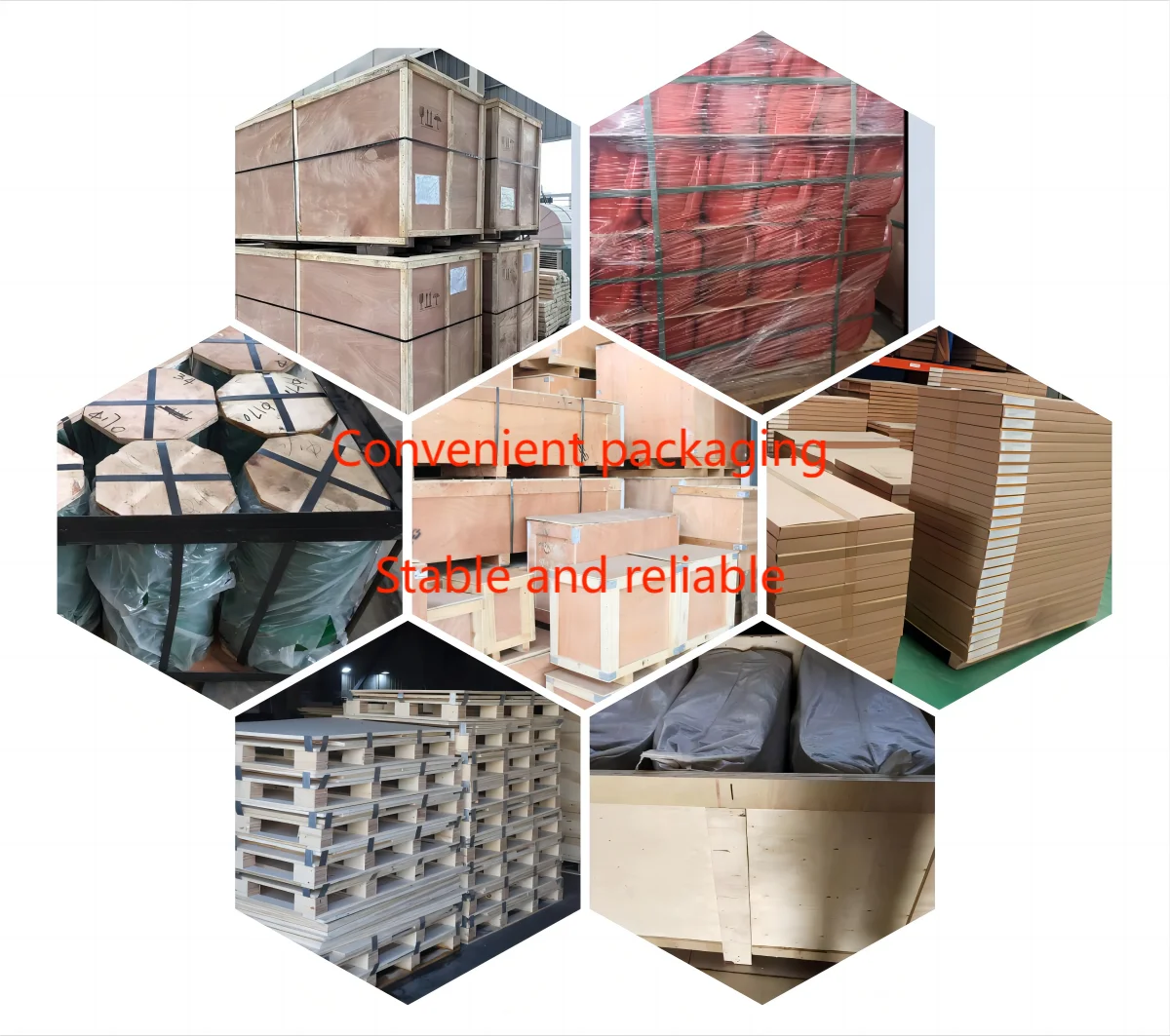

Packaging & Shipping
As per standard export package
FAQ
1.How long is your delivery time?
It is according to the model and quantity. Generally it is 30 days if the machines are in stock.
2.What is terms of payment?
Normally we can accept T/T or L/C basis.
3. What is the Shipping way?
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. How about the Quality Control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
It is according to the model and quantity. Generally it is 30 days if the machines are in stock.
2.What is terms of payment?
Normally we can accept T/T or L/C basis.
3. What is the Shipping way?
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air
Bulk order: we suggest by air or by sea.
4. How about the Quality Control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
