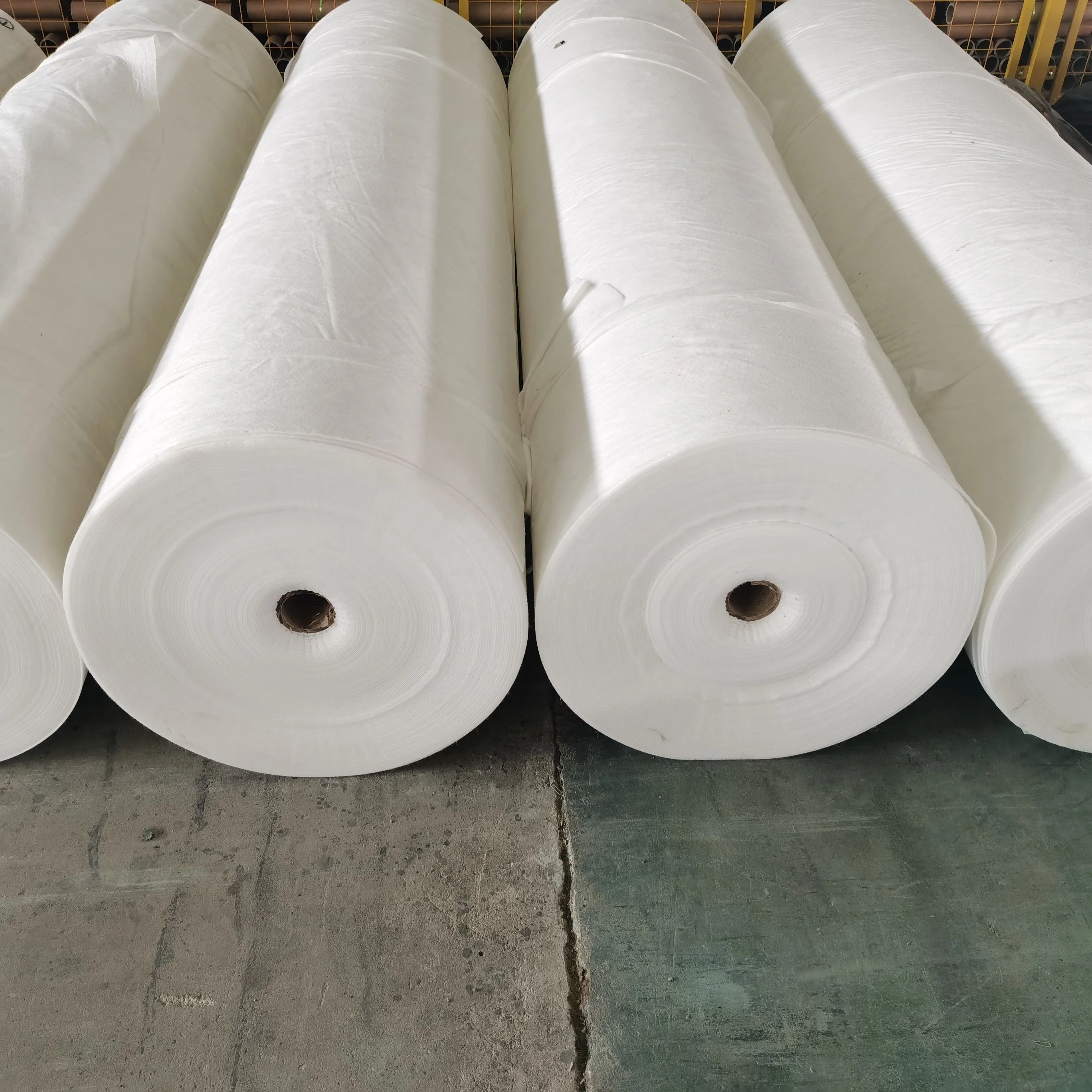

Top Quality Factory Direct Sale Geotextile Non Woven Fabric outside and HDPE geomembrane inside for landfill
Top Quality Factory Direct Sale Geotextile Non Woven Fabric outside and HDPE geomembrane inside for landfill
Top Quality Factory Direct Sale Geotextile Non Woven Fabric outside and HDPE geomembrane inside for landfill
Top Quality Factory Direct Sale Geotextile Non Woven Fabric outside and HDPE geomembrane inside for landfill
Top Quality Factory Direct Sale Geotextile Non Woven Fabric outside and HDPE geomembrane inside for landfill
Top Quality Factory Direct Sale Geotextile Non Woven Fabric outside and HDPE geomembrane inside for landfill
Top Quality Factory Direct Sale Geotextile Non Woven Fabric outside and HDPE geomembrane inside for landfill

Top Quality Factory Direct Sale Geotextile Non Woven Fabric outside and HDPE geomembrane inside for landfill

Share on (1601083092729):


Price:$0.13 - $0.97

Quantity:


Product Overview

Description



Products Description


PET geotextile is made up of filament or short fibers through different equipment and process arrangement reticulate, after acupuncture, etc to give different fiber interwoven together, mutual tangles fixation make normalized fabric, fabric soft,
rich,full-bodied, softness, to meet the needs of different thickness.
Non-woven geotextile clearance, has the very good fabric has good adhesion, because the fiber has a certain ability to resist tearing soft deformation at the same time has the very good adaptability, have good surface drainage capability at the same time, the soft surface more clearance has good friction coefficient increases the adhesion ability of soil particles and so on, can prevent the fine particles by preventing the loss of the particulate matter also ruled out excess water, soft surface has good protection.

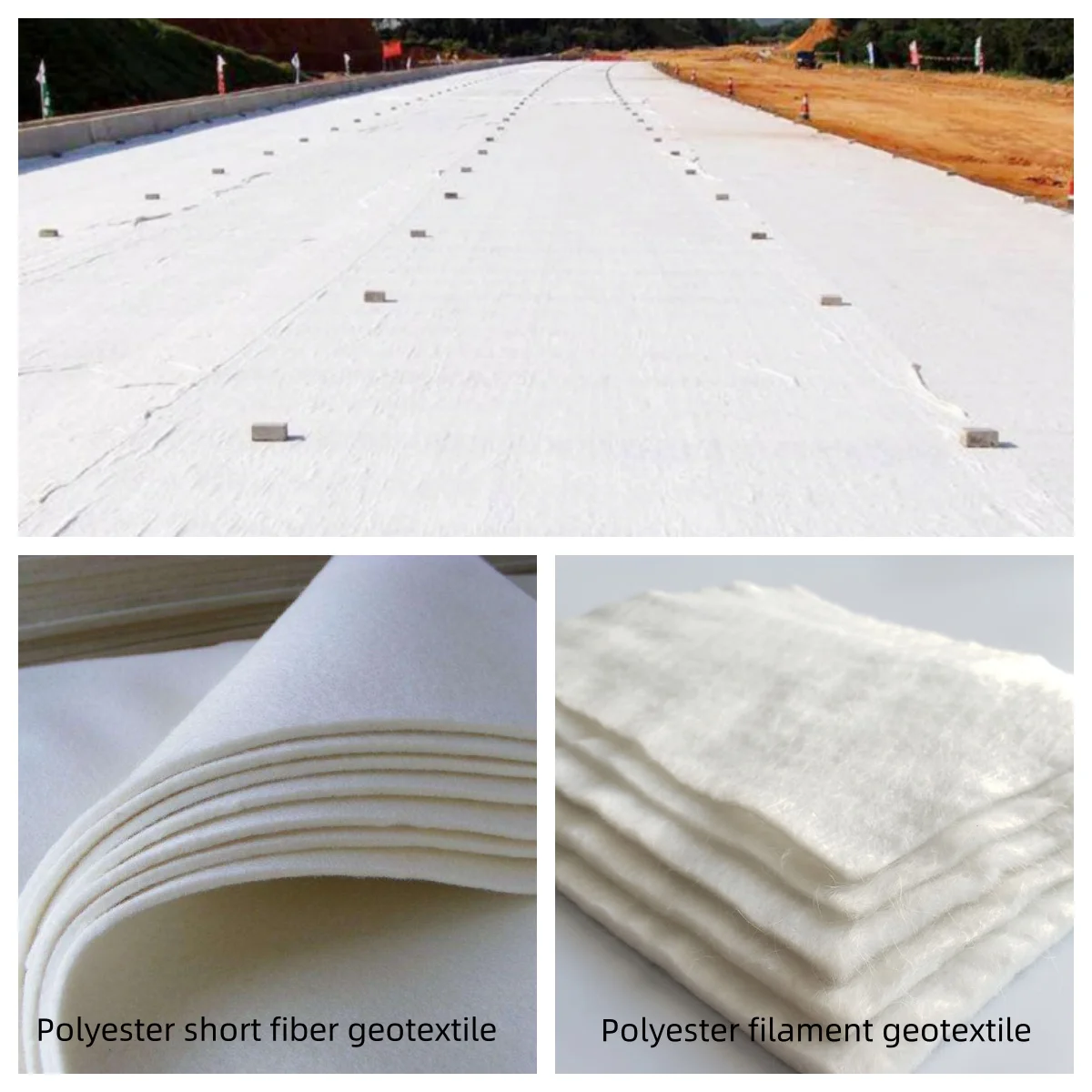

According to use Fibre length is divided into filament non-woven geotextile or short silk non-woven geotextile.They can have very good filtering, isolation and the effect such as reinforcement, protection, is a kind of widely used geosynthetic materials.

Composite geotextile

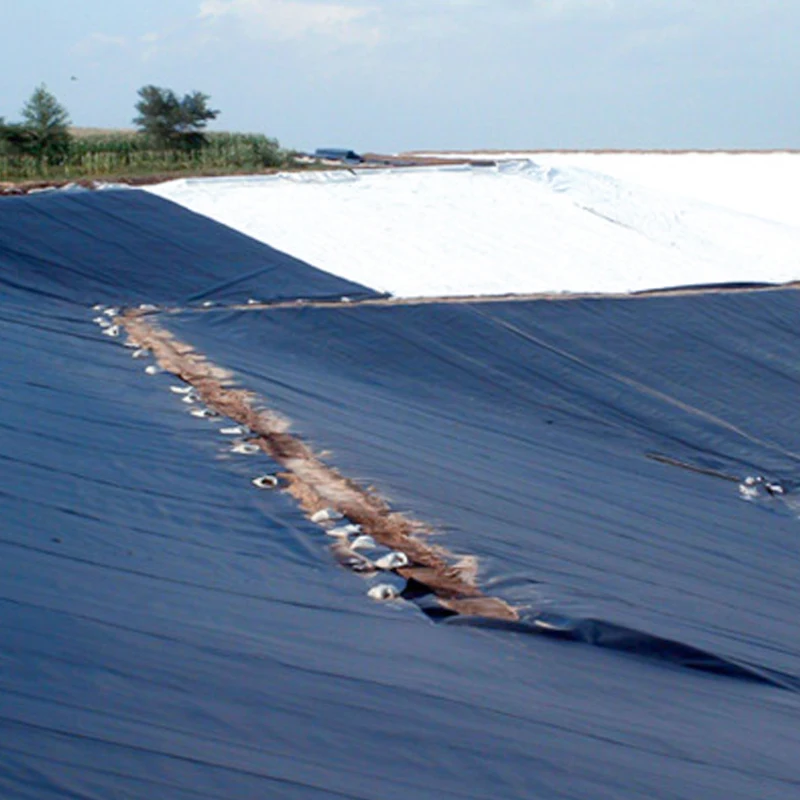

Composite geotextile is compounded with geotextiles and geomembrane impermeable material, it is mainly used for seepage control,
composite geotextile is divided into a cloth a film, a film and two cloth wide 4 to 6m, weight of 200--1500 g/m², tensile and
tearing resistance, bursting physical mechanics performance index is high, can satisfy the water conservancy, municipal,
construction, transportation, subway, tunnel and other civil engineering needs. Due to the choice of the polymer material and
production process to add the aging proof agent, it can be used in the abnormal temperature conditions.

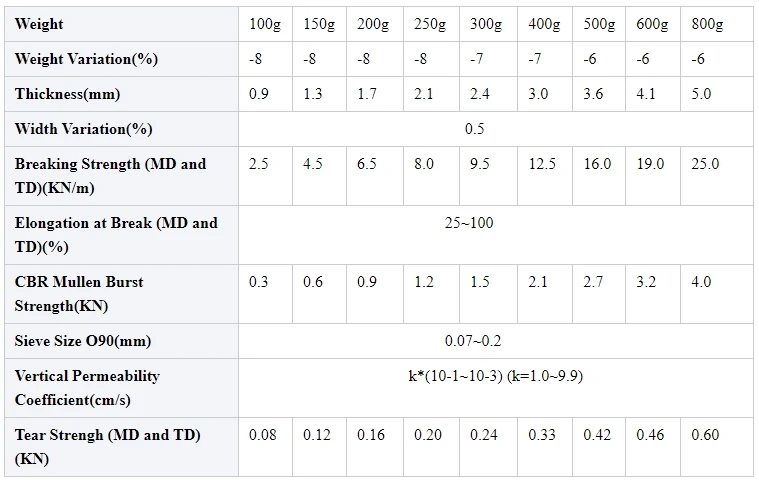

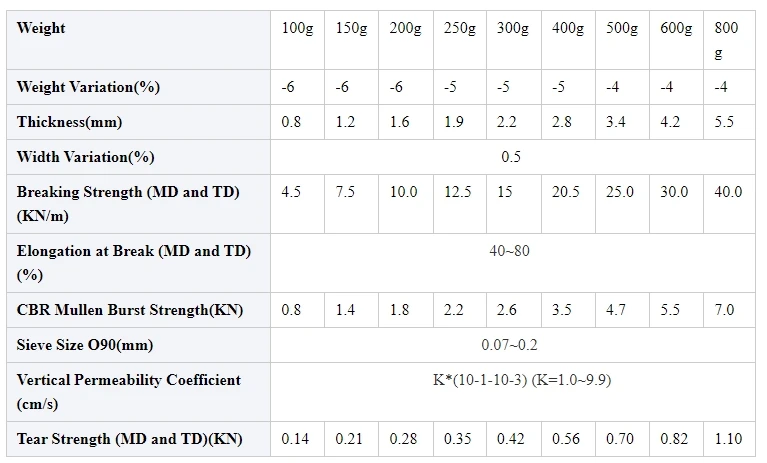

Polyester filament geotextile parameters




Polyester staple fiber geotextile parameters




Composite geotextile Technical Parameter


Item
Specification
Breaking strength≥ (KN/m)
5
7.5
10
12
14
16
18
20
Elongation at break(%)
30-100
CBR puncture resistance≥ (KN)
1.1
1.5
1.9
2.2
2.5
2.8
3.0
3.2
Tearing strength≥(KN)
0.15
0.25
0.32
0.4
0.48
0.56
0.62
0.70
Peel strength≥(N/cm)
6
Vertical permeability coefficient(cm/s)

According to contract


Item
Thickness of geomembrance/mm
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
Hydrostatic pressure resistance/(MPa)
Geotextile-geomembrance
0.4
0.5
0.6
0.8
1.0
1.2
1.4
1.6
Geotextile-geomembrance-geotextile
0.5
0.6
0.8
1.0
1.2
1.4
1.6
1.8




Composite Geomembrane Features
Specification:
(1). 80g/m2~1000g/m2
(2). 1m~8m in roll width, the length as client's request.
(3). Color: white , black , green or at your request
1.With Anti-seepage & drainage, lsolation and reinforcement.
2.Good environmental stress cracking resistance and excellent chemical resistance.
3.Wide temperature range for application and longer life.
4.Puncture-resisting,aging resisting,ultra-violet radiation,oil and salt,and corrosion resistance.
5.Complete width and thickness specification,low cost and easy installation.

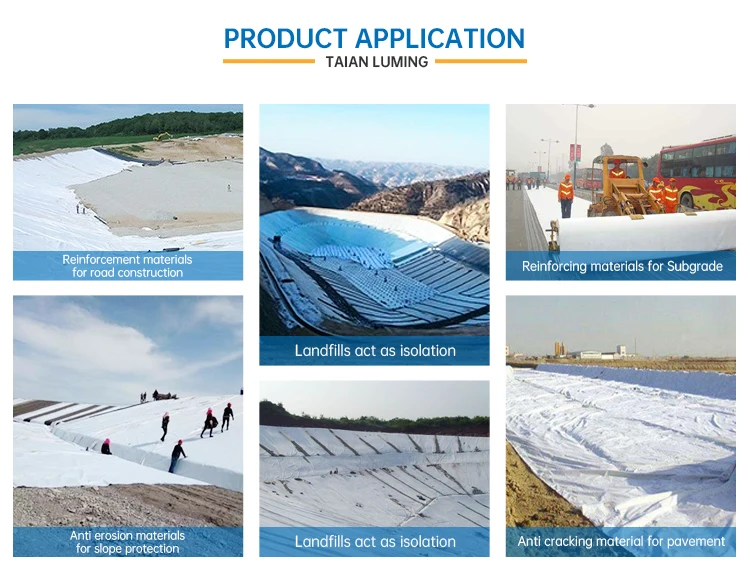

It can meet the needs of anti-seepage, isolation, reinforcement, crack prevention and reinforcement in water conservancy,
municipal engineering, construction, transportation, subway, tunnel and engineering construction. It is commonly used for seepage

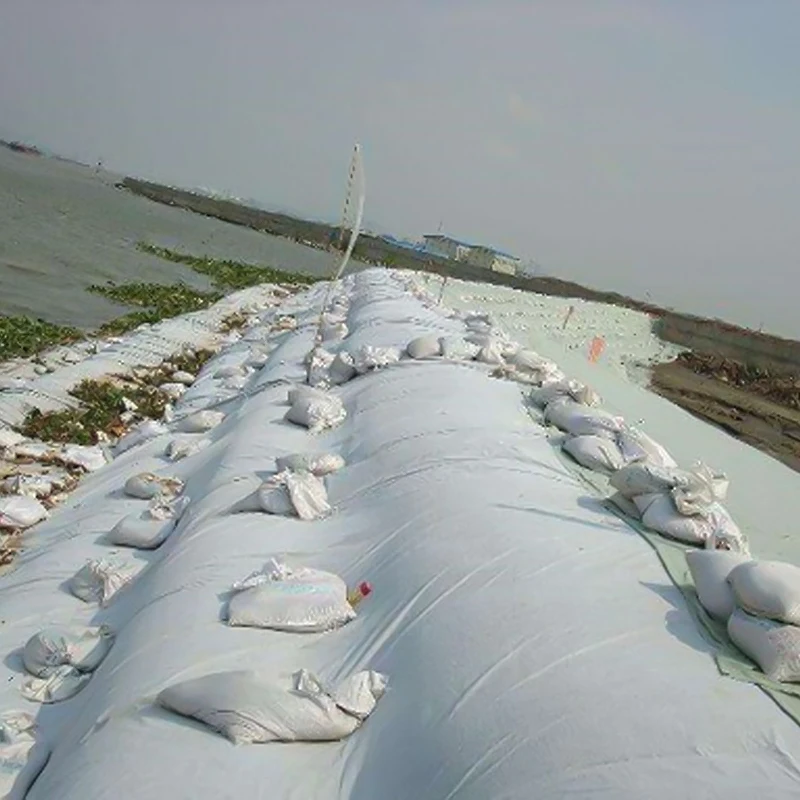

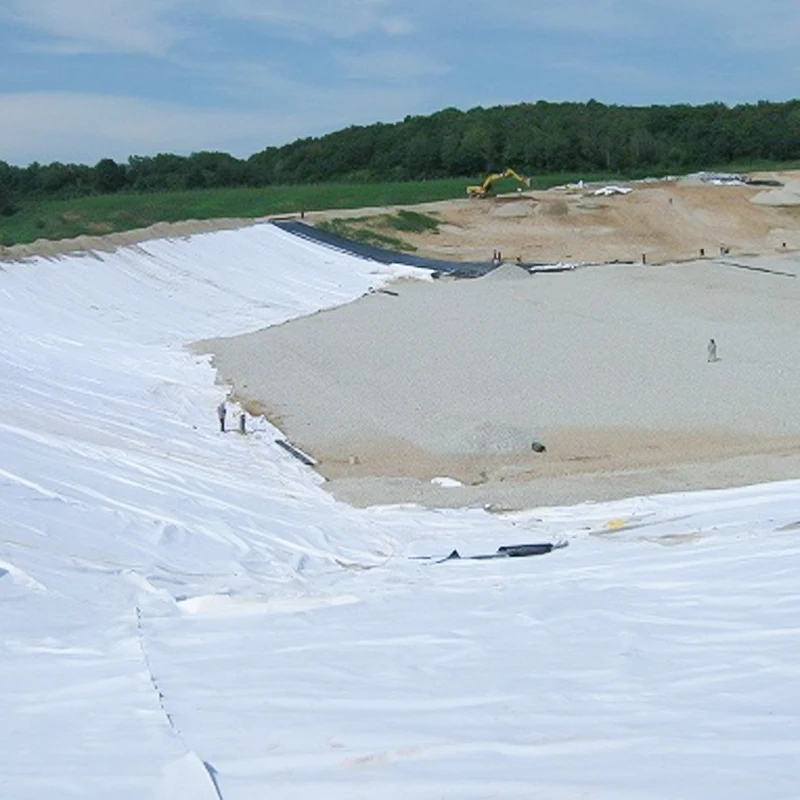

control of dykes and drainage ditches, as well as anti pollution treatment of waste dump.
