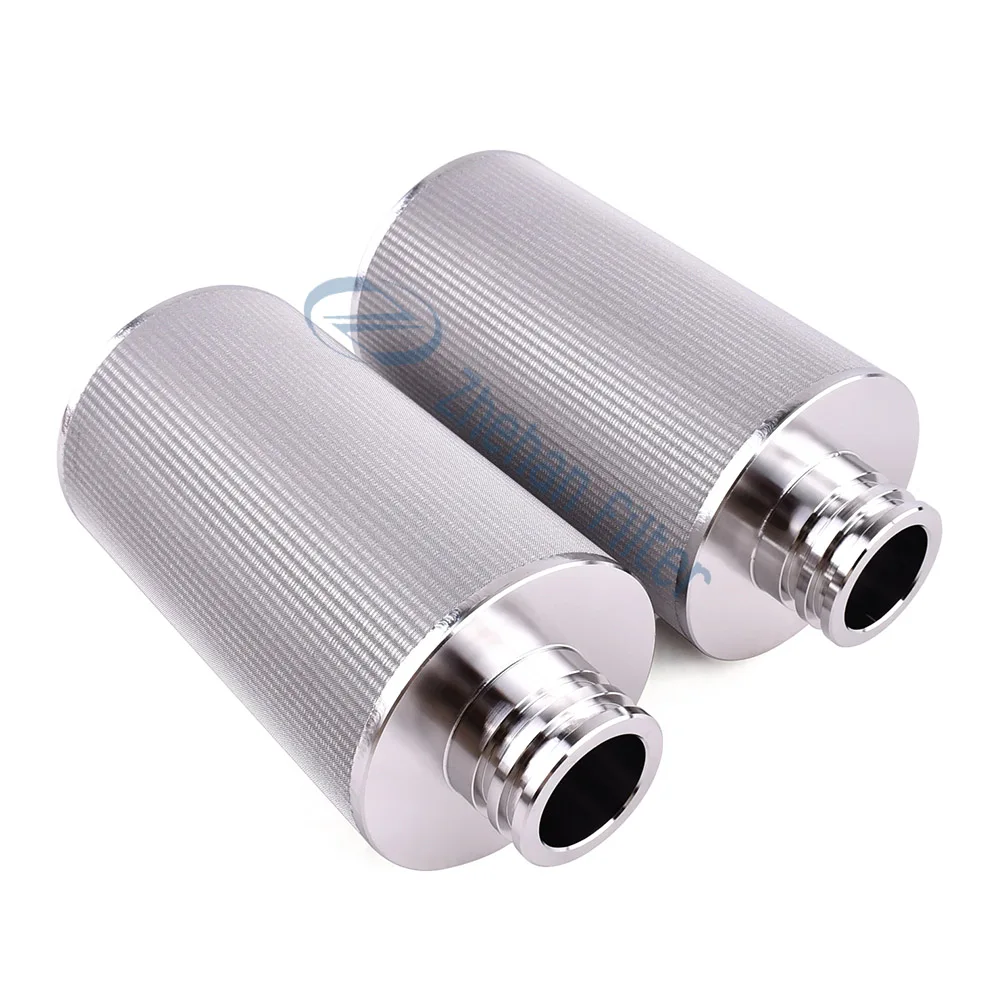

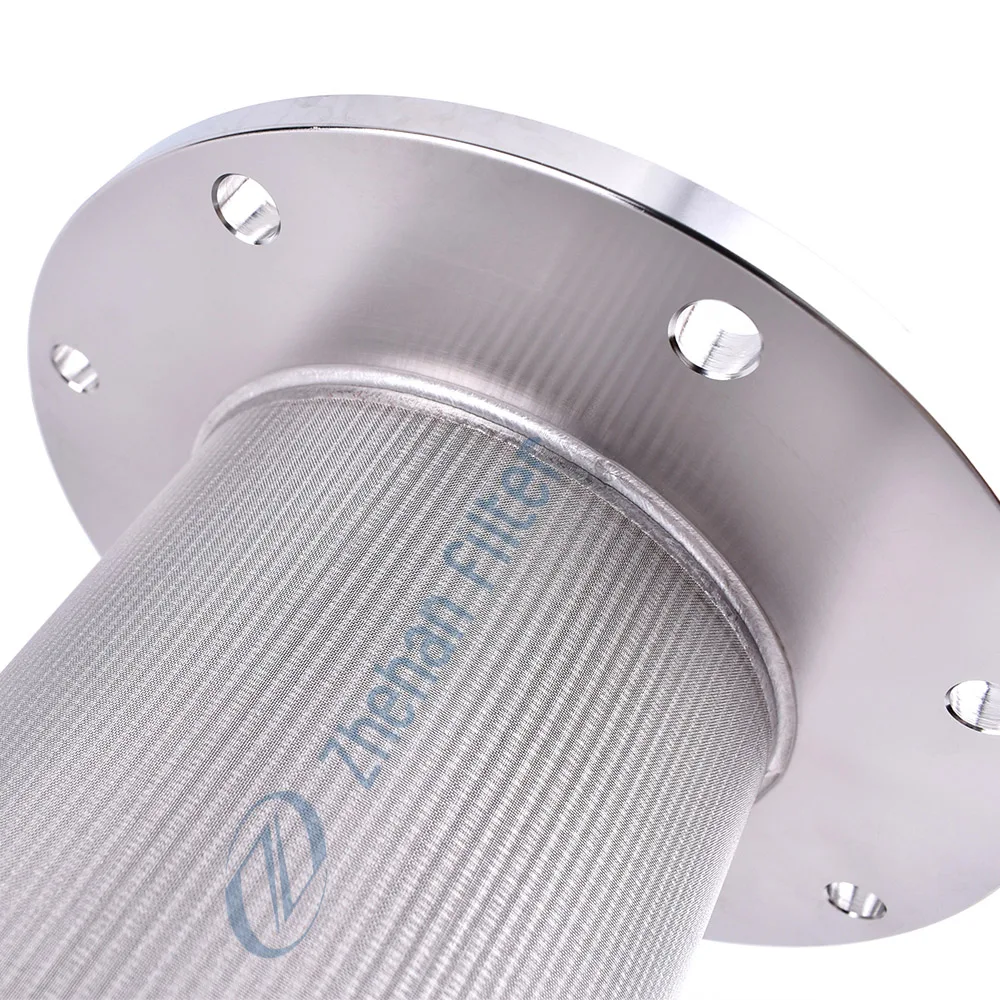

304 316 sintered stainless steel metal brass porous sinter filter quick loading filter mesh for dust free feeding station
- Category: >>>
- Supplier: Anping Zhehan Filter Equipment Co. Ltd.
Share on (1601083137464):
Product Overview
Description
304 316 sintered stainless steel metal brass porous sinter filter for powder | ||||||||
5-layer laminate is a standard and widely used type of sintered wire mesh.
A single layer of fine woven wire mesh is placed between two layers of coarser square woven meshes, which is then added to two layers of a strong Dutch woven wire mesh and sintered together to form a strong plate.
The single layer of fine woven wire mesh acts as the filtration layer, and can be customized to meet a particular filtration rating, ranging from 1 micron to 200 microns.
It has excellent mechanical strength, high corrosion resistance, high-temperature resistance, and easy to clean.
A single layer of fine woven wire mesh is placed between two layers of coarser square woven meshes, which is then added to two layers of a strong Dutch woven wire mesh and sintered together to form a strong plate.
The single layer of fine woven wire mesh acts as the filtration layer, and can be customized to meet a particular filtration rating, ranging from 1 micron to 200 microns.
It has excellent mechanical strength, high corrosion resistance, high-temperature resistance, and easy to clean.
Stainless steel sintering mesh data sheet | ||||||||||||||||||
Nominal accuracy (micron) | Protective layer | Control layer | Dispersing Layer | Reinforcement Mesh | Reinforcement Mesh | Thickness | Permeabillity | Pressure | Weight | |||||||||
1 | 200 | 400x3000 | 200 | 12x64 | 64x12 | 1.7 | 1.81 | 360~600 | About 40% | |||||||||
2 | 100 | 325x2300 | 100 | 12x64 | 64x12 | 1.7 | 2.35 | 300~590 | ||||||||||
5 | 100 | 200x1400 | 100 | 12x64 | 64x12 | 1.7 | 2.42 | 260~550 | ||||||||||
10 | 100 | 165x1400 | 100 | 12x64 | 64x12 | 1.7 | 3.00 | 220~500 | ||||||||||
15 | 100 | 165x1200 | 100 | 12x64 | 64x12 | 1.7 | 3.41 | 200~480 | ||||||||||
20 | 100 | 165x800 | 100 | 12x64 | 64x12 | 1.7 | 4.50 | 170~450 | ||||||||||
25 | 100 | 165x600 | 100 | 12x64 | 64x12 | 1.7 | 6.12 | 150~410 | ||||||||||
30 | 100 | 400 | 100 | 12x64 | 64x12 | 1.7 | 6.86 | 120~390 | ||||||||||
40 | 100 | 325 | 100 | 12x64 | 64x12 | 1.7 | 7.10 | 100~350 | ||||||||||
50 | 100 | 250 | 100 | 12x64 | 64x12 | 1.7 | 8.41 | 90~300 | ||||||||||
75 | 100 | 200 | 100 | 12x64 | 64x12 | 1.7 | 8.7 | 80~250 | ||||||||||
100 | 100 | 150 | 100 | 12x64 | 64x12 | 1.7 | 9.10 | 70~190 | ||||||||||
150 | 50+100+50+30+30+100+50 | 2.0 | 25.00 | 50~150 | ||||||||||||||
200 | 40+80+40+20+40+80+40 | 2.0 | 26.00 | 50~150 | ||||||||||||||
Advandge

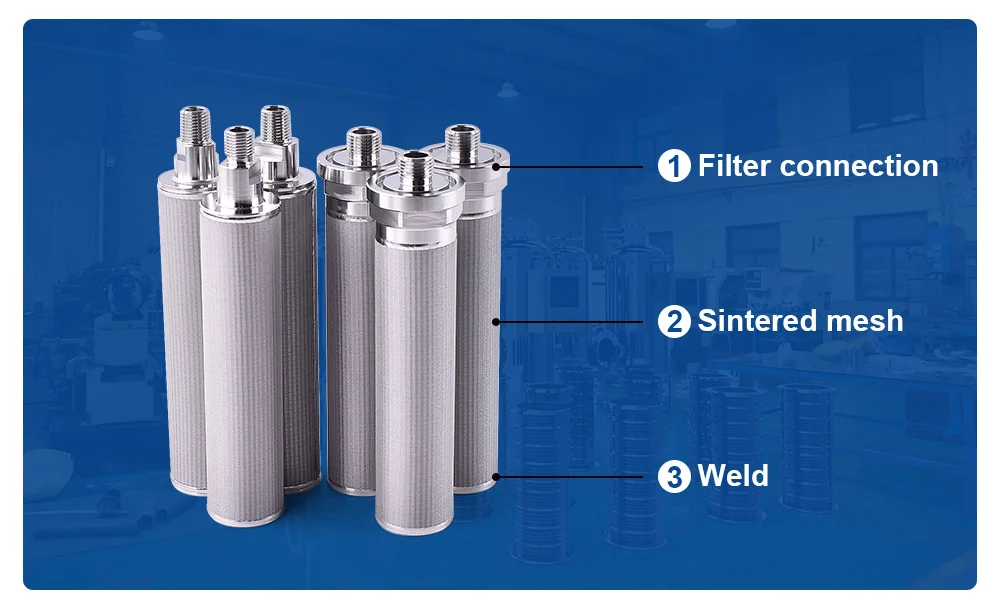

Zhehan stainless steel sintered mesh filter element

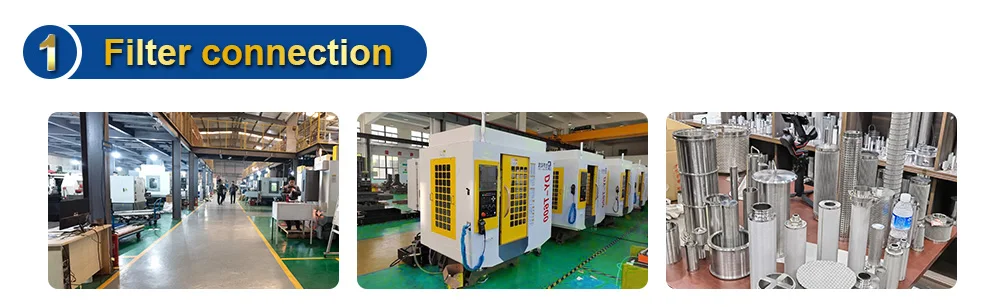

After 16 years of development, zhehan filter has trained a large number of technical workers, and has advanced CNC lathes, which can process various types of stainless steel connection. For example, Standard interface (222/220/226), Fast interface link, Thread connection, Flange connection, Rod connection, Special custom links.

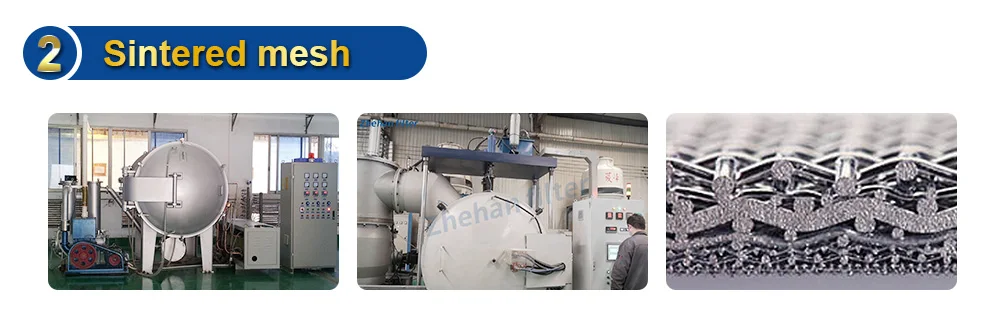

Sintered filter cartridge is made of sintered mesh, is 5 layers mesh stacked by different constructures, and the wires is cross welded while sintering process.lt is also called diffusion welding. lt occures under super high temperature and high pressure and vacumm. our factory has the most advanced equipment, super big sintering furnace. We flat the 5 layers mesh and stacked in different structures. and put intothe furnace together, sintered 24 hours to 36 hours for one batch.
So our sintered mesh filter can keep good machenical performance and not deform when the machine meets water hammer effect.
So our sintered mesh filter can keep good machenical performance and not deform when the machine meets water hammer effect.

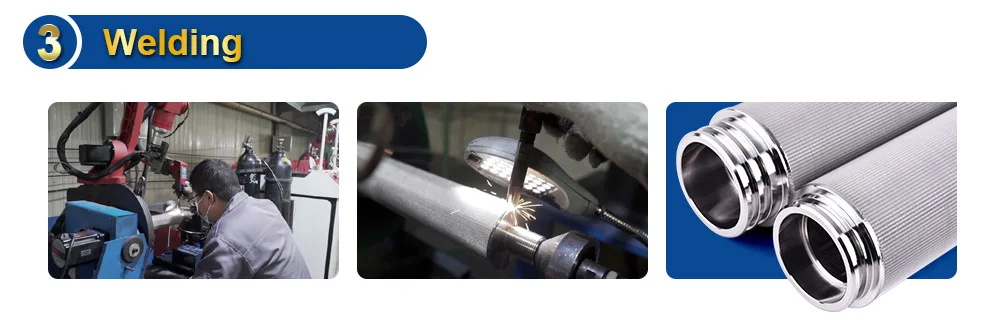

Our engineering team adopted the most advanced welding technology. We called “In one-side welding with back-formation”
the weld of our cartridge product is get penetrated on both of inside and outside.
This is a special welding technology that always be requested in the pressure vessel and pipeline industry.
the weld of our cartridge product is get penetrated on both of inside and outside.
This is a special welding technology that always be requested in the pressure vessel and pipeline industry.
Some customer cases of sintered mesh filter element
Please click below VR to see more filter product information.
VR
Click here to view factory information for zhehan filter

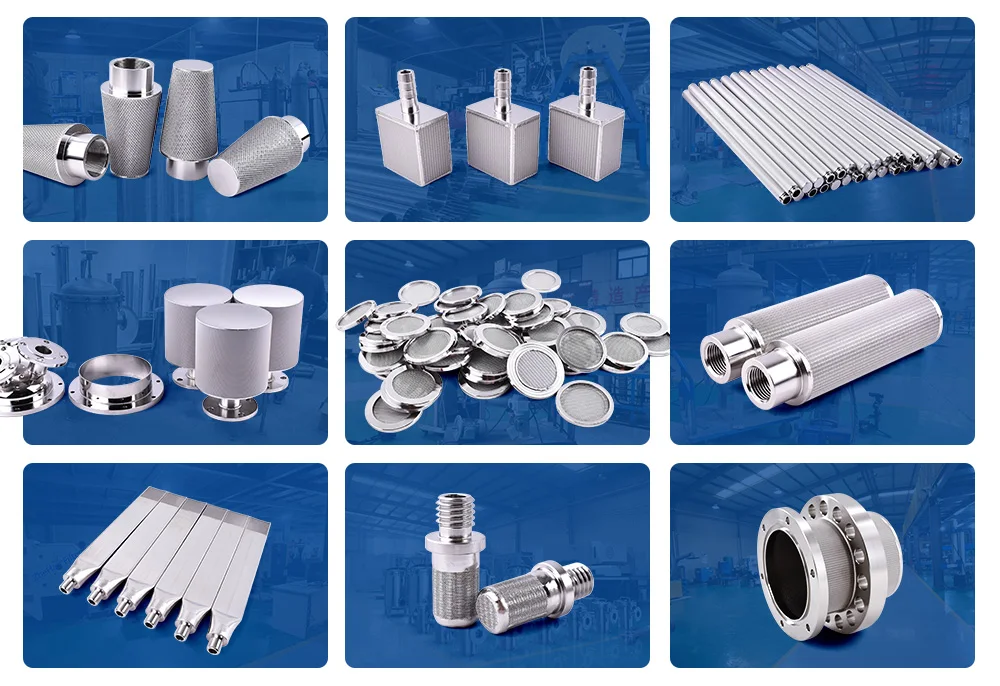

We have a complete range of products, including filter element, screen panels, cylinder, basket, strainer, drum, nozzles, grate, filter equipment and so on. providing customized services for global customers.
Pleated mesh filter | Sintered mesh filter | Perforated mesh filter | Nozzle |
Wedge wire filter | Candle filter | Solid liquid separator | Y-type filter |
Self cleaning | Bag filter | Basket filer | Pre-filter |
Anping Zhehan Filter Equipment Co., Ltd. is an IS09001:2015 certificated company, specializingin the production and processing of stainless steel filter element and stainless steel filters.
Our factory is located in Anping County,Hengshui City, Hebei Province, the hometown of wire mesh, is an earlier professional manufacturer engaged in the production of filterequipment, with a history of nearly 16 years.
Our company has advanced equipment andstandardized management.The main productsare: sintered wire mesh, stainless steel wedgewire filter element, stainless steel filter cartridge, stainless steel filter element, sintered mesh filter element,various stainlesssteel filters, filter bags, filter discs, cone filter cartridges, and various precision stamping partsand more than 300 kinds of filter equipment products.
All of our products comply with international quality standards and are greatly appreciated ina variety of
different markets throughout the world.
Our factory is located in Anping County,Hengshui City, Hebei Province, the hometown of wire mesh, is an earlier professional manufacturer engaged in the production of filterequipment, with a history of nearly 16 years.
Our company has advanced equipment andstandardized management.The main productsare: sintered wire mesh, stainless steel wedgewire filter element, stainless steel filter cartridge, stainless steel filter element, sintered mesh filter element,various stainlesssteel filters, filter bags, filter discs, cone filter cartridges, and various precision stamping partsand more than 300 kinds of filter equipment products.
All of our products comply with international quality standards and are greatly appreciated ina variety of
different markets throughout the world.
1. Are you manufacturer or trading company?
5. Can I customize the product ?
Of course, Zhehan filter has complete mechanical equipment, many experienced technical workers, can produce a variety of stainless steel filter elements.
We are manufacturers. Zhehan filter has a history of 16 years, and now has 3 standard workshops and various precision machining equipment.customers can come to visit the factory, or video to see the factory.
2. How long is your delivery time?
16 years of production experience, complete mechanical equipment, the fastest 3 days to make samples.
3. How to ensure the safety of customer funds?
We can trade through Alibaba's platform and Alibaba will guarantee your funds.
4. What is the minimum order quantity
The MOQ is 1
2. How long is your delivery time?
16 years of production experience, complete mechanical equipment, the fastest 3 days to make samples.
3. How to ensure the safety of customer funds?
We can trade through Alibaba's platform and Alibaba will guarantee your funds.
4. What is the minimum order quantity
The MOQ is 1
5. Can I customize the product ?
Of course, Zhehan filter has complete mechanical equipment, many experienced technical workers, can produce a variety of stainless steel filter elements.
