Price:$1,800.00 - $2,400.00

Quantity:


Product Overview

Description

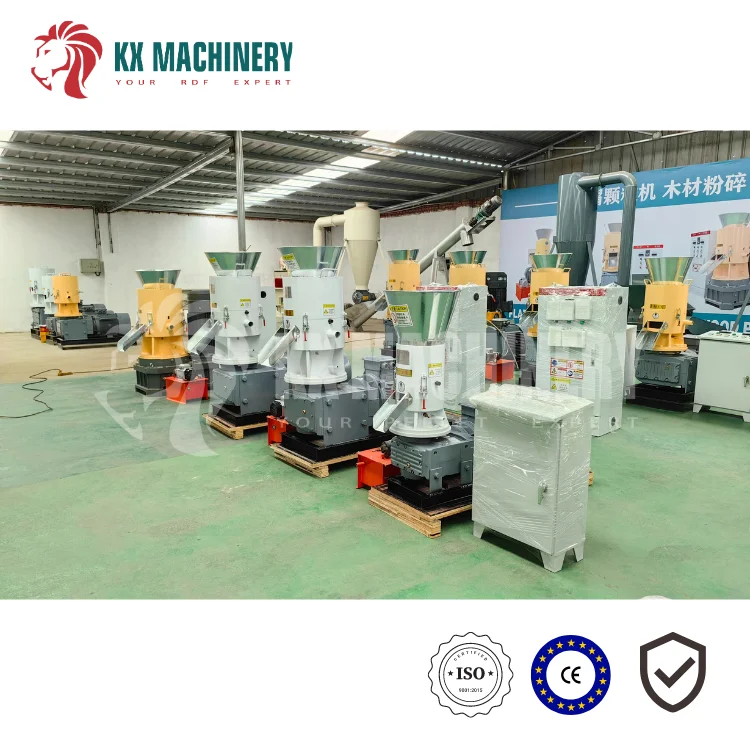

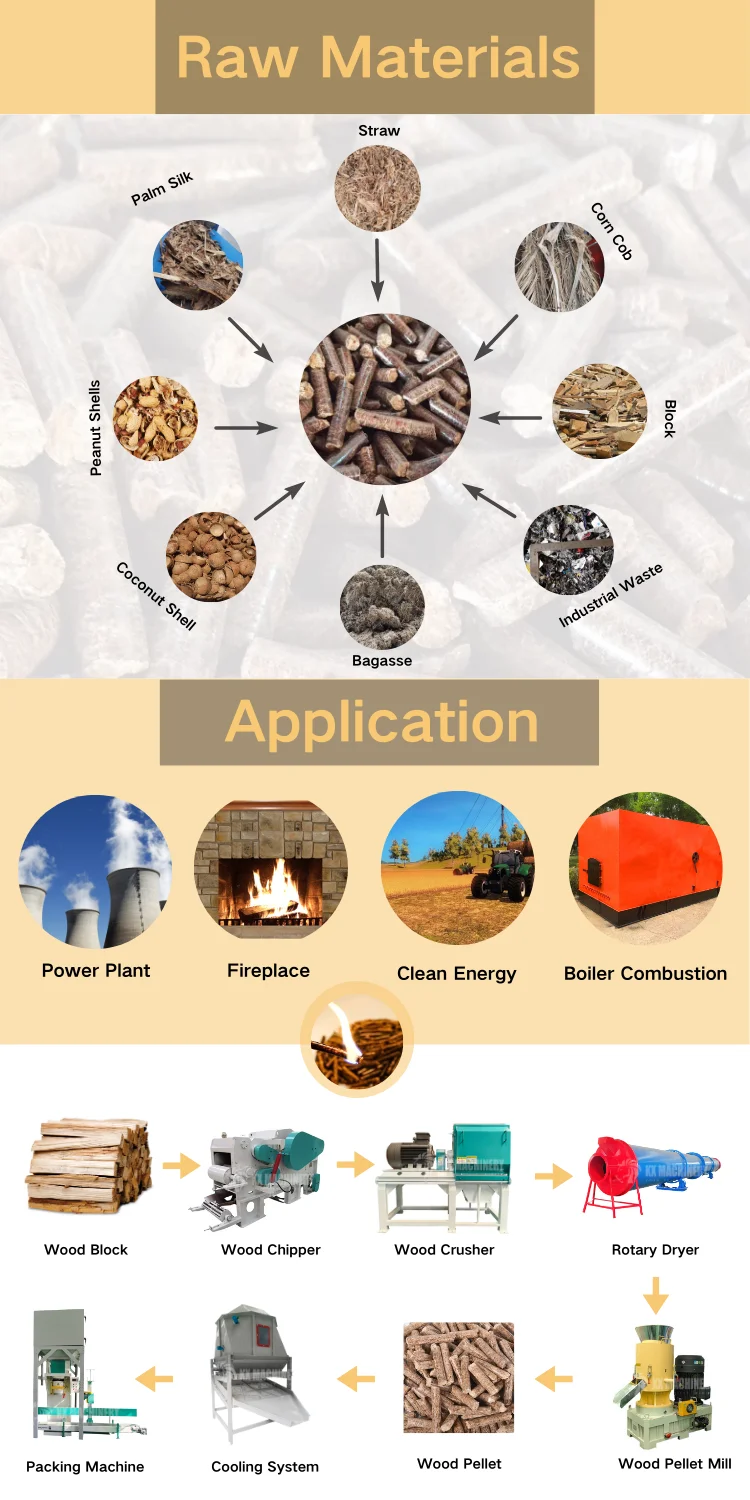

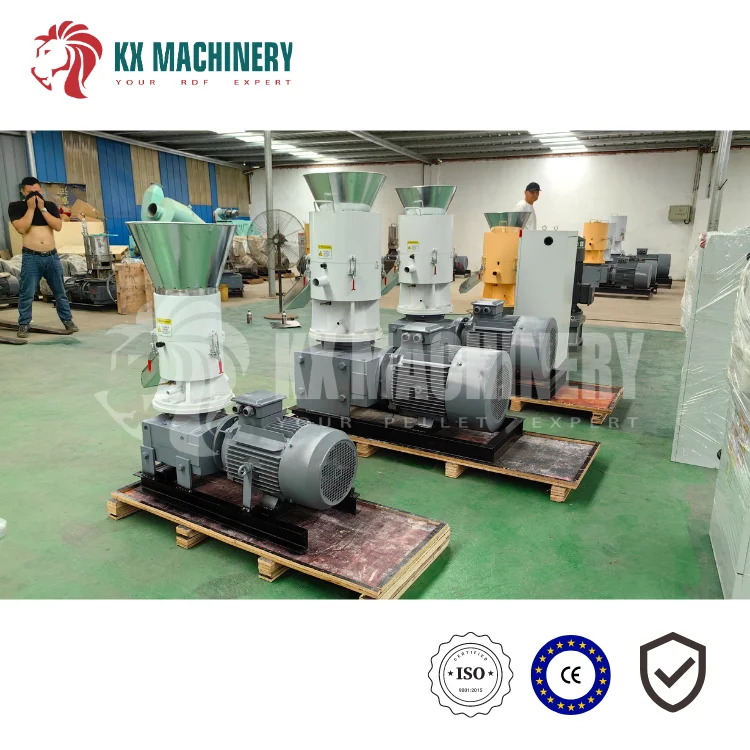

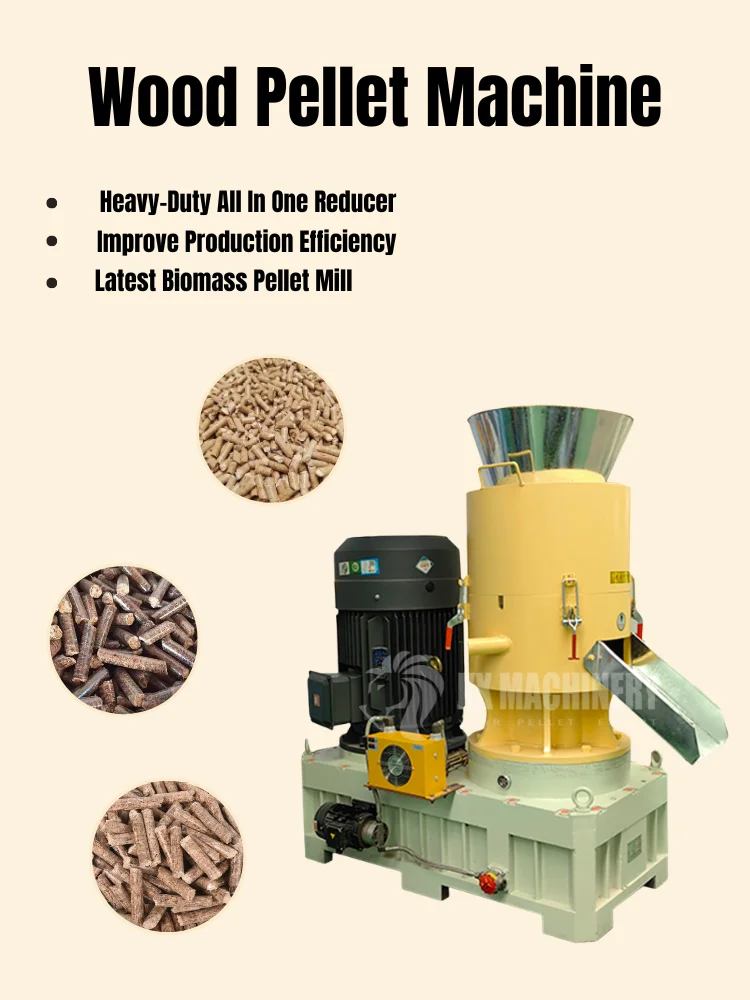

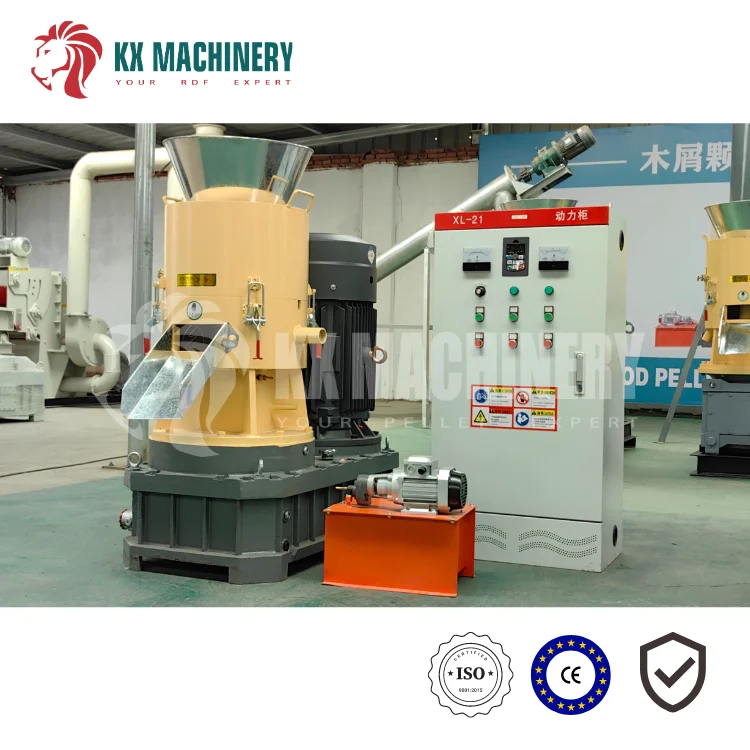

The flat die pellet machine for sorghum stalks is a pellet fuel production equipment that uses for wood chips, wood shavings, corn stalks, and straws,, rice husks and other agricultural or forestry wastes as feed stock. Biomass pellets produced by the machine can be used in fireplaces, boilers, gasifiers, power plants, etc. The new type home wood pellet maker is driven by an integrated reducer, which runs more smoothly and has lower noise. It is a medium and small scale pellet production equipment that is very popular among consumers.





MODEL
MOTOR
CAPATITY
WEIGHT
FD200
7.5KW
80-150kg/h
420kg
FD260
15KW
100-200kg/h
500kg
FD300
22KW
200-300kg/h
800kg
FD350
30KW
300-400kg/h
900kg
FD400
37KW
400-600kg/h
1000kg
FD450
45KW
600-800kg/h
1500kg
FD550A
55KW
700-1000kg/h
1800kg
FD550B
75-90KW
1000-1200kg/h
2300kg

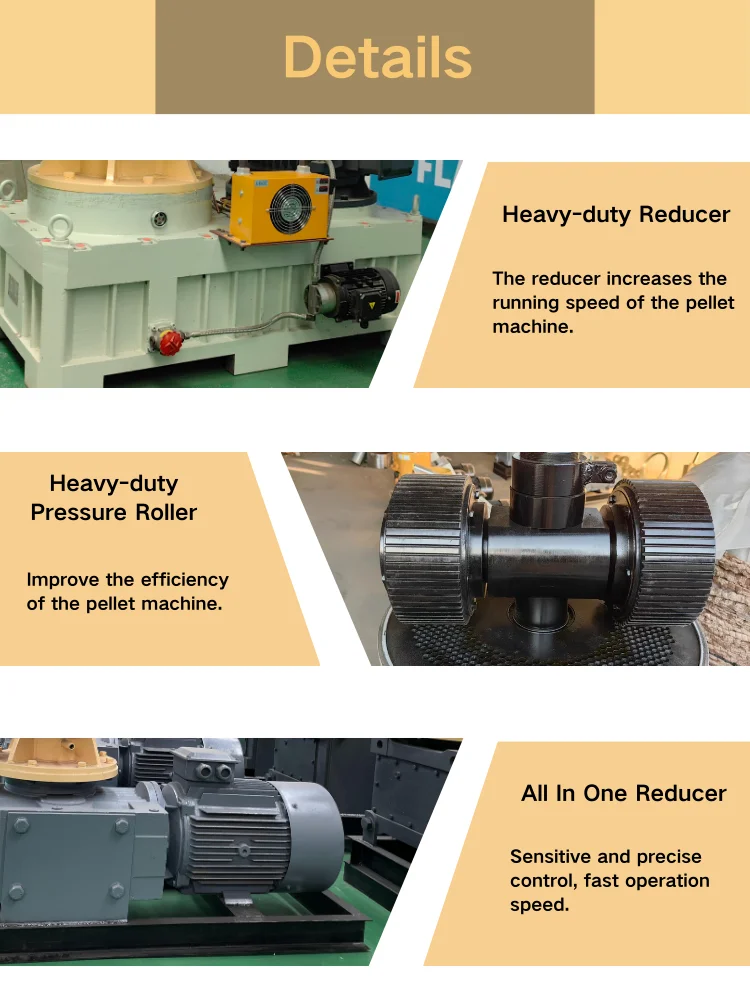

The motor of the flat die pellet machine for cotton stalks drives the main shaft through the integrated reducer box, and the main shaft drives the pressing roller. While the pressing roller revolves around the male axis, it also revolves around the flat die. When processing pellets, biomass raw materials are fed into the feeding chamber of the pellet machine at the corresponding speed through the frequency conversion conveyor, and are evenly spread on the flat die under the action of the distributor and the scraper.

The roller continuously rolls through the material layer, extruding the material into the die hole, the material undergoes the process of forming and maintaining shape in the die hole, and then is quickly discharged from the die hole in a cylindrical shape, and the rotary cutter cuts the particles. Then the particles are discharged by the sweeping plate.

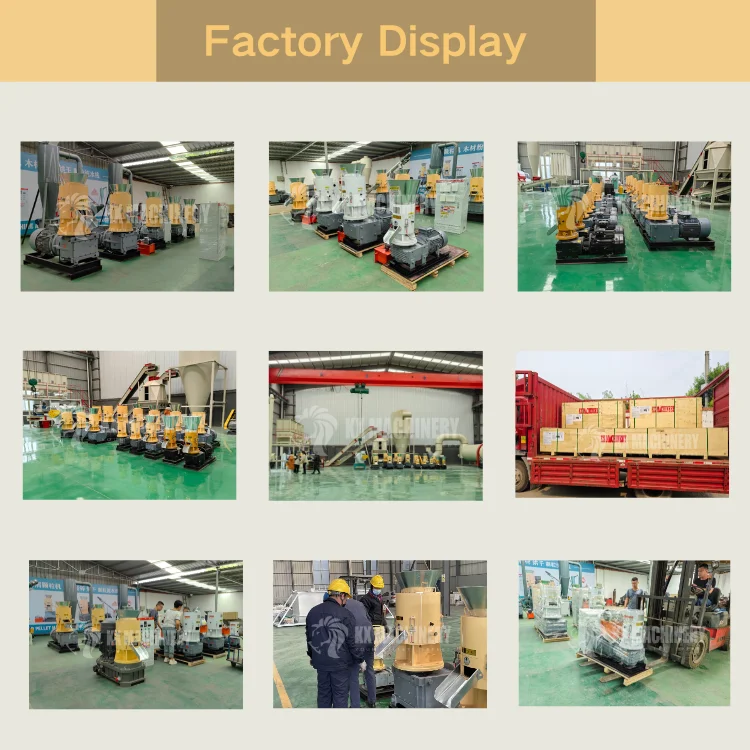

Huantai Kangxi machinery co.,ltd is a flat die pellet machine stalks machinesuppliers. The company is furnished with R&D department , and has the ability of research and development, designing and producing. All of the equipment is produced under IS0-9001 international quality management system and CE certificate ruler standers . The company is the leader enterprise in china biomass fuel production line and slitting&cutting to length production line even some other fields.









1.Q: Do you provide after-sale service?

A: Yes. The warranty period of our small solid wood pellet making machines is one year, and we have a professional after-sale service team to solve your problems promptly and thoroughly.

2.Q: where is your factory?

A: Our factory is in Zibo, Shandong, welcome to visit at any time

3.Q: Can it be customized?

A:Of course, that's no problem

4.Q:What is your warranty period?

A：1 year
