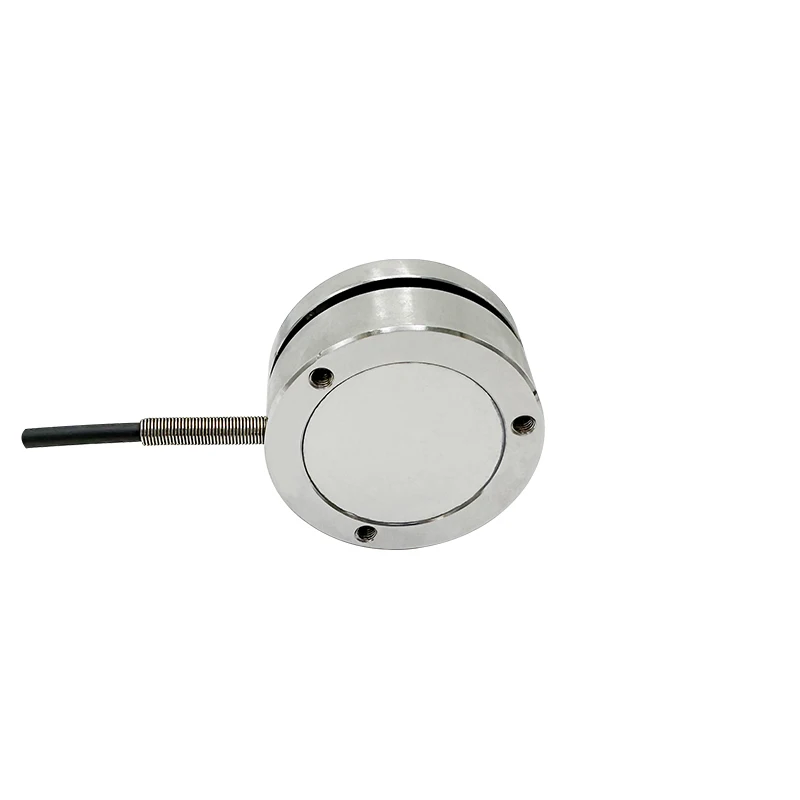

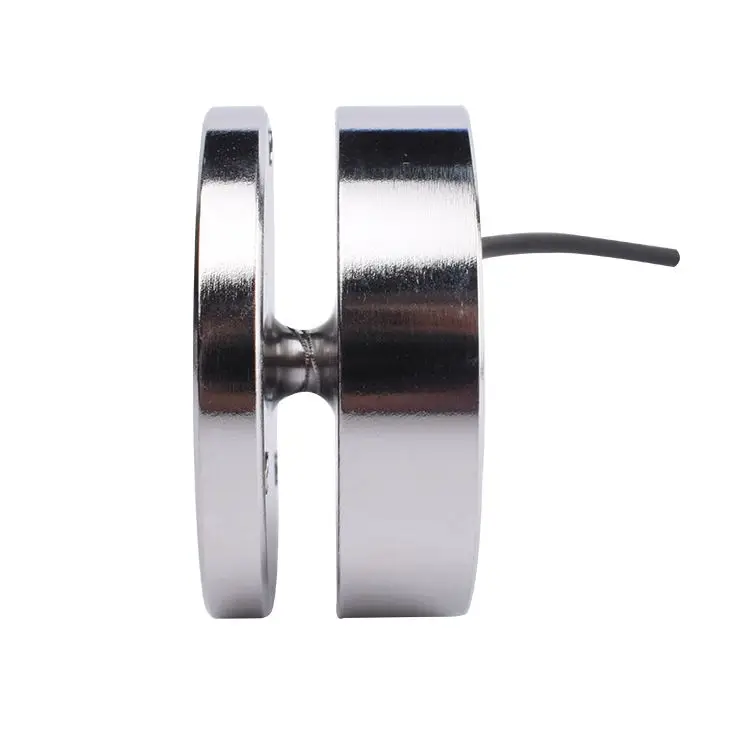

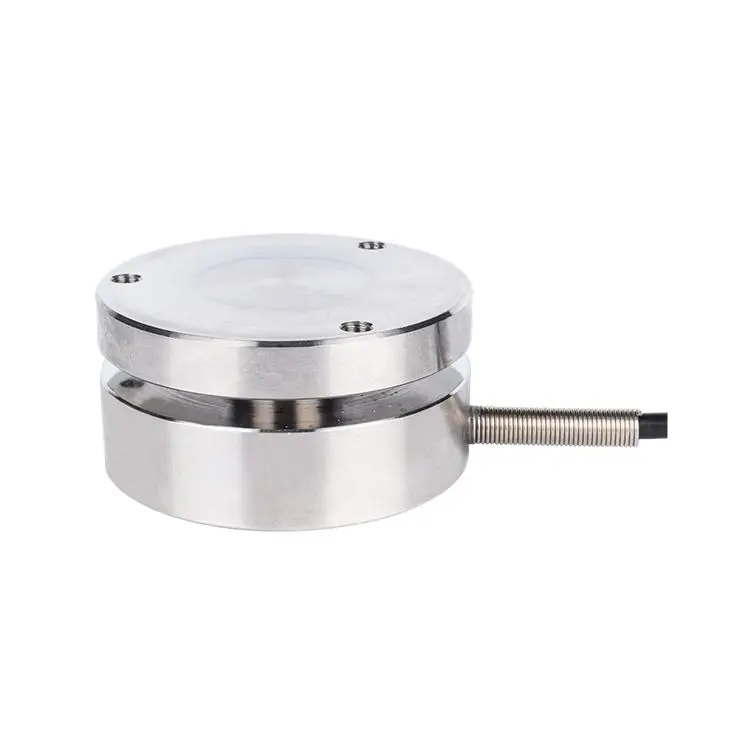

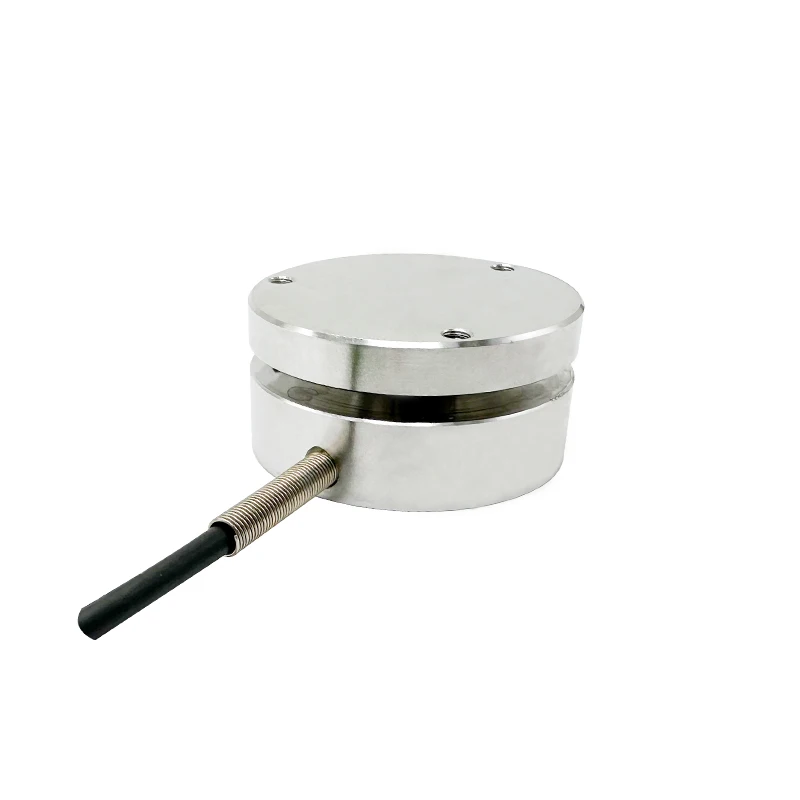

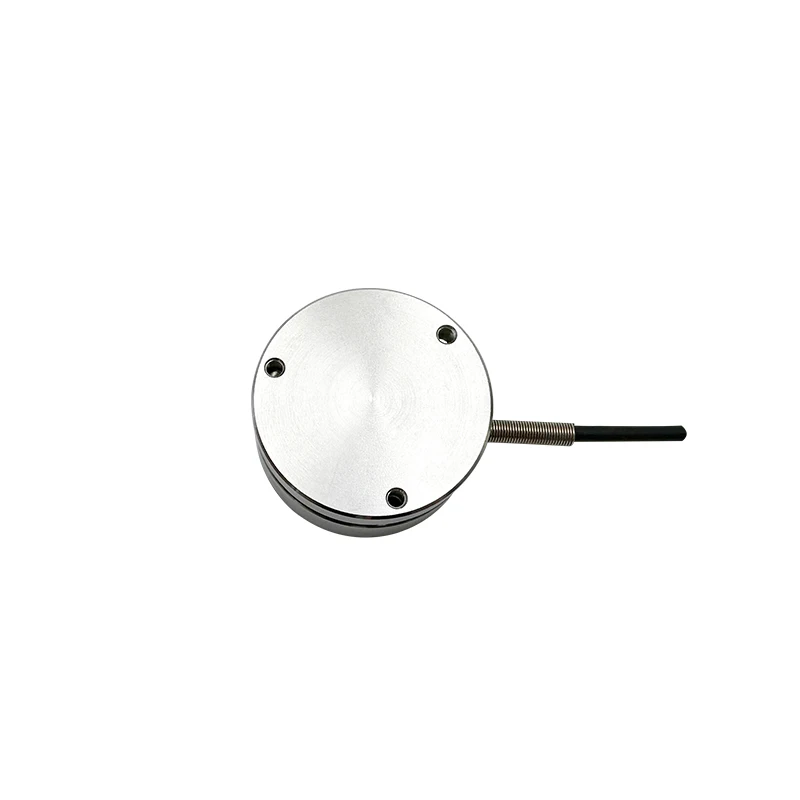

Flange mounted 1T mini compression load cell flat membrane box 10kg 500kg force sensor transducer for lab research
- Category: >>>
- Supplier: Fibos Measurement Technology (changzhou) Co. Ltd.
Share on (1601083397752):
Product Overview
Description
Product Information
Model Number | FA113A |
Capacity | 10,20,50,100,200，500,1000kg |
Sensitivity | 1.5±10%mV/V |
Zero Balance | ±2%mV/V |
Creep | ≤0.05%F.S. |
Non-linearity | ≤0.2%F.S. |
Hysteresis | ≤0.2%F.S. |
Repeatability | ≤0.1%F.S. |
Input Impedance | 780±20Ω |
Output Impedance | 700±5Ω |
Temp. effect on output | 0.05%F.S./10℃ |
Temp. effect on zero | 0.05%F.S./10℃ |
Wiring | Red: EXC+, Green: Sig+, Yellow: Shielding wire, White: Sig-, Black: EXC |
Insulation Resistance | ≥5000MΩ/100V(DC) |
Recommended Excitation | 5~12V |
Max Excitation | 15V |
Compensated Temp Range | -10~60℃ |
Operating Temp Range | -20~80℃ |
Safe Overload | 150%F.S. |
Ultimate Overload | 200%F.S. |
Cable Size | φ3x3m |
Weight | 0.05kg |
Material | Stainless Steel |
Feature & Application
The characteristics of micro force sensors mainly include the following points
1. Small size: Micro force sensors are usually small in size and can adapt to limited space requirements.
2. Lightweight: Their design makes them lightweight, making them easy to install and use.
3. No moving parts: Micro force sensors usually have no moving parts, which helps improve their reliability and durability
4. High reliability: Due to its simple structure and no moving parts, the failure rate of micro force sensors is low, ensuring improved its stability under long-term operation.
5. Mass production: Due to advancements in design and manufacturing technology, micro force sensors can be produced on a large scale One step cost reduction.
6. Easy to integrate: Micro force sensors have good compatibility and can be easily integrated with other devices.
The application fields of micro force sensors are very broad, including but not limited to the following aspects
1.3C industry: used for production testing of electronic screens, buttons, etc
2.Automotive industry: used to detect various pressure parameters of vehicles, such as tire pressure, brake system pressure, etc.
3.Healthcare: used to monitor blood pressure, speech pressure, and the flow of medication fluids.
4.Packaging and logistics: used to detect the loading of goods and provide overload protection during transportation protective devices.
Other industrial applications: such as printing, lamination, coating, shearing, papermaking, rubber, textiles, wires and cables,etc pressure testing of the production line.
2. Lightweight: Their design makes them lightweight, making them easy to install and use.
3. No moving parts: Micro force sensors usually have no moving parts, which helps improve their reliability and durability
4. High reliability: Due to its simple structure and no moving parts, the failure rate of micro force sensors is low, ensuring improved its stability under long-term operation.
5. Mass production: Due to advancements in design and manufacturing technology, micro force sensors can be produced on a large scale One step cost reduction.
6. Easy to integrate: Micro force sensors have good compatibility and can be easily integrated with other devices.
The application fields of micro force sensors are very broad, including but not limited to the following aspects
1.3C industry: used for production testing of electronic screens, buttons, etc
2.Automotive industry: used to detect various pressure parameters of vehicles, such as tire pressure, brake system pressure, etc.
3.Healthcare: used to monitor blood pressure, speech pressure, and the flow of medication fluids.
4.Packaging and logistics: used to detect the loading of goods and provide overload protection during transportation protective devices.
Other industrial applications: such as printing, lamination, coating, shearing, papermaking, rubber, textiles, wires and cables,etc pressure testing of the production line.
About Us

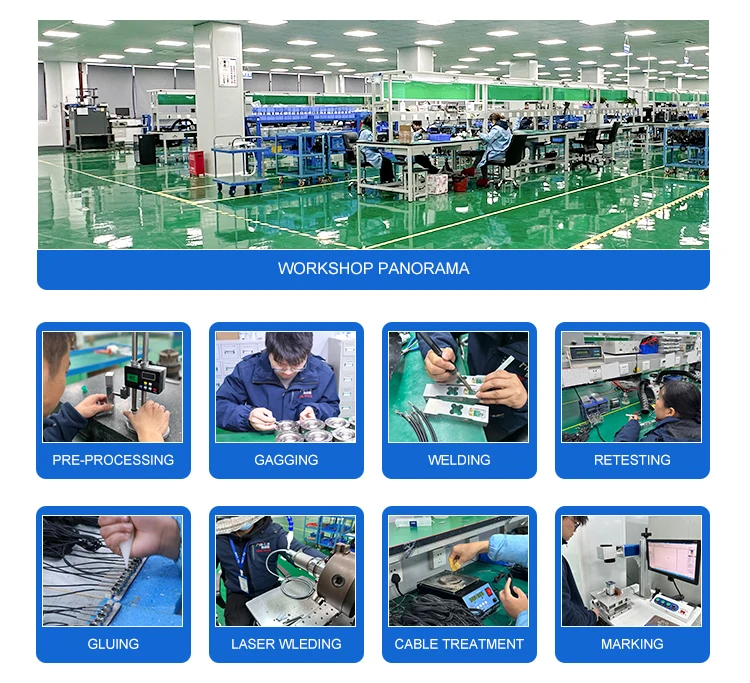

Factory View
Our Exhibition
Our Certificates
Packing & Transport
FAQ
Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.
Q: What detailed information do I need to provide if I want to place an order?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.
Q: What detailed information do I need to provide if I want to place an order?
We need to know the following information:
Capacity, Usage and other related parameters you need.
Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.
Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.
Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.
Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.
Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
Capacity, Usage and other related parameters you need.
Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.
Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.
Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.
Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.
Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
