One Stop Service Factory Direct Sales Jaw Crusher With Strong Mechanical Performance Is Used For Sand And Gravel Plant

Share on (1601083512150):


Price:$4,000.00 - $4,500.00

Quantity:


Product Overview

Description



Product Description


Product Introduction:

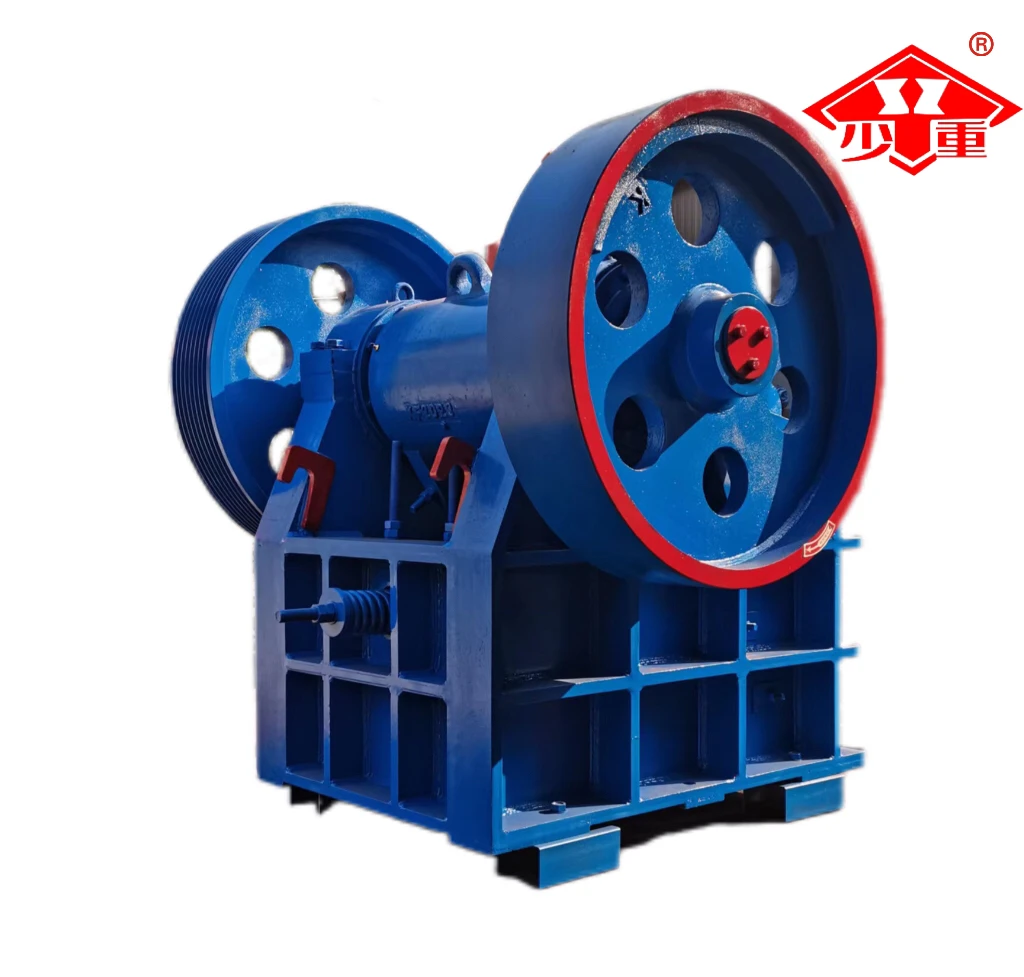

Jaw crusher, referred to as jaw crusher, is mainly used for medium-sized crushing of various ores and large materials, and is widely used in mining, smelting, building materials, highways, railways, water conservancy and chemical industries.




How It works:
The motor drives the belt and the pulley, so that the moving jaw moves up and down through the eccentric shaft. When the moving jaw rises, the angle between the toggle plate and the moving jaw becomes larger, so that the moving jaw plate is pushed closer to the fixed jaw plate. At the same time, the material is crushed by extrusion, friction and grinding. When the moving jaw sinks, the angle between the elbow plate and the moving jaw becomes smaller, the moving jaw plate leaves the fixed jaw plate under the action of the tie rod and spring, and the crushed material is discharged from the lower mouth of the crushing chamber of the jaw crusher.


Product Features and Advantages:
1. The crushing cavity is deep and there is no dead zone, which improves the feeding capacity and output.
2. Its crushing ratio is large, and the particle size of the product is uniform.
3. Gasket type discharge port adjustment device, reliable and convenient, large adjustment range, increase the flexibility of the equipment.
4. The lubrication system is safe and reliable, the parts are easy to replace, and the equipment maintenance is simple.
5. Simple structure, reliable work and low operating cost.
6.Equipment energy saving: a single motor saves energy by 15%~30%, and the system energy saving is more than twice that of the system.
7.The discharge port has a large adjustment range, which can meet the requirements of different users.
8.Low noise and less dust.


Specification


Model
number
Feed port
size
(mm)
Maximum
feed size
(mm)
Discharge
 port adjustment
 range (mm)
Processing capacity
(t/h)
Motor
power
(kw)
Gross
weight
(t)
Apparent size
Length x width x height
(mm)
PE-150x250
150x250
125
10-40
1-3
5.5
0.8
720x660x850
PE-250x400
250x400
210
20-60
5-21
15
2.8
1300x1090x1270
PE-400x600
400x600
340
40-100
16-60
30
7
1730x1730x1630
PE-500x750
500x750
425
50-100
40-110
55
12
1980x2080x1870
PE-600x900
600x900
500
65-160
50-160
55
17
2190x2206x2300
PE-750x1060
750x1060
630
80-140
110-320
110
29
2660x2430x2800
PE-900x1200
900x1200
750
95-165
220-380
110
52
3380x2870x3330
PE-1200x1500
1200x1500
1020
150-350
400-800
160-220
101
4200x3300x3500
PE-1500x1800
1500x1800
1200
220-350
500-1000
280-355
139
5160x3660x4248

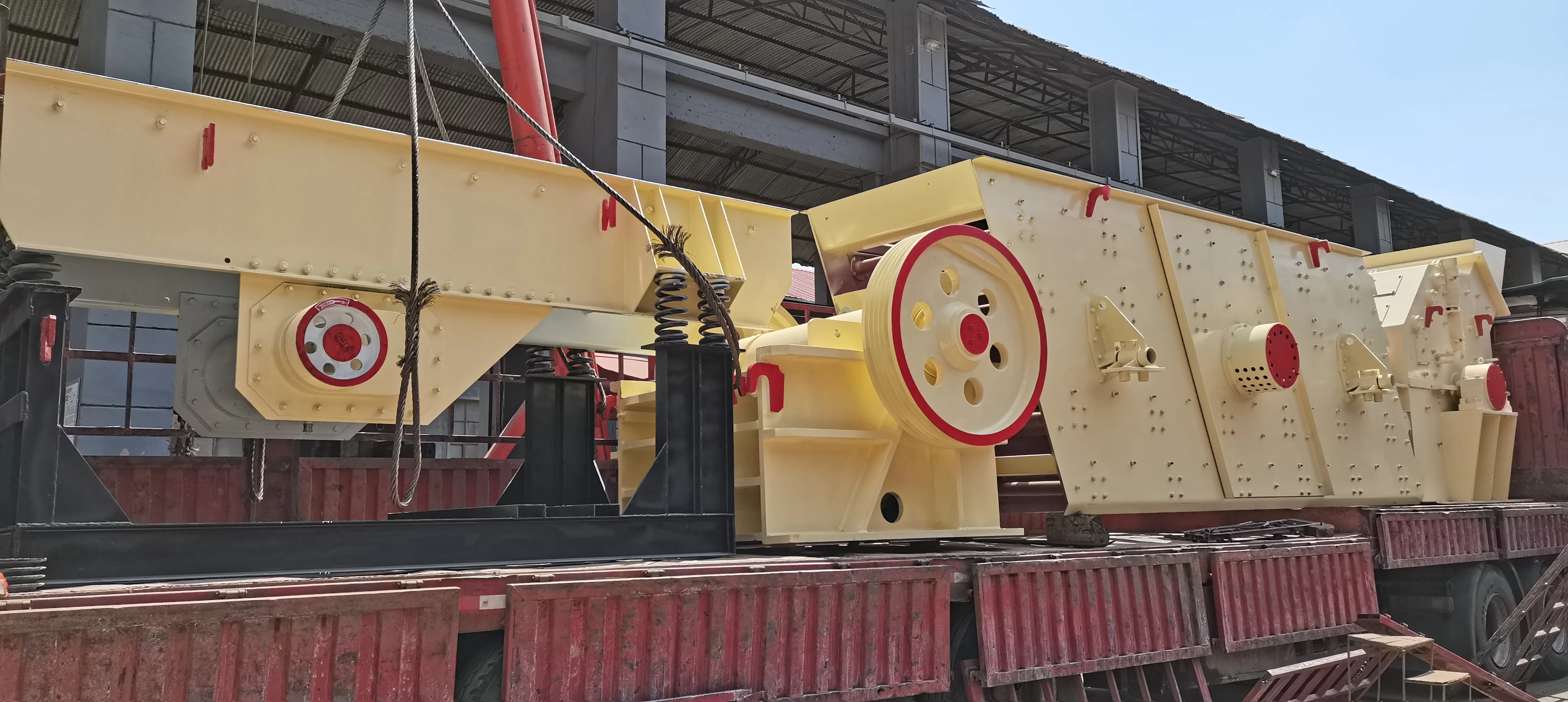

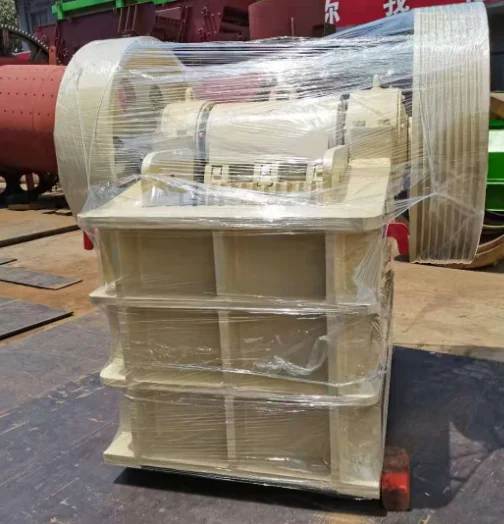

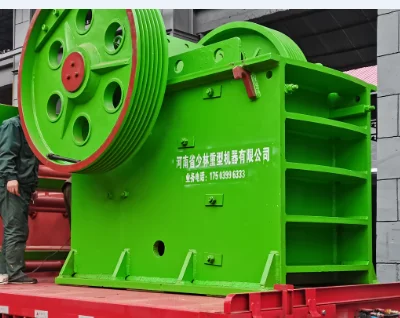

Packing & Delivery




Our robust production capabilities translate into the swiftest delivery times possible. Various shipping options are at your disposal to ensure the safe and prompt arrival of your goods.

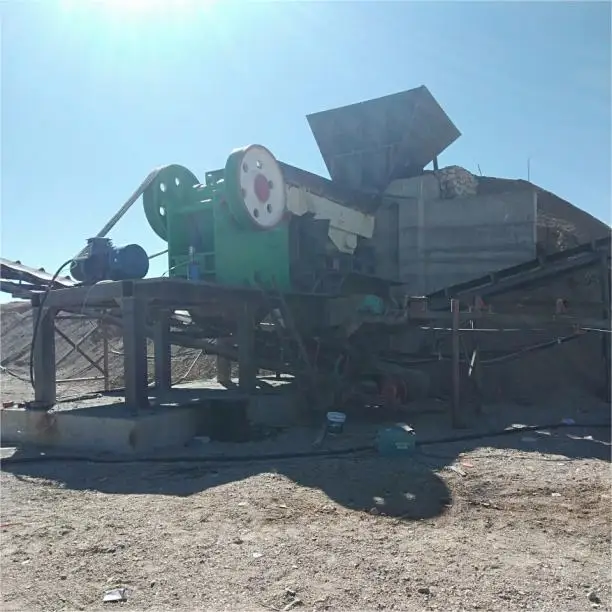

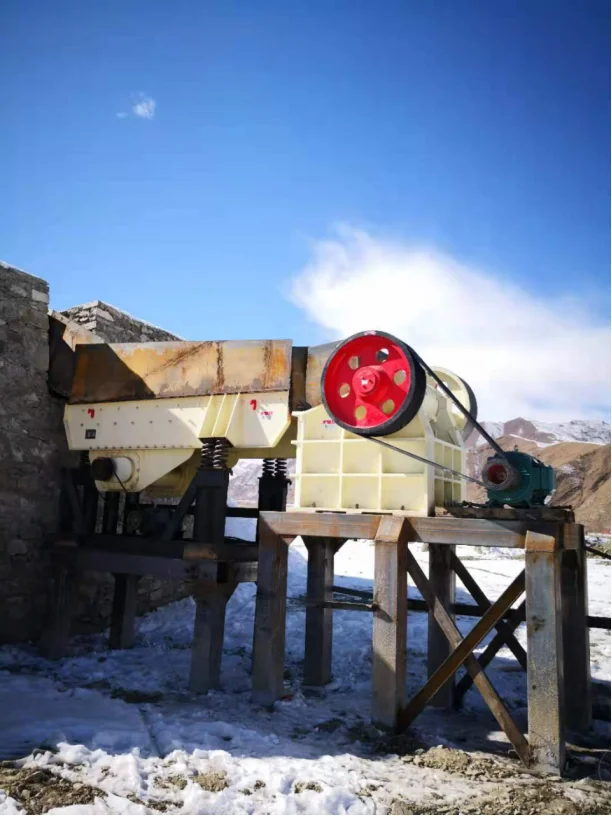

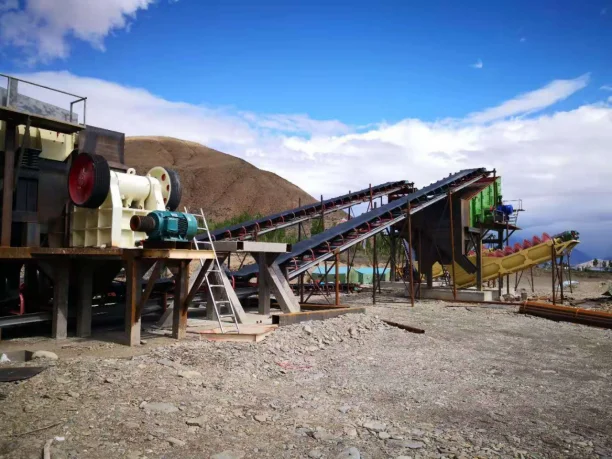

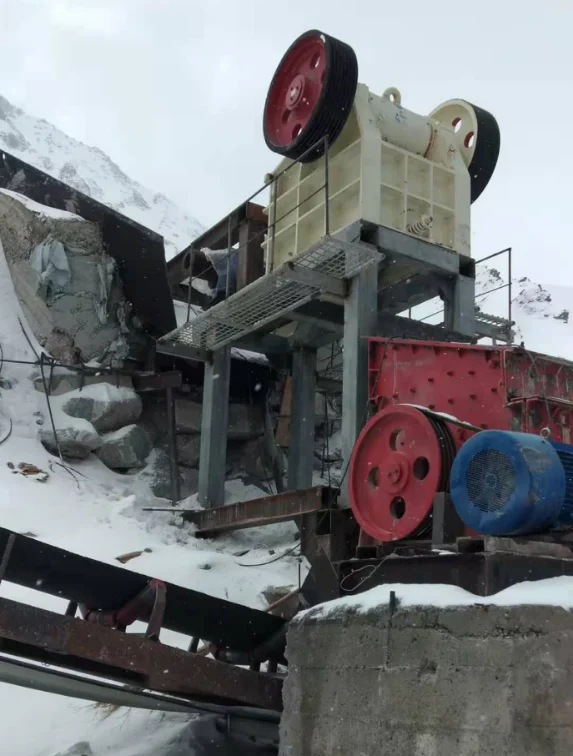

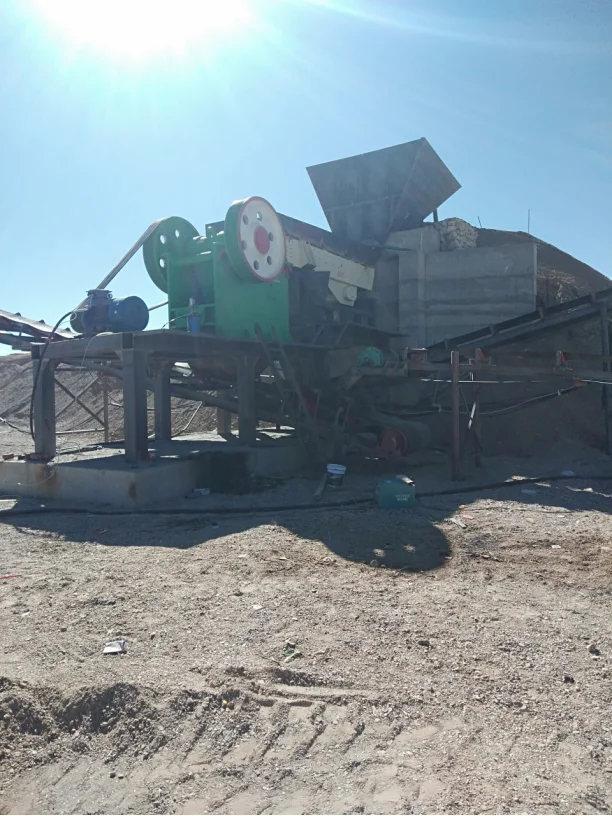

Application site






Jaw crushers are primarily used in the fields of stone quarrying, metallurgy, construction materials, highways, railways, and the stone industry. They are used for crushing materials such as river gravel, granite, basalt, quartzite, iron ore, diabase,
limestone, and coal gangue.



Company Profile




Henan Shaolin Heavy Machinery Co., Ltd. is an enterprise integrating scientific research, production, marketing and service, specializing in the production of complete sets of machinery and equipment for mining, mineral processing, metallurgy and building materials. Founded in August 1973, the company has been engaged in mining machinery manufacturing for 50 years, focusing on serving China's mining building materials, mineral processing, metallurgy, powder industry, the main products are various specifications and types of crushers, ball mills, classification flotation, magnetic separators, dryers, rotary kilns, ultra-fine mills and other production lines, 288 kinds of products in the industry.
Since 2011, the company is committed to the research and development and marketing of high-tech products, relying on scientific research units and universities, as well as the expert team platform of domestic high-end industry associations, and strive to build a high-tech enterprise with equipment research and development, process research, technology transformation, engineering project design, mechanical support, installation and commissioning, production and energy saving, etc., in 2013, it has gradually become the most research, design, environmental protection, one-stop comprehensive service ability of China's mining industry, with sales exceeding 300 million yuan in 2015.
For a long time, the company adheres to the design concept of leading technology and advanced equipment, and currently cooperates with 38 domestic scientific research units to jointly develop and produce roller presses, micro powder grinding, suspension furnaces and other products, providing customers with new processes, technology transformation, standard overproduction, energy conservation and environmental protection services. The sales of the company's existing products cover the central and western provinces and radiate the whole country.


FAQ


Q1:Are you factory or trade company?
A1:We are factory direct sales, the company was founded in 1973, do not worry about the shell company!
Q2:Where your products have been exported before?
A2: Our products have been sold to Africa, South Asia, South America, the Middle East and other places.
Q3: How will you help the customer to install the equipment?
A3: The company's senior engineers will guide the installation and training services on site!
Q4: What about after-sale service?
A4: The warranty on the product is 12 months!
Q5:How to replace the wearing parts of the equipment?
A5:The wearing part is purchased in our factory in China and we will train you how to replace it!
