ZL920 mini loader 4 wheel drive used wheel loader for sale in uae
- Category: >>>
- Supplier: Shandong Eagle Construction Machinery Co. Ltd.
Share on (1601083523734):
Product Overview
Description
Product Description
Product Description for Mini Wheel Loader
ZL920 Wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and similar structural features and advanced technology.
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularly applied to the narrow space for the loading operation of stone,sand and other construction materials.The main components of the loader are used brand-name manufacturer's products,
interchangeability of good, reliable, well-resourced parts.
It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularly applied to the narrow space for the loading operation of stone,sand and other construction materials.The main components of the loader are used brand-name manufacturer's products,
interchangeability of good, reliable, well-resourced parts.
Specifications for ZL920 Mini Wheel Loader | ||||
Overall Performance | Rated Load | 2000 kg | ||
Operating Weight | 5200 kg | |||
Bucket Capacity | 1 m3 | |||
Bucket Width | 2000 mm | |||
Dumping Height | 3500 mm | |||
Dumping Reach | 1000 mm | |||
Max. Gradeability | 30% | |||
Dimensions | Wheelbase | 2350 mm | ||
Tread | 1580 mm | |||
Mini. Turning Radius | 4790 mm | |||
Mini. Ground Clearance | 300 mm | |||
Overall Size | 6300 x2050x2850 mm | |||
Engine Equipped | Brand | YUNNEI | ||
Model | YN38GBZ | |||
Rated Power/Speed | 76 kW/ 2200 rpm | |||
Max. Torque/ Speed | 350 N.m /1600-1800 rpm | |||
Borex Stroke | 102 x105 mm | |||
Displacement | 3.8 L | |||
Type | 4-Cylinder, 4-Stroke, In-line, Direct Injection, Water-cooled and Turbo-charged | |||
Emission Standard | EURO II, China State II | |||
Engine Optional | CUMMINS(4BT3.9-C100 ) | 75kW, EURO II, | ||
Transmission & Drive System | Torque Converter | YJ265 (Integral Type) | ||
Gearbox Type | Fixed Shaft Power Shift | |||
Gear Shift | 4 Forward , 4 Reverse | |||
Max. Drive Speed | 32 km/h | |||
Drive Mode | 4 x4 | |||
Transmission Mode | Automatic Transmission | |||
Drive Axle | Medium Hub Reduction Axle | |||
Hydraulic System | Displacement of Work Gear Pump | 63 mL/r | ||
Displacement of Travel Gear Pump | 18 mL/r | |||
Working Pressure | 16 MPa | |||
Brake & Tyre | Service Brake | Air Over Hydraulic Disc Brake | ||
Parking Brake | Drum-type Shoe Brake | |||
Tyre Size | 16/70-20 | |||
Main Features
Main Features of ZL920 Wheel Loader
2.Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;
3.Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, traffic ability and more traction;
4.Fully enclosed glass cab with adjustable and suspension seat can provide comfortable driving and wide view. Electric Fan is standard configuration. Air-conditioner is optional.
5.Using 16/70-20 tyres to increase the stability of whole machine and the service life of tyre.
6.Brake system adopts Air Over Hydraulic Disc Brake on 4 Wheels
7.This wheel loader adopts YJ265 integrated type torque converter, and the whole machine is fully hydraulic automatic transmission;
8.This wheel loader can be equipped with pilot control system (joystick control )to make it easy to operate and increase the hydraulic performance of the whole machine;
9.Power system adopts YUNNEI,YN38GBZ , 76kW, Turbo-charged, Fuel-Efficient, environmentally friendly, 6-cylinder engine to make this wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;
10.This compact wheel loader could be equipped with quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.

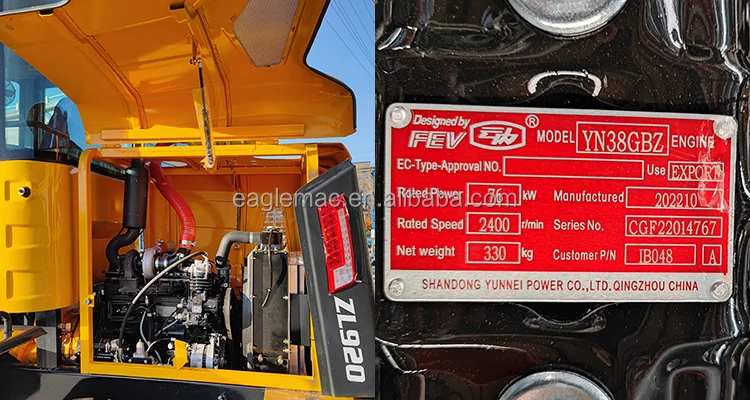

China Top Brand -YUNNEI , 76kW, Turbo-charged, Water-cooled Diesel Engine
This loader is driven by YUNNEI, 76kW, Turbo-charged, Fuel-Efficient, Water-cooled Diesel Engine, which makes this 2Ton wheel loader have strong power and high acceleration. Engine door is connected by hydraulic pole. Main Engine Brand Optional: DONGFENG CUMMINS

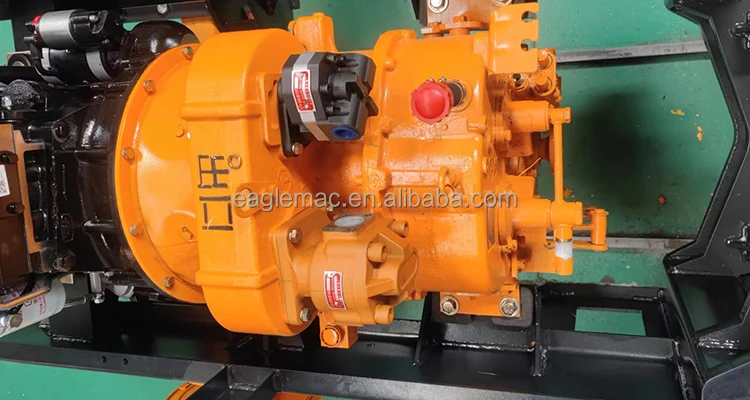

YJ265 Integrated Torque Converter
Integral Type Torque Converter Fitted with Working Gear Pump and Travel Gear Pump Whose Flow Rate is 63 ml/r and 18 mL/r respectively

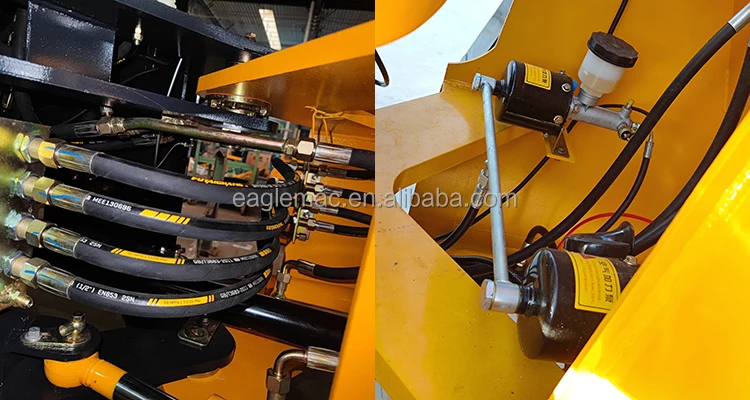

Neat Connection of Hydraulic Hose and Air Brake
1.Neat "S" Shaped Connection of Hydraulic Hose on Hinge Place for Easy Maintenance
2.Air Cap Oil Brake System

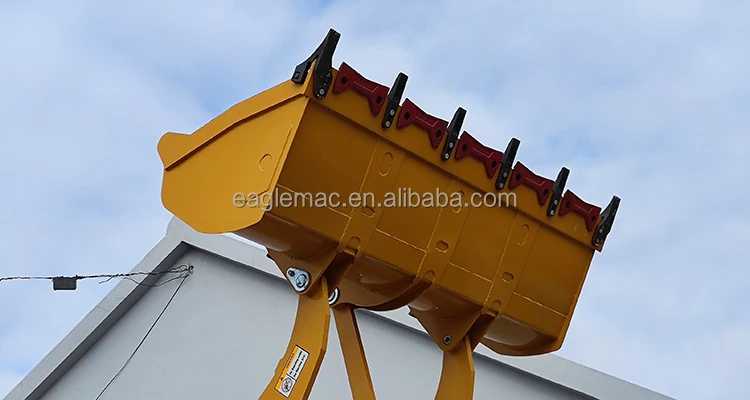

Deepened Bucket with Removable Fork in the front
The width ,depth and span of bucket is 2000 mm ,500 mm and 900 mm respectively. The total volume of the bucket is about 1 m3 . The front of the bucket is equipped with wear-resistant removable fork , which facilitate earth-moving operation in the construction site.
Medium Hub Reduction Axle fitted with 16/70-20 Engineering Tyre
The drive axle adopted is Medium Hub Reduction Axle . The Tyre model is 16/70-20 and its width and diameter is 370 mm and Ø1030 mm respectively, which could ensure our loader work safe on muddy and bumpy road.

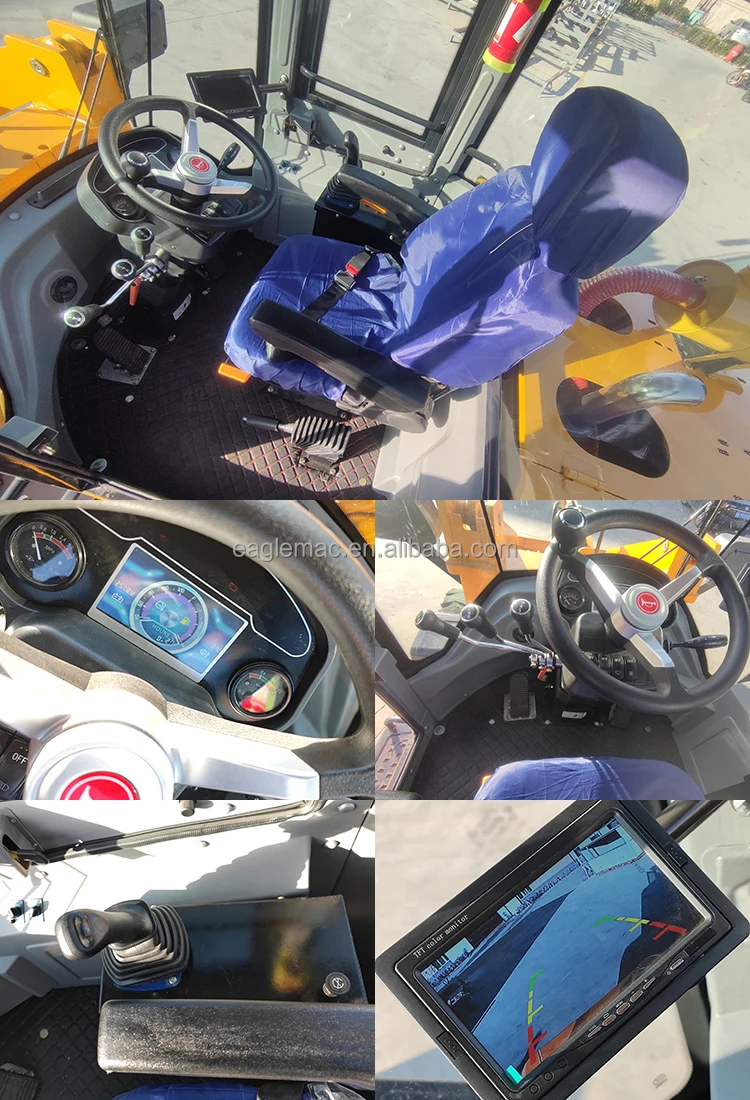

Deluxe Driver's Cab with Hydraulic Joystick, Ergonomic Seat,
Colored Dashboard, Adjustable Steering Wheel and Back View Camera
The transmission of this wheel loader is kind of automatic transmission. And the lifting and withdrawing of bucket is all controlled by the single handle type hydraulic joystick device. It is very convenient for user to operate. The ergonomic seat has the shock absorption function and is equipped with safety Belt.
We adopted the colored liquid crystal dashboard, on which the water temperature, battery voltage, fuel amount and engine working hours etc could be displayed
Situated under steering wheel is a red control lever, making the angle of steering wheel be adjustable.
During the driving backwards process, the back view camera will light up , the alarm lamp will flash and the buzzer will horn , which could improve driving safety. The air conditioner is also standard configuration.
Packing & Delivery

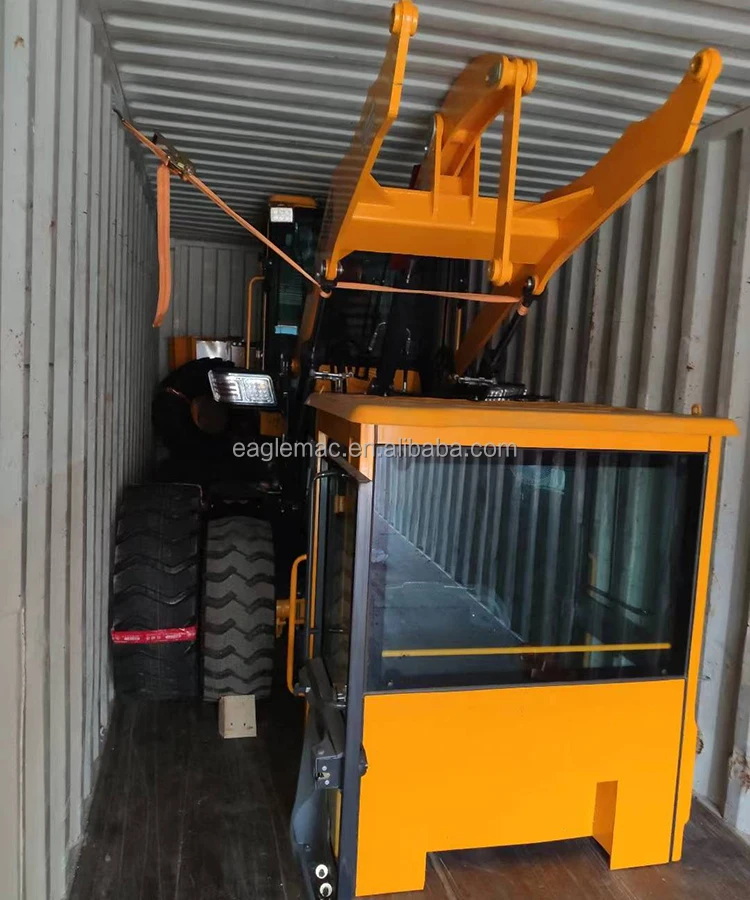

Container Loading Plan for ZL920 Wheel Loader
The front bucket and cab have to be dismantled during loading process.
2 Sets inside 1x40HQ Container
Application Scene
Worldwide Sales, Marketing and Service Network
Worldwide Sales, Marketing and Service Network
During the past 15 years, we have exported over 5,000 units of different kinds of construction equipment to over 50 countries in Southeast Asia, Middle East, Africa, Europe, Australia and South America. Our overseas authorized dealers and service dealers are all around the world.
Certifications
Exhibition
Why Choose Us
Shandong Eagle Construction Machinery Co.Ltd. Is the leading enterprise specializing in sales and manufacturing of construction machinery and equipment in China. Through many years’ development, , our company has grown to be group enterprise which covers an area of more than 200,000 square meters and owns over 600 employees and 5 production plants.
The main products we produce include Wheel Loader with payload from 1 Ton to 6 Ton, Backhoe Loader, Concrete Mixer Truck with output capacity ranging from 1 M3 to 18 M3, Trailer Concrete Pump, Concrete Boom Pump, Site Dumper, Crawler Excavator, and Forklift etc.
With excellent and advanced production equipment such as CNC machine, plasma and laser cutting machine, robot welding machine and automatic assembly production line, we have perfect quality supervision and inspection system, obtaining the National Special Equipment Manufacturing License and passing IS09001: 2008 International Quality System and European CE Product Certification.
We have been constantly improving and updating our products according to customer’s feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatch inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer’s trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan,Mongolia, Thailand,Indonesia, Middle East, Kenya, Uganda, Algeria and Poland etc.
To develop more customers, we would like to give the following preferable policies:
1. OEM/ODM orders and customer's design are welcomed.
2. No minimum order limit.
3. One-year Quality Warranty .
Shandong Eagle Construction is ready to work for you. Let our many years of production experience and extraordinary service ensure that the goods you take out your pocket to buy is well worth.
The main products we produce include Wheel Loader with payload from 1 Ton to 6 Ton, Backhoe Loader, Concrete Mixer Truck with output capacity ranging from 1 M3 to 18 M3, Trailer Concrete Pump, Concrete Boom Pump, Site Dumper, Crawler Excavator, and Forklift etc.
With excellent and advanced production equipment such as CNC machine, plasma and laser cutting machine, robot welding machine and automatic assembly production line, we have perfect quality supervision and inspection system, obtaining the National Special Equipment Manufacturing License and passing IS09001: 2008 International Quality System and European CE Product Certification.
We have been constantly improving and updating our products according to customer’s feedback and market demand. At every stage of the manufacturing process, each component has passed the stringent tests before the assembled machinery goes through its final pre-despatch inspection. Excellent quality, efficient after-sales service and reasonable price make us gain customer’s trust and good reputation in both domestic and overseas markets. Our products have been exported to Russia, Uzbekistan,Mongolia, Thailand,Indonesia, Middle East, Kenya, Uganda, Algeria and Poland etc.
To develop more customers, we would like to give the following preferable policies:
1. OEM/ODM orders and customer's design are welcomed.
2. No minimum order limit.
3. One-year Quality Warranty .
Shandong Eagle Construction is ready to work for you. Let our many years of production experience and extraordinary service ensure that the goods you take out your pocket to buy is well worth.
