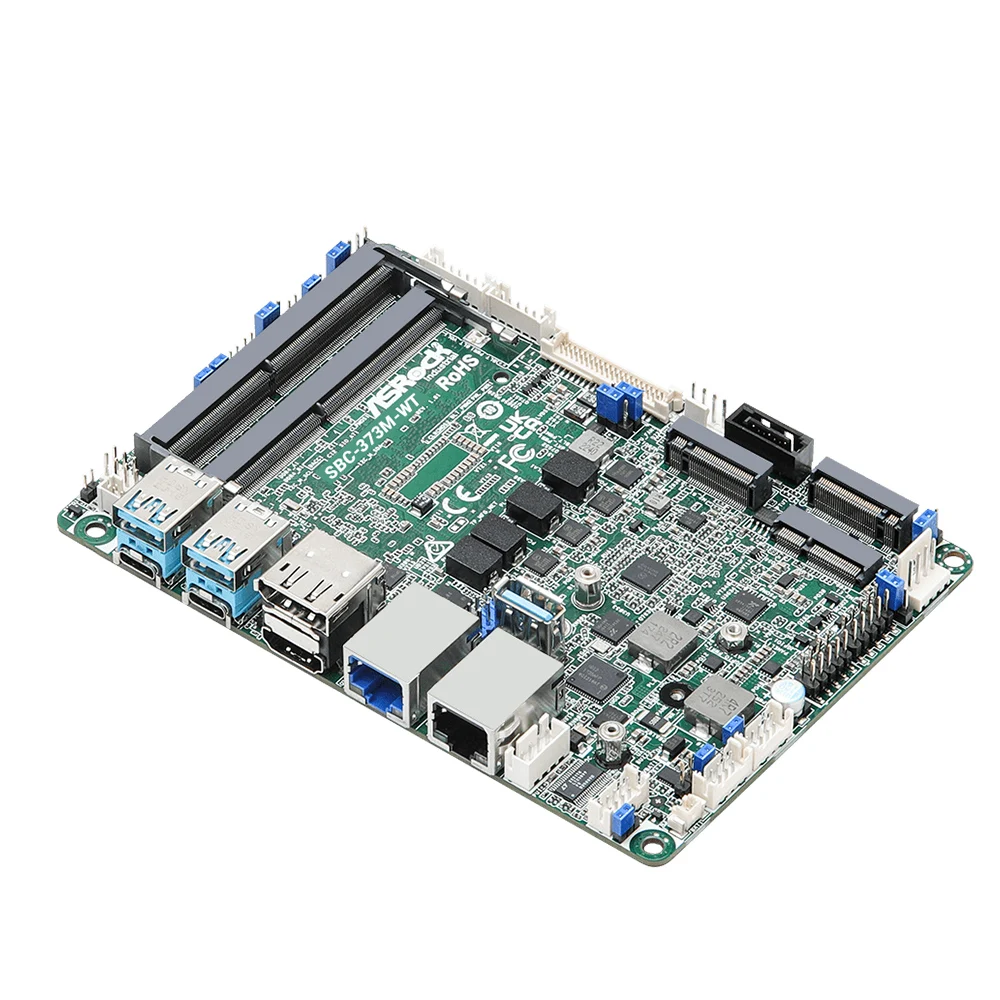

for ASRock SBC 373M WT Industrial Embedded Motherboard Single Board Computer motherboard DDR4 3200 Intel 13th Processors i5

Product Overview

Description

TEKET INNOVATION founded in year 2003 in Beijing, provides TEKET brand embedded motherboard, industrial PC and related parts (chassis, power supply, RAM, SSD, LCD panel) and Intel/Lenovo/ASUS/Gigabyte/MSI/HP/Dell NUC or laptop.
We also distribute the following brands industrial/workstation/server motherboards and complete systems or accessories
VIA,ASUS,ASRock,Gigabyte,MSI
Advantech,ICOP
IEI,AAEON,Kontron,ARBOR,Norco
Axiomtek,Avalue,COMMELL,iBase
ADlink,Supermicro,Jetway,EVOC
Innodisk,Transcend
www.teket.com

For well-known brands of embedded industrial motherboards, workstation motherboards, server motherboards, and corresponding complete systems:
1. It is recommended to consider upgrade new models for discontinued products, or consider second-hand of the same model.

2. It usually need pre order for product that is still launched.
please provide the model # and quantity you need so that the factory could confirm the unit price and delivery time;

3. The price is determined by the factory based on the quantity the client orders and the delivery time, and unit price in the listing has no reference significance.

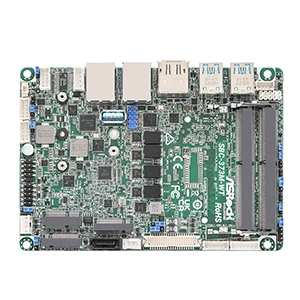

SBC-373M-WT
SBC 3.5

Features
Intel 13th Gen Raptor Lake-P MCP Processors i5-1345URE
2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 64 GB (32GB per DIMM)
1 x PCIe x1, 2 x USB 3.2 Gen2x2, 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x M.2 Key B, 3 x COM, 1 x SATA3
1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4a (2 from Type-C), 1 x LVDS or eDP
TPM 2.0 onboard IC
Supports Intel vPro, VMD RAID 0/1
12~36V DC-In PWR/ 12V DC-In only (BOM option)



Specification
Processor System
CPU Intel 13th Gen Raptor Lake P MCP Processors i5-1345URE, 2P+8E
Chipset MCP
BIOS AMI SPI 256 Mbit
Form Factor
Dimensions 3.5"SBC (5.8-in x 4-in x 0.94-in, 14.7 cm x 10.2 cm x 2.40 cm)
Memory
Technology Dual Channel DDR4 3200 MHz
Capacity 64GB (32GB per DIMM)
Socket 2 x 260-pin SO-DIMM
Graphics
Controller Intel Iris Xe Graphics
HDMI HDMI 2.0a
Max resolution up to 4096 x 2160@60Hz
DisplayPort DP 1.4a
Max resolution up to 4096 x 2160@60Hz
LVDS Dual channel 24 bit up to 1920 x 1200@60Hz
(Connector shared with eDP)
eDP Max resolution up to 1920 x 1080@60Hz
(Connector shared with LVDS)
MultiDisplay Quad display (Included 2 output from Type-C)
Expansion Slot
PCIe 1 x PCIe x1 Gen3 (supports up to 10W)
M.2 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless
1 x M.2 (K ey B, 3042/3052) with PCIe x1 or SATA3 and USB 3.2 and USB 2.0 and SIM for 4G/5G
SIM Socket 1 x SIM socket connected to M.2 key B
Audio
Interface Realtek ALC256 HD, High Definition Audio. Line-out, Mic-in
Ethernet
Controller/ Speed LAN1: Intel I226IT with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel I210IT with 10/100/1000 Mbps
Connector 2 x RJ-45

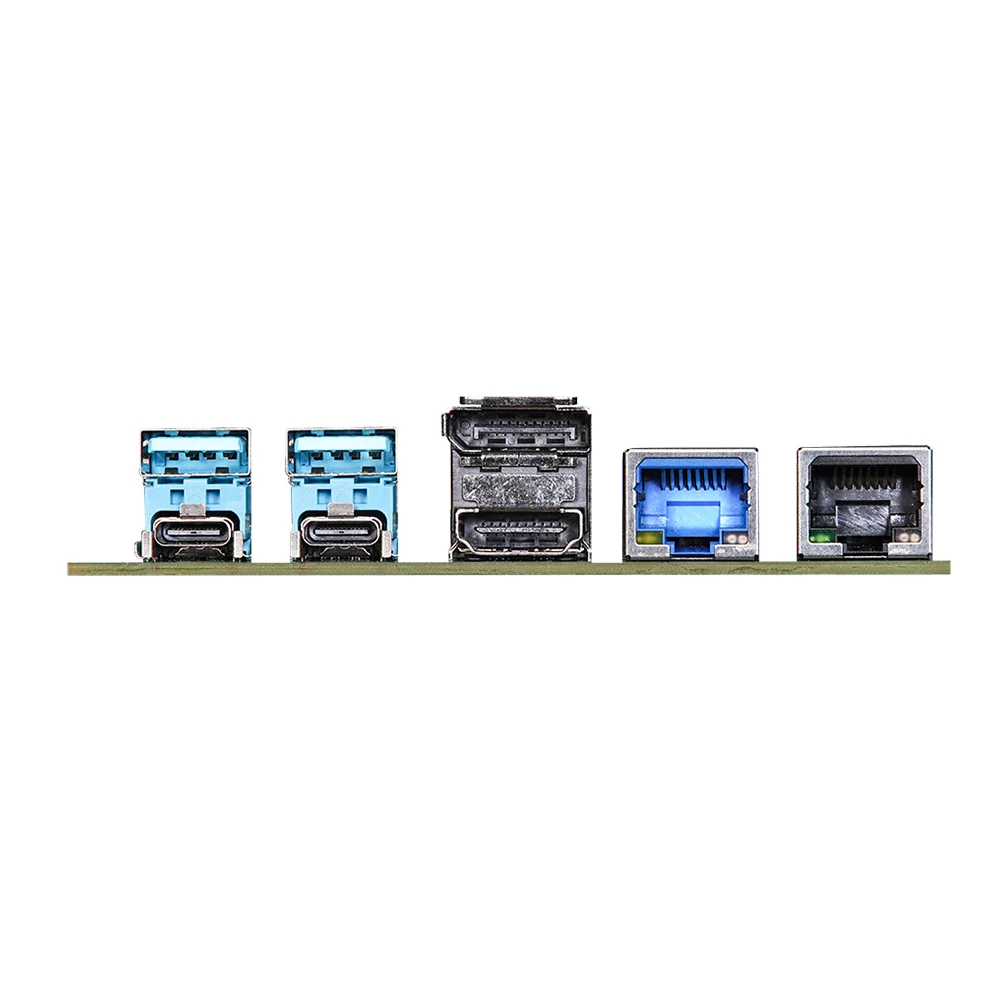

Rear I/O
HDMI 1 x HDMI 2.0a
DisplayPort 1 x DP 1.4a
USB 2 x USB 3.2 Gen2
2 x USB 3.2 Gen2x2 (Type-C, 5V/3A, support DP 1.4a display output)
Ethernet 1 x 1 Gigabit LAN
1 x 2.5 Gigabit LAN
Internal Connector
USB 1 x USB 3.2 Gen2 (Type A connector)
2 x USB 2.0 (1 x 2.54 pitch header)
COM COM1, COM3, COM4 (RS-232/422/485)
GPIO 4 x GPI, 4 x GPO
LVDS 1 (Connector with LVDS/eDP signal, switch by BIOS)
SATA PWR Output 1
Speaker Header 1
Security
TPM TPM 2.0 onboard IC
Storage
M.2 1 x M.2 (Key M, 2242/2260/2280) with PCIex4 and USB 2.0 for SSD
SATA 1 x SATA3 (6Gb/s)
RAID Intel VMD RAID 0/1
**supported by PCIE interface
PCIE interface: M.2 Key B+ M.2 Key M
Watchdog Timer
Output From Super I/O to drag RESETCON#
Interval 256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR 12~36V DC-In with 4-pin wafer PWR cable or DC Jack
12V DC-In only (BOM option)
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp -40° C ~ 85° C
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
