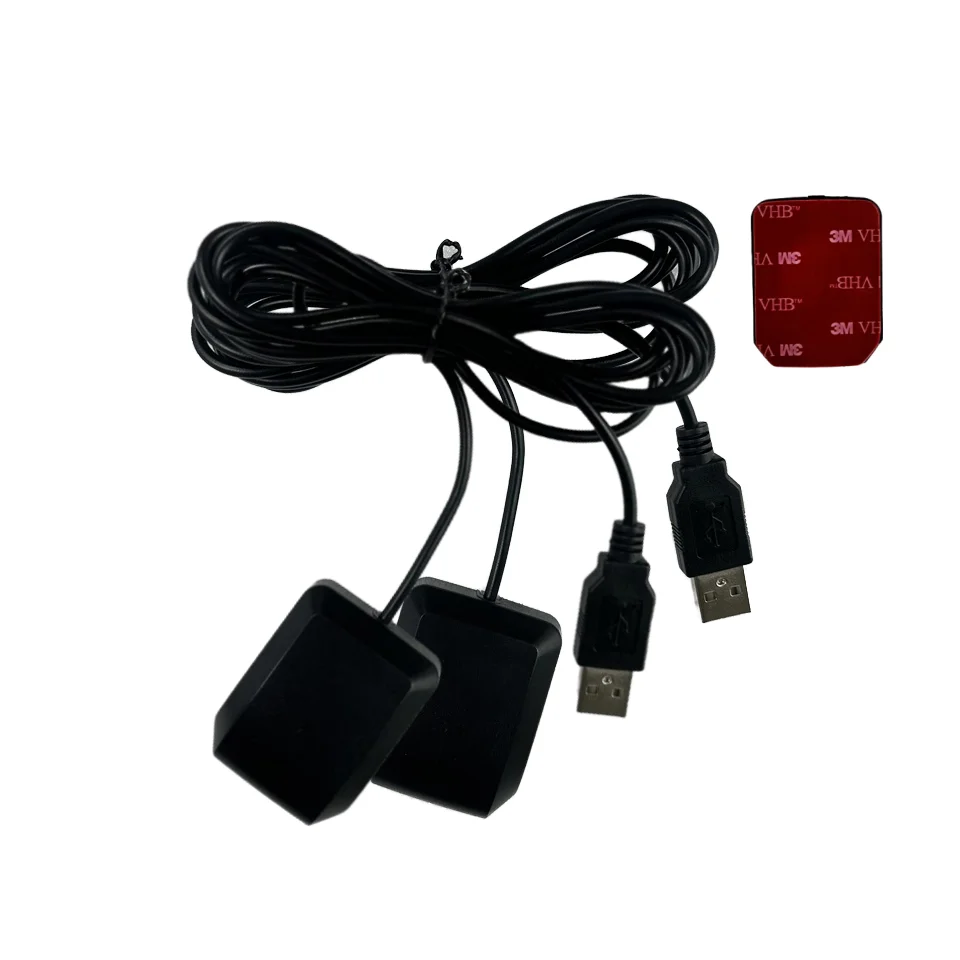

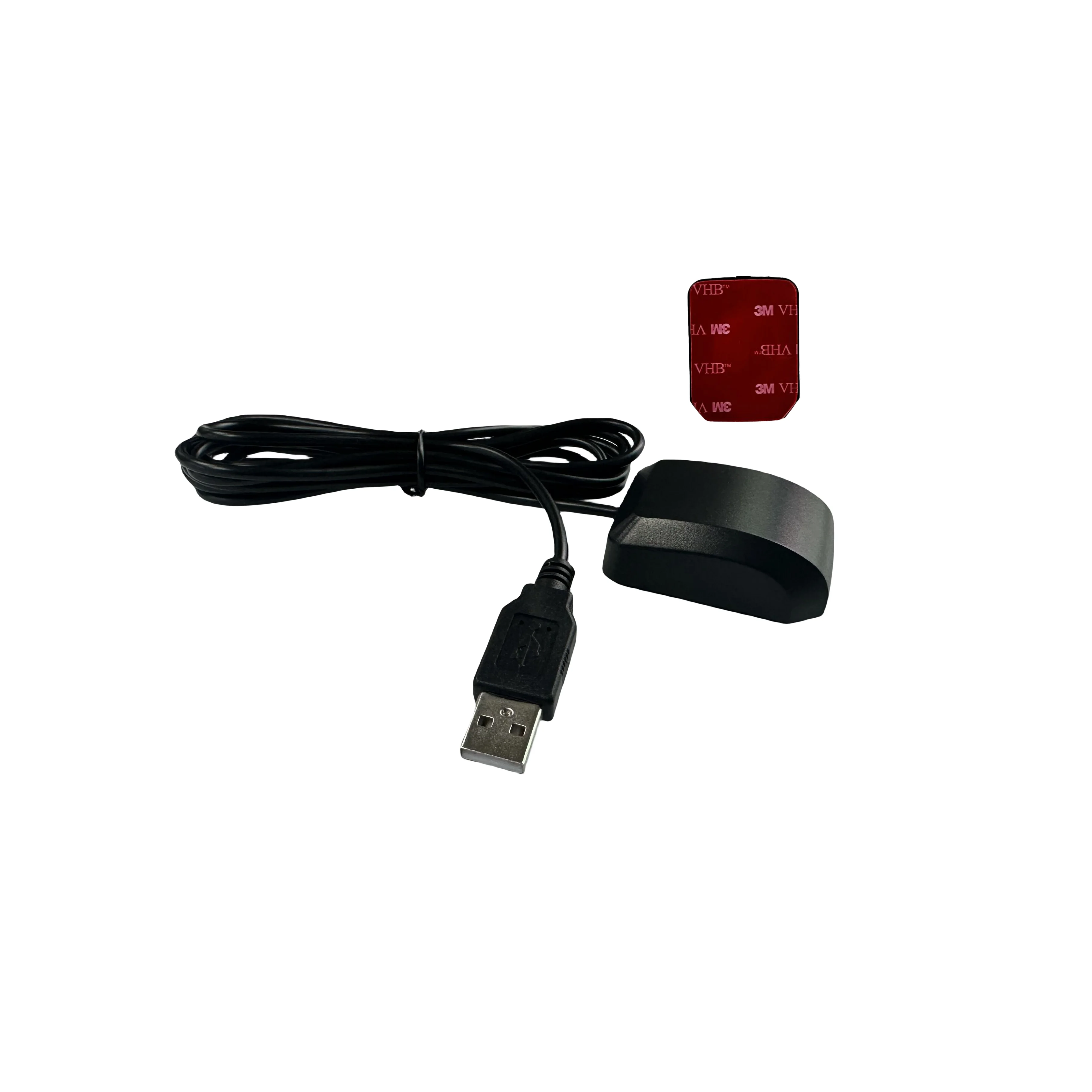

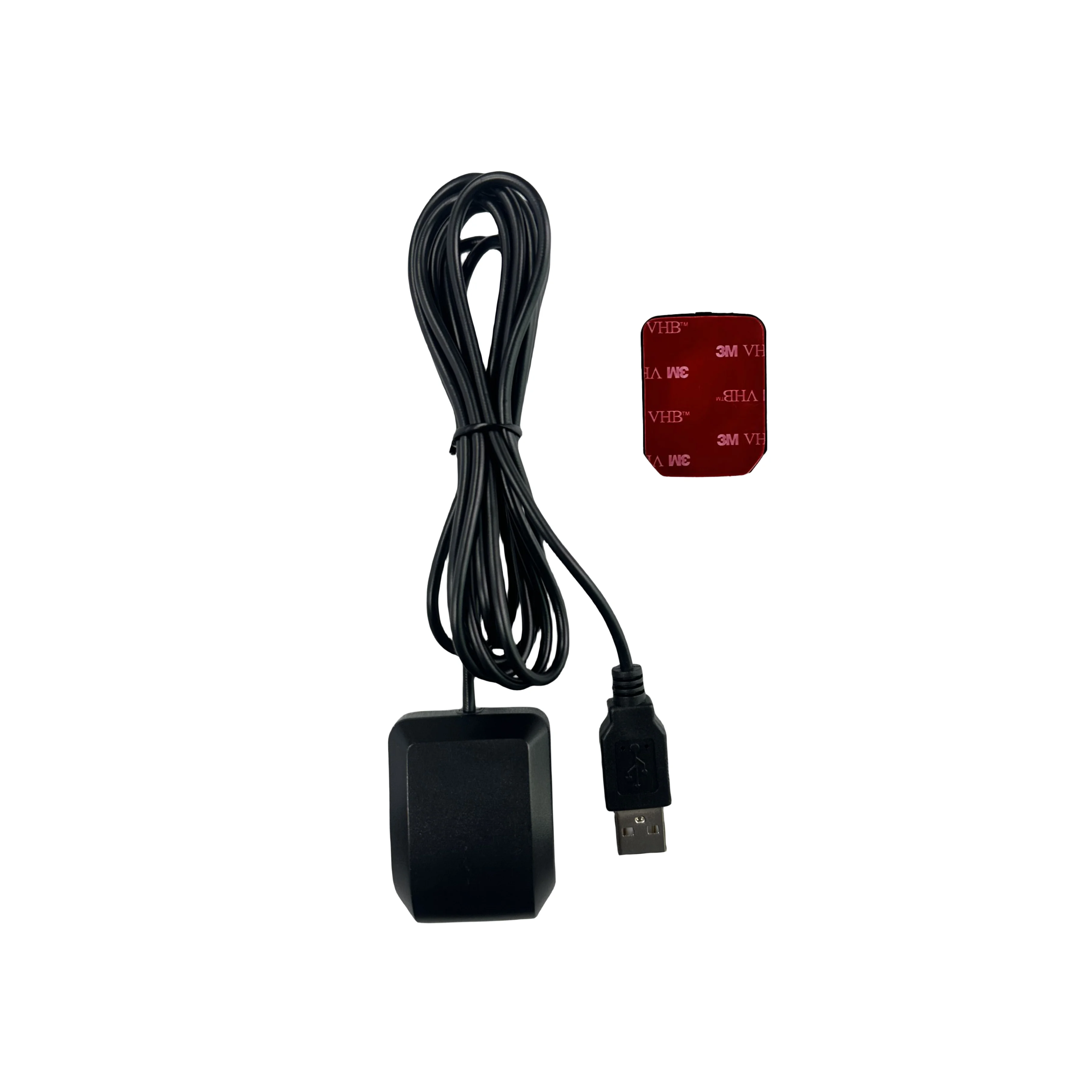

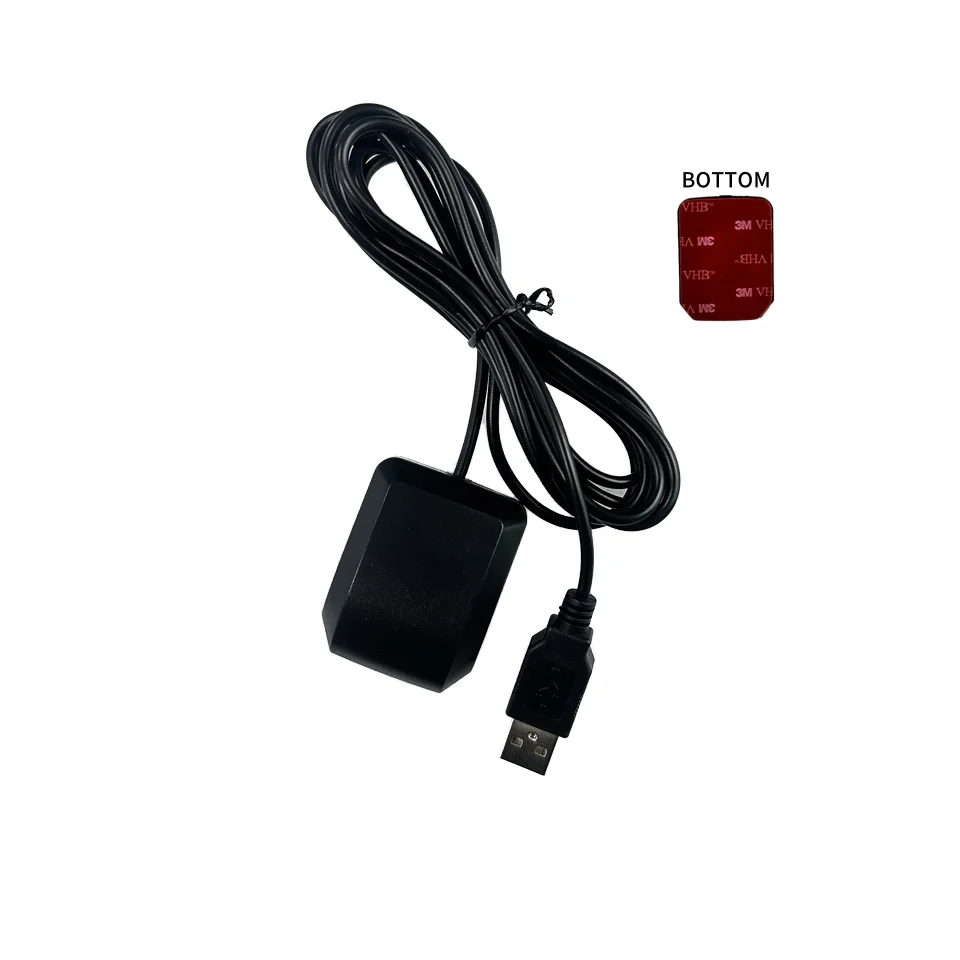

WT 2828 AK R232 U 1.2M GPS Modules Low Power Consumption G Mouse Connector Marine Wired USB Interface Waterproof GPS Receiver
WT-2828-AK-R232-U-1.2M GPS Modules Low Power Consumption G-Mouse Connector Marine Wired USB Interface Waterproof GPS Receiver
WT-2828-AK-R232-U-1.2M GPS Modules Low Power Consumption G-Mouse Connector Marine Wired USB Interface Waterproof GPS Receiver
WT-2828-AK-R232-U-1.2M GPS Modules Low Power Consumption G-Mouse Connector Marine Wired USB Interface Waterproof GPS Receiver
WT-2828-AK-R232-U-1.2M GPS Modules Low Power Consumption G-Mouse Connector Marine Wired USB Interface Waterproof GPS Receiver
WT-2828-AK-R232-U-1.2M GPS Modules Low Power Consumption G-Mouse Connector Marine Wired USB Interface Waterproof GPS Receiver
WT-2828-AK-R232-U-1.2M GPS Modules Low Power Consumption G-Mouse Connector Marine Wired USB Interface Waterproof GPS Receiver

WT 2828 AK R232 U 1.2M GPS Modules Low Power Consumption G Mouse Connector Marine Wired USB Interface Waterproof GPS Receiver

Share on (1601083552288):


Price:$4.70 - $5.10

Quantity:


Product Overview

Description





 Application：
● Car DVR
● Car RearView Mirror
● Car Tracker
● LBS (Location Based Service)
● PND (Portable Navigation Device)
● Computer
● Outdoor Equipment
● Handheld GPS Device. ect.

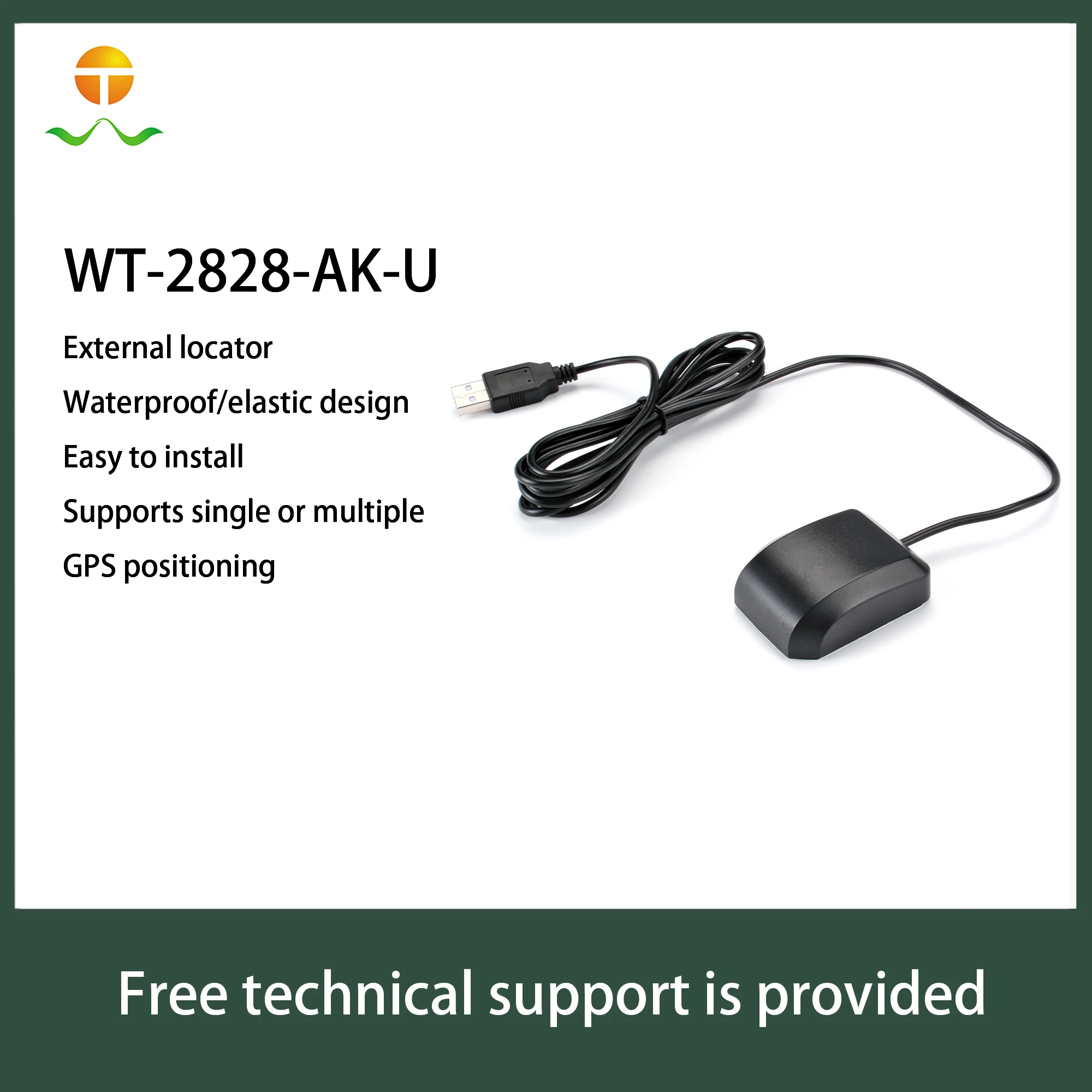

Features：
● External positioning module and antenna integrated
● Elastic design with waterproof function
● Easy to install
● Support BDS/GPS/GLONASS multi-system joint positioning and single system independent positioning.
● Ultra-high sensitivity, high performance, low power consumption




Pin No.
Pin name
I/O
Description
Remark
1
VCC
P
Power Supply
Voltage range 3.0V~5.0V
2
TXD
O
UART Serial Data Output

3
RXD
I
UART Serial Data Input

4
GND
G
Ground




Specification：


Module performance
Model
WT-2828-AK-R232-U-1.2M
Receiver type
GPS/QZSS L1
GLONASS L1
BeiDou B1
Agreement
NMEA-0183 compliant protocol or custom protocol
NMEA messages
RMC,VTG,GGA,GSA,GSV,GLL
Available baud rate
4800bps~921600bps(default 9600bps)
Channel
56
Sensitivity
Tracking: -162dbm    Capture: -148dbm    Cold start -148dbm
Cold start
Average 29 seconds
Hot start
Average 1 seconds
Accuracy
Horizontal accuracy 2.5m CEP,
Velocity: 0.1 m/s
Timepulse signal: RMS 30 ns
Max Height
18000 m
Max Speed
500 m/s
Max Acceleration
≦ 4G
Regeneration frequency
1Hz -10 Hz
Positioning mode
A-GNSS
Communication type
R232 level
Antenna
Built-in ceramic antenna
Connector
Connector type

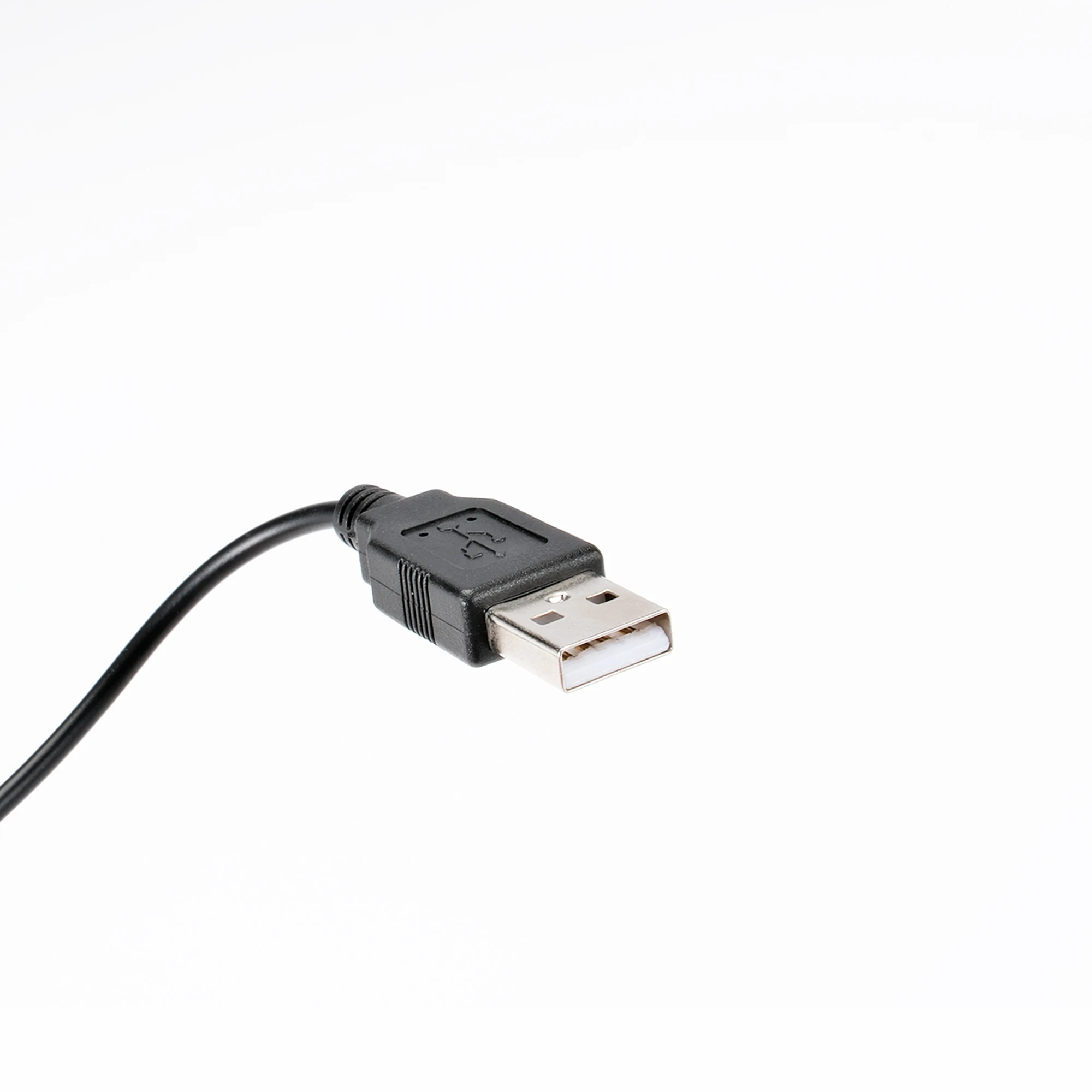

USB connector
Physical property
Type
4 Pin
Size
38mm*49mm*16mm (+/- 0.5mm)
Wire length
1.2m (customizable)
Fixed mode

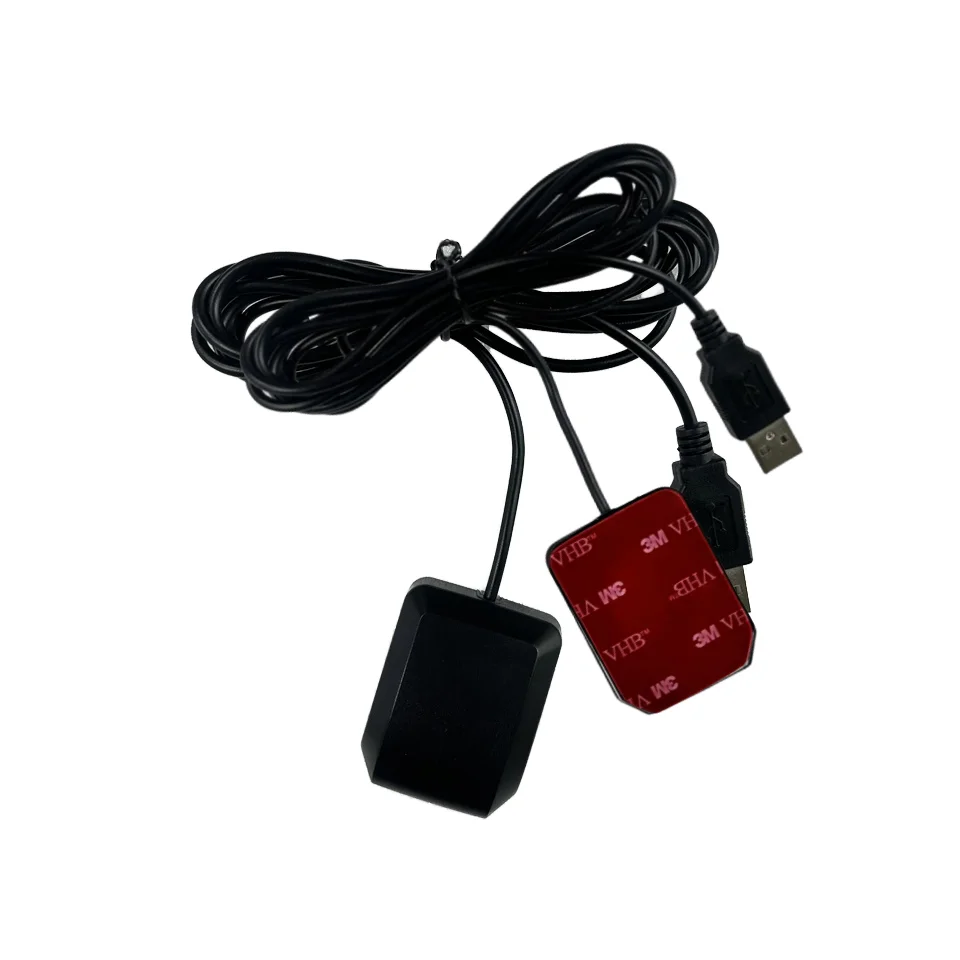

3M adhesive or magnet (default 3M adhesive)
Power supply
Voltage
3V~5V
Power Consume
25mA@3.3V
Oerating Environment
Humidity range
5% to 95% non-condensing
Working Temperature
-40℃ to 85℃
Storage Temperature
-40℃ to 85℃
