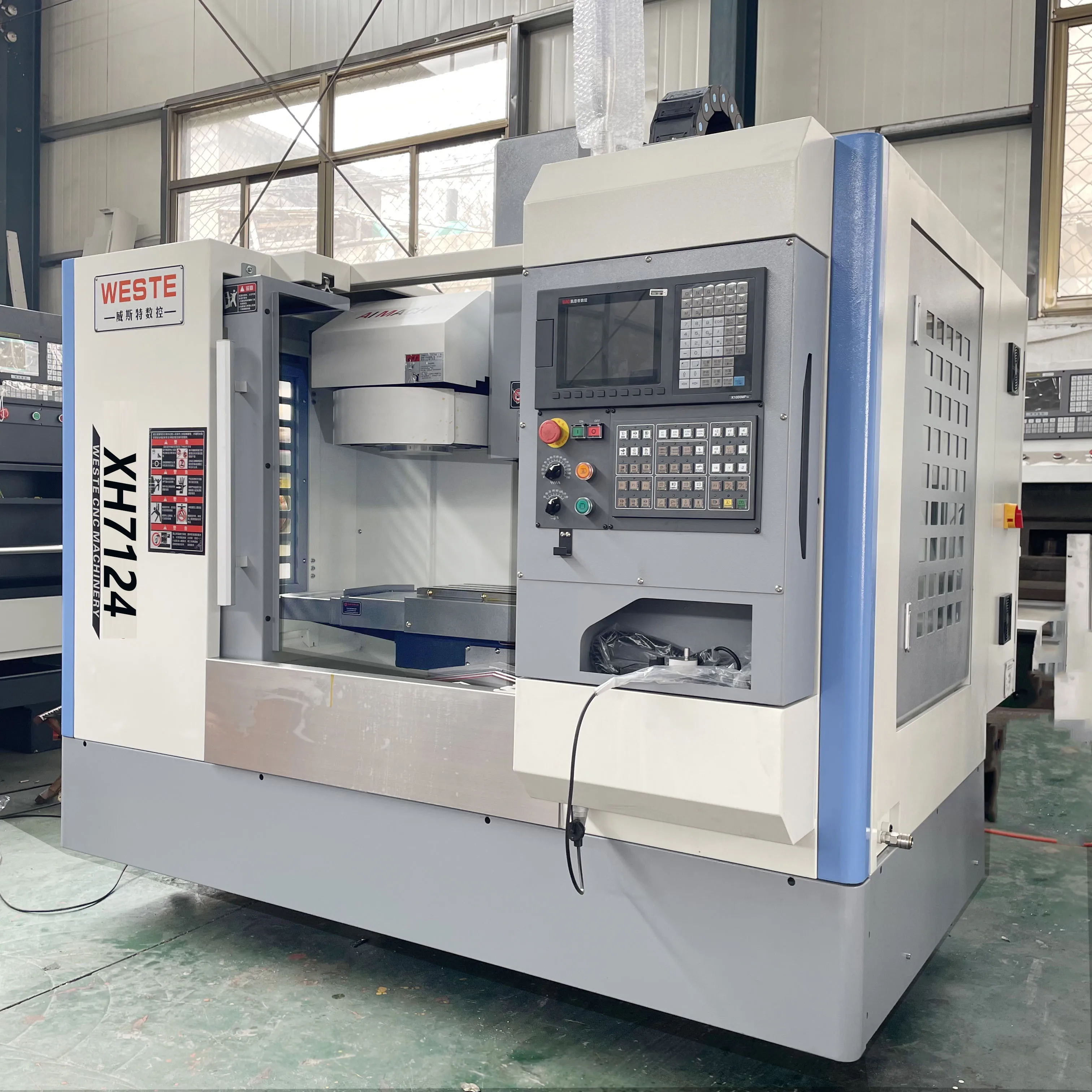

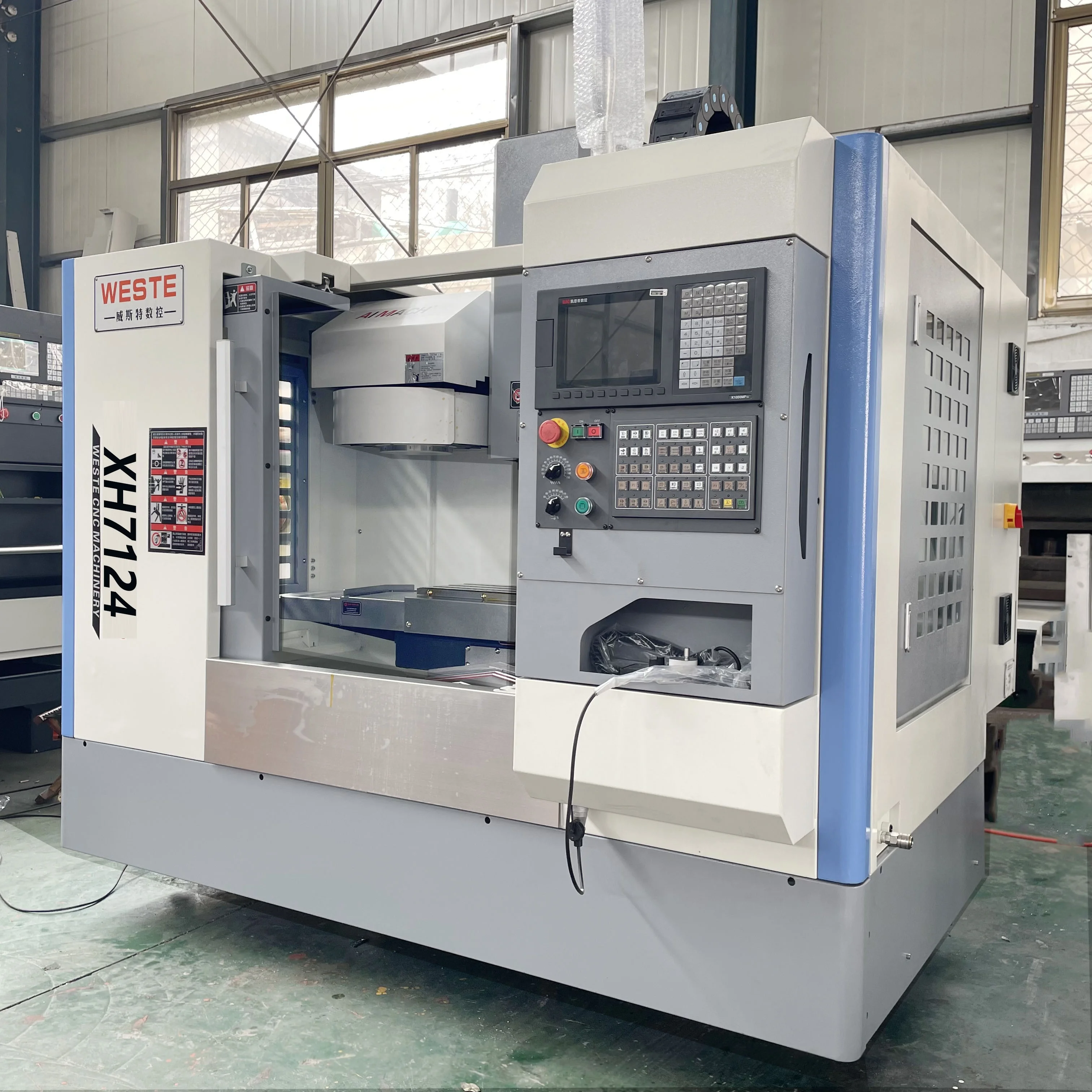

3 Axis CNC Milling Machinery Xh7124 CNC Machine with GSK Fanuc Controller
- Category: >>>
- Supplier: Shandong Weste Cnc Machine Tool Co. Ltd.
Share on (1601083636385):
Product Overview
Description
Product descriptions from the supplier
Features:
Suitable for drilling ,hole-expansion ,reaming ,bevel edge ,and tapping, for surface milling, step plane ,slope ,and milling groove , for cuttingand milling curve ,curve surface and cam. Have the function of stepless speed and automatic speed change to gain large torque with low speed, suitable for processing thick cutting depth and larger-diameter hole. The fuselage and main
components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
components are high strength cast iron, microstructure stability, ensure the stability of machine tool for long-term use.
(VMC from small to big size, the web pages are limited, so please contact us for more details，customized requests are super warmly
welcome)
welcome)
Specifications | Units | XK7126 | XH7124 |
Table size | mm | 650x260 | 650x260 |
X axis travel | mm | 450 | 450 |
Y axis travel | mm | 300 | 300 |
Z axis travel | mm | 400 | 400 |
Max. worktable load | kg | 200 | 200 |
T slot(number-width-pitch) | 3-14x80 | 3-14x80 | |
Max. spindle speed | rpm | 6000 | 6000 |
Spindle taper | mm | BT40 | BT40 |
Main motor power | kw | 2.2 | 2.2 |
X/Y/Z rapid traverse speed | m/min | 15/15/15 | 15/15/15 |
Cutting feed speed | mm/min | 1-6000 | 1-6000 |
Guide rail type | Linear rail | Linear rail | |
Distance from spindle axis to column surface | mm | 360 | 360 |
Distance between spindle nose and worktable surface | mm | 90-520 | 90-520 |
Positioning accuracy | mm | ±0.015 | ±0.015 |
Repeat positioning accuracy | mm | ±0.0075 | ±0.0075 |

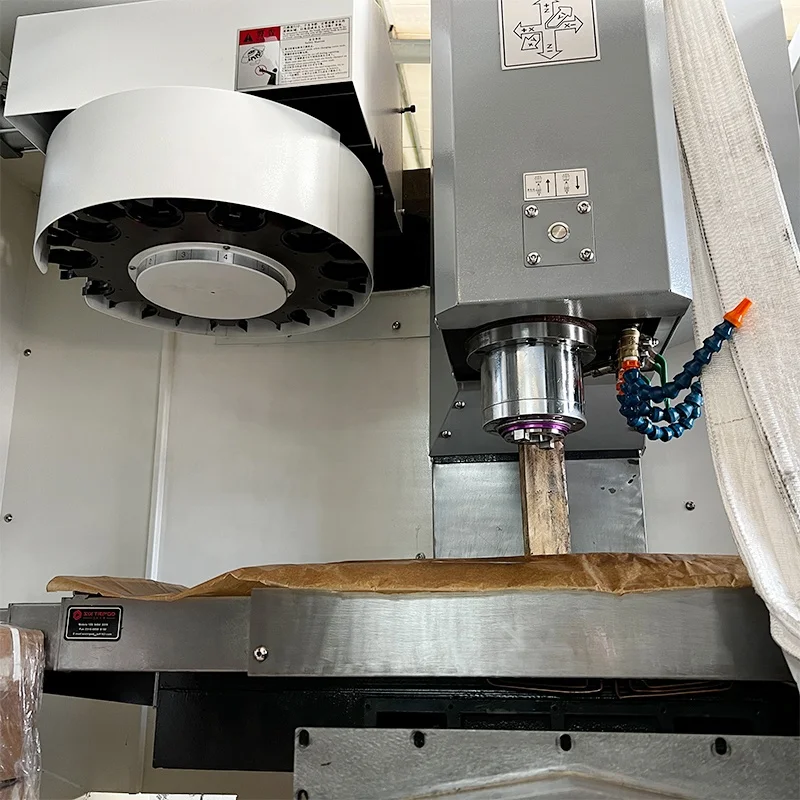

Tool magazine | - | 12 Armless/(Optional: Arm 16 ) | |
Max. tool diameter | mm | - | Ø130 |
Max.tool weight | kg | - | 8 |
Machine weight | kg | 2400 | 2400 |
Overall dimension | mm | 2200x1900x2200 | 2200x1900x2200 |
If you want you to know more product model details, please contact us!
We are professional manufacture of vmc, horizontal machining center 500mm 630mm 800mm, gang type machining center double column or
single column, from small to big, with or without control system, full complete machine or main machine body frame all available,
contact us immediately for more details~~~~Milling cnc vertical machining center SP8126 cnc milling machine.
single column, from small to big, with or without control system, full complete machine or main machine body frame all available,
contact us immediately for more details~~~~Milling cnc vertical machining center SP8126 cnc milling machine.

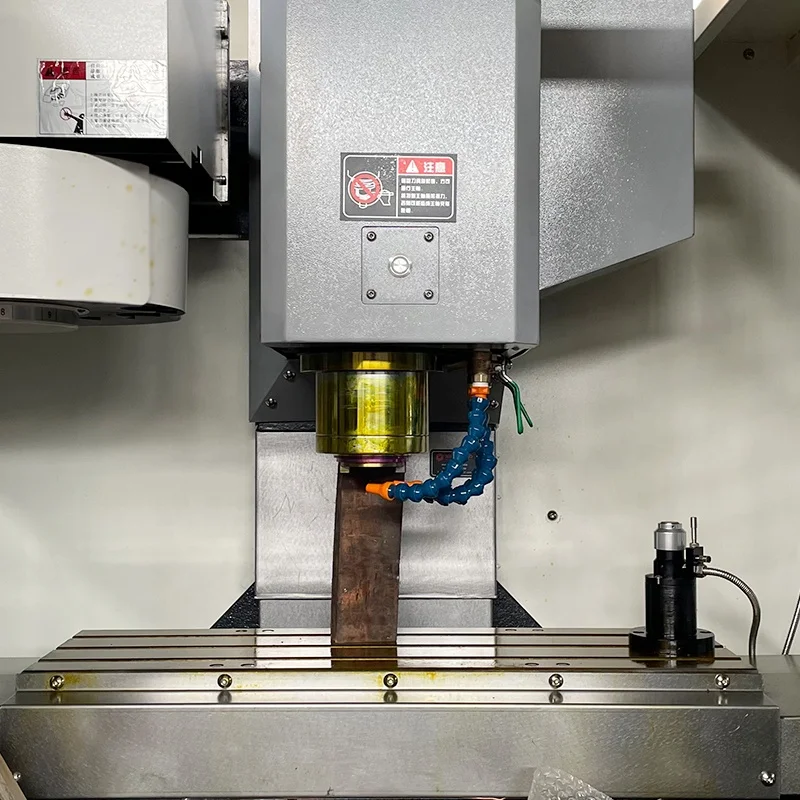

The use of P3 high rigidity, high precision spindle to ensure high reliability of the spindle, long life, low noise, low vibration and so on.
Precision grinding of the table, all non-sliding surface of the guide rail are quenched by UHF, which greatly enhances the surface hardness.

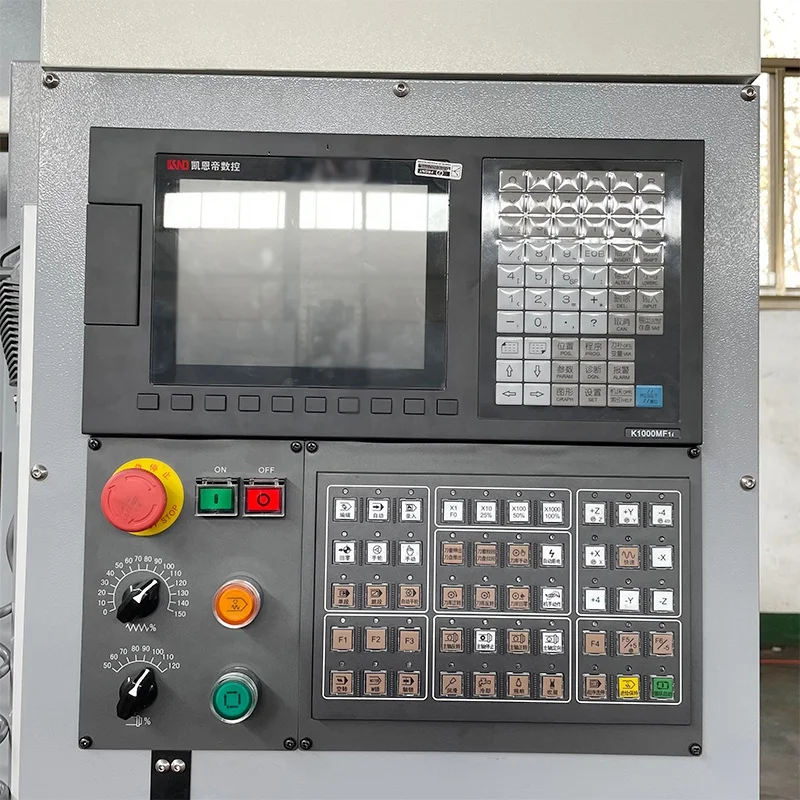

The standard CNC system adopts KND or wide number system, and the wiring in the electrical cabinet conforms to the national electrical safety code.
Each shaft adopts sealed machine guide shield, which effectively protects the guide rail and lead screw and prolongates its service life.
Shandong Weste CNC Machine Tool Co.,Ltd
Shandong Weste CNC Machine Tool Co., Ltd. is a CNC machine tool manufacturing company that integrates design, manufacturing, sales, and service, covering an area of more than 5000 square meters. The company has been developing for 20 years, and its main products include vertical machining centers, horizontal machining centers, gantry machining centers, five axis machining centers, CNC inclined bed lathes, CNC milling machines, ordinary milling machines, drilling machine series, and other CNC equipment. the company has a stable supply chain to provide guarantees for the supply of raw materials. The precise quality inspection equipment and modern management mode have laid a solid foundation for
producing high-quality products. All factory equipment will go through strict quality control processes such as quality inspection, copying, and re inspection, ensuring that each equipment is of high quality. At the same time, each machine tool has complete quality control records, a comprehensive after-sales service system, and experienced engineers to ensure fast after-sales service. The company has a group of experienced mechanical engineering designers and skilled assembly technicians, adhering to the principles of technological innovation, management innovation, and talent innovation to provide customers with excellent quality services. We warmly welcome domestic and foreign friends to discuss business, enhance understanding, and work together to create brilliance!
producing high-quality products. All factory equipment will go through strict quality control processes such as quality inspection, copying, and re inspection, ensuring that each equipment is of high quality. At the same time, each machine tool has complete quality control records, a comprehensive after-sales service system, and experienced engineers to ensure fast after-sales service. The company has a group of experienced mechanical engineering designers and skilled assembly technicians, adhering to the principles of technological innovation, management innovation, and talent innovation to provide customers with excellent quality services. We warmly welcome domestic and foreign friends to discuss business, enhance understanding, and work together to create brilliance!
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
