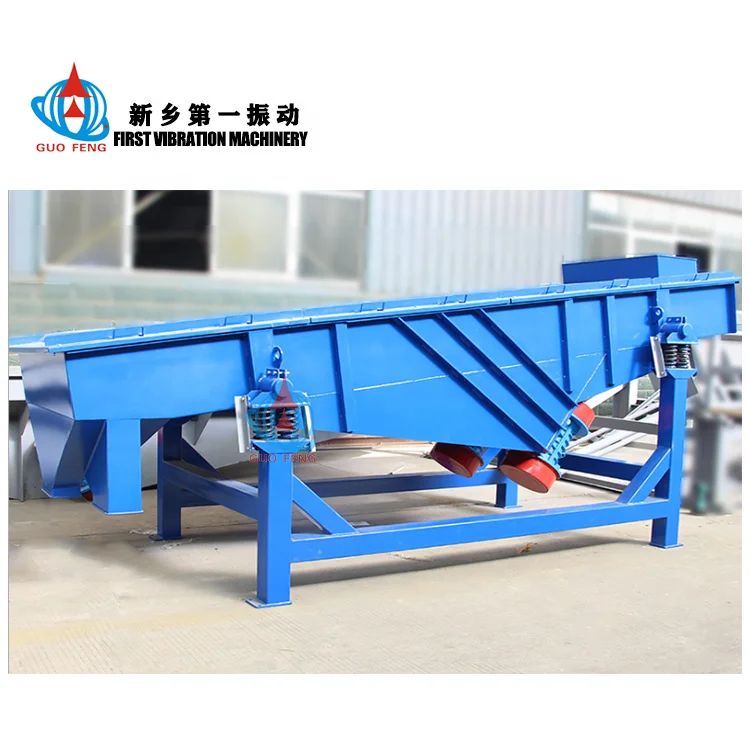

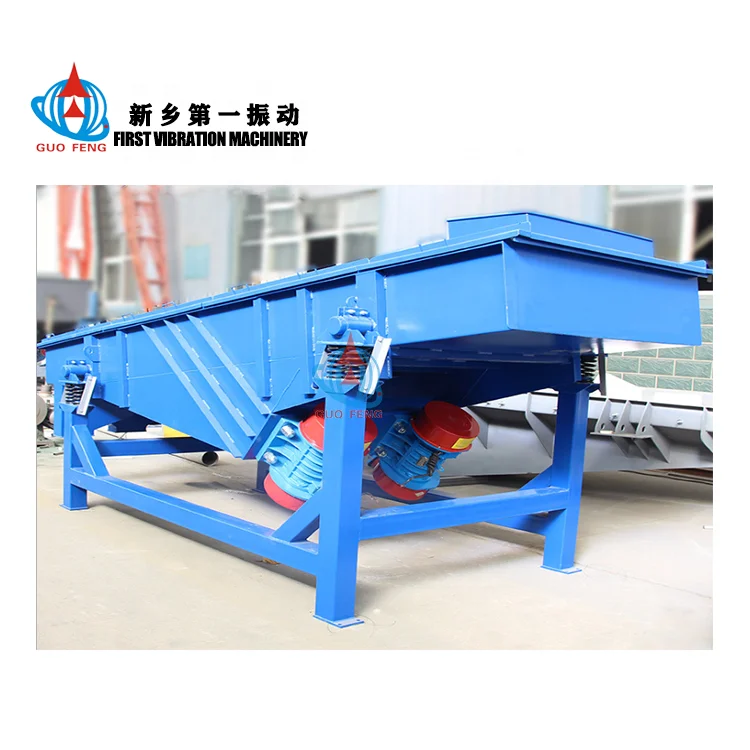

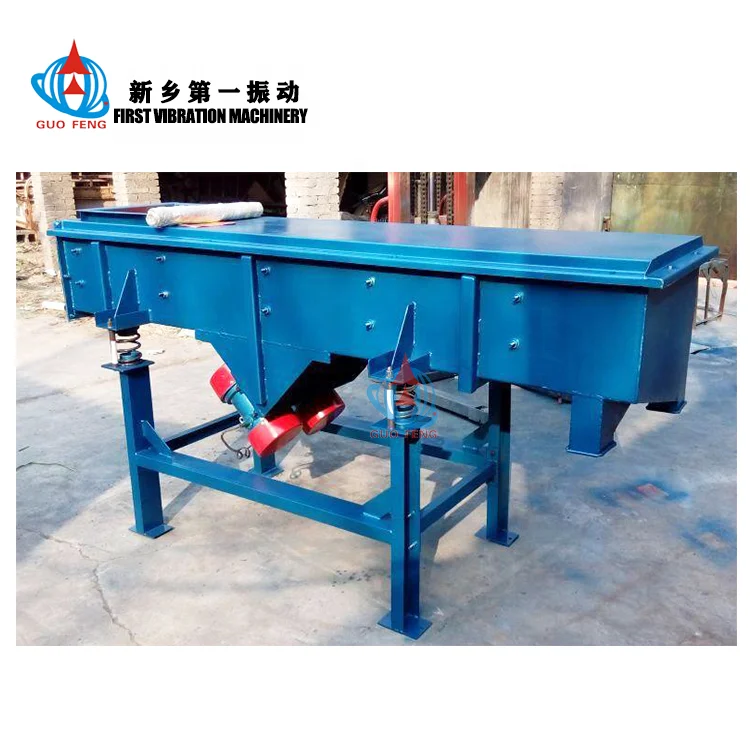

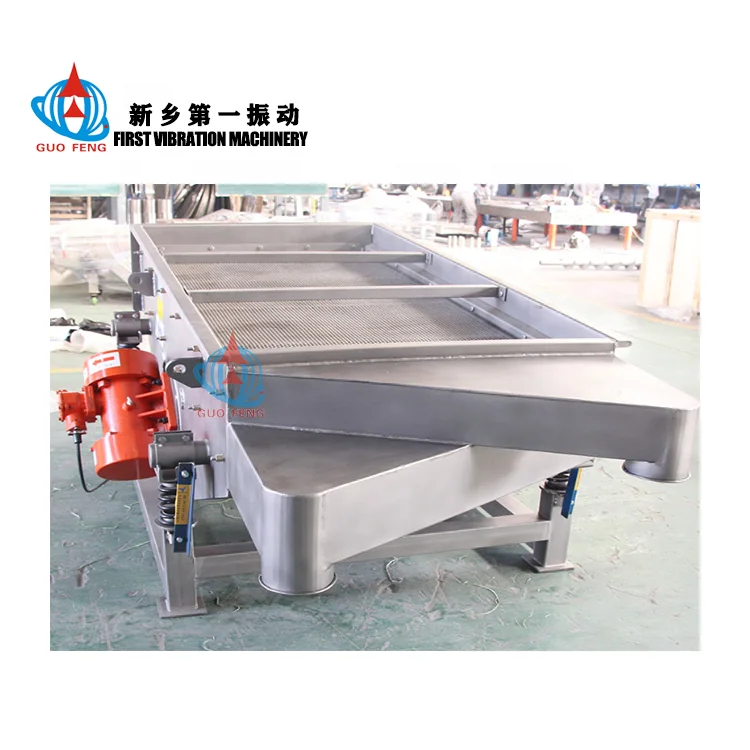

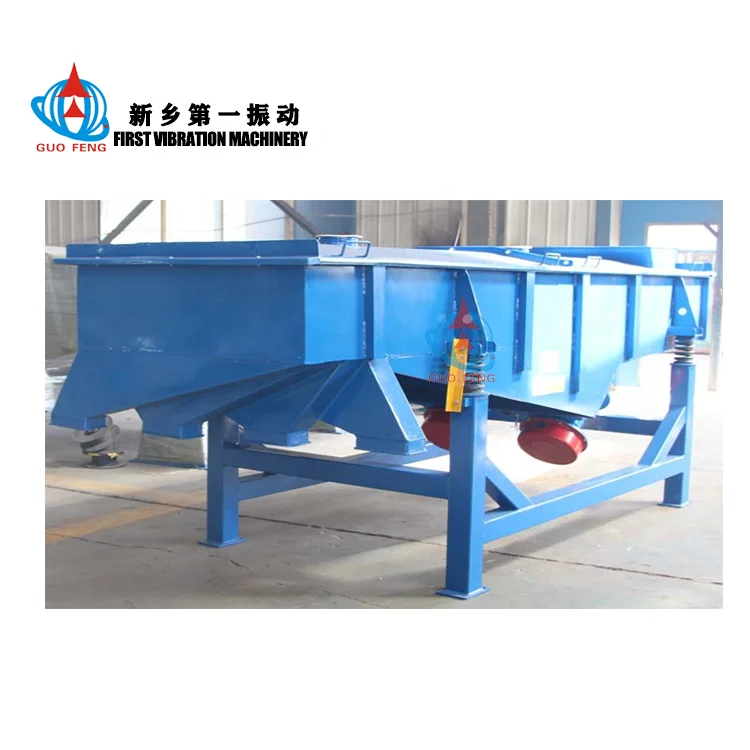

High efficiency sand vibration separator sieve machine linear vibrating screen
High efficiency sand vibration separator sieve machine linear vibrating screen
High efficiency sand vibration separator sieve machine linear vibrating screen
High efficiency sand vibration separator sieve machine linear vibrating screen
High efficiency sand vibration separator sieve machine linear vibrating screen
High efficiency sand vibration separator sieve machine linear vibrating screen
High efficiency sand vibration separator sieve machine linear vibrating screen

High efficiency sand vibration separator sieve machine linear vibrating screen

Share on (1601084351845):


Price:$1,100.00 - $1,200.00

Quantity:


Product Overview

Description



Product Description


The DZSF linear vibrating screen uses excellent vibrating motors as the power source, so that the materials can be thrown to the sieve and forward to make a straight movement. It can be equipped with single or multi-level screen to achieve the goal of grading, impurities-removing, testing, washing and dehydration purpose, etc.

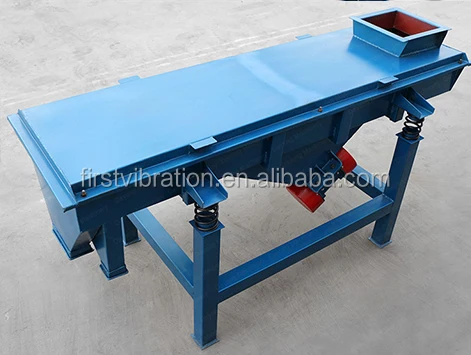

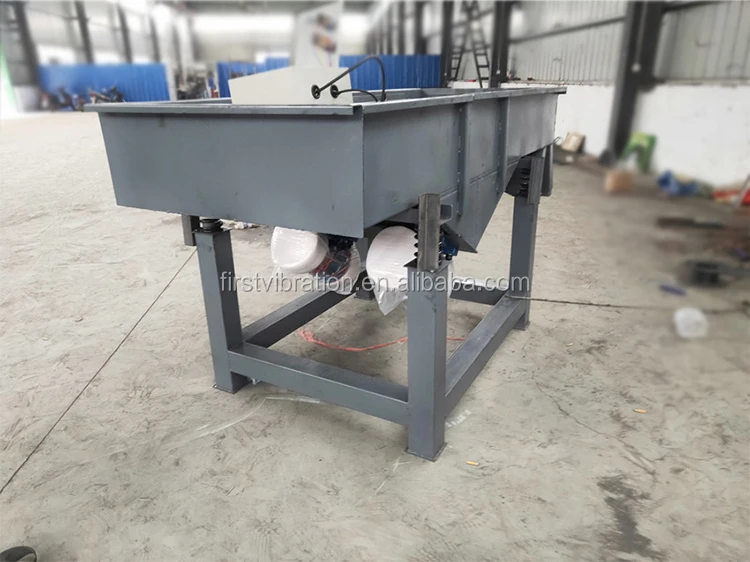

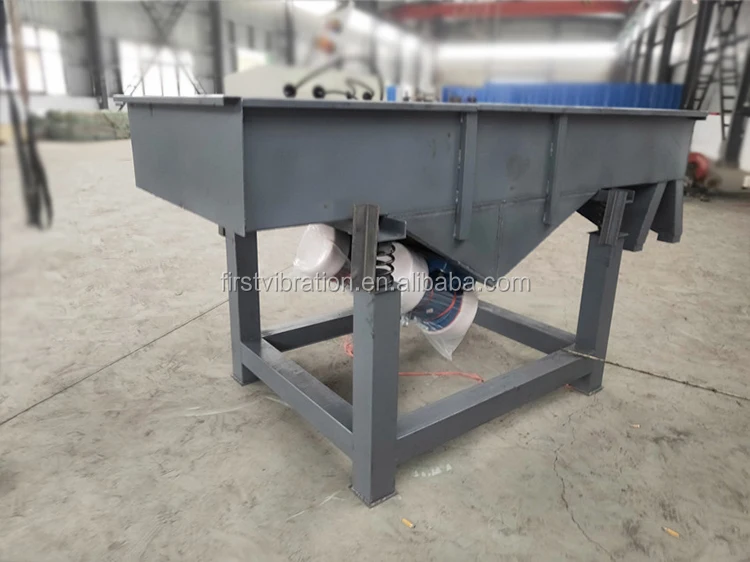

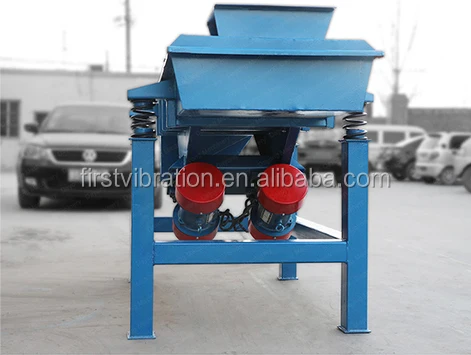

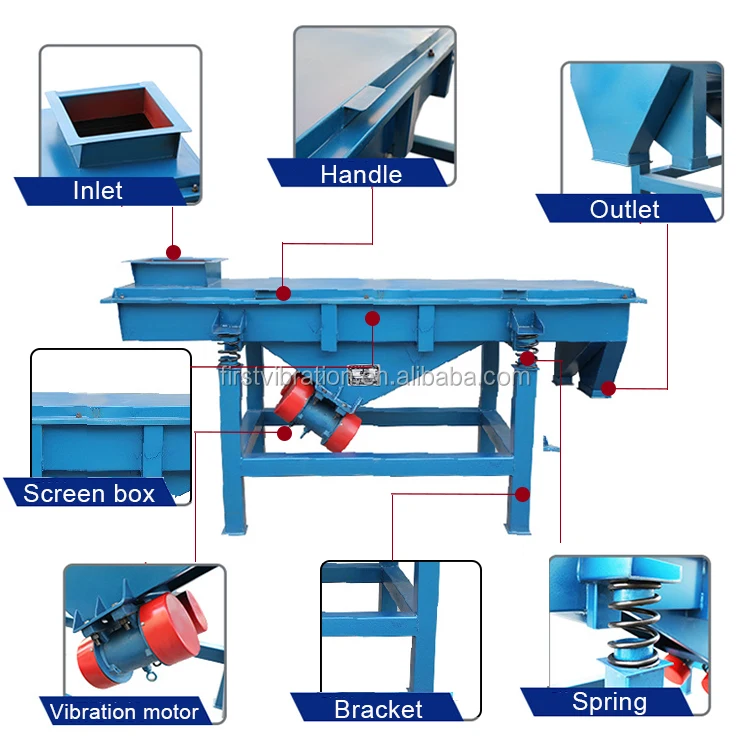

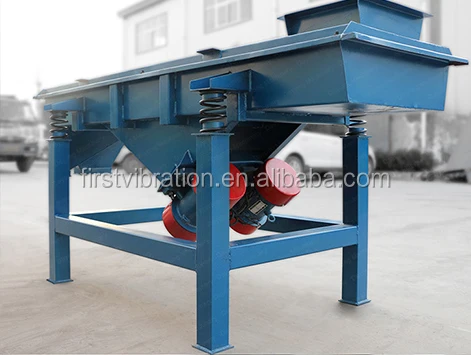

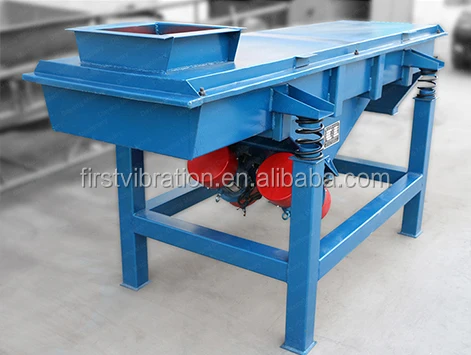

Product Display


Features:
1. No flying dust and environment protection.
2. Small amplitude, lower powder consumption and low noise.
3. Special used for some materials like sand and mining materials, since linear screen can be made to larger capacity.




Woven screen
The surface is smooth, corrosion-resistant and wear-resistant.
Polyurethane screen
Long service life, good abrasion resistance and humidity resistance, and large carrying capacity.
Perforated screen
Wear-resistant and shock-resistant, holes of different shapes can be customized according to the screened materials.

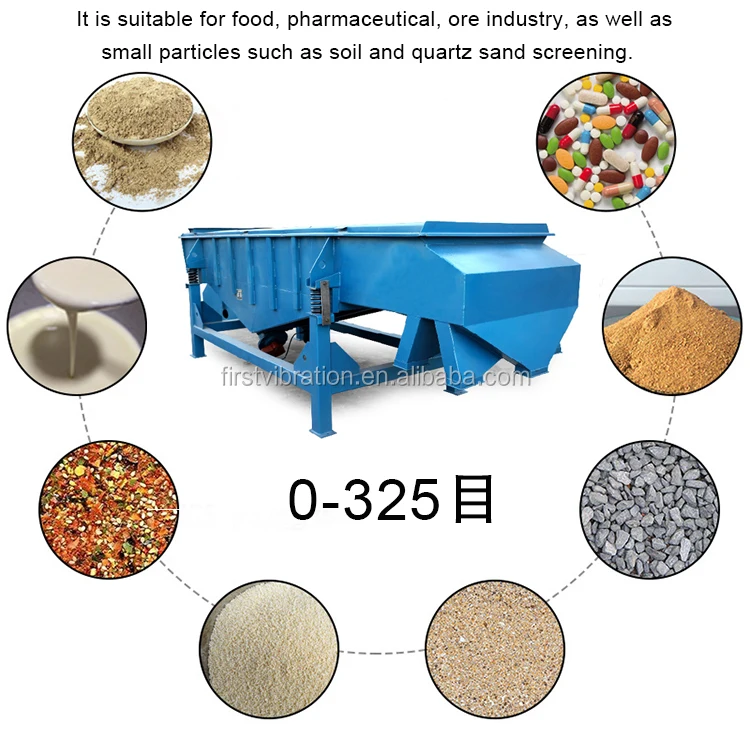

Application field




Technical Parameter


Model
Screen
(mm)
Layers
Screen mesh
(mesh)
Vibration time
(rpm)
Double amplitude(mm)
 Moter power
(kw)
Capacity
(t/h)
DZSF520
500*2000





1-4






2-200





960
6-7
0.4
0.5-5
DZSH525
500*2500
4-8
0.4
0.6-8
DZSF1020
1000*2000
4-8
0.75*2
1-20
DZSF1025
1000*2500
6-8
0.75*2
1-20
DZSF1230
1200*3000
6-8
1.5*2
5-25
DZSF1530
1500*3000
6-8
2.2*2
6-25
DZSF1540
1500*4000
6-8
2.2*2
6-25
DZSF1840
1800*4000
6-8
3*2
8-30
