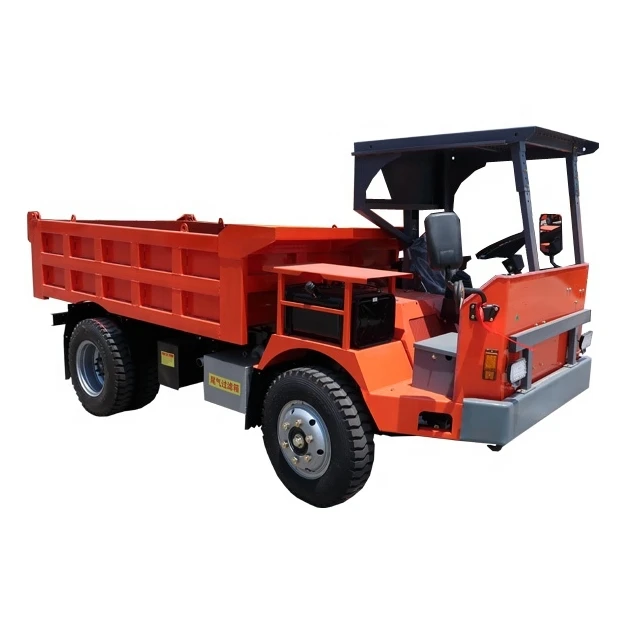

HuanSheng Mine Use 4 Wheel Drive Hydraulic Double Rear Cylinder Diesel Engine Dump Truck
- Category: >>>
- Supplier: Henan Huansheng Mechanical Equipment Co. Ltd.
Share on (1601084479211):
Product Overview
Description

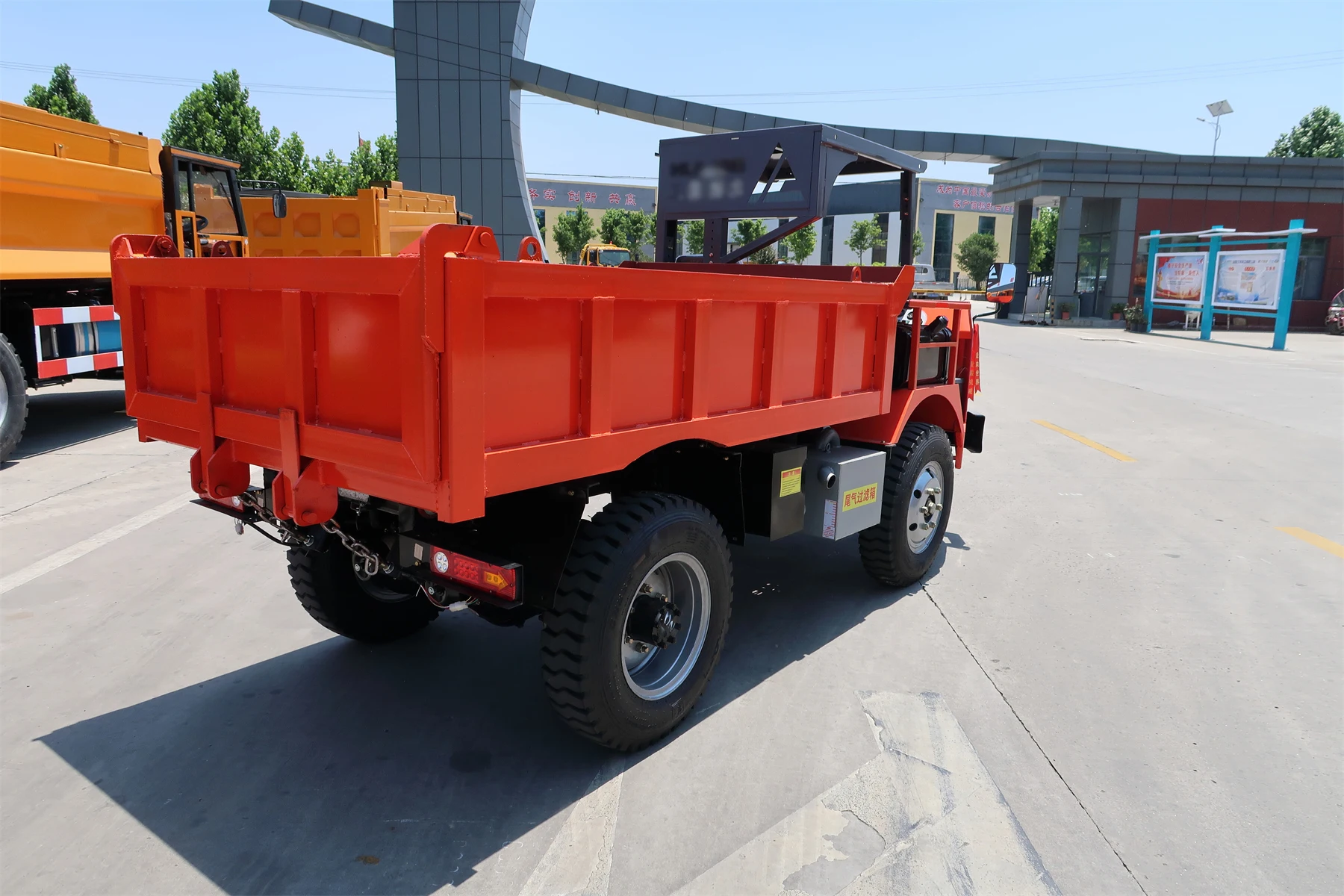

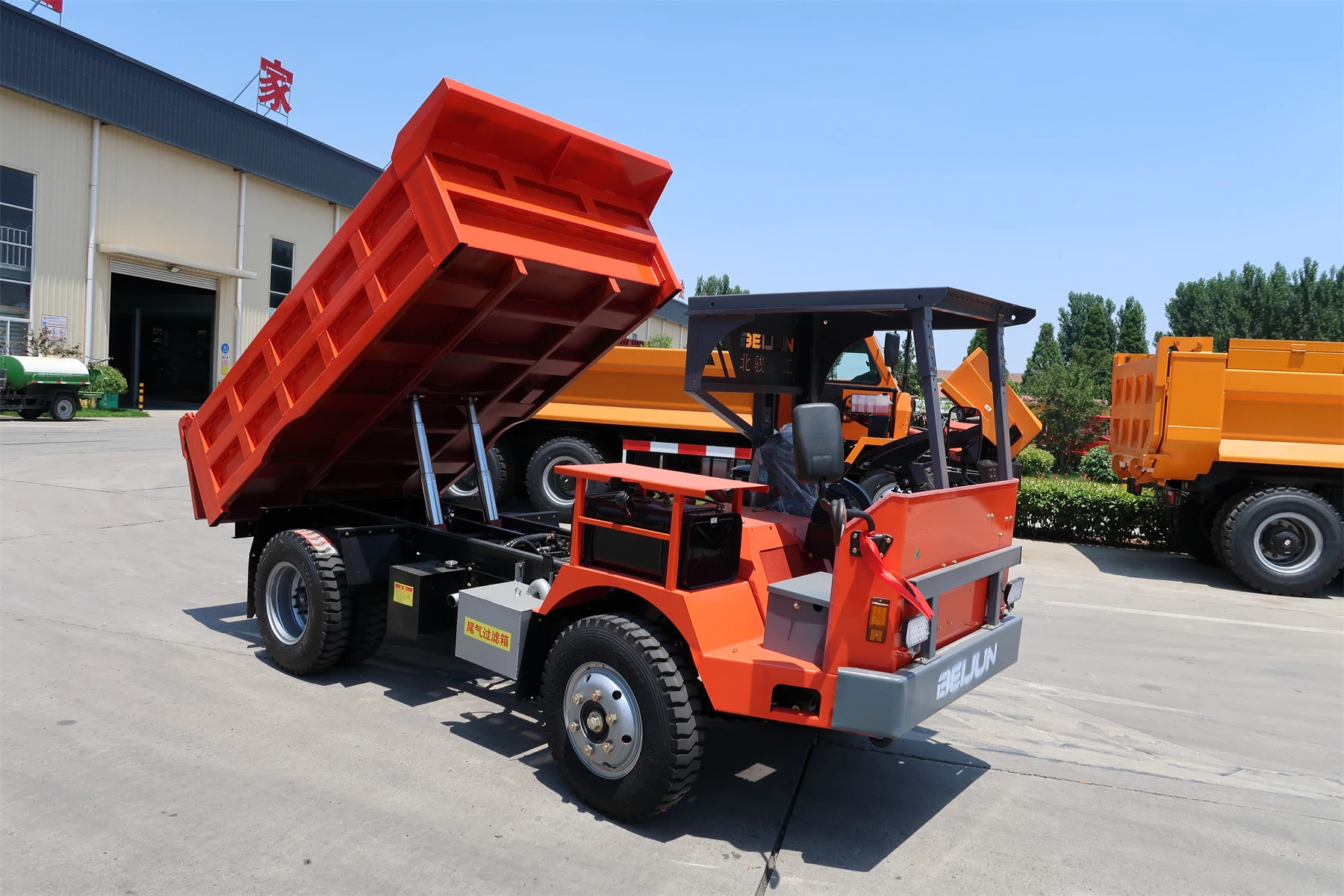

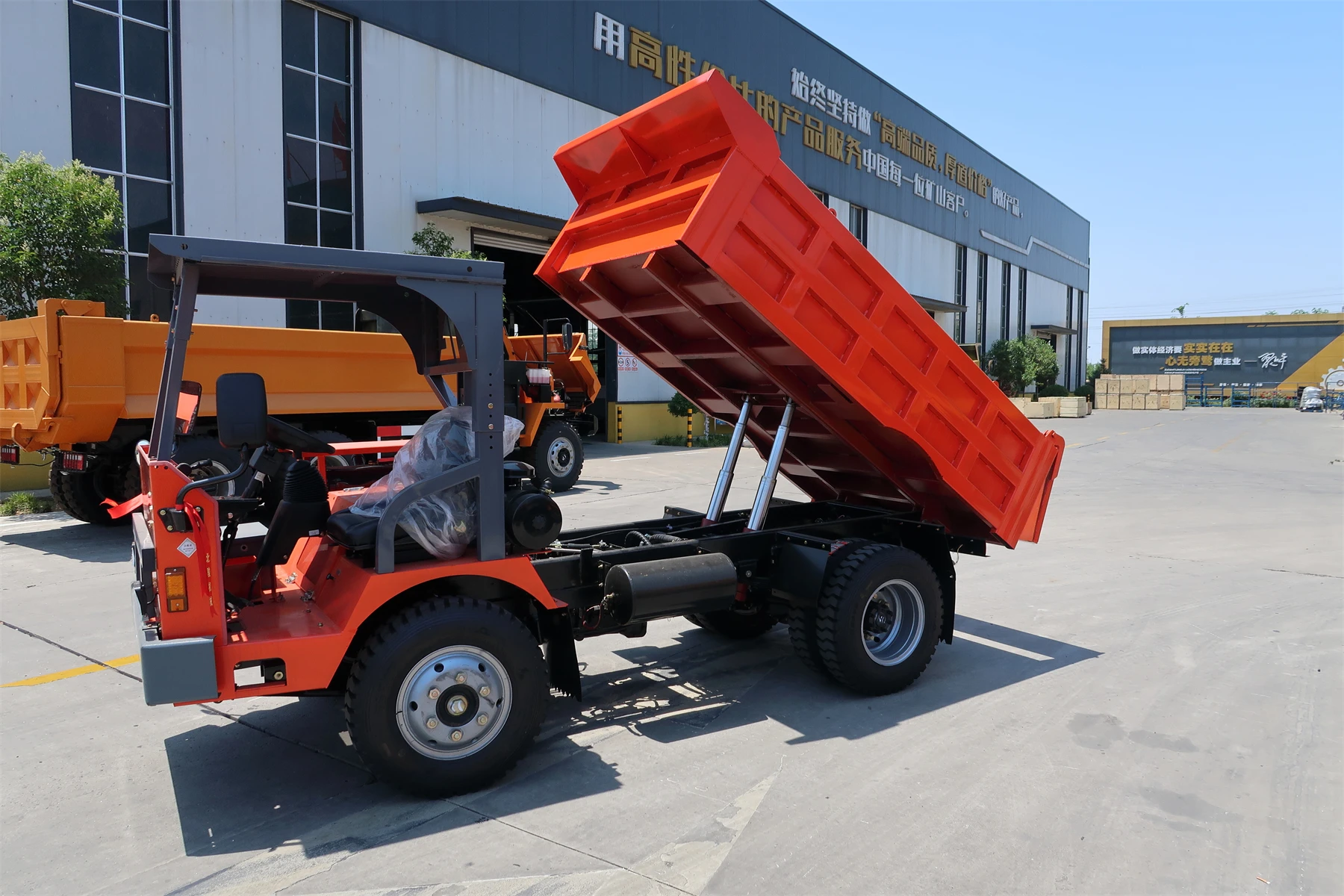

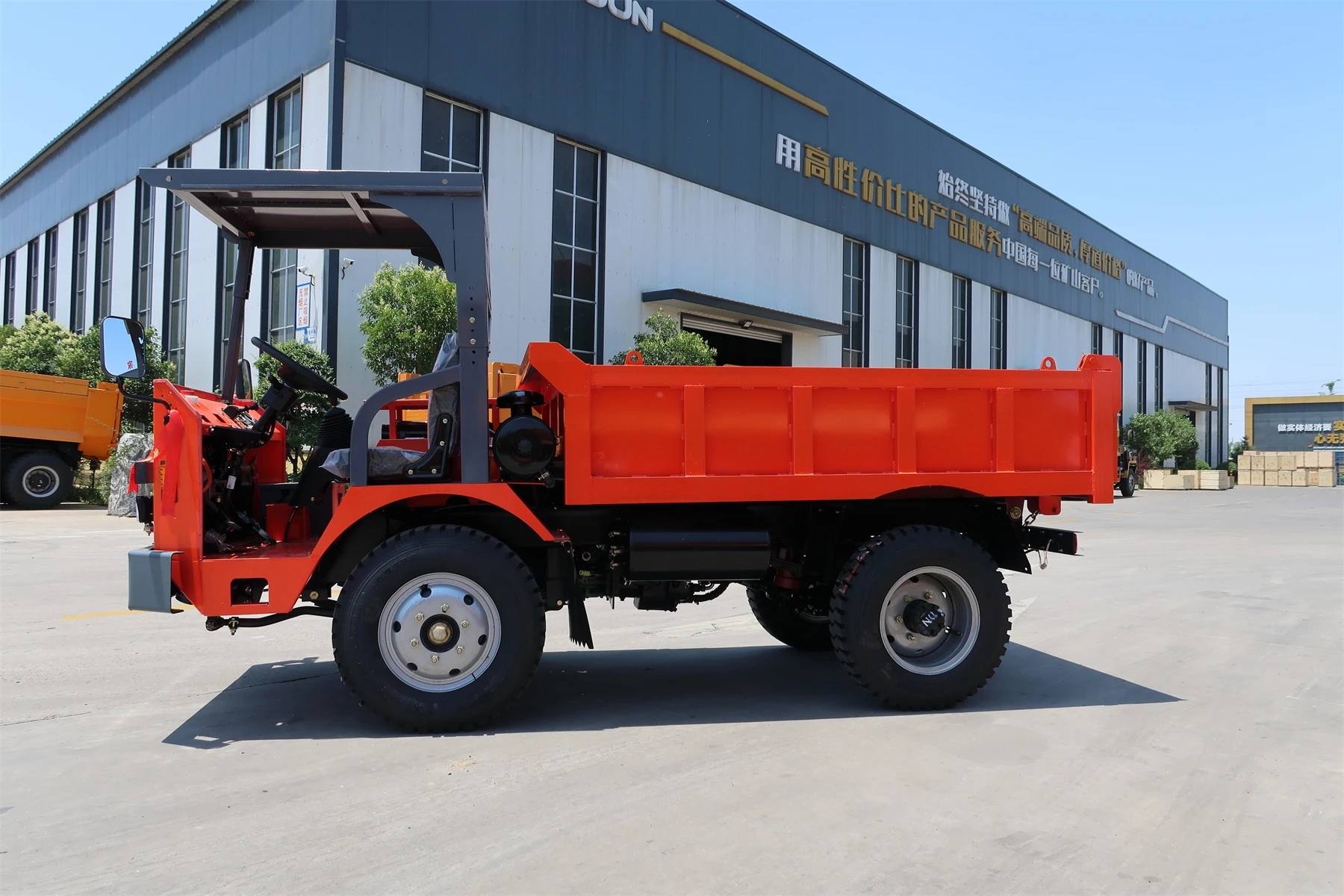

HuanSheng 4 Wheel Drive Hydraulic Double Rear Cylinder Diesel Engine Dump Truck
HS-600D loading 6 tons 4×4 diesel dumper heavy equipment have the characteristics of large traction, good climbing performance and strong transportation capacity. It is suitable for complex road conditions such as mines, underground tunnel mining areas, construction sites, muddy roads, project construction, swamps, river beaches, deserts, paddy fields. The mining dump trucks can be used to transport ore, cement, grains and other heavier goods and drive in all kinds of road.
We are a manufacturer specializing in the production of diesel/electric dump trucks. The following diesel dumper is customized 4x4 for Peru customer, its standard configuration is 4x2. We have exported a large number of mining dump trucks to Peru, Ecuador, Chile and Bolivia every year.
If you want to know more, please contact me.Whats-App :+86 15515534291
Product advantages：
※ Good trafficability: With the cab, suspension frame, vehicle frame, cargo compartment, lifting mechanism, etc. designed specially, the Jinwang underground tunnel dump truck has the compact structure and small turning radius and is extremely flexible, thus suitable for flexible operations in narrow spaces inside the roadway ramp.
※ High safety: According to the underground characteristics of humid air, insufficient light, slippery road surface, the tunnel dump truck lamps and electrical components are improved and the waterproof and moisture-proof performances are enhanced with the dedicated anti-slippery tires, thus it has the strong obstacle crossing capability and high safety.
※ Strong power: The power comes with the large torque、excellent grade and starting performances.
※ Strong bearing capacity: The complete dump truck is configured and designed scientifically according to the mining vehicle design concept with the bearing capacity as 1.5 times of that of the ordinary road vehicle.
※ Strong power: The power comes with the large torque、excellent grade and starting performances.
※ Strong bearing capacity: The complete dump truck is configured and designed scientifically according to the mining vehicle design concept with the bearing capacity as 1.5 times of that of the ordinary road vehicle.
Technical Parameter
HS-600D load 6 tons 4x4 Diesel Dump Truck | ||||||
Loading capacity | 6000kg | Net weight | 3000kg | |||
Tires | 7.00-16 mining tires | Front/rear brige | LN1069 | |||
Overall size | 4600*1630*1500mm | Hopper size | 2850*1600*500mm | |||
Wheel distance | 1630mm | Axle distance | 2350mm | |||
Unloading | Double hydraulic oil cylinder 110mm*900mm | Brake way | Air brake | |||
Driving style | Left-hand drive | Max speed | 60km/h | |||
Diesel engine | Yunnei 4102GBZ Engine 76KW | |||||
Gearbox | Wanliyang 530rear (Twelve high and low speed) | |||||
Tail gas treatment | Water treatment | |||||
Hopper steel plate | Side steel plate is 5mm thick, bottom steel plate is 8mm thick | |||||
Spring steel plate | 18 pieces, each width 70mm, thickness 14mm | |||||
Other configuration | Fully hydraulic power steering Fully covered cockpit with wiper Cockpit top height above qround:1900mm | |||||
Specific Details

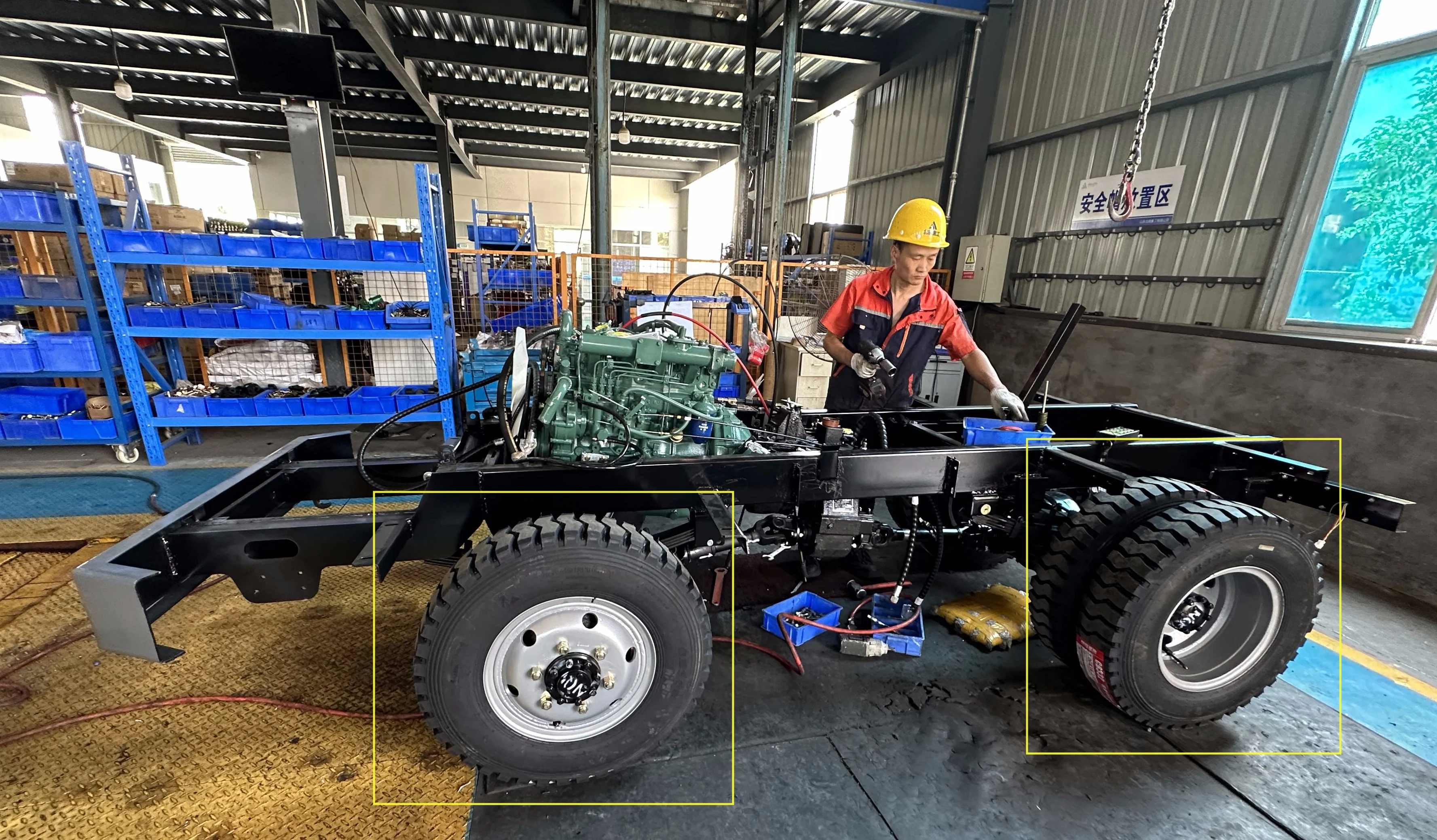

Belowing product introduction is for 4x4 customized diesel dumper.
This diesel dump truck is a customized type 4x4 diesel dumper,ZY600D diesel dumper standard configuration is 4x2 type.
Core parts: Diesel Engine System

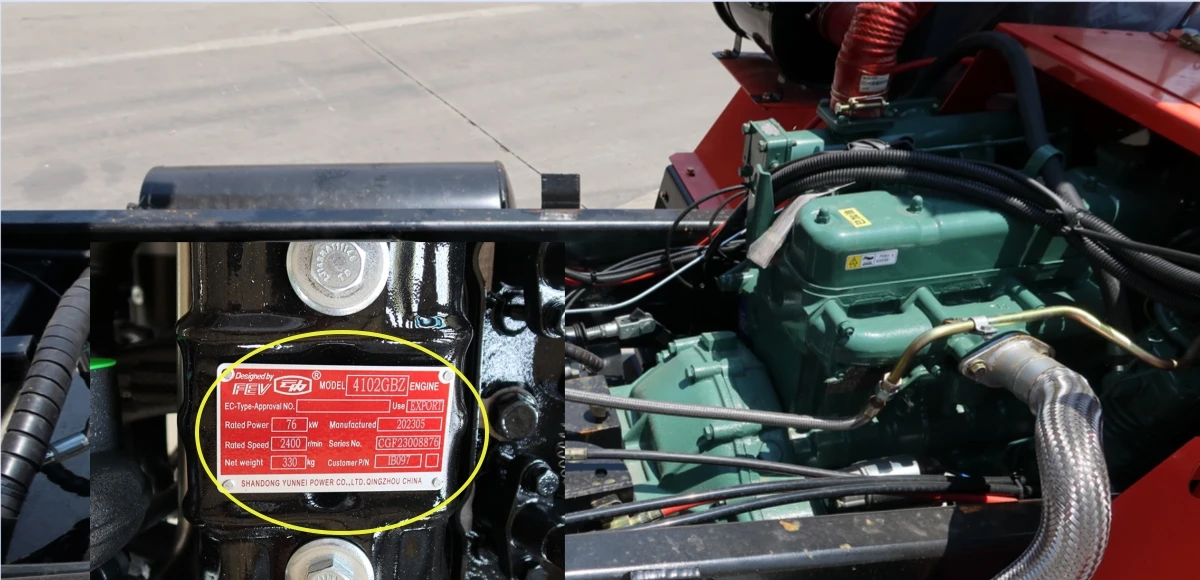

This 4wd diesel dumper heavy equipment adopts 76kw Yunnei brand turbocharged diesel engine and diesel preheating device are suitable for high altitude and cold mining areas.

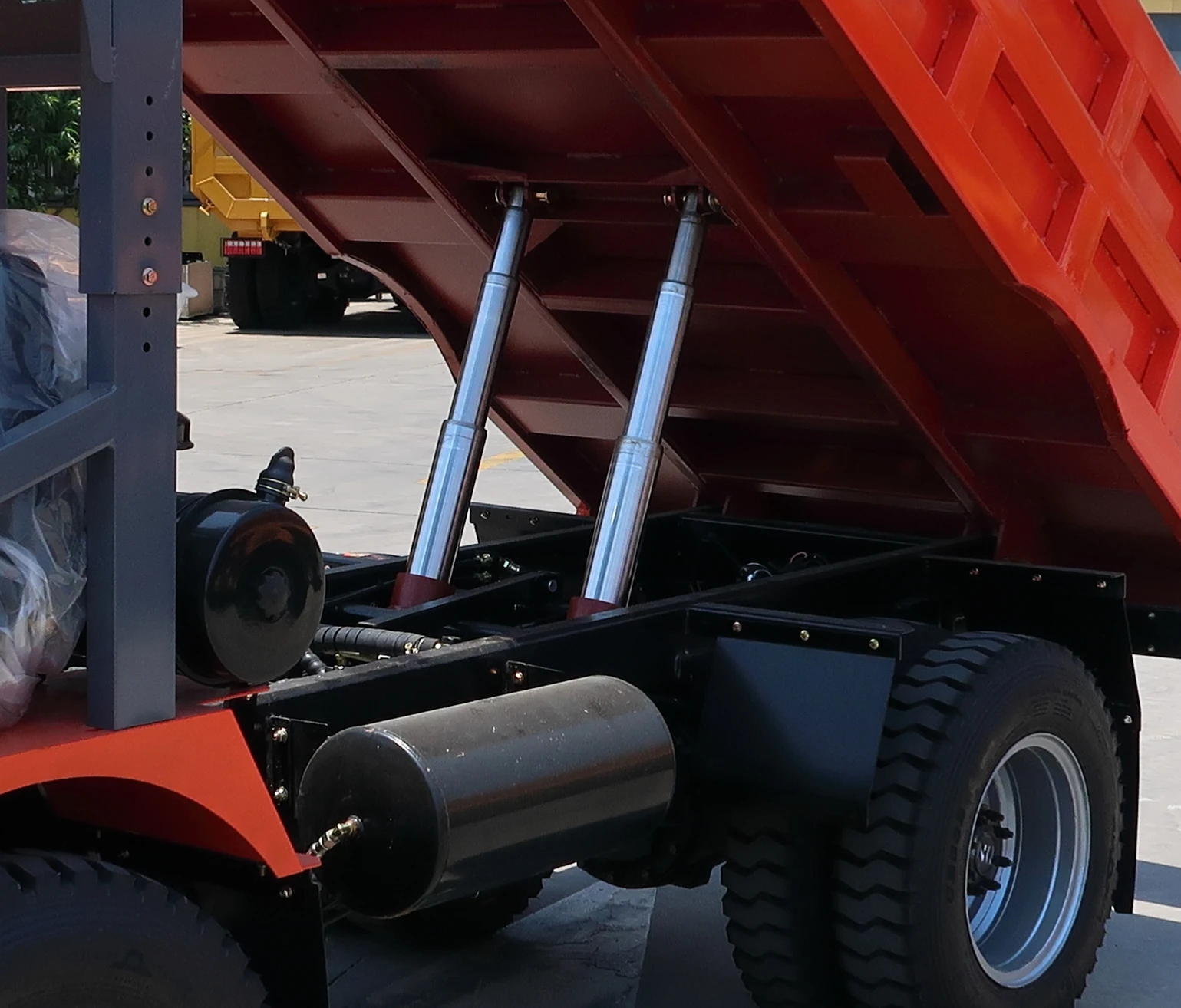

Hydraulic dump system

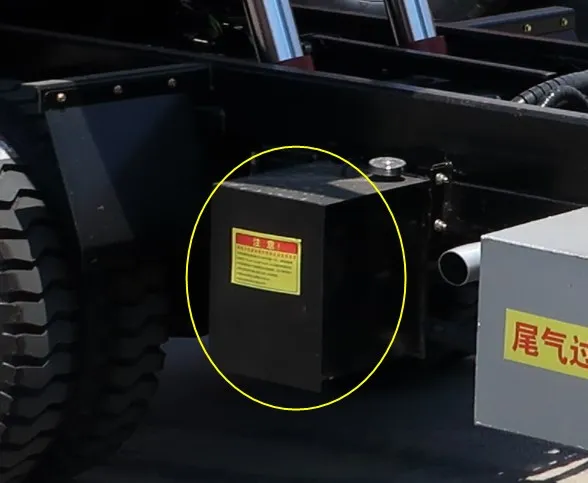

Double hydraulic cylinder size: 110 mm*900 mm.Right picture is hydraulic oil tank.
Double hydraulic cylinder size: 110 mm*900 mm.Right picture is hydraulic oil tank.
Tires

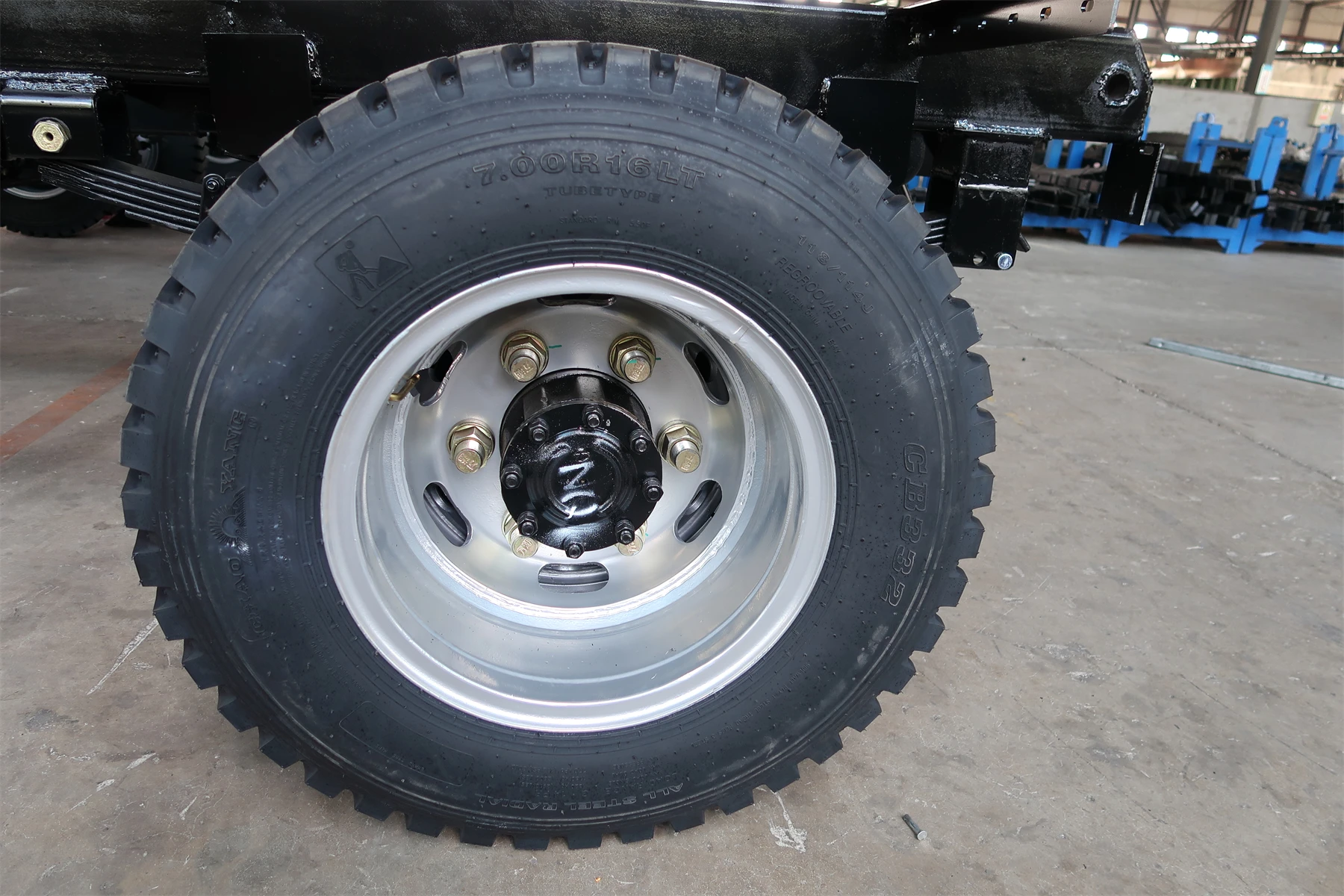

Front and rear tires both are heavy loading mining tires 7.00-16, two wheels for front, four wheels for rear.
Front and rear tires both are heavy loading mining tires 7.00-16, two wheels for front, four wheels for rear.

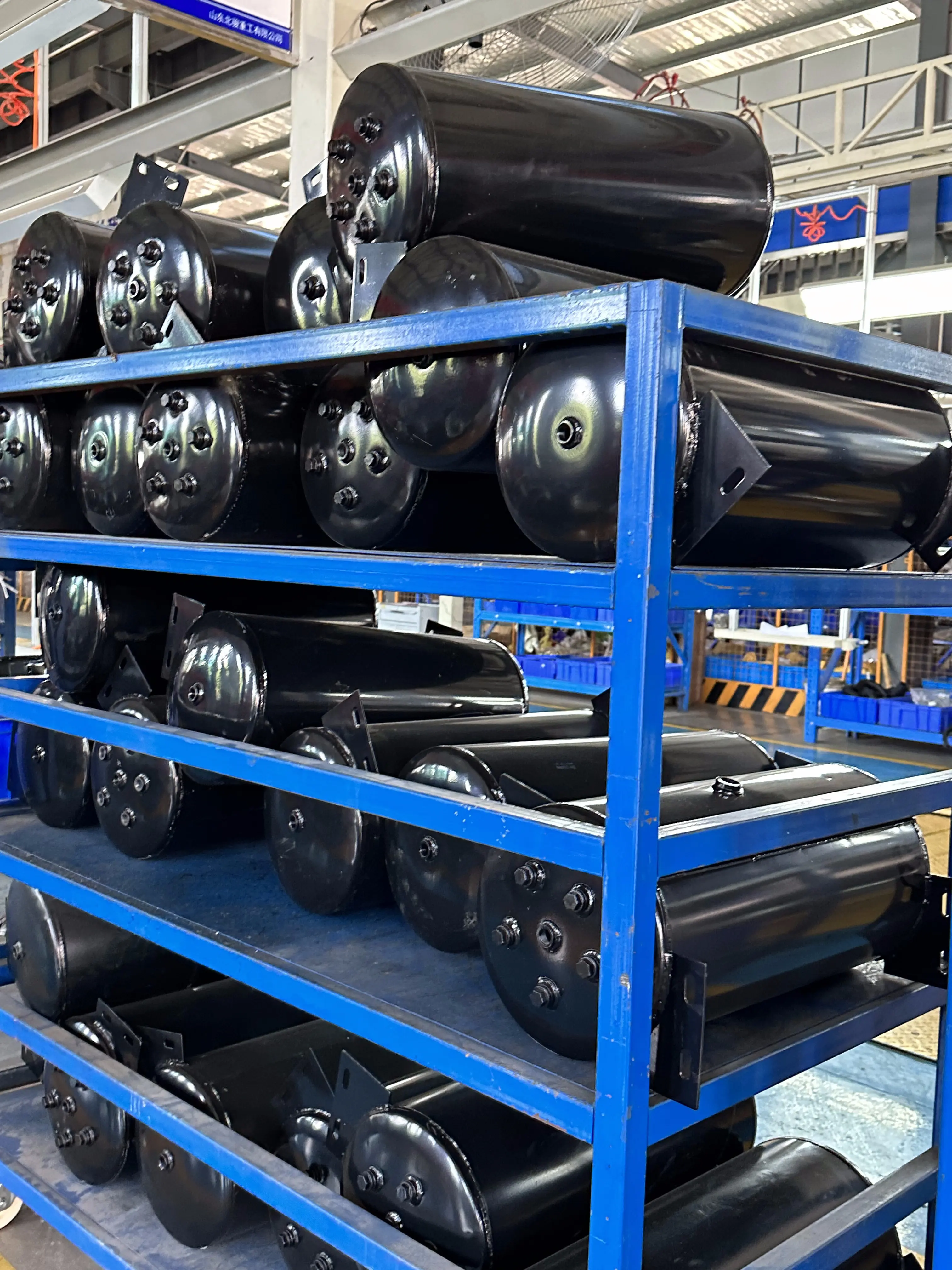

Air brake system

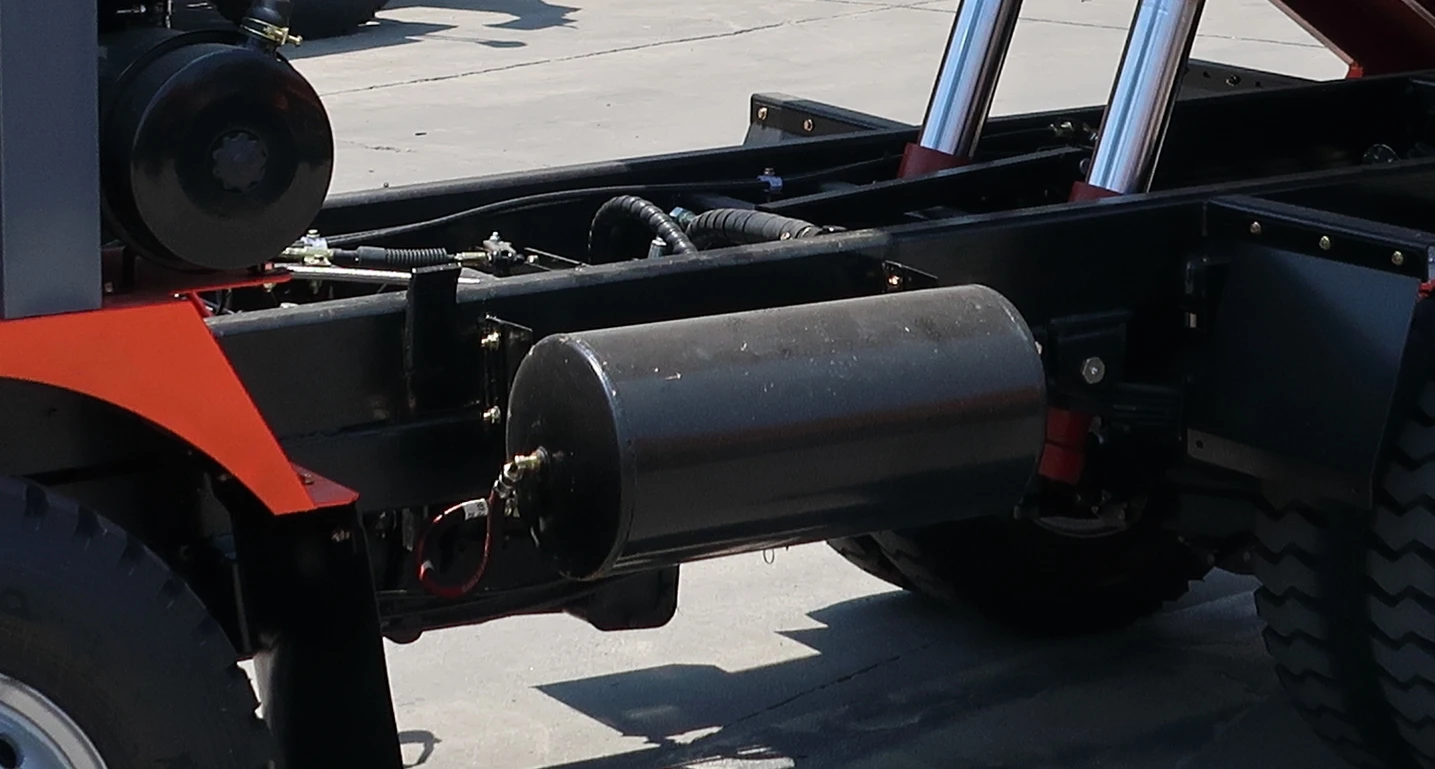

Our four-wheel-drive diesel dumper adopts air brake system.
The air compressor directly provides the air required for braking and generates the air pressure required for braking. It is the first energy supply device in the braking system.
Spring plate model
12+6 pieces, each width 70mm, thickness 14mm. Front and rear leaf springs, 4sets for the whole vehicle.Mudguard
There is a fender on both sides of the rear wheel fixed under the left and right steering lights.

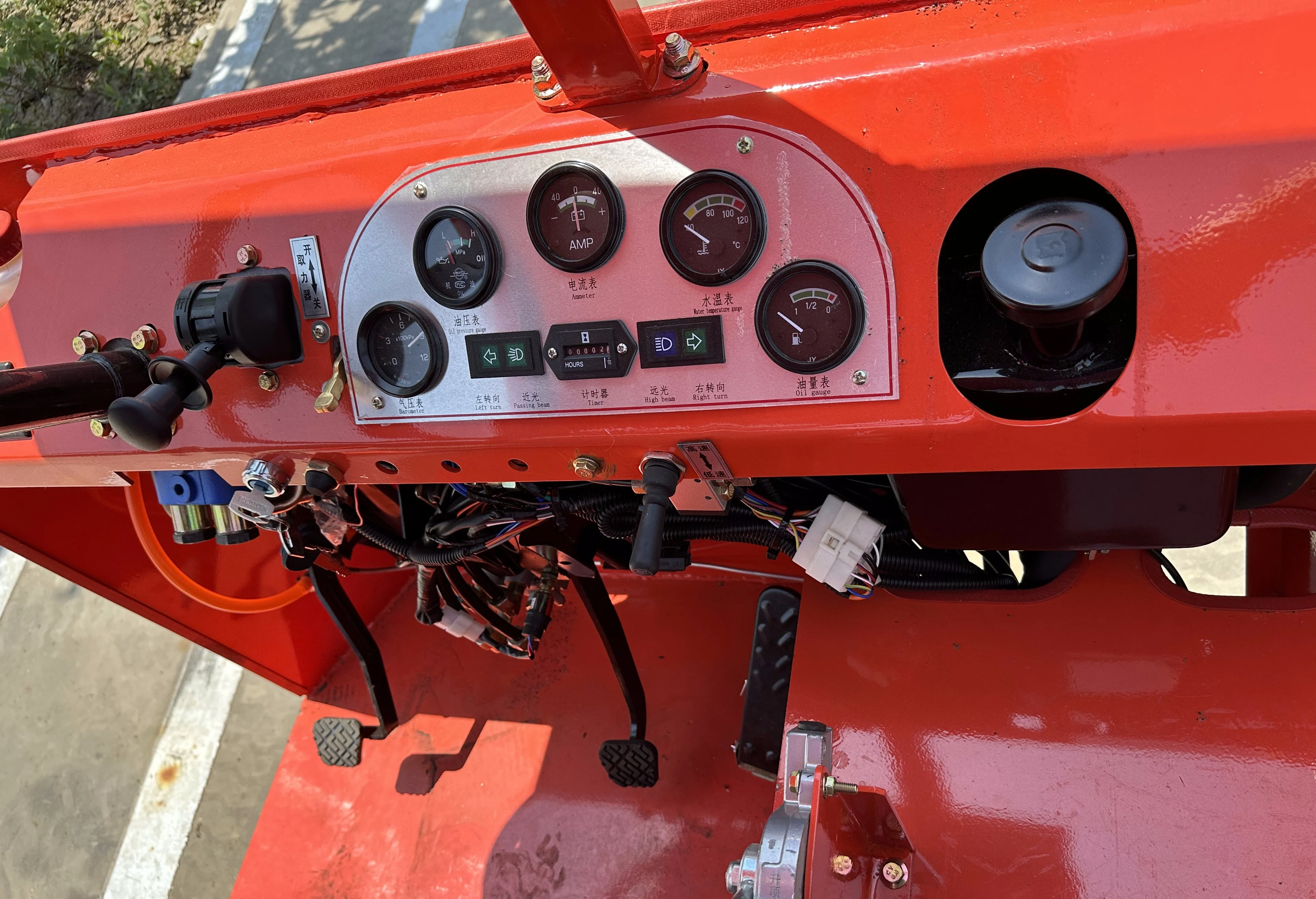

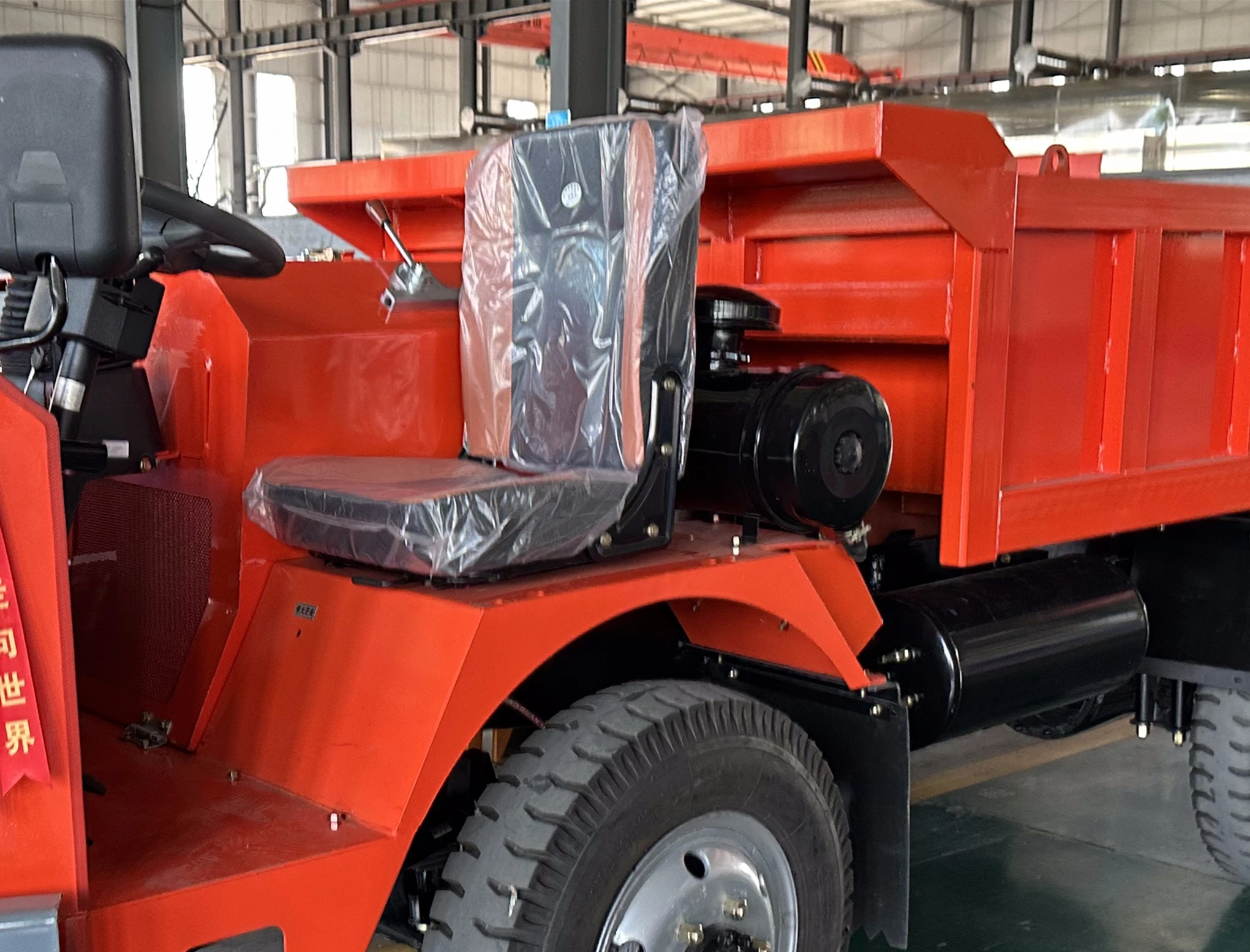

Cockpit
Fully hydraulic power steering gear and luxury seat. Save manpower and work efficiently. Easy to operate and comfortable to drive.
Fully hydraulic power steering gear and luxury seat. Save manpower and work efficiently. Easy to operate and comfortable to drive.

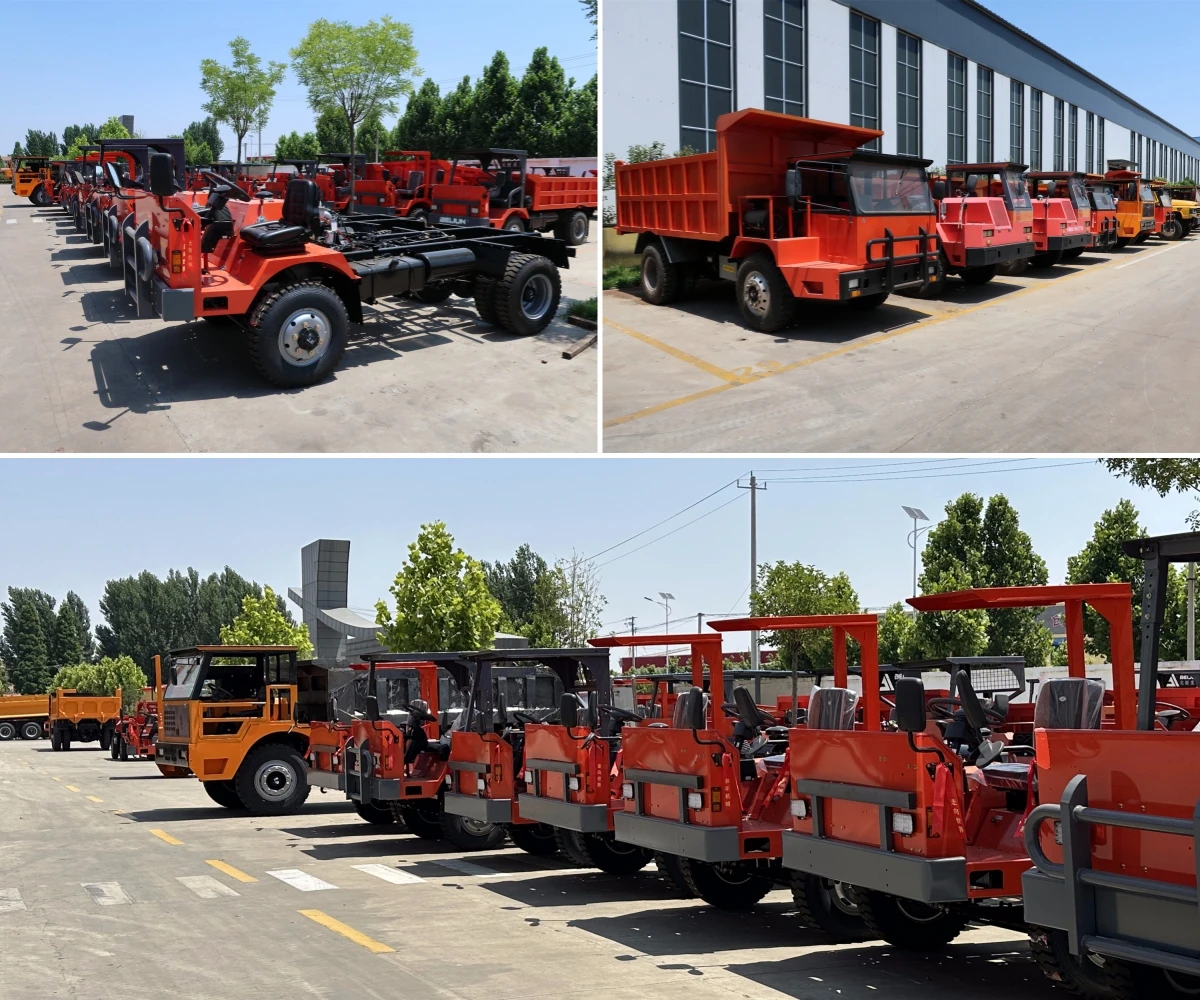

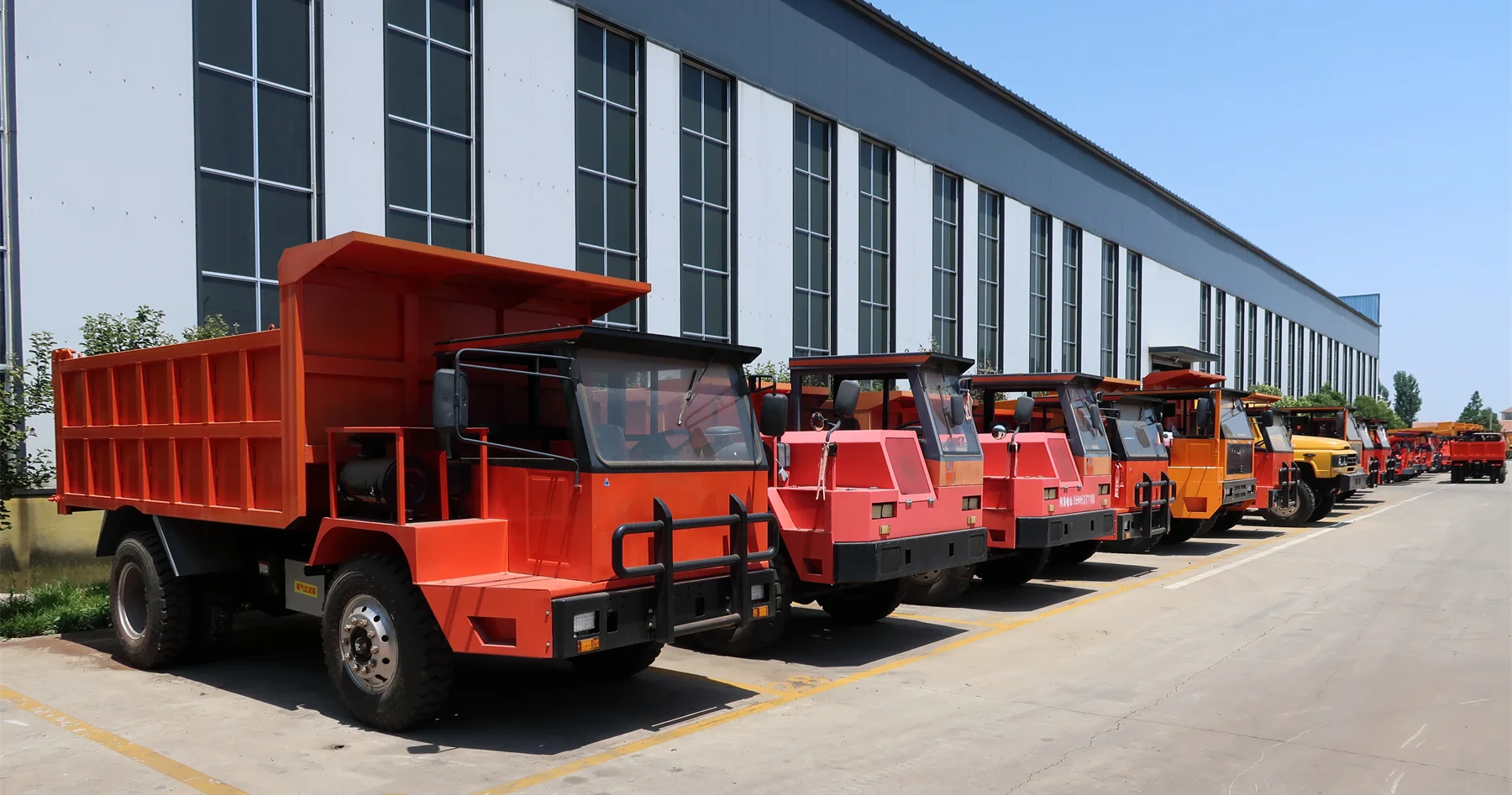

Application scenario
Our diesel dumpers mainly used in mining, brickyard, sanitation, pasture, which has been approved by clients from Peru, Bolivia,Ecuador, Malaysia Mongolia and etc. over 40 countries!With well-equipped testing facilities ,strong technical force ,a wide range, good quality, reasonable prices and stylish designs, our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.
and environmental sanitation. It is an ideal tool for transporting ore residues and highway transportation in mining areas.

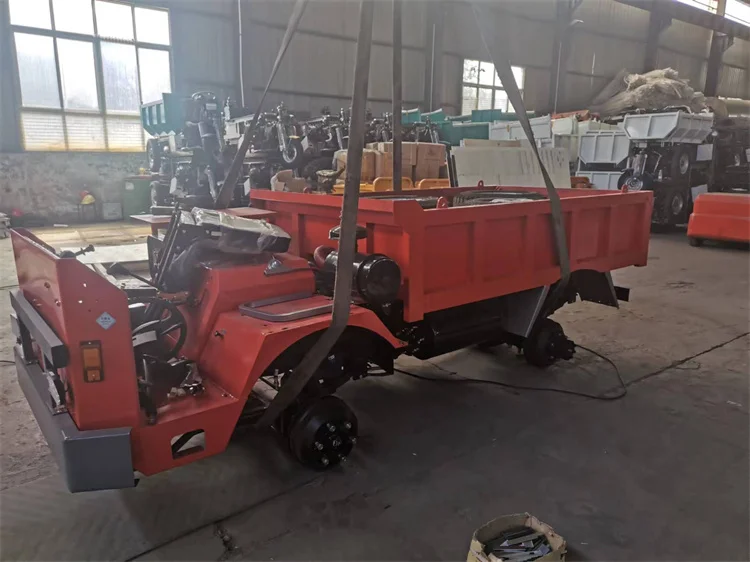

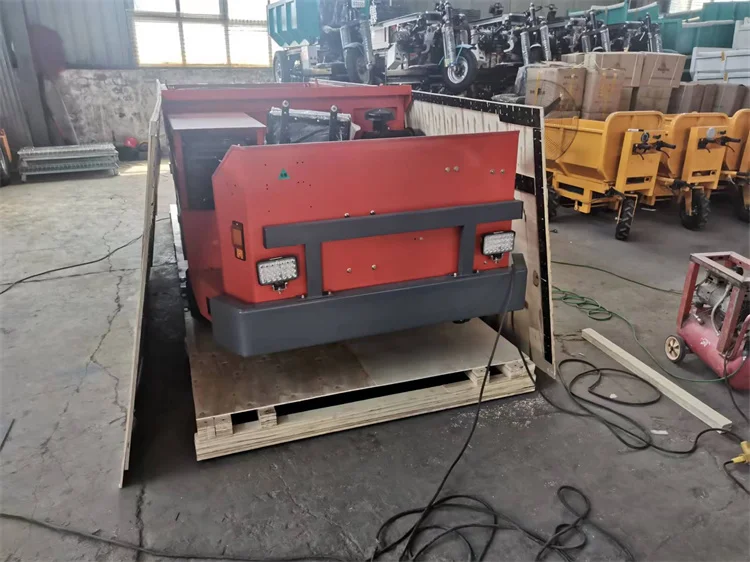

Packaging & Shipping
According to the different needs of your order, we can choose to ship by sea, land. , 20GP, 40HQ are still good choices!
One 40HQ container can hold 3sets of our HS600D heavy equipment 4wd diesel dumper load 6T, normally we advise to adopt full container load, full container shipment without any demolition, it's more convenient transportation and cost savings.
Related Products
About HuanSheng

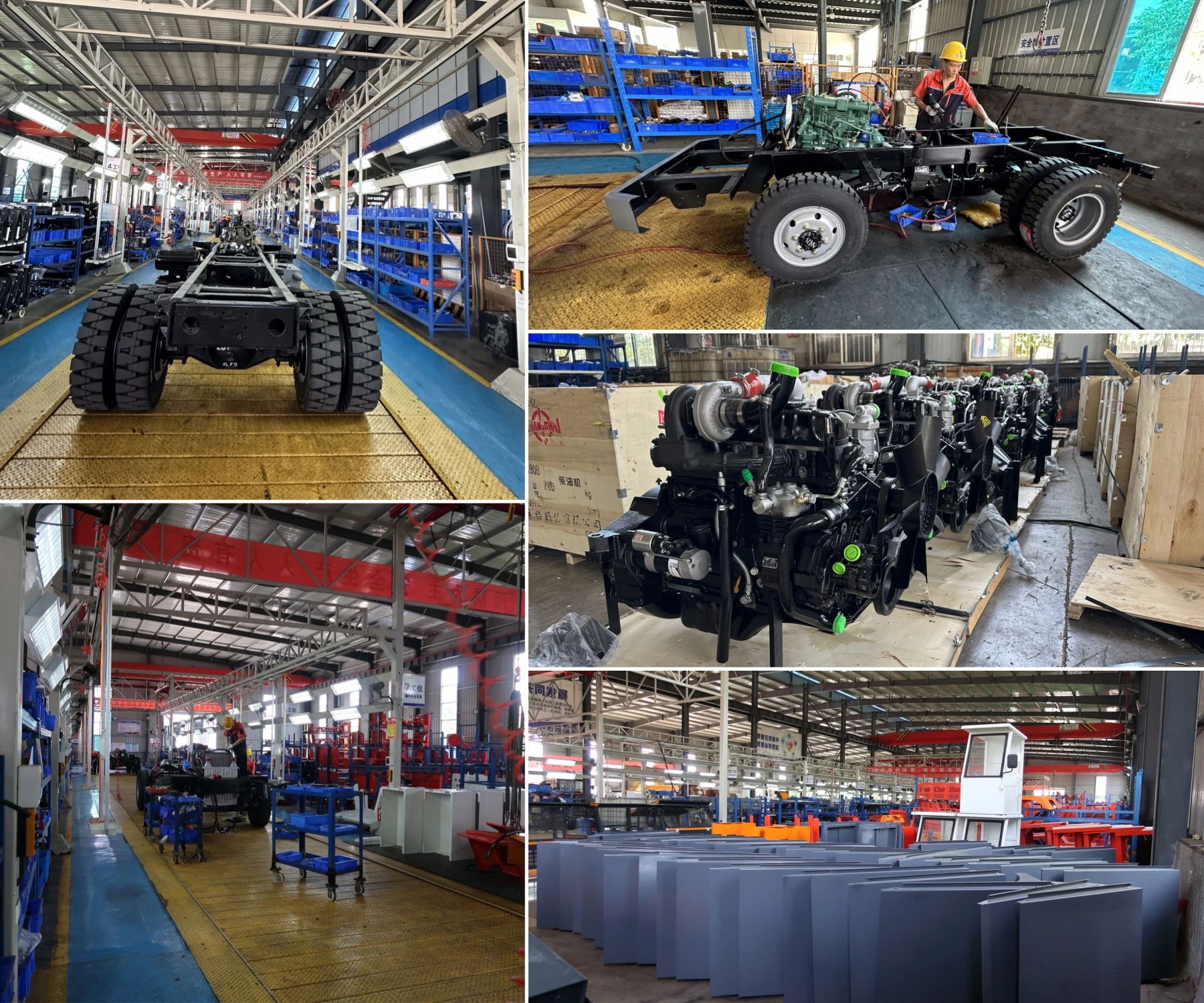

Henan Huansheng Machinery Equipment Co., Ltd. was established in 2006. Our company is mainly engaged in mining machinery and earthmoving machinery . Mining machinery mainly includes mucking machines, mining fans, crushers and gold mills. Earth moving machinery includes dump trucks, loaders, backhoes, road rollers, and skid steer loaders. At the same time, there are transportation tools, including three-wheel dump trucks and four-wheel dump trucks, electric trolley.
We deliver top-quality dump truck solutions that meet the unique needs of mining operations.With a talented team of engineers, designers, and sales professionals to ensure that our trucks are at the forefront of innovation, reliability, and performance.
We are passionate about the future of mining dump trucks and the opportunities they bring to revolutionize the mining industry.
We welcome new and old customers from all walks of life to contact us, and welcome you to visit our factory.
We deliver top-quality dump truck solutions that meet the unique needs of mining operations.With a talented team of engineers, designers, and sales professionals to ensure that our trucks are at the forefront of innovation, reliability, and performance.
We are passionate about the future of mining dump trucks and the opportunities they bring to revolutionize the mining industry.
We welcome new and old customers from all walks of life to contact us, and welcome you to visit our factory.
FAQ
Q: Are you trading company or manufaturer?
A: We are 20 years factory engaged in mining machinery and equipment area and we provide OEM service.
Q: How long is your delivery time?
A: Usually we produce most regular size in stock, can ship as soon as possible.Otherwise the producing time is 10-20 days
Q: What if I don't know how to install/assemble the diesel dumper?
A: Assembly Instructions will be offered for each product. Also we will supply technical assistance and Video.
A: We are 20 years factory engaged in mining machinery and equipment area and we provide OEM service.
Q: How long is your delivery time?
A: Usually we produce most regular size in stock, can ship as soon as possible.Otherwise the producing time is 10-20 days
Q: What if I don't know how to install/assemble the diesel dumper?
A: Assembly Instructions will be offered for each product. Also we will supply technical assistance and Video.
Q:Do you inspect the finished products?
A: Yes.Each step of products will be carried out inspection by QC department until shipping.
Q: Do you have the warranty?
A: Yes, we have one year warranty. Quality problem,we will send you the accessories.
Q:Do you have Stock productions to sell?
A:Yes, of course. But we also offer customized service according your request.
A: Yes.Each step of products will be carried out inspection by QC department until shipping.
Q: Do you have the warranty?
A: Yes, we have one year warranty. Quality problem,we will send you the accessories.
Q:Do you have Stock productions to sell?
A:Yes, of course. But we also offer customized service according your request.
