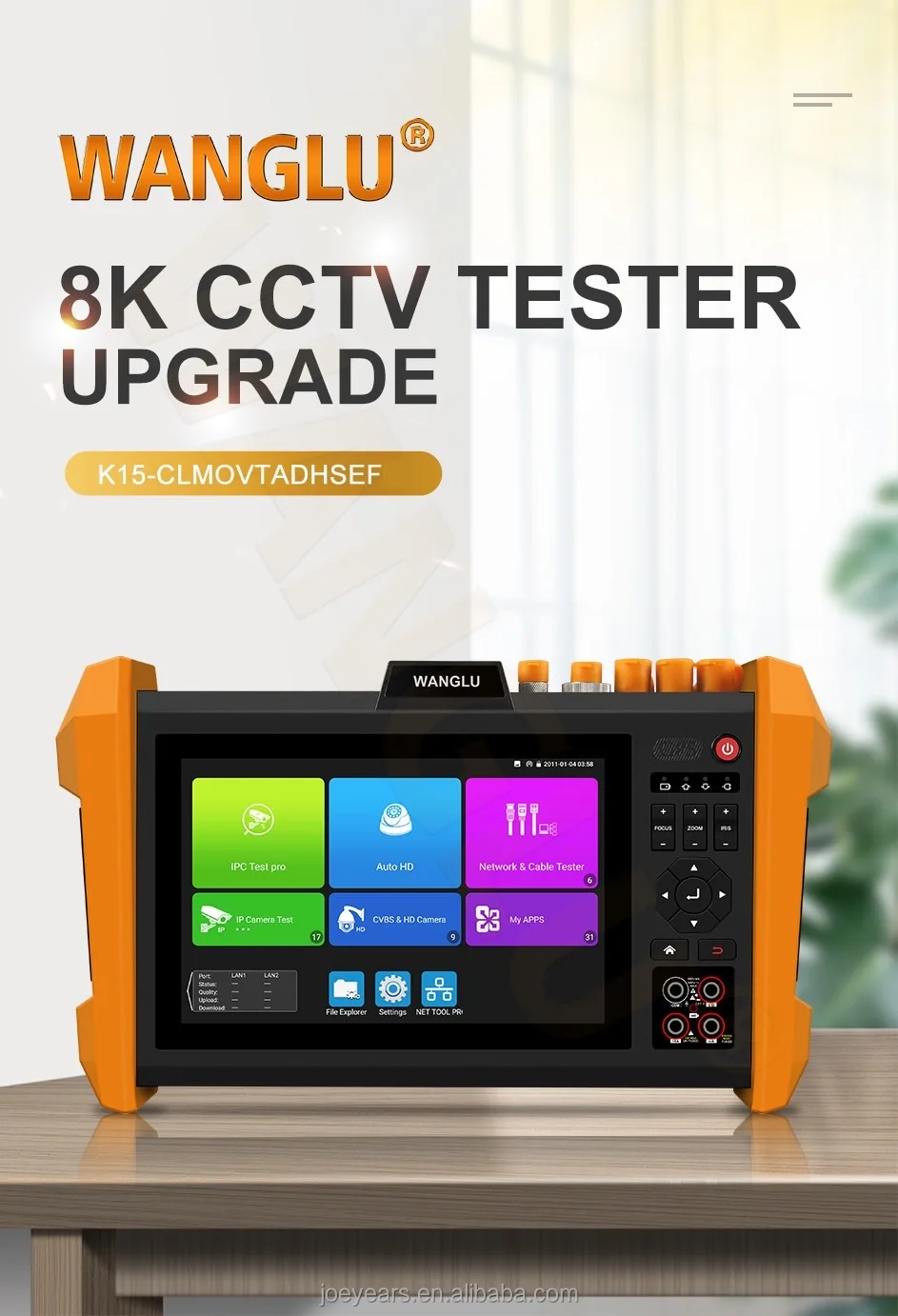

K15 CLMOVTADHSEFG CCTV Tester 8K IP Camera Tester 8MP AHD CVI TVI SDI CVBS POE VGA HDMI LED Lamp Cable Tracer GPS Video Monitor
- Category: >>>
- Supplier: Shenzhen JoeYears Technology Co. Ltd
Share on (1601084540104):
Product Overview
Description
Product Description
| Product name: | Full Functional CCTV Tester Camera Monitor |
| Model number: | K15-CLMOVTADHSEFG |
| Color: | Yellow+black or customize colors |
| Display screen: | 7 inches IPS touch screen 1920*1200 |
| Power supply: | Built-in 7800mAh 7.6V rechargeable lithium battery |
| Charging time: | About 3.5 hours |
| Using time: | About 16 hours |
| LED lamp: | With built-in LED lamp |
| Output: | DC24V2A/DC12V3A/DC5V2A |
| Camera: | With built-in camera |
| GPS: | With built-in GPS |

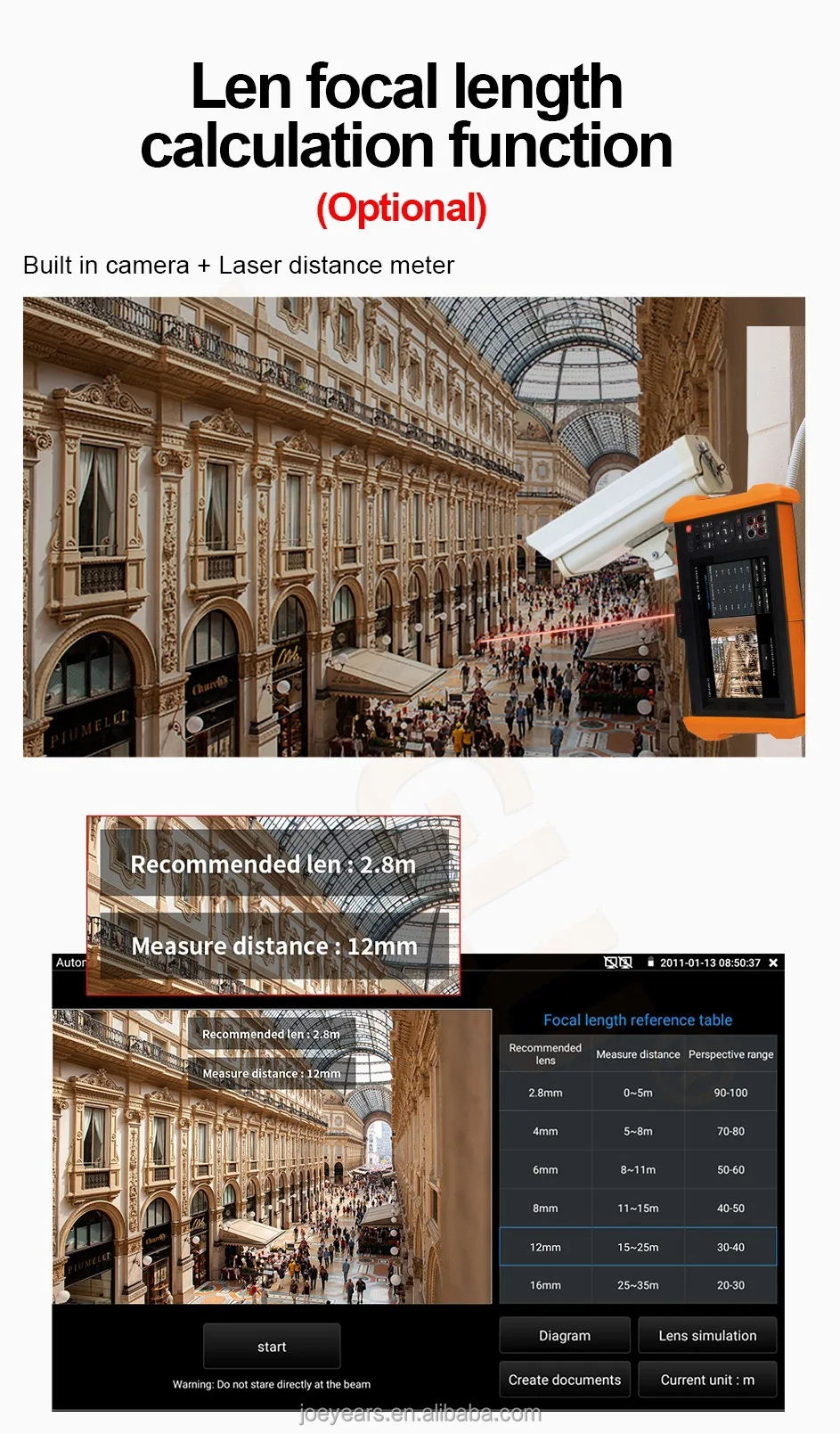

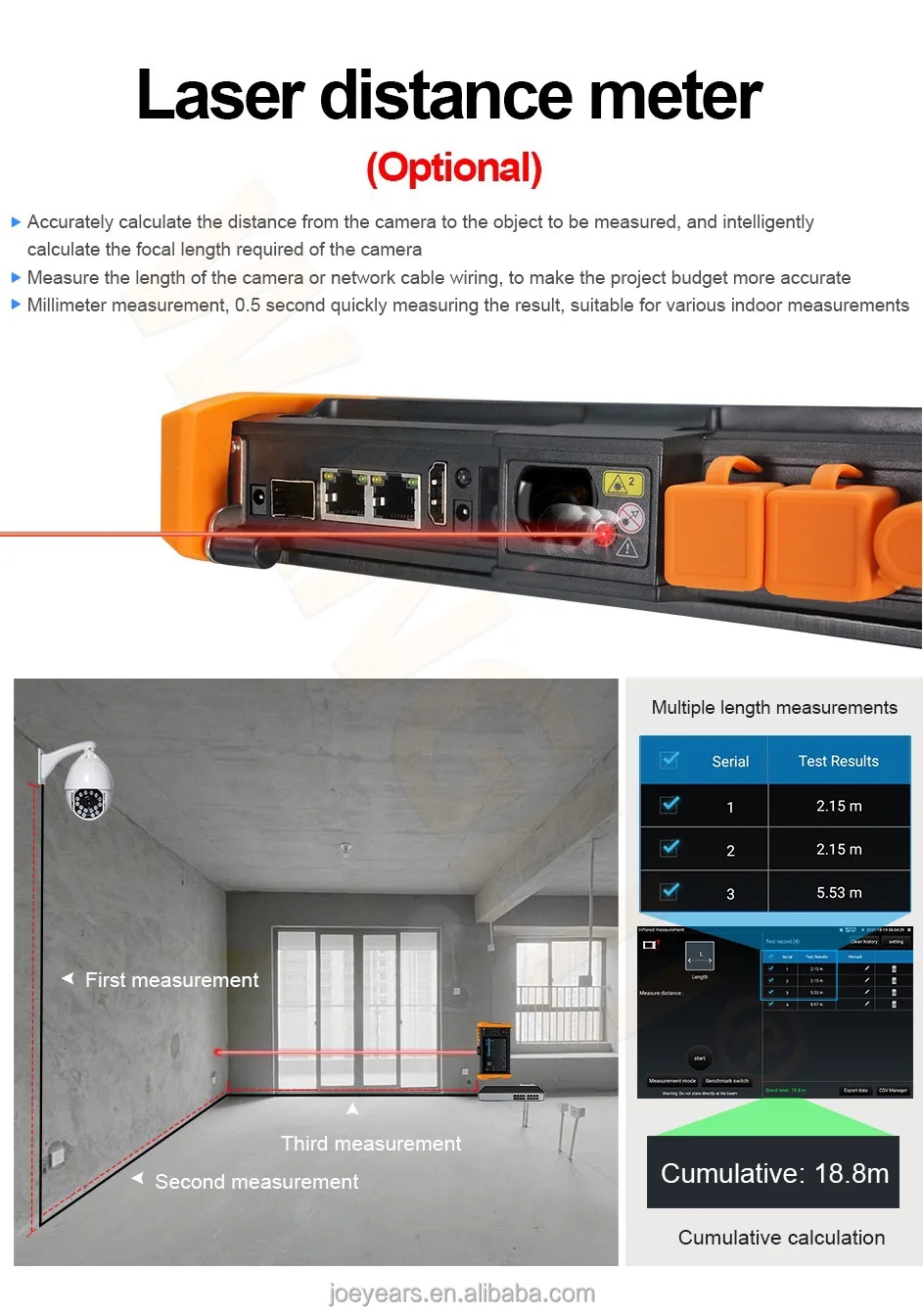

| Laser distance meter: | With built-in laser distance meter |

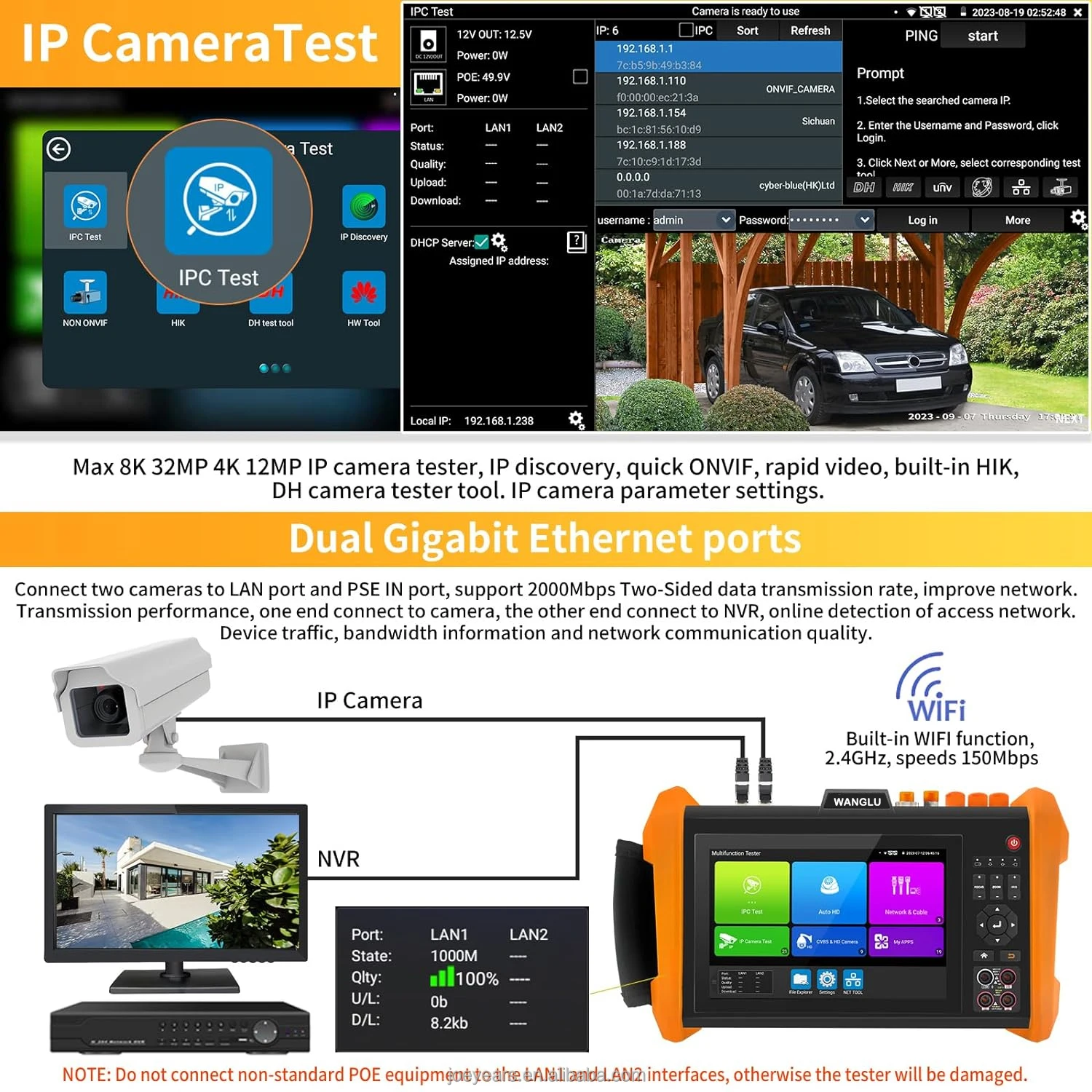

| 8K H.265 IP camera test: | View 8K camera images in real time Support playing 8K movies |

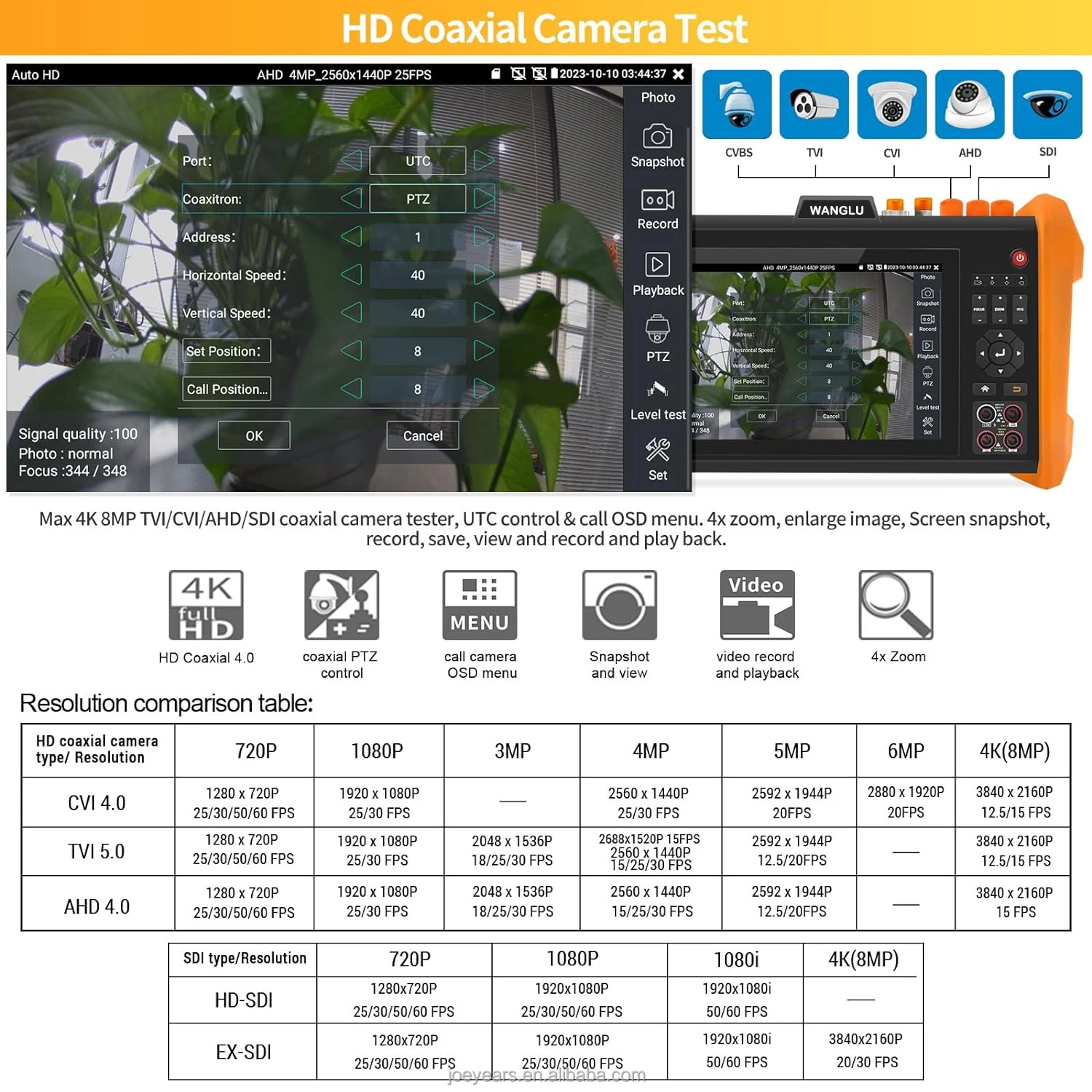

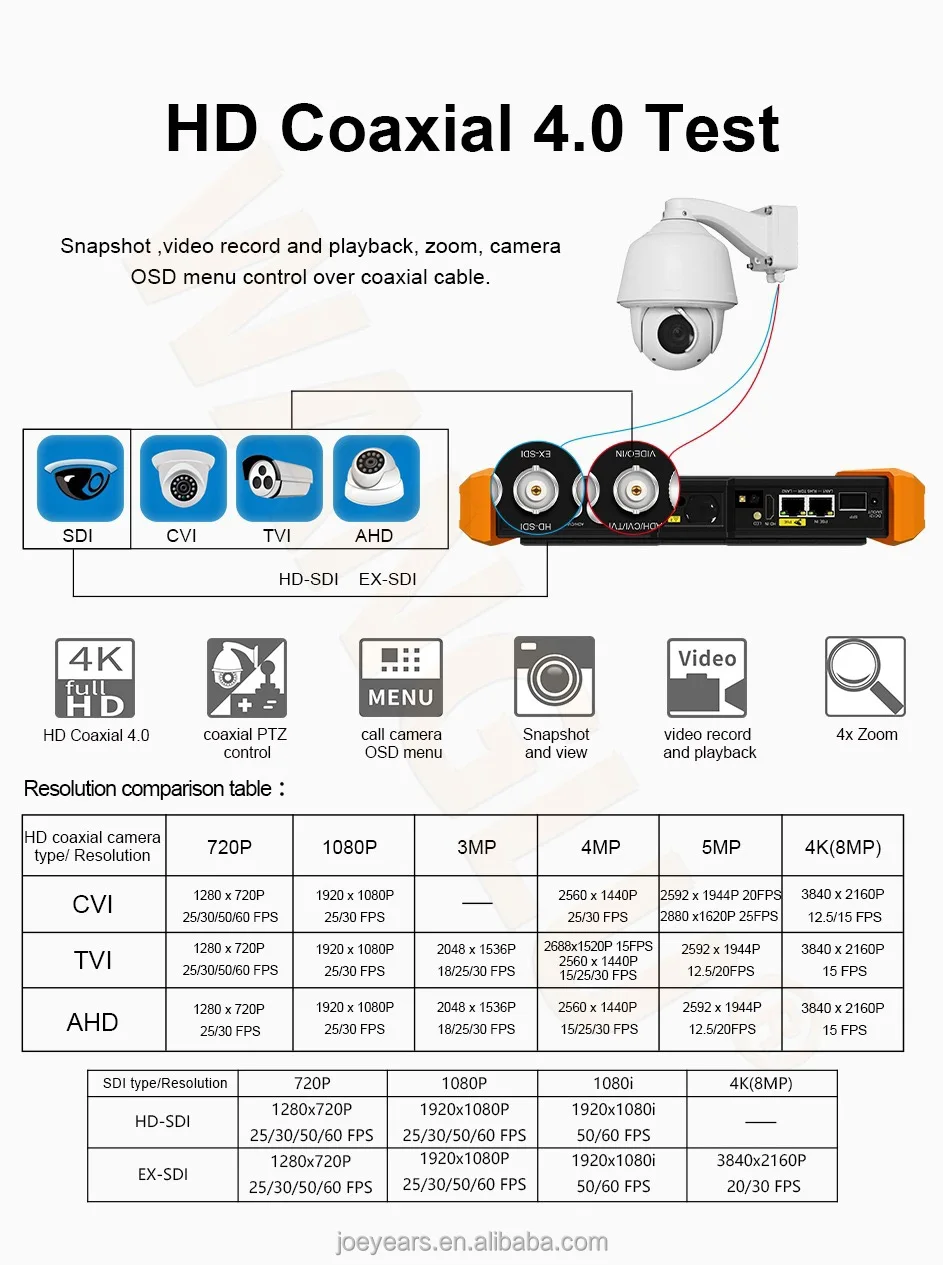

| HD Coaxial 4.0 test: | Snapshot,video record and playback,zoom, Camera OSD menu control over coaxial cable |
| HD Coaxial camera types: | CVI/TVI/AHD |
| SDI types: | HD-SDI/EX-SDI |

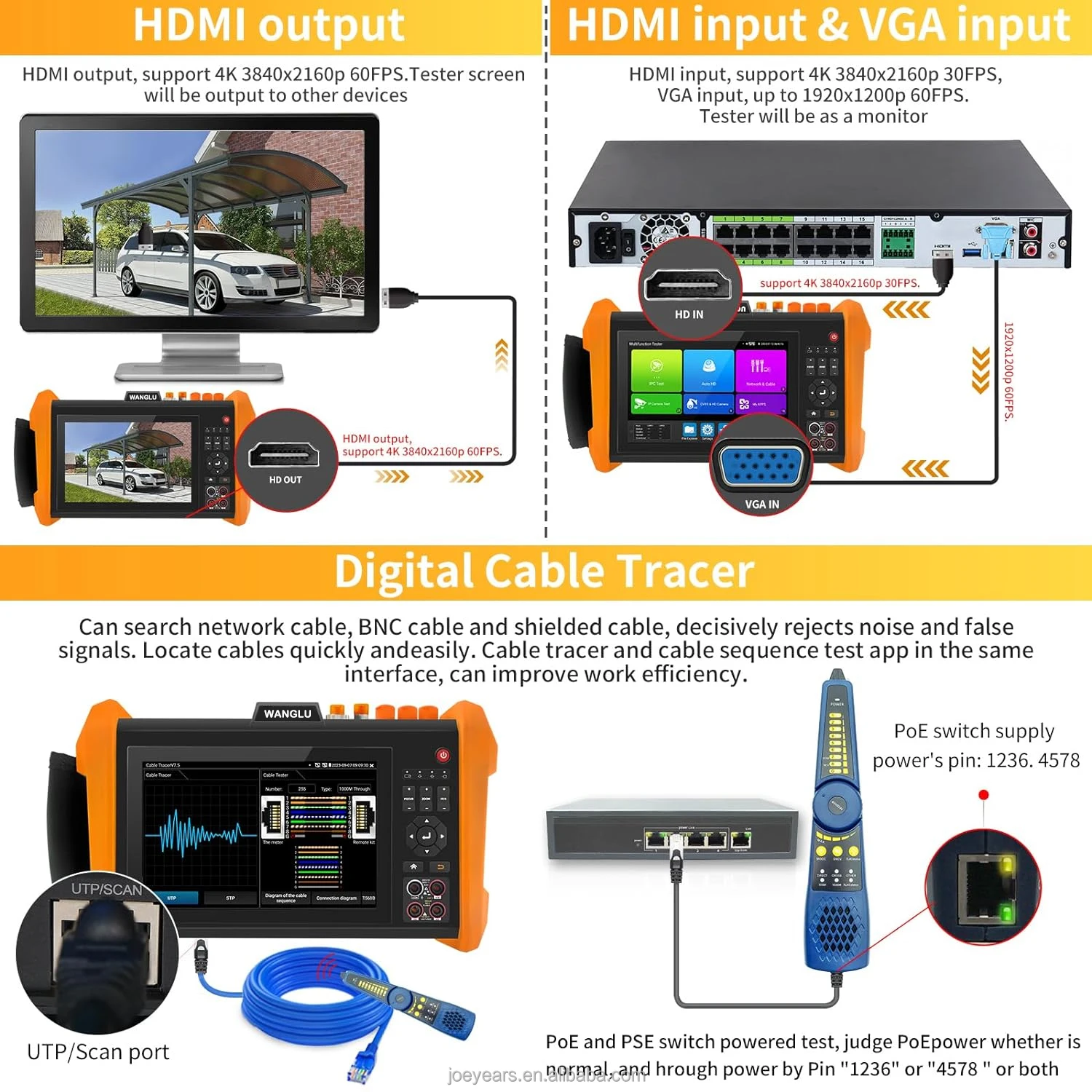

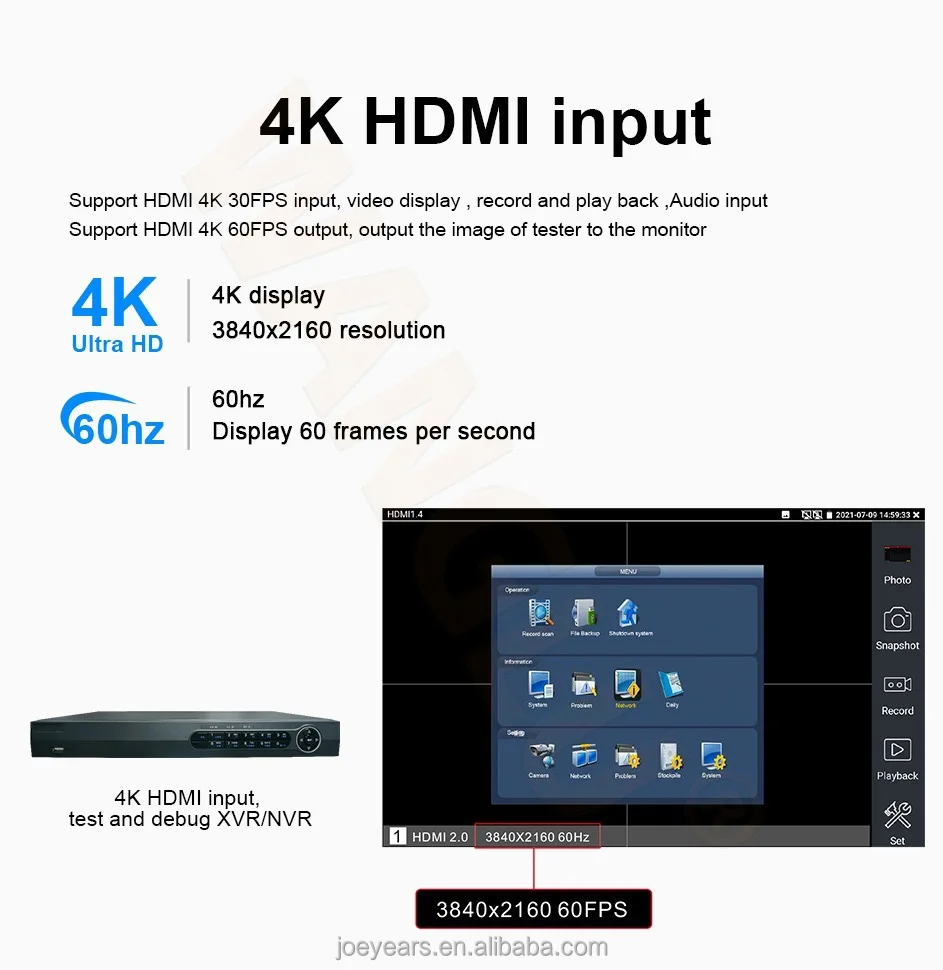

| 4K HDMI input: | Support HDMI 4K 30FPS input,video display,record,play back,audio input |
| 4K HDMI output: | Support HDMI 4K 60FPS output,output the image of tester to monitor |

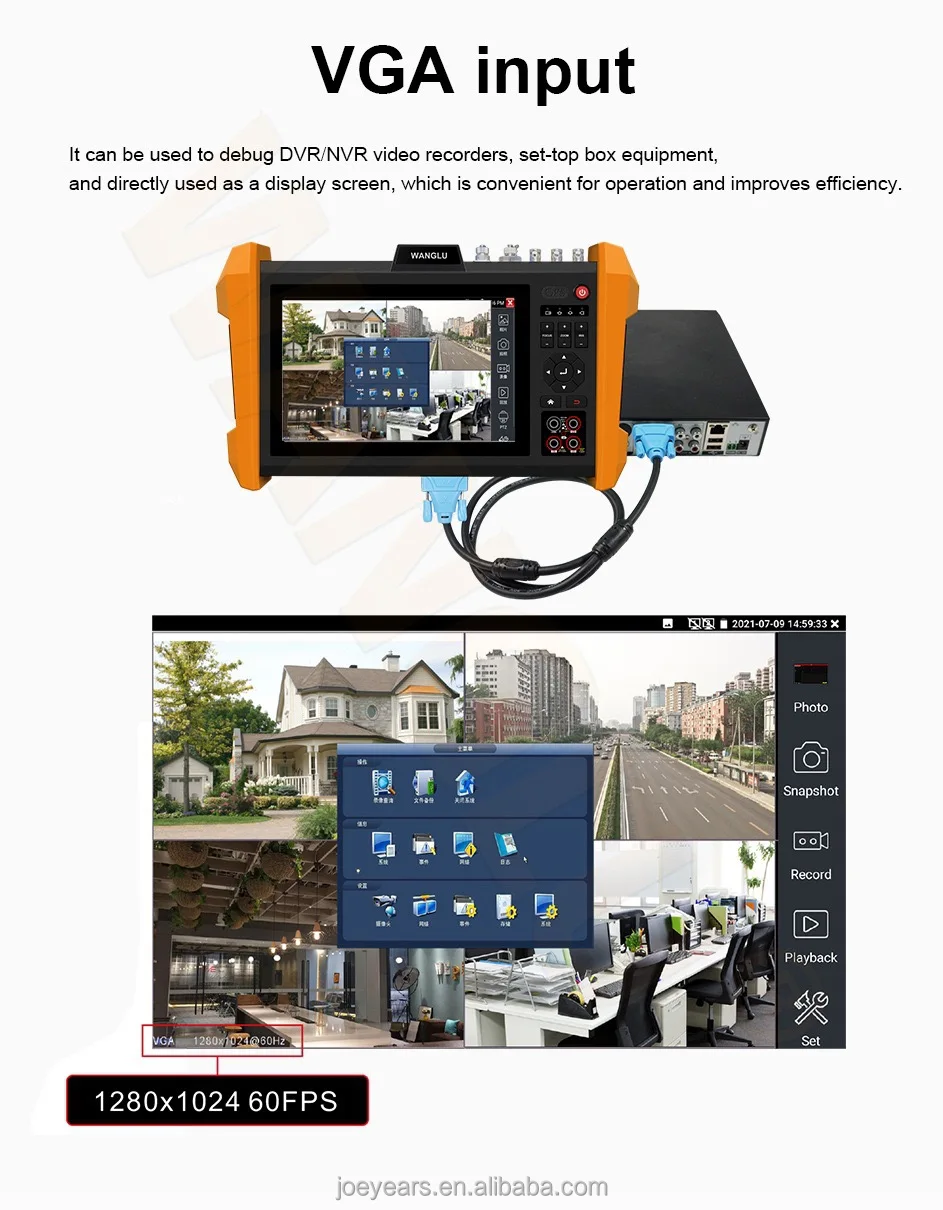

| VGA input: | It can be used to debug DVR/NVR video recorders,set-top box equipment, and directly used as a display screen,which is convenient for operation and improves efficiency |

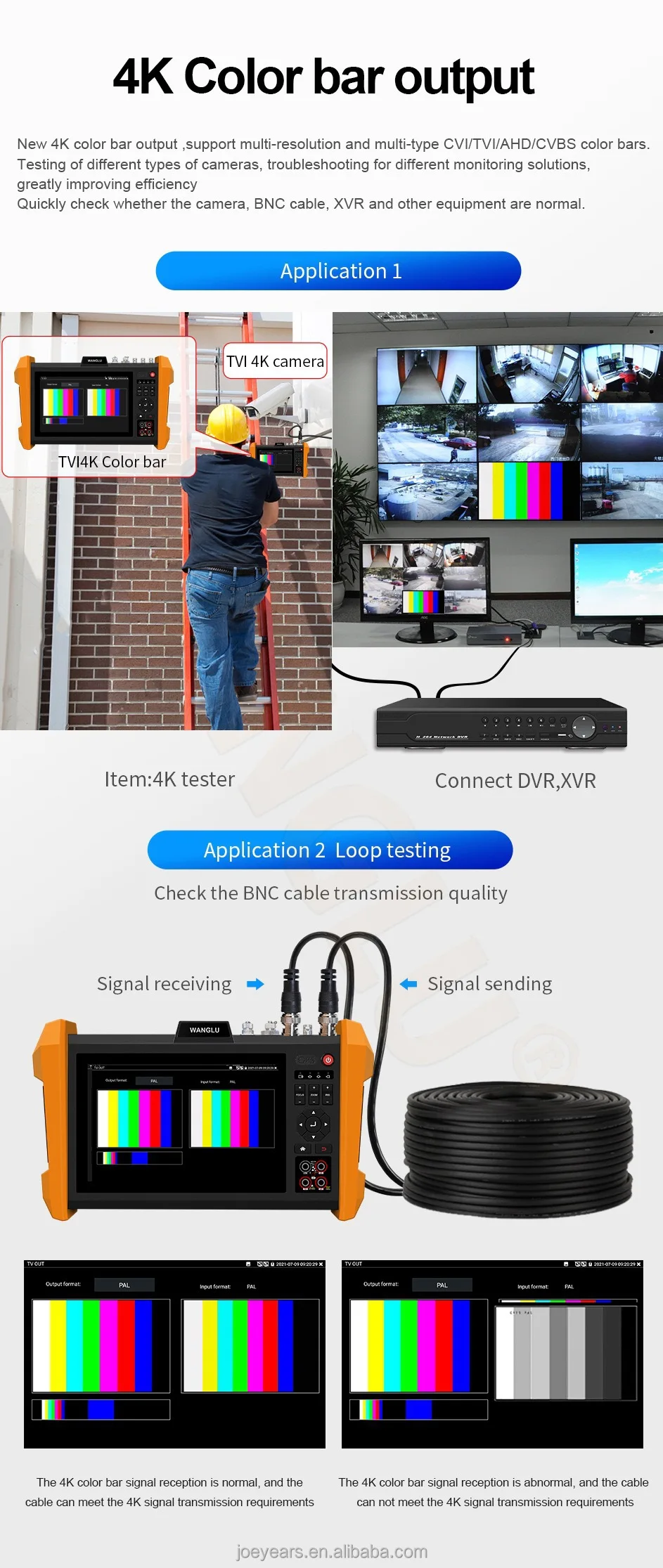

| 4K color bar output: | New 4K color bar output, support multi-resolution and multi-type CVI/TVI/AHD/CVBS color bars. Quickly check whether the camera,BNC cable,XVR and other equipment are normal or not. |

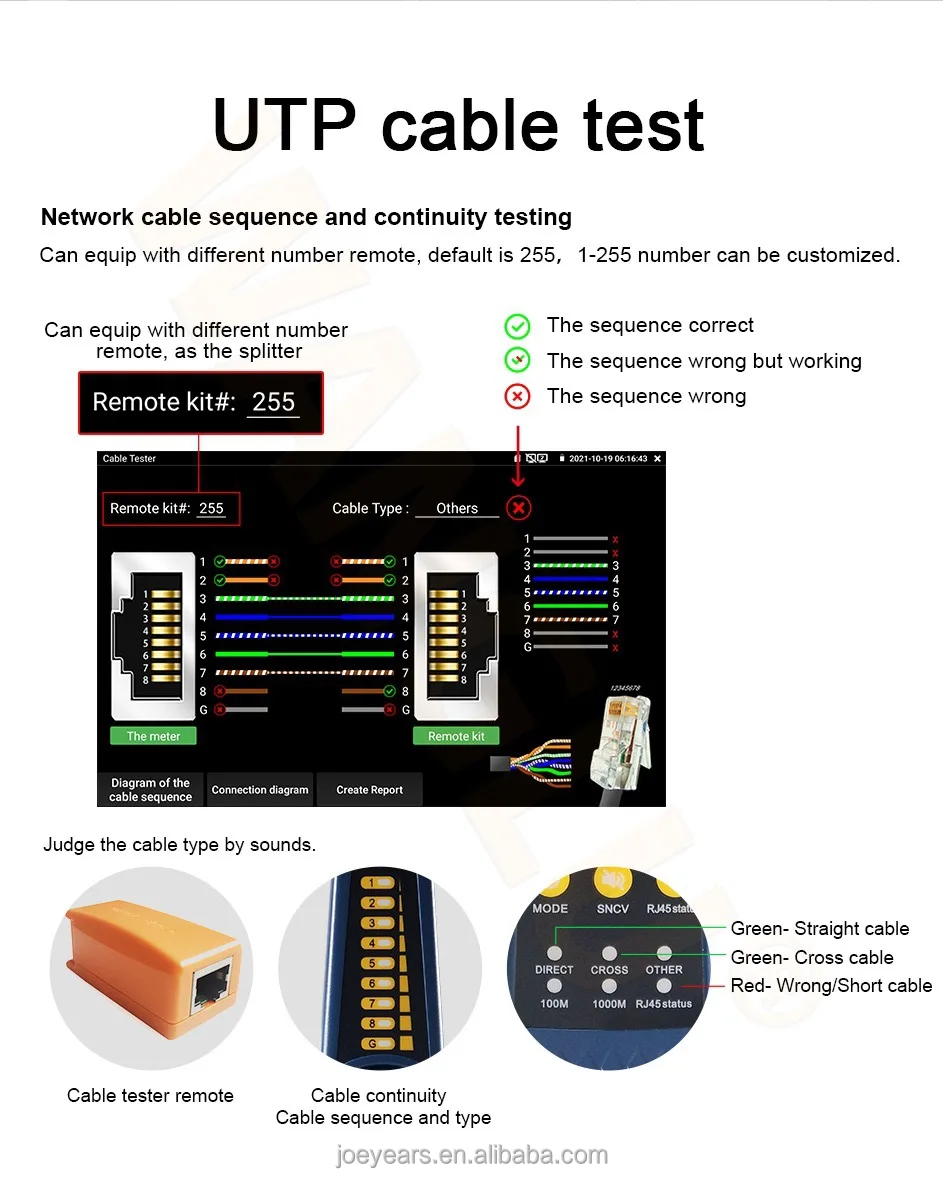

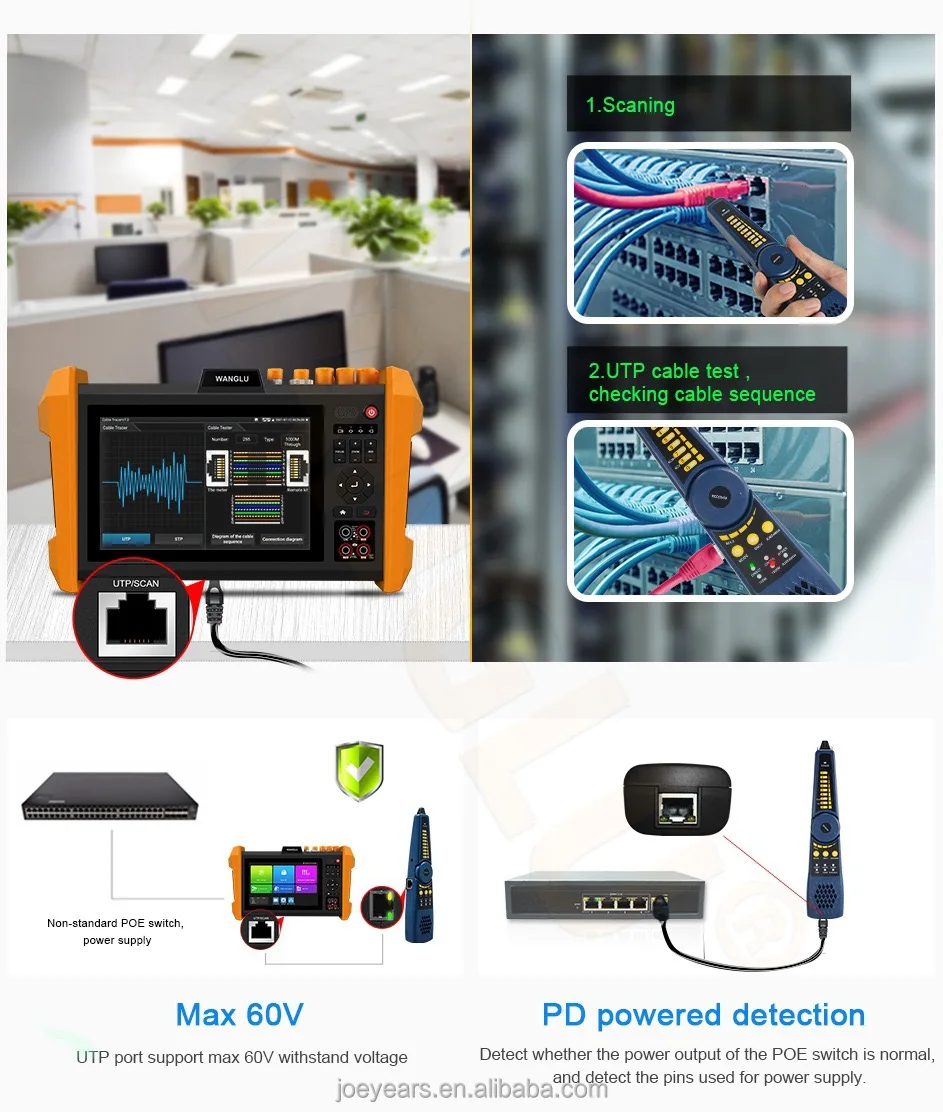

| UTP cable test: | Network cable sequence and continuity testing |

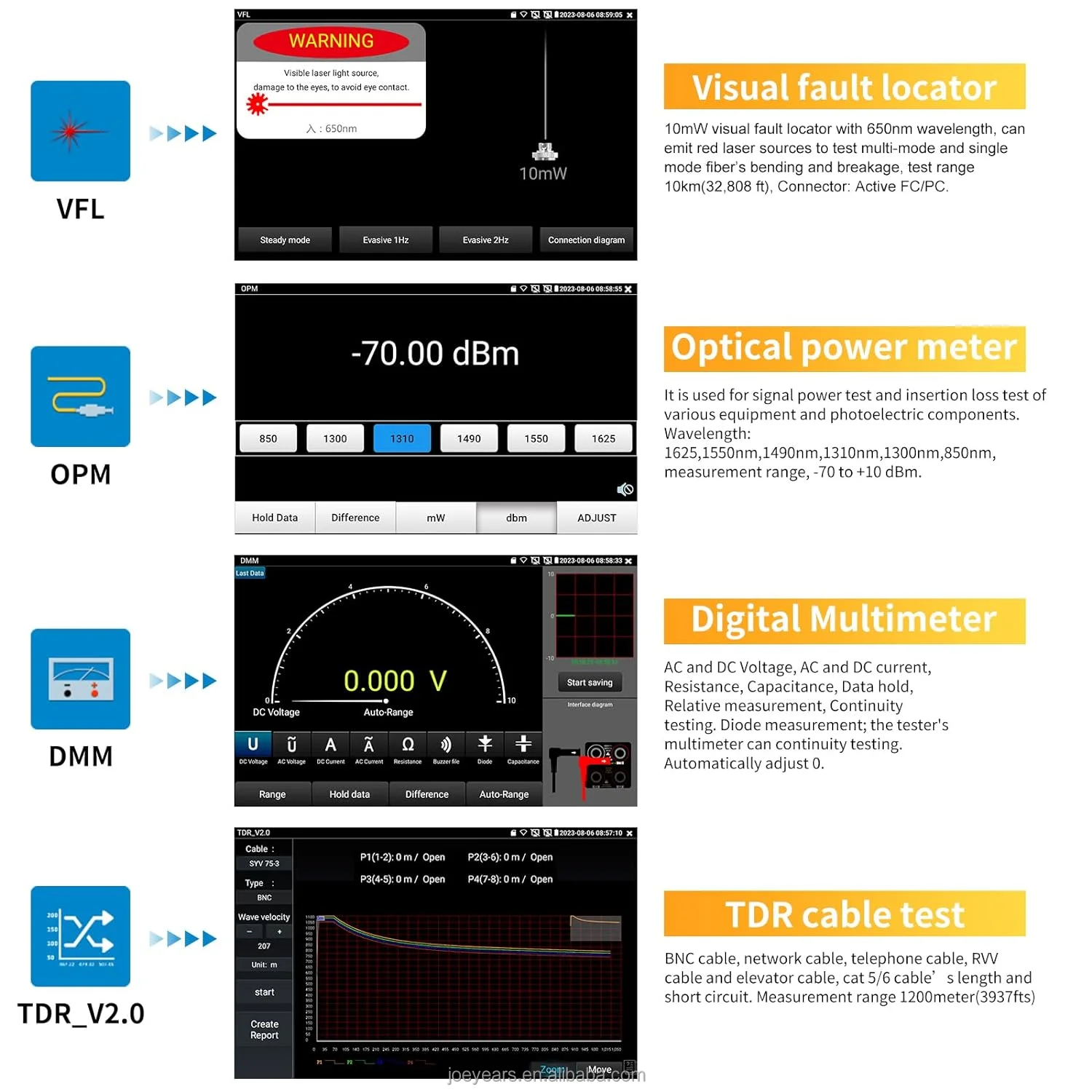

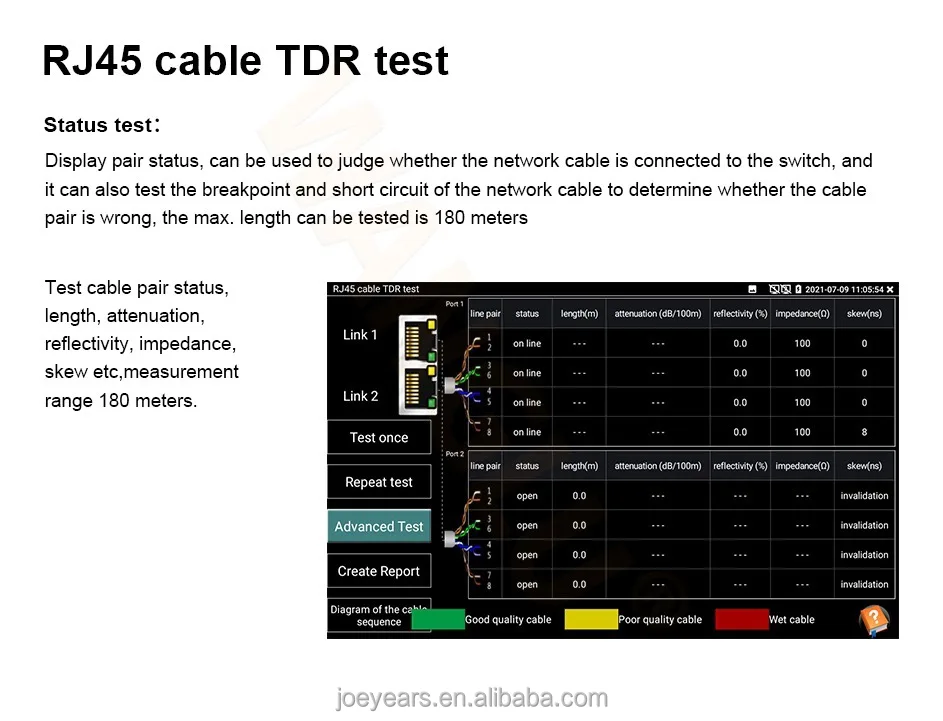

| RJ45 cable TDR test: | Test cable pair status,length,attenuation,reflectivity,inpedance,skew etc. Measurement range 180 meters. |

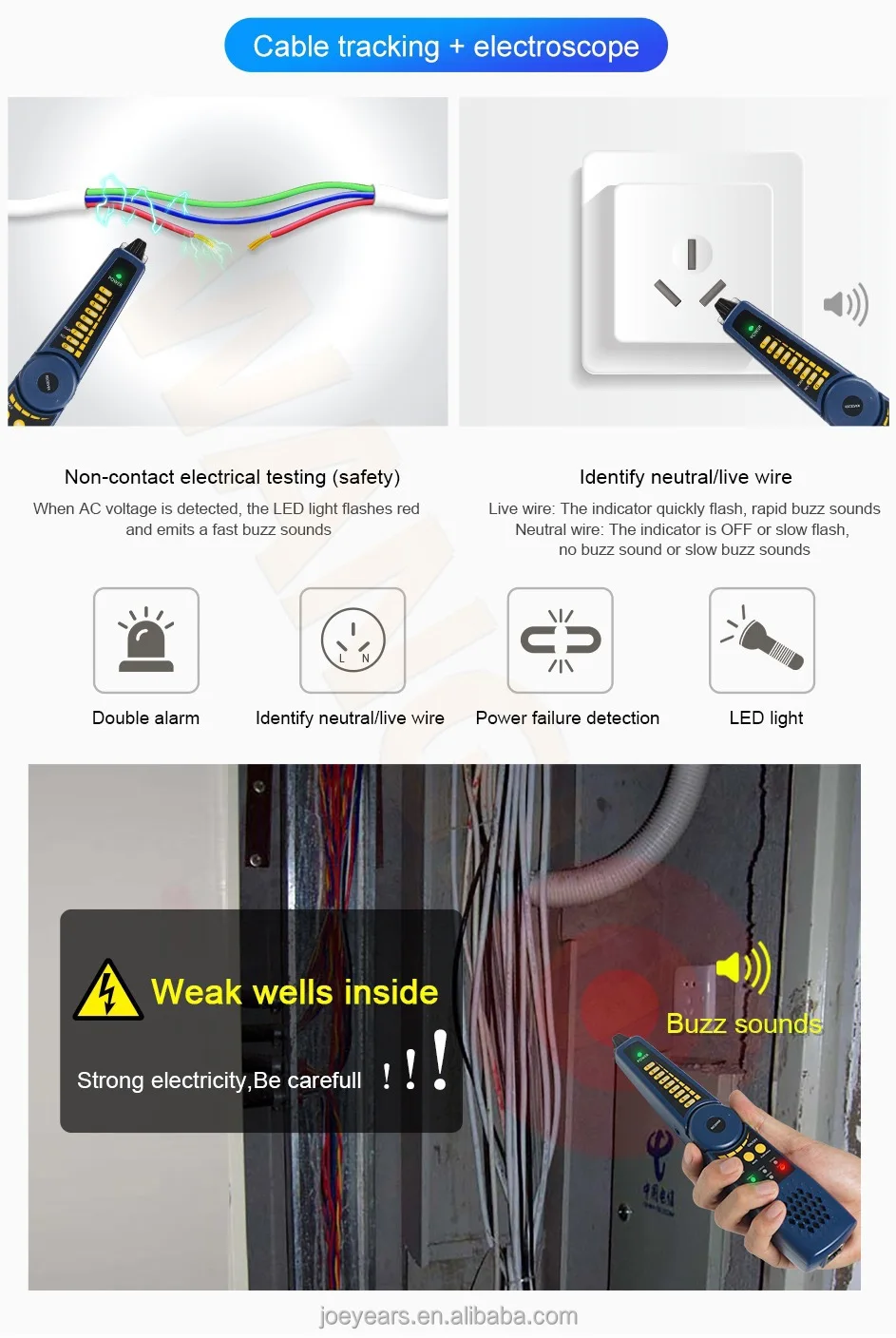

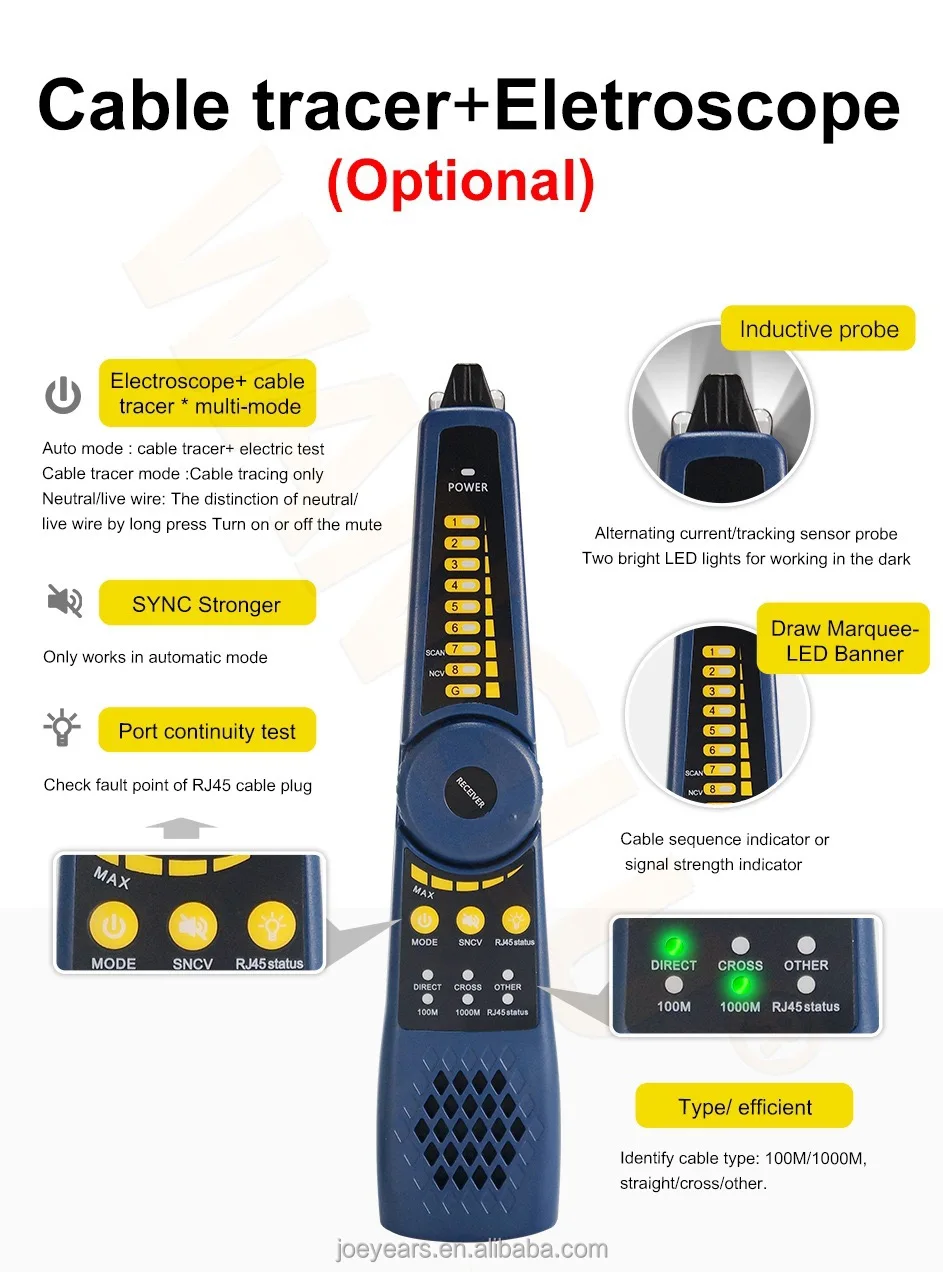

| Cable tracer+Electroscope: | Supported |

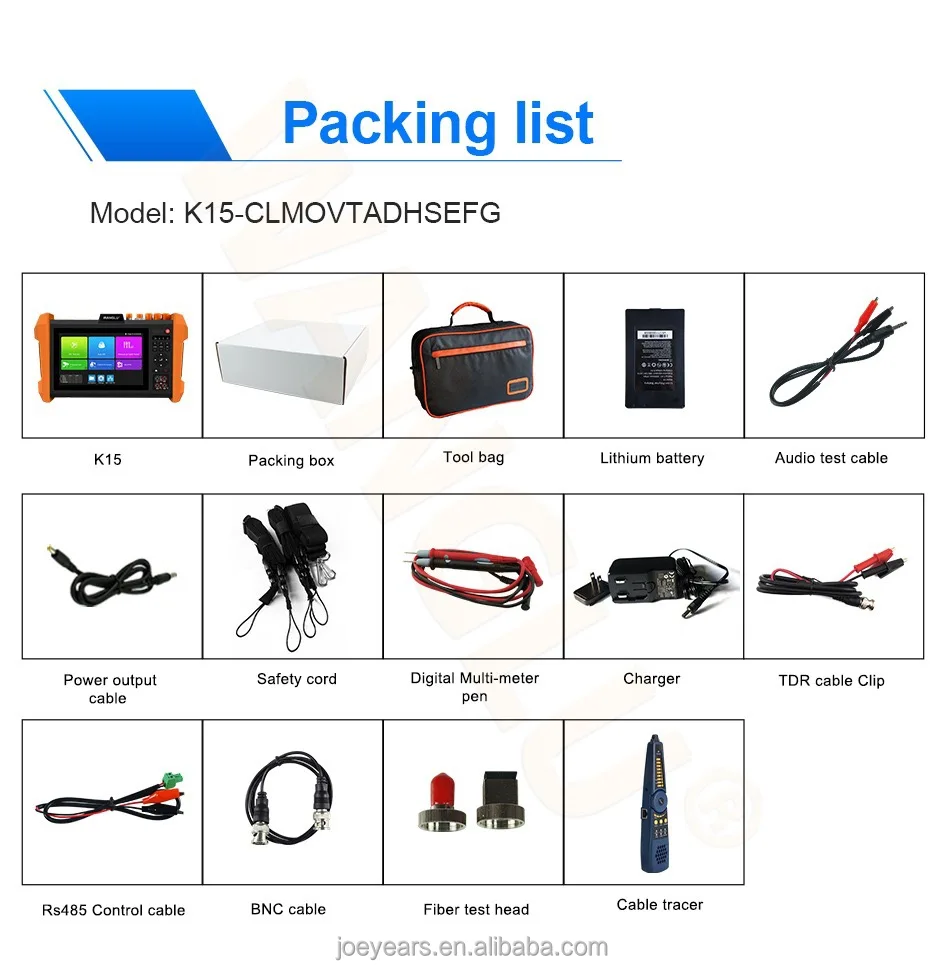

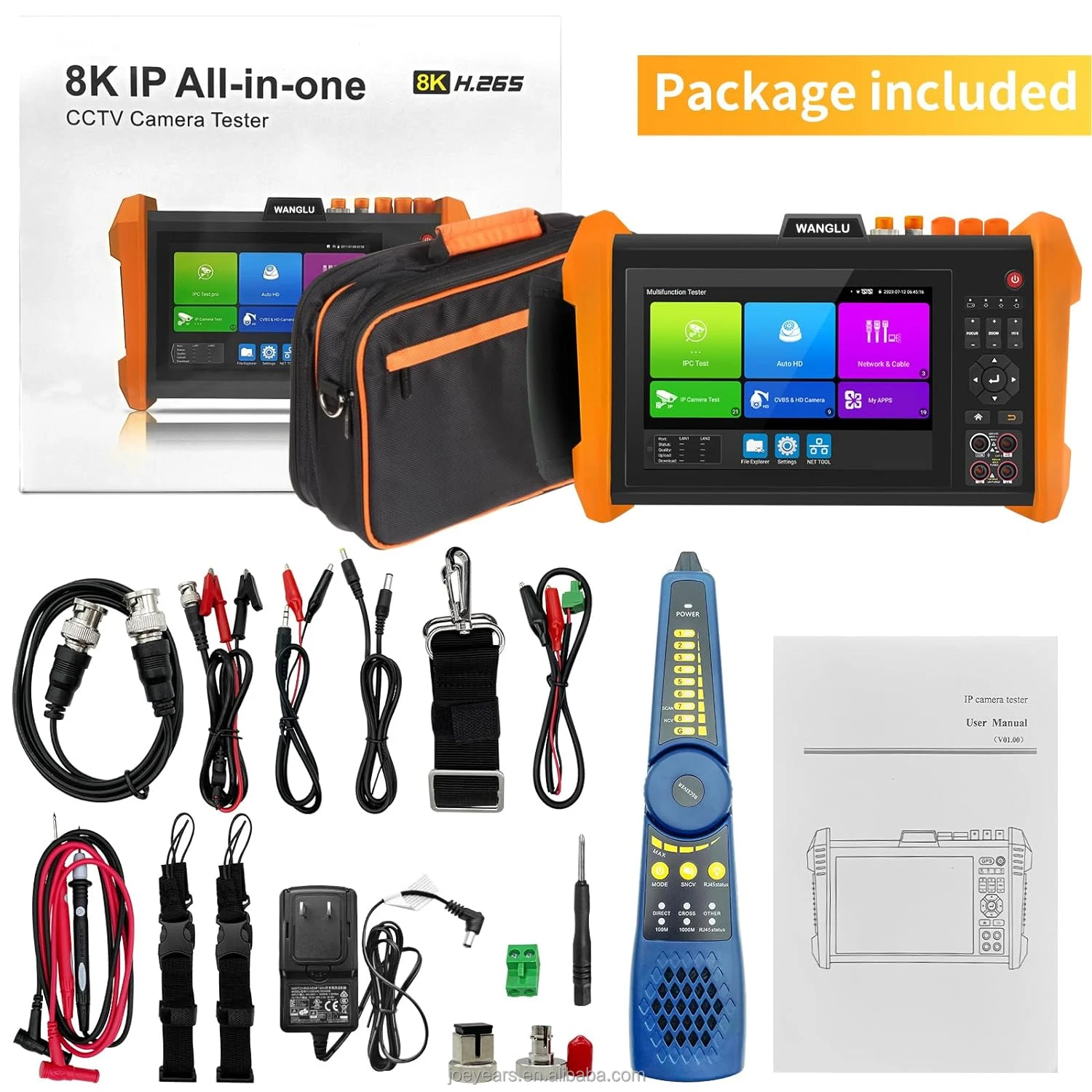

| Package including: | Machine+packing box+tool bag+lithium battery+audio test cable+ power output cable+safety cord+digital multi-meter pen+charger+ TDR cable clip+RS485 control cable+BNC cable+fiber test head+ cable tracer |
| OEM ODM: | Warmly welcomed |
| Quality warranty: | 1 year |
| Services: | Fast and best services |
