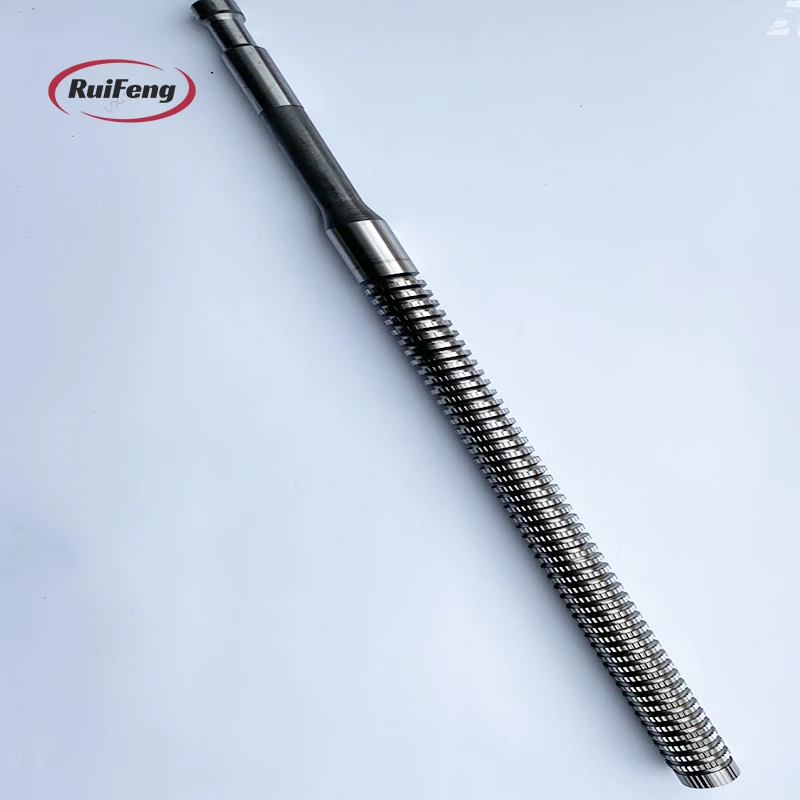

Keyway HSS hex broaching tool Spline cutting broaches for Cycloidal Speed Reducer gear
- Category: >>>
- Supplier: Zhejiang Jinhua Ruifeng Metal Products Co. Ltd.
Share on (1601084629035):
Product Overview
Description
Products Description
Product name: | Keyway HSS hex broaching tool Spline cutting broaches for Cycloidal Speed Reducer gear | ||||||
Material： | Carbide, High-speed Steel M2/M35/M42 | ||||||

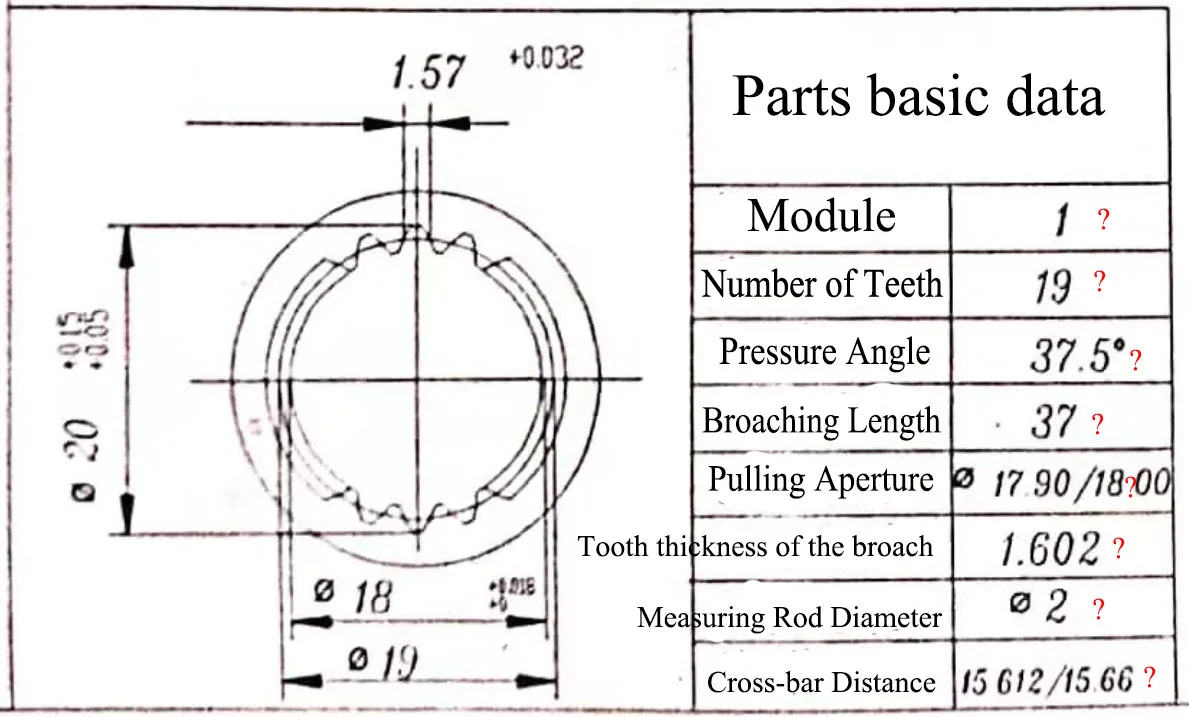

OEM/ODM | Design the drawing according to parts sample | ||||||
Packing： | Bubble then Wooden box | ||||||
Lead time: | 10days to regular keyway broaches,25days for complicated broaches | ||||||

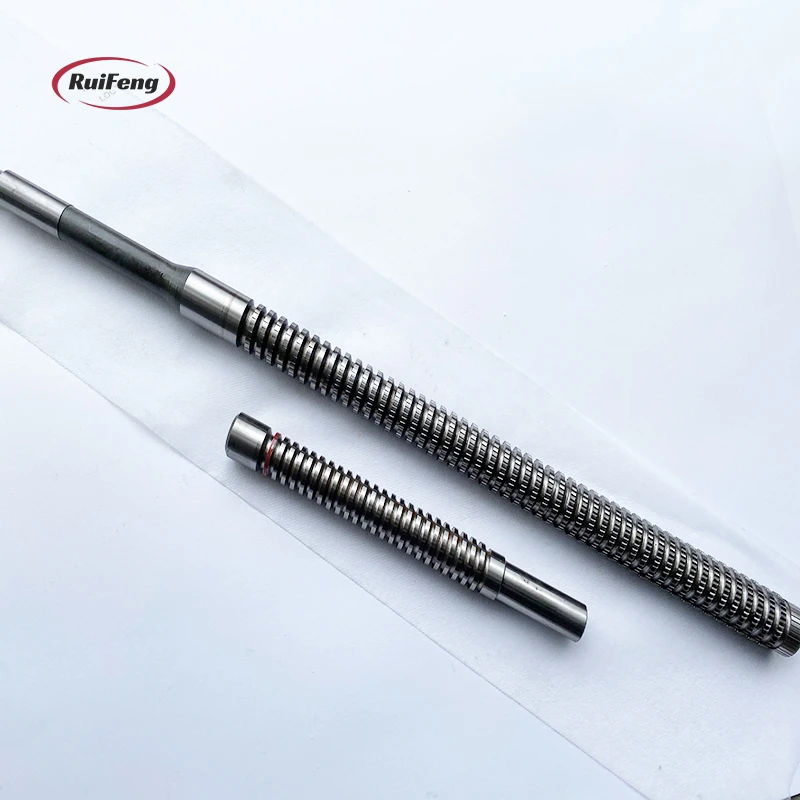

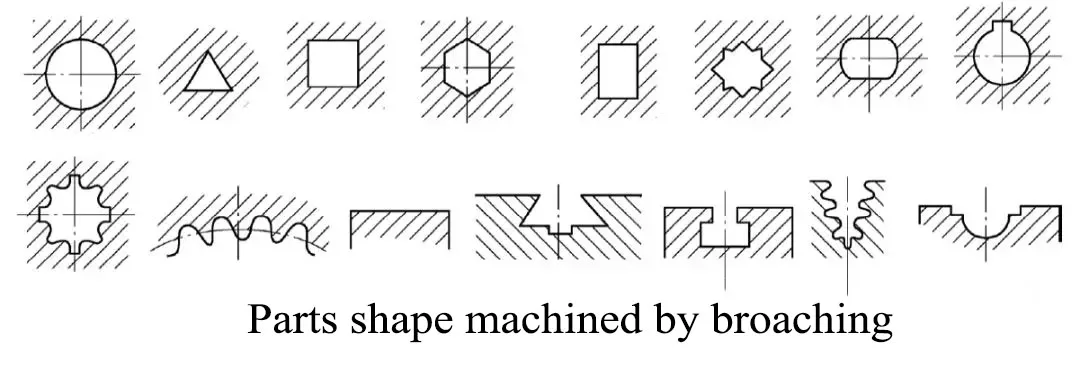

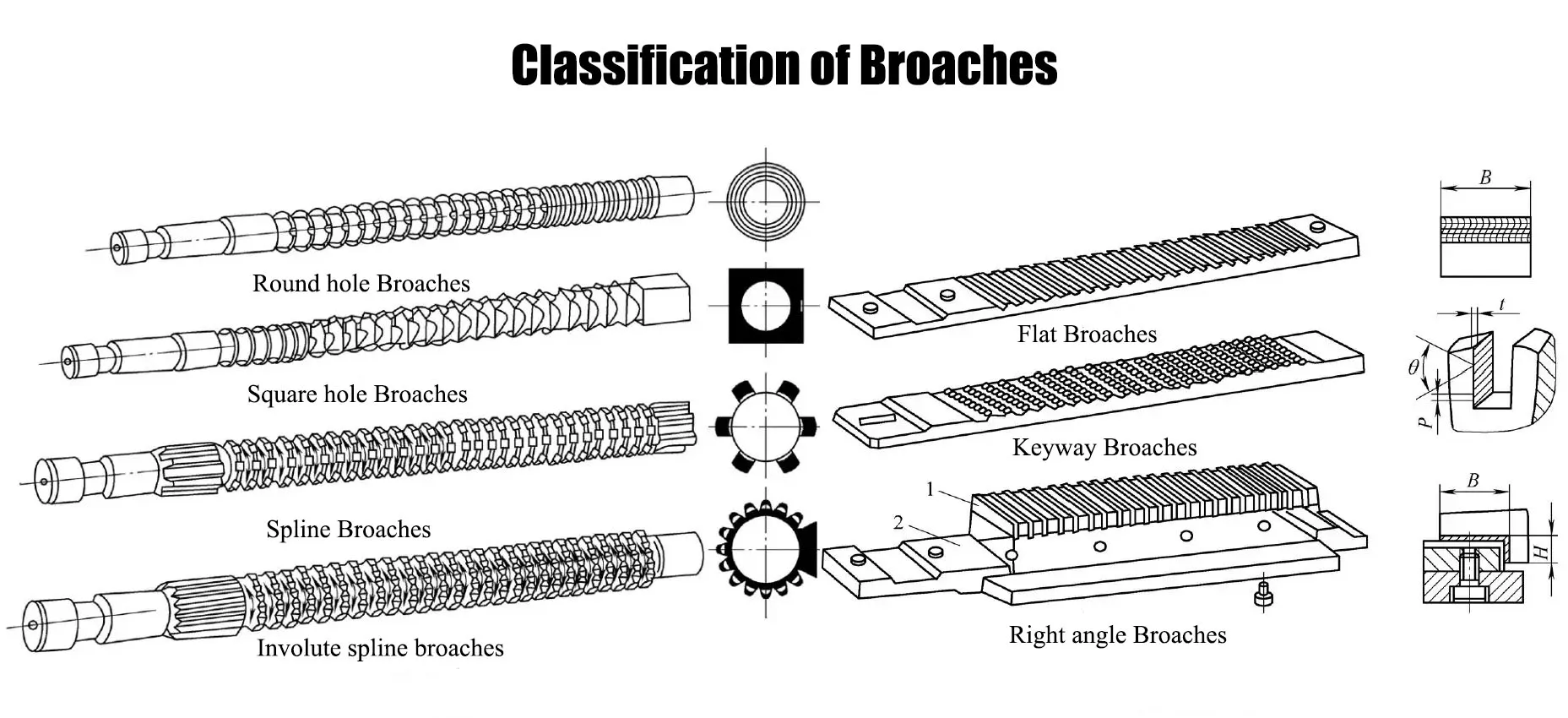

Details Images
Regular size for Keyway Broaches | ||||||||||||||||
BROACH SIZE | SIZE IN MM | TOLERANCE | BROACH TOTAL LENGHT | KEYWAY DEPTH | SHIMS | NO.OF CUTS | LENGHT OF CUT IN STEEL 50 (min and max) | MAX PRESSURE | ||||||||
1/16”-A | 1,5875 mm | 0 | 127 mm | 0.70 mm | - | 1 | 6-30 mm | 176 kg | ||||||||
3/32”-A | 2,3813 mm | 0.047244094 | 127 mm | 0.90 mm | - | 1 | 6-30 mm | 353 kg | ||||||||
1/8”-A | 3,175 mm | 0.200787402 | 127 mm | 1.30 mm | 1 | 2 | 6-30 mm | 294 kg | ||||||||
3/32”-B | 2,3813 mm | 0.047244094 | 172 mm | 0.90 mm | - | 1 | 8-42 mm | 421 kg | ||||||||
1/8”-B | 3,175 mm | 0.200787402 | 172 mm | 1.30 mm | 1 | 2 | 8-42 mm | 326 kg | ||||||||
5/32”-B | 3,9688 mm | 0.149606299 | 172 mm | 1.70 mm | 1 | 2 | 8-42 mm | 598 kg | ||||||||
3/16”-B | 4,7625 mm | 0.0051/ +0.0254 | 172 mm | 2.00 mm | 1 | 2 | 8-42 mm | 843 kg | ||||||||
3/16”-C | 4,7625 mm | 0.0051/ +0.0254 | 299 mm | 2.00 mm | 1 | 2 | 10-64 mm | 698 kg | ||||||||
¼”-C | 6,35 mm | 0.0051/ +0.0254 | 299 mm | 2.80 mm | 1 | 2 | 10-64 mm | 1143 kg | ||||||||
5/16”-C | 7,9375 mm | 0.0051/ +0.0254 | 299 mm | 3.50 mm | 1 | 2 | 10-64 mm | 1796 kg | ||||||||
3/8”-C | 9,525 mm | 0.5 | 299 mm | 4.10 mm | 2 | 3 | 10-64 mm | 1968 kg | ||||||||
5/16”-D | 7,9375 mm | 0.200787402 | 353 mm | 3.50 mm | 1 | 2 | 25-150 mm | 3628 kg | ||||||||
3/8”-D | 9,525 mm | 0.5 | 353 mm | 4.10 mm | 2 | 3 | 25-150 mm | 3175 kg | ||||||||
7/16”-D | 11,1125 mm | 0.5 | 353 mm | 4.70 mm | 2 | 3 | 25-150 mm | 4263 Kg | ||||||||
½”-D | 12,7 mm | 0.598425197 | 353 mm | 5.40 mm | 3 | 4 | 25-150 mm | 4445 kg | ||||||||
9/16”-D | 14,2875 mm | 0.598425197 | 353 mm | 6,10 mm | 4 | 5 | 25-150 mm | 4036 kg | ||||||||
5/8”-E | 15,875 mm | 0.5 | 394 mm | 6.80 mm | 4 | 5 | 25-150 mm | 4354 kg | ||||||||
¾”-E | 19,05 mm | 0.6 | 394 mm | 8.10 mm | 5 | 6 | 25-150 mm/p> | 5397 kg | ||||||||
7/8”-F | 22,225 mm | 0.6 | 515 mm | 9.60 mm | 6 | 7 | 25-150 mm | 4445 kg | ||||||||
1”-F | 25,400 mm | 0.6 | 515 mm | 10.90 mm | 7 | 8 | 25-150 mm | 5034 kg | ||||||||
Package and Delivery
Company Profile
Ruifeng Metal Products Co., Ltd. is located at 1158 Shifeng Road, Development Zone, Jinhua City, Zhejiang Province. Its predecessor was Red Sun Tool Factory, founded in 2007. In 2019, Jinhua Red Sun Tool Factory and the foreign party jointly established Zhejiang Jinhua Ruifeng Metal Products Co., Ltd. Operating and producing Sharp Gear Cutting Tools Company.The company has 26 domestically produced CNC lathe grinding machines, CNC spline grinding machines, and universal tool microscopes for processing equipment and testing instruments. In 2019, three Connie fully automatic CNC spline grinding machines were introduced. Through continuous technological transformation, we have developed the ability to produce high-precision gear hobs, pullers, gear cutters, milling cutters, and various non-standard gear cutting tools. We will increase the variety of cutting tools, pursue technological progress, and provide high-quality products and after-sales services for industries such as automobiles, automotive parts, and machinery, striving to make users feel the unity of quality, speed, and efficiency.
