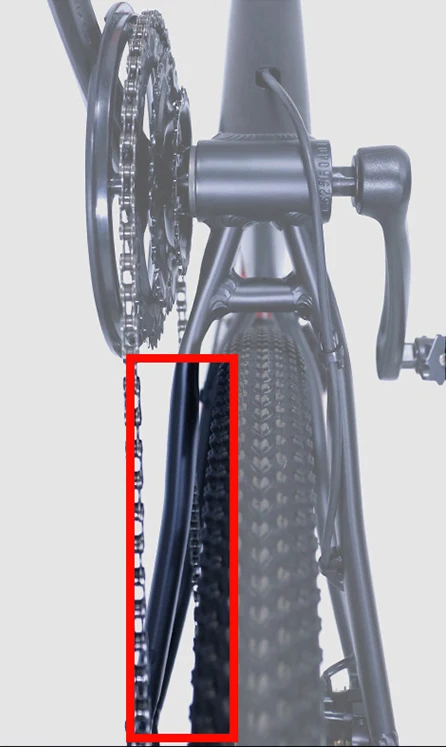

Too much protrusion of the flat fork will affectthe installation, you can take a photo and sendit to the customer service for confirmation
(lf it protrudes, you need to add a gasket)

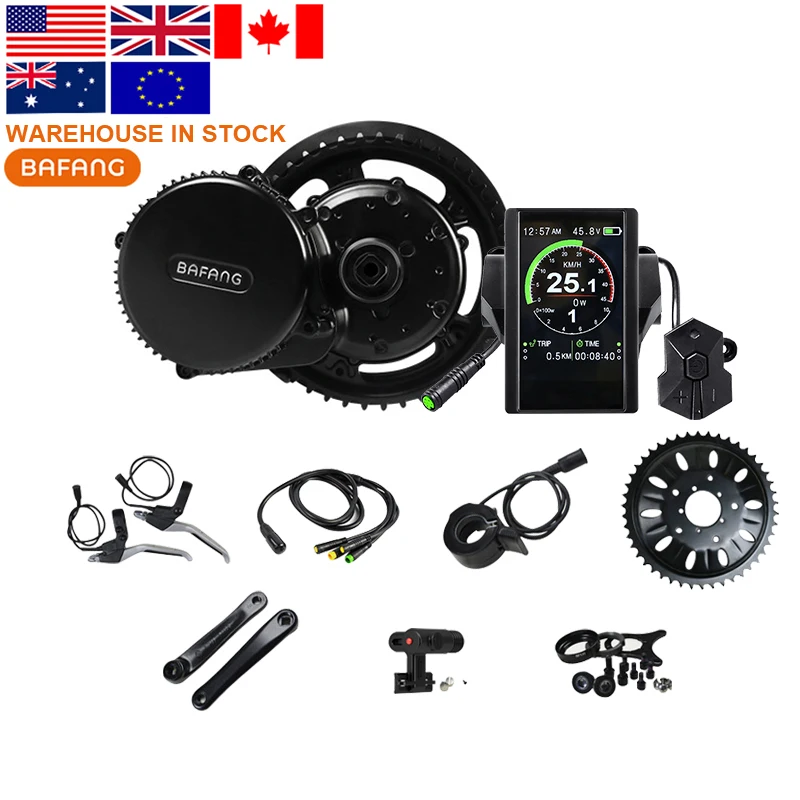

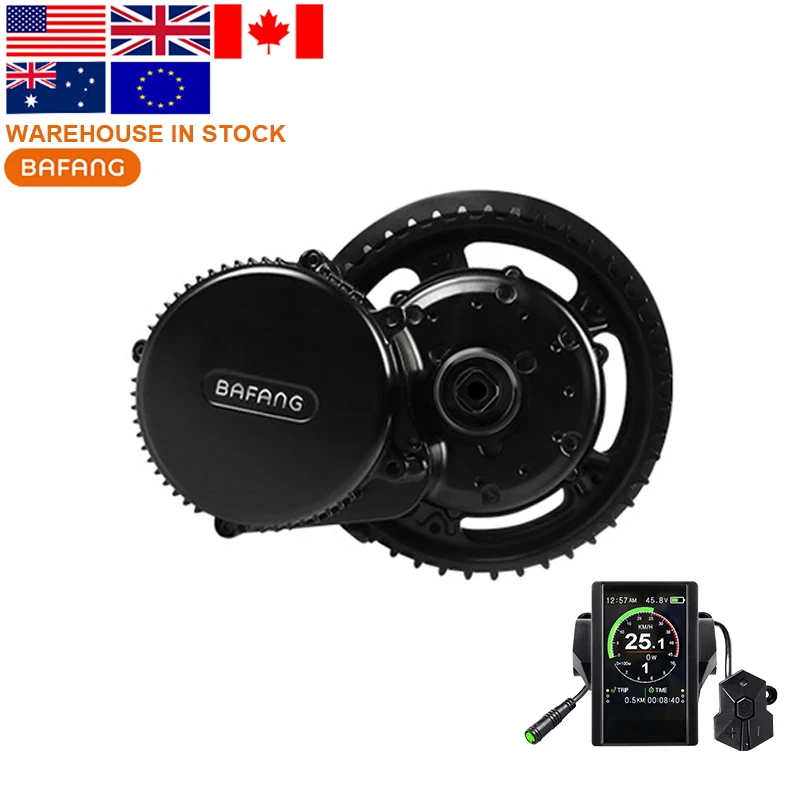

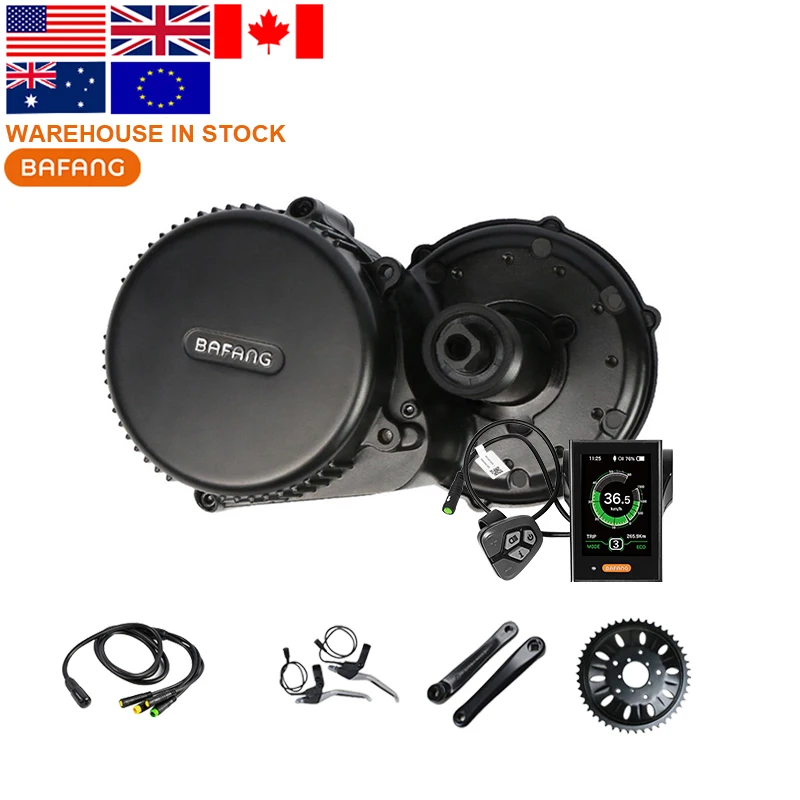

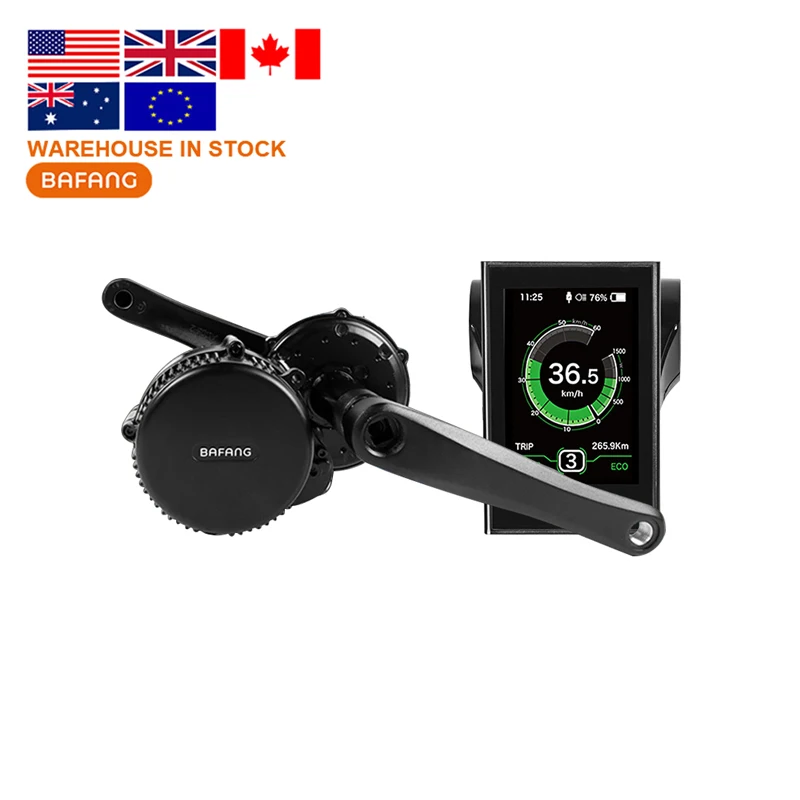

Overseas warehouse Best Popular G340 Bafang250 w 500 w 1000 w Engine Cycling Kit With Battery Included
- Category: >>>
- Supplier: Jinhua Ximei Technology Co. Ltd
Share on (1601084842650):
Product Overview
Description
Speed test report
* The tester weighs 60kg, has a 26-inch mountain bike,10AH lithium battery, 46T toothdisc, and a rear
variable speed of 12T endurance at 25km/h to get the data
Motor specification | Pure electric vehicle speed | Pure charge | Power endurance | |||
36V250W | 33-35km/h | 36-38km | 80-120km | |||
36V350W | 38-40km/h | 33-36km | 60-100km | |||
48V350W | 38-40km/h | 38-42km | 90-130km | |||
36V500W | 48-50km/h | 30-33km | 60-100km | |||
48V500W | 48-50km/h | 35-38km | 80-120km | |||
48V750W | 52-55km/h | 32-35km | 60-100km | |||
48V/52V1000W | 60-62km/h | 28-32km | 50-80km | |||
* The larger the rim wheel diameter, the faster the speed;The smaller the rim wheeldiameter is, the stronger the climbing ability is; The faster the speed, the more powerconsumption, the data is for reference only, please refer to the actual prevail, thank you！ | ||||||
MOTOR PARAMETERS | ||||||||||
Rated power (w) | 250W | 350W | 500W | 750W | 1000W | |||||
No-load speed(Rpm） | 83/87 | 113/118 | 113/118 | 145/150 | 160 | |||||
Load speed (Rpm) | 78/83 | 105/110 | 105/110 | 130/135 | 140/145 | |||||
Maximum torque(N.m) | 80 | 100 | 100 | 120 | 160 | |||||
Motor net weight(KG) | 3.98 | 3.98 | 4.24 | 4.24 | 6.04 | |||||
whole set weight(KG) | 5.37 | 5.37 | 5.63 | 5.63 | 7.8 | |||||
Whole set gross weight(KG) | 6.12 | 6.12 | 6.38 | 6.38 | 8.9 | |||||
The number of motor(2P) | 16 | 16 | 16 | 16 | 8 | |||||
Function | ||||||||||
Installation position | Mid motor | Function | ||||||||

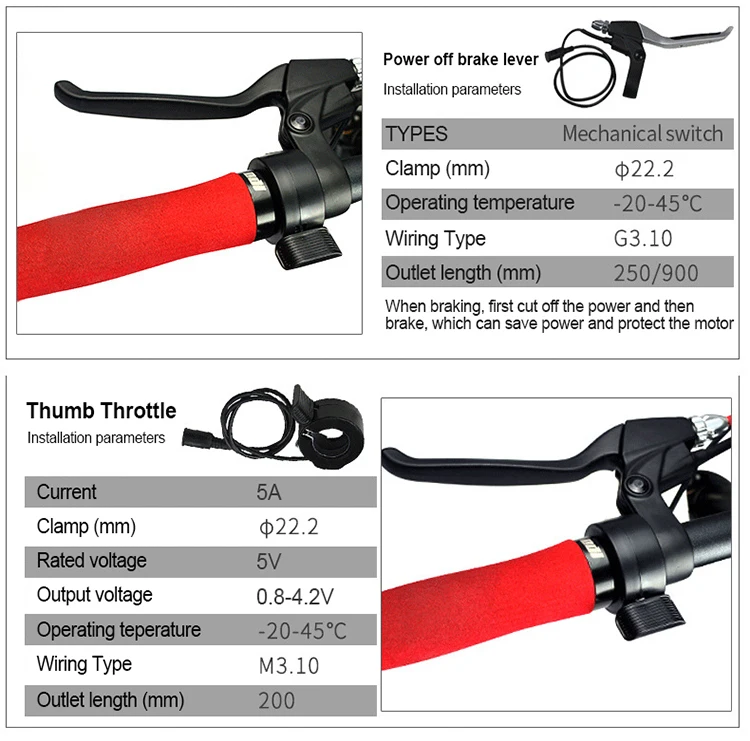

Wheel diameter (inch) | Optional | The electronic brake handle | YES | |||||||
Structure | Gear drive | Gear shift sensor function | YES | |||||||
The rated voltage(DCV) | 36/48 | More Technical parameters | ||||||||
Effectiveness(%) | ≥80 | Number of magnets (pulses/cycle) | 1 | |||||||
Booster sensor | Speed type | Reduction ratio | 1：21.9 | |||||||

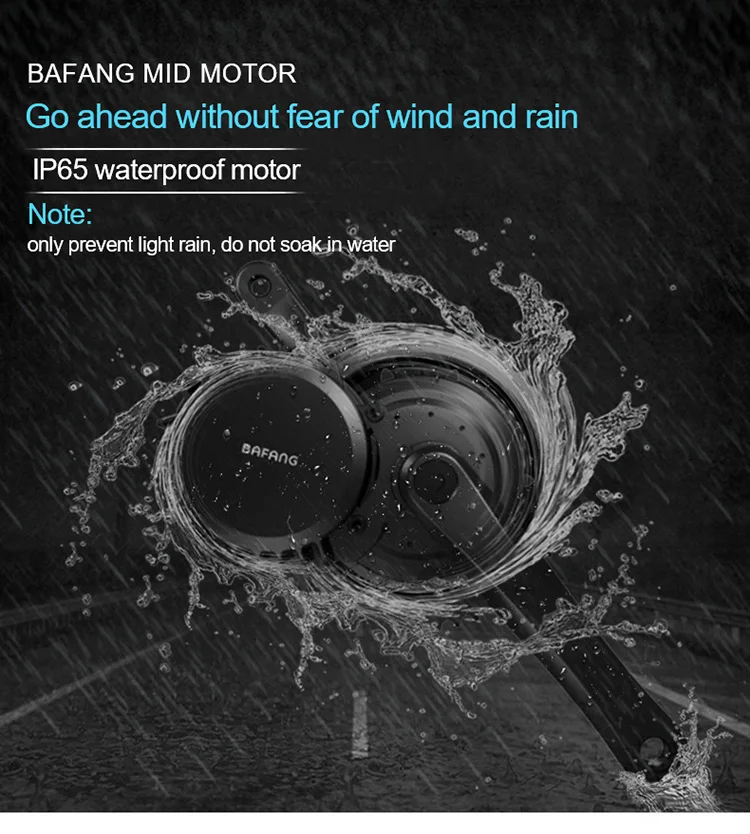

Shaft standard | JIS | Waterproof level | IP65 | |||||||
Colour | Black | Certification | CE/EN14764/ROHS | |||||||
Noise (dB) | <55 | Anti-corrosion level (hours) | 96 | |||||||
Operating temperature | -20-40℃ | |||||||||

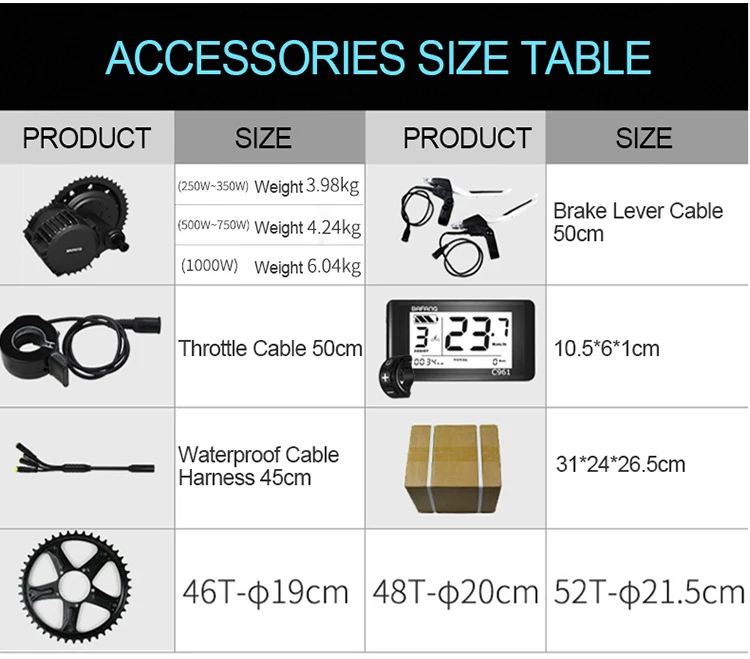

* The following weight data are all measured manually, there may be some deviation, please refer to the actual weight | ||||||||||

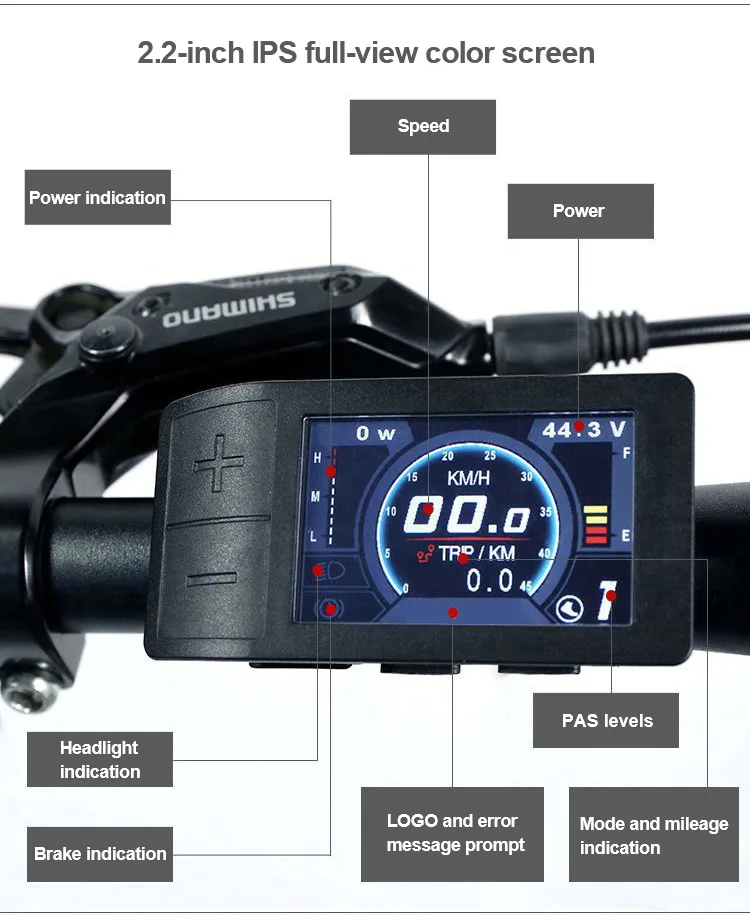

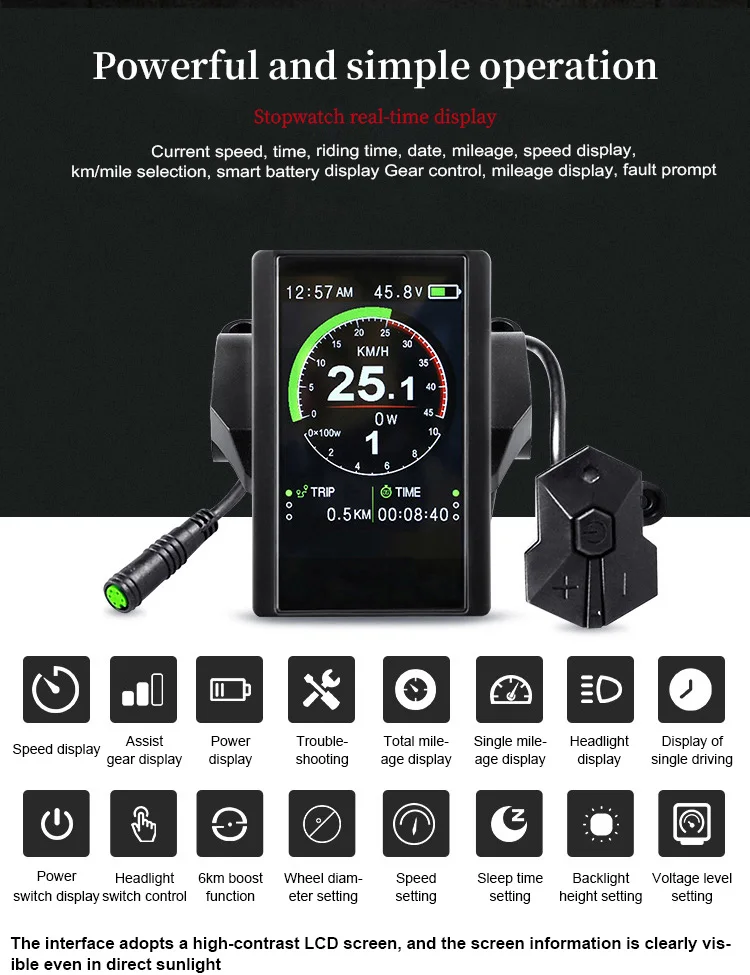

Product number | APT TFT 500C | Product shell | ABS | |||
Gear mode | 3/5/9 | Power supply | 24V/36V/48V | |||
Waterproof level | IP67 | Assist gear | 1-9 | |||
Size | 40mm*80mm | Backlight brightness | 5-level adjustment | |||
Note: We send the standard manual, different versions have different functions Since the weight data are all measured manually,there may be some deviations, please refer to the actual data | ||||||
Crash reguirement
1.The central axle bowl is imperial,
2.This mid-mounted motor package is suitable for general commuting, mountain bikes, folding bikes, and station wagons;

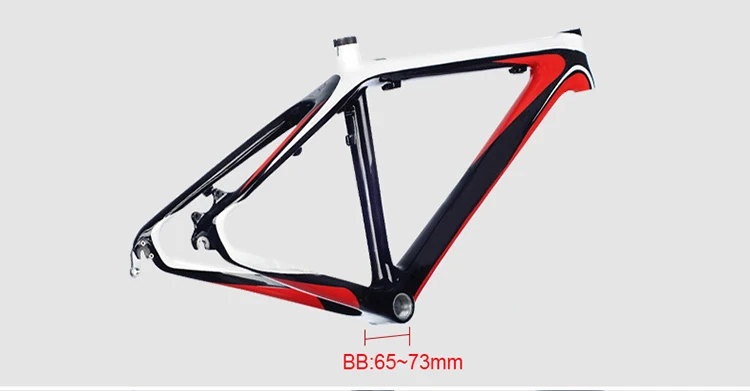

3.The five-way opening of the whole series is 65~73mm (please confirm whether the size of your five-way
pipe meets the loading requirements beforeshooting), among which 48V/1000W also has 100mm and 120mmd five-wayopening. Please note the special requirements. Otherwise, it will default tostandard configuration.
pipe meets the loading requirements beforeshooting), among which 48V/1000W also has 100mm and 120mmd five-wayopening. Please note the special requirements. Otherwise, it will default tostandard configuration.
4.The kit does not contain batteries
Company Profile
Jinhua Ximei Technology Co., Ltd was founded in 2008 in Jinhua, a beautiful city 300km from Shanghai and 150km from Ningbo. CEMOTO is a professional manufacturer of electric bike, electric scooter, electric tricycle and mobility scooter & wheelchair.

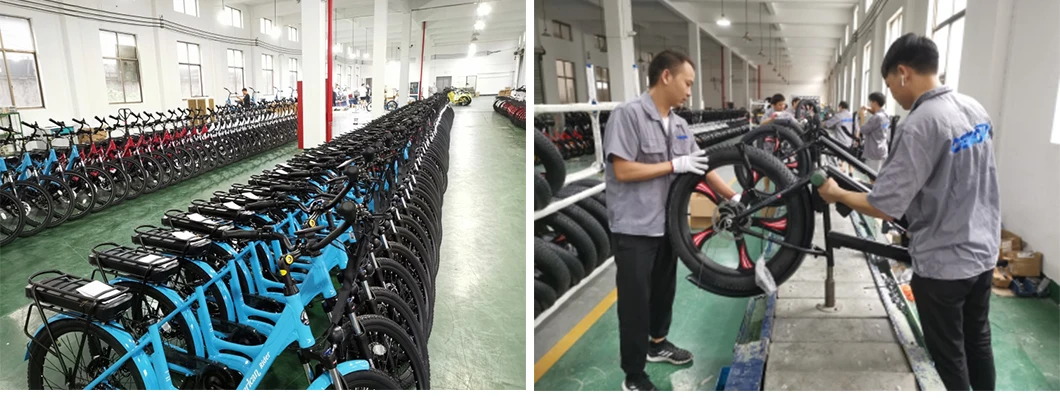

Jinhua Ximei Technology Co., Ltd currently have 30 employees and own 8000 square meters factory with the modern office, standard workroom, production line and testing equipments.
