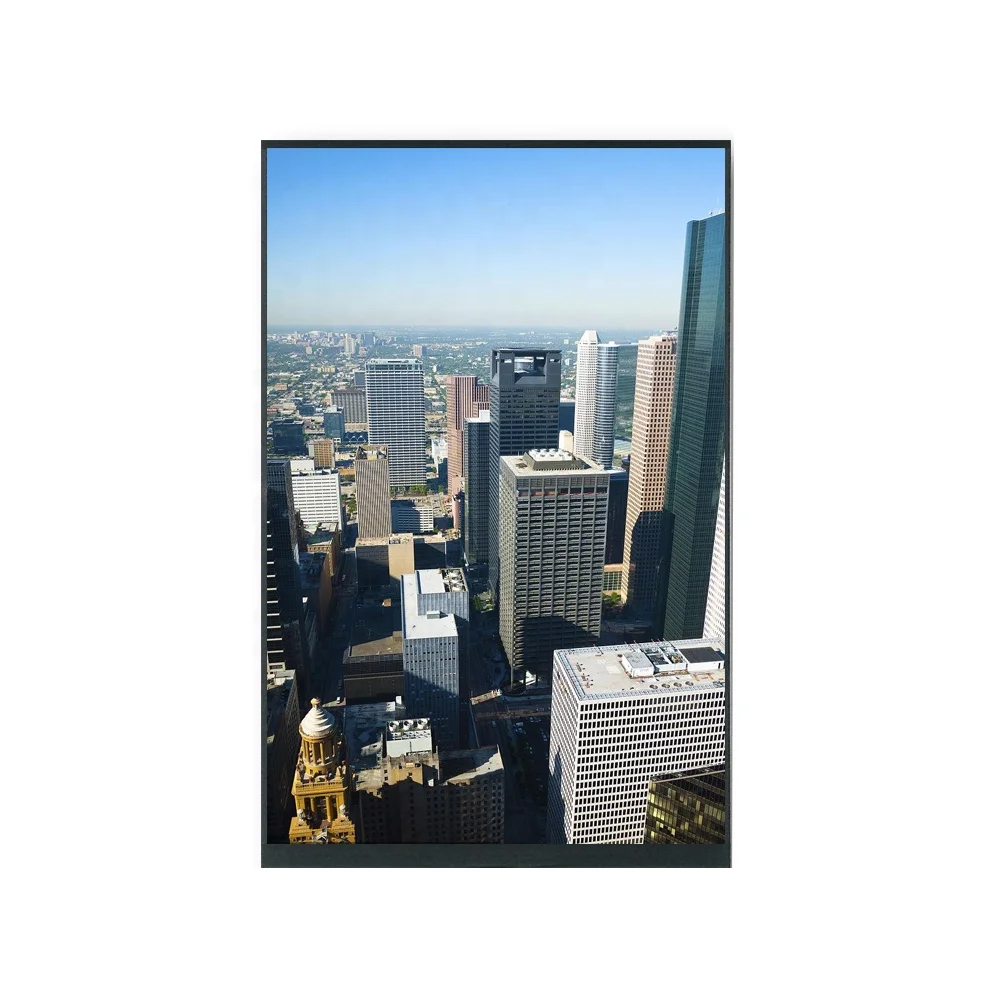

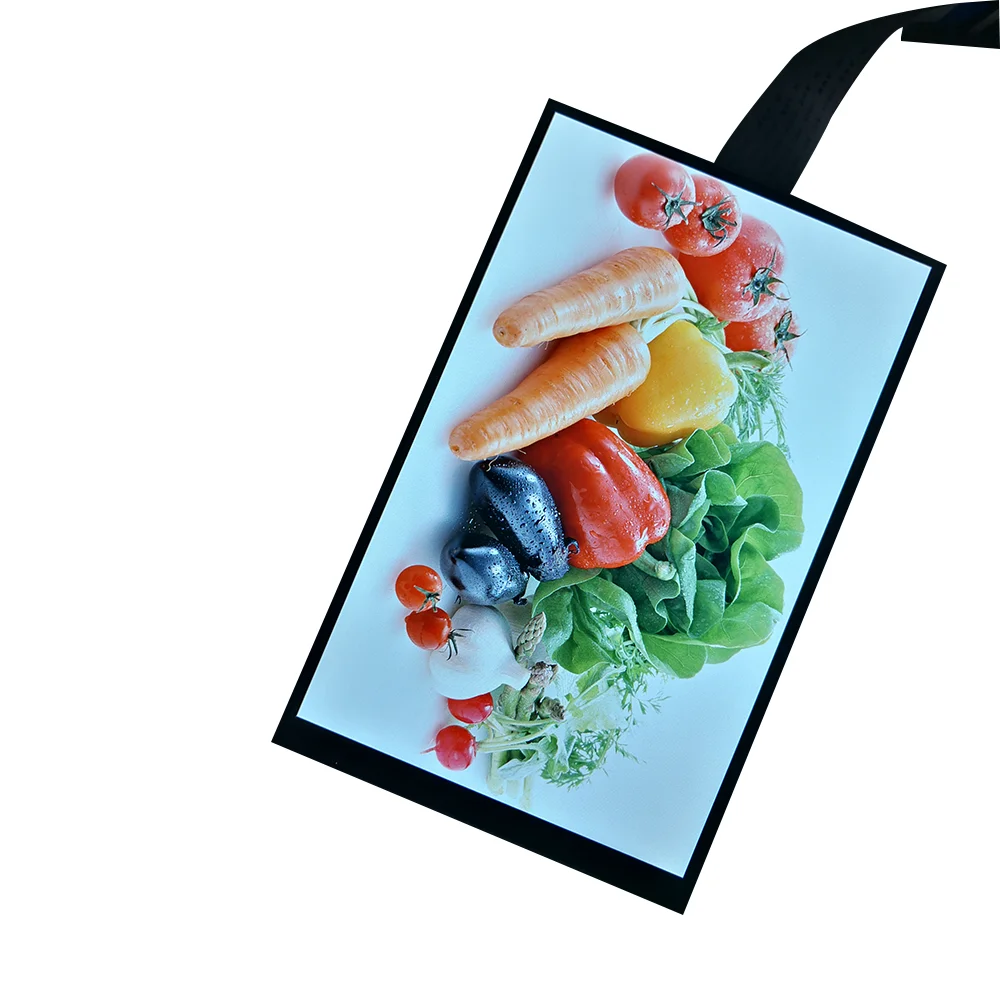

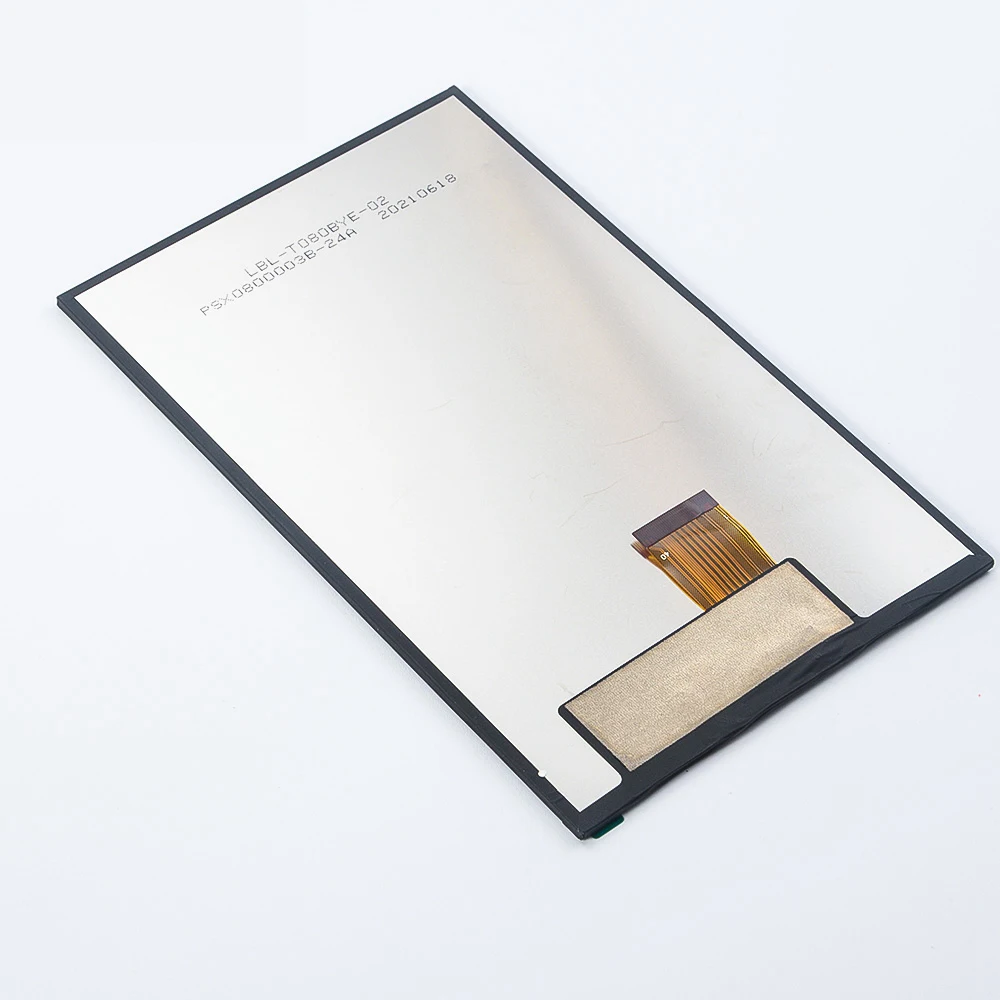

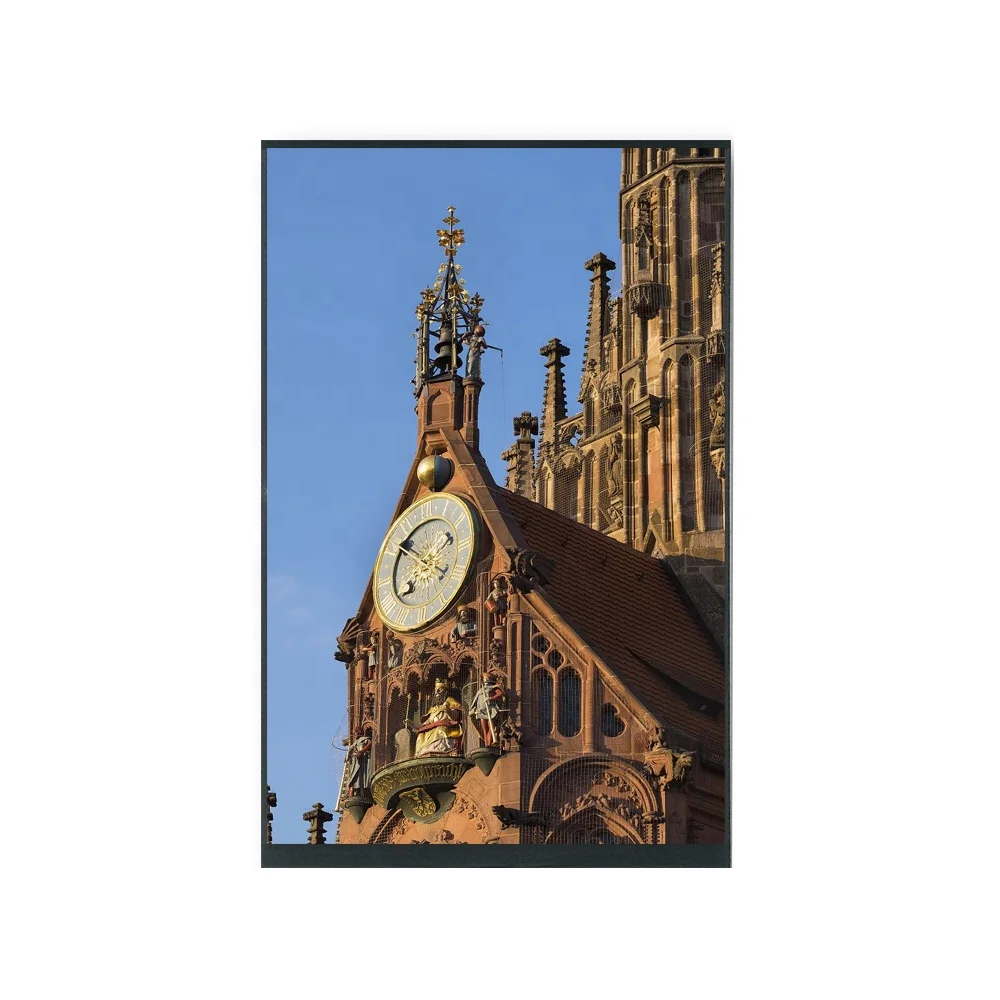

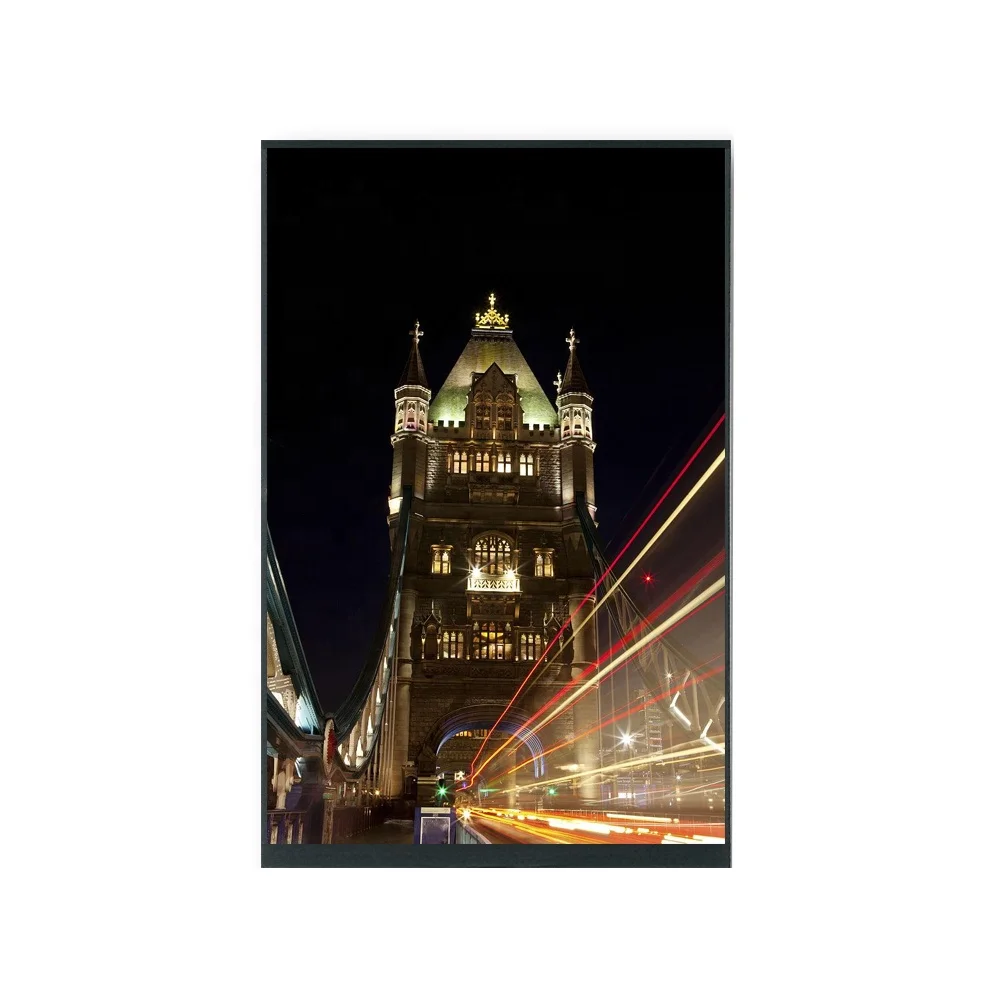

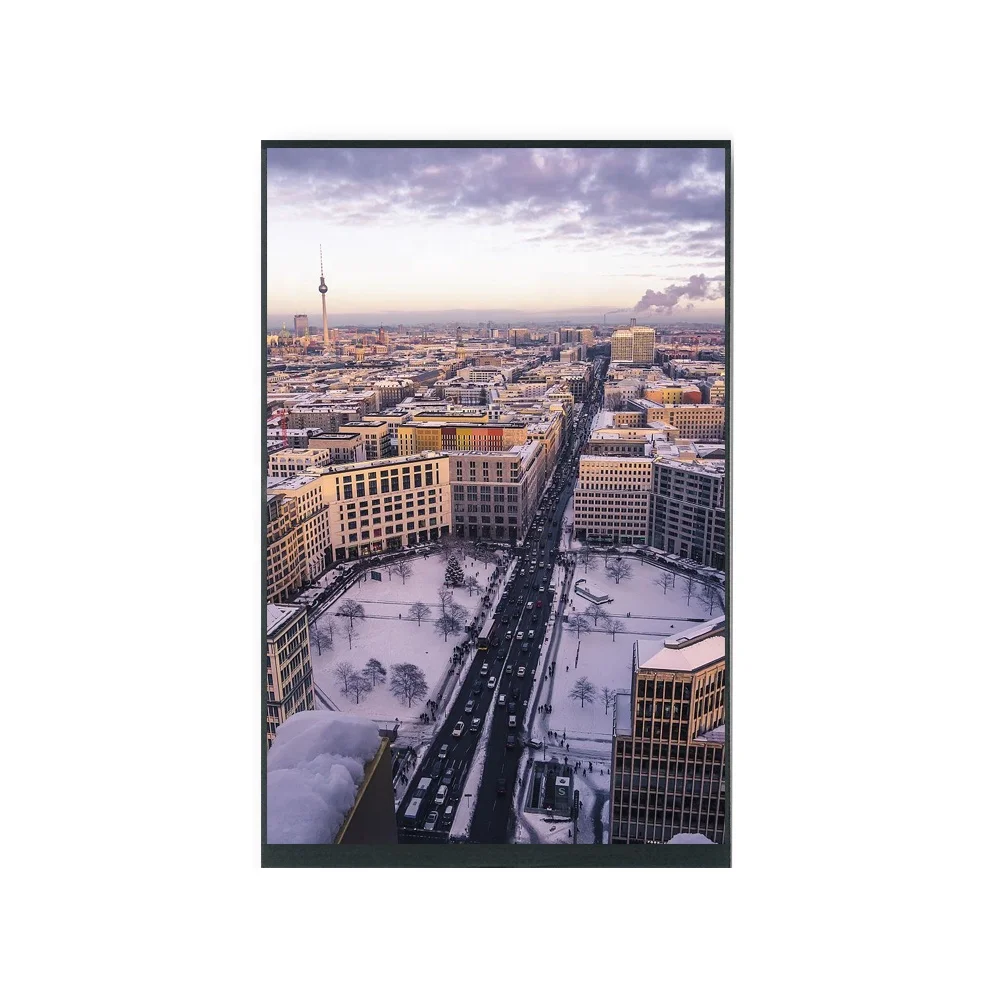

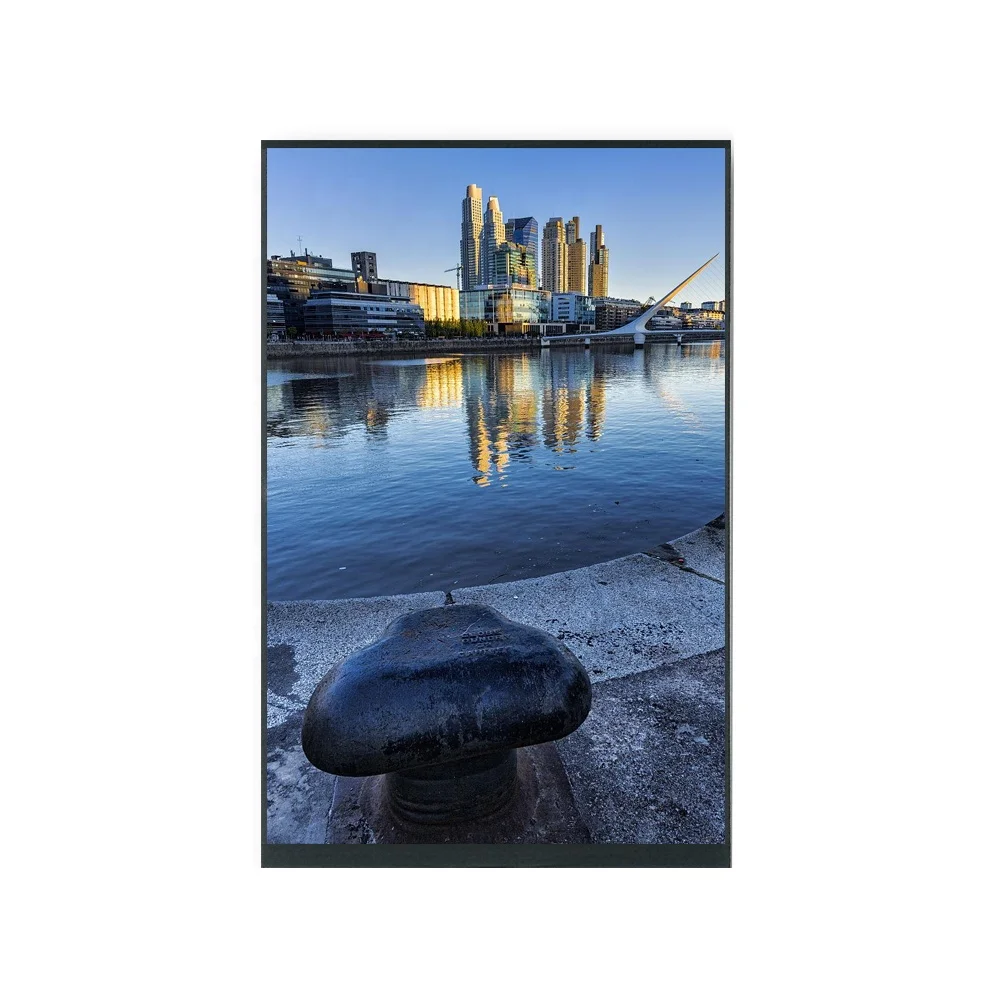

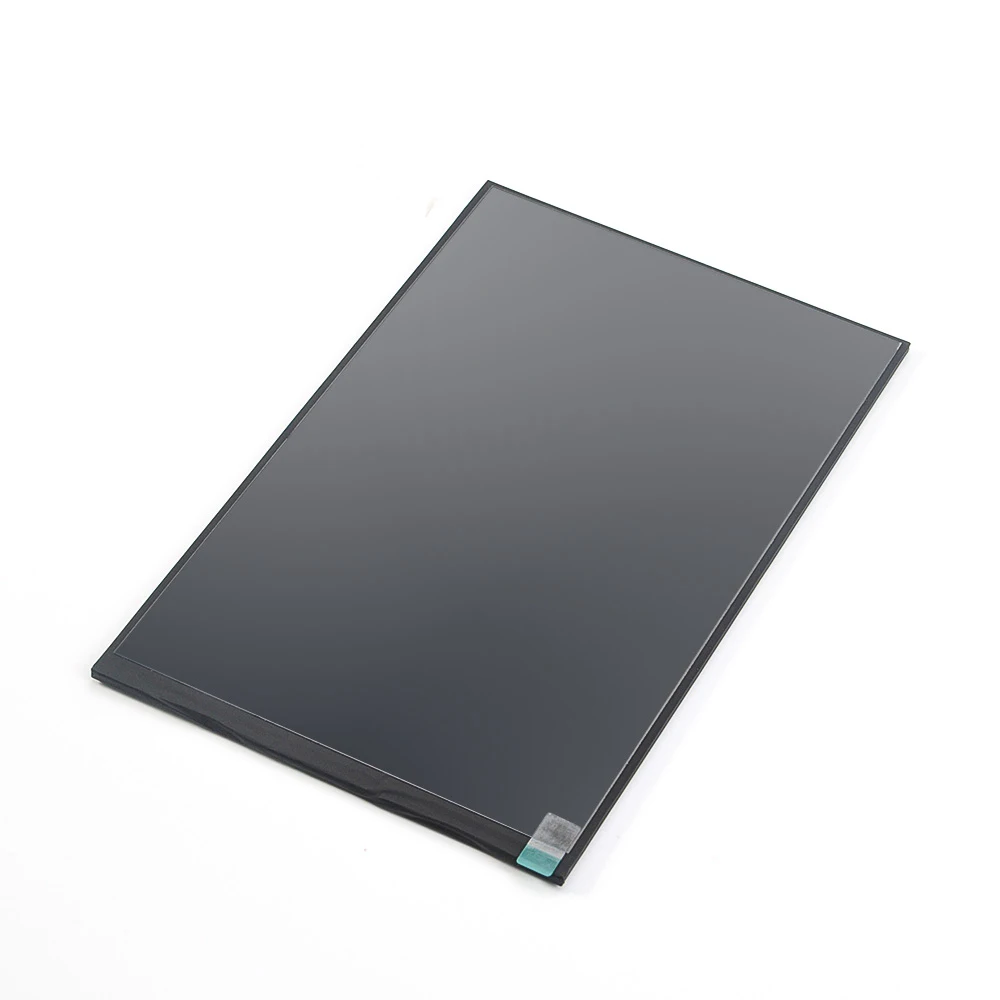

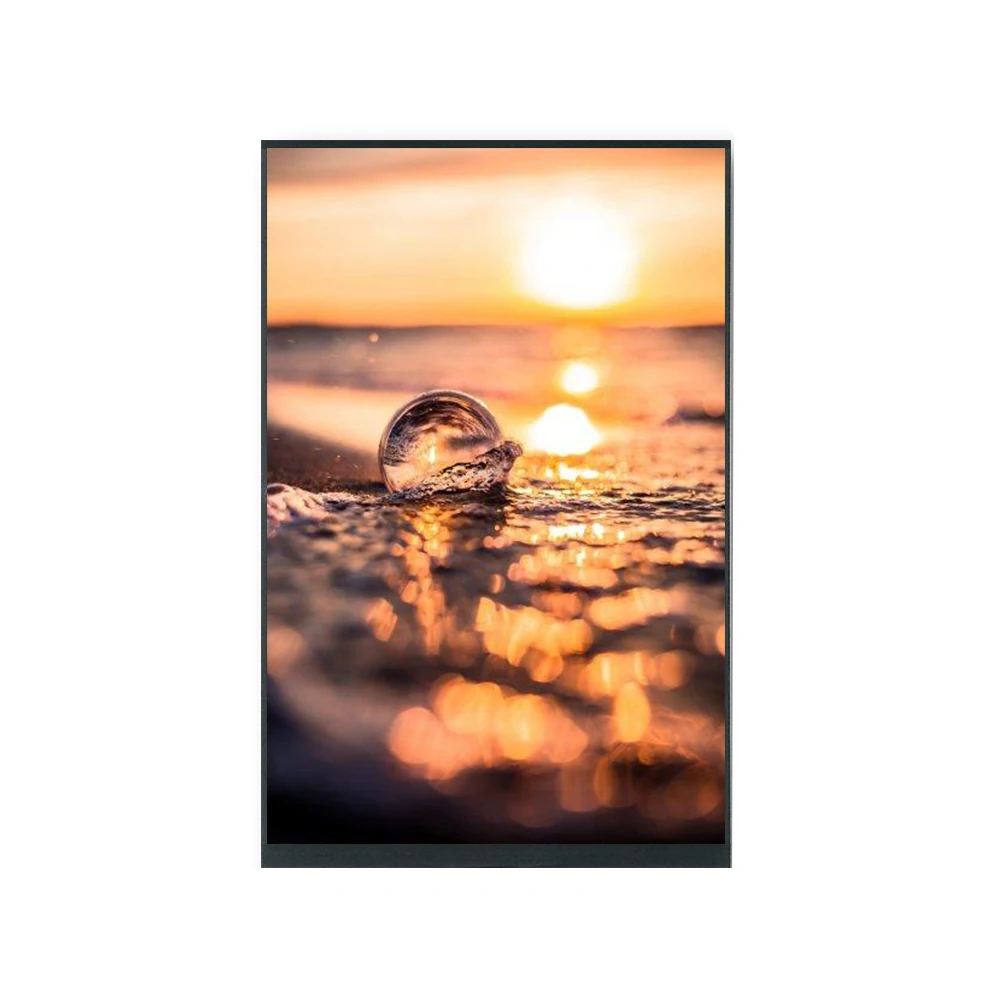

Latest Design 8 Inch TFT LCD 800x1280 Color Screen IPS Display 8 Inch LCD Panel LCD Modules can be used on raspberry pi 4b

Product Overview

Description

Product model	XBY080MBI732--2400AA3
LCD brand	BOE
Product size	8.0"TFT
Boundary dimension	114.6*184.16*2.58mm
Display (A, areaA) dimensions	107.64MMX172.22MM
resolving power	800RGB*1280
View direction	IPS
Connection mode	FPC Plug in
Interface	MIPI-31IN
Drive IC	ILI9881
Drive voltage	3.3V
LED current voltage	22.4V/60MA
Brightness: CD / m2	450
Working temperature	-20°~70°
Storage temperature	-30°~80°















Q1:How long is the warranty?

A:The warranty period is one year.During the warranty period, in case of non-human injury, we will provide free repair or replacement, including delivery costs.Beyond warranty: we provide repair parts at a lower cost and provide services free of charge.



Q2:Do you accept customization?

A:Yes, we are glad to provide customized services.Our factory can design and produce the appearance, logo, material, color, size,installation method and so on according to customers' requirements.



Q3:What are your payment terms?

A:Sample 100% TT,batch order 30% deposit, 70% balance before delivery



Q4:How long is the delivery time?

A:For the finished products in stock, the delivery time is within 3-7 days;No inventory for 20-25 days;For customized samples and bulk orders, the lead time is 7-30 days.



Q5:How can I get a sample?

A:Since most of our products are high value products, there are no free samples.If you need to order a sample for inspection, we would like you to pay the sample fee and freight, and the sample will be sent to you upon receipt of payment.
