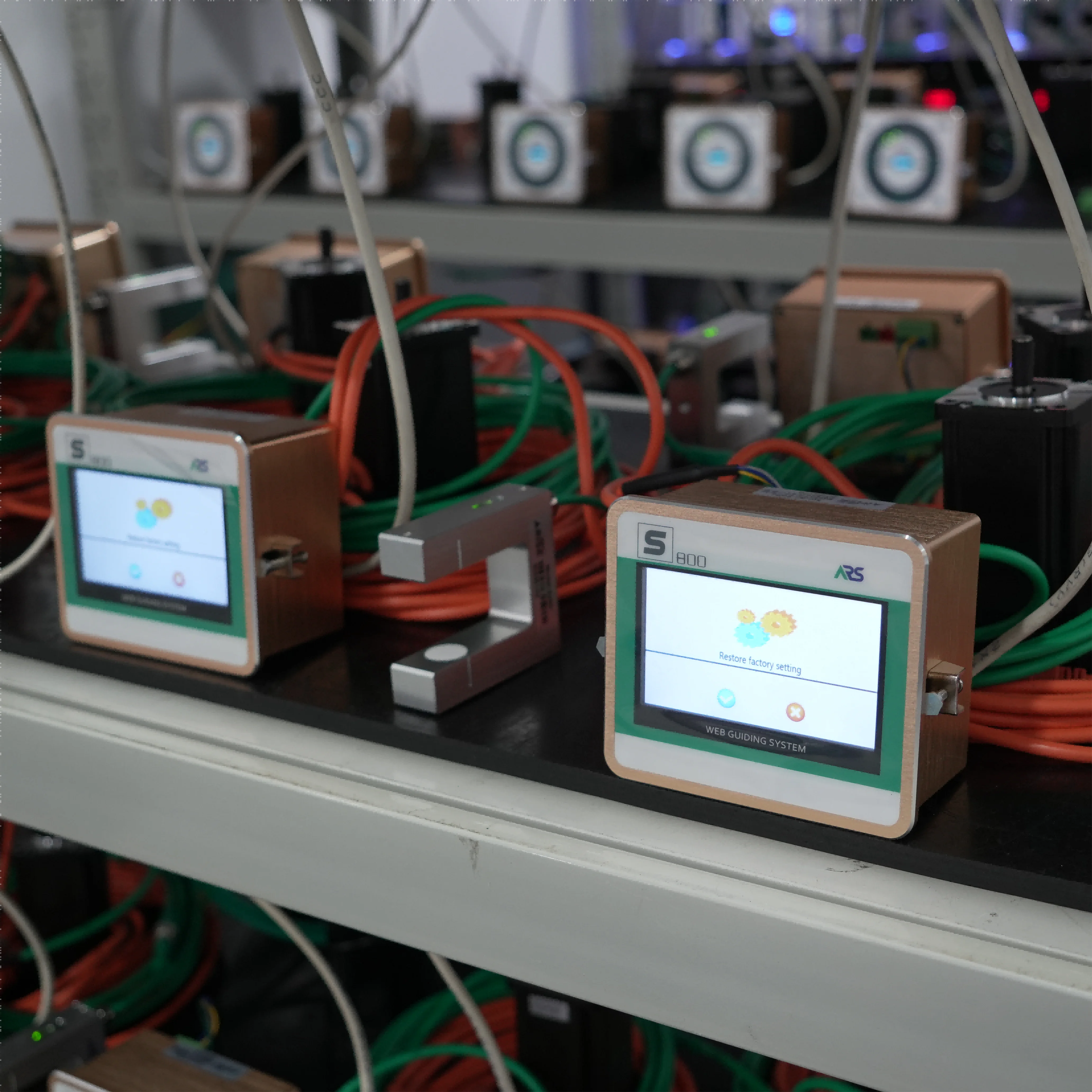

Europe best selling S800 split web guide system is aligned via EPC web guide control
- Category: >>>
- Supplier: Chongqing Arise Technology Co. Ltd.
Share on (1601087120464):
Product Overview
Description
www.arisewebguiding.com

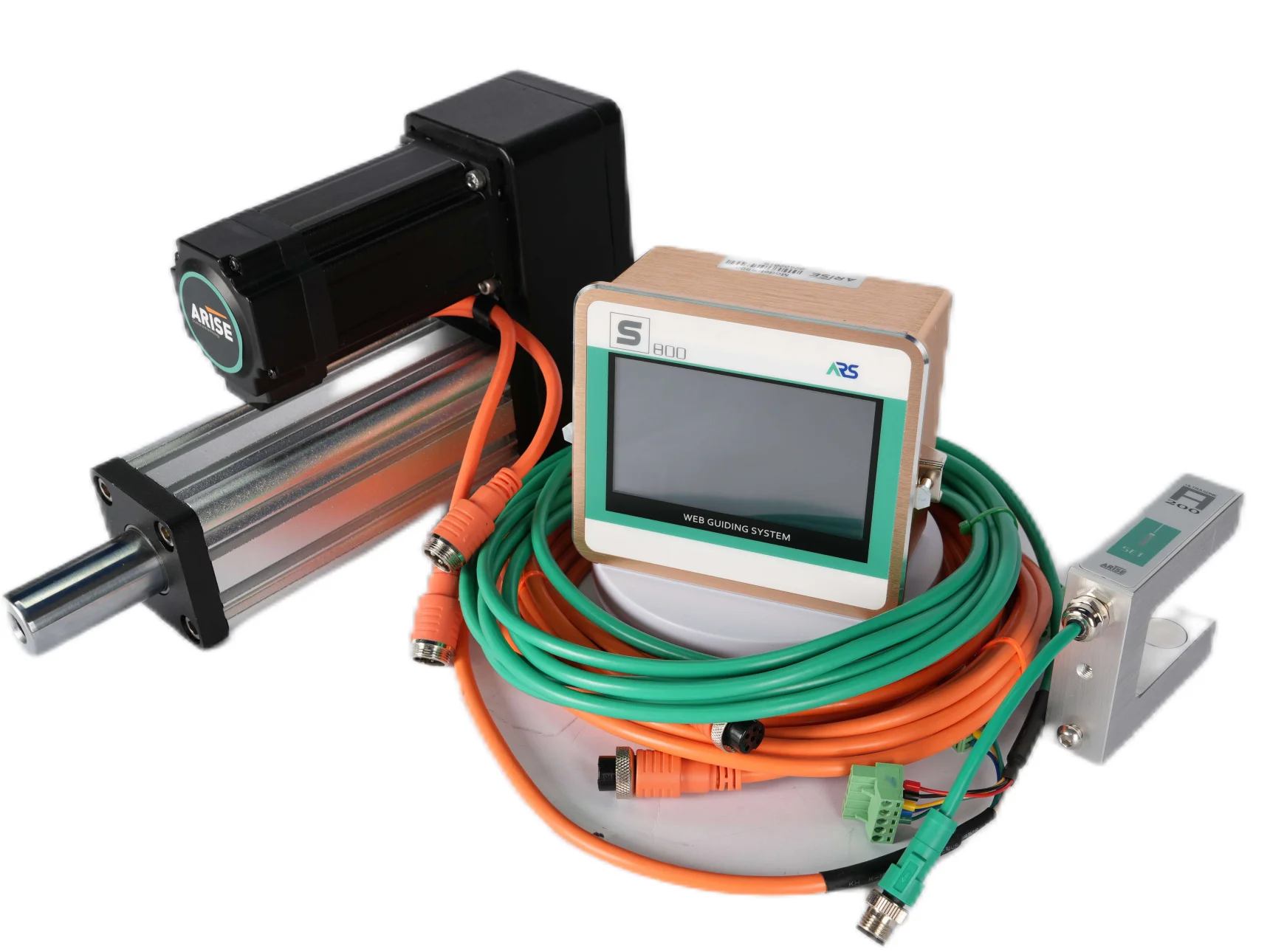

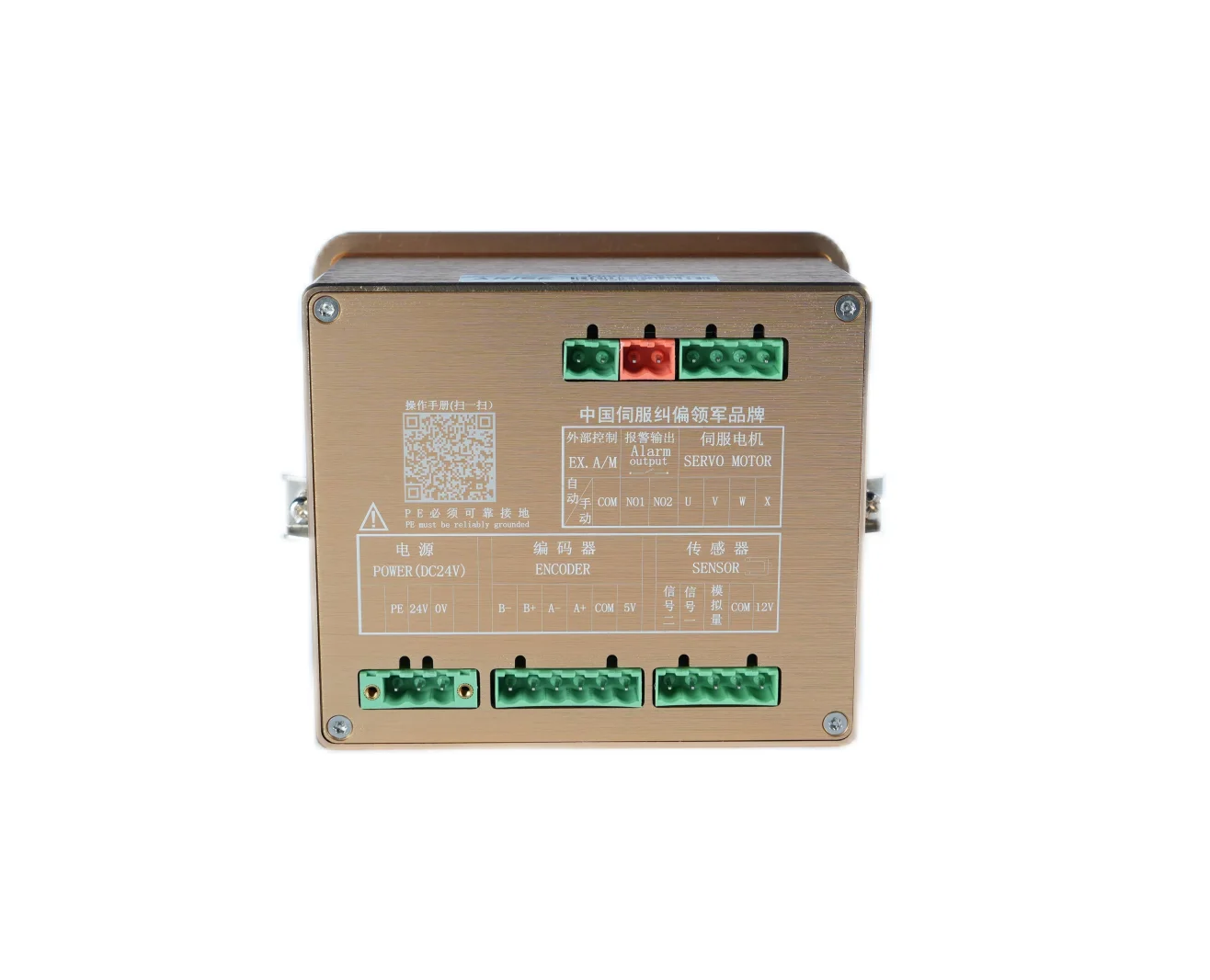

Web guide system Product Overview:
web guiding control system can connection many differeny type of sensor and actuator,Ultrasonic sensor, infrared sensor, CCD sensor.Can directly drive servo motor

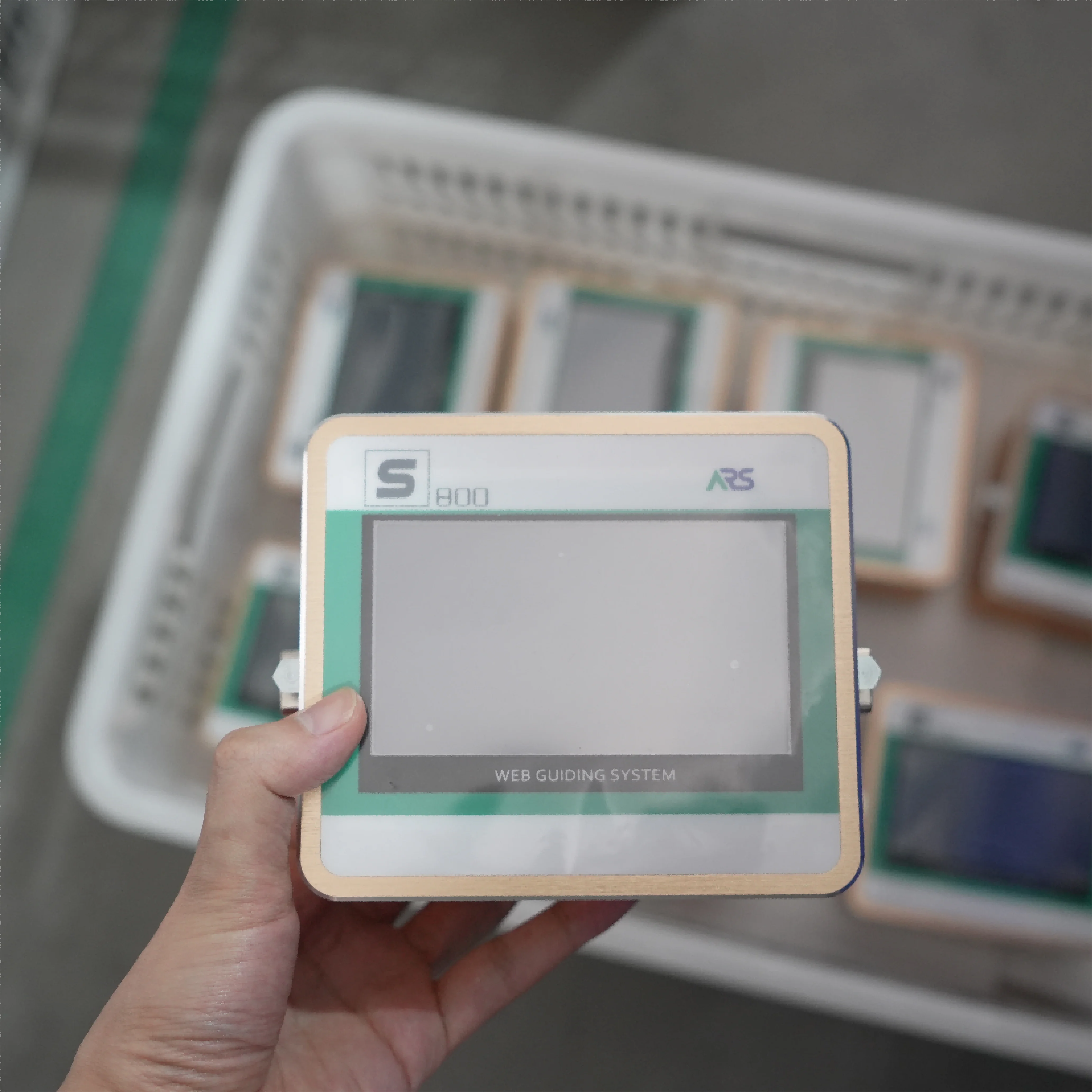

The S800 web guiding system can directly drive the servo motor. The encoder used for deviation correction has strict rules and provides reliable, stable and high-precision web alignment control through a simple and easy-to-operate interface. Even if you are using this system for the first time, you can easily complete the basic settings
Edge position controller specification :
Operating voltage | 24V DC |
Electricity consumption | 4 A 8 A |
Actuator interface | 4 core 6 core |
Weight | 0.74kg |

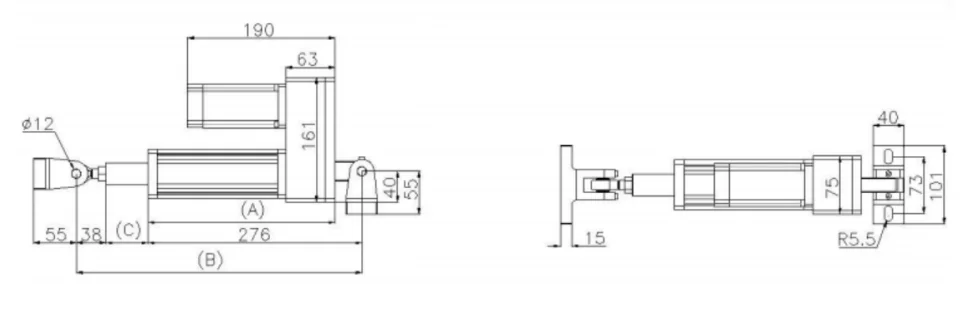

Edge position control system drawings
Servo motor actuator data
Actuator SE | ||||||
Model | Stroke (mm) | Thrust (N) | Weight (kg) | |||
SE.50S.1T | 50 | 1000 | 4.65 | |||
SE-50S.2T | 50 | 2000 | 4.77 | |||
SE-100S-1T | 100 | 1000 | 4.89 | |||
SE-150S-1T | 150 | 1000 | 5.32 | |||
SE-150S.2T | 150 | 2000 | 5.62 | |||
SE-150S.5T | 150 | 5000 | 6.42 | |||
SE-200S-2T | 200 | 2000 | 5.94 | |||
SE-300S-2T | 300 | 2000 | 6.7 | |||
SE-300S-4T | 300 | 4000 | 6.97 | |||
Sensor selection
Infrared sensor
ultrasonic sensor
CCD camera sensor
Applicable materials
Coiled material | ultrasonic sensor | Infrared sensor | CCD camera sensor | |
Paper | √ | √ | √ | |
non-woven fabric | × | √ | √ | |
transparent film | √ | × | √ | |
Label | √ | √ | √ | |
printing material | √ | √ | √ |

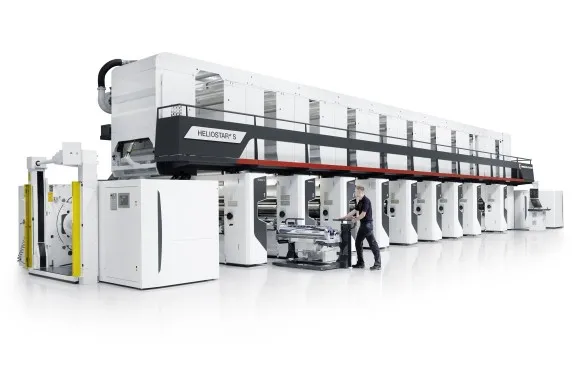

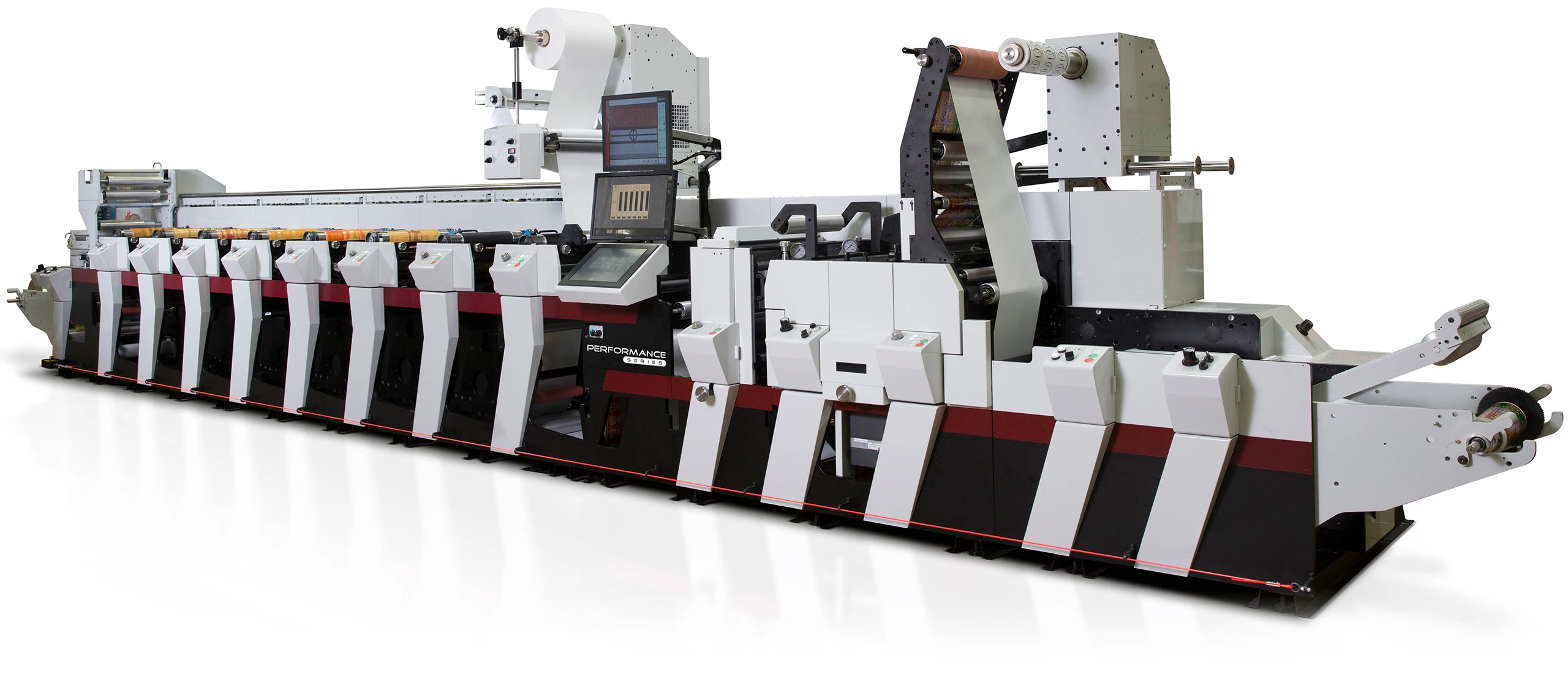

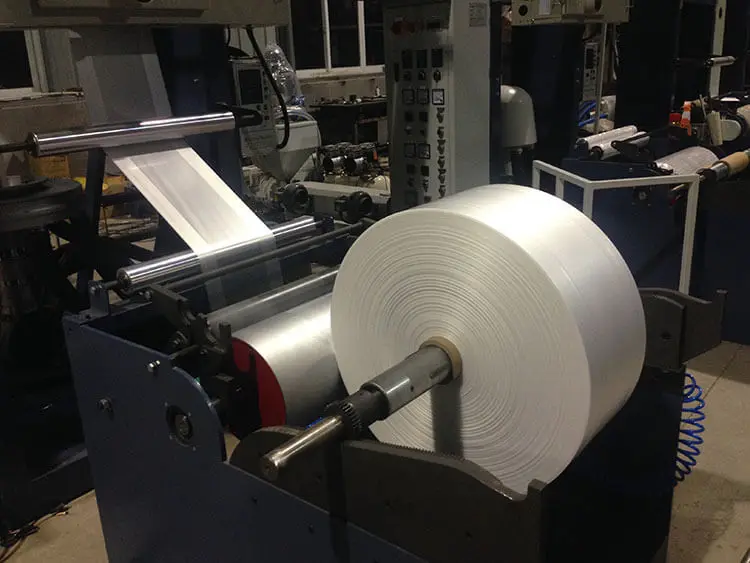

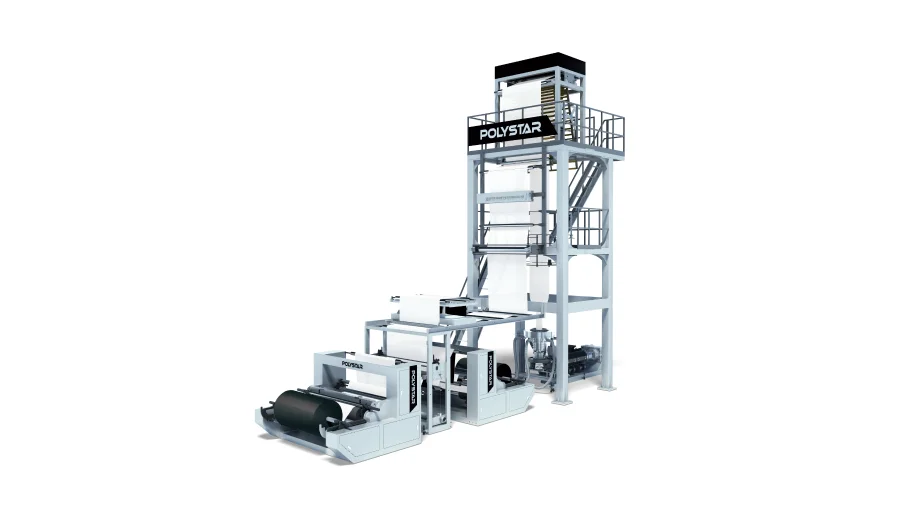

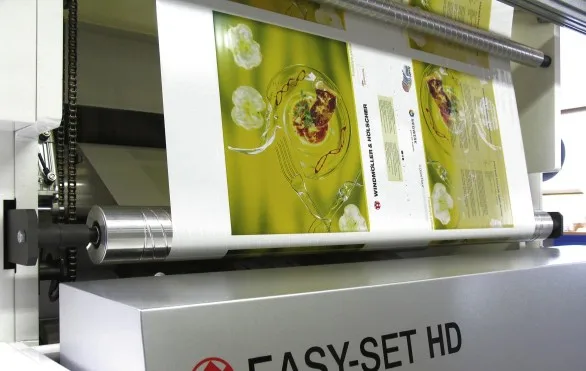

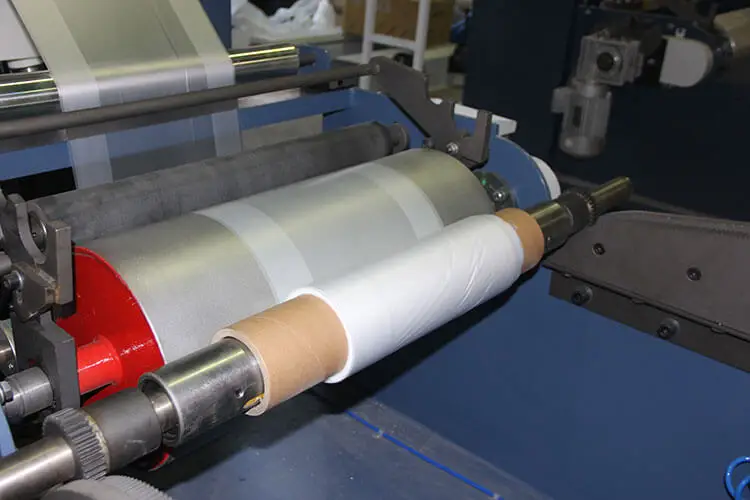

Application

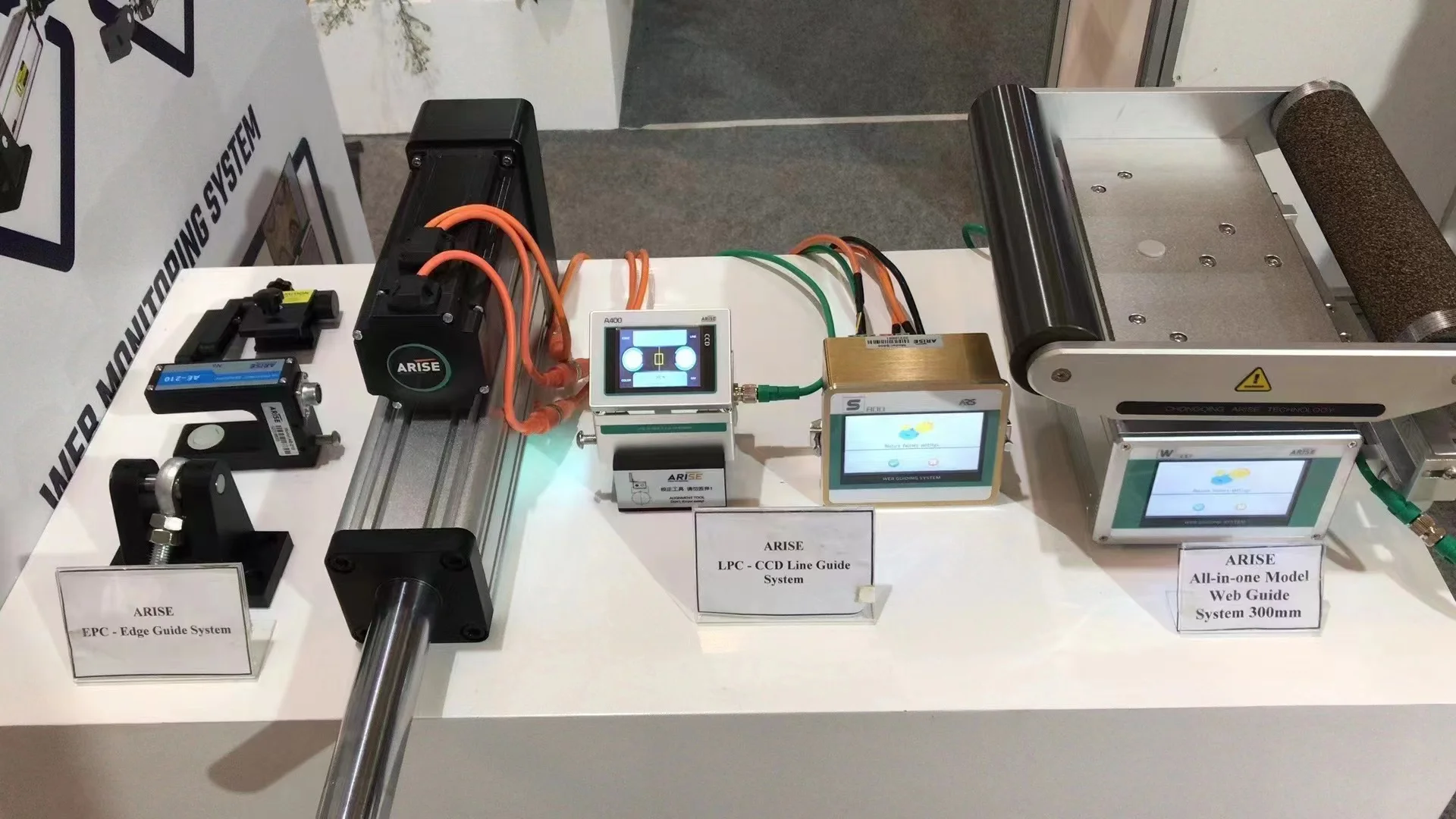

Domestic and foreign exhibitions

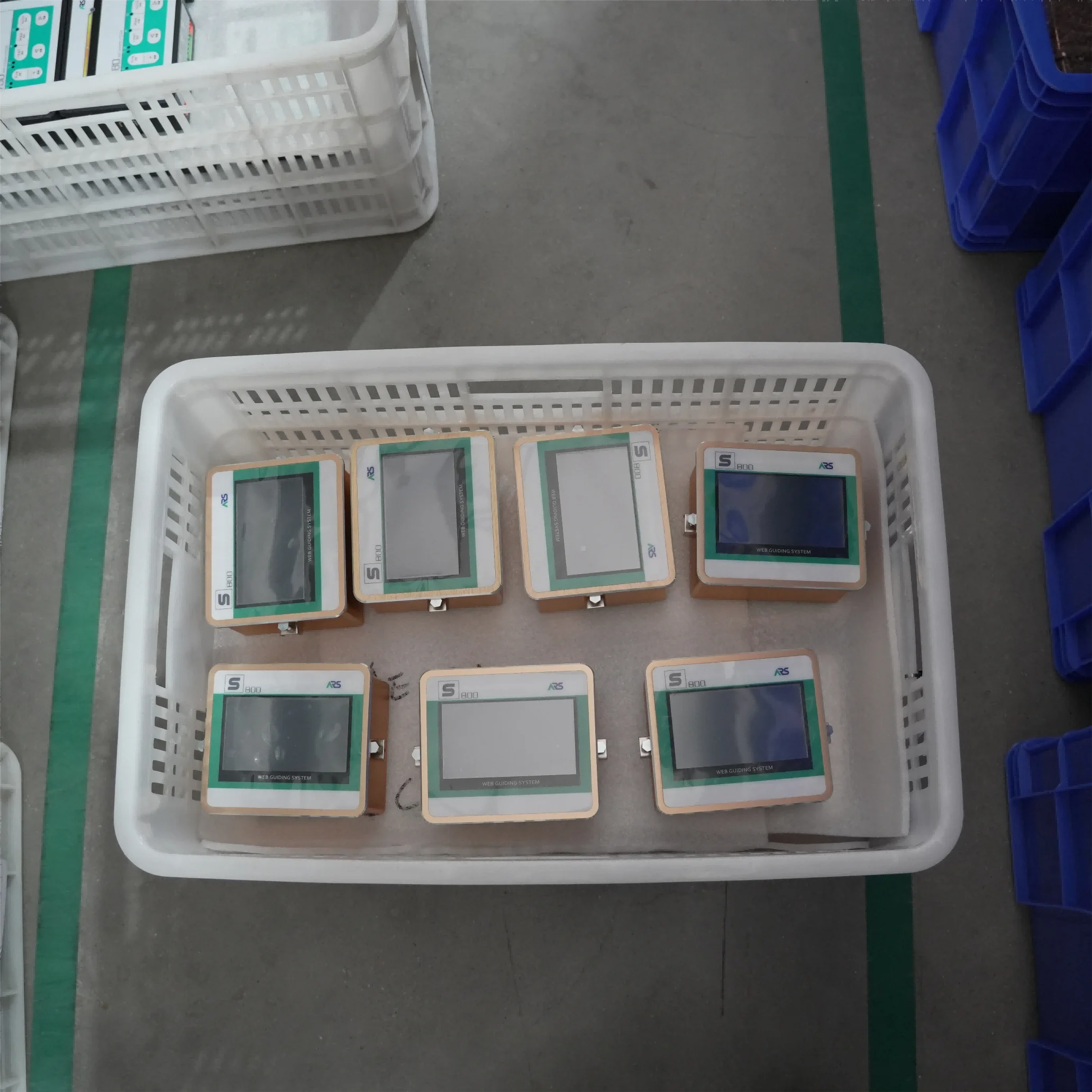

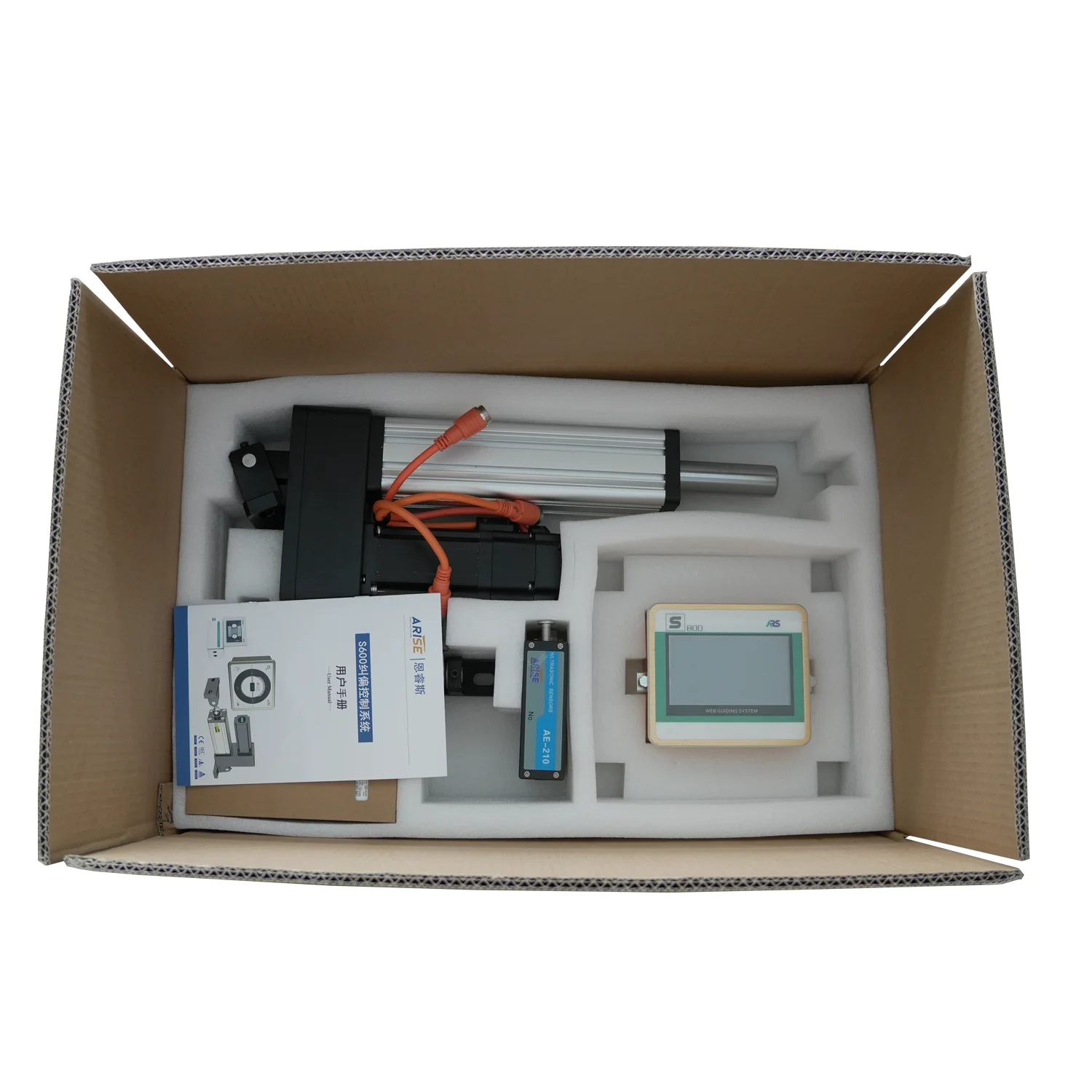

Packaging and shipping

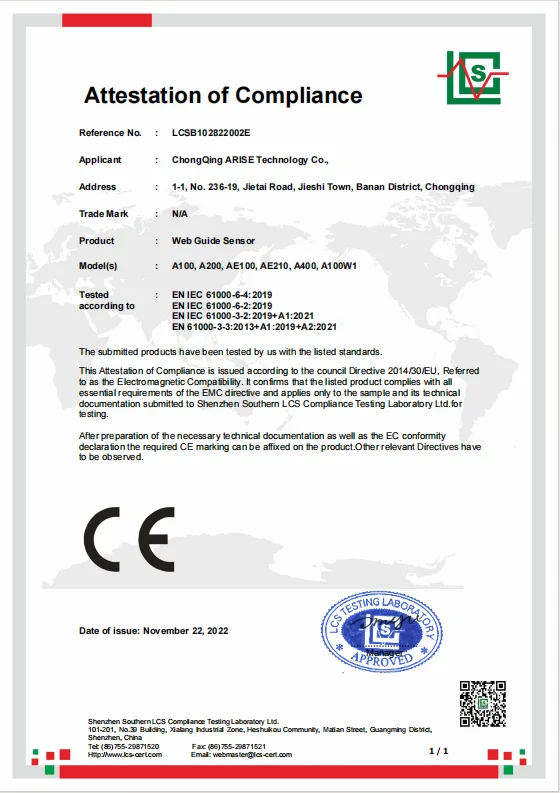

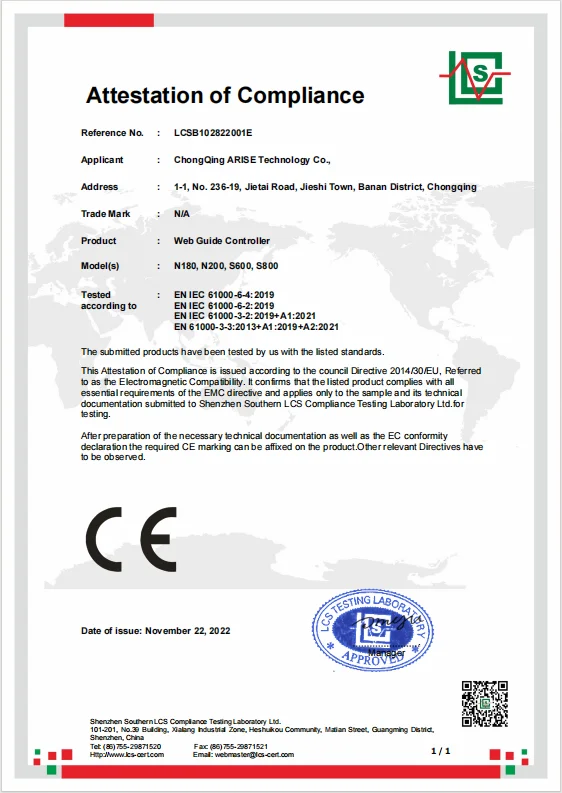

Certification
FAQ
1.When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
us in your email, so that we can regard your inquiry priority.
2. What's your MOQ basis?
Normally, we don't have MOQ request
3.What about the lead time for production?
It depends on our order quantity and product category, the time from payment to shipment is usually 2-3 days
4.What is the term of delivery?
We can arrange with EXW, FOB, CIF...etc. You can choose the most convenient one or cost-effective way.
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell
us in your email, so that we can regard your inquiry priority.
2. What's your MOQ basis?
Normally, we don't have MOQ request
3.What about the lead time for production?
It depends on our order quantity and product category, the time from payment to shipment is usually 2-3 days
4.What is the term of delivery?
We can arrange with EXW, FOB, CIF...etc. You can choose the most convenient one or cost-effective way.
