Industrial hot sale plastic pellet dewatering machine centrifugal dryer for pellet processing dewatering
- Category: >>>
- Supplier: Xinxiang Weiliang Sieving Machinery Co. Ltd.
Share on (1601087543882):
Product Overview
Description
Product Description

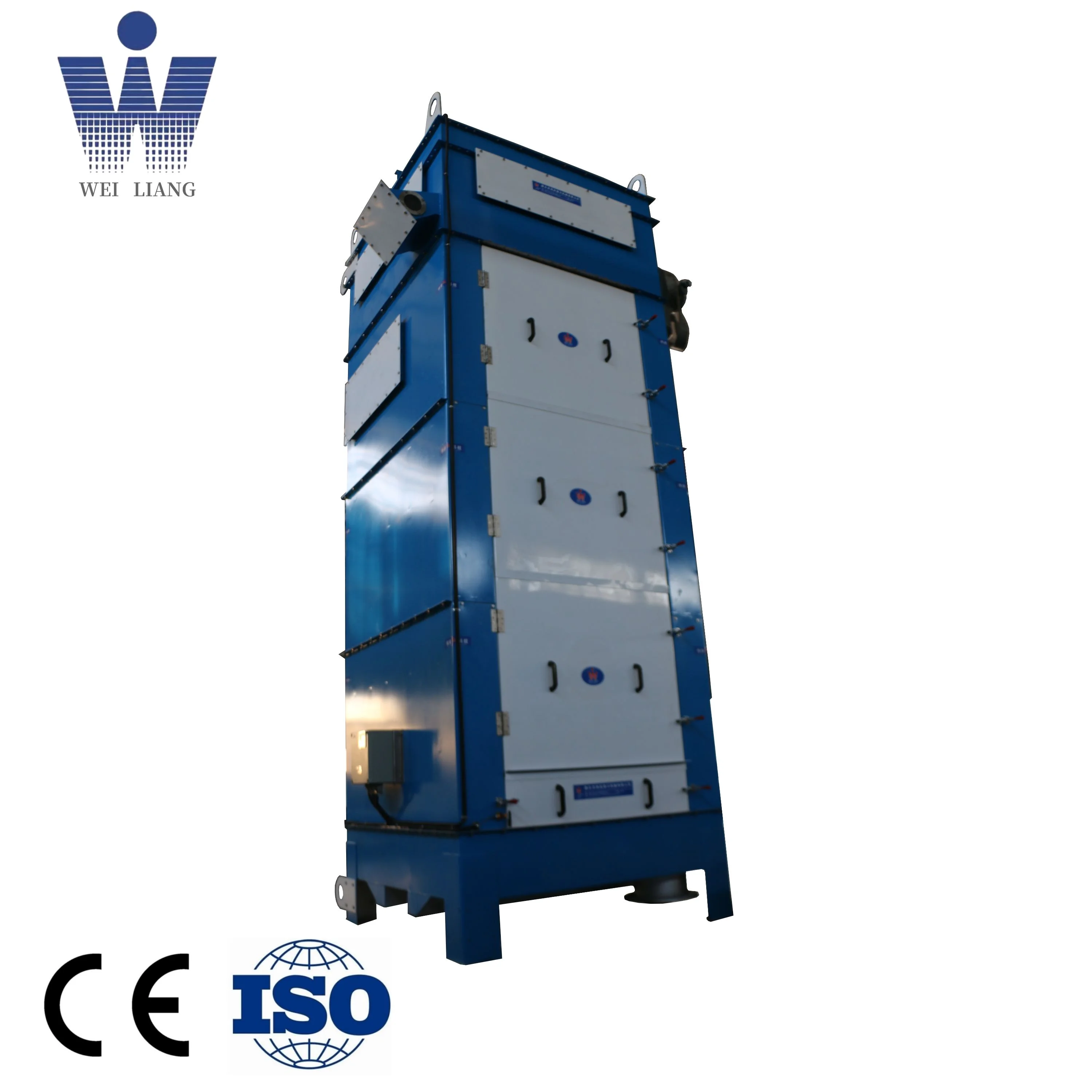

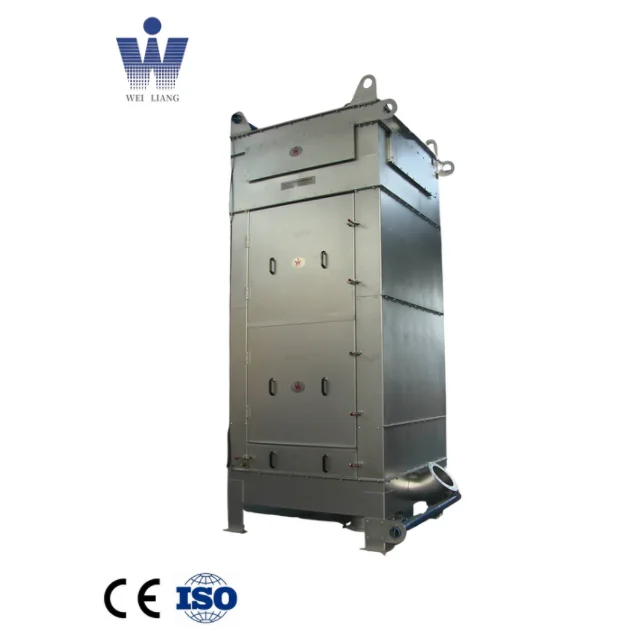

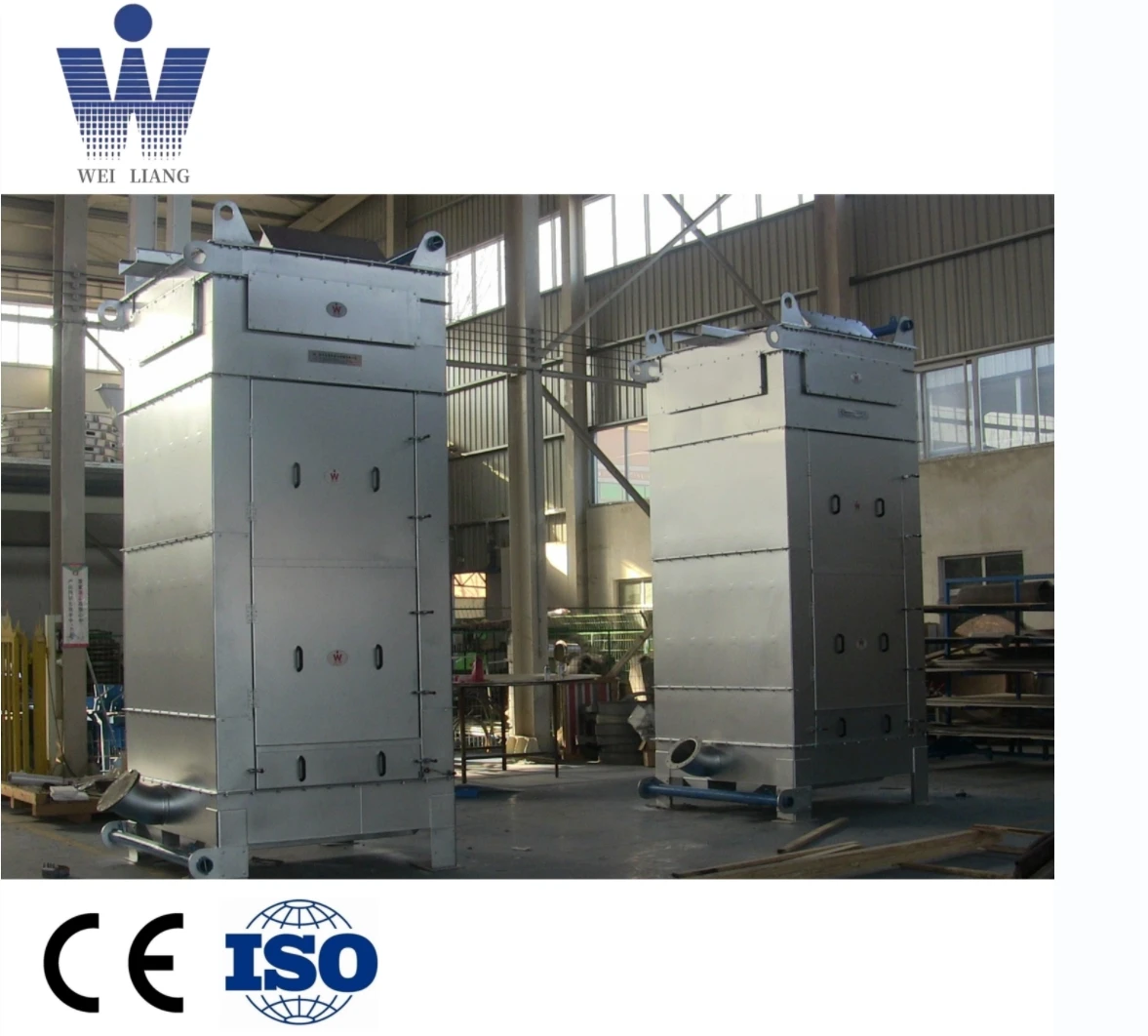

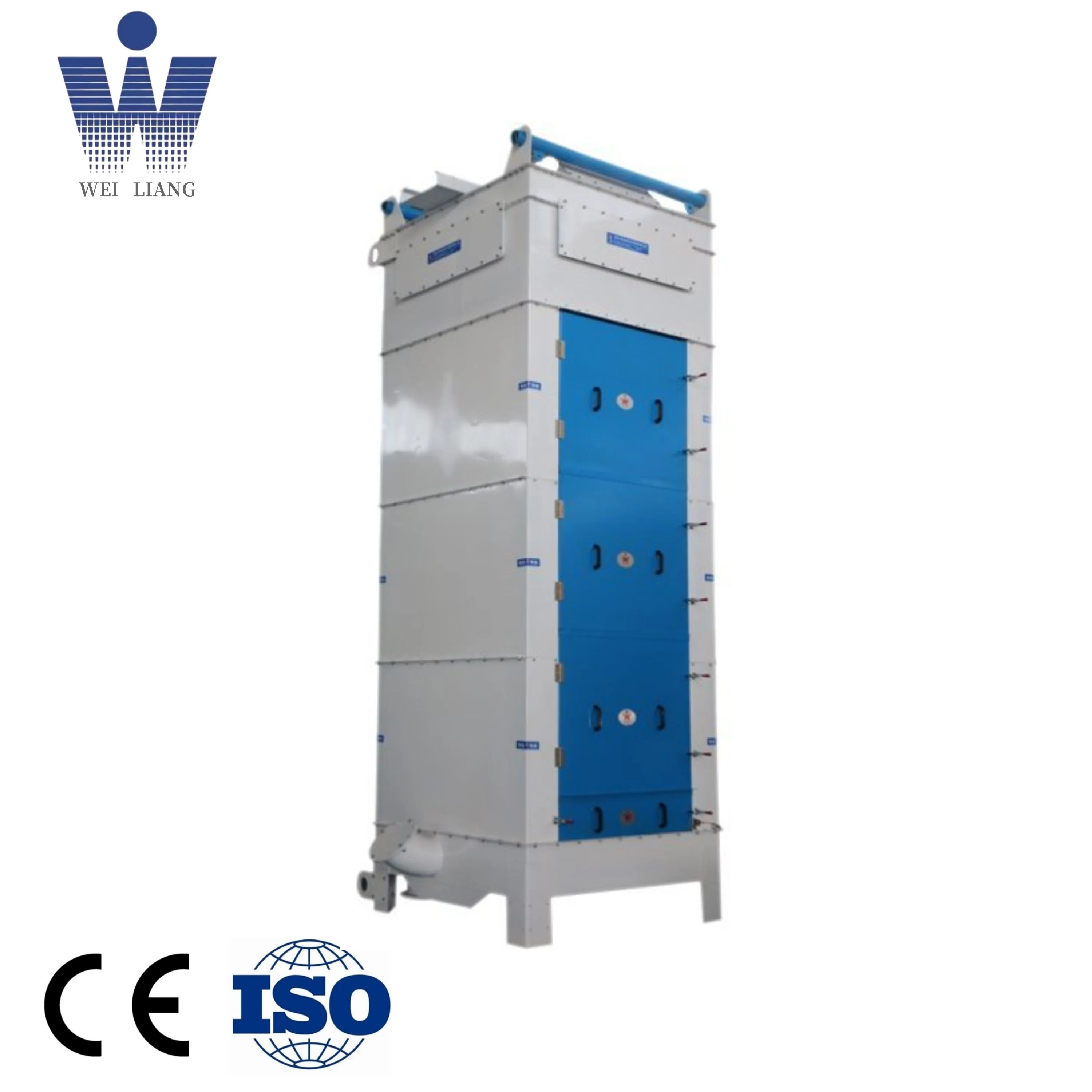

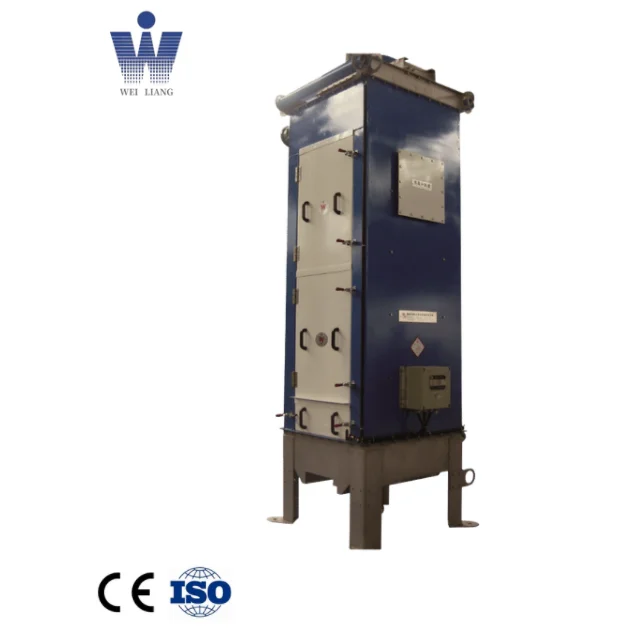

WEILIANG WLG Dryer Machine
The WLG Dryer Machine provides continuous separation of pelleted products from water slurries. The whole drying process takes only a few seconds, the final material will be discharged quickly, and the surface moisture content of the EPS pellets after dried is as low as 0.05%. It is well suited for dewatering and drying pellets of LDPE, LLDPE, HDPE, PP, NYLON, PET, EPS and recycled plastics
WEILIANG Intelligent Vibrating Screen Super Factory
Details and Advantages

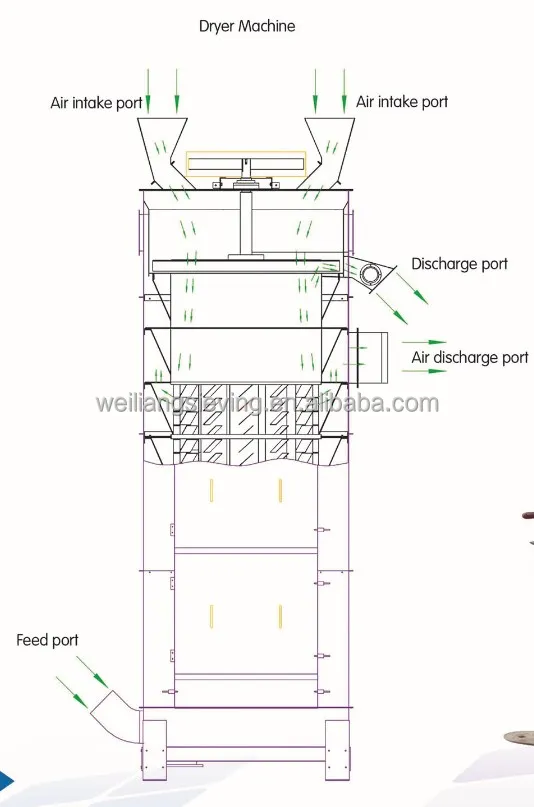

Principle
The WLG Dryer Machine protects against product contamination, reduces maintenance intervals, and maximizes dryer output. Final drying is accomplished by spinning off the moisture through the centrifugal action of the vertical rotor located in the center of the dryer. Both the speed of rotation and the design of the lifters inside the rotor cause the pellets to move between lifters and screens while being conveyed by centrifugal action up the dryer rotor in a helical path. The rotor consists of impeller blades extending from the bottom to the top of the dryer. The water is separated through the screens and the pellets are continuously conveyed into the upper section of the dryer, where they are discharged from the outlet.
Highlight
* Unitized tubular rotor construction, higher drying capacity
* Vibration free performance, self cleaning rotor
* Easy access for screen changesand cleaning
* Reduced downtime for major service
* Vibration free performance, self cleaning rotor
* Easy access for screen changesand cleaning
* Reduced downtime for major service

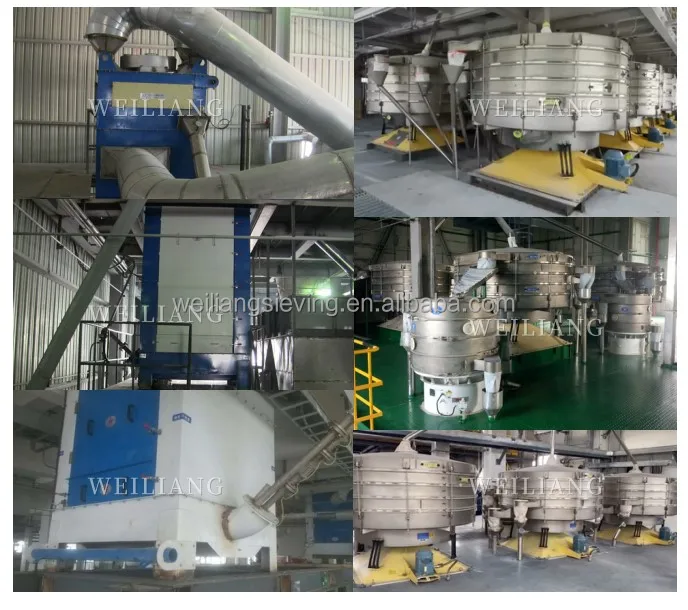

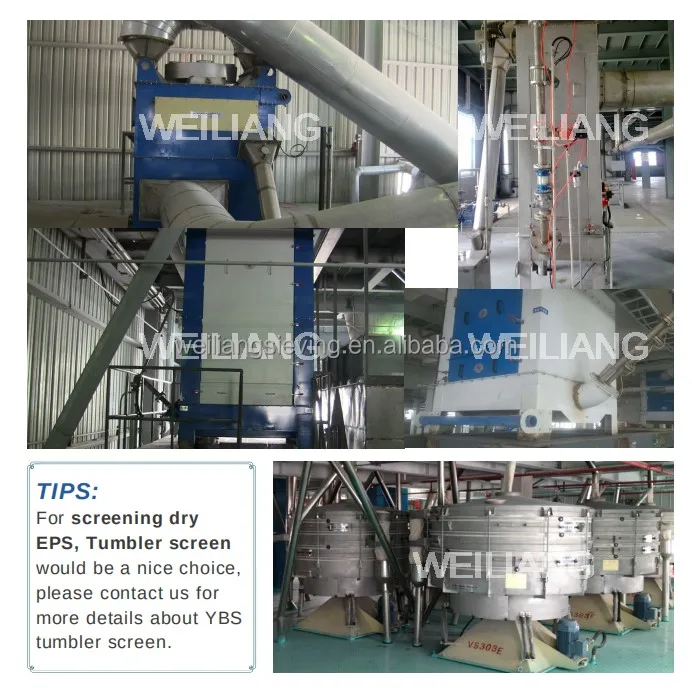

HOW EPS SIEVING
The traditional process usually uses two steps separately to achieve drying in EPS after washing, namely centrifugal dewatering equipment and drying equipment. Weiliang, only needs one machine （ WLG EPS DRYER MACHINE ） to achieve dewatering and drying at the same time, shorten the production line.
Weiliang YBS TUMBLER SCREEN with three-dimensional adjustment system can classify EPS resin into different size
with high precision and large capacity. EPS resin is usually divided into five sizes.
Sometimes customers will do secondary screening of oversize EPS resin (e.g. larger than 1.4 mm) coming
out of the YBS tumbler screen. Weiliang S49 VIBRATING SCREEN can be set behind the YBS tumbler screen in the production line to get more size of EPS resin.
out of the YBS tumbler screen. Weiliang S49 VIBRATING SCREEN can be set behind the YBS tumbler screen in the production line to get more size of EPS resin.

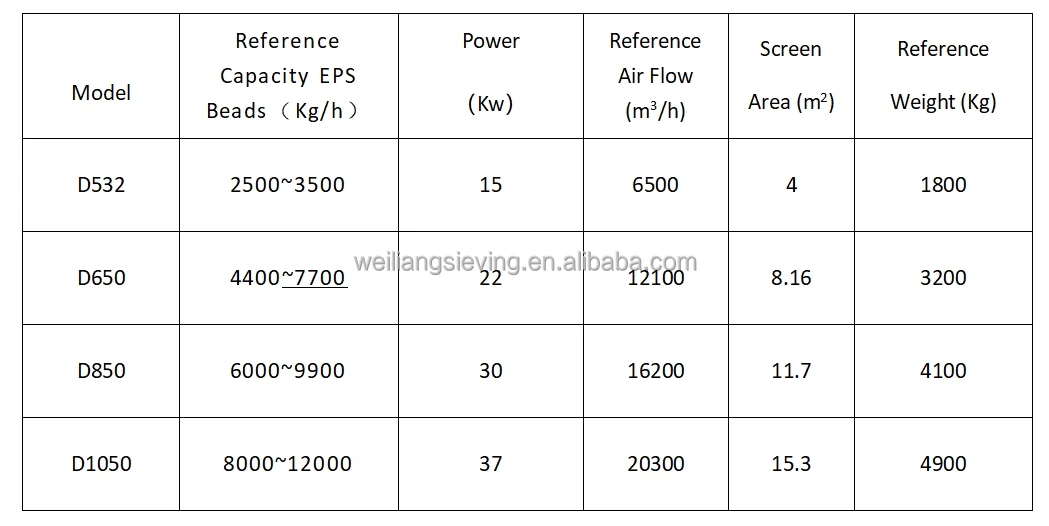

Technical Parameters
Applications
WEILIANG WLG Dryer Machine mainly used in the plastics industry, such as the dewatering and drying of EPS，LDPE, HDPE, LLDPE, ABS, PVC, PE, PP, PS, PA, Nylon etc...
Packing & Delivery
Inner packaging: Stretch film for machine
Outer packaging: Standard export wooden box
Company Profile
Weiliang Sieving Machinery Co., Ltd founded in 2006, is a leading manufacturer of vibrating separation equipment, specialized in fine screening, with two branches. Our leading products include vibrating screen, ultrasonic vibrating screen,
tumbler screen, gyratory screen, centrifugal screen, linear vibrating screen, dryer machine, white water filter and so on, widely used in food, medicine, chemical, metallurgy, lithium, mining, sand and gravel industries, exported to more than 50 countries and regions.
tumbler screen, gyratory screen, centrifugal screen, linear vibrating screen, dryer machine, white water filter and so on, widely used in food, medicine, chemical, metallurgy, lithium, mining, sand and gravel industries, exported to more than 50 countries and regions.
WEILIANG is first company to produce tumbler screen and gyratory sifter in china. We always adhere to the strategy of scientific and technological development, and have more than 80 invention patents.
Over 40,000 square metes of intelligent, digital, green and highly automated manufacturing super plant was successfully put into production in 2023. We have invested heavily in systems such as hydraulic forming, laser cutting, centre positioning, automatic welding and machining centre. We have constructed an assembly line for circular screening systems and an automatic installation line for gyratory screens.
Over 40,000 square metes of intelligent, digital, green and highly automated manufacturing super plant was successfully put into production in 2023. We have invested heavily in systems such as hydraulic forming, laser cutting, centre positioning, automatic welding and machining centre. We have constructed an assembly line for circular screening systems and an automatic installation line for gyratory screens.
Hot Selling Products
S49A Vibrating Screen
FYBS Gyratory Screen
WLQ Centrifugal Screen
S49AQ
Multi Frequency Vibrating Screen
SZF Linear Vibrating Screen
S49AC
Ultrasonic Vibrating Screen
FAQ
1. What is the after-sales service of your factory?
Our machines are guaranteed for 12 months, excluding screens. During the warranty period, we will replace damaged parts for our clients. And we will continue to provide customers with operation guidance. We are available to offer help all the time.
2. What is the delivery time from the factory?
2. What is the delivery time from the factory?
The lead time for general products is 15-30 days, but bulk products and customized products require longer production time, generally 30-60 days. (Excluding shipping time)
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
4. Payment Terms?
We usually accept T/T, L/C;
We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery.
