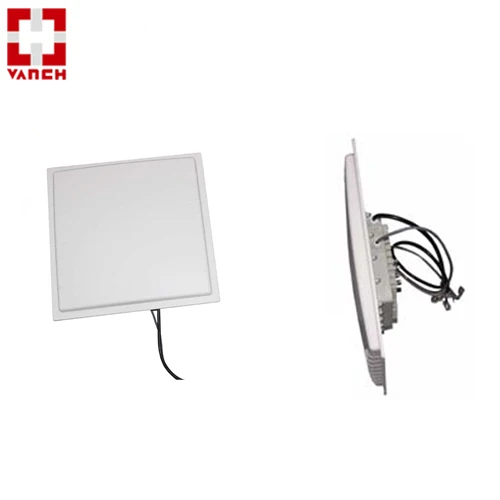

VANCH 12dbi GPRS/WIFI/RJ45/Wiegand/RS23/RS485 long range integrated 15m uhf rfid reader with FCC/CE
- Category: >>>
- Supplier: Shenzhen Vanch Intelligent Technology Co. Ltd.
Share on (1601088207797):
Product Overview
Description

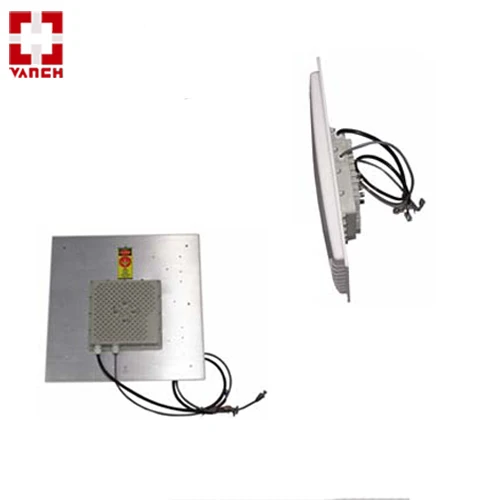

VANCH 12dbi GPRS/WIFI/RJ45/Wiegand/RS23/RS485 long range integrated 15m uhf rfid reader with FCC/CE
Product Description
Product Introduction:
(1) Comply with EPC global UHF ISO-18000-6C(EPC G2)tags.
(2) Work frequency 902-928MHZor 865-868MHZ( customized optional)
(3) RF output 30dbm adjustable, and support auto-work, command mode, and trigger mode.
(4) Read buzzer and LED indicator, support firmware upgrade online.
(5) Adopt industrial design, rugged and durable and suitable for harsh working environment.
Specification:

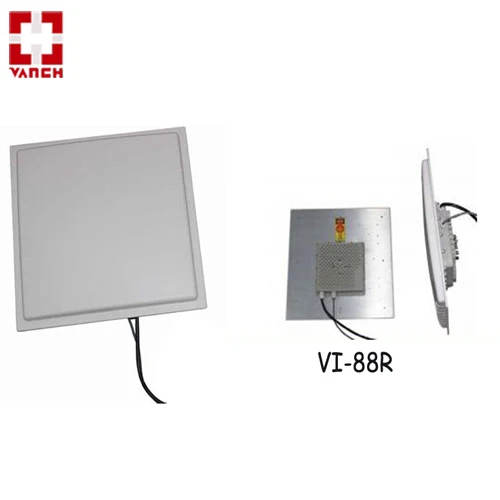

Model No | VI-88TF |
VI-88TF | China domestic reader module |

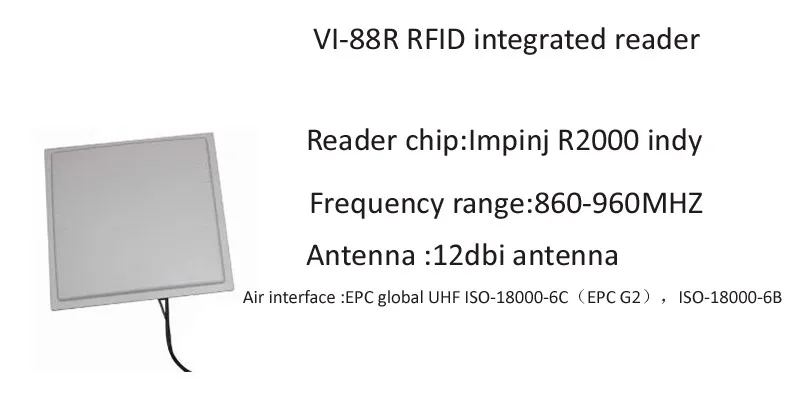

VI-88TR( option) | Impinj Indy R2000 reader module, high stability and powerful muti tags reading performance |
VI-88TA(option) | Impinj Indy R2000 reader module+ Android platform, high stability and easily development based on Android OS |
VI-88TS(option) | Korea PR9200, high stability and long range reading performance |
Performance Index | |
Frequency range | 902-928MHZ/865-868MHZ(customized optional) |
Support area | USA and Canada and other comply with FCC Part 15 area Europe and other comply with ETSI EN 302 308 area China, India, Japan, Korea, Malaysia etc. |
RF output adjust | FHSS or customized by software |
RF output | 30dBm adjustable, 50 ohm load |
Antenna port | 1 port |
Standard port | RS232,RS485, TCP/IP or wireless connection |
Communication rate | Rate 9600~115200bps, |
Reliable upgrade | upgrade mechanism can be extended |
Input/output(GPIO) | 1 input, 1 output |
SDK language | API with detail develop file could be provided |
Indicator type | LED light indicator, Buzzer |
Read distance | 10-20m ( depend on tag type etc.) |
Protocol | EPC global UHF Class 1 Gen 2 / ISO 18000-6C/ ISO18000-6B |
Receive sensitivity | -80dBm; |
Mechanical electrical performance | |
Antenna size | 450(length)×450(width)×40(height)mm |
Dorsal cavity | 180(length)×180(width)×31(height)mm |
Antenna polarization | Right-handed polarization |
Antenna gain (dBi) | 12dbi |
Half power lobe width (°) | Level: 35 Vertical plane: 35 |
Front to back ratio (dB) | ≥20 |
input resistance (Ω) | 50 |
Antenna weight (kg) | 4KG |
Ultimate wind speed (m/s) | 60 |
Shell speed | Anti-ultraviolet and anti-aging material ABS+PP |
Power supply | Working voltage adaptation 124V |
Humidity | 5% to 95%, Non-condensing |
IP protection | IEC IP67 |
Work temperature | -20 ºC to +60 ºC |
Storage temperature | -20°C to 85°C |
Port type | Round waterproof M10 pin socket |
Certificate | FCC, CE |
Installation type | Galvanized iron bracket, adjustable reading angle, MK004 L-shaped steel clip code |
Support rod diameter | 35~50mm |
Lobe diagram |
H side E side |
