80L 90L Volume Cylinder IG100 Inert Gas Fire Suppression System
- Category: >>>
- Supplier: Guangzhou Xingjin Fire Equipment Co. Ltd.
Share on (1601088258013):
Product Overview
Description
Product Description

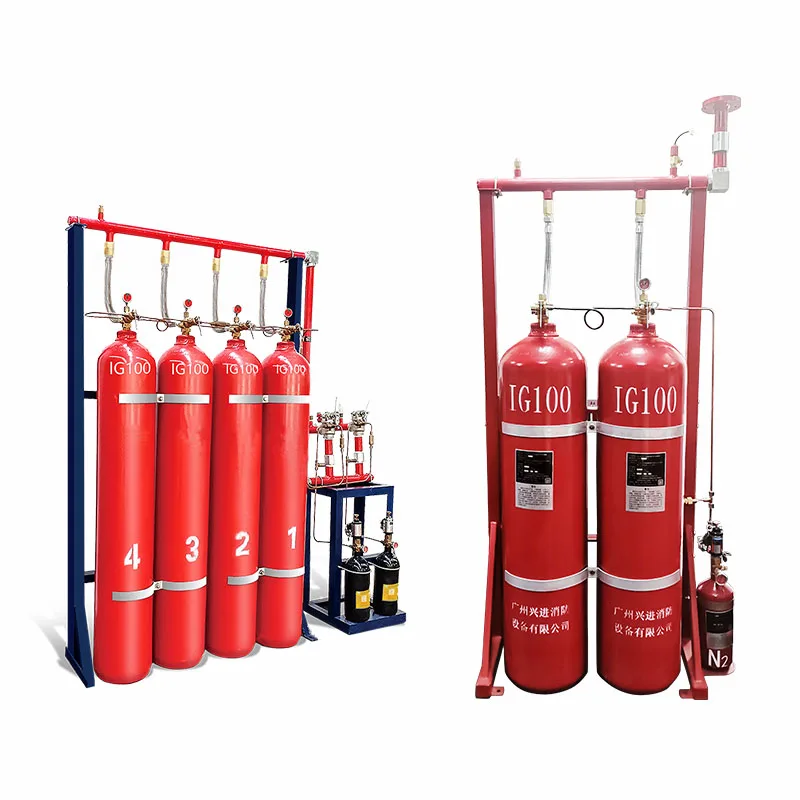

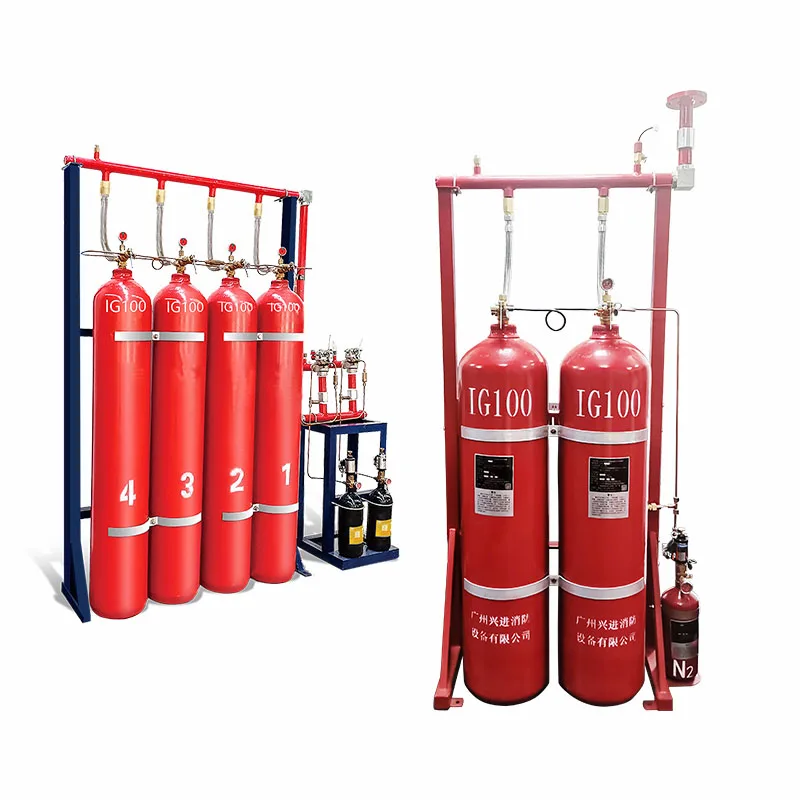

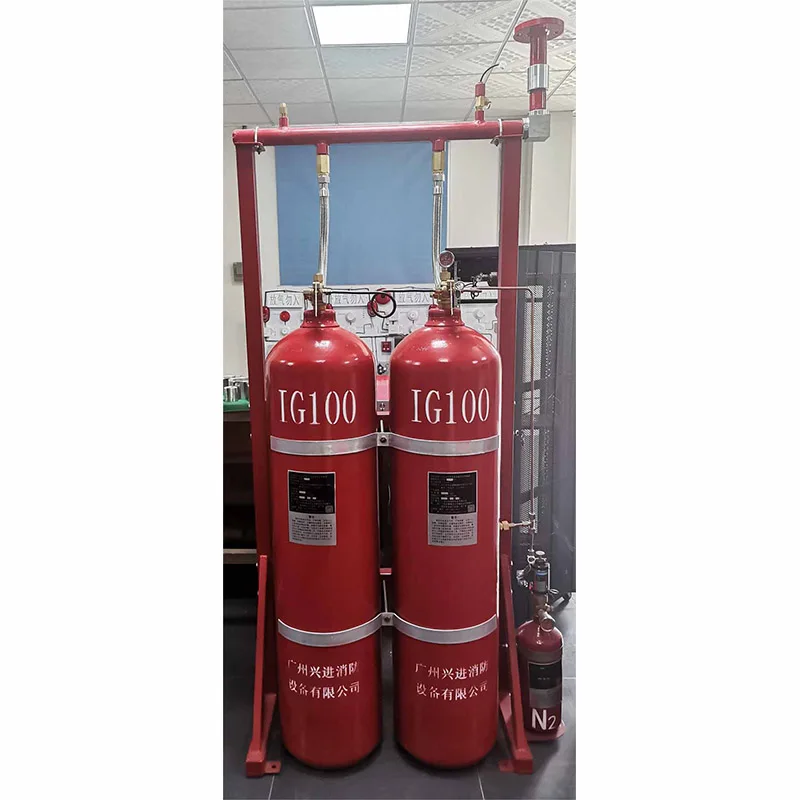

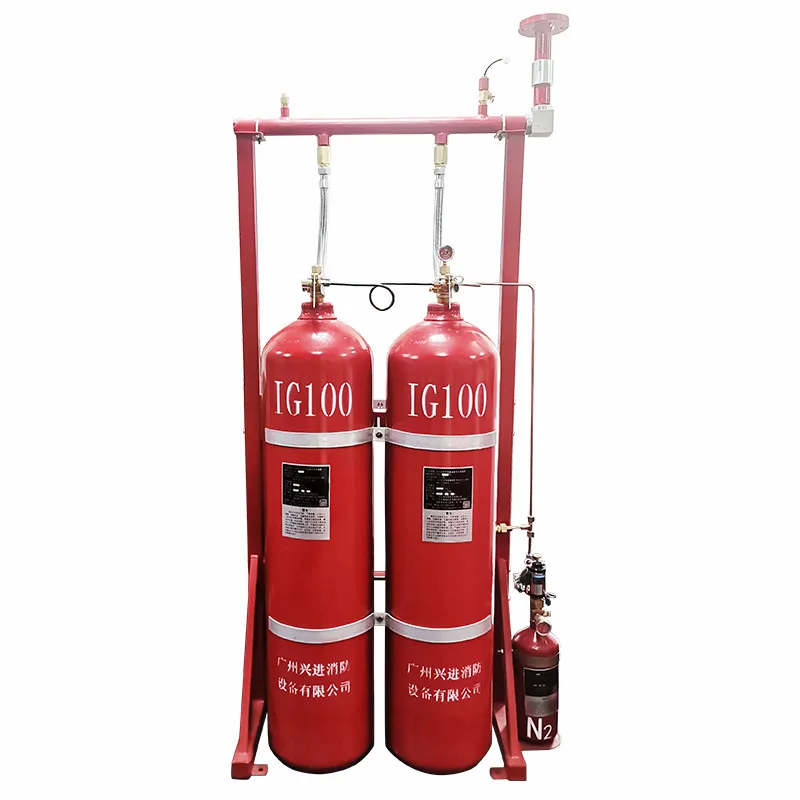

80L 90L Volume Cylinder IG100 Inert Gas Fire Suppression System
No. | Specification | Technical Parameter | ||
1 | Working Pressure | 15Mpa | ||
2 | Device Model | QMD15/80 | QMD15/90 | |
3 | Capacity | 80Ltr | 90Ltr | |
4 | Filling Capacity of Gas | 14.25kg | 16.04kg | |
5 | Outside Diameter of Cylinder | Φ279mm | Φ325mm | |
6 | Height of Cylinder | 1578+73mm | 1345+60mm | |
7 | Spraying Time | ≤10s | ||
8 | Max Filling Rate | 0.178kg/L | ||
9 | Power | DC24V/1.6A | ||
10 | Nitrogen Pressure of Driving Device | 6.0±1.0Mpa(20℃) | ||
11 | Condition of Reserving Room for Container | temperature: 0~50℃ | ||
12 | Max Working Pressure | 17.2Mpa | ||
13 | Min Working Pressure | 13.6Mpa | ||
New Product ! ! ! No pollution, no residue, low cost of raw meterial……
IG-100 uses Nitrogen for a clean, safe and 100% ecological extinguishing. This gas is widely used in variety of extinguishing systems due to its excellent pressurization conditions.
In this case it complies with equal smothering efficiency by reducing the oxygen concentration to extinguish the fire, while leaving a percentage of oxygen suitable for occupied areas. Because of this feature, people can be protected where there is the possibility if they are in the enclosure area at the time of the fire, ensuring their safe evacuation both in terms of the level of oxygen in the room, and the absence of chemicals in the discharge. In addition, its physical and dispersion properties help maintain visibility during the evacuation.
In this case it complies with equal smothering efficiency by reducing the oxygen concentration to extinguish the fire, while leaving a percentage of oxygen suitable for occupied areas. Because of this feature, people can be protected where there is the possibility if they are in the enclosure area at the time of the fire, ensuring their safe evacuation both in terms of the level of oxygen in the room, and the absence of chemicals in the discharge. In addition, its physical and dispersion properties help maintain visibility during the evacuation.

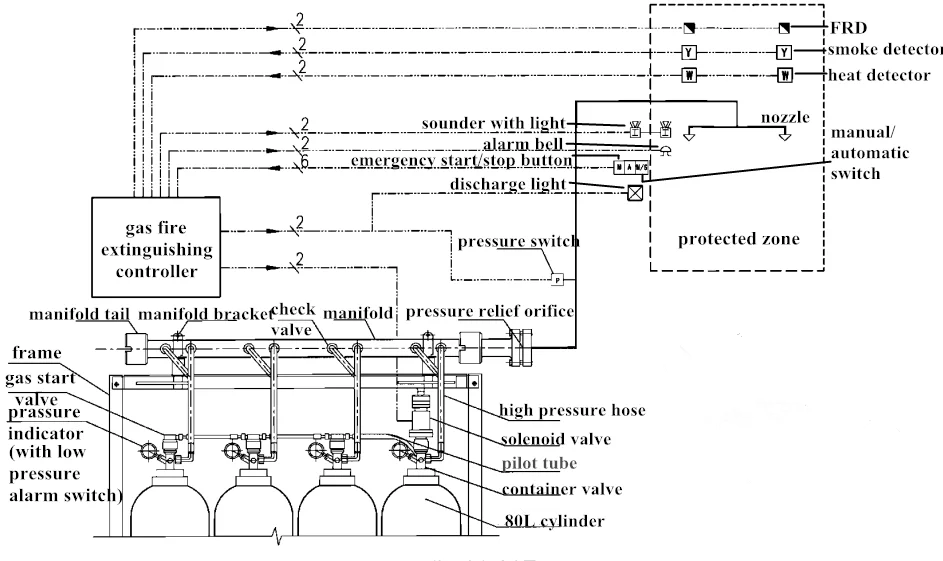

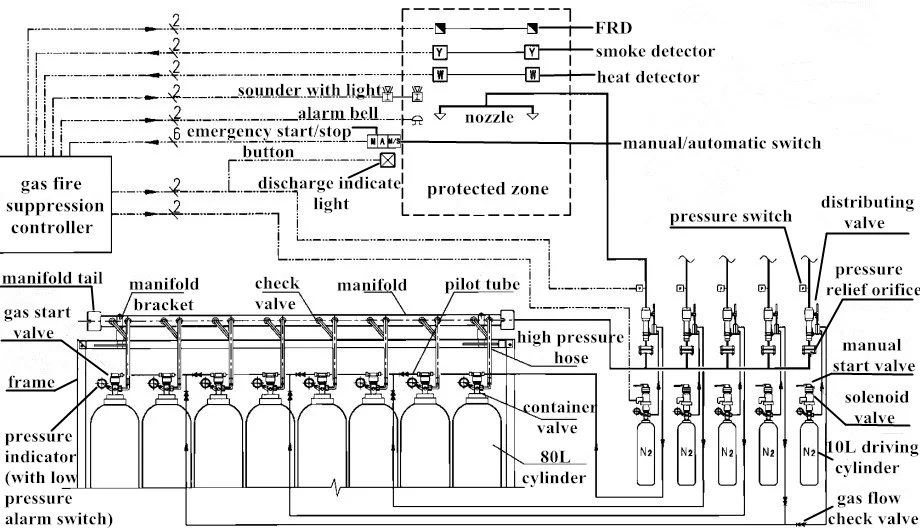

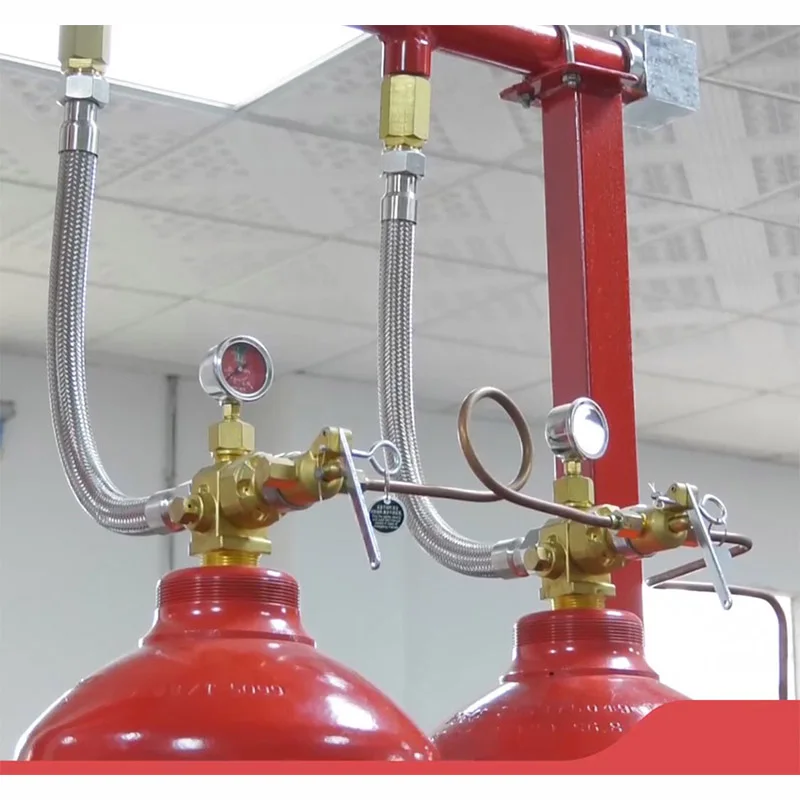

Detailed Images
Application
The following are typical hazards protected by INERGEN systems:
Computer rooms
Subfloors
Tape storage
Telecommunications/Switchgear
Vaults
Process equipment
All normally occupied or unoccupied areas where electronic equipment is either very sensitive or irreplaceable
Computer rooms
Subfloors
Tape storage
Telecommunications/Switchgear
Vaults
Process equipment
All normally occupied or unoccupied areas where electronic equipment is either very sensitive or irreplaceable
Advantages
Suitable for occupied areas
Electrically non – conductive
Chemically inert
Colourless, odourless and flavourless
No residue to clean up after the discharge
Zero Ozone Depletion Potential (ODP)
No greenhouse effect
No global warming impact
No decomposition products
No fog and no loss of post-discharge visibility
Non corrosive/toxic
Stored as a gas
Excellent post-discharge visibility
Very low refill cost.
Easy to obtain anywhere in the world
Electrically non – conductive
Chemically inert
Colourless, odourless and flavourless
No residue to clean up after the discharge
Zero Ozone Depletion Potential (ODP)
No greenhouse effect
No global warming impact
No decomposition products
No fog and no loss of post-discharge visibility
Non corrosive/toxic
Stored as a gas
Excellent post-discharge visibility
Very low refill cost.
Easy to obtain anywhere in the world
Related Products
Certificate
Environmental Management System Certificate
Occupational Health and Safety Management System Certificate
Quality Management System Certificate
Company Introduction
Guangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
• 5 years quality guarantee
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite Satisfactory.
• We provide 8×6 hrs technical support and service.
• Xingjin is running in a high efficiency management system
• Advanced equipments & professional engineers to promise all products are quite Satisfactory.
• We provide 8×6 hrs technical support and service.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
• We provide 8×6 hrs technical support and service.
FAQ
• Q: Are you a manufacturer or a trading company?
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, produce in accordance with per client's requirement.
• Q: Where is your factory located?how can i visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Very welcome you to come our factory.
A: We are a manufacturer.
• Q: Is the OEM order available?
A: Yes, produce in accordance with per client's requirement.
• Q: Where is your factory located?how can i visit there?
A: Our factory is located in Guangzhou, Guangdong province, China.
Very welcome you to come our factory.
