Portable 500kg capacity Refractory Pan mixers For mixing friction material

Share on (1601088552604):


Price:$7,600.00-8,200.00

Quantity:


Product Overview

Description



Product Description

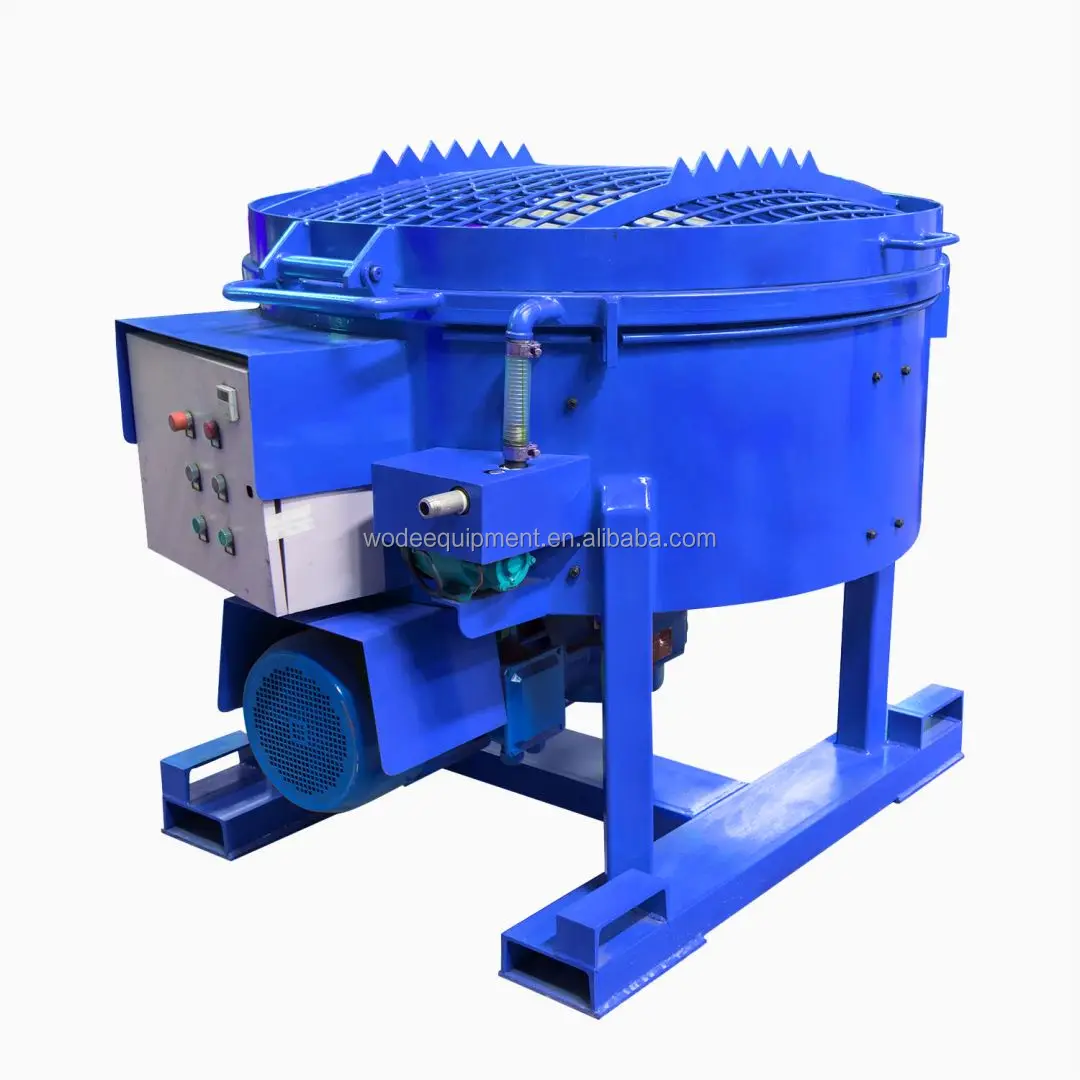

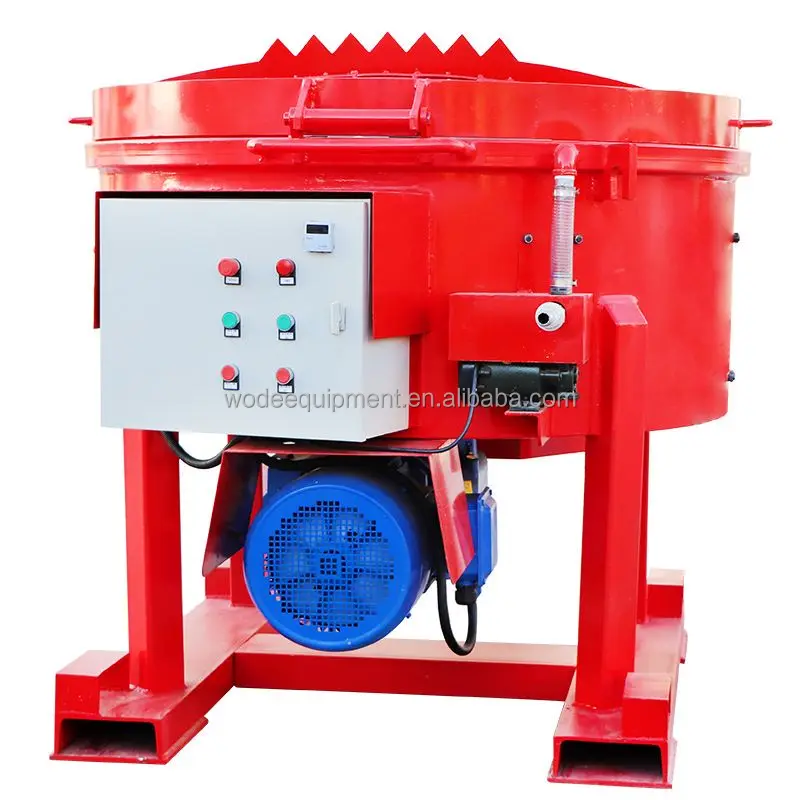

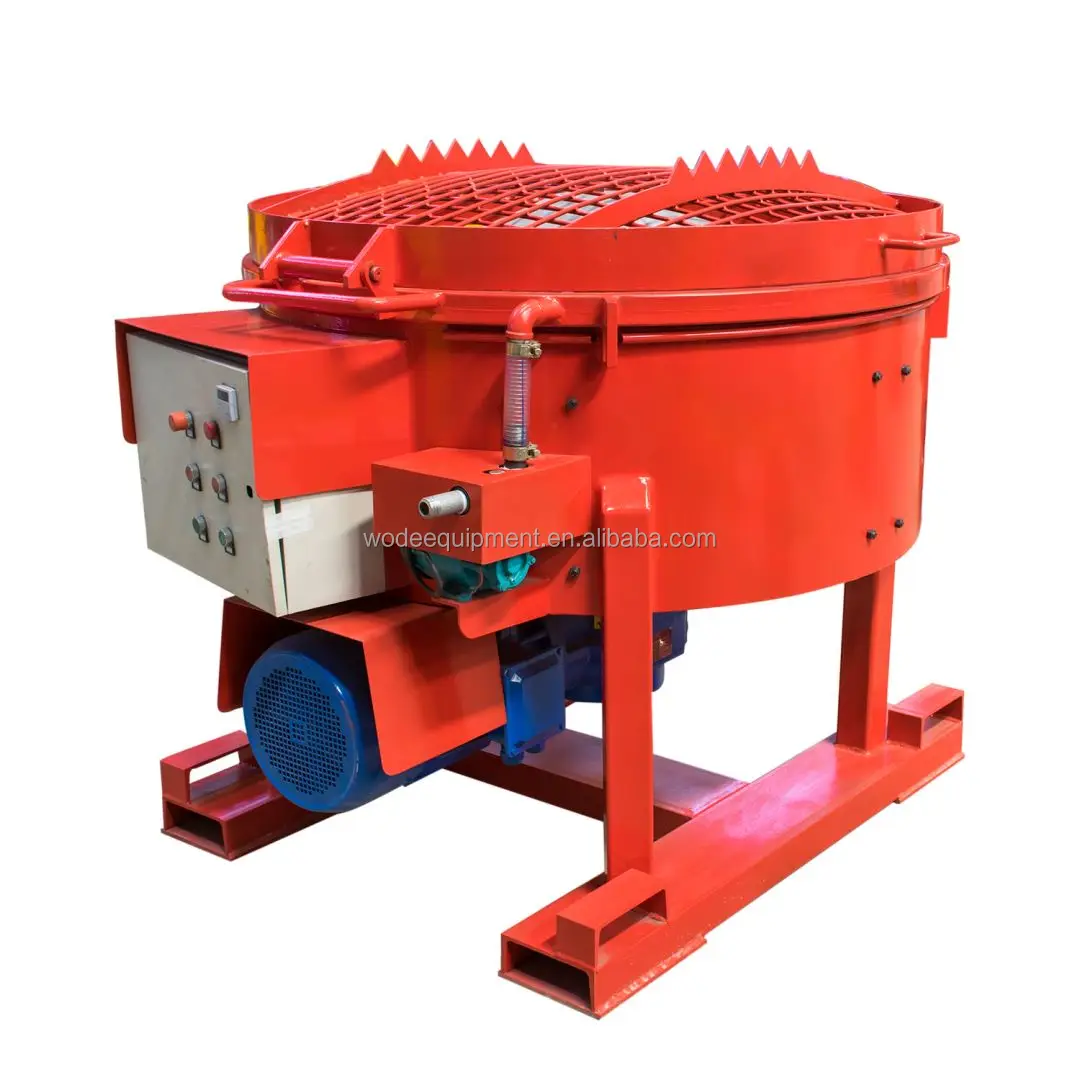

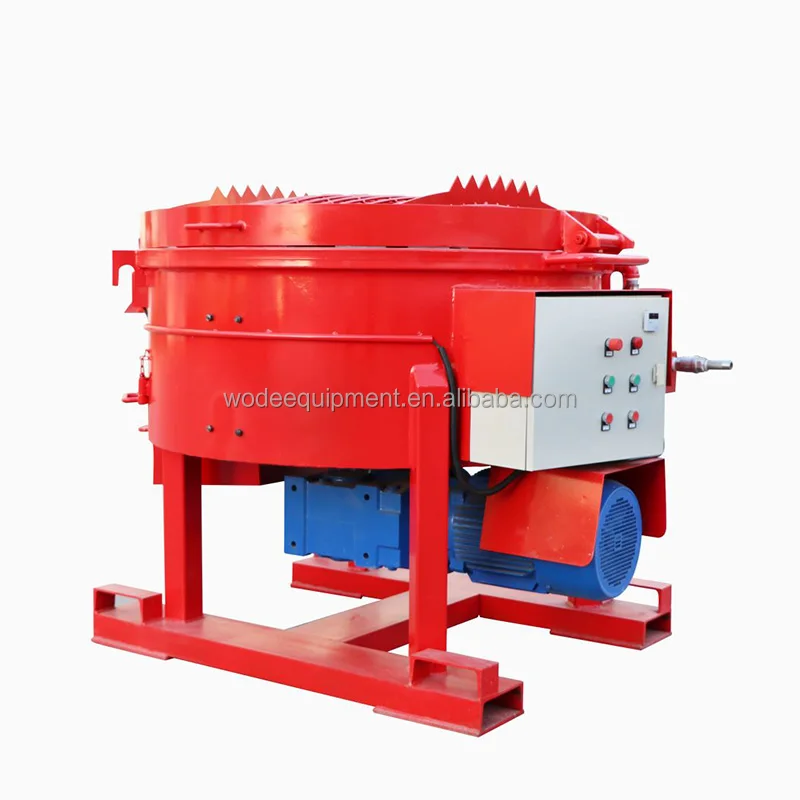

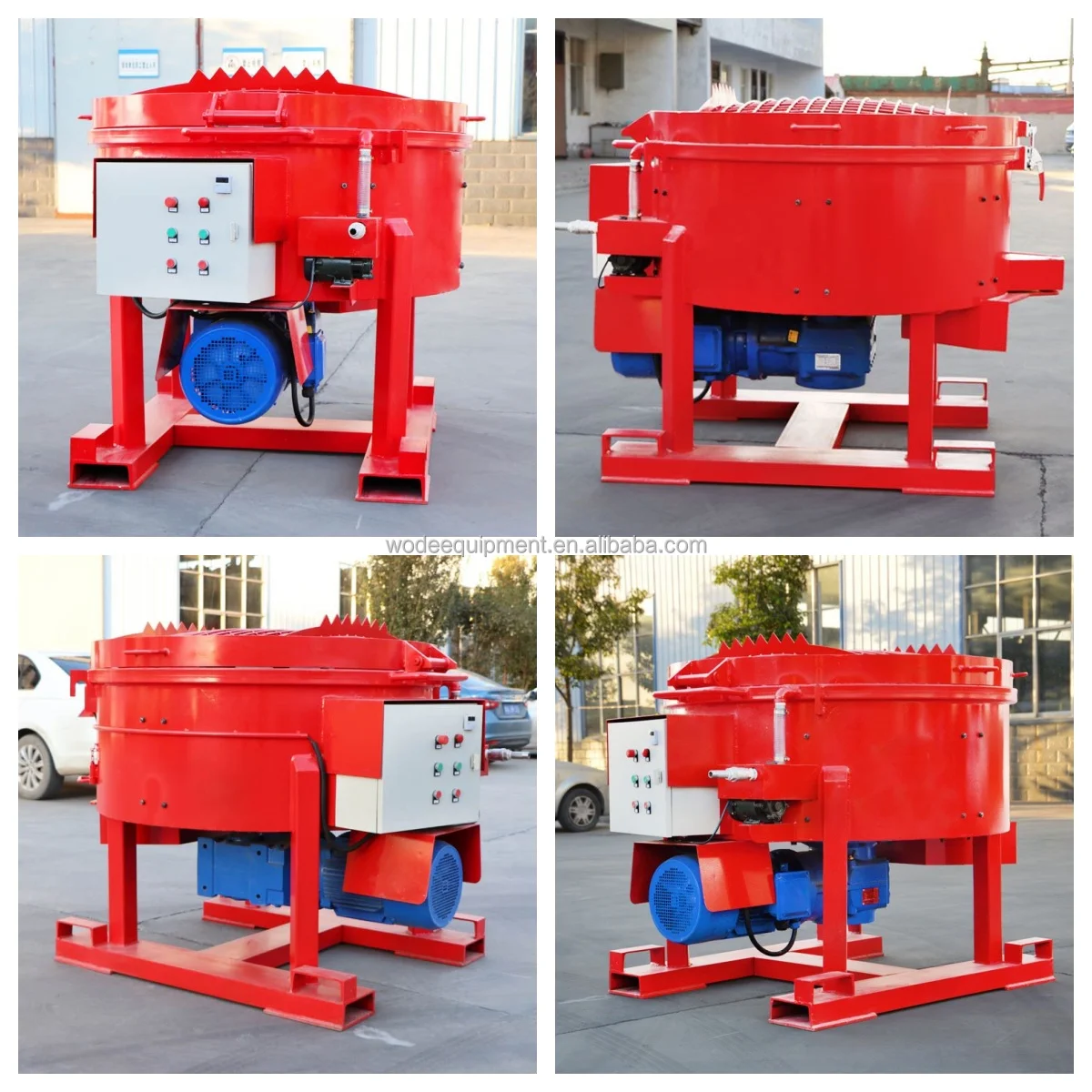

HWRM500 refractory pan mixer is specially designed for mixing refractory, castable materials, etc. Which is available in a stationary or practical mobile design, and is characterized by top performance. There is a high wear-resistant steel liner in the mixer bottom and inner wall, and five pieces of different purpose mixing arms could ensure refractory materials mix evenly and void sticking.


Product Paramenters


Model
HWRM500
Mixing capacity
500kg
Rotating speed
36rpm
Motor Power
11kw
Feeding Height
1300mm
Dimensions (mm)
1700x1250x1350
Weight
1010kg
Mixing capacity provides 100kg,250kg,500kg,800kg, and 1000kg for your choosing!


Application




HWRM500 refractory mixer is used for mixing refractory materials, castables, friction materials, chemical materials, precast concrete, mortar, aggregrate mixing and glass materials etc.


Product details and features


Limit Switch
1.Equiped with limit switch, could automatically stop work when cover is opened, protecting operator.
Wear resistant liner
2.Wear resistant liner in the mixing drum wall and bottom


Watar Pump
3.Equiped with water pump, could automatically supply water.
Soft start device
4. Equipped with soft start device in electric control box.


Contact Supplier


We are a refractory pan mixer manufacturer, and we can customize the machine according to your needs. To recommend suitable models for the refractory mixer to you, please let us know about your detailed requirements:
1. Which output do you need, 100kg, 500kg,or others?
2. Which voltage is right for you?
3. Do you have any special requirements for the machine?
